该博客介绍了如何在 SAP 中替换标准的 F.27 打印程序，以创建一个定制化的客户对账单。通过创建新的通信类型 ZSTU1，并使用 RFKORD11 打印程序，结合智能表单技术，实现了用户特定需求的输出。文章详细展示了关键代码段，并提供了用户配置参数的示例。

摘要生成于 C知道，由 DeepSeek-R1 满血版支持，前往体验 >

需求，定制化打印，替换标准的F.27打印

类似于采购订单的打印，但是略有不同，查阅资料之后步骤如下：

T-code F.27 is SAP standard program to produce customer/vendor correspondence (letter). Correspondence Type is used to specify the related printing program and form for the particular correspondence. SAP provides standard Corresponding Types, printing programs and forms that can be used as reference when customizing the required correspondence for business users.

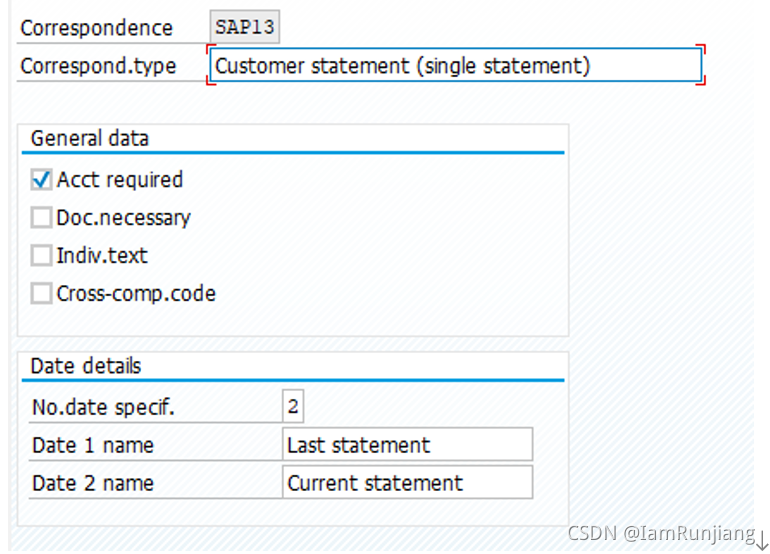

Correspondence Type SAP13 is the standard one for Customer Statement:

For User, we will create a new Correspondence Type ZSTU1.

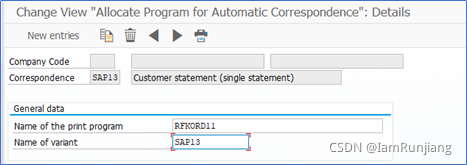

Standard printing program RFKORD11 is assigned to SAP13 with the program variant as well:

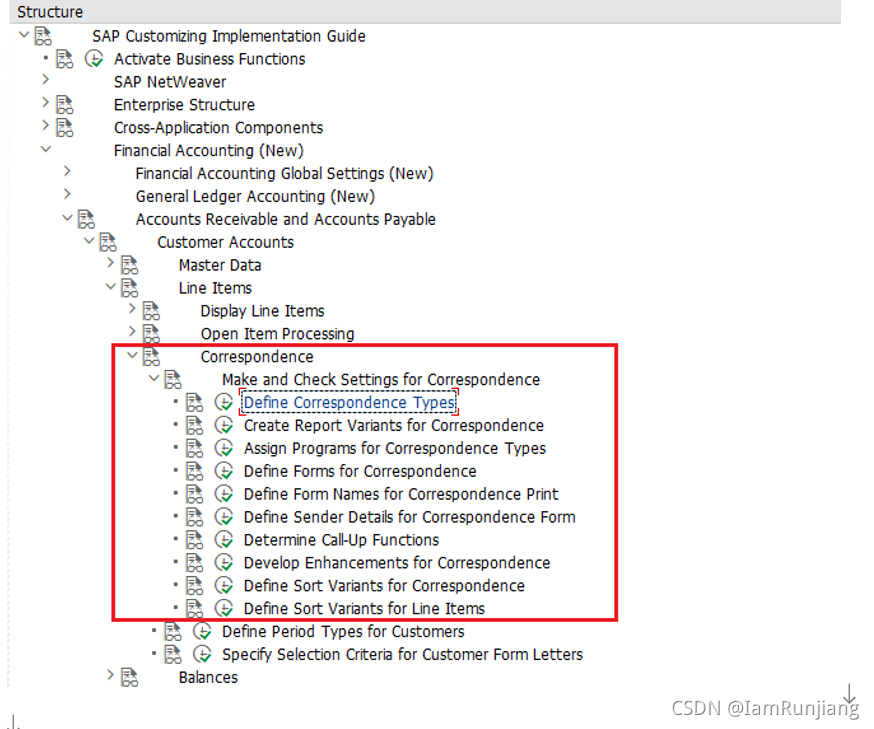

将上面的程序复制出来，替换进自己的打印代码。位置如下：

关键部分代码示例如下：

*-------------------------------------------自定义输出--------------------------------------------------------*
        IF BKORM-EVENT EQ 'SEG01'.
          DATA: LV_SSFCRESPD TYPE SSFCRESPD. "Smart Forms: 返回文档信息
          DATA: LW_OUTPUT_OPTIONS TYPE SSFCOMPOP .
          DATA: LV_FUNC_NAME          TYPE RS38L_FNAM, "数据元素
                LV_SMARTFORM          TYPE TDSFNAME,
                LV_CONTROL_PARAMETERS TYPE SSFCTRLOP. "Smart Forms: 控制结构
          DATA: LV_DOCUMENT_OUTPUT TYPE  SSFCRESPD,
                LV_JOB_OUTPUT      TYPE  SSFCRESCL,
                LV_JOB_OPTIONS     TYPE  SSFCRESOP.

          DATA: LS_HEAD  TYPE ZFIS_SF_CUSTOMER_HEAD.
          DATA: LS_ITEM  TYPE ZFIS_SF_CUSTOMER_ITEM.
          DATA: LS_BLANK TYPE ZFIS_SF_CUSTOMER_ITEM.
          DATA: LT_ITEM  TYPE STANDARD TABLE OF ZFIS_SF_CUSTOMER_ITEM.
          DATA: LT_BLANK TYPE STANDARD TABLE OF ZFIS_SF_CUSTOMER_ITEM.
          DATA: LV_BALANCE TYPE WRBTR.
          LS_HEAD-KUNNR = KNA1-KUNNR.
          LS_HEAD-NAME1 = KNA1-NAME1.
          LS_HEAD-STRAS = KNA1-STRAS.
          CONCATENATE KNA1-ORT01 ',' KNA1-REGIO ',' KNA1-PSTLZ ',' KNA1-LAND1 INTO LS_HEAD-ADDRESS.


          LOOP AT DOPOS.
            CLEAR:LS_ITEM.
            IF DOPOS-XBLNR IS NOT INITIAL.
              LS_ITEM-BELNR = DOPOS-XBLNR.
            ELSE.
              LS_ITEM-BELNR = DOPOS-BELNR.
            ENDIF.
            LS_ITEM-BLDAT = DOPOS-BLDAT.
            CASE DOPOS-BLART.
              WHEN 'DR' OR 'RV'.
                LS_ITEM-ZTEXT = 'Invoice'.
              WHEN 'DZ'.
                LS_ITEM-ZTEXT = 'Payment'.
              WHEN 'DG'.
                LS_ITEM-ZTEXT = 'Credit memo'.
              WHEN OTHERS.
            ENDCASE.

            LS_ITEM-SGTXT = DOPOS-SGTXT.
            LS_ITEM-WAERS = DOPOS-WAERS.
            IF DOPOS-SHKZG = 'S'.
              LS_ITEM-AMOUNT = DOPOS-WRBTR.
            ELSE.
              LS_ITEM-AMOUNT = DOPOS-WRBTR * -1.
            ENDIF.
            LV_BALANCE = LV_BALANCE + LS_ITEM-AMOUNT.
            LS_ITEM-BALANCE = LV_BALANCE.
            CONDENSE: LS_ITEM-BALANCE,LS_ITEM-AMOUNT.
            APPEND LS_ITEM TO LT_ITEM.
          ENDLOOP.

          IF LT_ITEM  IS NOT INITIAL .
            CLEAR LV_CONTROL_PARAMETERS.
            CALL FUNCTION 'SSF_FUNCTION_MODULE_NAME'
              EXPORTING
                FORMNAME           = 'ZFI_SF_CUSTOMER'
              IMPORTING
                FM_NAME            = LV_FUNC_NAME
              EXCEPTIONS
                NO_FORM            = 1
                NO_FUNCTION_MODULE = 2
                OTHERS             = 3.
            IF SY-SUBRC <> 0.
              MESSAGE ID SY-MSGID TYPE SY-MSGTY NUMBER SY-MSGNO
              WITH SY-MSGV1 SY-MSGV2 SY-MSGV3 SY-MSGV4.
            ENDIF.

            LV_CONTROL_PARAMETERS-NO_DIALOG = 'X'.
            LV_CONTROL_PARAMETERS-PREVIEW  = 'X'.
            CALL FUNCTION LV_FUNC_NAME
              EXPORTING
                CONTROL_PARAMETERS   = LV_CONTROL_PARAMETERS
                OUTPUT_OPTIONS       = LW_OUTPUT_OPTIONS
                LS_HEAD              = LS_HEAD
              IMPORTING
                DOCUMENT_OUTPUT_INFO = LV_DOCUMENT_OUTPUT
                JOB_OUTPUT_INFO      = LV_JOB_OUTPUT
                JOB_OUTPUT_OPTIONS   = LV_JOB_OPTIONS
              TABLES
                LT_ITEM              = LT_ITEM
              EXCEPTIONS
                FORMATTING_ERROR     = 1
                INTERNAL_ERROR       = 2
                SEND_ERROR           = 3
                USER_CANCELED        = 4
                OTHERS               = 5.
            IF SY-SUBRC <> 0.
              MESSAGE ID SY-MSGID TYPE SY-MSGTY NUMBER SY-MSGNO
                WITH SY-MSGV1 SY-MSGV2 SY-MSGV3 SY-MSGV4.
            ENDIF.
          ENDIF.
        ELSE.
          PERFORM CHECK_OUTPUT.                             "N854148
          PERFORM FORM_OPEN.
          PERFORM AUSGABE_KONTOAUSZUG.                   "#EC CI_SORTED
          PERFORM FORM_CLOSE.
          PERFORM PAYMED_PRINT_OPENCLOSE.
        ENDIF.
*-------------------------------------------自定义输出--------------------------------------------------------*

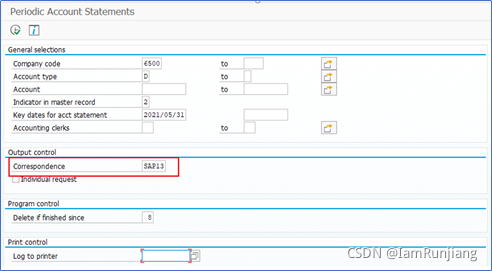

User will fill up the parameters like below:
