这篇内容并未debug
知识点1、GoogleNet的结构
知识点2、写大型网络的技巧
知识点3、batchnorm
知识点4、不改变图像长宽的s k p
知识点5、 torch.cat((), dim=1) 构造并联网络
知识点1

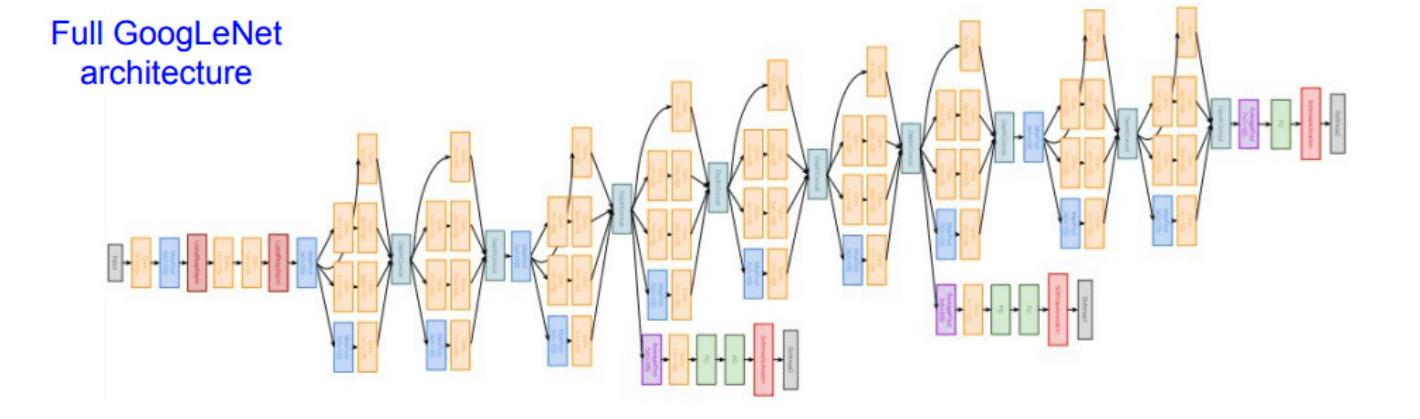

google net 的结构像是 电路中的 几个并联的串联
知识点2
对于一个大型的网络(GoogleNet)，可以先拆分为几个小的网络(inception)，先编好小的网络(inception)，然后用小的网络(inception)组成大网络(GoogleNet)。为了变好小网络(inception)，可以先编写一个更基础的小小网络(conv_relu)，以便可以灵活的调用小网络(inception)
import torch
import numpy as np
from torch.autograd import Variable
from torchvision.datasets import CIFAR10
from torch import nn
知识点3
nn.BatchNorm 批标准化，可以理解为对channel之间的数据处理方式
def conv_relu(in_channel, out_channel, kernel, stride=1, padding=0):
layer = nn.Sequential(
nn.conv2d(in_channel, out_channel, kernel, stride, padding),
nn.BatchNorm(out_channel, out_channel, eps=1e-3),
nn.ReLU(True)
)
return layer
知识点4
s = 1 时 k = 1 / k = 3 , padding=1 / k = 5, padding=2 这些情况下的卷积池化不改变图片高宽
知识点5
用out = torch.cat((f1, f2, f3, f4), dim=1) 这种方式 构造“并联”的网络， 记住
class inception(nn.Module):
def __init__(self, in_channels, out1_1, out2_1, out2_3, out3_1, out3_5, out4_1):
super(inception, self).__init__()
self.branch1x1 = conv_relu(in_channels, out1_1, 1)
self.branch2x2 = nn.Sequential(
conv_relu(in_channels, out2_1, 1),
conv_relu(out2_1, out2_3, 3, padding=1)
)
self.branch3x3 = nn.Sequential(
conv_relu(in_channel, out3_1, 1),
conv_relu(out3_1, out3_5, 5, padding=2)
)
self.branch_pool = nn.Sequential(
nn.MaxPool2d(3, stride=1, padding=1),
nn.conv_relu(in_channels, out4_1, 1)
)
def forward(self, x):
f1 = self.branch1x1(x)
f2 = self.branch2x2(x)
f3 = self.branch3x3(x)
f4 = self.branch_pool(x)
out = torch.cat((f1, f2, f3, f4), dim=1) # 记住在这里插入代码片
return output
验证
test_net = inception(3, 64, 48, 64, 64, 96, 32)
test_x = Variable(torch.zeros(5, 3, 96, 96))
print('input shape: {} x {} x {} x {}'.format(test_x.shape[0], test_x.shape[1], test_x.shape[2], test_x.shape[3]))
test_y = test_net(test_x)
print('output shape: {} x {} x {} x {}'.format(test_y.shape[0], test_y.shape[1], test_y.shape[2], test_y.shape[3]))
class googlenet(nn.Module):
def __init__(self, in_channel, num_classes, verbose=False):
super(googlenet, self).__init__()
self.verbose = verbose
self.block1 = nn.Sequential(
conv_relu(in_channel, out_channel=64, kernel=7, stride=2, padding=3),
nn.MaxPool2d(3, 2)
)
self.block2 = nn.Sequential(
conv_relu(64, 64, kernel=1),
conv_relu(64, 192, kernel=3, padding=1),
nn.MaxPool2d(3, 2)
)
self.block3 = nn.Sequential(
inception(192, 64, 96, 128, 16, 32, 32),
inception(256, 128, 128, 192, 32, 96, 64),
nn.MaxPool2d(3, 2)
)
self.block4 = nn.Sequential(
inception(480, 192, 96, 208, 16, 48, 64),
inception(512, 160, 112, 224, 24, 64, 64),
inception(512, 128, 128, 256, 24, 64, 64),
inception(512, 112, 114, 288, 32, 64, 64),
inception(528, 256, 160, 320, 32, 128, 128),
nn.MaxPool2d(3, 2)
)
self.block5 = nn.Sequential(
inception(832, 256, 160, 320, 32, 128, 128),
inception(832, 384, 182, 384, 48, 128, 128),
nn.AvgPool2d(2)
)
self.classifier = nn.Linear(1024, num_classes)
def forward(self, x):
x = self.block1(x)
if self.verbose:
print('block 1 output: {}'.format(x.shape))
x = self.block2(x)
if self.verbose:
print('block 2 output: {}'.format(x.shape))
x = self.block3(x)
if self.verbose:
print('block 3 output: {}'.format(x.shape))
x = self.block4(x)
if self.verbose:
print('block 4 output: {}'.format(x.shape))
x = self.block5(x)
if self.verbose:
print('block 5 output: {}'.format(x.shape))
x = x.view(x.shape[0], -1)
x = self.classifier(x)
return x
test_net = googlenet(3, 10, True)
test_x = Variable(torch.zeros(1, 3, 96, 96))
test_y = test_net(test_x)
print('output: {}'.format(test_y.shape))
def data_tf(x):
x = x.resize((96, 96), 2)
x = np.array(x, dtype='float32') / 255
x = (x - 0.5) / 0.5
x = x.transpose((2, 0, 1))
x = torch.from_numpy(x)
return x
from torch.utils.data import DataLoader
from jc_utils import train
train_set = CIFAR10('./data', train=True, transform=data_tf)
train_data = DataLoader(train_set, batch_size=64, shuffle=True)
test_set = CIFAR10('./data', train=False, transform=data_tf)
test_data = DataLoader(test_set, batch_size=128, shuffle=False)
net = googlenet(3, 10)
optimizer = torch.optim.SGD(net.parameters(), lr=0.01)
criterion = nn.CrossEntropyLoss()
train(net, train_data, test_data, 20, optimizer, criterion)
完整代码，如果需要，请用这部分代码
import torch
import numpy as np
from torch import nn
from torch.autograd import Variable
from torchvision.datasets import CIFAR10
def conv_relu(in_channle, out_channel, kernel, stride=1, padding=0):
layer = nn.Sequential(
nn.Conv2d(in_channle, out_channel, kernel, stride, padding),
nn.BatchNorm2d(out_channel, eps=1e-3),
nn.ReLU(True)
)
return layer
class inception(nn.Module):
def __init__(self, in_channels, out1_1, out2_1, out2_3, out3_1, out3_5, out4_1):
super(inception, self).__init__()
self.branch1x1 = conv_relu(in_channels, out1_1, 1)
self.branch3x3 = nn.Sequential(
conv_relu(in_channels, out2_1, 1),
conv_relu(out2_1, out2_3, 3, padding=1)
)
self.branch5x5 = nn.Sequential(
conv_relu(in_channels, out3_1, 1),
conv_relu(out3_1, out3_5, 5, padding=2)
)
self.branch_pool = nn.Sequential(
nn.MaxPool2d(3, stride=1, padding=1),
conv_relu(in_channels, out4_1, 1)
)
def forward(self, x):
f1 = self.branch1x1(x)
f2 = self.branch3x3(x)
f3 = self.branch5x5(x)
f4 = self.branch_pool(x)
output = torch.cat((f1, f2, f3, f4), dim=1)
return output
test_net = inception(3, 64, 48, 64, 64, 96, 32)
test_x = Variable(torch.zeros(5, 3, 96, 96))
print('input shape: {} x {} x {} x {}'.format(test_x.shape[0], test_x.shape[1], test_x.shape[2], test_x.shape[3]))
test_y = test_net(test_x)
print('output shape: {} x {} x {} x {}'.format(test_y.shape[0], test_y.shape[1], test_y.shape[2], test_y.shape[3]))
class googlenet(nn.Module):
def __init__(self, in_channel, num_classes, verbose=False):
super(googlenet, self).__init__()
self.verbose = verbose
self.block1 = nn.Sequential(
conv_relu(in_channel, out_channel=64, kernel=7, stride=2, padding=3),
nn.MaxPool2d(3, 2)
)
self.block2 = nn.Sequential(
conv_relu(64, 64, kernel=1),
conv_relu(64, 192, kernel=3, padding=1),
nn.MaxPool2d(3, 2)
)
self.block3 = nn.Sequential(
inception(192, 64, 96, 128, 16, 32, 32),
inception(256, 128, 128, 192, 32, 96, 64),
nn.MaxPool2d(3, 2)
)
self.block4 = nn.Sequential(
inception(480, 192, 96, 208, 16, 48, 64),
inception(512, 160, 112, 224, 24, 64, 64),
inception(512, 128, 128, 256, 24, 64, 64),
inception(512, 112, 114, 288, 32, 64, 64),
inception(528, 256, 160, 320, 32, 128, 128),
nn.MaxPool2d(3, 2)
)
self.block5 = nn.Sequential(
inception(832, 256, 160, 320, 32, 128, 128),
inception(832, 384, 182, 384, 48, 128, 128),
nn.AvgPool2d(2)
)
self.classifier = nn.Linear(1024, num_classes)
def forward(self, x):
x = self.block1(x)
if self.verbose:
print('block 1 output: {}'.format(x.shape))
x = self.block2(x)
if self.verbose:
print('block 2 output: {}'.format(x.shape))
x = self.block3(x)
if self.verbose:
print('block 3 output: {}'.format(x.shape))
x = self.block4(x)
if self.verbose:
print('block 4 output: {}'.format(x.shape))
x = self.block5(x)
if self.verbose:
print('block 5 output: {}'.format(x.shape))
x = x.view(x.shape[0], -1)
x = self.classifier(x)
return x
test_net = googlenet(3, 10, True)
test_x = Variable(torch.zeros(1, 3, 96, 96))
test_y = test_net(test_x)
print('output: {}'.format(test_y.shape))
def data_tf(x):
x = x.resize((96, 96), 2)
x = np.array(x, dtype='float32') / 255
x = (x - 0.5) / 0.5
x = x.transpose((2, 0, 1))
x = torch.from_numpy(x)
return x
from torch.utils.data import DataLoader
from jc_utils import train
train_set = CIFAR10('./data', train=True, transform=data_tf)
train_data = DataLoader(train_set, batch_size=64, shuffle=True)
test_set = CIFAR10('./data', train=False, transform=data_tf)
test_data = DataLoader(test_set, batch_size=128, shuffle=False)
net = googlenet(3, 10)
optimizer = torch.optim.SGD(net.parameters(), lr=0.01)
criterion = nn.CrossEntropyLoss()
train(net, train_data, test_data, 20, optimizer, criterion)
