CefBrowser
用于表示浏览器窗口的类。 在browser进程中使用时除非在注释中另有说明,否则可以在任何线程上调用此类的方法。 在renderer进程中使用时,此类的方法只能在主线程上调用。
CefBrowser是浏览器窗口类,相当于浏览器的外壳框架窗口,包含向前、向后、加载、获取内部frame的等方法。调用CefBrowserHost的静态方法创建一个CefBrowser对象,表示一个网页窗口。
// Class used to represent a browser window. When used in the browser process
// the methods of this class may be called on any thread unless otherwise
// indicated in the comments. When used in the render process the methods of
// this class may only be called on the main thread.
///
/*--cef(source=library)--*/
class CefBrowser : public virtual CefBaseRefCounted {
public:
///
// Returns the browser host object. This method can only be called in the
// browser process.
///
/*--cef()--*/
virtual CefRefPtr<CefBrowserHost> GetHost() = 0;
///
// Returns true if the browser can navigate backwards.
///
/*--cef()--*/
virtual bool CanGoBack() = 0;
///
// Navigate backwards.
///
/*--cef()--*/
virtual void GoBack() = 0;
///
// Returns true if the browser can navigate forwards.
///
/*--cef()--*/
virtual bool CanGoForward() = 0;
///
// Navigate forwards.
///
/*--cef()--*/
virtual void GoForward() = 0;
///
// Returns true if the browser is currently loading.
///
/*--cef()--*/
virtual bool IsLoading() = 0;
///
// Reload the current page.
///
/*--cef()--*/
virtual void Reload() = 0;
///
// Reload the current page ignoring any cached data.
///
/*--cef()--*/
virtual void ReloadIgnoreCache() = 0;
///
// Stop loading the page.
///
/*--cef()--*/
virtual void StopLoad() = 0;
///
// Returns the globally unique identifier for this browser. This value is also
// used as the tabId for extension APIs.
///
/*--cef()--*/
virtual int GetIdentifier() = 0;
///
// Returns true if this object is pointing to the same handle as |that|
// object.
///
/*--cef()--*/
virtual bool IsSame(CefRefPtr<CefBrowser> that) = 0;
///
// Returns true if the window is a popup window.
///
/*--cef()--*/
virtual bool IsPopup() = 0;
///
// Returns true if a document has been loaded in the browser.
///
/*--cef()--*/
virtual bool HasDocument() = 0;
///
// Returns the main (top-level) frame for the browser window.
///
/*--cef()--*/
virtual CefRefPtr<CefFrame> GetMainFrame() = 0;
///
// Returns the focused frame for the browser window.
///
/*--cef()--*/
virtual CefRefPtr<CefFrame> GetFocusedFrame() = 0;
///
// Returns the frame with the specified identifier, or NULL if not found.
///
/*--cef(capi_name=get_frame_byident)--*/
virtual CefRefPtr<CefFrame> GetFrame(int64 identifier) = 0;
///
// Returns the frame with the specified name, or NULL if not found.
///
/*--cef(optional_param=name)--*/
virtual CefRefPtr<CefFrame> GetFrame(const CefString& name) = 0;
///
// Returns the number of frames that currently exist.
///
/*--cef()--*/
virtual size_t GetFrameCount() = 0;
///
// Returns the identifiers of all existing frames.
///
/*--cef(count_func=identifiers:GetFrameCount)--*/
virtual void GetFrameIdentifiers(std::vector<int64>& identifiers) = 0;
///
// Returns the names of all existing frames.
///
/*--cef()--*/
virtual void GetFrameNames(std::vector<CefString>& names) = 0;
};
CefBrowserHost
用于表示浏览器窗口的浏览器过程方面的类。 此类的方法只能在浏览器进程中调用。没有特殊说明, 可以在该进程中的任何线程上调用。
CefBrowserHost是CefBrowser的一个主对象,CefBrowser中有方法:
virtual CefRefPtr<CefBrowserHost> GetHost() = 0;返回CefBrowser的主CefBrowserHost对象。
然而CefBrowser对象又是通过CefBrowserHost类的静态方法来创建的。CefBrowserHost类包含一些CefBrowser操作方法,相当于是控制类,可以控制CefBrowser的创建、获取、关闭;获取打开CefBrowser窗口的窗口句柄、请求上下文(RequestContext);下载、查找、鼠标、键盘触发事件、焦点控制、拖拽事件等。
// Class used to represent the browser process aspects of a browser window. The
// methods of this class can only be called in the browser process. They may be
// called on any thread in that process unless otherwise indicated in the
// comments.
///
/*--cef(source=library)--*/
class CefBrowserHost : public virtual CefBaseRefCounted {
public:
typedef cef_drag_operations_mask_t DragOperationsMask;
typedef cef_file_dialog_mode_t FileDialogMode;
typedef cef_mouse_button_type_t MouseButtonType;
typedef cef_paint_element_type_t PaintElementType;
///
// Create a new browser window using the window parameters specified by
// |windowInfo|. All values will be copied internally and the actual window
// will be created on the UI thread. If |request_context| is empty the
// global request context will be used. This method can be called on any
// browser process thread and will not block. The optional |extra_info|
// parameter provides an opportunity to specify extra information specific
// to the created browser that will be passed to
// CefRenderProcessHandler::OnBrowserCreated() in the render process.
///
/*--cef(optional_param=client,optional_param=url,
optional_param=request_context,optional_param=extra_info)--*/
static bool CreateBrowser(const CefWindowInfo& windowInfo,
CefRefPtr<CefClient> client,
const CefString& url,
const CefBrowserSettings& settings,
CefRefPtr<CefDictionaryValue> extra_info,
CefRefPtr<CefRequestContext> request_context);
......
};
CefFrame
每个CefBrowser窗口包含一个主CefFrame对象和若干个子Frame对象。主CefFrame相当于网页的主界面,子CefFrame相当于主页面的子页面。CefFrame包含获取网页上的文字、HTML源码字符串、网页名字标题、加载的url、所属的CefBrowser指针、V8Context等。还可以用LoadURL或LoadRequest加载页面。
///
// Class used to represent a frame in the browser window. When used in the
// browser process the methods of this class may be called on any thread unless
// otherwise indicated in the comments. When used in the render process the
// methods of this class may only be called on the main thread.
///
/*--cef(source=library)--*/
class CefFrame : public virtual CefBaseRefCounted {
public:
///
// True if this object is currently attached to a valid frame.
///
/*--cef()--*/
virtual bool IsValid() = 0;
///
// Execute undo in this frame.
///
/*--cef()--*/
virtual void Undo() = 0;
///
// Execute redo in this frame.
///
/*--cef()--*/
virtual void Redo() = 0;
///
// Execute cut in this frame.
///
/*--cef()--*/
virtual void Cut() = 0;
///
// Execute copy in this frame.
///
/*--cef()--*/
virtual void Copy() = 0;
///
// Execute paste in this frame.
///
/*--cef()--*/
virtual void Paste() = 0;
///
// Execute delete in this frame.
///
/*--cef(capi_name=del)--*/
virtual void Delete() = 0;
///
// Execute select all in this frame.
///
/*--cef()--*/
virtual void SelectAll() = 0;
///
// Save this frame's HTML source to a temporary file and open it in the
// default text viewing application. This method can only be called from the
// browser process.
///
/*--cef()--*/
virtual void ViewSource() = 0;
///
// Retrieve this frame's HTML source as a string sent to the specified
// visitor.
///
/*--cef()--*/
virtual void GetSource(CefRefPtr<CefStringVisitor> visitor) = 0;
///
// Retrieve this frame's display text as a string sent to the specified
// visitor.
///
/*--cef()--*/
virtual void GetText(CefRefPtr<CefStringVisitor> visitor) = 0;
///
// Load the request represented by the |request| object.
//
// WARNING: This method will fail with "bad IPC message" reason
// INVALID_INITIATOR_ORIGIN (213) unless you first navigate to the
// request origin using some other mechanism (LoadURL, link click, etc).
///
/*--cef()--*/
virtual void LoadRequest(CefRefPtr<CefRequest> request) = 0;
///
// Load the specified |url|.
///
/*--cef()--*/
virtual void LoadURL(const CefString& url) = 0;
///
// Execute a string of JavaScript code in this frame. The |script_url|
// parameter is the URL where the script in question can be found, if any.
// The renderer may request this URL to show the developer the source of the
// error. The |start_line| parameter is the base line number to use for error
// reporting.
///
/*--cef(optional_param=script_url)--*/
virtual void ExecuteJavaScript(const CefString& code,
const CefString& script_url,
int start_line) = 0;
///
// Returns true if this is the main (top-level) frame.
///
/*--cef()--*/
virtual bool IsMain() = 0;
///
// Returns true if this is the focused frame.
///
/*--cef()--*/
virtual bool IsFocused() = 0;
///
// Returns the name for this frame. If the frame has an assigned name (for
// example, set via the iframe "name" attribute) then that value will be
// returned. Otherwise a unique name will be constructed based on the frame
// parent hierarchy. The main (top-level) frame will always have an empty name
// value.
///
/*--cef()--*/
virtual CefString GetName() = 0;
///
// Returns the globally unique identifier for this frame or < 0 if the
// underlying frame does not yet exist.
///
/*--cef()--*/
virtual int64 GetIdentifier() = 0;
///
// Returns the parent of this frame or NULL if this is the main (top-level)
// frame.
///
/*--cef()--*/
virtual CefRefPtr<CefFrame> GetParent() = 0;
///
// Returns the URL currently loaded in this frame.
///
/*--cef()--*/
virtual CefString GetURL() = 0;
///
// Returns the browser that this frame belongs to.
///
/*--cef()--*/
virtual CefRefPtr<CefBrowser> GetBrowser() = 0;
///
// Get the V8 context associated with the frame. This method can only be
// called from the render process.
///
/*--cef()--*/
virtual CefRefPtr<CefV8Context> GetV8Context() = 0;
///
// Visit the DOM document. This method can only be called from the render
// process.
///
/*--cef()--*/
virtual void VisitDOM(CefRefPtr<CefDOMVisitor> visitor) = 0;
///
// Create a new URL request that will be treated as originating from this
// frame and the associated browser. This request may be intercepted by the
// client via CefResourceRequestHandler or CefSchemeHandlerFactory. Use
// CefURLRequest::Create instead if you do not want the request to have this
// association, in which case it may be handled differently (see documentation
// on that method). Requests may originate from both the browser process and
// the render process.
//
// For requests originating from the browser process:
// - POST data may only contain a single element of type PDE_TYPE_FILE or
// PDE_TYPE_BYTES.
// For requests originating from the render process:
// - POST data may only contain a single element of type PDE_TYPE_BYTES.
// - If the response contains Content-Disposition or Mime-Type header values
// that would not normally be rendered then the response may receive
// special handling inside the browser (for example, via the file download
// code path instead of the URL request code path).
//
// The |request| object will be marked as read-only after calling this method.
///
/*--cef()--*/
virtual CefRefPtr<CefURLRequest> CreateURLRequest(
CefRefPtr<CefRequest> request,
CefRefPtr<CefURLRequestClient> client) = 0;
///
// Send a message to the specified |target_process|. Message delivery is not
// guaranteed in all cases (for example, if the browser is closing,
// navigating, or if the target process crashes). Send an ACK message back
// from the target process if confirmation is required.
///
/*--cef()--*/
virtual void SendProcessMessage(CefProcessId target_process,
CefRefPtr<CefProcessMessage> message) = 0;
};
#endif // CEF_INCLUDE_CEF_FRAME_H_
CefBrowser和CefFrame对象被用来发送命令给浏览器以及在回调函数里获取状态信息。每个CefBrowser对象包含一个主CefFrame对象,主CefFrame对象代表页面的顶层frame;同时每个CefBrowser对象可以包含零个或多个的CefFrame对象,分别代表不同的子Frame。例如,一个浏览器加载了两个iframe,则该CefBrowser对象拥有三个CefFrame对象(顶层frame和两个iframe)。
下面的代码在浏览器的主frame里加载一个URL:
browser->GetMainFrame()->LoadURL(some_url);
下面的代码执行浏览器的回退操作:
browser->GoBack();
CefBrowser和CefFrame对象在Browser进程和Render进程都有对等的代理对象。在Browser进程里,Host(宿主)行为控制可以通过CefBrowser::GetHost()方法控制。例如,浏览器窗口的原生句柄可以用下面的代码获取:
// CefWindowHandle is defined as HWND on Windows, NSView* on Mac OS X
// and GtkWidget* on Linux.
CefWindowHandle window_handle = browser->GetHost()->GetWindowHandle();
Browser生命周期(Browser Life Span)

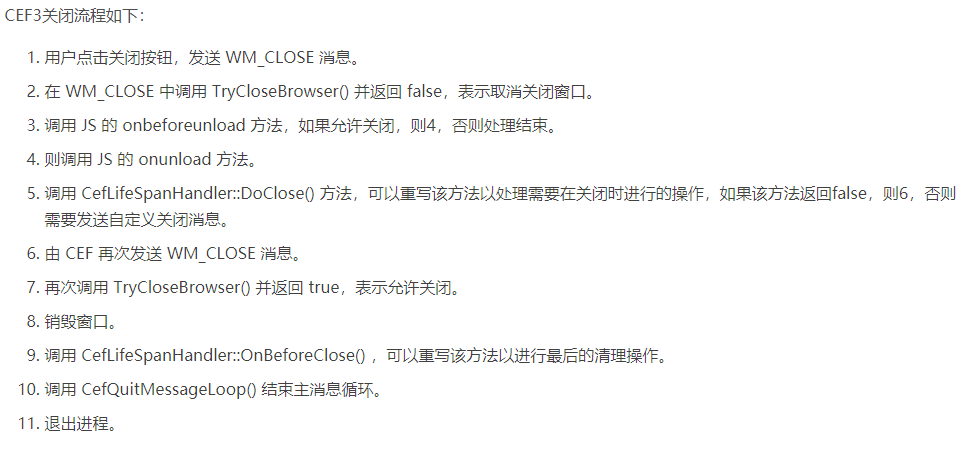

cef关闭流程:
Browser生命周期从执行 CefBrowserHost::CreateBrowser() 或者 CefBrowserHost::CreateBrowserSync() 开始。可以在CefBrowserProcessHandler::OnContextInitialized() 回调或者特殊平台例如windows的WM_CREATE 中方便的执行业务逻辑。
当Browser对象创建后OnAfterCreated() 方法立即执行。宿主程序可以用这个方法来保持对Browser对象的引用。
// List of existing browser windows. Only accessed on the CEF UI thread.
typedef std::list<CefRefPtr<CefBrowser>> BrowserList;
BrowserList browser_list_;
void SimpleHandler::OnAfterCreated(CefRefPtr<CefBrowser> browser) {
CEF_REQUIRE_UI_THREAD();
// Add to the list of existing browsers.
browser_list_.push_back(browser);
}
执行CefBrowserHost::CloseBrowser()销毁Browser对象。
// Notify the browser window that we would like to close it. This will result in a call to
// MyHandler::DoClose() if the JavaScript 'onbeforeunload' event handler allows it.
browser->GetHost()->CloseBrowser(false);
Browser对象的关闭事件来源于他的父窗口的关闭方法(比如,在父窗口上点击X控钮。)。父窗口需要调用 CloseBrowser(false) 并且等待操作系统的第二个关闭事件来决定是否允许关闭。如果在JavaScript 'onbeforeunload'事件处理或者 DoClose()回调中取消了关闭操作,则操作系统的第二个关闭事件可能不会发送。注意一下面示例中对IsCloseing()的判断-它在第一个关闭事件中返回false,在第二个关闭事件中返回true(当 DoCloase 被调用后)。
Windows平台下,在父窗口的WndProc里处理WM_ClOSE消息
case WM_CLOSE:
if (g_handler.get() && !g_handler->IsClosing()) {
CefRefPtr<CefBrowser> browser = g_handler->GetBrowser();
if (browser.get()) {
// Notify the browser window that we would like to close it. This will result in a call to
// MyHandler::DoClose() if the JavaScript 'onbeforeunload' event handler allows it.
browser->GetHost()->CloseBrowser(false);
// Cancel the close.
return 0;
}
}
// Allow the close.
break;
case WM_DESTROY:
// Quitting CEF is handled in MyHandler::OnBeforeClose().
return 0;
}
DoClose方法设置is_closing_ 标志位为true,并返回false以再次发送操作系统的关闭事件。
bool SimpleHandler::DoClose(CefRefPtr<CefBrowser> browser) {
CEF_REQUIRE_UI_THREAD();
// Closing the main window requires special handling. See the DoClose()
// documentation in the CEF header for a detailed destription of this
// process.
if (browser_list_.size() == 1) {
// Set a flag to indicate that the window close should be allowed.
is_closing_ = true;
}
// Allow the close. For windowed browsers this will result in the OS close
// event being sent.
return false;
}
当操作系统捕捉到第二次关闭事件,它才会允许父窗口真正关闭。该动作会先触发OnBeforeClose()回调,请在该回调里释放所有对浏览器对象的引用。
void SimpleHandler::OnBeforeClose(CefRefPtr<CefBrowser> browser) {
CEF_REQUIRE_UI_THREAD();
// Remove from the list of existing browsers.
BrowserList::iterator bit = browser_list_.begin();
for (; bit != browser_list_.end(); ++bit) {
if ((*bit)->IsSame(browser)) {
browser_list_.erase(bit);
break;
}
}
if (browser_list_.empty()) {
// All browser windows have closed. Quit the application message loop.
CefQuitMessageLoop();
}
}
CefApp
CefApp是应用程序类,网页嵌入程序都要实现这样一个应用程序类。提供了一些简单的接口:命令行参数修改,主题修改,获取进程句柄等。还有很多的子类,例如SimpleApp、ClientApp等,clientapp又有很多子类ClientAppBrowser、ClientAppRenderer、ClientAppOther,表示不同的应用类型。
CefApp接口提供了不同进程的可定制回调函数。重要的回调函数如下:
- OnBeforeCommandLineProcessing 提供了以编程方式设置命令行参数的机会,更多细节,请参考Command Line Arguments一节。
- OnRegisterCustomSchemes 提供了注册自定义schemes的机会,更多细节,请参考Request Handling一节。
- GetBrowserProcessHandler 返回定制Browser进程的Handler,该Handler包括了诸如OnContextInitialized的回调。
- GetRenderProcessHandler 返回定制Render进程的Handler,该Handler包含了JavaScript相关的一些回调以及消息处理的回调。 更多细节,请参考JavascriptIntegration和Inter-Process Communication两节。
// Implement this interface to provide handler implementations. Methods will be
// called by the process and/or thread indicated.
///
/*--cef(source=client,no_debugct_check)--*/
class CefApp : public virtual CefBaseRefCounted {
public:
///
// Provides an opportunity to view and/or modify command-line arguments before
// processing by CEF and Chromium. The |process_type| value will be empty for
// the browser process. Do not keep a reference to the CefCommandLine object
// passed to this method. The CefSettings.command_line_args_disabled value
// can be used to start with an empty command-line object. Any values
// specified in CefSettings that equate to command-line arguments will be set
// before this method is called. Be cautious when using this method to modify
// command-line arguments for non-browser processes as this may result in
// undefined behavior including crashes.
///
/*--cef(optional_param=process_type)--*/
virtual void OnBeforeCommandLineProcessing(
const CefString& process_type,
CefRefPtr<CefCommandLine> command_line) {}
///
// Provides an opportunity to register custom schemes. Do not keep a reference
// to the |registrar| object. This method is called on the main thread for
// each process and the registered schemes should be the same across all
// processes.
///
/*--cef()--*/
virtual void OnRegisterCustomSchemes(
CefRawPtr<CefSchemeRegistrar> registrar) {}
///
// Return the handler for resource bundle events. If
// CefSettings.pack_loading_disabled is true a handler must be returned. If no
// handler is returned resources will be loaded from pack files. This method
// is called by the browser and render processes on multiple threads.
///
/*--cef()--*/
virtual CefRefPtr<CefResourceBundleHandler> GetResourceBundleHandler() {
return nullptr;
}
///
// Return the handler for functionality specific to the browser process. This
// method is called on multiple threads in the browser process.
///
/*--cef()--*/
virtual CefRefPtr<CefBrowserProcessHandler> GetBrowserProcessHandler() {
return nullptr;
}
///
// Return the handler for functionality specific to the render process. This
// method is called on the render process main thread.
///
/*--cef()--*/
virtual CefRefPtr<CefRenderProcessHandler> GetRenderProcessHandler() {
return nullptr;
}
};
#endif // CEF_INCLUDE_CEF_APP_H_
cefsimple中的实例
// Implement application-level callbacks for the browser process.
class SimpleApp : public CefApp, public CefBrowserProcessHandler {
public:
SimpleApp();
// CefApp methods:
virtual CefRefPtr<CefBrowserProcessHandler> GetBrowserProcessHandler()
OVERRIDE {
return this;
}
// CefBrowserProcessHandler methods:
virtual void OnContextInitialized() OVERRIDE;
private:
// Include the default reference counting implementation.
IMPLEMENT_REFCOUNTING(SimpleApp);
};
#endif // CEF_TESTS_CEFSIMPLE_SIMPLE_APP_H_
CefClient
CefClient提供访问Browser实例的回调接口。一个CefClient实例可以在任意数量的Browser进程中共享。以下为几个重要的回调:
- 比如处理Browser的生命周期,右键菜单,对话框,通知显示, 拖曳事件,焦点事件,键盘事件等等。如果没有对某个特定的处理接口进行实现会造成什么影响,请查看cef_client.h文件中相关说明。
- OnProcessMessageReceived在Browser收到Render进程的消息时被调用。
CefSimple中CefClient的实例:
class SimpleHandler : public CefClient,
public CefDisplayHandler,
public CefLifeSpanHandler,
public CefLoadHandler {
public:
explicit SimpleHandler(bool use_views);
~SimpleHandler();
// Provide access to the single global instance of this object.
static SimpleHandler* GetInstance();
// CefClient methods:
virtual CefRefPtr<CefDisplayHandler> GetDisplayHandler() OVERRIDE {
return this;
}
virtual CefRefPtr<CefLifeSpanHandler> GetLifeSpanHandler() OVERRIDE {
return this;
}
virtual CefRefPtr<CefLoadHandler> GetLoadHandler() OVERRIDE { return this; }
// CefDisplayHandler methods:
virtual void OnTitleChange(CefRefPtr<CefBrowser> browser,
const CefString& title) OVERRIDE;
// CefLifeSpanHandler methods:
virtual void OnAfterCreated(CefRefPtr<CefBrowser> browser) OVERRIDE;
virtual bool DoClose(CefRefPtr<CefBrowser> browser) OVERRIDE;
virtual void OnBeforeClose(CefRefPtr<CefBrowser> browser) OVERRIDE;
// CefLoadHandler methods:
virtual void OnLoadError(CefRefPtr<CefBrowser> browser,
CefRefPtr<CefFrame> frame,
ErrorCode errorCode,
const CefString& errorText,
const CefString& failedUrl) OVERRIDE;
// Request that all existing browser windows close.
void CloseAllBrowsers(bool force_close);
bool IsClosing() const { return is_closing_; }
private:
// Platform-specific implementation.
void PlatformTitleChange(CefRefPtr<CefBrowser> browser,
const CefString& title);
// True if the application is using the Views framework.
const bool use_views_;
// List of existing browser windows. Only accessed on the CEF UI thread.
typedef std::list<CefRefPtr<CefBrowser>> BrowserList;
BrowserList browser_list_;
bool is_closing_;
// Include the default reference counting implementation.
IMPLEMENT_REFCOUNTING(SimpleHandler);
};
#endif // CEF_TESTS_CEFSIMPLE_SIMPLE_HANDLER_H_
CefRefPtr
所有的框架类从CefBase继承,实例指针由CefRefPtr管理,CefRefPtr通过调用AddRef()和Release()方法自动管理引用计数.
class MyClass : public CefBase {
public:
// Various class methods here...
private:
// Various class members here...
IMPLEMENT_REFCOUNTING(MyClass); // Provides atomic refcounting implementation.
};
// References a MyClass instance
CefRefPtr<MyClass> my_class = new MyClass();
CefSettings
CefSettings结构体允许定义全局的CEF配置,经常用到的配置项如下:
- single_process 设置为true时,Browser和Renderer使用一个进程。此项也可以通过命令行参数“single-process”配置。查看本文中“进程”章节获取更多的信息。
- browser_subprocess_path 设置用于启动子进程单独执行器的路径。通过CefSettings.browser_subprocess_path配置render可执行程序路径。browser进程就会去启动这个进程去渲染网页。
- cache_path 设置磁盘上用于存放缓存数据的位置。如果此项为空,某些功能将使用内存缓存,多数功能将使用临时的磁盘缓存。形如本地存储的HTML5数据库只能在设置了缓存路径才能跨session存储。
- locale 此设置项将传递给Blink。如果此项为空,将使用默认值“en-US”。在Linux平台下此项被忽略,使用环境变量中的值,解析的依次顺序为:LANGUAE,LC_ALL,LC_MESSAGES和LANG。此项也可以通过命令行参数“lang”配置。
- log_file 此项设置的文件夹和文件名将用于输出debug日志。如果此项为空,默认的日志文件名为debug.log,位于应用程序所在的目录。此项也可以通过命令参数“log-file”配置。
- log_severity 此项设置日志级别。只有此等级、或者比此等级高的日志的才会被记录。此项可以通过命令行参数“log-severity”配置,可以设置的值为“verbose”,“info”,“warning”,“error”,“error-report”,“disable”。
- resources_dir_path 此项设置资源文件夹的位置。如果此项为空,Windows平台下cef.pak、Linux平台下devtools_resourcs.pak、Mac OS X下的app bundle Resources目录必须位于组件目录。此项也可以通过命令行参数“resource-dir-path”配置。
- locales_dir_path 此项设置locale文件夹位置。如果此项为空,locale文件夹必须位于组件目录,在Mac OS X平台下此项被忽略,pak文件从app bundle Resources目录。此项也可以通过命令行参数“locales-dir-path”配置。
- remote_debugging_port 此项可以设置1024-65535之间的值,用于在指定端口开启远程调试。例如,如果设置的值为8080,远程调试的URL为http://localhost:8080。CEF或者Chrome浏览器能够调试CEF。此项也可以通过命令行参数“remote-debugging-port”配置。
应用程序结构(Application Structure)
每个CEF3应用程序都是相同的结构
- 提供入口函数,用于初始化CEF、运行子进程执行逻辑或者CEF消息循环。
- 提供CefApp实现,用于处理进程相关的回调。
- 提供CefClient实现,用于处理Browser实例相关的回调。
- 执行CefBrowserHost::CreateBrowser()创建一个Browser实例,使用CefLifeSpanHandler管理Browser对象生命周期。
CEF进程和窗口之间的结构关系
一个浏览器有很多个CefBrowser窗口,这些窗口都是在Browser进程中创建。browser进程用来管理和处理回调函数消息。
Renderer进程用来实现网页的渲染,每个renderer进程包含有一个主网页mainframe和多个子网页subframe,
Renderer进程的实现结构
renderer程序继承CefApp和CefRenderProcessHandler类,在main函数中初始化。通过CefSettings.browser_subprocess_path配置render可执行程序路径。browser进程就会去启动这个进程去渲染网页。
browser进程的实现结构
browser要继承CefApp和CefBrowserProcessHandler类。实现browserapp的定义。同时要新建clienthandler类实现图中的回调函数接口类,用来处理拦截响应请求、管理生命周期、下载、显示加载、右键菜单等。在mian函数中初始化、启动消息循环。调用CefBrowserHost的静态方法创建browser窗口对象,在render进程的Frame中加载渲染内容。
投递任务(Posting Tasks)
任务(Task)可以通过CefPostTask在一个进程内的不同的线程之间投递。CefPostTask有一系列的重载方法,详细内容请参考cef_task.h头文件。任务将会在被投递线程的消息循环里异步执行。例如,为了在IO线程上执行ClientHandler::SetStringResource方法,并传递两个参数,代码如下:
void ClientHandler::SetStringResource(const std::string& page,
const std::string& data) {
if (!CefCurrentlyOn(TID_IO)) {
CefPostTask(TID_IO, base::Bind(&ClientHandler::SetStringResource, this,
page, data));
return;
}
进程间通信(Inter-Process Communication (IPC))
由于CEF3运行在多进程环境下,所以需要提供一个进程间通信机制。CefBrowser和CefFrame对象在Borwser和Render进程里都有代理对象。CefBrowser和CefFrame对象都有一个唯一ID值绑定,便于在两个进程间定位匹配的代理对象。
处理启动消息(Process Startup Messages)
为了给所有的Render进程提供一样的启动信息,请在Browser进程实现CefBrowserProcessHander::OnRenderProcessThreadCreated()方法。在这里传入的信息会在Render进程的CefRenderProcessHandler::OnRenderThreadCreated()方法里接受。
处理运行时消息(Process Runtime Messages)
在进程生命周期内,任何时候你都可以通过CefProcessMessage类传递进程间消息。这些信息和特定的CefBrowser实例绑定在一起,用户可以通过CefBrowser::SendProcessMessage()方法发送。进程间消息可以包含任意的状态信息,用户可以通过CefProcessMessage::GetArgumentList()获取。
CefRefPtr<CefProcessMessage> message =
CefProcessMessage::Create(kFocusedNodeChangedMessage);
message->GetArgumentList()->SetBool(0, is_editable);
frame->SendProcessMessage(PID_BROWSER, message);
一个从Browser进程发送到Render进程的消息将会在CefRenderProcessHandler::OnProcessMessageReceived()方法里被接收。一个从Render进程发送到Browser进程的消息将会在CefClient::OnProcessMessageReceived()方法里被接收。
bool MyHandler::OnProcessMessageReceived(
CefRefPtr<CefBrowser> browser,
CefProcessId source_process,
CefRefPtr<CefProcessMessage> message) {
// Check the message name.
const std::string& message_name = message->GetName();
if (message_name == “my_message”) {
// Handle the message here...
return true;
}
return false;
}
异步JavaScript绑定(Asynchronous JavaScript Bindings)
JavaScript被集成在Render进程,但是需要频繁和Browser进程交互。 JavaScript API应该被设计成可使用闭包异步执行。
通用消息转发(Generic Message Router)
从1574版本开始,CEF提供了在Render进程执行的JavaScript和在Browser进程执行的C++代码之间同步通信的转发器。应用程序通过C++回调函数(OnBeforeBrowse, OnProcessMessageRecieved, OnContextCreated等)传递数据。Render进程支持通用的JavaScript回调函数注册机制,Browser进程则支持应用程序注册特定的Handler进行处理。
实例:
https://github.com/fanfeilong/cefutil/blob/master/doc/CEF_JavaScript_Cpp.md
