Morphological Image Processing

Gonzalez R. C. and Woods R. E. Digital Image Processing (Forth Edition)

符号	即	操作	说明
$\ominus$	erosion	{ z : ( B ) z ⊂ A } \{z:(B)_z \subset A\} {z:(B)z​⊂A}	Erodes the boundary of A
$\oplus$	dilation	{ z : ( B ^ ) z ⋂ A ≠ ∅ } \{z:(\hat{B})_z \bigcap A \not= \empty\} {z:(B^)z​⋂A​=∅}	Dilates the boundary of A
$\circ$	opening	$(A\ominus B)\oplus B$	Smoothes contours, breaks narrow isthmuses, and eliminates small islands and sharp peaks.
$\bullet$	closing	$(A\oplus B)\ominus B$	Smoothes contours, fuses narrow breaks and long thin gulfs, and eliminates small holes.
$⊛$	hit-or-miss	{ z : ( B ) z ⊂ I } \{z:(B)_z \subset I\} {z:(B)z​⊂I}	Finds I. B contains instances both of foreground B in image and background elements.
$\beta (A)$	boundary extraction	$A-(A\ominus B)$	Set of points on the boundary of set A
-	hole filling	$(X_{k-1}\oplus B)\bigcap I^c$	Fills holes in A
-	connected components	$(X_{k-1}\oplus B)\bigcap I$	Finds connected components in $I$.
$C(A)$	convex hull	$(X_{k-1}^i⊛B^i)\bigcup X_{k-1}^i$	Finds the convex hull
$\otimes$	thining	$A-(A⊛B)$	Thins set A
$\odot$	thickening	$A\bigcup (A⊛B)$	Thickens set A
$S(A)$	skeleton	$(A \ominus kB) - (A \ominus kB) \circ B $	Finds the skeleton of set A
-	pruning	…	$X_4$ is the result of pruning set A.
$D_G^{(1)}(F)$	geodesic dilation	$(F\oplus B)\bigcap G$	-
$E_G^{(1)}(F)$	geodesic erosion	$(F\ominus B)\bigcup G$	-
$R_G^D(F)$	morphological reconstruction by dilation	$R_G^D(F)=D_G^{(k)}(F)$	-
$R_G^E(F)$	morphological reconstruction by erosion	$R_G^E(F)=E_G^{(k)}(F)$	-
$O_R^{(n)}(F)$	opening by reconstruction	$R_F^D(F\ominus nB)$	-
$C_R^{(n)}(F)$	closing by reconstruction	$ R_{F}^E (F \oplus nB)$	-
-	hole filling	$H = [R_{Ic}D(F)]^c $	Auto
-	border clearing	$I-R_I^D(F)$	-

概

直接把整个章节都拿来是决定这个形态学的东西实在是有趣, 加之前后联系过于紧密, 感觉如果过于割裂会导致以后回忆不起来, 所以直接对整个章节做个笔记得了.

我觉得首先需要牢记的是, 本章节是在集合的基础上讨论的, 对于一个二元图中的物体, 我们可以通过如下集合表示:
{ ( x 1 , y 1 ) , ⋯   , ( x N , y N ) } , \{(x_1, y_1), \cdots, (x_N, y_N)\}, {(x1​,y1​),⋯,(xN​,yN​)},
$(x,y)$表示值为$1$的坐标(这里假设foreground pixel的值为1, 当然也可以假设其为0).

注: 个人觉得, 这里讨论的时候并非像之前的图片一样以左上角原点, 而是以目标中心为原点然后发散开去(只是单纯便于理解和书写, 实际处理是不受影响的). 也就意味着, $x,y$是可以为负的, 显然这种表示的好处是不需要确定整个图片的大小范围.

本章节会频繁涉及到objects和structuring elements (SE)的概念, 说实话其具体的定义不是很清楚, 我还是从任务的角度来给它们做个解释.

因为本章节讨论的transform, 通常都是通过SE经过一些集合操作使得objects发生某种改变, 所以objects就是对象. SE

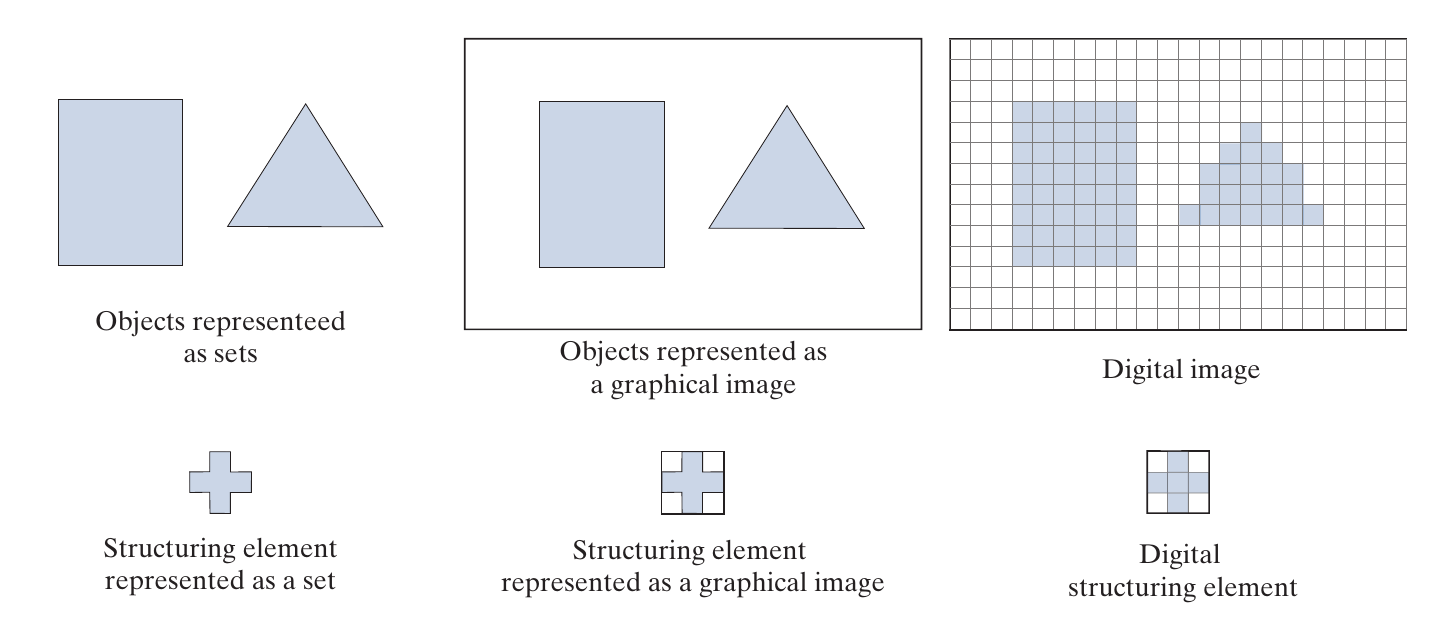

如上图所示, 虽然objects是一个仅仅记录0值的集合, 我们通常将其置于一个矩形区域中, 便于图片的处理, SE也是类似的. 特别的是, SE整体除了0, 1外还可能有$\times$的属性, 其表示0或1, 即该位置的点不我们所关心的点, 其可以任意匹配.

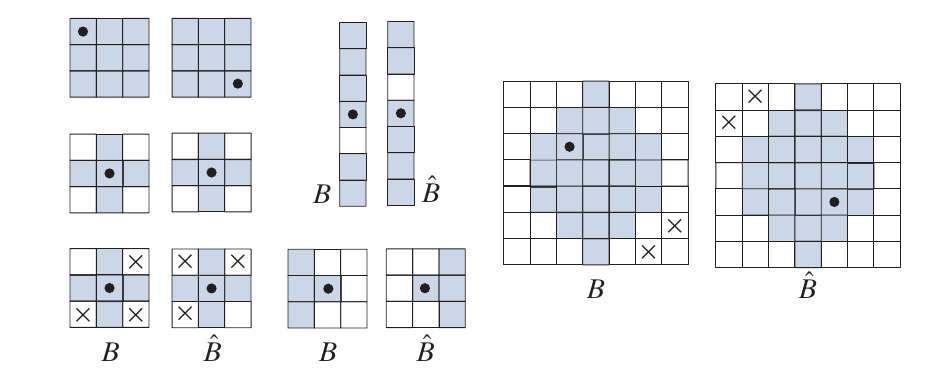

reflection and translation

反射, 即
B ^ = { w ∣ w = − b , for  b ∈ B } , \hat{B} = \{w| w=-b, \text{for } b \in B\}, B^={w∣w=−b,for b∈B},
需要注意的是该反射是以$B$的中心为原点的.

平移, 即
( B ) z = { c ∣ c = b + z , for  b ∈ B } . (B)_z = \{c| c= b+z, \text{for } b \in B\}. (B)z​={c∣c=b+z,for b∈B}.

Erosion and Dilation

Erosion

Erosion操作能够令图片中的元素’缩小’, 所以其在处理噪声的时候其实不错. 其定义为:
A ⊖ B = { z ∣ ( B ) z ⊂ A } = { w ∈ Z 2 ∣ w + b ∈ A  for every  b ∈ B } = ⋂ b ∈ B ( A ) − b . \begin{array}{ll} A \ominus B &= \{z| (B)_z \subset A\} \\ &= \{w \in Z^2 | w + b \in A \text{ for every } b \in B\} \\ &= \mathop{\bigcap} \limits_{b \in B} (A)_{-b}. \end{array} A⊖B​={z∣(B)z​⊂A}={w∈Z2∣w+b∈A for every b∈B}=b∈B⋂​(A)−b​.​

proof:

设上面三个定义分别为$C_1,C_2,C_3$.
$C_1\subset C_2$:

$\forall z\in C_1$,
{ b 1 + z , b 2 + z , ⋯   } ⊂ A , \{b_1+z, b_2 + z, \cdots\} \subset A, {b1​+z,b2​+z,⋯}⊂A,
故
$$z+b\in A,\text{ for every }b\in B\Rightarrow C_1\subset C_2.$$

$C_2=C_3$:

C 2 = { w ∈ Z 2 ∣ w + b ∈ A  for every  b ∈ B } = ⋂ b ∈ B { a − b ∈ Z 2 ∣ ∈ A } = ⋂ b ∈ B ( A ) − b . C_2 = \{w \in Z^2 | w + b \in A \text{ for every } b \in B\} =\bigcap_{b \in B} \{a-b \in Z^2 | \in A\} =\bigcap_{b \in B} (A)_{-b}. C2​={w∈Z2∣w+b∈A for every b∈B}=b∈B⋂​{a−b∈Z2∣∈A}=b∈B⋂​(A)−b​.

$C_3\subset C_1$:

$\forall w\in C_2$:
$$(B{)}_w\subset A\Rightarrow C_3\subset C_1.$$

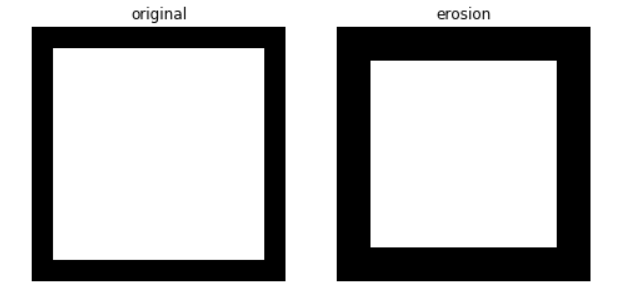

示例

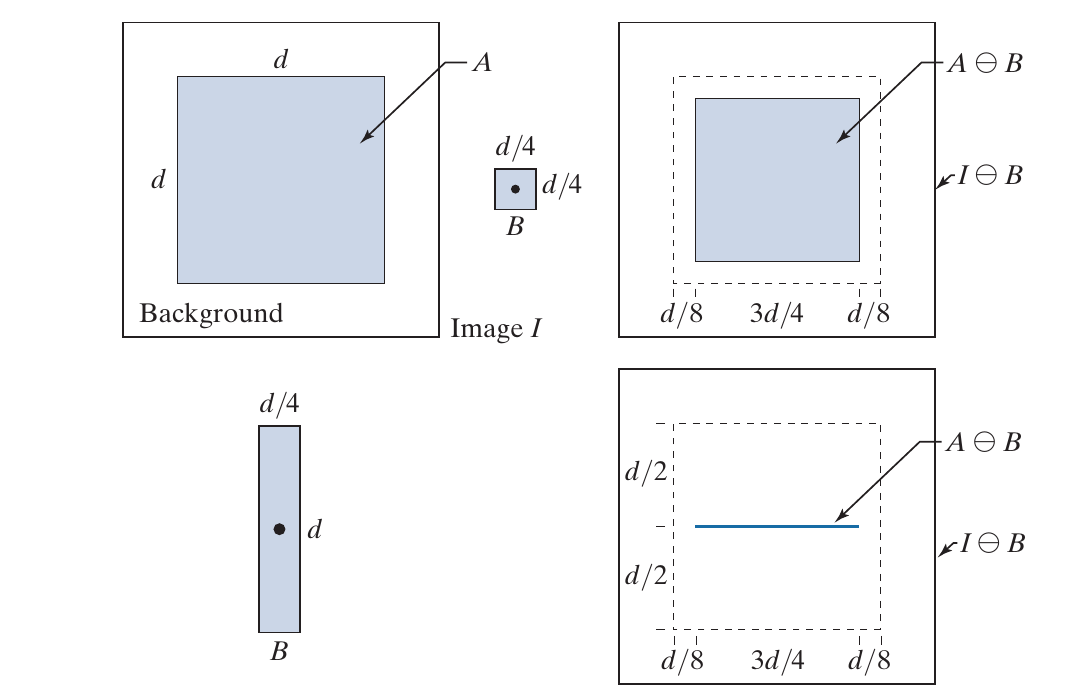

如下图所示, 第一行第一幅图是object, 通过第二幅SE erosion后object缩小了, 而通过第二行的SE更是直接成了一条线.

skimage.morphology.erosion

[erosion](Module: morphology — skimage v0.19.0.dev0 docs (scikit-image.org))

import numpy as np
import matplotlib.pyplot as plt
from skimage.morphology import erosion, disk

def plot_comparison(original, filtered, filter_name):

    fig, (ax1, ax2) = plt.subplots(ncols=2, figsize=(8, 4), sharex=True,
                                   sharey=True)
    ax1.imshow(original, cmap=plt.cm.gray)
    ax1.set_title('original')
    ax1.axis('off')
    ax2.imshow(filtered, cmap=plt.cm.gray)
    ax2.set_title(filter_name)
    ax2.axis('off')

img = np.ones((100, 100))
arow = np.zeros((10, 100))
img = np.vstack((arow, img, arow))
acol = np.zeros((120, 10))
img = np.hstack((acol, img, acol)).astype(np.uint8)

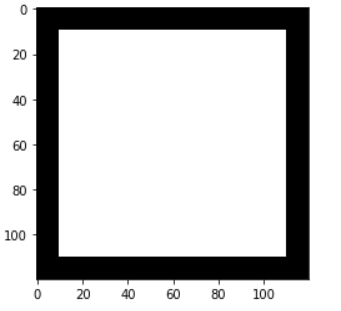

fig, ax = plt.subplots()
ax.imshow(img, cmap=plt.cm.gray)

footprint = disk(6) # {0, 1}, 半径为6的圆, 中心元素为1其余为0
eroded = erosion(img, footprint)
plot_comparison(img, eroded, 'erosion')

dilation

dilation的效果是令图中的元素进行扩张, 一些扫描的文本图像可能字符剑有断痕, 通过此可以修复.

其集合定义为:
A ⊕ B = { z ∣ ( B ^ ) z ⋂ A ≠ ∅ } = { w ∈ Z 2 ∣ w = a + b ,  for some  a ∈ A  and  b ∈ B } = ⋃ b ∈ B ( A ) b = ⋃ a ∈ A ( B ) a . \begin{array}{ll} A \oplus B &= \{z| (\hat{B})_z \bigcap A \not= \empty\} \\ &= \{w \in Z^2| w = a+ b, \text{ for some } a \in A \text{ and } b \in B\}\\ &= \mathop{\bigcup}_{b \in B} (A)_b \\ &= \mathop{\bigcup}_{a \in A} (B)_a. \end{array} A⊕B​={z∣(B^)z​⋂A​=∅}={w∈Z2∣w=a+b, for some a∈A and b∈B}=⋃b∈B​(A)b​=⋃a∈A​(B)a​.​

proof:

记上面四种定义各自为$C_1,C_2,C_3,C_4$:

$C_1=C_2$:

$\forall z\in C_1$:

$$\exists a\in A,b\in B,\mathrm{s}.\mathrm{t}.-b+z=a\to z=a+b\to z\in C_2,$$
故
$$C_1\subset C_2.$$

$\forall w\in C_2$:

$$\exists a\in A,b\in B,\mathrm{s}.\mathrm{t}.w=a+b\to -b+w=a\to (\hat{B}{)}_w\bigcap A\ne \varnothing ,$$
故
$$C_2\subset C_1.$$

$C_2=C_3=C_4$:

显然.

最后两个定义是很直观的, $C_3$相当于对于每一个点$b\in B$为中心画一个$A$, $C_4$则是以每一个$a\in A$为中心画一个$B$.

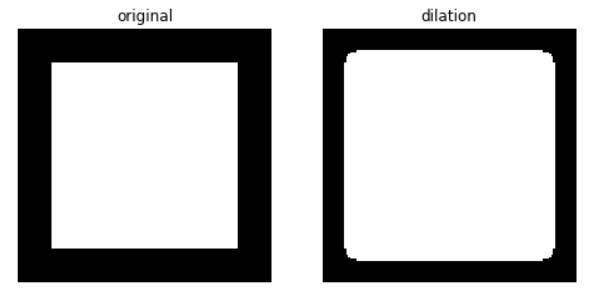

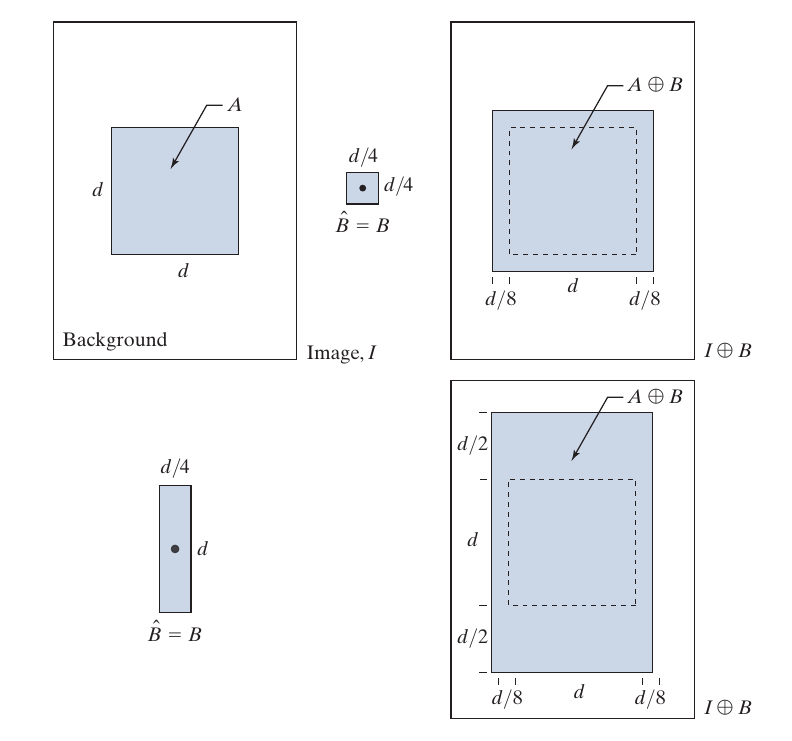

示例

skimage.morphology.dilation

dilation

from skimage.morphology import dilation
footprint = disk(6) # {0, 1}, 半径为6的圆, 中心元素为1其余为0
dilated = dilation(eroded, footprint)
plot_comparison(eroded, dilated, 'dilation')

注: 圆角实际上是下一节的东西.

对偶性

( A ⊖ B ) c = { z ∣ ( B ) z ⊂ A } c = { z ∣ ( B ) z ⋂ A c ≠ ∅ } = A c ⊕ B ^ . \begin{array}{ll} (A\ominus B)^c &= \{z| (B)_z \subset A\}^c \\ &= \{z| (B)_z \bigcap A^c \not = \empty\} \\ &= A^c \oplus \hat{B}. \end{array} (A⊖B)c​={z∣(B)z​⊂A}c={z∣(B)z​⋂Ac​=∅}=Ac⊕B^.​

( A ⊕ B ) c = { z ∣ ( B ^ ) z ⋂ A ≠ ∅ } c = { z ∣ ( B ^ ) z ⊂ A c } = A c ⊖ B ^ . \begin{array}{ll} (A\oplus B)^c &= \{z| (\hat{B})_z \bigcap A \not= \empty \}^c \\ &= \{z| (\hat{B})_z \subset A^c\} \\ &= A^c \ominus \hat{B}. \end{array} (A⊕B)c​={z∣(B^)z​⋂A​=∅}c={z∣(B^)z​⊂Ac}=Ac⊖B^.​

Opening and Closing

二者都有一种将目标变圆滑的效果.

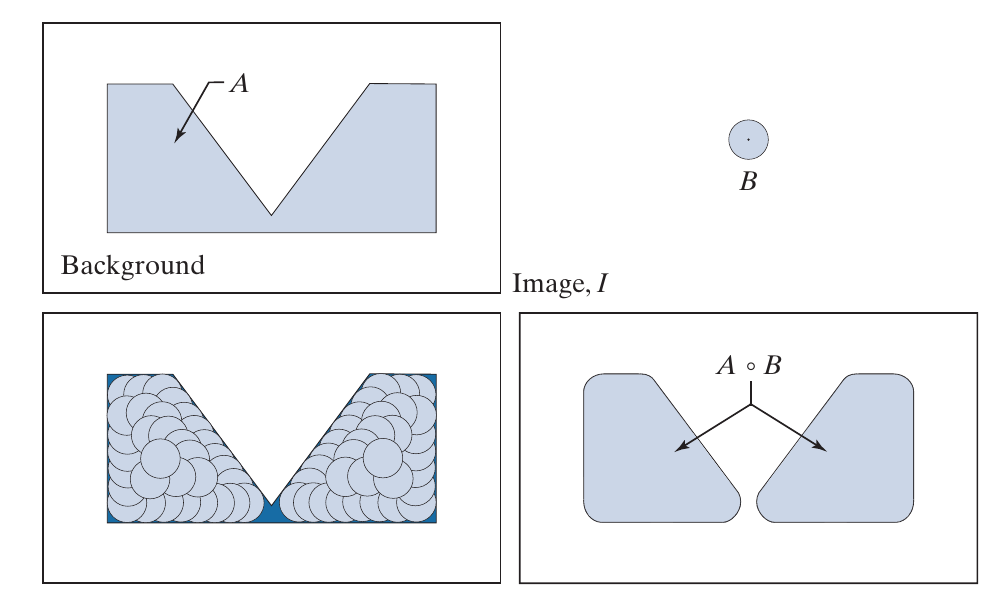

Opening

定义:

A ∘ B = ( A ⊖ B ) ⊕ B = ⋃ z { ( B ) z ∣ ( B ) z ⊂ A } . A \circ B = (A \ominus B) \oplus B = \mathop{\bigcup} \limits_{z} \{(B)_z | (B)_z \subset A\}. A∘B=(A⊖B)⊕B=z⋃​{(B)z​∣(B)z​⊂A}.

proof:

( A ⊖ B ) ⊕ B = ⋃ z ∈ A ⊖ B ( B ) z = ⋃ z { ( B ) z ∣ ( B ) z ⊂ A } . \begin{array}{ll} (A \ominus B) \oplus B &= \bigcup_{z \in A \ominus B} (B)_z \\ &= \bigcup_{z} \{(B)_z| (B)_z \subset A\}. \end{array} (A⊖B)⊕B​=⋃z∈A⊖B​(B)z​=⋃z​{(B)z​∣(B)z​⊂A}.​

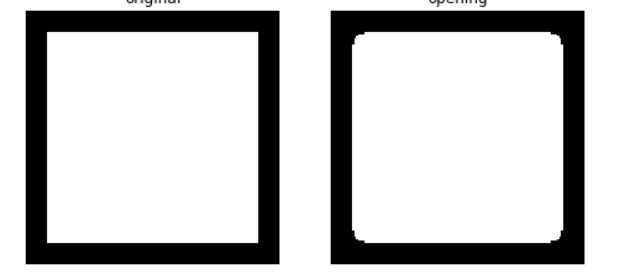

示例

skimage.morphology.opening

opening

from skimage.morphology import opening
footprint = disk(6)
opened = opening(img, footprint)
plot_comparison(img, opened, 'opening')

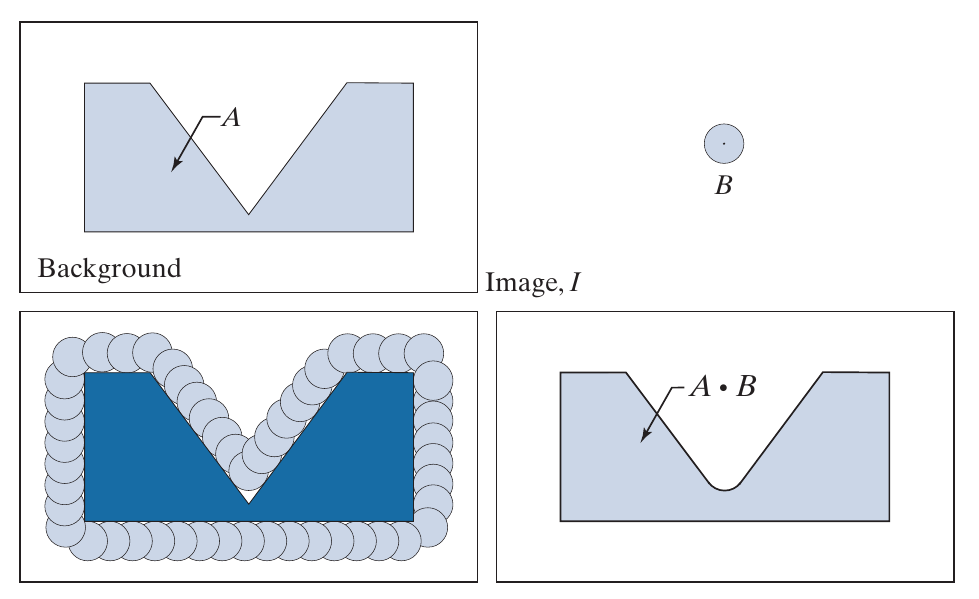

Closing

定义:

A ∙ B = ( A ⊕ B ) ⊖ B = [ ⋃ { ( B ^ ) z ∣ ( B ^ ) z ⋂ A = ∅ } ] c . A \bullet B = (A \oplus B) \ominus B = [\bigcup \{(\hat{B})_z| (\hat{B})_z \bigcap A = \empty\}]^c. A∙B=(A⊕B)⊖B=[⋃{(B^)z​∣(B^)z​⋂A=∅}]c.

注: 书中为:
A ∙ B = ( A ⊕ B ) ⊖ B = [ ⋃ { ( B ) z ∣ ( B ) z ⋂ A = ∅ } ] c , A \bullet B = (A \oplus B) \ominus B = [\bigcup \{(B)_z| (B)_z \bigcap A = \empty\}]^c, A∙B=(A⊕B)⊖B=[⋃{(B)z​∣(B)z​⋂A=∅}]c,
但感觉不一样啊.

proof:

[ ( A ⊕ B ) ⊖ B ] c = ( A ⊕ B ) c ⊕ B ^ = ( A c ⊖ B ^ ) ⊕ B ^ = ⋃ z { ( B ^ ) z ∣ ( B ^ ) z ⊂ A c } = ⋃ z { ( B ^ ) z ∣ ( B ^ ) z ⋂ A = ∅ } \begin{array}{ll} [(A \oplus B) \ominus B]^c &= (A \oplus B)^c \oplus \hat{B} \\ &= (A^c \ominus \hat{B}) \oplus \hat{B} \\ &= \bigcup_z \{(\hat{B})_z | (\hat{B})_z \subset A^c\} \\ &= \bigcup_z \{(\hat{B})_z | (\hat{B})_z \bigcap A = \empty\} \\ \end{array} [(A⊕B)⊖B]c​=(A⊕B)c⊕B^=(Ac⊖B^)⊕B^=⋃z​{(B^)z​∣(B^)z​⊂Ac}=⋃z​{(B^)z​∣(B^)z​⋂A=∅}​

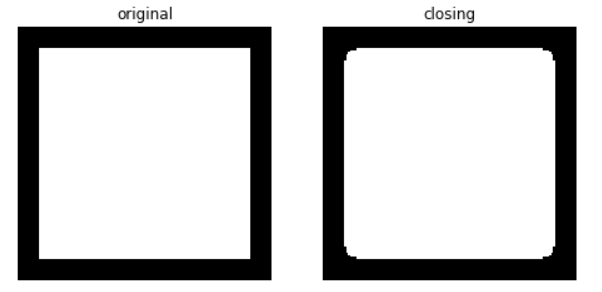

示例

skimage.morphology.closing

closing

from skimage.morphology import closing
footprint = disk(6)
closed = opening(img, footprint)
plot_comparison(img, closed, 'closing')

对偶性

$$\begin{gathered} (A\circ B{)}^c=(A^c\bullet \hat{B}) \\ (A\bullet B{)}^c=(A^c\circ \hat{B}) \end{gathered}$$
且
$$\begin{gathered} (A\circ B)\circ B=A\circ B \\ (A\bullet B)\bullet B=A\bullet B. \end{gathered}$$

The Hit-or-Miss Transform

主要用于shape detection.

定义:

$$I⊛B_{1,2}=(A\ominus B_1)\bigcap (A^c\ominus B_2),$$
此为$B_1,B_2$不包含$0$元素的情形, 倘若允许$B$包含0元素, 那么
$$I⊛B=I\ominus B,$$
只是我们$B$通常需要一些特殊的性质来使其具有detection的作用.

具体怎么shape detection 还是请回看原文吧.

一些基本的操作

Boundary Extraction

定义:
$$\beta (A)=A-(A\ominus B)$$

直观的感觉就是把object的中间部分挖掉.

Hole Filling

假设在我们想填的hole中已知一个点, 以这个点为基础出发(记为$X_0$):
$$X_k=(X_{k-1}\oplus B)\bigcap I^c,k=1,2,3,\cdots ,$$
停止准则为
$$X_k=X_{k+1}.$$

不过需要注意的是, $B$应该选择下面类型的(如果是全满的话可能跳出hole了).

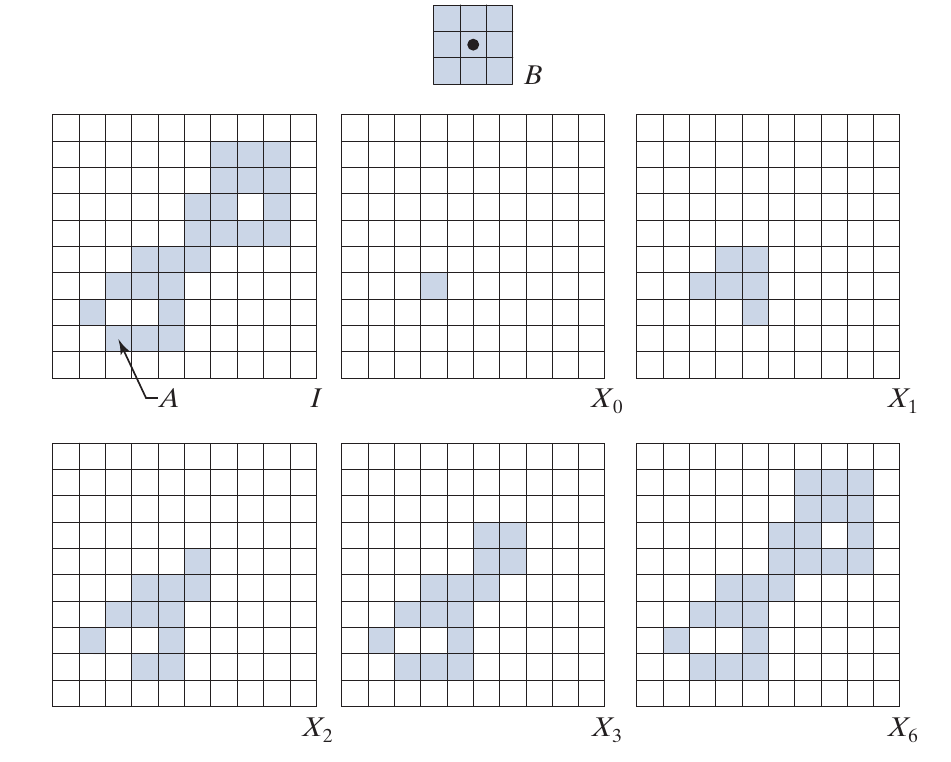

Extraction of Connected Components

抓取连通区域, 假设已知在我们想抓取的连通区域的一点, 从这个点出发(记为$X_0$):
$$X_k=(X_{k-1}\oplus B)\bigcap I,k=1,2,\cdots ,$$
直到
$$X_{k+1}=X_k.$$

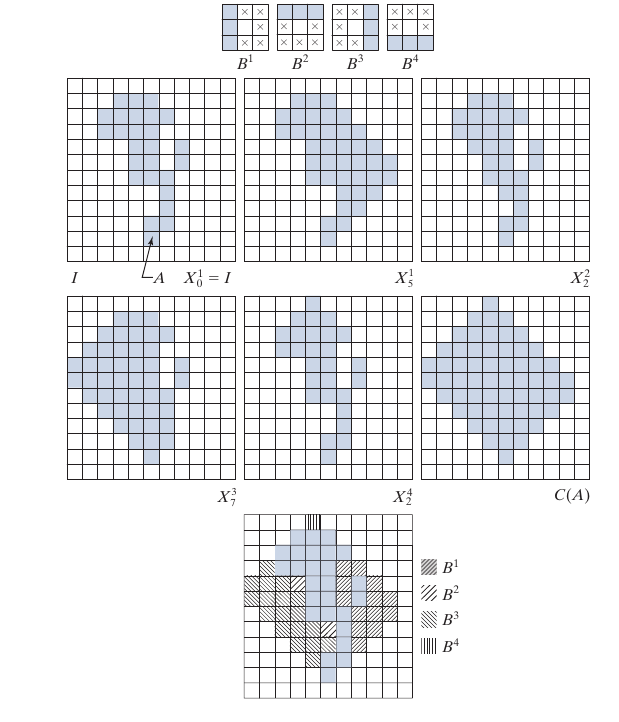

Convex Hull

将一个object填补成凸的, 这个说实话没怎么看明白.

$$\begin{gathered} X_k^i=(X_{k-1}^i⊛B^i)\bigcup X_{k-1}^i,i=1,2,3,4,k=1,2,\cdots \\ {X}_0^i=I. \end{gathered}$$
当
$$X_{k+1}^i=X_k^i$$
时停止, 记其为$D^i$, 最后的convex hull 为
$$C(A)={\bigcup }_{i=1}^4{D}^i.$$

总感觉这个不是最小的凸包啊.

skimage.morphology.convex_hull_image

convex_hull

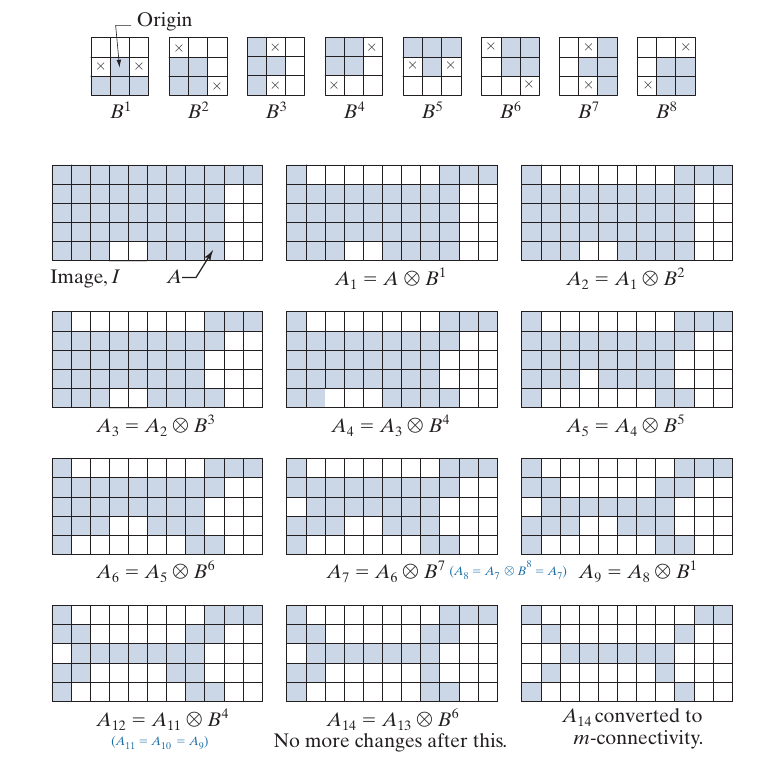

Thinning

定义:
$$A\otimes B=A-(A⊛B)=A\bigcap (A⊛B{)}^c$$

skimage.morphology.thin

thin

Thickening

相反的操作:
$$A\odot B=A\bigcup (A⊛B).$$

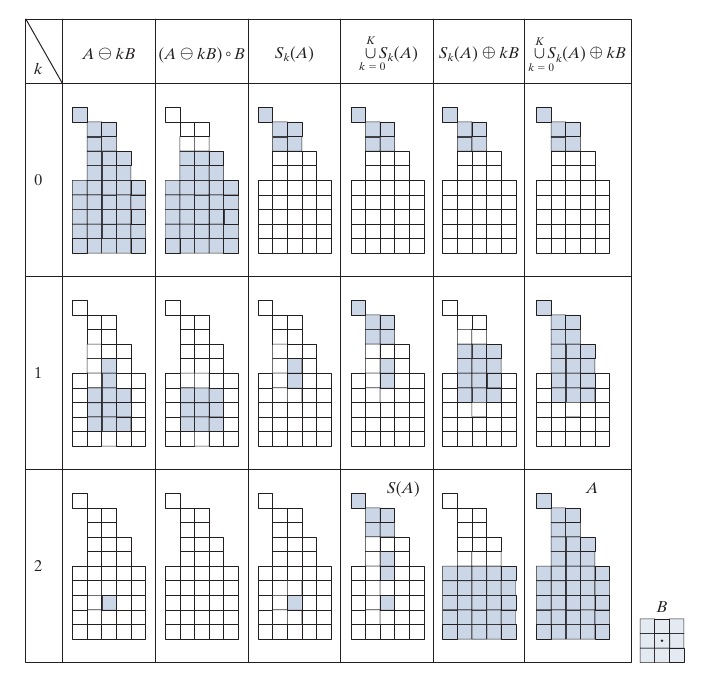

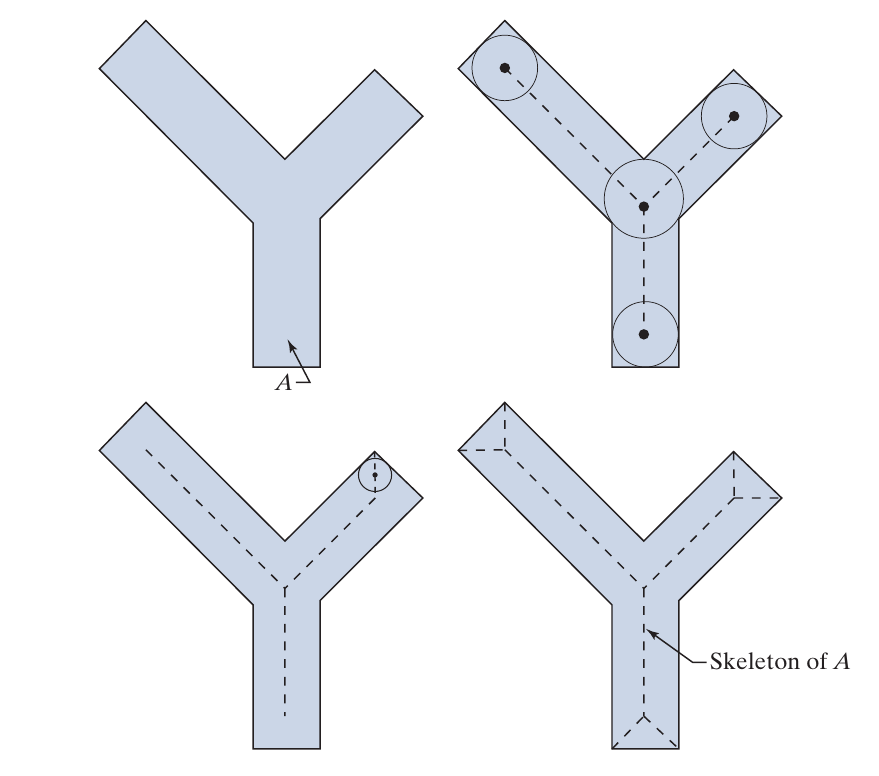

Skeletons

其严格的定义有些复杂, 感觉有点拓扑结构?

S ( A ) = ⋃ k = 0 K S k ( A ) , S k ( A ) = ( A ⊖ k B ) − ( A ⊖ k B ) ∘ B ( A ⊖ k B ) = ( ( … ( ( A ⊖ B ) ⊖ B ) ⊖ … ) ⊖ B ) K = max ⁡ { k ∣ ( A ⊖ k B ) ≠ ∅ } . S(A) = \mathop{\bigcup} \limits_{k=0}^K S_k(A), \\ S_k(A) = (A \ominus kB) - (A \ominus kB) \circ B \\ (A \ominus kB) = ((\ldots ((A\ominus B) \ominus B)\ominus \ldots) \ominus B)\\ K = \max \{k| (A \ominus kB) \not = \empty \}. S(A)=k=0⋃K​Sk​(A),Sk​(A)=(A⊖kB)−(A⊖kB)∘B(A⊖kB)=((…((A⊖B)⊖B)⊖…)⊖B)K=max{k∣(A⊖kB)​=∅}.

skimage.morphology.skeletonize

skeleton

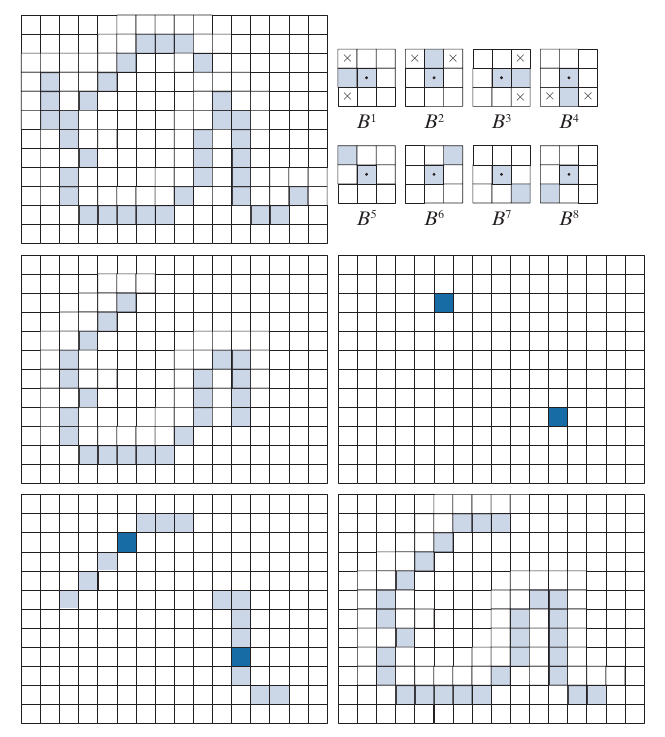

Pruning

pruning 方法用于去掉别的方法留下的一些spurs:

X 1 = A ⊗ { B } X 2 = ⋃ k = 1 8 ( X 1 ⊛ B k ) X 3 = ( X 2 ⊕ H ) ⋂ A X 4 = X 1 ⋃ X 3 . X_1 = A \otimes \{B\} \\ X_2 = \mathop{\bigcup} \limits_{k=1}^8 (X_1 \circledast B^k) \\ X_3 = (X_2 \oplus H) \bigcap A \\ X_4 = X_1 \bigcup X_3. X1​=A⊗{B}X2​=k=1⋃8​(X1​⊛Bk)X3​=(X2​⊕H)⋂AX4​=X1​⋃X3​.

$B^k$为下图的一系列(而 { B } \{B\} {B}为其中一部分不一定全部用到):

Morphological Reconstruction

Morphological Reconstruction除了之前用到的$F,B$外, 还要额外用到一个图片(称为mask)作为一个reconstruction的limit.

Geodesic Dilation and Erosion

假设$F\subset G$, geodesic dilation:
$$\begin{gathered} D_G^{(1)}(F)=(F\oplus B)\bigcap G \\ {D}_G^{(n)}(F)=D_G^{(1)}(D_G^{(n-1)}(F)),D_G^{(0)}(F)=F. \end{gathered}$$

geodesic erosion:
$$\begin{gathered} E_G^{(1)}(F)=(F\ominus B)\bigcup G \\ {E}_G^{(n)}(F)=E_G^{(1)}(E_G^{(n-1)}(F)),E_G^{(0)}(F)=F. \end{gathered}$$

直观上很好解释, 即geodesic dilation在扩张的时候不能超过$G$, 而geodesic erosion在收缩的时候不会少于$G$.

Morphological Reconstruction by Dilation and by Erosion

定义很简单, 即重复上述操作直到收敛:
$$\begin{gathered} R_G^D(F)=D_G^{(k)}(F),\text{if }{D}_G^{(k)}(F)=D_G^{(k-1)}(F), \\ {R}_G^E(F)=E_G^{(k)}(F),\text{if }{E}_G^{(k)}(F)=E_G^{(k-1)}(F). \end{gathered}$$

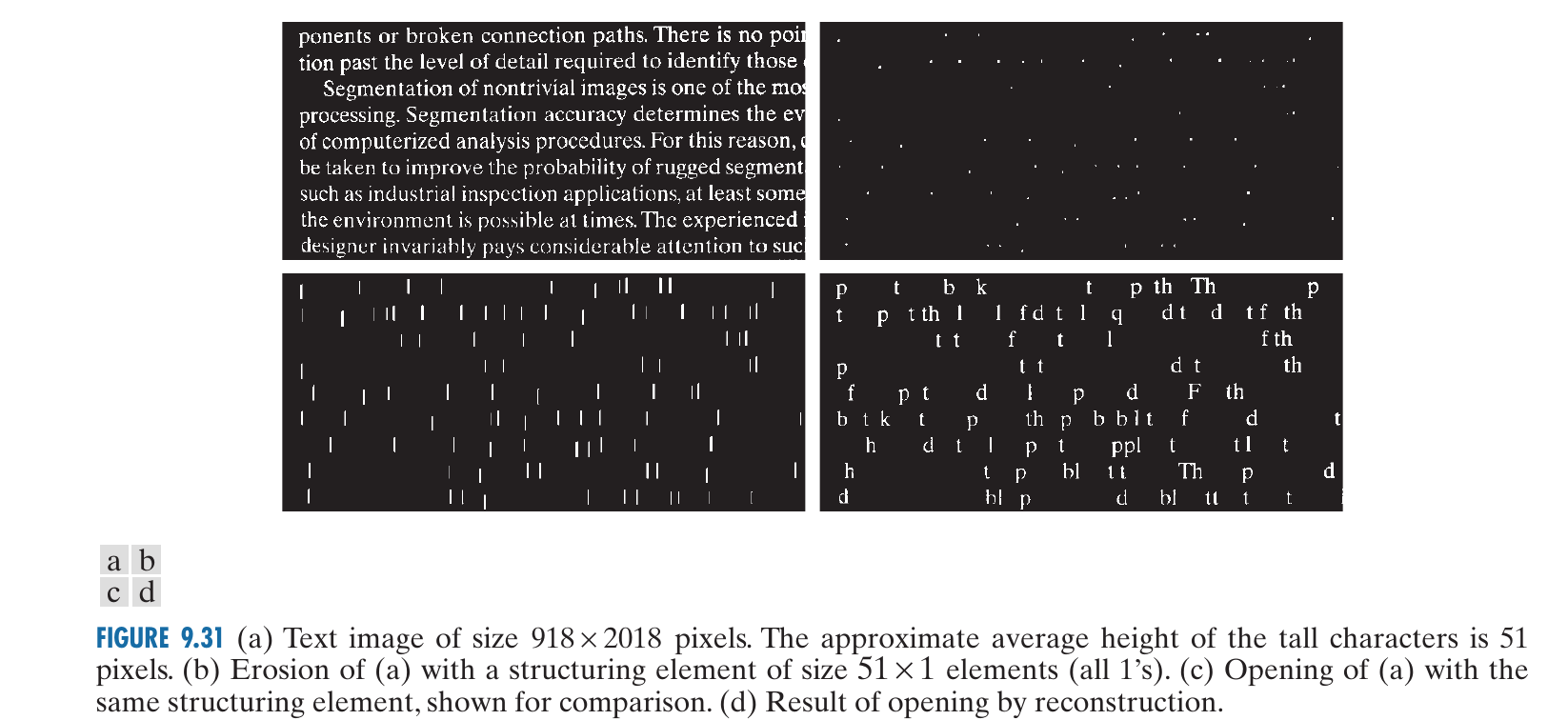

Opening|Closing by Reconstruction

$$O_R^{(n)}(F)=R_F^D(F\ominus nB),$$
直观解释就是, 先erosion $n$次, 再在此基础上不断扩张(受限于$F$).

Closing by Reconstruction 就是:
$$C_R^{(n)}(F)=R_F^E(F\oplus nB).$$

Automatic Algorithm for Filling Holes

之前介绍的hole filling需要一个点为基础, 这个算法是全自动的.

$$F(x,y)=\{\begin{array}{ll}1-I(x,y)& \text{if }(x,y)\text{ is on the border of }I\\ 0& \text{otherwise}.\end{array}$$
$$\begin{gathered} H=[R_{I^c}^D(F){]}^c \\ H\bigcap I^c \end{gathered}$$
感觉还是挺好理解的, 就是从边边, 由于中间部分的hole一定会被包围起来, 所以$H^c$一定不包含中间部分的hole.

Border Clearing

$$F(x,y)=\{\begin{array}{ll}I(x,y)& \text{if }(x,y)\text{ is on the border of }I\\ 0& \text{otherwise}.\end{array}$$
$$X=I-R_I^D(F).$$

能够把边缘的一些部分给去了.
