GhostNet网络思路整理(讨论)

GhostNet介绍

GhostNet是由华为诺亚方舟实验室研究出新的网络神经框架在2020年CVPR上发布文章，该模型和代码已在GitHub上开源。

GhostNet论文:link.
GitHub代码:link

Ghost Module

如上图，图(a)表示卷积，特征图(feature map)由输入图像进行卷积操作得到.图(b)表示Ghost Module需要进行两步卷积操作，由输入图像进行第一次卷积操作生成一部分feature map1，在由feature map1进行第二次卷积操作生成更多的feature map2，将两次卷积生成的feature map进行串联输出。Ghost Module源代码如下。

class GhostModule(nn.Module):
    def __init__(self, inp, oup, kernel_size=1, ratio=2, dw_size=3, stride=1, relu=True):
        super(GhostModule, self).__init__()
        self.oup = oup
        init_channels = math.ceil(oup / ratio)
        new_channels = init_channels*(ratio-1)

        self.primary_conv = nn.Sequential(
            nn.Conv2d(inp, init_channels, kernel_size, stride, kernel_size//2, bias=False),
            nn.BatchNorm2d(init_channels),
            nn.ReLU(inplace=True) if relu else nn.Sequential(),
        )

        self.cheap_operation = nn.Sequential(
            nn.Conv2d(init_channels, new_channels, dw_size, 1, dw_size//2, groups=init_channels, bias=False),
            nn.BatchNorm2d(new_channels),
            nn.ReLU(inplace=True) if relu else nn.Sequential(),
        )

    def forward(self, x):
        x1 = self.primary_conv(x)
        x2 = self.cheap_operation(x1)
        out = torch.cat([x1,x2], dim=1)
        return out[:,:self.oup,:,:]

在输入参数inp第一次卷积输入通道数，oup表示Ghost Module输出张量通道数，init_channels是第一次卷积操作输出通道数，new_channels是第二次卷积操作输出通道数，ratio是原文中的s，primary_conv(b图中左半部分)点卷积操作卷积核大小等于1，stride等于1，padding等于0，输出图像大小不变。cheap_operation(b图右半部分)深度卷积操作卷积核大小等于3，stride等于1，padding等于1，输出图像大小不变。输入图像分别经过primary_conv和cheap_operation，使用torch.cat将两次卷积输出串联，截取oup数目的通道数输出。

我个人觉的在GhostNet原文中对Ghost Module模块的描述与源程序中有些不一样(有明白的小伙伴欢迎评论指导)。

Ghost bottleneck

Ghost bottleneck是由Ghost Module丢叠出来的，有两种形势如下图所示。

两种Ghost bottleneck主要的区别方式就是stride值。

Ghost bottleneck(stride=1)

class GhostBottleneck(nn.Module):
    """ Ghost bottleneck w/ optional SE"""

    def __init__(self, in_chs, mid_chs, out_chs, dw_kernel_size=3,
                 stride=1, act_layer=nn.ReLU, se_ratio=0.): #
        super(GhostBottleneck, self).__init__()
        has_se = se_ratio is not None and se_ratio > 0.
        self.stride = stride

        # Point-wise expansion
        self.ghost1 = GhostModule(in_chs, mid_chs, relu=True)
        self.ghost2 = GhostModule(mid_chs, out_chs, relu=False)
    def forward(self, x):
        residual = x
        # 1st ghost bottleneck
        x = self.ghost1(x)
        # 2nd ghost bottleneck
        x = self.ghost2(x)
        x += residual
        return x

在stride=1时，Ghost bottleneck由两个Ghost Module构成，在正向传播时运用了残差思想(我个人理解)，讲输出与输入相加。

Ghsot bottleneck(stride=2)

在说Ghsot bottleneck(stride=2)之前先解释下什么是SE块，shortcut块。
SE块是为了解决在卷积池化过程中feature map的不同通道所占的重要性不同带来的损失。主要包括两部分squeeze和Excitation两部分，如下图所示：

设输入图像(C，H，W)，首先使用全局池化(Global average pooling)，核大小为(H，W)，输出图像为(C，1，1)，在使用点卷积对(C，1，1)进行通道数压缩输出图像为(C1，1，1)，且C1小于C。经过非线性变换(ReLU)后，使用点卷积对(C1，1，1)进行通道数扩增输出图像为(C，1，1)，进行sigmoid变化，将输出与输入图像(C，H，W)相乘，为图像每个通道赋权重。GhostNet中使用SE块代码如下

class SqueezeExcite(nn.Module):
    def __init__(self, in_chs, se_ratio=0.25, reduced_base_chs=None,
                 act_layer=nn.ReLU, gate_fn=hard_sigmoid, divisor=4, **_):
        super(SqueezeExcite, self).__init__()
        self.gate_fn = gate_fn
        reduced_chs = _make_divisible((reduced_base_chs or in_chs) * se_ratio, divisor)
        self.avg_pool = nn.AdaptiveAvgPool2d(1)
        self.conv_reduce = nn.Conv2d(in_chs, reduced_chs, 1, bias=True)
        self.act1 = act_layer(inplace=True)
        self.conv_expand = nn.Conv2d(reduced_chs, in_chs, 1, bias=True)

    def forward(self, x):
        x_se = self.avg_pool(x)
        x_se = self.conv_reduce(x_se)
        x_se = self.act1(x_se)
        x_se = self.conv_expand(x_se)
        x = x * self.gate_fn(x_se)
        return x

其中_make_divisible函数它确保所有层都有一个可被8整除的通道号码。代码如下。

def _make_divisible(v, divisor, min_value=None):
    if min_value is None:
        min_value = divisor   # 16 4 4
    new_v = max(min_value, int(v + divisor / 2) // divisor * divisor)
    # Make sure that round down does not go down by more than 10%.
    if new_v < 0.9 * v:
        new_v += divisor
    return new_v

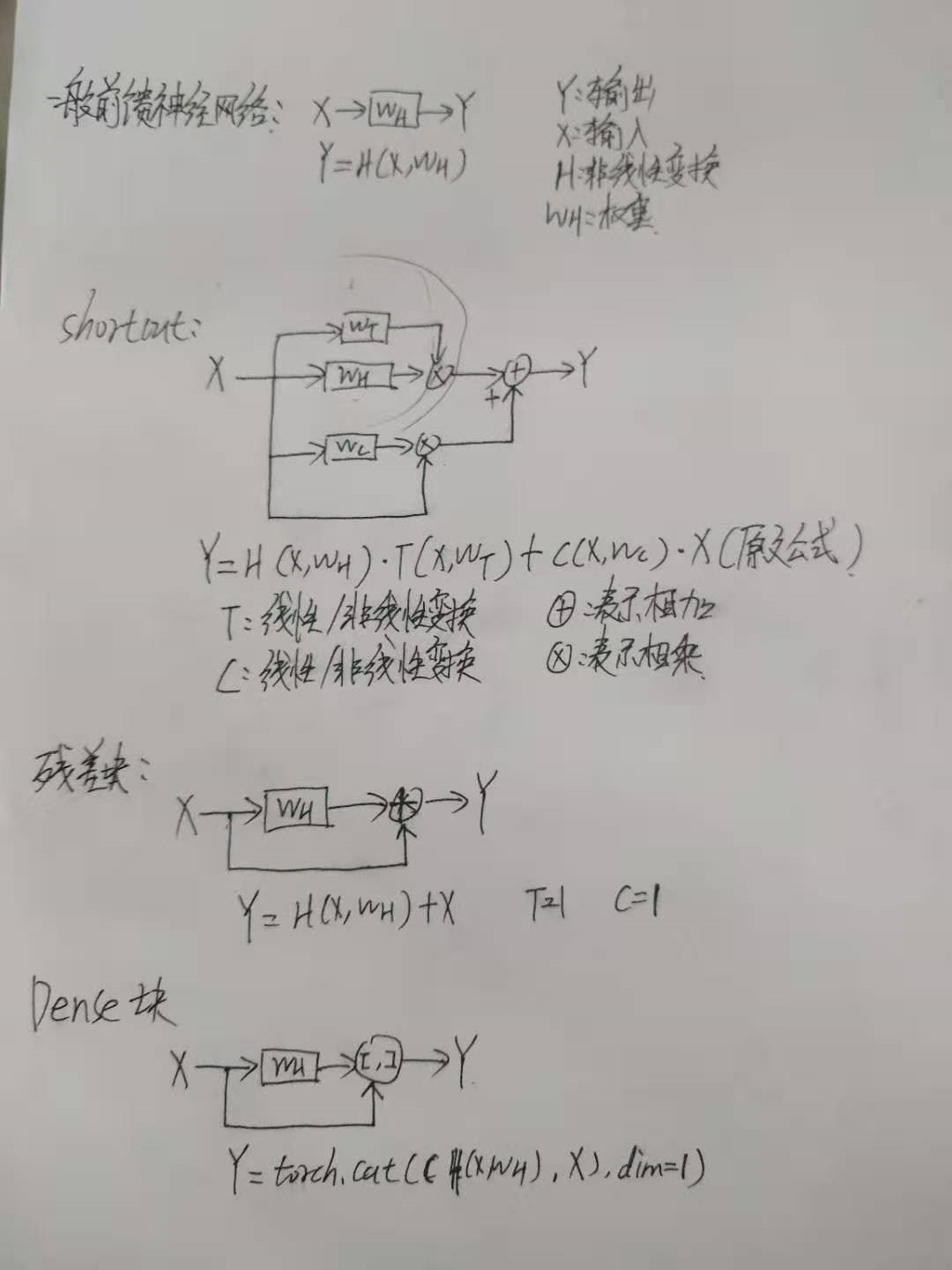

shortcut(结合网上的个人观点)，shortcut最早出现在论文Training Very Deep Networks中的第二节。为解决深度网络训练中梯度发散难以训练的问题所提出的shortcut。一般的前馈神经网络中x表示输入y表示输出，Wh表示权重，H表示非线性变换，输入x与输出y具有下图中一般前馈神经网络。shortcut是在一般前馈神经网络上增加T和C非线性变换。在残差块中T和C等于1。在Dense中T和C等于1并串联输出。

Ghsot bottleneck(stride=2)也借用shortcut思想在前馈网络中增加非线性变换，在Ghsot bottleneck(stride=2)中输入与前馈神经网络连接处。

Ghsot bottleneck(stride=2)源代码如下所示：

class GhostBottleneck(nn.Module):
    """ Ghost bottleneck w/ optional SE"""

    def __init__(self, in_chs, mid_chs, out_chs, dw_kernel_size=3,
                 stride=1, act_layer=nn.ReLU, se_ratio=0.): #
        super(GhostBottleneck, self).__init__()
        has_se = se_ratio is not None and se_ratio > 0.
        self.stride = stride

        # Point-wise expansion
        self.ghost1 = GhostModule(in_chs, mid_chs, relu=True)

        # Depth-wise convolution

        self.conv_dw = nn.Conv2d(mid_chs, mid_chs, dw_kernel_size, stride=stride, padding=(dw_kernel_size-1)//2, groups=mid_chs, bias=False)
        self.bn_dw = nn.BatchNorm2d(mid_chs)

        # Squeeze-and-excitation
        self.se = SqueezeExcite(mid_chs, se_ratio=se_ratio)

        # Point-wise linear projection
        self.ghost2 = GhostModule(mid_chs, out_chs, relu=False)

        # shortcut

        self.shortcut = nn.Sequential(
                nn.Conv2d(in_chs, in_chs, dw_kernel_size, stride=stride,
                       padding=(dw_kernel_size-1)//2, groups=in_chs, bias=False),
                nn.BatchNorm2d(in_chs),
                nn.Conv2d(in_chs, out_chs, 1, stride=1, padding=0, bias=False),
                nn.BatchNorm2d(out_chs),
            )


    def forward(self, x):
        residual = x
        # 1st ghost bottleneck
        x = self.ghost1(x)
        # Depth-wise convolution
        x = self.conv_dw(x)
        x = self.bn_dw(x)
        # Squeeze-and-excitation
        x = self.se(x)
        # 2nd ghost bottleneck
        x = self.ghost2(x)
        x += self.shortcut(residual)
        return x

与Ghsot bottleneck(stride=1)区别在于经过ghost1后接的是一个深度卷积卷积层(核大小为3，stride为1，padding为1输出图像大小保持不变)、一个批量归一化层(作用是利用小批量上的均值和标准差，不断调整神经网络中间输出，从而使整个神经网络在各层的中间输出的数值更稳定)和SE块。SE块后接ghost2，ghost2与shortcut输出相加。
shortcut结构是由深度卷积接批量归一化层接点卷积(改变通道数)接批量归一化层构成的。接下来就是Ghost Net整体结构。

GhostNet

源代码中与论文中只有每个block中Ghost bottleneck个数不同，整体结构相同，文中以源代码结构说明，源代码如下所示。

# 2020.06.09-Changed for building GhostNet
#            Huawei Technologies Co., Ltd. <foss@huawei.com>
"""
Creates a GhostNet Model as defined in:
GhostNet: More Features from Cheap Operations By Kai Han, Yunhe Wang, Qi Tian, Jianyuan Guo, Chunjing Xu, Chang Xu.
https://arxiv.org/abs/1911.11907
Modified from https://github.com/d-li14/mobilenetv3.pytorch and https://github.com/rwightman/pytorch-image-models
"""
import torch
import torch.nn as nn
import torch.nn.functional as F
import math


__all__ = ['ghost_net']


def _make_divisible(v, divisor, min_value=None): # 16 4
    """
    This function is taken from the original tf repo.
    It ensures that all layers have a channel number that is divisible by 8
    It can be seen here:
    https://github.com/tensorflow/models/blob/master/research/slim/nets/mobilenet/mobilenet.py
    """
    if min_value is None:
        min_value = divisor   # 16 4 4
    new_v = max(min_value, int(v + divisor / 2) // divisor * divisor)
    # Make sure that round down does not go down by more than 10%.
    if new_v < 0.9 * v:
        new_v += divisor
    return new_v


def hard_sigmoid(x, inplace: bool = False):
    if inplace:
        return x.add_(3.).clamp_(0., 6.).div_(6.)
    else:
        return F.relu6(x + 3.) / 6.


class SqueezeExcite(nn.Module):
    def __init__(self, in_chs, se_ratio=0.25, reduced_base_chs=None,
                 act_layer=nn.ReLU, gate_fn=hard_sigmoid, divisor=4, **_):
        super(SqueezeExcite, self).__init__()
        self.gate_fn = gate_fn
        reduced_chs = _make_divisible((reduced_base_chs or in_chs) * se_ratio, divisor)
        self.avg_pool = nn.AdaptiveAvgPool2d(1)
        self.conv_reduce = nn.Conv2d(in_chs, reduced_chs, 1, bias=True)
        self.act1 = act_layer(inplace=True)
        self.conv_expand = nn.Conv2d(reduced_chs, in_chs, 1, bias=True)

    def forward(self, x):
        x_se = self.avg_pool(x)
        x_se = self.conv_reduce(x_se)
        x_se = self.act1(x_se)
        x_se = self.conv_expand(x_se)
        x = x * self.gate_fn(x_se)
        return x


class ConvBnAct(nn.Module): # 160 960 1
    def __init__(self, in_chs, out_chs, kernel_size,
                 stride=1, act_layer=nn.ReLU):
        super(ConvBnAct, self).__init__()
        self.conv = nn.Conv2d(in_chs, out_chs, kernel_size, stride, kernel_size//2, bias=False)
        self.bn1 = nn.BatchNorm2d(out_chs)
        self.act1 = act_layer(inplace=True)

    def forward(self, x):
        x = self.conv(x)
        x = self.bn1(x)
        x = self.act1(x)
        return x


class GhostModule(nn.Module):
    def __init__(self, inp, oup, kernel_size=1, ratio=2, dw_size=3, stride=1, relu=True):
        super(GhostModule, self).__init__()
        self.oup = oup
        init_channels = math.ceil(oup / ratio)
        new_channels = init_channels*(ratio-1)

        self.primary_conv = nn.Sequential(
            nn.Conv2d(inp, init_channels, kernel_size, stride, kernel_size//2, bias=False),
            nn.BatchNorm2d(init_channels),
            nn.ReLU(inplace=True) if relu else nn.Sequential(),
        )

        self.cheap_operation = nn.Sequential(
            nn.Conv2d(init_channels, new_channels, dw_size, 1, dw_size//2, groups=init_channels, bias=False),
            nn.BatchNorm2d(new_channels),
            nn.ReLU(inplace=True) if relu else nn.Sequential(),
        )

    def forward(self, x):
        x1 = self.primary_conv(x)
        x2 = self.cheap_operation(x1)
        out = torch.cat([x1,x2], dim=1)
        return out[:,:self.oup,:,:]


class GhostBottleneck(nn.Module):
    """ Ghost bottleneck w/ optional SE"""

    def __init__(self, in_chs, mid_chs, out_chs, dw_kernel_size=3,
                 stride=1, act_layer=nn.ReLU, se_ratio=0.): #
        super(GhostBottleneck, self).__init__()
        has_se = se_ratio is not None and se_ratio > 0.
        self.stride = stride

        # Point-wise expansion
        self.ghost1 = GhostModule(in_chs, mid_chs, relu=True)

        # Depth-wise convolution
        if self.stride > 1:
            self.conv_dw = nn.Conv2d(mid_chs, mid_chs, dw_kernel_size, stride=stride,
                             padding=(dw_kernel_size-1)//2,
                             groups=mid_chs, bias=False)
            self.bn_dw = nn.BatchNorm2d(mid_chs)

        # Squeeze-and-excitation
        if has_se:
            self.se = SqueezeExcite(mid_chs, se_ratio=se_ratio)
        else:
            self.se = None

        # Point-wise linear projection
        self.ghost2 = GhostModule(mid_chs, out_chs, relu=False)

        # shortcut
        if (in_chs == out_chs and self.stride == 1):
            self.shortcut = nn.Sequential()
        else:
            self.shortcut = nn.Sequential(
                nn.Conv2d(in_chs, in_chs, dw_kernel_size, stride=stride,
                       padding=(dw_kernel_size-1)//2, groups=in_chs, bias=False),
                nn.BatchNorm2d(in_chs),
                nn.Conv2d(in_chs, out_chs, 1, stride=1, padding=0, bias=False),
                nn.BatchNorm2d(out_chs),
            )


    def forward(self, x):
        residual = x

        # 1st ghost bottleneck
        x = self.ghost1(x)

        # Depth-wise convolution
        if self.stride > 1:
            x = self.conv_dw(x)
            x = self.bn_dw(x)

        # Squeeze-and-excitation
        if self.se is not None:
            x = self.se(x)

        # 2nd ghost bottleneck
        x = self.ghost2(x)

        x += self.shortcut(residual)
        return x


class GhostNet(nn.Module):
    def __init__(self, cfgs, num_classes=1000, width=1.0, dropout=0.2):
        super(GhostNet, self).__init__()
        # setting of inverted residual blocks
        self.cfgs = cfgs
        self.dropout = dropout

        # building first layer
        output_channel = _make_divisible(16 * width, 4)
        self.conv_stem = nn.Conv2d(3, output_channel, 3, 2, 1, bias=False) # output = 16
        self.bn1 = nn.BatchNorm2d(output_channel)
        self.act1 = nn.ReLU(inplace=True)
        input_channel = output_channel

        # building inverted residual blocks
        stages = []
        block = GhostBottleneck
        for cfg in self.cfgs:
            layers = []
            for k, exp_size, c, se_ratio, s in cfg:
                output_channel = _make_divisible(c * width, 4)
                hidden_channel = _make_divisible(exp_size * width, 4)
                layers.append(block(input_channel, hidden_channel, output_channel, k, s,
                              se_ratio=se_ratio))
                input_channel = output_channel
            stages.append(nn.Sequential(*layers))

        output_channel = _make_divisible(exp_size * width, 4)
        stages.append(nn.Sequential(ConvBnAct(input_channel, output_channel, 1)))
        input_channel = output_channel # 960

        self.blocks = nn.Sequential(*stages)

        # building last several layers
        output_channel = 1280
        self.global_pool = nn.AdaptiveAvgPool2d((1, 1)) # 相对于AvgPool2d只输入输出大小即可
        self.conv_head = nn.Conv2d(input_channel, output_channel, 1, 1, 0, bias=True)
        self.act2 = nn.ReLU(inplace=True)
        self.classifier = nn.Linear(output_channel, num_classes)

    def forward(self, x):
        x = self.conv_stem(x)
        x = self.bn1(x)
        x = self.act1(x)
        x = self.blocks(x)
        x = self.global_pool(x)
        x = self.conv_head(x)
        x = self.act2(x)
        x = x.view(x.size(0), -1)
        if self.dropout > 0.:
            x = F.dropout(x, p=self.dropout, training=self.training)
        x = self.classifier(x)
        return x


def ghostnet(**kwargs):
    """
    Constructs a GhostNet model
    """
    cfgs = [
        # k, t, c, SE, s
        # block1
        [[3,  16,  16, 0, 1]],
        # block2
        [[3,  48,  24, 0, 2]],
        [[3,  72,  24, 0, 1]],
        # block3
        [[5,  72,  40, 0.25, 2]],
        [[5, 120,  40, 0.25, 1]],
        # block4
        [[3, 240,  80, 0, 2]],
        [[3, 200,  80, 0, 1],
         [3, 184,  80, 0, 1],
         [3, 184,  80, 0, 1],
         [3, 480, 112, 0.25, 1],
         [3, 672, 112, 0.25, 1]
        ],
        # block5
        [[5, 672, 160, 0.25, 2]],
        [[5, 960, 160, 0, 1],
         [5, 960, 160, 0.25, 1],
         [5, 960, 160, 0, 1],
         [5, 960, 160, 0.25, 1]
        ]
    ]
    return GhostNet(cfgs, **kwargs)


if __name__=='__main__':
    model = ghostnet()
    # model.eval()
    # print(model)
    # y = model(input)
    # print(y.size())
    x = torch.randn(1,3,224,224)
    # y = model(x)
    # print(y.size())
    for name, blk in model.named_children():
         x = blk(x)
         print('name', name, 'out.shape', x.shape)

GhostNet主要是由5个block组成，每个block由堆叠的Ghost bottleneck组成。
GhostNet最开始是一个卷积块1包含卷积层(kernel=3，stride=2，padding=1)，批量归一化层和激活函数层，目的是将输入图像大小减半；
block1包含一个Ghost bottleneck(stride=1);
block2包含Ghost bottleneck(stride=2)和Ghost bottleneck(stride=1)；
block3包含Ghost bottleneck(stride=2)和Ghost bottleneck(stride=1)；
block4包含Ghost bottleneck(stride=2)和5个Ghost bottleneck(stride=1)；
block5包含Ghost bottleneck(stride=2)和4个Ghost bottleneck(stride=1)；
block5后接卷积块2包含一个点卷积，批量归一化层和激活函数层，作用是改变图像通道数。
卷积块2后接全局池化层对feature map进行降维。后接点卷积来改变通道数。
最后是全连接分类层(我记的是这个名)，输出通道数为数据类别数。

这就是整个GhostNet结构。

有错误的地方法欢迎各位小伙伴指出。
