树莓派3b终端命令行播放器omxplayer，通过HDMI屏幕播放视频

omxplayer是一款可以使用命令行控制的播放器，图像通过 HDMI显示到屏幕上。

树莓派可以运行omxplayer，在终端使用命令行播放视频。

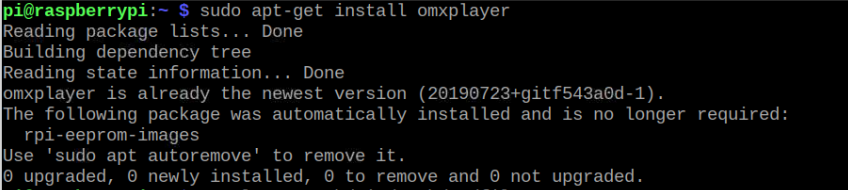

1. 安装omxplayer

sudo apt-get install omxplayer

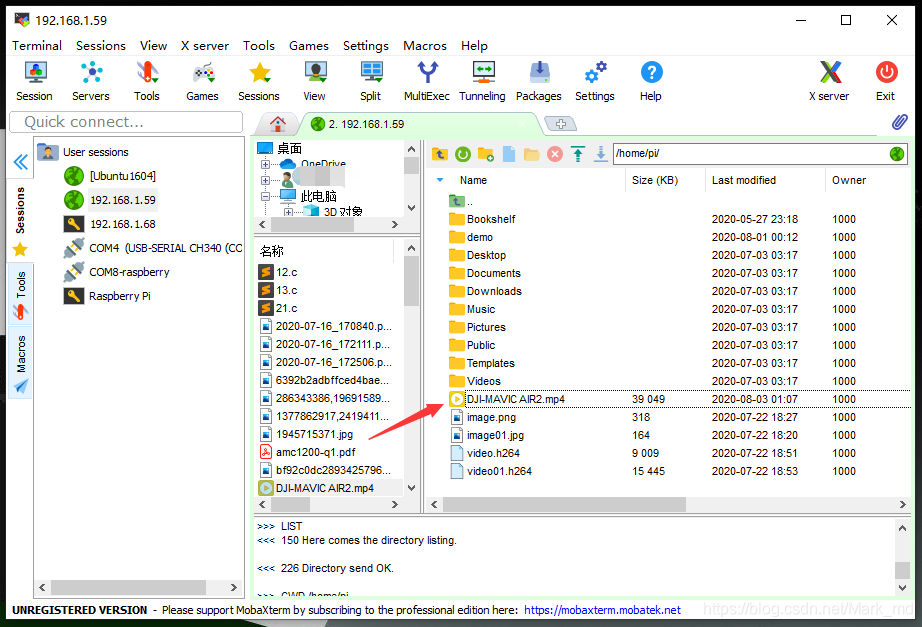

将一段mp4视频，通过FTP传输到树莓派中。

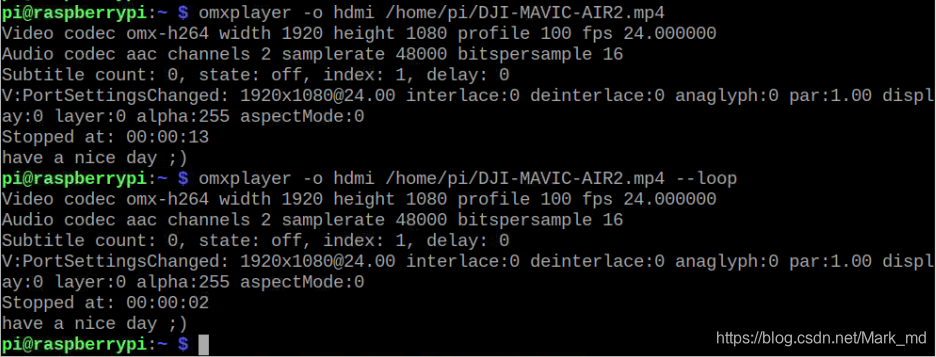

2. 使用命令行播放该视频

• 单次播放命令：

omxplayer -o hdmi /home/pi/DJI-MAVIC-AIR2.mp4



• 循环播放命令：

omxplayer -o hdmi /home/pi/DJI-MAVIC-AIR2.mp4 --loop

• 注意：视频文件名称最好不要有空格，会找不到文件。
• 命令参数：

-o hdmi ：指定输出方式为 HDMI

--loop ：循环播放

-r ：调整视频的帧率/分辨率

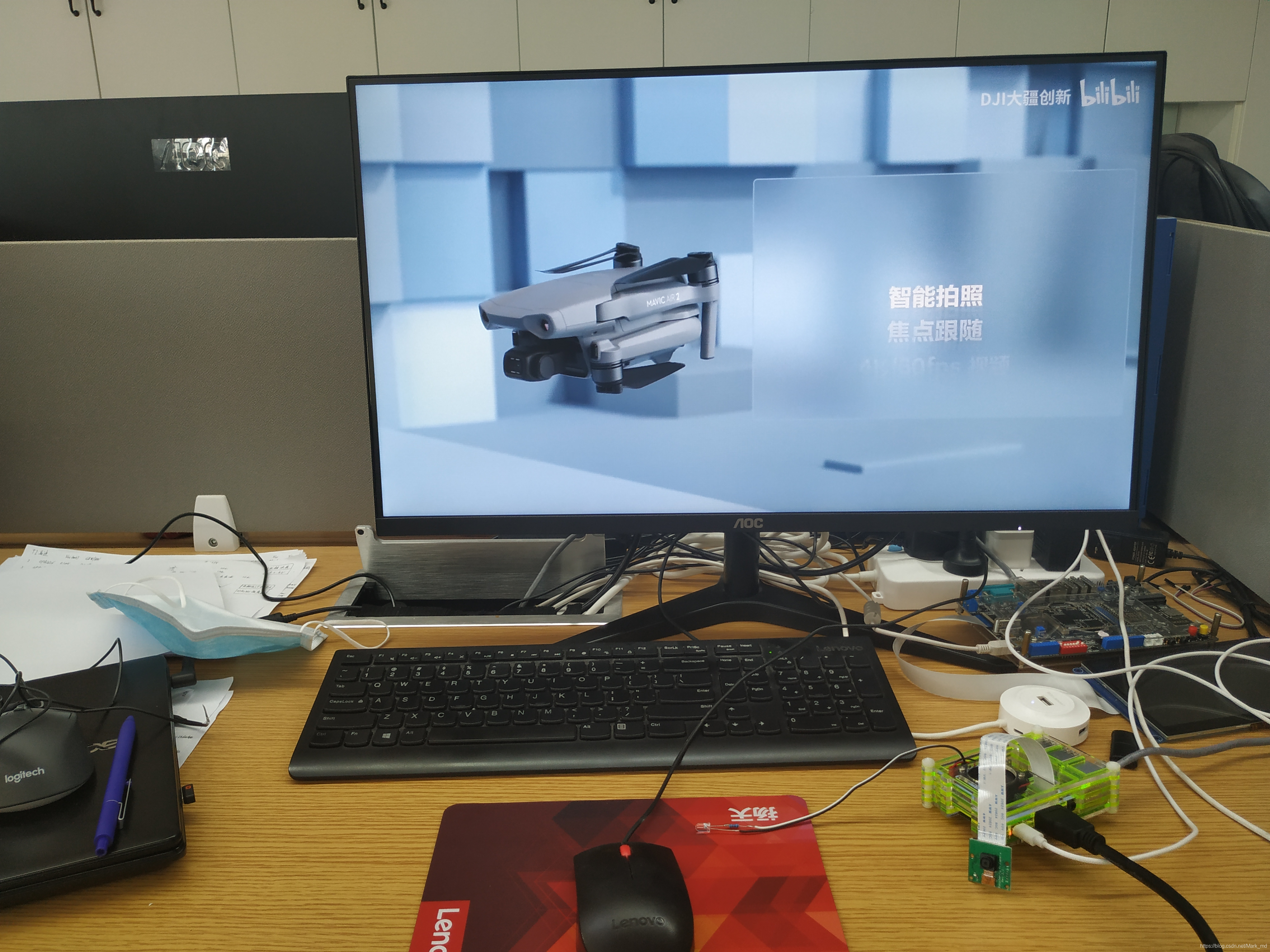

3. 播放效果

• 注意：VNC界面不会有视频输出。要连接HDMI屏幕才有输出，1080P视频流程播放没有丝毫卡顿。



4. 按键控制

• 按键功能：

q ：退出

+ - ：控制音量大小

空格键 ：暂停

左键、右键 ：前进/后退 30s

z			Show Info
1			Decrease Speed
2			Increase Speed
j			Previous Audio stream
k			Next Audio stream
i			Previous Chapter
o			Next Chapter
n			Previous Subtitle stream
m			Next Subtitle stream
s			Toggle subtitles
d			Subtitle delay -250 ms
f			Subtitle delay +250 ms
q			Exit OMXPlayer
Space or p	Pause/Resume
-			Decrease Volume
+			Increase Volume
Left Arrow	Seek -30 s
Right Arrow	Seek +30 s
Down Arrow	Seek -600 s
Up Arrow	Seek +600 s





5. omxplayer 命令行参数

• omxplayer 参考文档

pi@raspberrypi:~ $ omxplayer --help

    -h  --help                  Print this help
    -v  --version               Print version info
    -k  --keys                  Print key bindings
    -n  --aidx  index           Audio stream index    : e.g. 1
    -o  --adev  device          Audio out device      : e.g. hdmi/local/both/alsa[:device]
    -i  --info                  Dump stream format and exit
    -I  --with-info             dump stream format before playback
    -s  --stats                 Pts and buffer stats
    -p  --passthrough           Audio passthrough
    -d  --deinterlace           Force deinterlacing
        --nodeinterlace         Force no deinterlacing
        --nativedeinterlace     let display handle interlace
        --anaglyph type         convert 3d to anaglyph
        --advanced[=0]          Enable/disable advanced deinterlace for HD videos (default enabled)
    -w  --hw                    Hw audio decoding
    -3  --3d mode               Switch tv into 3d mode (e.g. SBS/TB)
    -M  --allow-mvc             Allow decoding of both views of MVC stereo stream
    -y  --hdmiclocksync         Display refresh rate to match video (default)
    -z  --nohdmiclocksync       Do not adjust display refresh rate to match video
    -t  --sid index             Show subtitle with index
    -r  --refresh               Adjust framerate/resolution to video
    -g  --genlog                Generate log file
    -l  --pos n                 Start position (hh:mm:ss)
    -b  --blank[=0xAARRGGBB]    Set the video background color to black (or optional ARGB value)
        --loop                  Loop file. Ignored if file not seekable
        --no-boost-on-downmix   Don't boost volume when downmixing
        --vol n                 set initial volume in millibels (default 0)
        --amp n                 set initial amplification in millibels (default 0)
        --no-osd                Do not display status information on screen
        --no-keys               Disable keyboard input (prevents hangs for certain TTYs)
        --subtitles path        External subtitles in UTF-8 srt format
        --font path             Default: /usr/share/fonts/truetype/freefont/FreeSans.ttf
        --italic-font path      Default: /usr/share/fonts/truetype/freefont/FreeSansOblique.ttf
        --font-size size        Font size in 1/1000 screen height (default: 55)
        --align left/center     Subtitle alignment (default: left)
        --no-ghost-box          No semitransparent boxes behind subtitles
        --lines n               Number of lines in the subtitle buffer (default: 3)
        --win 'x1 y1 x2 y2'     Set position of video window
        --win x1,y1,x2,y2       Set position of video window
        --crop 'x1 y1 x2 y2'    Set crop area for input video
        --crop x1,y1,x2,y2      Set crop area for input video
        --aspect-mode type      Letterbox, fill, stretch. Default: stretch if win is specified, letterbox otherwise
        --audio_fifo  n         Size of audio output fifo in seconds
        --video_fifo  n         Size of video output fifo in MB
        --audio_queue n         Size of audio input queue in MB
        --video_queue n         Size of video input queue in MB
        --threshold   n         Amount of buffered data required to finish buffering [s]
        --timeout     n         Timeout for stalled file/network operations (default 10s)
        --orientation n         Set orientation of video (0, 90, 180 or 270)
        --fps n                 Set fps of video where timestamps are not present
        --live                  Set for live tv or vod type stream
        --layout                Set output speaker layout (e.g. 5.1)
        --dbus_name name        default: org.mpris.MediaPlayer2.omxplayer
        --key-config <file>     Uses key bindings in <file> instead of the default
        --alpha                 Set video transparency (0..255)
        --layer n               Set video render layer number (higher numbers are on top)
        --display n             Set display to output to
        --cookie 'cookie'       Send specified cookie as part of HTTP requests
        --user-agent 'ua'       Send specified User-Agent as part of HTTP requests
        --lavfdopts 'opts'      Options passed to libavformat, e.g. 'probesize:250000,...'
        --avdict 'opts'         Options passed to demuxer, e.g., 'rtsp_transport:tcp,...'

For example:

    ./omxplayer -p -o hdmi test.mkv



6. 使用串口通信控制omxplayer

使用串口通信，控制树莓派3B播放视频：串口通信，控制树莓派3B播放视频
