%%%%%%%%%%%Add cell breathing
%The UAV coverage radius is R_m = 100m
%The area is 100*100m
clear;clc;
lengthOfArea =400;
R_m = 100;
n_users = 50;
users_dist = rand(n_users,2) * lengthOfArea; % The coordinate of every user
min_users_inaUAV = 5;
max_users_in_aUAV = 10;
power_Trans = 40;
R_cov_all = 0;
iteration = 10;
rate = zeros(iteration,1);
SINR_threshold = -5;% The threshold is dm
Rate2_low = [];
powers_collect = [];
%plot(users_dist(:,1),users_dist(:,2)3'r*');
%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%
%===================Kmeans===========
stop=0;
k_index_old = 0;
powers_all_old = 0;
%%%%%%% Kmeans tryting
for k_cluster = 3:40;
change = 1;
while change == 1;
height_all = zeros(k_cluster,1);
[k_index,k_center] = kmeans(users_dist,k_cluster);
if k_index == k_index_old
change = 0;
end
k_index_old = k_index;
%===================================
%%%%%%%%%%%%%%%%%%%
%----------In order to avoid too much overlapped area, I modify Kmeans by
%-----------------selecting the centroid from the middle of farthest users in
%-----------------one cluster
%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%
%=========find the farthest distance in one cluster
max_k_all = [];
k_means_center = [];
rate = [];
users_data=[];
for k_k = 1:k_cluster
max_all = [];
users_in_acluster = zeros(size(users_dist(k_index==k_k,:),1),2);
users_in_acluster = users_dist(k_index==k_k,:);
for user_index = 1:size(users_in_acluster,1)
[max_dista, max_index]= max((users_in_acluster(user_index,1) - users_in_acluster(:,1)).^2+(users_in_acluster(user_index,2) - users_in_acluster(:,2)).^2);
max_all = [max_all;[sqrt(max_dista), user_index, max_index]];
end
[max_k,max_index]= max(max_all(:,1));
max_index_in_acluster = max_all(max_index,2:3);
coor_center = sum(users_in_acluster(max_index_in_acluster,:),1)/2;
radiusOfCenter = norm(users_in_acluster(max_index_in_acluster(1),:)-users_in_acluster(max_index_in_acluster(2),:))/2;
k_means_center = [k_means_center; coor_center radiusOfCenter];%store the locations and radius of each cluster
end
%---------------------------------The locations of clusters have been fixed----------------------
%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%
%------------------The overlapped area---------------------------------
all_overlap_area = 0;
all_area = 0;
for k = 1:length(k_means_center)-1
for k_left = k+1:length(k_means_center)
radius_two_cluster = sqrt(sum((k_means_center(k,1:2)-k_means_center(k_left,1:2)).^2));
if radius_two_cluster < (k_means_center(k,3)+k_means_center(k_left,3))
r_1 = k_means_center(k,3); r_2 = k_means_center(k_left,3); D = radius_two_cluster;
theta_1 = acos((r_1^2+D^2-r_2^2)/(2*r_1*D));
theta_2 = acos((r_2^2+D^2-r_1^2)/(2*r_2*D));
overlap_area = theta_1*r_1^2 + theta_2*r_2^2-r_1*D*sin(theta_1);
all_overlap_area = all_overlap_area+overlap_area;
end
end
end
%---------------------------------------------------------------------
%r_distance = zeros(length(users_dist),length(k_means_center));
users_sum = 0;
%%%%%%%%%%%%%%%%%%%%%%
%--------Cell breathing to constrain the number of users.
users_overlap = 0;
for k = 1:k_cluster
r_distance = 0;
users_in_cell = users_dist(k_index==k,:);
for k_users = 1: size(users_in_cell,1)
r_distance = norm(users_in_cell(k_users,:)-k_means_center(k,1:2));
if r_distance>k_means_center(k,3)
k_means_center(k,3) = r_distance;
end
end
end
%--------------cell breathing
%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%
%%%计算所有重叠部分的用户数
for k = 1:k_cluster
users_in_cell = users_dist(k_index==k,:);
for k_users = 1: size(users_in_cell,1)
for k_cluster_else = 1:k_cluster
if k_cluster_else~=k && norm(users_in_cell(k_users,:)-k_means_center(k_cluster_else,1:2))<k_means_center(k_cluster_else,3)
users_overlap = users_overlap+1;
end
end
end
end
% if length(users_in_cluster)>= max_users_in_aUAV
% [~,dis_label] = sort(r_distance(:,k));
% k_means_center(k,3) = r_distance(dis_label(max_users_in_aUAV),k);
% end
% users_sum = users_sum + sum(r_distance(:,k)<=k_means_center(k,3));
%--------------This function has been closed.
%%%%%%%%%%%%%%%%%%%%%%
%--------------For Power Allocation
index_users = users_data(:,1);
for cluster_for_p = 1:k_cluster
users_PL_cluster_p = users_data(index_users==cluster_for_p,2:end);
SINR_cluster = [];
for user_in_c_p = 1:size(users_PL_cluster_p,1)
SINR_interf = 0;
SINR_signal = powers_all(cluster_for_p) - users_PL_cluster_p(user_in_c_p,1);
count = 1;
for user_intf = 1:k_cluster
if user_intf~=cluster_for_p
count = count+1;
SINR_interf = SINR_interf + 10.^((powers_all(cluster_for_p)-users_PL_cluster_p(user_in_c_p,count))/10);
end
end
SINR_user = SINR_signal- 10*log10(SINR_interf);
SINR_cluster = [SINR_cluster; SINR_user 10*log10(SINR_interf)];
end
[min_SINR, min_user] = min(SINR_cluster(:,1));
powers_all(cluster_for_p) = SINR_threshold + SINR_cluster(min_user,2) + users_PL_cluster_p(min_user,1);
end
powers_collect = [powers_collect; powers_all'];
SINR_iter = powerAllocation(k_cluster, users_dist,k_index,powers_all,k_means_center,height_all);
end
%--------------End
%%%%%%%%%%%%%%%%
break
end
end
end %While end
if stop == 1
break
end
end
%rate(iter) = rate(iter)/k_cluster;
%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%
%---------------Calculate the new SINR
Rate2_low = powerAllocation(k_cluster, users_dist,k_index,powers_collect(size(powers_collect,1)-1,:),k_means_center,height_all);

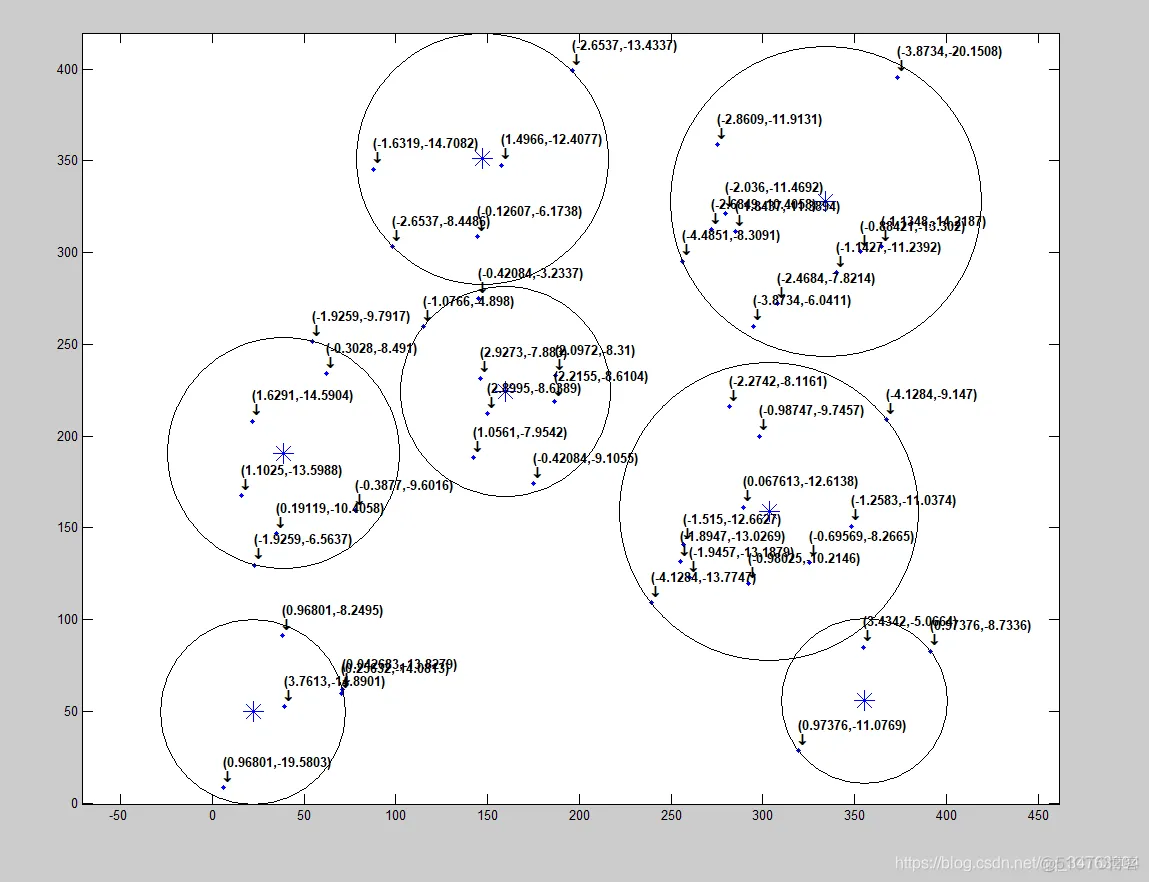

figure; hold on; plot(rate,'r*');plot(Rate2_low,'ko');
figure; hold on;
for power_iter = 1:size(powers_collect)
plot(powers_collect(power_iter,:),'.','MarkerSize',18)
end
