AssetBundle加载与卸载时的内存变化

AssetBundle.LoadFromFile加载一个80MB的assetbundle会分配1MB左右的pss内存

adb分析：private-other

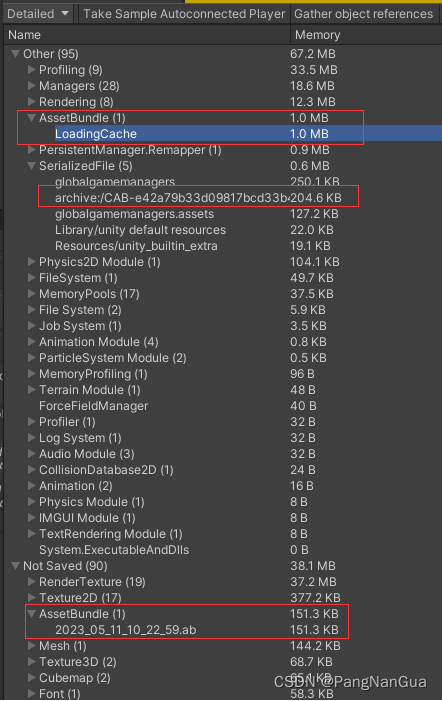

UnityProfiler分析：有3块
1.Other/AssetBundle/LoadingCache
2.Other/SerializedFile/archive:/CAB-e42axxxxxxx
3.NotSaved/AssetBundle/xxxxxx.ab

ab.LoadAllAssets或ab.LoadAsset会从磁盘上加载具体的资源到内存中约110MB
adb分析：根据不同的手机有不同的情况
中兴a2322有两块：1.graphics，2.private-other
OPPO k10有一块 private-other
UnityProfiler分析：为主要为一块即Assets/下面的具体资源，
如果有ParticleSystem，prefab，等其它资源的的话也会有其它的内存如：SceneMemory/ParticleSystem,SceneMemory/GameObject等等

ab.Unload(true)后
adb分析：会根据操作系统决定释放多少内存，或者不释放。

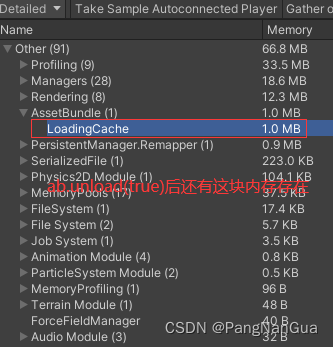

UnityProfiler分析：会释放掉绝大多数的资源，比如他可能并不释放Other/AssetBundle/LoadingCache这一块

中兴a2322测试数据

测试对象为一个80MB的ab ab中只有Texture 手机型号：中兴a2322	初始内存	AssetBundle. LoadFromFile	ab.LoadAllAssets	ab.Unload(true)
内存变化概要		pss+2MB private-other+1.5MB	pss+119MB graphics+97MB private-other+21MB Texture+108MB	pss未变化 graphics未变化 private-other未变化 另一台oppo手机这 边的变化就比较正常 Texture-108MB
(Android Api)	228.58MB	230.94MB	350.48MB	351.33MB
summary.java-heap	10.09MB	10.87MB	11.36MB	11.7MB
summary.native-heap	38.57MB	38.68MB	39.59MB	39.55MB
summary.code	76.36MB	76.31MB	76.31MB	76.31MB
summary.stack	1.56MB	1.54MB	1.54MB	1.54MB
summary.graphics	12.31MB	12.35MB	109.09MB	109.09MB
summary.private-other	66.61MB	68.05MB	89.44MB	89.98MB
summary.system	23.07MB	23.15MB	23.15MB	23.16MB
summary.total-pss	228.58MB	230.94MB	350.48MB	351.33MB
Mono	6.94MB/7.11MB	7.42MB/9.52MB	7.96MB/9.52MB	8.45MB/9.52MB
Object	41.72MB	41.87MB	151.14MB	41.72MB
Texture	38MB	38MB	146.62MB	38MB
__Texture2D	570.082kb	570.082kb	109.17MB	570.082kb
__RenderTexture	37.16MB	37.16MB	37.16MB	37.16MB
Mesh	131.398kb	131.398kb	131.398kb	131.398kb
AnimationClip	0kb	0kb	0kb	0kb
Shader	784.579kb	784.579kb	784.579kb	784.579kb
Font	58.309kb	58.309kb	58.309kb	58.309kb
Cubemap	193.555kb	193.555kb	193.555kb	193.555kb
Transform	14.008kb	14.008kb	14.008kb	14.008kb
MonoBehaviour	597.965kb	597.965kb	597.965kb	597.965kb
Material	42.09kb	42.09kb	42.09kb	42.09kb
MeshRenderer	0kb	0kb	0kb	0kb
GameObject	7.406kb	7.406kb	7.406kb	7.406kb
Sprite	2.578kb	2.578kb	672.955kb	2.578kb



oppo k10测试数据

测试对象为一个80MB的ab ab中只有Texture 手机型号：oppo k10	初始内存	AssetBundle. LoadFromFile	ab.LoadAllAssets	ab.Unload(true)
内存变化概要		pss+2MB private-other+1MB java-heap+1MB	pss+105MB private-other+105MB	pss-70MB private-other-68MB 中兴手机这边的变化就比较奇怪
summary.java-heap	9.86MB	10.77MB	11.51MB	9.85MB
summary.native-heap	53.4MB	53.41MB	53.35MB	53.33MB
summary.code	83.34MB	83.34MB	83.34MB	83.41MB
summary.stack	2MB	2.02MB	2.02MB	1.98MB
summary.graphics	93.14MB	93.15MB	93.16MB	93.16MB
summary.private-other	67.34MB	68.32MB	173.1MB	105.03MB
summary.system	20.05MB	20.05MB	20.07MB	20.07MB
summary.total-pss	329.13MB	331.07MB	436.55MB	366.82MB
