文件描述符
在linux的眼里，everything is file！每一个设备也是一个文件。打开一个文件，这个文件对应一个唯一的正整数，直至文件关闭，内核回收文件描述符。内核（kernel）利用文件描述符（file descriptor）来访问文件。 文件描述符是非负整数。 打开现存文件或新建文件时，内核会返回一个文件描述符。 读写文件也需要使用文件描述符来指定待读写的文件。

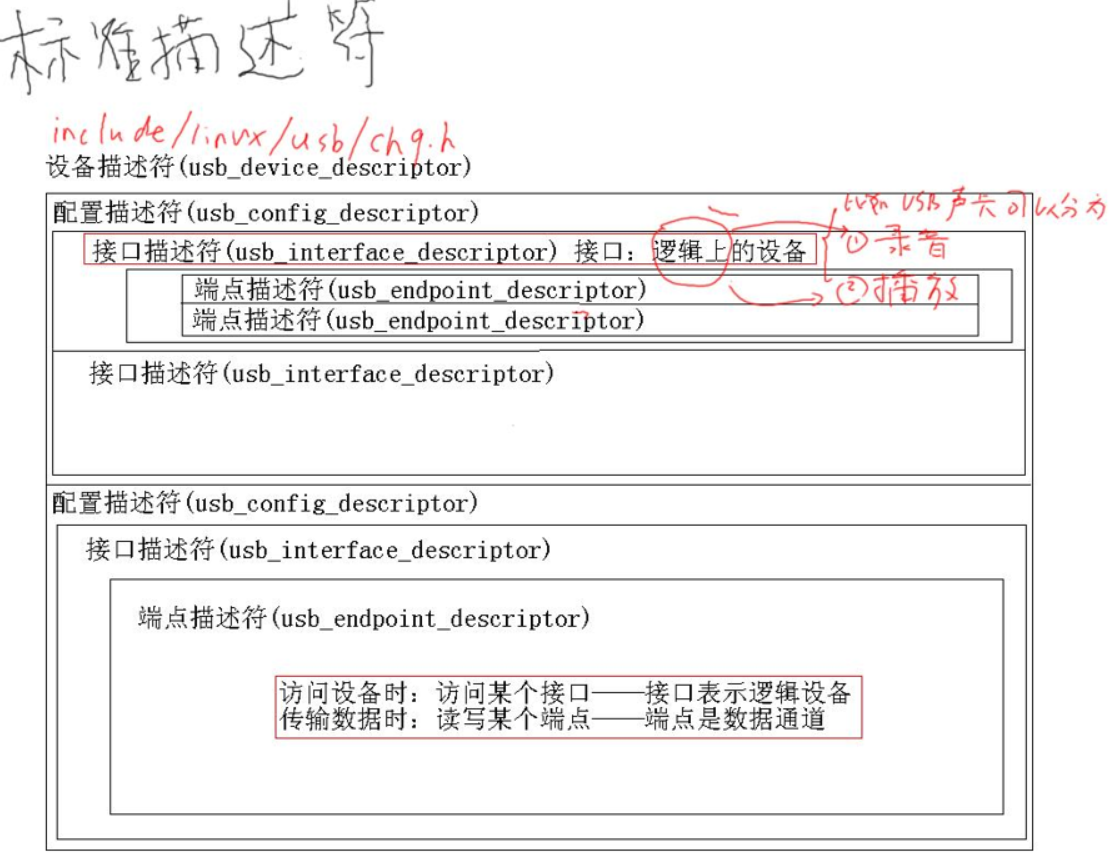

标准设备描述符
每个设备对应一个设备描述符，设备有多个配置（对应多个配置描述符），配置中有多个接口，接口下面又有多个端点。

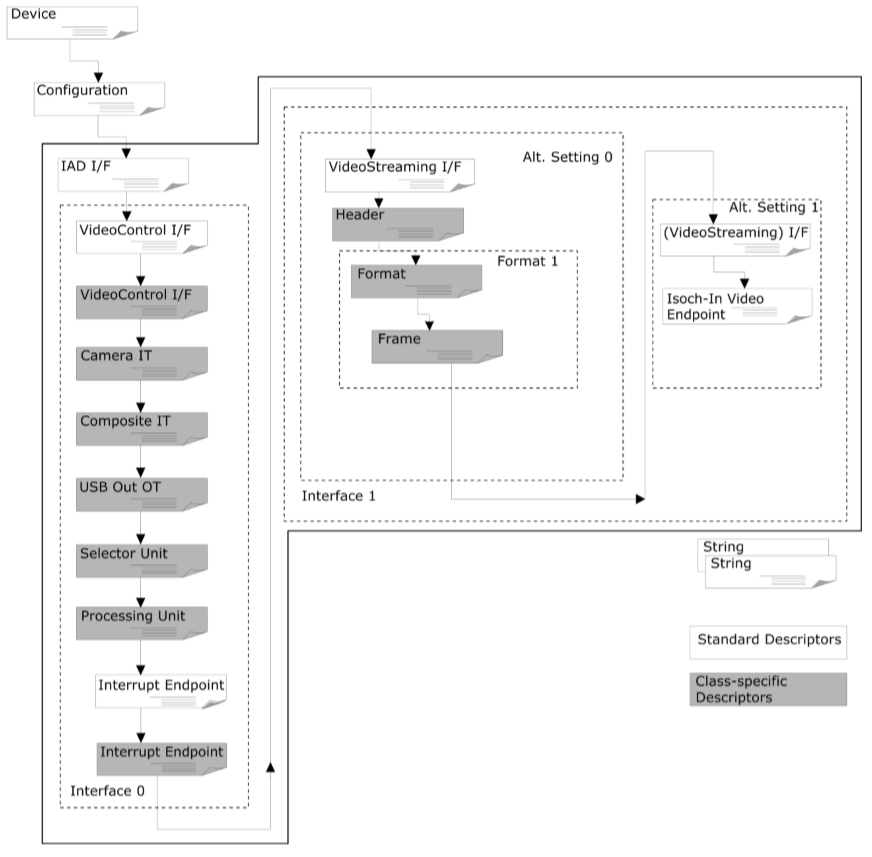

USB视频描述符层次结构
首先，阐明一个观点，一个USB视频设备只会暴露一个VC（video control）interface，而VS （Video control）interface是属于VC interface或者说可以从VC（video control）interface找到VS interface。
ps：
IAD:Interface Association Descriptor 接口联合描述符。这个描述符告诉使用者有一个VC、多少个VS、第一个是谁！
途中白框表示标准设备描述符所提供的的信息，灰色的框表示UVC自定义的特殊描述符信息（类似一些亮度，白平衡，锐化等信息都在灰色框中定义）
描述符的提取以及分析
#include <linux/atomic.h>
#include <linux/kernel.h>
#include <linux/list.h>
#include <linux/module.h>
#include <linux/slab.h>
#include <linux/usb.h>
#include <linux/videodev2.h>
#include <linux/vmalloc.h>
#include <linux/wait.h>
#include <linux/version.h>
#include <asm/unaligned.h>
#include <media/v4l2-common.h>
static const char *get_guid(const unsigned char *buf)
{
static char guid[39];
/* NOTE: see RFC 4122 for more information about GUID/UUID
* structure. The first fields fields are historically big
* endian numbers, dating from Apollo mc68000 workstations.
*/
sprintf(guid, "{%02x%02x%02x%02x"
"-%02x%02x"
"-%02x%02x"
"-%02x%02x"
"-%02x%02x%02x%02x%02x%02x}",
buf[0], buf[1], buf[2], buf[3],
buf[4], buf[5],
buf[6], buf[7],
buf[8], buf[9],
buf[10], buf[11], buf[12], buf[13], buf[14], buf[15]);
return guid;
}
static void parse_videocontrol_interface(struct usb_interface *intf, unsigned char *buf, int buflen)
{
static const char * const ctrlnames[] = {
"Brightness", "Contrast", "Hue", "Saturation", "Sharpness", "Gamma",
"White Balance Temperature", "White Balance Component", "Backlight Compensation",
"Gain", "Power Line Frequency", "Hue, Auto", "White Balance Temperature, Auto",
"White Balance Component, Auto", "Digital Multiplier", "Digital Multiplier Limit",
"Analog Video Standard", "Analog Video Lock Status"
};
static const char * const camctrlnames[] = {
"Scanning Mode", "Auto-Exposure Mode", "Auto-Exposure Priority",
"Exposure Time (Absolute)", "Exposure Time (Relative)", "Focus (Absolute)",
"Focus (Relative)", "Iris (Absolute)", "Iris (Relative)", "Zoom (Absolute)",
"Zoom (Relative)", "PanTilt (Absolute)", "PanTilt (Relative)",
"Roll (Absolute)", "Roll (Relative)", "Reserved", "Reserved", "Focus, Auto",
"Privacy"
};
static const char * const stdnames[] = {
"None", "NTSC - 525/60", "PAL - 625/50", "SECAM - 625/50",
"NTSC - 625/50", "PAL - 525/60" };
unsigned int i, ctrls, stds, n, p, termt, freq;
while (buflen > 0)
{
if (buf[1] != USB_DT_CS_INTERFACE)
printk(" Warning: Invalid descriptor\n");
else if (buf[0] < 3)
printk(" Warning: Descriptor too short\n");
printk(" VideoControl Interface Descriptor:\n"
" bLength %5u\n"
" bDescriptorType %5u\n"
" bDescriptorSubtype %5u ",
buf[0], buf[1], buf[2]);
switch (buf[2]) {
case 0x01: /* HEADER */
printk("(HEADER)\n");
n = buf[11];
if (buf[0] < 12+n)
printk(" Warning: Descriptor too short\n");
freq = buf[7] | (buf[8] << 8) | (buf[9] << 16) | (buf[10] << 24);
printk(" bcdUVC %2x.%02x\n"
" wTotalLength %5u\n"
" dwClockFrequency %5u.%06uMHz\n"
" bInCollection %5u\n",
buf[4], buf[3], buf[5] | (buf[6] << 8), freq / 1000000,
freq % 1000000, n);
for (i = 0; i < n; i++)
printk(" baInterfaceNr(%2u) %5u\n", i, buf[12+i]);
break;

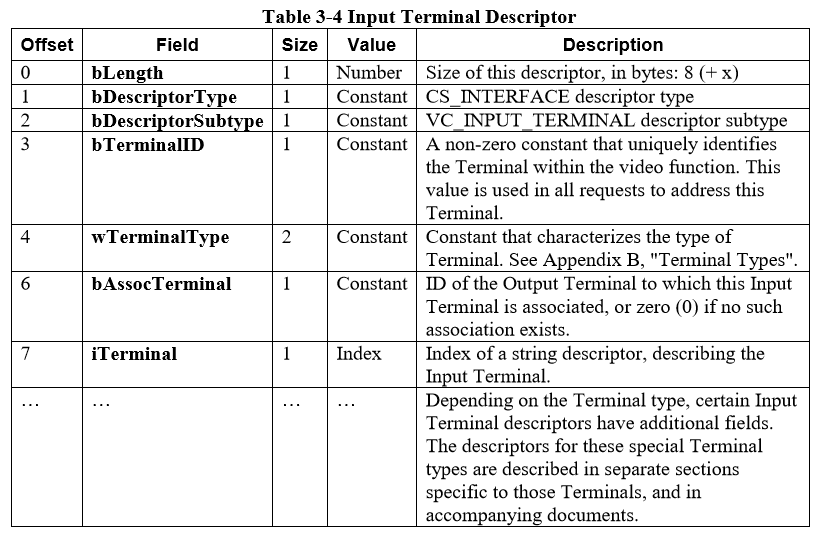

case 0x02: /* INPUT_TERMINAL */
printk("(INPUT_TERMINAL)\n");
termt = buf[4] | (buf[5] << 8);
n = termt == 0x0201 ? 7 : 0;
if (buf[0] < 8 + n)
printk(" Warning: Descriptor too short\n");
printk(" bTerminalID %5u\n"
" wTerminalType 0x%04x\n"
" bAssocTerminal %5u\n",
buf[3], termt, buf[6]);
printk(" iTerminal %5u\n",
buf[7]);
if (termt == 0x0201) {
n += buf[14];
printk(" wObjectiveFocalLengthMin %5u\n"
" wObjectiveFocalLengthMax %5u\n"
" wOcularFocalLength %5u\n"
" bControlSize %5u\n",
buf[8] | (buf[9] << 8), buf[10] | (buf[11] << 8),
buf[12] | (buf[13] << 8), buf[14]);
ctrls = 0;
for (i = 0; i < 3 && i < buf[14]; i++)
ctrls = (ctrls << 8) | buf[8+n-i-1];
printk(" bmControls 0x%08x\n", ctrls);
for (i = 0; i < 19; i++)
if ((ctrls >> i) & 1)
printk(" %s\n", camctrlnames[i]);
}
break;
case 0x03: /* OUTPUT_TERMINAL */
printk("(OUTPUT_TERMINAL)\n");
termt = buf[4] | (buf[5] << 8);
if (buf[0] < 9)
printk(" Warning: Descriptor too short\n");
printk(" bTerminalID %5u\n"
" wTerminalType 0x%04x\n"
" bAssocTerminal %5u\n"
" bSourceID %5u\n"
" iTerminal %5u\n",
buf[3], termt, buf[6], buf[7], buf[8]);
break;
case 0x04: /* SELECTOR_UNIT */
printk("(SELECTOR_UNIT)\n");
p = buf[4];
if (buf[0] < 6+p)
printk(" Warning: Descriptor too short\n");
printk(" bUnitID %5u\n"
" bNrInPins %5u\n",
buf[3], p);
for (i = 0; i < p; i++)
printk(" baSource(%2u) %5u\n", i, buf[5+i]);
printk(" iSelector %5u\n",
buf[5+p]);
break;
case 0x05: /* PROCESSING_UNIT */
printk("(PROCESSING_UNIT)\n");
n = buf[7];
if (buf[0] < 10+n)
printk(" Warning: Descriptor too short\n");
printk(" bUnitID %5u\n"
" bSourceID %5u\n"
" wMaxMultiplier %5u\n"
" bControlSize %5u\n",
buf[3], buf[4], buf[5] | (buf[6] << 8), n);
ctrls = 0;
for (i = 0; i < 3 && i < n; i++)
ctrls = (ctrls << 8) | buf[8+n-i-1];
printk(" bmControls 0x%08x\n", ctrls);
for (i = 0; i < 18; i++)
if ((ctrls >> i) & 1)
printk(" %s\n", ctrlnames[i]);
stds = buf[9+n];
printk(" iProcessing %5u\n"
" bmVideoStandards 0x%2x\n", buf[8+n], stds);
for (i = 0; i < 6; i++)
if ((stds >> i) & 1)
printk(" %s\n", stdnames[i]);
break;

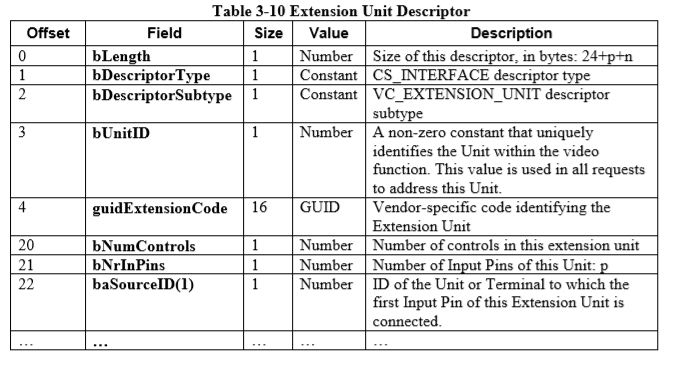

case 0x06: /* EXTENSION_UNIT */
printk("(EXTENSION_UNIT)\n");
p = buf[21];
n = buf[22+p];
if (buf[0] < 24+p+n)
printk(" Warning: Descriptor too short\n");
printk(" bUnitID %5u\n"
" guidExtensionCode %s\n"
" bNumControl %5u\n"
" bNrPins %5u\n",
buf[3], get_guid(&buf[4]), buf[20], buf[21]);
for (i = 0; i < p; i++)
printk(" baSourceID(%2u) %5u\n", i, buf[22+i]);
printk(" bControlSize %5u\n", buf[22+p]);
for (i = 0; i < n; i++)
printk(" bmControls(%2u) 0x%02x\n", i, buf[23+p+i]);
printk(" iExtension %5u\n",
buf[23+p+n]);
break;
default:
printk("(unknown)\n"
" Invalid desc subtype:");
break;
}
buflen -= buf[0];
buf += buf[0];
}
}
static void parse_videostreaming_interface(struct usb_interface *intf, unsigned char *buf, int buflen)
{
static const char * const colorPrims[] = { "Unspecified", "BT.709,sRGB",
"BT.470-2 (M)", "BT.470-2 (B,G)", "SMPTE 170M", "SMPTE 240M" };
static const char * const transferChars[] = { "Unspecified", "BT.709",
"BT.470-2 (M)", "BT.470-2 (B,G)", "SMPTE 170M", "SMPTE 240M",
"Linear", "sRGB"};
static const char * const matrixCoeffs[] = { "Unspecified", "BT.709",
"FCC", "BT.470-2 (B,G)", "SMPTE 170M (BT.601)", "SMPTE 240M" };
unsigned int i, m, n, p, flags, len;
while (buflen > 0)
{
if (buf[1] != USB_DT_CS_INTERFACE)
printk(" Warning: Invalid descriptor\n");
else if (buf[0] < 3)
printk(" Warning: Descriptor too short\n");
printk(" VideoStreaming Interface Descriptor:\n"
" bLength %5u\n"
" bDescriptorType %5u\n"
" bDescriptorSubtype %5u ",
buf[0], buf[1], buf[2]);
switch (buf[2]) {

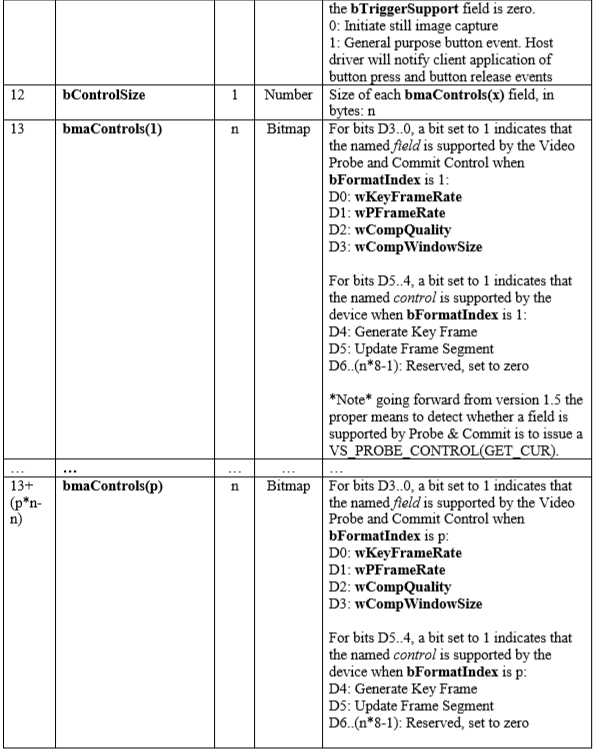

case 0x01: /* INPUT_HEADER */
printk("(INPUT_HEADER)\n");
p = buf[3];
n = buf[12];
if (buf[0] < 13+p*n)
printk(" Warning: Descriptor too short\n");
printk(" bNumFormats %5u\n"
" wTotalLength %5u\n"
" bEndPointAddress %5u\n"
" bmInfo %5u\n"
" bTerminalLink %5u\n"
" bStillCaptureMethod %5u\n"
" bTriggerSupport %5u\n"
" bTriggerUsage %5u\n"
" bControlSize %5u\n",
p, buf[4] | (buf[5] << 8), buf[6], buf[7], buf[8],
buf[9], buf[10], buf[11], n);
for (i = 0; i < p; i++)
printk(
" bmaControls(%2u) %5u\n",
i, buf[13+p*n]);
break;
case 0x02: /* OUTPUT_HEADER */
printk("(OUTPUT_HEADER)\n");
p = buf[3];
n = buf[8];
if (buf[0] < 9+p*n)
printk(" Warning: Descriptor too short\n");
printk(" bNumFormats %5u\n"
" wTotalLength %5u\n"
" bEndpointAddress %5u\n"
" bTerminalLink %5u\n"
" bControlSize %5u\n",
p, buf[4] | (buf[5] << 8), buf[6], buf[7], n);
for (i = 0; i < p; i++)
printk(
" bmaControls(%2u) %5u\n",
i, buf[9+p*n]);
break;
case 0x03: /* STILL_IMAGE_FRAME */
printk("(STILL_IMAGE_FRAME)\n");
n = buf[4];
m = buf[5+4*n];
if (buf[0] < 6+4*n+m)
printk(" Warning: Descriptor too short\n");
printk(" bEndpointAddress %5u\n"
" bNumImageSizePatterns %3u\n",
buf[3], n);
for (i = 0; i < n; i++)
printk(" wWidth(%2u) %5u\n"
" wHeight(%2u) %5u\n",
i, buf[5+4*i] | (buf[6+4*i] << 8),
i, buf[7+4*i] | (buf[8+4*i] << 8));
printk(" bNumCompressionPatterns %3u\n", n);
for (i = 0; i < m; i++)
printk(" bCompression(%2u) %5u\n",
i, buf[6+4*n+i]);
break;

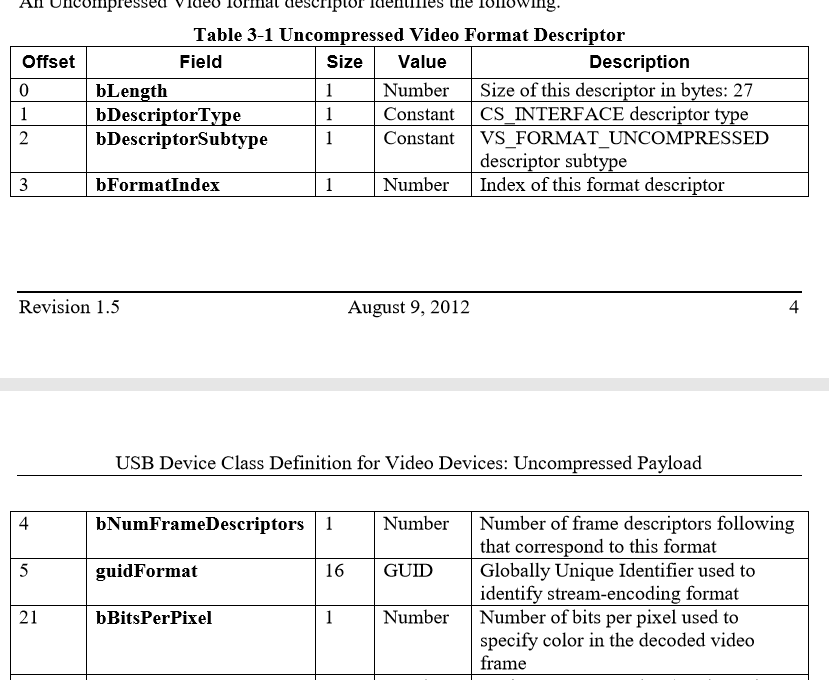

case 0x04: /* FORMAT_UNCOMPRESSED */
case 0x10: /* FORMAT_FRAME_BASED */
if (buf[2] == 0x04) {
printk("(FORMAT_UNCOMPRESSED)\n");
len = 27;
} else {
printk("(FORMAT_FRAME_BASED)\n");
len = 28;
}
if (buf[0] < len)
printk(" Warning: Descriptor too short\n");

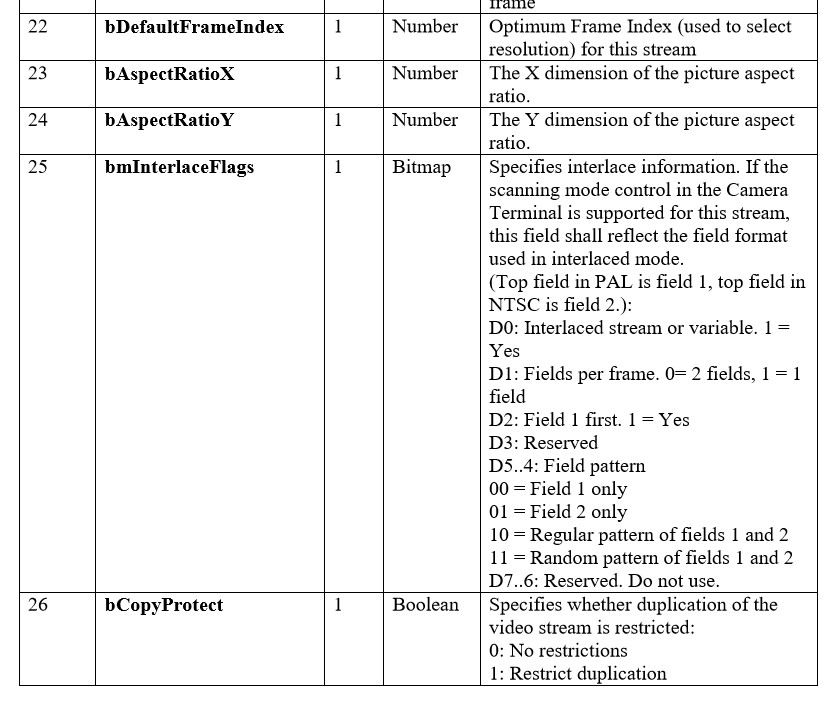

flags = buf[25];
printk(" bFormatIndex %5u\n"
" bNumFrameDescriptors %5u\n"
" guidFormat %s\n"
" bBitsPerPixel %5u\n"
" bDefaultFrameIndex %5u\n"
" bAspectRatioX %5u\n"
" bAspectRatioY %5u\n"
" bmInterlaceFlags 0x%02x\n",
buf[3], buf[4], get_guid(&buf[5]), buf[21], buf[22],
buf[23], buf[24], flags);
printk(" Interlaced stream or variable: %s\n",
(flags & (1 << 0)) ? "Yes" : "No");
printk(" Fields per frame: %u fields\n",
(flags & (1 << 1)) ? 1 : 2);
printk(" Field 1 first: %s\n",
(flags & (1 << 2)) ? "Yes" : "No");
printk(" Field pattern: ");
switch ((flags >> 4) & 0x03) {
case 0:
printk("Field 1 only\n");
break;
case 1:
printk("Field 2 only\n");
break;
case 2:
printk("Regular pattern of fields 1 and 2\n");
break;
case 3:
printk("Random pattern of fields 1 and 2\n");
break;
}
printk(" bCopyProtect %5u\n", buf[26]);
if (buf[2] == 0x10)
printk(" bVariableSize %5u\n", buf[27]);
break;
case 0x05: /* FRAME UNCOMPRESSED */
case 0x07: /* FRAME_MJPEG */
case 0x11: /* FRAME_FRAME_BASED */
if (buf[2] == 0x05) {
printk("(FRAME_UNCOMPRESSED)\n");
n = 25;
} else if (buf[2] == 0x07) {
printk("(FRAME_MJPEG)\n");
n = 25;
} else {
printk("(FRAME_FRAME_BASED)\n");
n = 21;
}
len = (buf[n] != 0) ? (26+buf[n]*4) : 38;
if (buf[0] < len)
printk(" Warning: Descriptor too short\n");
flags = buf[4];
printk(" bFrameIndex %5u\n"
" bmCapabilities 0x%02x\n",
buf[3], flags);
printk(" Still image %ssupported\n",
(flags & (1 << 0)) ? "" : "un");
if (flags & (1 << 1))
printk(" Fixed frame-rate\n");
printk(" wWidth %5u\n"
" wHeight %5u\n"
" dwMinBitRate %9u\n"
" dwMaxBitRate %9u\n",
buf[5] | (buf[6] << 8), buf[7] | (buf[8] << 8),
buf[9] | (buf[10] << 8) | (buf[11] << 16) | (buf[12] << 24),
buf[13] | (buf[14] << 8) | (buf[15] << 16) | (buf[16] << 24));
if (buf[2] == 0x11)
printk(" dwDefaultFrameInterval %9u\n"
" bFrameIntervalType %5u\n"
" dwBytesPerLine %9u\n",
buf[17] | (buf[18] << 8) | (buf[19] << 16) | (buf[20] << 24),
buf[21],
buf[22] | (buf[23] << 8) | (buf[24] << 16) | (buf[25] << 24));
else
printk(" dwMaxVideoFrameBufferSize %9u\n"
" dwDefaultFrameInterval %9u\n"
" bFrameIntervalType %5u\n",
buf[17] | (buf[18] << 8) | (buf[19] << 16) | (buf[20] << 24),
buf[21] | (buf[22] << 8) | (buf[23] << 16) | (buf[24] << 24),
buf[25]);
if (buf[n] == 0)
printk(" dwMinFrameInterval %9u\n"
" dwMaxFrameInterval %9u\n"
" dwFrameIntervalStep %9u\n",
buf[26] | (buf[27] << 8) | (buf[28] << 16) | (buf[29] << 24),
buf[30] | (buf[31] << 8) | (buf[32] << 16) | (buf[33] << 24),
buf[34] | (buf[35] << 8) | (buf[36] << 16) | (buf[37] << 24));
else
for (i = 0; i < buf[n]; i++)
printk(" dwFrameInterval(%2u) %9u\n",
i, buf[26+4*i] | (buf[27+4*i] << 8) |
(buf[28+4*i] << 16) | (buf[29+4*i] << 24));
break;
case 0x06: /* FORMAT_MJPEG */
printk("(FORMAT_MJPEG)\n");
if (buf[0] < 11)
printk(" Warning: Descriptor too short\n");
flags = buf[5];
printk(" bFormatIndex %5u\n"
" bNumFrameDescriptors %5u\n"
" bFlags %5u\n",
buf[3], buf[4], flags);
printk(" Fixed-size samples: %s\n",
(flags & (1 << 0)) ? "Yes" : "No");
flags = buf[9];
printk(" bDefaultFrameIndex %5u\n"
" bAspectRatioX %5u\n"
" bAspectRatioY %5u\n"
" bmInterlaceFlags 0x%02x\n",
buf[6], buf[7], buf[8], flags);
printk(" Interlaced stream or variable: %s\n",
(flags & (1 << 0)) ? "Yes" : "No");
printk(" Fields per frame: %u fields\n",
(flags & (1 << 1)) ? 2 : 1);
printk(" Field 1 first: %s\n",
(flags & (1 << 2)) ? "Yes" : "No");
printk(" Field pattern: ");
switch ((flags >> 4) & 0x03) {
case 0:
printk("Field 1 only\n");
break;
case 1:
printk("Field 2 only\n");
break;
case 2:
printk("Regular pattern of fields 1 and 2\n");
break;
case 3:
printk("Random pattern of fields 1 and 2\n");
break;
}
printk(" bCopyProtect %5u\n", buf[10]);
break;
case 0x0a: /* FORMAT_MPEG2TS */
printk("(FORMAT_MPEG2TS)\n");
len = buf[0] < 23 ? 7 : 23;
if (buf[0] < len)
printk(" Warning: Descriptor too short\n");
printk(" bFormatIndex %5u\n"
" bDataOffset %5u\n"
" bPacketLength %5u\n"
" bStrideLength %5u\n",
buf[3], buf[4], buf[5], buf[6]);
if (len > 7)
printk(" guidStrideFormat %s\n",
get_guid(&buf[7]));
break;
case 0x0d: /* COLORFORMAT */
printk("(COLORFORMAT)\n");
if (buf[0] < 6)
printk(" Warning: Descriptor too short\n");
printk(" bColorPrimaries %5u (%s)\n",
buf[3], (buf[3] <= 5) ? colorPrims[buf[3]] : "Unknown");
printk(" bTransferCharacteristics %5u (%s)\n",
buf[4], (buf[4] <= 7) ? transferChars[buf[4]] : "Unknown");
printk(" bMatrixCoefficients %5u (%s)\n",
buf[5], (buf[5] <= 5) ? matrixCoeffs[buf[5]] : "Unknown");
break;
default:
printk(" Invalid desc subtype:");
break;
}
buflen -= buf[0];
buf += buf[0];
}
}
static void dump_endpoint(const struct usb_endpoint_descriptor *endpoint)
{
static const char * const typeattr[] = {
"Control",
"Isochronous",
"Bulk",
"Interrupt"
};
static const char * const syncattr[] = {
"None",
"Asynchronous",
"Adaptive",
"Synchronous"
};
static const char * const usage[] = {
"Data",
"Feedback",
"Implicit feedback Data",
"(reserved)"
};
static const char * const hb[] = { "1x", "2x", "3x", "(?\?)" };
unsigned wmax = __le16_to_cpu(endpoint->wMaxPacketSize);
printk(" Endpoint Descriptor:\n"
" bLength %5u\n"
" bDescriptorType %5u\n"
" bEndpointAddress 0x%02x EP %u %s\n"
" bmAttributes %5u\n"
" Transfer Type %s\n"
" Synch Type %s\n"
" Usage Type %s\n"
" wMaxPacketSize 0x%04x %s %d bytes\n"
" bInterval %5u\n",
endpoint->bLength,
endpoint->bDescriptorType,
endpoint->bEndpointAddress,
endpoint->bEndpointAddress & 0x0f,
(endpoint->bEndpointAddress & 0x80) ? "IN" : "OUT",
endpoint->bmAttributes,
typeattr[endpoint->bmAttributes & 3],
syncattr[(endpoint->bmAttributes >> 2) & 3],
usage[(endpoint->bmAttributes >> 4) & 3],
wmax, hb[(wmax >> 11) & 3], wmax & 0x7ff,
endpoint->bInterval);
/* only for audio endpoints */
if (endpoint->bLength == 9)
printk(" bRefresh %5u\n"
" bSynchAddress %5u\n",
endpoint->bRefresh, endpoint->bSynchAddress);
}
static int myuvc_probe(struct usb_interface *intf,
const struct usb_device_id *id)
{
static int cnt;
struct usb_device *dev = interface_to_usbdev(intf);
struct usb_device_descriptor *descriptor = &dev->descriptor;
struct usb_host_config *hostconfig;
struct usb_config_descriptor *config;
struct usb_interface_assoc_descriptor *assoc_desc;
struct usb_interface_descriptor *interface;
struct usb_endpoint_descriptor *endpoint;
int i,j,k,l,m;
unsigned char *buffer;
int buflen;
int desc_len;
int desc_cnt;
printk("myuvc_probe : cnt = %d\n", cnt++);
/* 打印设备描述符 */
printk("Device Descriptor:\n"
" bLength %5u\n"
" bDescriptorType %5u\n"
" bcdUSB %2x.%02x\n"
" bDeviceClass %5u \n"
" bDeviceSubClass %5u \n"
" bDeviceProtocol %5u \n"
" bMaxPacketSize0 %5u\n"
" idVendor 0x%04x \n"
" idProduct 0x%04x \n"
" bcdDevice %2x.%02x\n"
" iManufacturer %5u\n"
" iProduct %5u\n"
" iSerial %5u\n"
" bNumConfigurations %5u\n",
descriptor->bLength, descriptor->bDescriptorType,
descriptor->bcdUSB >> 8, descriptor->bcdUSB & 0xff,
descriptor->bDeviceClass,
descriptor->bDeviceSubClass,
descriptor->bDeviceProtocol,
descriptor->bMaxPacketSize0,
descriptor->idVendor, descriptor->idProduct,
descriptor->bcdDevice >> 8, descriptor->bcdDevice & 0xff,
descriptor->iManufacturer,
descriptor->iProduct,
descriptor->iSerialNumber,
descriptor->bNumConfigurations);
for (i=0;i<descriptor->bNumConfigurations;i++)
{
hostconfig = &dev->config[i]; /*把这个配置地址取出来一下*/
config = &hostconfig->desc; /*把配置描述符取出来*/
printk(" Configuration Descriptor %d:\n"
" bLength %5u\n"
" bDescriptorType %5u\n"
" wTotalLength %5u\n"
" bNumInterfaces %5u\n"
" bConfigurationValue %5u\n"
" iConfiguration %5u\n"
" bmAttributes 0x%02x\n",
i,
config->bLength, config->bDescriptorType,
__le16_to_cpu(config->wTotalLength),
config->bNumInterfaces, config->bConfigurationValue,
config->iConfiguration,
config->bmAttributes);
/*打印的是接口联合体运算符*/
assoc_desc = hostconfig->intf_assoc[0]; /*这里为什么不加 取址：原因是这个数组里面全是指针*/
printk(" Interface Association:\n"
" bLength %5u\n"
" bDescriptorType %5u\n"
" bFirstInterface %5u\n"
" bInterfaceCount %5u\n"
" bFunctionClass %5u\n"
" bFunctionSubClass %5u\n"
" bFunctionProtocol %5u\n"
" iFunction %5u\n",
assoc_desc->bLength,
assoc_desc->bDescriptorType,
assoc_desc->bFirstInterface,
assoc_desc->bInterfaceCount,
assoc_desc->bFunctionClass,
assoc_desc->bFunctionSubClass,
assoc_desc->bFunctionProtocol,
assoc_desc->iFunction);
/*打印接口描述符*/
/*打印该接口下面的多个设置*/
/*这里的设置就是描述符的信息*/
for (j=0;j<intf->num_altsetting;j++)
{
interface = &intf->altsetting[j].desc;
printk(" Interface Descriptor altsetting %d:\n"
" bLength %5u\n"
" bDescriptorType %5u\n"
" bInterfaceNumber %5u\n"
" bAlternateSetting %5u\n"
" bNumEndpoints %5u\n"
" bInterfaceClass %5u\n"
" bInterfaceSubClass %5u\n"
" bInterfaceProtocol %5u\n"
" iInterface %5u\n",
j,
interface->bLength, interface->bDescriptorType, interface->bInterfaceNumber,
interface->bAlternateSetting, interface->bNumEndpoints, interface->bInterfaceClass,
interface->bInterfaceSubClass, interface->bInterfaceProtocol,
interface->iInterface);
/* 打印端点描述符 */
for (m = 0; m < interface->bNumEndpoints; m++)
{
endpoint = &intf->altsetting[j].endpoint[m].desc;
dump_endpoint(endpoint);
}
}
buffer = intf->cur_altsetting->extra; /*UVC类所定义的描述符都在extra里面*/
buflen = intf->cur_altsetting->extralen;
printk("extra buffer of interface %d:\n", cnt-1);
k = 0;
desc_cnt = 0;
while (k < buflen)
{
desc_len = buffer[k];
printk("extra desc %d: ", desc_cnt);
for (l = 0; l < desc_len; l++, k++)
{
printk("%02x ", buffer[k]);
}
desc_cnt++;
printk("\n");
}
/*分析UVC自定义的描述符*/
interface = &intf->cur_altsetting->desc;
if ((buffer[1] == USB_DT_CS_INTERFACE) && (interface->bInterfaceSubClass == 1))
{
/*解析VC的数据*/
parse_videocontrol_interface(intf, buffer, buflen);
}
if ((buffer[1] == USB_DT_CS_INTERFACE) && (interface->bInterfaceSubClass == 2))
{
/*分析VS interface的信息*/
parse_videostreaming_interface(intf, buffer, buflen);
}
}
return 0;
}
static void myuvc_disconnect(struct usb_interface *intf)
{
static int cnt;
printk("myuvc_disconnect : cnt = %d\n", cnt++);
}
/*myuvc_ids里面可以填充某个厂家特定的设备，也可以填充通用的设备*/
/*内核比对id成功一次调用一次probe函数，拔除设备时一样会比对id调用myuvc_disconnect函数*/
/*这是是两个通用设备，所以会调用两次*/
static struct usb_device_id myuvc_ids[] = {
/* Generic USB Video Class */
/*这个设备属于USB_CLASS_VIDEO类，子类是1（VIDEOControl视频控制接口），协议是0*/
/*流接口属于控制接口，可以通过控制接口找到流接口*/
{ USB_INTERFACE_INFO(USB_CLASS_VIDEO, 1, 0) }, /*VdieoControl Interface*/
{ USB_INTERFACE_INFO(USB_CLASS_VIDEO, 2, 0) }, /*VdieoStreaming Interface*/
{}
};
/*1.分配一个usb_driver结构体*/
/*2.设置*/
/*id_table表示支持哪些设备*/
/*probe表示接上支持的设备时，probe函数就会被调用*/
/*disconnect表示拔除设备后会调用该函数进行销毁的工作*/
static struct usb_driver myuvc_driver = {
.name = "myuvc",
.probe = myuvc_probe,
.disconnect = myuvc_disconnect,
.id_table = myuvc_ids,
};
static int myuvc_init(void)
{
/*注册*/
usb_register(&myuvc_driver);
return 0;
}
static void myuvc_exit(void)
{
usb_deregister(&myuvc_driver);
}
module_init(myuvc_init);
module_exit(myuvc_exit);
MODULE_LICENSE("GPL");
对于设备的成功调用与否，需要比对id_table中的信息，里面可以是特定厂家提供的设备，也可以是通用设备。
自定义描述符的内容
VideoControl Interface的自定义描述符:
extra buffer of interface 0:
extra desc 0: 0d 24 01 00 01 4d 00 80 c3 c9 01 01 01
第一个字节表示该描述符的长度，第二个字节标书CS(class special)类型，第三个字节表示子类型，一次按着TABLE 3-3比对解析。
VC_INPUT_TERMINAL （IT） ：
extra desc 1: 12 24 02 01 01 02 00 00 00 00 00 00 00 00 03 0e 00 00
VC_OUTPUT_TERMINAL (OT)：
extra desc 2: 09 24 03 02 01 01 00 04 00
VC_PROCESSING_UNIT (PU):
extra desc 3: 0b 24 05 03 01 00 00 02 7f 14 00
VC_EXTENSION_UNIT (EU):
extra desc 4: 1a 24 06 04 ad cc b1 c2 f6 ab b8 48 8e 37 32 d4 f3 a3 fe ec 08 01 03 01 3f 00
根据描述符中的信息，可以的到VC interface中内部的结构：
IT(01) ===> PU(03) ===> EU(04) ===> OT(02)
VideoStreaming Interface的自定义描述符:
VS_INPUT_HEADER ：
extra desc 0: 0e 24 01 01 df 00 81 00 02 02 01 01 01 00
VS_FORMAT_UNCOMPRESSED ：
extra desc 1: 1b 24 04 01 05 59 55 59 32 00 00 10 00 80 00 00 aa 00 38 9b 71 10 01 00 00 00 00
1万+
被折叠的 条评论
为什么被折叠?
到【灌水乐园】发言
