Nginx基础配置,如何搭建LNMP平台

Nginx的基础配置:

一、实战案例:

1.Nginx访问统计:

(1)实验前准备:

[root@wang1 opt]# /usr/local/nginx/sbin/nginx -V #查看已安装的nginx是否包含http_stub_status
nginx version: nginx/1.22.1
built by gcc 4.8.5 20150623 (Red Hat 4.8.5-44) (GCC)
configure arguments: --prefix=/usr/local/nginx --user=nginx --group=nginx --with-http_stub_status_module
[root@wang1 opt]# cat /opt/nginx-1.18.0/auto/options | grep YES #查看已安装的所有模块

(2)修改nginx.conf配置文件,指定访问位置并添加stub_status配置:

[root@wang1 conf]# vim nginx.conf
server {
        listen       80;
        server_name  www.exo.com;

        charset utf-8;

        #access_log  logs/host.access.log  main;

        location / {
            root   html;
            index  index.html index.htm index.php;
        }
 location /status {       #访问位置为/status
            stub_status on;  #打开状态统计
            access_log off;  #关闭此位置日志记录
        }
[root@wang1 conf]# systemctl restart nginx.service #重启服务

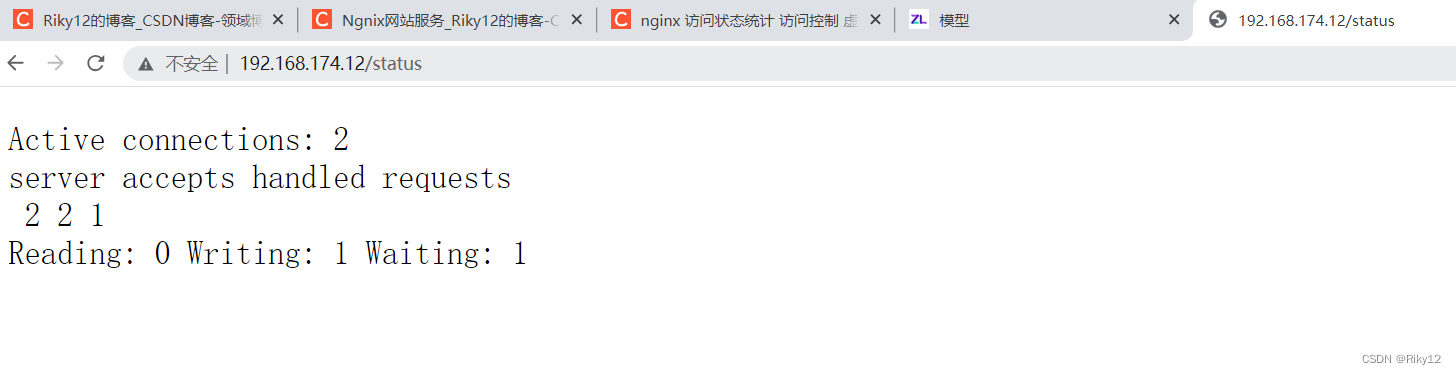

  • 连接成功:

在这里插入图片描述

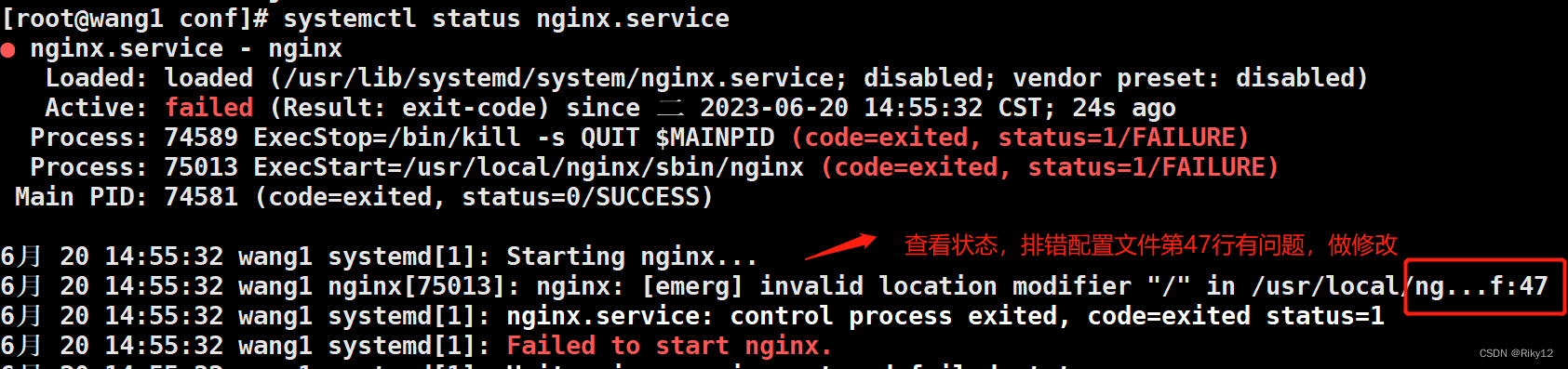

  • 遇到的问题:

在这里插入图片描述

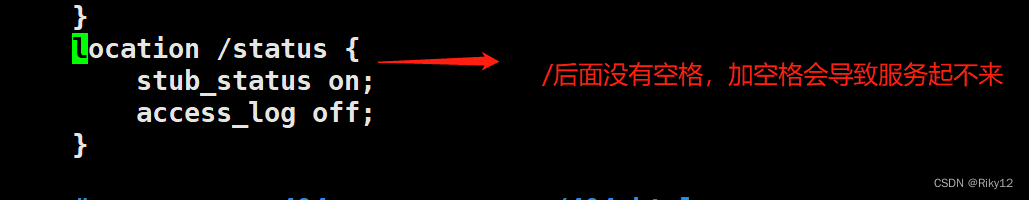

  • 排错并解决:

在这里插入图片描述

  • 已解决:

在这里插入图片描述

2.基于授权的访问控制:

(1)生成用户密码认证文件:

[root@wang1 opt]# yum -y install httpd-tools #安装服务
[root@wang1 opt]# htpasswd -c /usr/local/nginx/passwd.db xiumin #添加创建系统用户并设置密码
New password:
Re-type new password:
Adding password for user xiumin
[root@wang1 opt]# chown nginx /usr/local/nginx/passwd.db #修改属主
[root@wang1 opt]# chmod 400 /usr/local/nginx/passwd.db  #赋权

(2)修改主配置文件相对应目录,添加认证配置项:

[root@wang1 conf]# vim nginx.conf
 location /status {
            stub_status on;
            access_log off;
            auth_basic "secret";  #设置密码提示框信息
            auth_basic_user_file /usr/local/nginx/passwd.db;
        }

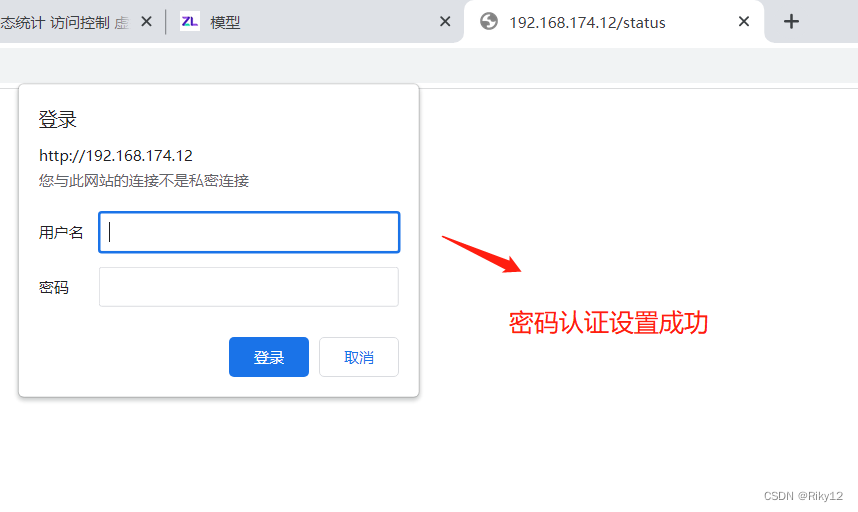

(3)重启服务,并做访问测试:

[root@wang1 conf]# nginx -t
nginx: the configuration file /usr/local/nginx/conf/nginx.conf syntax is ok
nginx: configuration file /usr/local/nginx/conf/nginx.conf test is successful
[root@wang1 conf]# systemctl restart nginx.service

在这里插入图片描述

3.基于客户端访问设置(设置黑白名单):

deny拒绝某个IP/IP段客户机访问
allow允许某个IP/IP段客户机访问
规则匹配顺序,从上往下,匹配即停止。
需求:添加一条规则只允许192.168.174.12IP的主机访问

[root@wang1 conf]# vim nginx.conf
location / {
            root   html;
            index  index.html index.htm index.php;
            allow 192.168.174.12;
            deny all;
        }

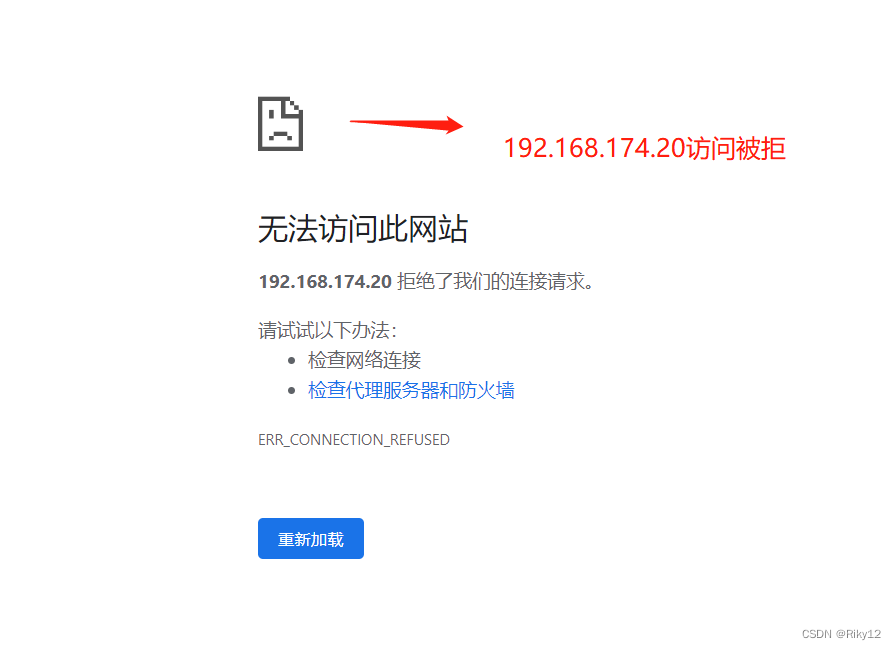

(2)重启服务,并访问测试:

[root@wang1 conf]# nginx -t
nginx: the configuration file /usr/local/nginx/conf/nginx.conf syntax is ok
nginx: configuration file /usr/local/nginx/conf/nginx.conf test is successful
[root@wang1 conf]# systemctl restart nginx.service

在这里插入图片描述

在这里插入图片描述

4.基于域名的nginx虚拟主机:

(1)修改 /etc/hosts 文件,添加域名与IP的本地映射:

[root@wang1 opt]# echo "192.168.174.12 www.exo.com" >> /etc/hosts
[root@wang1 opt]# echo "192.168.174.12 www.bkpp.com" >> /etc/hosts

(2)创建网页文件:

[root@wang1 opt]# mkdir -p /var/www/html/exo
[root@wang1 opt]# mkdir -p /var/www/html/bkpp
[root@wang1 opt]# echo "<h1> www.exo.com </h1>" >> /var/www/html/exo/index.html
[root@wang1 opt]# echo "<h1> www.bkpp.com </h1>" >> /var/www/html/bkpp/index.html

(3)修改ngxin主配置文件:域名不同,IP地址相同,端口相同

[root@wang1 conf]# vim nginx.conf
server {
        listen    192.168.174.12:80;
        server_name  www.exo.com;

        charset utf-8;

        access_log  logs/exo.access.log;

        location / {
            root   /var/www/html/exo;
            index  index.html index.htm index.php;

        }
        location /status {
            stub_status on;
            access_log off;
        }
        error_page   500 502 503 504  /50x.html;
        location = /50x.html {
            root   html;
        }
   }
   server {
        listen    80;
        server_name  www.bkpp.com;

        charset utf-8;

        access_log  logs/bkpp.access.log;

        location / {
            root   /var/www/html/bkpp;
            index  index.html index.htm index.php;

        }
        error_page   500 502 503 504  /50x.html;
        location = /50x.html {
            root html;
        }

   }

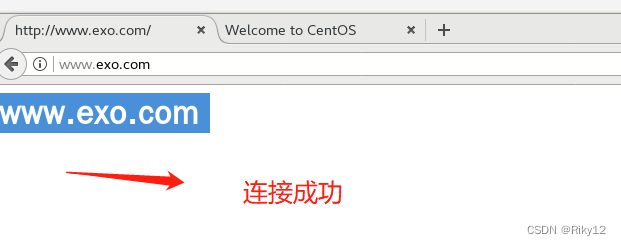

(4)重启服务,并测试:

[root@wang1 conf]# nginx -t
nginx: the configuration file /usr/local/nginx/conf/nginx.conf syntax is ok
nginx: configuration file /usr/local/nginx/conf/nginx.conf test is successful
[root@wang1 conf]# systemctl restart nginx.service

在这里插入图片描述

5.基于IP的nginx虚拟主机:

(1)创建虚拟网卡:

[root@wang1 conf]# ifconfig ens33:0 192.168.174.200 netmask 255.255.255.0

(2)修改nginx主配置文件 www.bkpp.com 配置的IP地址为192.168.174.200

[root@wang1 conf]# vim nginx.conf
  server {
        listen   192.168.174.200:80;
        server_name  www.bkpp.com;

        charset utf-8;

        access_log  logs/bkpp.access.log;

        location / {
            root   /var/www/html/bkpp;
            index  index.html index.htm index.php;

        }
        error_page   500 502 503 504  /50x.html;
        location = /50x.html {
            root html;
        }

   }

(3)重启服务,访问测试:

[root@wang1 conf]# nginx -t
nginx: the configuration file /usr/local/nginx/conf/nginx.conf syntax is ok
nginx: configuration file /usr/local/nginx/conf/nginx.conf test is successful
[root@wang1 conf]# systemctl restart nginx.service

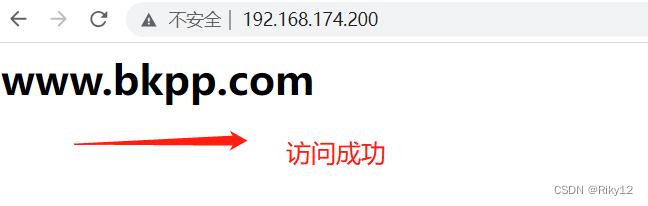

  • 连接成功:
    在这里插入图片描述

6.基于端口的nginx虚拟主机:

(1)修改nginx主配置文件 www.bkpp.com 配置的IP地址为192.168.174.12端口为8080

[root@wang1 conf]# vim nginx.conf
  server {
        listen   192.168.174.12:8080;
        server_name  www.bkpp.com;

        charset utf-8;

        access_log  logs/bkpp.access.log;

        location / {
            root   /var/www/html/bkpp;
            index  index.html index.htm index.php;

        }
        error_page   500 502 503 504  /50x.html;
        location = /50x.html {
            root html;
        }

   }

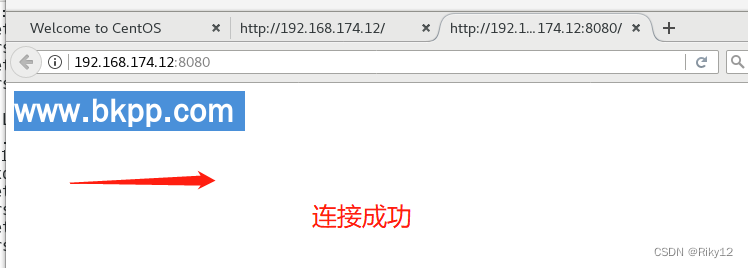

(2)重启并测试:

[root@wang1 conf]# nginx -t
nginx: the configuration file /usr/local/nginx/conf/nginx.conf syntax is ok
nginx: configuration file /usr/local/nginx/conf/nginx.conf test is successful
[root@wang1 conf]# systemctl restart nginx.service

在这里插入图片描述

在这里插入图片描述

二、LNMP架构:

1.安装nginx服务:

[root@wang1 ~]# systemctl stop firewalld  #关闭防火墙和安全机制
[root@wang1 ~]# systemctl disable firewalld
[root@wang1 ~]# setenforce 0

(1)安装依赖包:

[root@wang1 ~]# yum -y install pcre-devel zlib-devel gcc gcc-c++ make #安装依赖包
[root@wang1 ~]# useradd -M -s /sbin/nologin nginx #创建运行用户

(2)编译安装:

[root@wang1 opt]# tar -zxvf nginx-1.12.2.tar.gz -C /opt/ #解压源码包
[root@wang1 opt]# cd nginx-1.12.2/
[root@wang1 nginx-1.12.2]# ./configure \
> --prefix=/usr/local/nginx \
> --user=nginx \
> --group=nginx \
> --with-http_stub_status_module
[root@wang1 nginx-1.12.2]# make && make install #编译安装
[root@wang1 nginx-1.12.2]# ln -s /usr/local/nginx/sbin/nginx /usr/local/sbin/ #优化路径

(3)添加 Nginx 系统服务:

[root@wang1 nginx-1.12.2]# vim /lib/systemd/system/nginx.service

[Unit]
Description=nginx
After=network.target
[Service]
Type=forking
PIDFile=/usr/local/nginx/logs/nginx.pid
ExecStart=/usr/local/nginx/sbin/nginx
ExecReload=/bin/kill -s HUP $MAINPID
ExecStop=/bin/kill -s QUIT $MAINPID
PrivateTmp=true
[Install]
WantedBy=multi-user.target

(4)赋权,开启服务:

[root@wang1 nginx-1.12.2]# chmod 754 /lib/systemd/system/nginx.service #赋权
[root@wang1 nginx-1.12.2]# systemctl start nginx.service #开启服务
[root@wang1 nginx-1.12.2]# systemctl enable nginx.service

2.安装MySQL:

(1)安装Mysql环境依赖包:

[root@wang1 opt]# yum -y install \
> ncurses \
> ncurses-devel \
> bison \
> cmake
[root@wang1 opt]# useradd -M -s /sbin/nologin  mysql #创建程序用户

(2)编译安装:

[root@wang1 opt]# tar zxvf mysql-boost-5.7.20.tar.gz
[root@wang1 opt]# cd mysql-5.7.20/
[root@wang1 mysql-5.7.20]# cmake \
> -DCMAKE_INSTALL_PREFIX=/usr/local/mysql \
> -DMYSQL_UNIX_ADDR=/usr/local/mysql/mysql.sock \
> -DSYSCONFDIR=/etc \
> -DSYSTEMD_PID_DIR=/usr/local/mysql \
> -DDEFAULT_CHARSET=utf8  \
> -DDEFAULT_COLLATION=utf8_general_ci \
> -DWITH_EXTRA_CHARSETS=all \
> -DWITH_INNOBASE_STORAGE_ENGINE=1 \
> -DWITH_ARCHIVE_STORAGE_ENGINE=1 \
> -DWITH_BLACKHOLE_STORAGE_ENGINE=1 \
> -DWITH_PERFSCHEMA_STORAGE_ENGINE=1 \
> -DMYSQL_DATADIR=/usr/local/mysql/data \
> -DWITH_BOOST=boost \
> -DWITH_SYSTEMD=1
[root@wang1 mysql-5.7.20]# make && make install

(3)修改mysql 配置文件:

[root@wang1 mysql-5.7.20]# vim /etc/my.cnf

[client]
port = 3306
socket=/usr/local/mysql/mysql.sock

[mysqld]
user = mysql
basedir=/usr/local/mysql
datadir=/usr/local/mysql/data
port = 3306
character-set-server=utf8
pid-file = /usr/local/mysql/mysqld.pid
socket=/usr/local/mysql/mysql.sock
bind-address = 0.0.0.0
skip-name-resolve
max_connections=2048
default-storage-engine=INNODB
max_allowed_packet=16M
server-id = 1

sql_mode=NO_ENGINE_SUBSTITUTION,STRICT_TRANS_TABLES,NO_AUTO_CREATE_USER,NO_AUTO_VALUE_ON_ZERO,NO_ZERO_IN_DATE,NO_ZERO_DATE,ERROR_FOR_DIVISION_BY_ZERO,PIPES_AS_CONCAT,ANSI_QUOTES

(4)更改mysql安装目录和配置文件的属主属组:

[root@wang1 mysql-5.7.20]# chown -R mysql:mysql /usr/local/mysql/
[root@wang1 mysql-5.7.20]# chown mysql:mysql /etc/my.cnf

(5)设置路径环境变量:

[root@wang1 ~]# echo 'export PATH=/usr/local/mysql/bin:/usr/local/mysql/lib:$PATH' >> /etc/profile
[root@wang1 ~]# source /etc/profile

(6)初始化数据库:

[root@wang1 ~]# cd /usr/local/mysql/bin/
[root@wang1 bin]# ./mysqld \
> --initialize-insecure \
> --user=mysql \
> --basedir=/usr/local/mysql \
> --datadir=/usr/local/mysql/data

(7)添加mysqld系统服务:

[root@wang1 bin]# cp /usr/local/mysql/usr/lib/systemd/system/mysqld.service /usr/lib/systemd/system/
[root@wang1 bin]# systemctl daemon-reload
[root@wang1 bin]# systemctl start mysqld.service
[root@wang1 bin]# systemctl enable mysqld
Created symlink from /etc/systemd/system/multi-user.target.wants/mysqld.service to /usr/lib/systemd/system/mysqld.service.

(8)修改mysql 的登录密码,授权远程登陆:

[root@wang1 bin]# mysqladmin -u root -p password "abc123"
Enter password:
mysqladmin: [Warning] Using a password on the command line interface can be insecure.
Warning: Since password will be sent to server in plain text, use ssl connection to ensure password safety.
[root@wang1 bin]# mysql -u root -p #授权远程登录
Enter password:
mysql> use mysql;
date user set host = '%' where user='root';
mysql> exit
Bye

3.安装配置 PHP 解析环境:

(1)安装依赖环境:

[root@wang1 opt]# yum -y install gd \
libjpeg libjpeg-devel \
libpng libpng-devel \
freetype freetype-devel \
libxml2 libxml2-devel \
zlib zlib-devel \
curl curl-devel \
openssl openssl-devel

(2)编译安装:

[root@wang1 php-7.1.10]# ./configure \
> --prefix=/usr/local/php \
> --with-mysql-sock=/usr/local/mysql/mysql.sock \
> --with-mysqli \
> --with-zlib \
> --with-curl \
> --with-gd \
> --with-jpeg-dir \
> --with-png-dir \
> --with-freetype-dir \
> --with-openssl \
> --enable-fpm \
> --enable-mbstring \
> --enable-xml \
> --enable-session \
> --enable-ftp \
> --enable-pdo \
> --enable-tokenizer \
> --enable-zip
[root@wang1 php-7.1.10]# make && make install
[root@wang1 php-7.1.10]# ln -s /usr/local/php/bin/* /usr/local/bin/   #路径优化
[root@wang1 php-7.1.10]# ln -s /usr/local/php/sbin/* /usr/local/sbin

(3)调整配置文件:

[root@wang1 php-7.1.10]# cp /opt/php-7.1.10/php.ini-development /usr/local/php/lib/php.ini #备份
[root@wang1 lib]# vim php.ini
--1170行--修改
mysqli.default_socket = /usr/local/mysql/mysql.sock
--939行--取消注释,修改
date.timezone = Asia/Shanghai
[root@wang1 lib]# php -m  #检查已安装模块
[root@wang1 etc]# vim php-fpm.conf
--17行--去掉";"注释
pid = run/php-fpm.pid
[root@wang1 php-fpm.d]# cp www.conf.default www.conf #备份
[root@wang1 php-fpm.d]# ls
www.conf  www.conf.default

(4)启动php-fpm:

[root@wang1 php-fpm.d]# /usr/local/php/sbin/php-fpm -c /usr/local/php/lib/php.ini
[root@wang1 php-fpm.d]# netstat -anpt | grep 9000
tcp        0      0 127.0.0.1:9000          0.0.0.0:*               LISTEN      72739/php-fpm: mast
[root@wang1 php-fpm.d]# cd /opt/php-7.1.10/sapi/fpm
[root@wang1 fpm]# cp php-fpm.service /usr/lib/systemd/system/php-fpm.service
[root@wang1 fpm]# systemctl restart php-fpm.service

(5)配置 Nginx 支持 PHP 解析:

[root@wang1 fpm]# vim /usr/local/nginx/conf/nginx.conf
--65行--取消注释,修改
location ~ \.php$ {
	root           html;
	fastcgi_pass   127.0.0.1:9000;
	fastcgi_index  index.php;
	fastcgi_param  SCRIPT_FILENAME  /usr/local/nginx/html$fastcgi_script_name;	#将 /scripts 修改为nginx的工作目录
   #fastcgi_param  SCRIPT_FILENAME $document_root$fastcgi_script_name;  #$document_root 代表当前请求在root指令中指定的值
	include        fastcgi_params;
}
[root@wang1 fpm]# systemctl restart nginx.service #重启

(6)验证PHP 测试页:

[root@wang1 html]# vim index.php

<?php
phpinfo();
?>
~

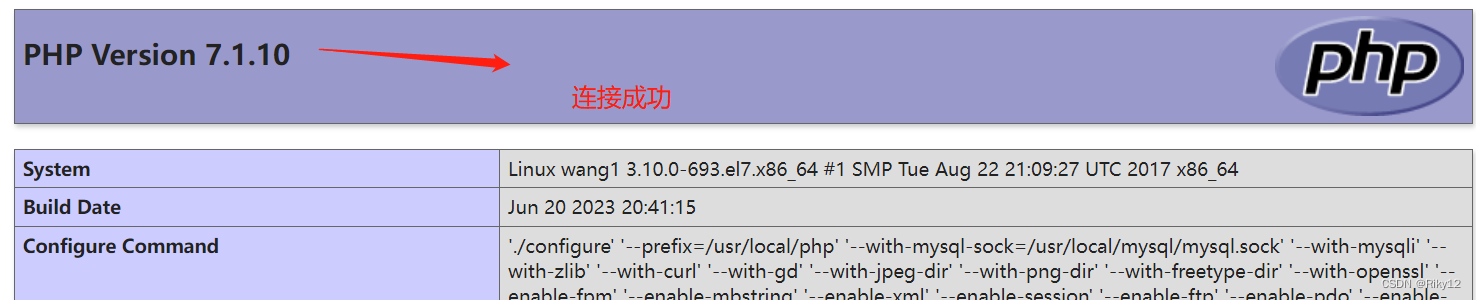

  • 连接成功:

在这里插入图片描述

  • 遇到的问题:PHP服务起不来
  • 解决方案:关闭防火墙,更换网络后,防火墙需再次关闭

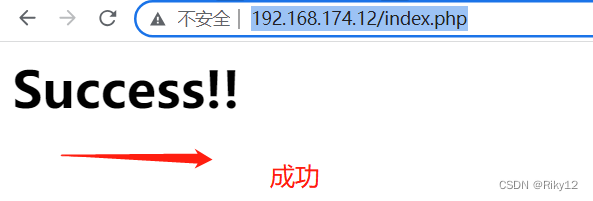

(7)验证数据库工作是否正常:

[root@wang1 html]# mysql -u root -p
CREATE DATABASE bbs;
GRANT all ON bbs.* TO 'bbsuser'@'%' IDENTIFIED BY 'admin123';
GRANT all ON bbs.* TO 'bbsuser'@'localhost' IDENTIFIED BY 'admin123';
flush privileges;
  • 验证成功:
    在这里插入图片描述

4.部署 Discuz!社区论坛 Web 应用:

(1)安装环境:

[root@wang1 opt]# unzip Discuz_X3.4_SC_UTF8.zip  -d /opt/dis #解压源码包
[root@wang1 opt]# cd /opt/dis/dir_SC_UTF8/
[root@wang1 dir_SC_UTF8]# cp -r upload/ /usr/local/nginx/html/bbs/

(2)调整权限:

[root@wang1 bbs]# chmod -R 777 ./config/ #赋权
[root@wang1 bbs]# chmod -R 777 ./data/
[root@wang1 bbs]# chmod -R 777 ./uc_client/
[root@wang1 bbs]# chmod -R 777 ./uc_server/

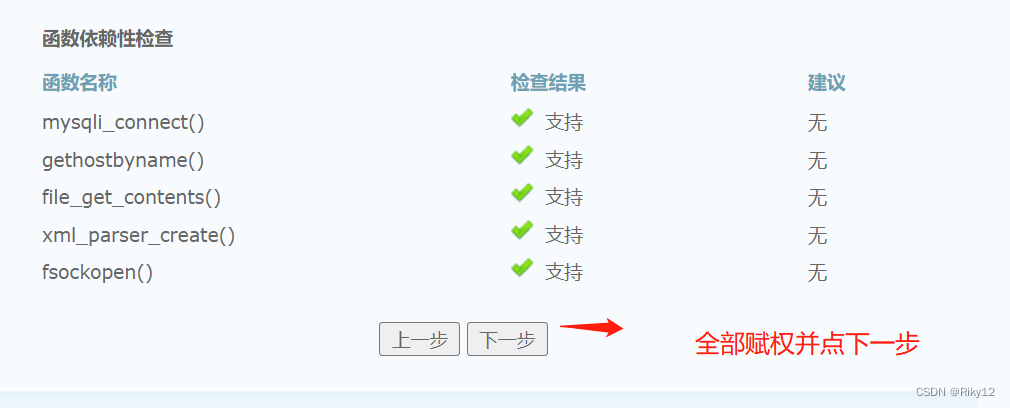

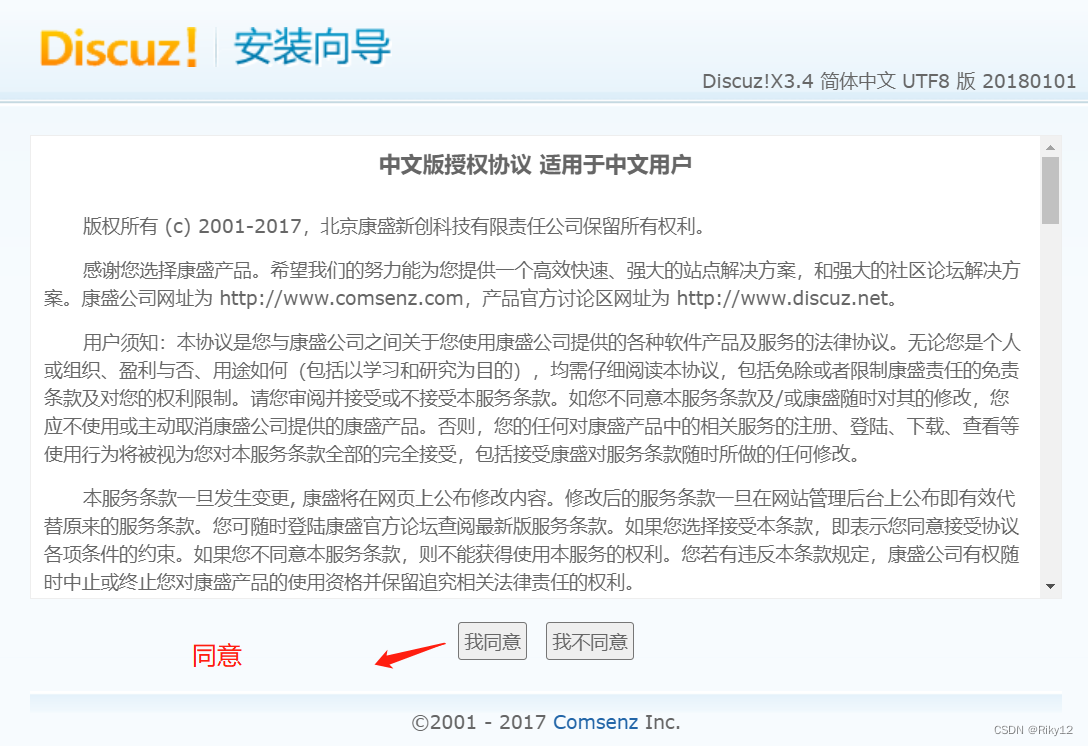

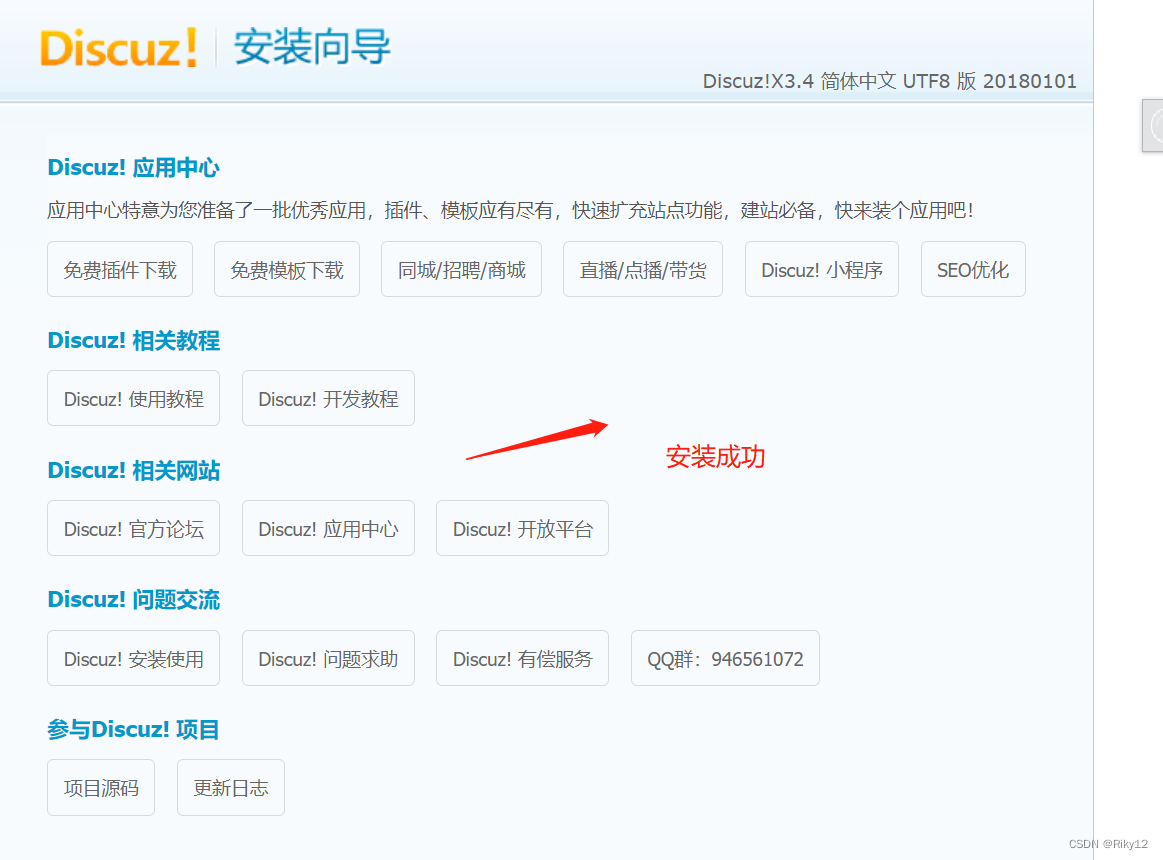

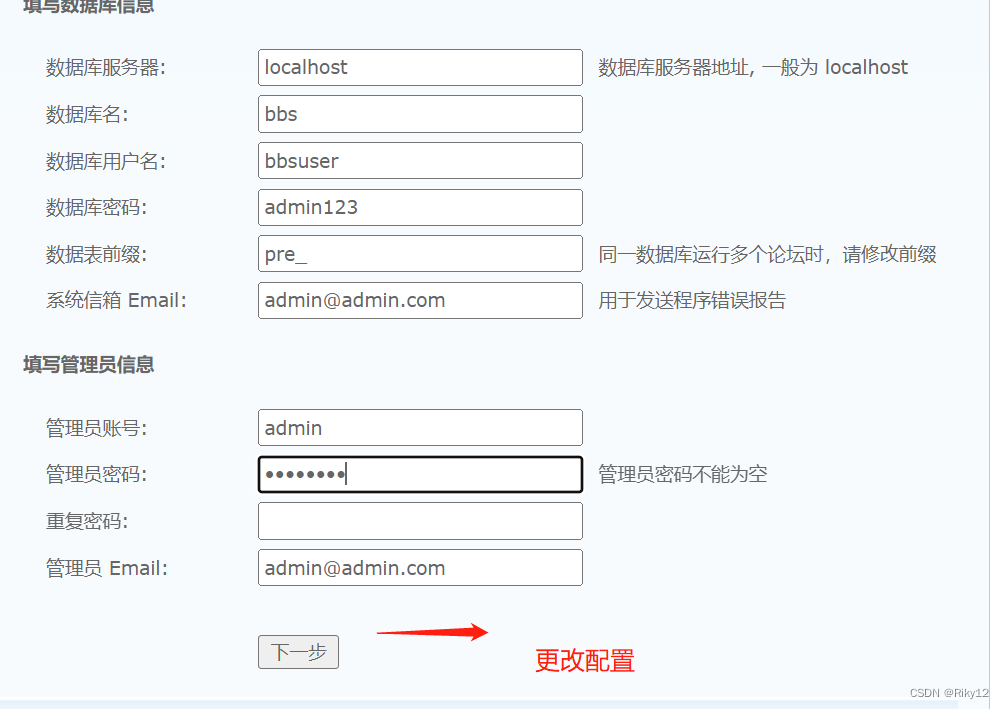

(3)页面访问:

在这里插入图片描述

在这里插入图片描述

在这里插入图片描述
在这里插入图片描述

三、总结:

1.在Nginx基础实验过程中,遇到的问题包括:

(1)配置文件语法错误:这可能导致 Nginx 无法启动或虚拟主机配置无效。可以使用 nginx -t 命令检查配置文件语法,并使用 systemctl reload nginx 命令重新加载配置文件。
(2)开启 HTTPS 访问时证书配置和安装错误:这可能导致 HTTPS 访问失败或警告。可以先查看日志文件,并在 Nginx 配置文件中配置和启用 HTTPS 访问。

2.在搭建LNMP平台实验过程中,遇到的问题包括:

(1)安装软件包时出现依赖问题:这可能导致软件包无法安装或启动。可以使用 yum 或其他软件包管理器来解决这些问题,并确保安装了所有必需的依赖项。
(2)系统配置错误:这可能导致性能低下或安全漏洞。可以使用适当的配置和调优来优化性能,并采取安全措施来防止攻击和数据泄露。可以使用防火墙、反向代理、SSL、安全策略和其他技术来增强系统安全性。
(3) 服务如果不能正常开启,检查防火墙是否关闭,查看日志语法是否正确。
(4) 总之,在使用 Nginx 构建 Web 系统或平台时,我们需要仔细规划和调整系统配置,以满足应用程序的需要,并在出现问题时通过合适的手段进行解决。对于初学者,建议从简单的配置和实验开始,并逐渐掌握更高阶的技术和工具,以提高技能和经验。

  • 3
    点赞
  • 10
    收藏
    觉得还不错? 一键收藏
  • 0
    评论

“相关推荐”对你有帮助么?

  • 非常没帮助
  • 没帮助
  • 一般
  • 有帮助
  • 非常有帮助
提交
评论
添加红包

请填写红包祝福语或标题

红包个数最小为10个

红包金额最低5元

当前余额3.43前往充值 >
需支付:10.00
成就一亿技术人!
领取后你会自动成为博主和红包主的粉丝 规则
hope_wisdom
发出的红包
实付
使用余额支付
点击重新获取
扫码支付
钱包余额 0

抵扣说明:

1.余额是钱包充值的虚拟货币,按照1:1的比例进行支付金额的抵扣。
2.余额无法直接购买下载,可以购买VIP、付费专栏及课程。

余额充值
