本文介绍了如何使用AzureKinectSDK进行设备配置、捕获RGB、深度和红外图像，并将它们保存为图像文件。此外，还展示了如何将图像转换为点云图，并使用Open3D库进行查看。文章提供了C++代码示例，包括稳定化相机、生成第一帧点云图以及从视频中提取帧进行三维重建的过程。
本文主要是对其传感器SDK进行学习
相关环境配置请看Azure Kinect sdk 入门，简单使用深度相机_Aaronder的博客-CSDN博客
目录：
1.了解Azure Kinect功能。
2.打开其三个摄像头，并交互保存每一帧的Depth，ir，RGB图像。
3.拍摄一帧图像，并将其保存为云点图。
4.根据拍摄一段视频，匹配视频每一帧的彩色图像和深度图像，构成云点图。

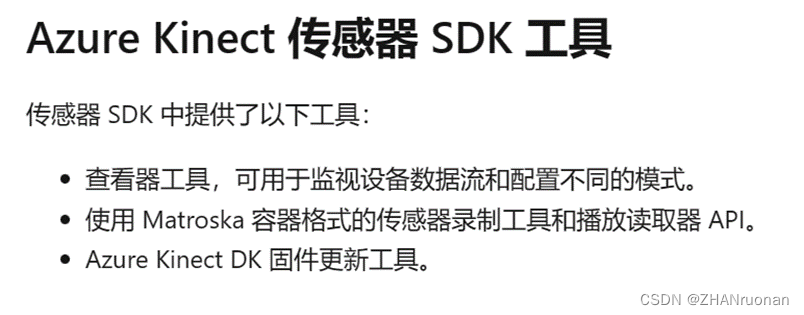

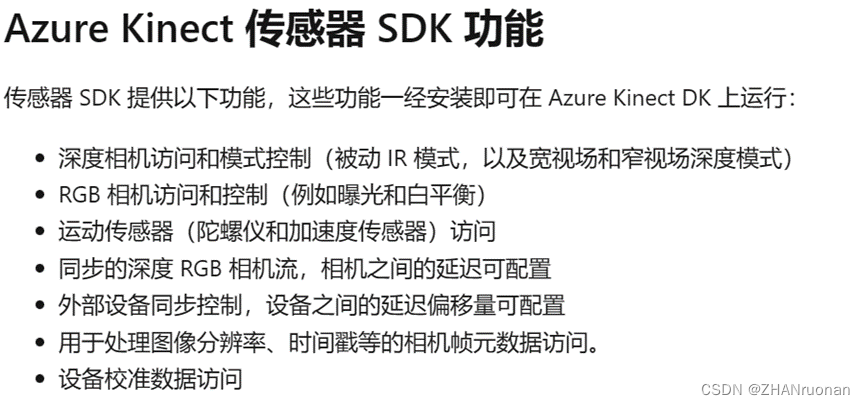

1.参考官方文档Azure Kinect DK 文档 | Microsoft Learn
对其人体跟踪功能未学习

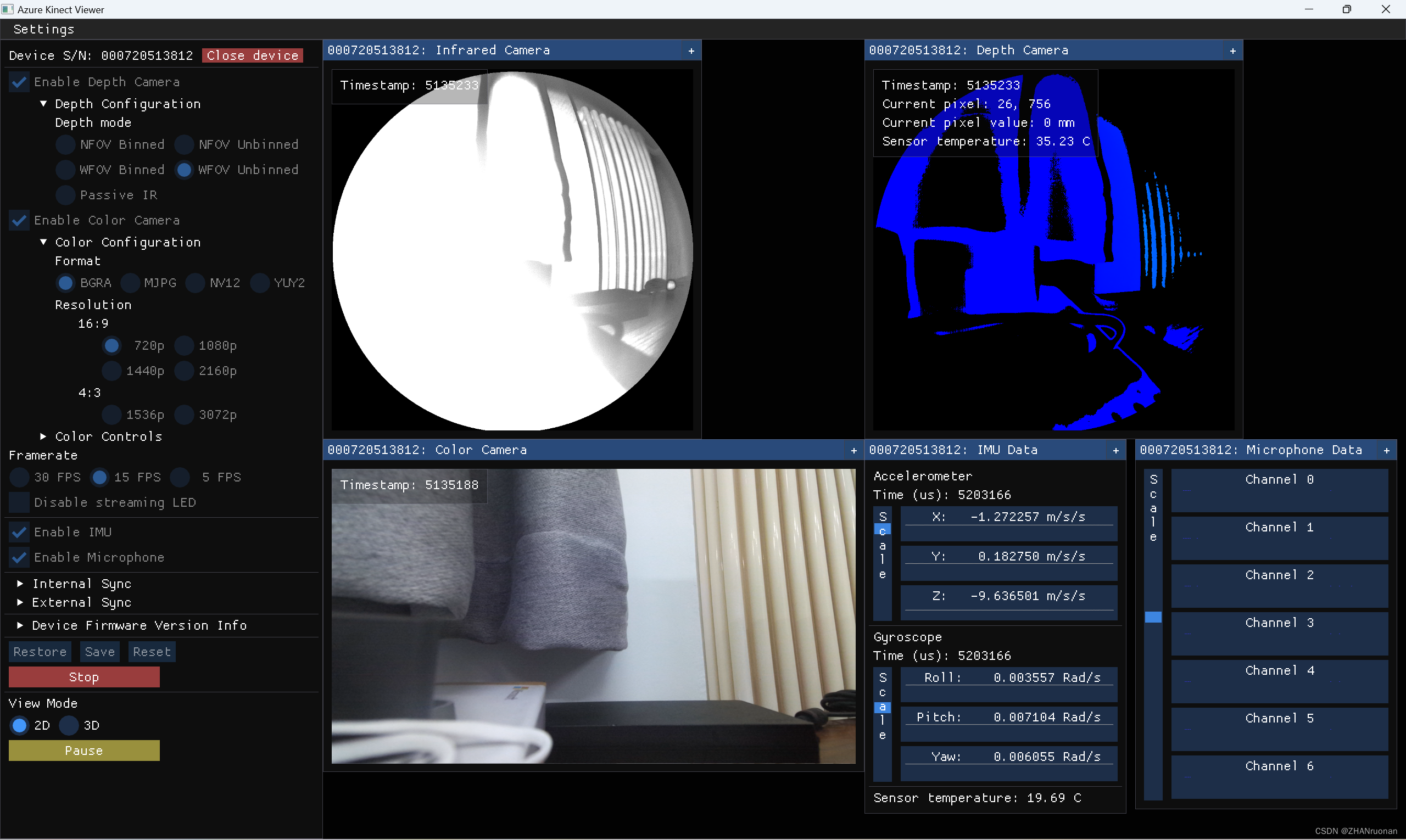

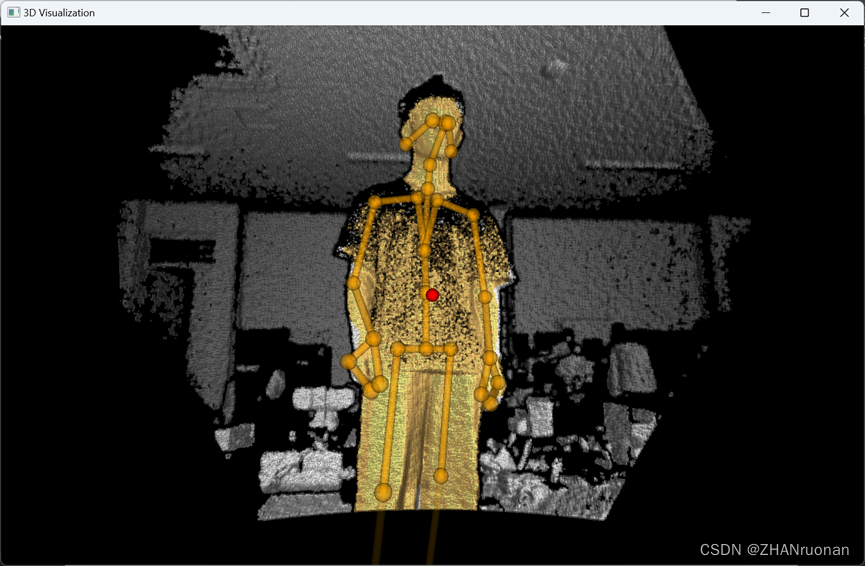

根据文档内容快速入门实现''生成你的第一个应用程序''和''生成第一个人体跟踪应用程序''以了解该相机的基本用法。
2.打开其三个摄像头，并交互保存每一帧的Depth，ir，RGB图像。
按下空格采集图片，按q退出采集:

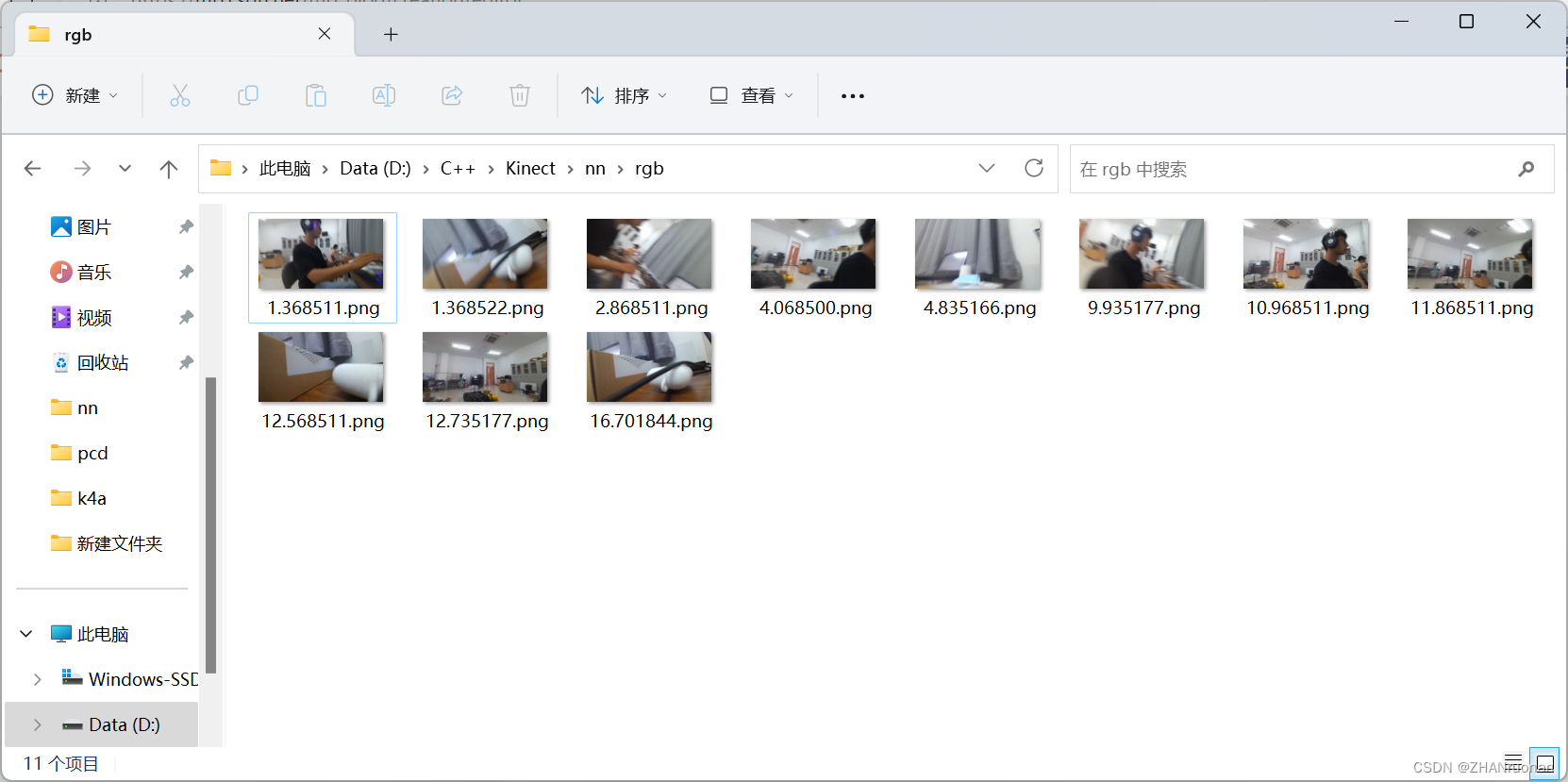

rgb图像:

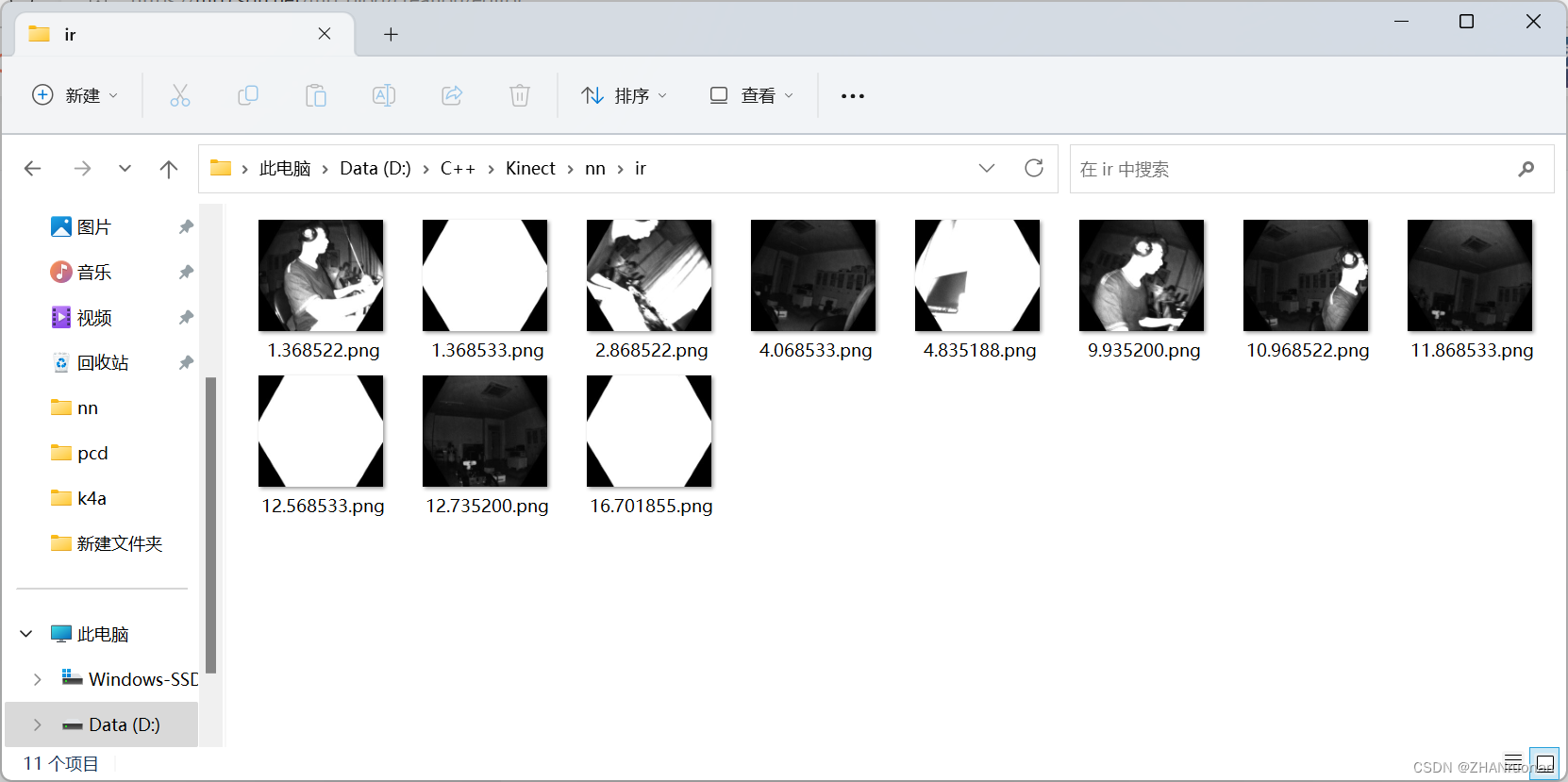

ir图像:

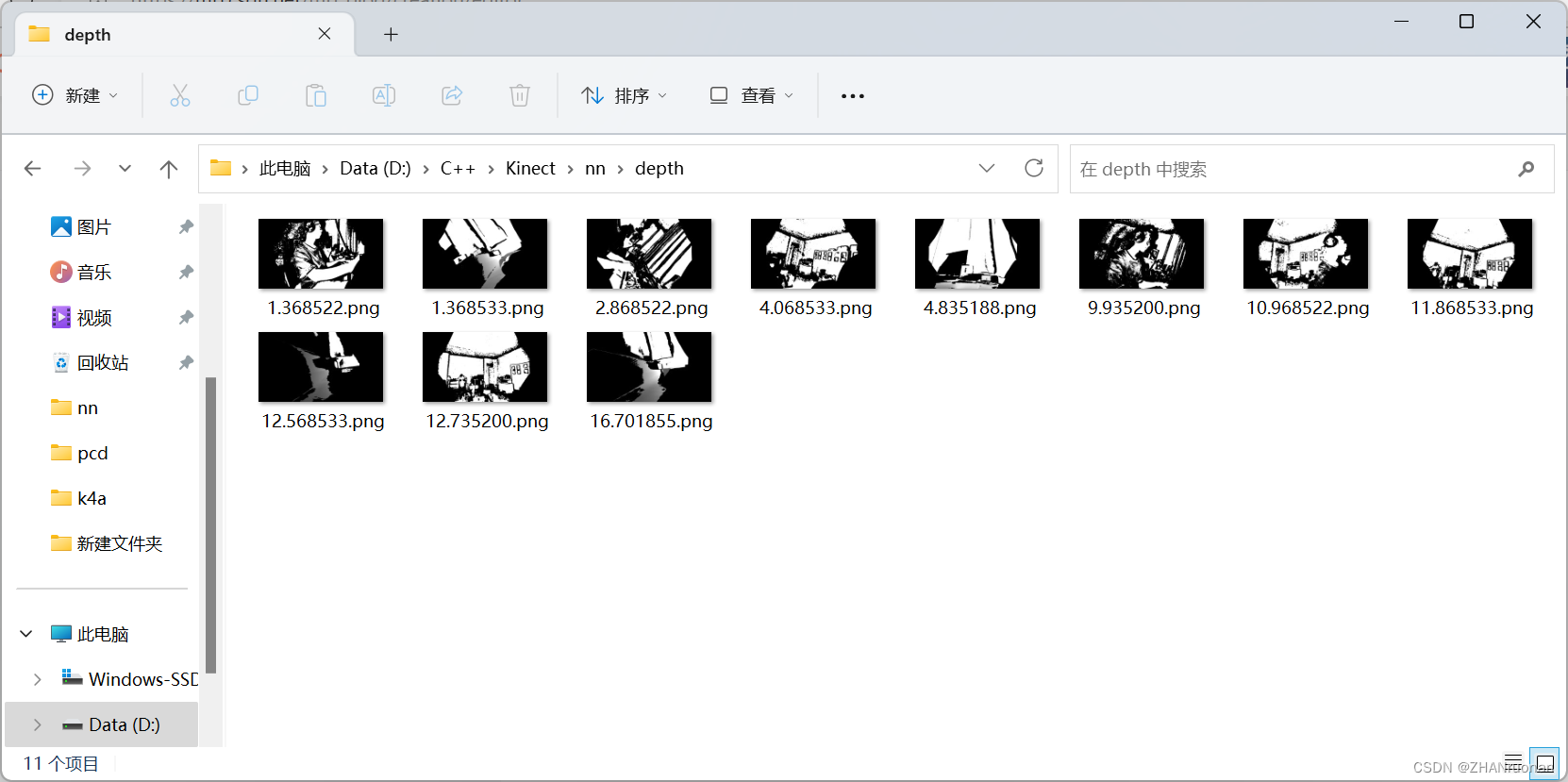

depth图像：
源代码：
// C++
#include <iostream>
#include <chrono>
#include <string>
// OpenCV
#include <opencv2/opencv.hpp>
#include <opencv2/core/core.hpp>
#include <opencv2/highgui/highgui.hpp>
// Kinect DK
#include <k4a/k4a.hpp>
#include<fstream>
using namespace cv;
using namespace std;
// 宏
// 方便控制是否 std::cout 信息
#define DEBUG_std_cout 0
int main(int argc, char* argv[]) {
/*
找到并打开 Azure Kinect 设备
*/
// 发现已连接的设备数
const uint32_t device_count = k4a::device::get_installed_count();
if (0 == device_count) {
std::cout << "Error: no K4A devices found. " << std::endl;
return -1;
}
else {
std::cout << "Found " << device_count << " connected devices. " << std::endl;
if (1 != device_count)// 超过1个设备，也输出错误信息。
{
std::cout << "Error: more than one K4A devices found. " << std::endl;
return -1;
}
else// 该示例代码仅限对1个设备操作
{
std::cout << "Done: found 1 K4A device. " << std::endl;
}
}
// 打开（默认）设备
k4a::device device = k4a::device::open(K4A_DEVICE_DEFAULT);
std::cout << "Done: open device. " << std::endl;
/*
检索并保存 Azure Kinect 图像数据
*/
// 配置并启动设备
k4a_device_configuration_t config = K4A_DEVICE_CONFIG_INIT_DISABLE_ALL;
config.camera_fps = K4A_FRAMES_PER_SECOND_30;
config.color_format = K4A_IMAGE_FORMAT_COLOR_BGRA32;
config.color_resolution = K4A_COLOR_RESOLUTION_1080P;
config.depth_mode = K4A_DEPTH_MODE_NFOV_UNBINNED;
//config.depth_mode = K4A_DEPTH_MODE_WFOV_2X2BINNED;
config.synchronized_images_only = true;// ensures that depth and color images are both available in the capture
device.start_cameras(&config);
std::cout << "Done: start camera." << std::endl;
//写入txt文件流
ofstream rgb_out;
ofstream d_out;
ofstream ir_out;
rgb_out.open("./rgb.txt");
d_out.open("./depth.txt");
ir_out.open("./ir.txt");
rgb_out << "# color images" << endl;
rgb_out << "# file: rgbd_dataset" << endl;
rgb_out << "# timestamp" << " " << "filename" << endl;
d_out << "# depth images" << endl;
d_out << "# file: rgbd_dataset" << endl;
d_out << "# timestamp" << " " << "filename" << endl;
ir_out << "# ir images" << endl;
ir_out << "# file: rgbd_dataset" << endl;
ir_out << "# timestamp" << " " << "filename" << endl;
rgb_out << flush;
d_out << flush;
// 稳定化
k4a::capture capture;
int iAuto = 0;//用来稳定，类似自动曝光
int iAutoError = 0;// 统计自动曝光的失败次数
while (true) {
if (device.get_capture(&capture)) {
std::cout << iAuto << ". Capture several frames to give auto-exposure" << std::endl;
// 跳过前 n 个（成功的数据采集）循环，用来稳定
if (iAuto != 30) {
iAuto++;
continue;
}
else {
std::cout << "Done: auto-exposure" << std::endl;
break;// 跳出该循环，完成相机的稳定过程
}
}
else {
std::cout << iAutoError << ". K4A_WAIT_RESULT_TIMEOUT." << std::endl;
if (iAutoError != 30) {
iAutoError++;
continue;
}
else {
std::cout << "Error: failed to give auto-exposure. " << std::endl;
return -1;
}
}
}
std::cout << "-----------------------------------" << std::endl;
std::cout << "----- Have Started Kinect DK. -----" << std::endl;
std::cout << "-----------------------------------" << std::endl;
// 从设备获取捕获
k4a::image rgbImage;
k4a::image depthImage;
k4a::image irImage;
k4a::image transformed_depthImage;
cv::Mat cv_rgbImage_with_alpha;
cv::Mat cv_rgbImage_no_alpha;
cv::Mat cv_depth;
cv::Mat cv_depth_8U;
cv::Mat cv_irImage;
cv::Mat cv_irImage_8U;
while (true)
// for (size_t i = 0; i < 100; i++)
{
// if (device.get_capture(&capture, std::chrono::milliseconds(0)))
if (device.get_capture(&capture)) {
// rgb
// * Each pixel of BGRA32 data is four bytes. The first three bytes represent Blue, Green,
// * and Red data. The fourth byte is the alpha channel and is unused in the Azure Kinect APIs.
rgbImage = capture.get_color_image();
#if DEBUG_std_cout == 1
std::cout << "[rgb] " << "\n"
<< "format: " << rgbImage.get_format() << "\n"
<< "device_timestamp: " << rgbImage.get_device_timestamp().count() << "\n"
<< "system_timestamp: " << rgbImage.get_system_timestamp().count() << "\n"
<< "height*width: " << rgbImage.get_height_pixels() << ", " << rgbImage.get_width_pixels()
<< std::endl;
#endif
// depth
// * Each pixel of DEPTH16 data is two bytes of little endian unsigned depth data. The unit of the data is in
// * millimeters from the origin of the camera.
depthImage = capture.get_depth_image();
#if DEBUG_std_cout == 1
std::cout << "[depth] " << "\n"
<< "format: " << depthImage.get_format() << "\n"
<< "device_timestamp: " << depthImage.get_device_timestamp().count() << "\n"
<< "system_timestamp: " << depthImage.get_system_timestamp().count() << "\n"
<< "height*width: " << depthImage.get_height_pixels() << ", " << depthImage.get_width_pixels()
<< std::endl;
#endif
// ir
// * Each pixel of IR16 data is two bytes of little endian unsigned depth data. The value of the data represents
// * brightness.
irImage = capture.get_ir_image();
#if DEBUG_std_cout == 1
std::cout << "[ir] " << "\n"
<< "format: " << irImage.get_format() << "\n"
<< "device_timestamp: " << irImage.get_device_timestamp().count() << "\n"
<< "system_timestamp: " << irImage.get_system_timestamp().count() << "\n"
<< "height*width: " << irImage.get_height_pixels() << ", " << irImage.get_width_pixels()
<< std::endl;
#endif
//深度图和RGB图配准
k4a::calibration k4aCalibration = device.get_calibration(config.depth_mode, config.color_resolution);// Get the camera calibration for the entire K4A device, which is used for all transformation functions.
k4a::transformation k4aTransformation = k4a::transformation(k4aCalibration);
transformed_depthImage = k4aTransformation.depth_image_to_color_camera(depthImage);
cv_rgbImage_with_alpha = cv::Mat(rgbImage.get_height_pixels(), rgbImage.get_width_pixels(), CV_8UC4,
(void*)rgbImage.get_buffer());
cv::cvtColor(cv_rgbImage_with_alpha, cv_rgbImage_no_alpha, cv::COLOR_BGRA2BGR);
cv_depth = cv::Mat(transformed_depthImage.get_height_pixels(), transformed_depthImage.get_width_pixels(), CV_16U,
(void*)transformed_depthImage.get_buffer(), static_cast<size_t>(transformed_depthImage.get_stride_bytes()));
cv_depth.convertTo(cv_depth_8U, CV_8U, 1);
cv_irImage = cv::Mat(irImage.get_height_pixels(), irImage.get_width_pixels(), CV_16U,
(void*)irImage.get_buffer(), static_cast<size_t>(irImage.get_stride_bytes()));
cv_irImage.convertTo(cv_irImage_8U, CV_8U, 1);
// show image
cv::imshow("color", cv_rgbImage_no_alpha);
cv::imshow("depth", cv_depth_8U);
cv::imshow("ir", cv_irImage_8U);
// save image
double time_rgb = static_cast<double>(std::chrono::duration_cast<std::chrono::microseconds>(
rgbImage.get_device_timestamp()).count());
std::string filename_rgb = std::to_string(time_rgb / 1000000) + ".png";
double time_d = static_cast<double>(std::chrono::duration_cast<std::chrono::microseconds>(
depthImage.get_device_timestamp()).count());
std::string filename_d = std::to_string(time_d / 1000000) + ".png";
double time_ir = static_cast<double>(std::chrono::duration_cast<std::chrono::microseconds>(
irImage.get_device_timestamp()).count());
std::string filename_ir = std::to_string(time_ir / 1000000) + ".png";
imwrite("./rgb/" + filename_rgb, cv_rgbImage_no_alpha);
imwrite("./depth/" + filename_d, cv_depth_8U);
imwrite("./ir/" + filename_ir, cv_irImage_8U);
std::cout << "Acquiring!" << endl;
//写入depth.txt,rgb.txt文件
rgb_out << std::to_string(time_rgb / 1000000) << " " << "rgb/" << filename_rgb << endl;
d_out << std::to_string(time_d / 1000000) << " " << "depth/" << filename_d << endl;
ir_out << std::to_string(time_ir / 1000000) << " " << "ir/" << filename_ir << endl;
rgb_out << flush;
d_out << flush;
ir_out << flush;
cv_rgbImage_with_alpha.release();
cv_rgbImage_no_alpha.release();
cv_depth.release();
cv_depth_8U.release();
cv_irImage.release();
cv_irImage_8U.release();
capture.reset();
if (cv::waitKey(0) == 'q') {//按键采集，用户按下'q',跳出循环,结束采集
std::cout << "----------------------------------" << std::endl;
std::cout << "------------- closed -------------" << std::endl;
std::cout << "----------------------------------" << std::endl;
break;
}
}
else {
std::cout << "false: K4A_WAIT_RESULT_TIMEOUT." << std::endl;
}
}
cv::destroyAllWindows();
rgb_out << flush;
d_out << flush;
ir_out << flush;
rgb_out.close();
d_out.close();
ir_out.close();
// 释放，关闭设备
rgbImage.reset();
depthImage.reset();
irImage.reset();
capture.reset();
device.close();
return 1;
}

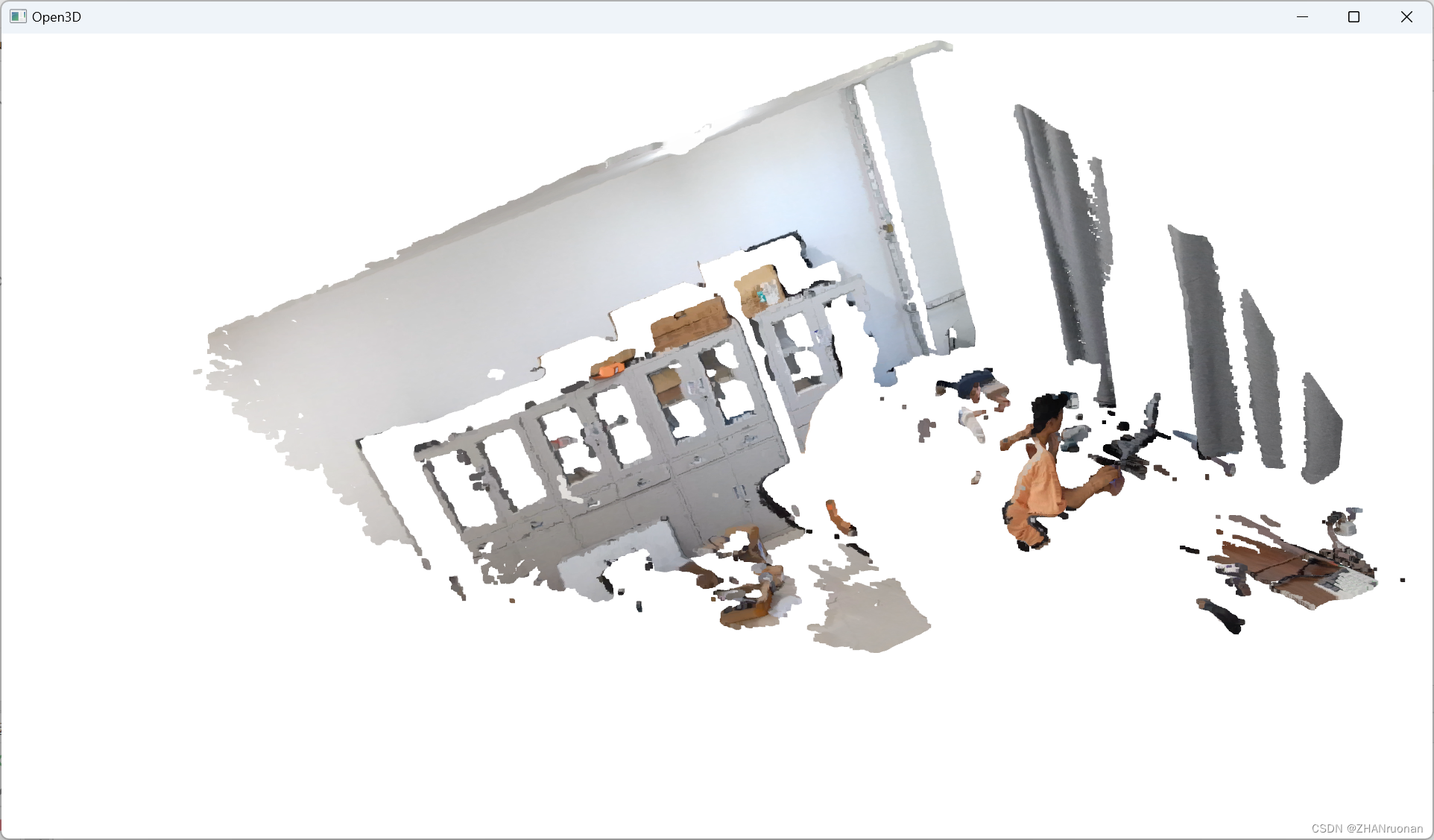

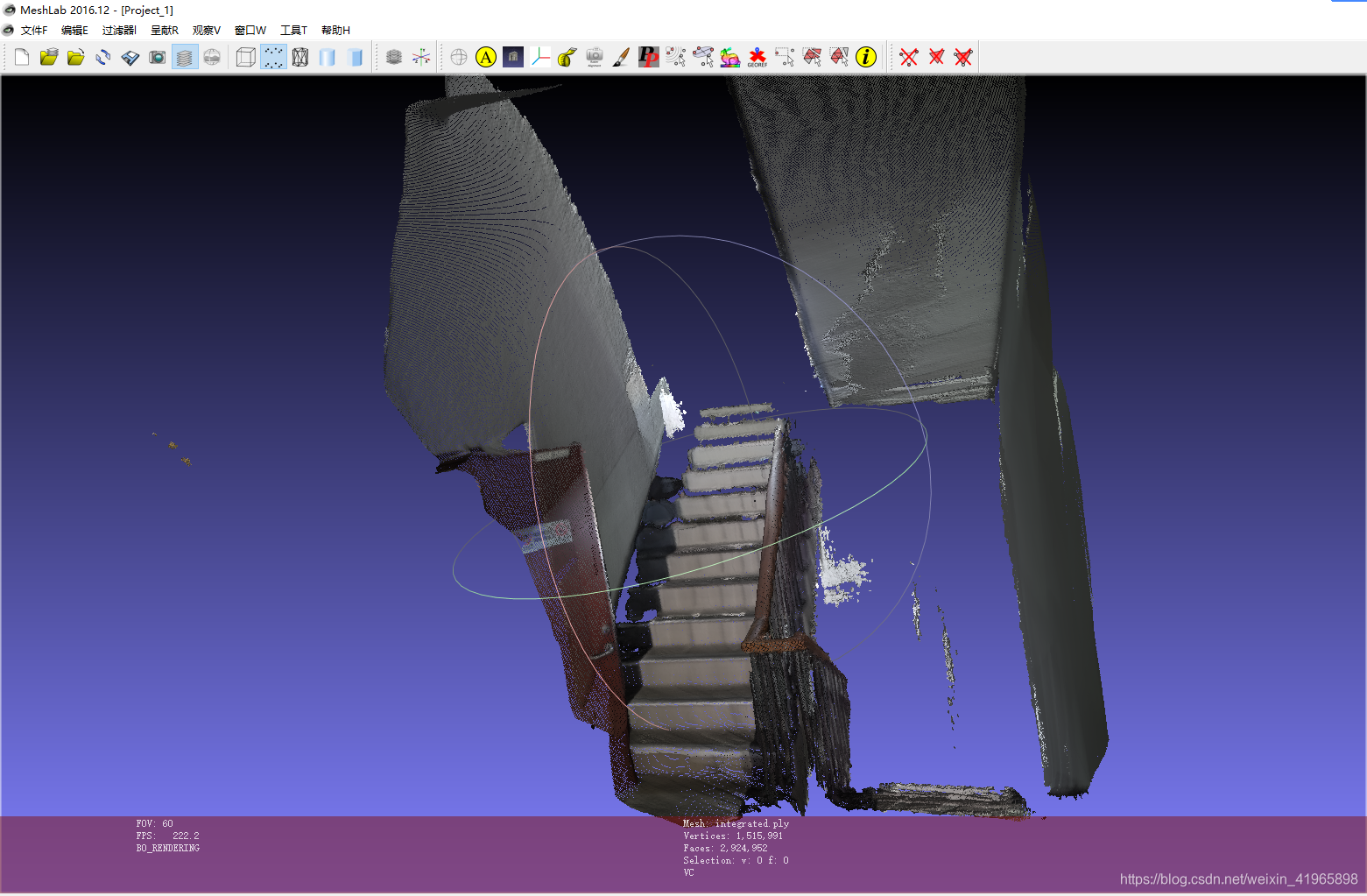

3.拍摄一帧图像，并将其保存为云点图，用open3d查看效果。
源代码：
slamBase.h
# pragma once //保证头文件只被编译一次
#include <iostream>
// opencv
#include <opencv2/core/core.hpp>
#include <opencv2/highgui/highgui.hpp>
// pcl
#include <pcl/point_types.h>
#include <pcl/io/pcd_io.h>
#include <pcl/io/ply_io.h>
#include <pcl/common/transforms.h>
using namespace std;
using namespace cv;
typedef pcl::PointXYZRGB PointT;
typedef pcl::PointCloud<PointT> PointCloud;
// camera instrinsic parameters
struct CAMERA_INTRINSIC_PARAMETERS
{
double fx, fy, cx, cy, scale;
};
struct FRAME
{
cv::Mat rgb, depth;
};
PointCloud::Ptr image2PointCloud(Mat rgb, Mat depth, CAMERA_INTRINSIC_PARAMETERS camera);
PointCloud::Ptr pointCloudFusion(PointCloud::Ptr& original, FRAME& newFrame, CAMERA_INTRINSIC_PARAMETERS camera);
void readCameraTrajectory(string camTransFile, vector<Eigen::Isometry3d>& poses);
pointCloudFusion.cpp
#include <iostream>
#include <chrono>
#include <string>
#include <vector>
// OpenCV
#include <opencv2/opencv.hpp>
#include <opencv2/core/core.hpp>
#include <opencv2/highgui/highgui.hpp>
// Kinect DK
#include <k4a/k4a.hpp>
// PCL 库
#include <pcl/io/pcd_io.h>
#include <pcl/io/ply_io.h>
#include <pcl/point_types.h>
#include "slamBase.h"
// 定义点云类型
typedef pcl::PointXYZRGB PointT;
typedef pcl::PointCloud<PointT> PointCloud;
using namespace cv;
using namespace std;
// 方便控制是否 std::cout 信息
#define DEBUG_std_cout 1
int main(int argc, char* argv[]) {
/*
找到并打开 Azure Kinect 设备
*/
// 发现已连接的设备数
const uint32_t device_count = k4a::device::get_installed_count();
if (0 == device_count) {
std::cout << "Error: no K4A devices found. " << std::endl;
return -1;
}
else {
std::cout << "Found " << device_count << " connected devices. " << std::endl;
if (1 != device_count)// 超过1个设备，也输出错误信息。
{
std::cout << "Error: more than one K4A devices found. " << std::endl;
return -1;
}
else// 该示例代码仅限对1个设备操作
{
std::cout << "Done: found 1 K4A device. " << std::endl;
}
}
// 打开（默认）设备
k4a::device device = k4a::device::open(K4A_DEVICE_DEFAULT);
std::cout << "Done: open device. " << std::endl;
// 配置并启动设备
k4a_device_configuration_t config = K4A_DEVICE_CONFIG_INIT_DISABLE_ALL;
config.camera_fps = K4A_FRAMES_PER_SECOND_30;
//config.camera_fps = K4A_FRAMES_PER_SECOND_15;
config.color_format = K4A_IMAGE_FORMAT_COLOR_BGRA32;
config.color_resolution = K4A_COLOR_RESOLUTION_1080P;
config.depth_mode = K4A_DEPTH_MODE_NFOV_UNBINNED;
//config.depth_mode = K4A_DEPTH_MODE_WFOV_2X2BINNED;
config.synchronized_images_only = true;// ensures that depth and color images are both available in the capture
device.start_cameras(&config);
std::cout << "Done: start camera." << std::endl;
// 稳定化
k4a::capture capture;
int iAuto = 0;//用来稳定，类似自动曝光
int iAutoError = 0;// 统计自动曝光的失败次数
while (true) {
if (device.get_capture(&capture)) {
std::cout << iAuto << ". Capture several frames to give auto-exposure" << std::endl;
// 跳过前 n 个（成功的数据采集）循环，用来稳定
if (iAuto != 30) {
iAuto++;
continue;
}
else {
std::cout << "Done: auto-exposure" << std::endl;
break;// 跳出该循环，完成相机的稳定过程
}
}
else {
std::cout << iAutoError << ". K4A_WAIT_RESULT_TIMEOUT." << std::endl;
if (iAutoError != 30) {
iAutoError++;
continue;
}
else {
std::cout << "Error: failed to give auto-exposure. " << std::endl;
return -1;
}
}
}
std::cout << "-----------------------------------" << std::endl;
std::cout << "----- Have Started Kinect DK. -----" << std::endl;
std::cout << "-----------------------------------" << std::endl;
// 从设备获取捕获
k4a::image rgbImage;
k4a::image depthImage;
k4a::image transformed_depthImage;
cv::Mat cv_rgbImage_with_alpha;
cv::Mat cv_rgbImage_no_alpha;
cv::Mat cv_depth;
cv::Mat cv_depth_8U;
// for (size_t i = 0; i < 100; i++)
while (true) {
// if (device.get_capture(&capture, std::chrono::milliseconds(0)))
if (device.get_capture(&capture)) {
// rgb
// * Each pixel of BGRA32 data is four bytes. The first three bytes represent Blue, Green,
// * and Red data. The fourth byte is the alpha channel and is unused in the Azure Kinect APIs.
rgbImage = capture.get_color_image();
#if DEBUG_std_cout == 1
std::cout << "[rgb] " << "\n"
<< "format: " << rgbImage.get_format() << "\n"
<< "device_timestamp: " << rgbImage.get_device_timestamp().count() << "\n"
<< "system_timestamp: " << rgbImage.get_system_timestamp().count() << "\n"
<< "height*width: " << rgbImage.get_height_pixels() << ", " << rgbImage.get_width_pixels()
<< std::endl;
#endif
// depth
// * Each pixel of DEPTH16 data is two bytes of little endian unsigned depth data. The unit of the data is in
// * millimeters from the origin of the camera.
depthImage = capture.get_depth_image();
#if DEBUG_std_cout == 1
std::cout << "[depth] " << "\n"
<< "format: " << depthImage.get_format() << "\n"
<< "device_timestamp: " << depthImage.get_device_timestamp().count() << "\n"
<< "system_timestamp: " << depthImage.get_system_timestamp().count() << "\n"
<< "height*width: " << depthImage.get_height_pixels() << ", " << depthImage.get_width_pixels()
<< std::endl;
#endif
//获取彩色点云
k4a::calibration k4aCalibration = device.get_calibration(config.depth_mode, config.color_resolution);
k4a::transformation k4aTransformation = k4a::transformation(k4aCalibration);
//PointCloud::Ptr cloud(new PointCloud);
int color_image_width_pixels = rgbImage.get_width_pixels();
int color_image_height_pixels = rgbImage.get_height_pixels();
transformed_depthImage = NULL;
transformed_depthImage = k4a::image::create(K4A_IMAGE_FORMAT_DEPTH16,
color_image_width_pixels,
color_image_height_pixels,
color_image_width_pixels * (int)sizeof(uint16_t));
k4a::image point_cloud_image = NULL;
point_cloud_image = k4a::image::create(K4A_IMAGE_FORMAT_CUSTOM,
color_image_width_pixels,
color_image_height_pixels,
color_image_width_pixels * 3 * (int)sizeof(int16_t));
if (depthImage.get_width_pixels() == rgbImage.get_width_pixels() && depthImage.get_height_pixels() == rgbImage.get_height_pixels()) {
std::copy(depthImage.get_buffer(), depthImage.get_buffer() + depthImage.get_height_pixels() * depthImage.get_width_pixels() * (int)sizeof(uint16_t), transformed_depthImage.get_buffer());
cout << "if" << endl;
}
else {
cout << "else" << endl;
k4aTransformation.depth_image_to_color_camera(depthImage, &transformed_depthImage);
}
k4aTransformation.depth_image_to_point_cloud(transformed_depthImage, K4A_CALIBRATION_TYPE_COLOR, &point_cloud_image);
pcl::PointCloud<pcl::PointXYZRGB>::Ptr cloud(new pcl::PointCloud<pcl::PointXYZRGB>);
cloud->width = color_image_width_pixels;
cloud->height = color_image_height_pixels;
cloud->is_dense = false;
cloud->resize(static_cast<size_t>(color_image_width_pixels) * color_image_height_pixels);
const int16_t* point_cloud_image_data = reinterpret_cast<const int16_t*>(point_cloud_image.get_buffer());
const uint8_t* color_image_data = rgbImage.get_buffer();
for (int i = 0; i < color_image_width_pixels * color_image_height_pixels; i++) {
PointT point;
point.x = point_cloud_image_data[3 * i + 0] / 1000.0f;
point.y = point_cloud_image_data[3 * i + 1] / 1000.0f;
point.z = point_cloud_image_data[3 * i + 2] / 1000.0f;
point.b = color_image_data[4 * i + 0];
point.g = color_image_data[4 * i + 1];
point.r = color_image_data[4 * i + 2];
uint8_t alpha = color_image_data[4 * i + 3];
if (point.x == 0 && point.y == 0 && point.z == 0 && alpha == 0)
continue;
cloud->points[i] = point;
}
double time_d = static_cast<double>(std::chrono::duration_cast<std::chrono::microseconds>(
depthImage.get_device_timestamp()).count());
std::string filename_pc = std::to_string(time_d / 1000000);
pcl::io::savePLYFile("ply/" + filename_pc + ".ply", *cloud); //将点云数据保存为ply文件
pcl::io::savePCDFile("pcd/" + filename_pc + ".pcd", *cloud); //将点云数据保存为pcd文件
}
else {
std::cout << "false: K4A_WAIT_RESULT_TIMEOUT." << std::endl;
}
}
cv::destroyAllWindows();
// 释放，关闭设备
rgbImage.reset();
depthImage.reset();
capture.reset();
device.close();
return 1;
}open3d读取代码
import open3d as o3d
pcd = o3d.io.read_point_cloud(r"path")
o3d.visualization.draw_geometries([pcd])这只是单帧，要想实现三维重建，需要对多帧点云图进行匹配配准和融合。目前还不会TuT~
4.根据拍摄一段视频，匹配视频每一帧的彩色图像和深度图像，构成云点图。
参考Azure Kinect DK 实现三维重建 （PC非实时版）_lucky li的博客-CSDN博客
他的例子是Ubuntu18.04笔记本+DK相机上进行，我进行windows版
首先
利用开源框架open3d的Reconstruction system实现Azure Kinect DK相机的三维重建，已上传代码：
https://github.com/luckyluckydadada/Azure-Kinect-DK-3D-reconstruction.git
然后进入Azure-Kinect-DK-3D-reconstruction/open3d_reconstruction目录
打开cmd
输入录制数据，空格开始录制，esc退出录制并保存：
python sensors/azure_kinect_recorder.py --output dataset/name.mkv
再输入
提取rgb和depth图像，以及相机config和相机内参config：
python sensors/azure_kinect_mkv_reader.py --input dataset/name.mkv --output dataset/name
最后输入
python run_system.py dataset/name/config.json --make --register --refine --integrate
然后在新生成的dataset文件夹找到生成的ply文件再打开
效果跟参考文章一样
建议open3d版本要0.14.1
这个适用对一个物体进行重建，不能移动拍摄整个屋子。
扫一扫
2952
被折叠的 条评论
为什么被折叠?
到【灌水乐园】发言
