需求：

每个IP在指定的时间内可以请求某一个接口多少次，如果请求次数超过指定数，就返回拒绝信息

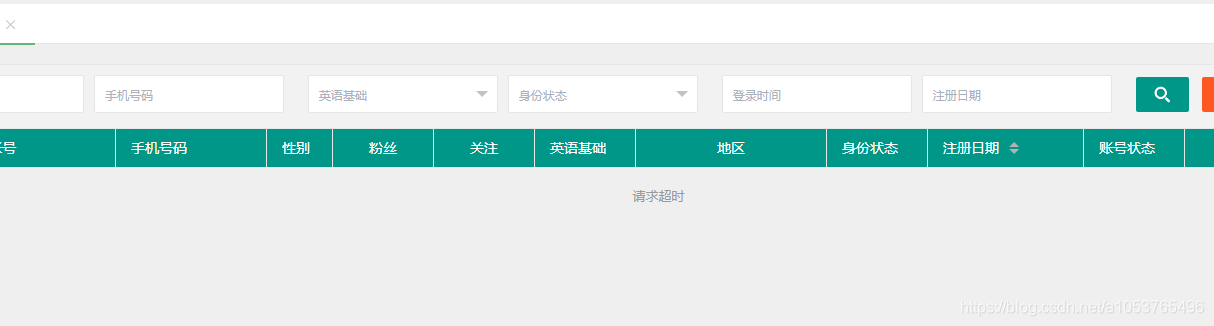

没做IP防刷之前，请求多了之后服务蹦了

做防刷之后

当然，还有限流

直接上代码

接口注解代码：

import java.lang.annotation.*;

/**
 * 限流注解
 *
 * @author lixx
 * @version 1.0
 * @date 2020-07-14 15:58
 */
@Target({ElementType.METHOD, ElementType.TYPE})
@Retention(RetentionPolicy.RUNTIME)
@Documented
public @interface GuavaRateLimiter {

	//每秒产生令牌的速率
	double permitsPerSecond() default 30;

	// 在指定的时间内没有获取到令牌的话，就走降级服务，单位毫秒
	long timeout() default 500;
}

注解的逻辑实现代码：

import com.familylinkedu.common.annotation.GuavaRateLimiter;
import com.familylinkedu.common.config.redis.RedisService;
import com.familylinkedu.common.enums.Constant;
import com.familylinkedu.common.exception.CustomRuntimeException;
import com.familylinkedu.common.utils.IpUtils;
import com.google.common.util.concurrent.RateLimiter;
import org.aspectj.lang.ProceedingJoinPoint;
import org.aspectj.lang.annotation.Around;
import org.aspectj.lang.annotation.Aspect;
import org.aspectj.lang.annotation.Pointcut;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.core.io.ClassPathResource;
import org.springframework.data.redis.core.script.DefaultRedisScript;
import org.springframework.scripting.support.ResourceScriptSource;
import org.springframework.stereotype.Component;
import org.springframework.web.context.request.RequestContextHolder;
import org.springframework.web.context.request.ServletRequestAttributes;

import javax.servlet.http.HttpServletRequest;
import java.util.ArrayList;
import java.util.List;
import java.util.concurrent.ConcurrentHashMap;
import java.util.concurrent.TimeUnit;

/**
 * 限流注解
 * GuavaRateLimiter.class 类的实现
 *
 * @author lixx
 * @version 1.0
 * @date 2020-07-14 16:22
 */
@Aspect
@Component
public class GuavaRateLimiterAspect {

	private ConcurrentHashMap<String, RateLimiter> rateLimiterMap = new ConcurrentHashMap<>();

	private RateLimiter rateLimiter;

	@Autowired
	private RedisService redisService;

	/**
	 * 定义切入点
	 */
	@Pointcut("@annotation(guavaRateLimiter)")
	public void rateLimiterAspect(GuavaRateLimiter guavaRateLimiter) {
	}

	/**
	 * 环绕通知
	 *
	 * @param proceedingJoinPoint
	 * @return
	 */
	@Around(value = "rateLimiterAspect(guavaRateLimiter)", argNames = "proceedingJoinPoint,guavaRateLimiter")
	public Object doBefore(ProceedingJoinPoint proceedingJoinPoint, GuavaRateLimiter guavaRateLimiter) throws Throwable {
		Boolean ipLimit = ipLimit();
		if (!ipLimit) {
			throw new CustomRuntimeException("检测出您的IP异常访问此服务，已被系统限流！温馨提示：为营造良好的网络环境，请规范网络行为!");
		}
		// 使用rateLimiter生成令牌
		double perSecond = guavaRateLimiter.permitsPerSecond();
		long timeout = guavaRateLimiter.timeout();
		String uri = getRequest().getRequestURI();
		// 一个url共用一个桶（不是一个请求共用一个桶）
		if (rateLimiterMap.containsKey(uri)) {
			//如果存在
			rateLimiter = rateLimiterMap.get(uri);
		} else {
			// 如果不存在
			rateLimiter = RateLimiter.create(perSecond);
			rateLimiterMap.put(uri, rateLimiter);
		}
		// 获取令牌桶中的令牌，如果没有获取到走降级服务
		boolean tryAcquire = rateLimiter.tryAcquire(timeout, TimeUnit.MILLISECONDS);
		if (!tryAcquire) {
			// 服务降级
			throw new CustomRuntimeException("系统火爆，请稍候重试！");
		}
		return proceedingJoinPoint.proceed();
	}

	/**
	 * 获取请求的路径
	 *
	 * @return
	 */
	private HttpServletRequest getRequest() {
		ServletRequestAttributes requestAttributes = (ServletRequestAttributes) RequestContextHolder.getRequestAttributes();
		return requestAttributes.getRequest();
	}

	/**
	 * ip限流，
	 *
	 * @return true表示正常，false表示被限流
	 */
	private Boolean ipLimit() {
		HttpServletRequest request = getRequest();
		//key是ip+接口地址，这样就满足博文上面的需求了
		String ipKey = Constant.DefaultRedisKeyEnum.IP_LIMIT + ":" + IpUtils.getIpAddr(request) + ":" + request.getRequestURI();
		DefaultRedisScript<Boolean> lockScript = new DefaultRedisScript<>();
		lockScript.setScriptSource(new ResourceScriptSource(new ClassPathResource("ratelimiter.lua")));
		lockScript.setResultType(Boolean.class);
		List<Object> keyList = new ArrayList<>(2);
		keyList.add(ipKey);
		return redisService.execute(lockScript, keyList);
	}
}

代码中用到的获取ip工具类：

import javax.servlet.http.HttpServletRequest;
import java.net.InetAddress;
import java.net.UnknownHostException;

public class IpUtils {

	public static String getIpAddr(HttpServletRequest request) {
		String ipAddress;
		try {
			ipAddress = request.getHeader("x-forwarded-for");
			if (ipAddress == null || ipAddress.length() == 0 || "unknown".equalsIgnoreCase(ipAddress)) {
				ipAddress = request.getHeader("Proxy-Client-IP");
			}
			if (ipAddress == null || ipAddress.length() == 0 || "unknown".equalsIgnoreCase(ipAddress)) {
				ipAddress = request.getHeader("WL-Proxy-Client-IP");
			}
			if (ipAddress == null || ipAddress.length() == 0 || "unknown".equalsIgnoreCase(ipAddress)) {
				ipAddress = request.getRemoteAddr();
				if ("127.0.0.1".equals(ipAddress)) {
					// 根据网卡取本机配置的IP
					InetAddress inet = null;
					try {
						inet = InetAddress.getLocalHost();
					} catch (UnknownHostException e) {
						e.printStackTrace();
					}
					assert inet != null;
					ipAddress = inet.getHostAddress();
				}
			}

			// 对于通过多个代理的情况，第一个IP为客户端真实IP,多个IP按照','分割
			// "***.***.***.***".length()
			if (ipAddress != null && ipAddress.length() > 15) {
				// = 15
				if (ipAddress.indexOf(",") > 0) {
					ipAddress = ipAddress.substring(0, ipAddress.indexOf(","));
				}
			}
		} catch (Exception e) {
			ipAddress = "";
		}
		return ipAddress;
	}
}

代码中用到的redis：

import com.fasterxml.jackson.annotation.JsonAutoDetect;
import com.fasterxml.jackson.annotation.PropertyAccessor;
import com.fasterxml.jackson.databind.ObjectMapper;
import org.springframework.boot.autoconfigure.condition.ConditionalOnMissingBean;
import org.springframework.context.annotation.Bean;
import org.springframework.context.annotation.Configuration;
import org.springframework.data.redis.connection.RedisConnectionFactory;
import org.springframework.data.redis.core.RedisTemplate;
import org.springframework.data.redis.core.StringRedisTemplate;
import org.springframework.data.redis.serializer.Jackson2JsonRedisSerializer;
import org.springframework.data.redis.serializer.StringRedisSerializer;

/**
 * redis配置
 *
 * @author lixx
 * @version 1.0
 * @date 2019-08-07 10:58
 */
@Configuration
public class RedisConfig {

	@Bean
	@ConditionalOnMissingBean(StringRedisTemplate.class)
	public StringRedisTemplate stringRedisTemplate(RedisConnectionFactory redisConnectionFactory) {
		StringRedisTemplate template = new StringRedisTemplate();
		template.setConnectionFactory(redisConnectionFactory);
		return template;
	}

	@Bean
	@ConditionalOnMissingBean(name = "redisObjectTemplate")
	public RedisTemplate<Object, Object> redisObjectTemplate(RedisConnectionFactory redisConnectionFactory) {
		RedisTemplate<Object, Object> redisObjectTemplate = new RedisTemplate<>();
		redisObjectTemplate.setConnectionFactory(redisConnectionFactory);
		Jackson2JsonRedisSerializer jackson2JsonRedisSerializer = new Jackson2JsonRedisSerializer(Object.class);
		ObjectMapper om = new ObjectMapper();
		om.setVisibility(PropertyAccessor.ALL, JsonAutoDetect.Visibility.ANY);
		om.enableDefaultTyping(ObjectMapper.DefaultTyping.NON_FINAL);
		jackson2JsonRedisSerializer.setObjectMapper(om);

		StringRedisSerializer stringRedisSerializer = new StringRedisSerializer();
		/*将key value 进行stringRedisSerializer序列化*/
		redisObjectTemplate.setKeySerializer(stringRedisSerializer);
		redisObjectTemplate.setValueSerializer(stringRedisSerializer);
		/*将HashKey HashValue 进行序列化*/
		redisObjectTemplate.setHashKeySerializer(stringRedisSerializer);
		redisObjectTemplate.setHashValueSerializer(jackson2JsonRedisSerializer);
		redisObjectTemplate.afterPropertiesSet();
		return redisObjectTemplate;
	}
}

import com.alibaba.fastjson.JSON;
import com.alibaba.fastjson.JSONObject;

import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.data.redis.core.RedisTemplate;
import org.springframework.data.redis.core.script.RedisScript;
import org.springframework.stereotype.Service;

/**
 * redis api封装类
 *
 * @author lixx
 * @version 1.0
 * @date 2019-08-07 11:07
 */
@Service
public class RedisService {

	@Autowired
	private RedisTemplate<Object, Object> redisObjectTemplate;

	// ===============================lua script=================================

	/**
	 * 太长了，删减了其他的redisTemplate操作，只留下本文需要用到的lua模块
	 * 执行 lua脚本
	 *
	 * @param script
	 * @param objects
	 * @param <T>
	 * @return
	 */
	public <T> T execute(RedisScript<T> script, List<Object> objects) {
		return redisObjectTemplate.execute(script, objects);
	}

}

lua脚本 ratelimiter.lua（直接放在resources目录下）：

-- ip地址限流，expire 秒不能超过 limit次
local expire = 10   --key过期时间，单位秒
local limit = 10    --在指定的过期时间内可以访问的请求数
local ipKey = KEYS[1]
-- 判断 IP是否存在
local exists = redis.call('EXISTS', ipKey)
--return exists
-- IPkey存在的话值+1
if exists == 1
then
    redis.call('incr', ipKey)
else
-- IP不存在的话创建并且值+1
    redis.call('incr', ipKey)
    redis.call('expire', ipKey, expire)
end
-- 获取IPkey的值，如果大于指定的并发量就返回false，不大于返回true
local concurrency_count = redis.call('get', ipKey)
if tonumber(concurrency_count) > limit
   then
   return false
else
    return true
end

使用：

ps:注解来自军哥的代码，加了ip防刷，这里防刷应该放在网关中（每一个请求都要防止ip刷请求，但每一个接口不需要都限流），这里使用的lua命令的方式，大家也可以使用布隆过滤器，推荐放在过滤器里面，还需要把ConcurrentHashMap换成LoadingCache，代码如下，不过在内部类中拿不到注解的每秒生成令牌的速率。大佬们看出需要改正的地方可以留言在下面/色

	@PostConstruct
	public void initRateLimit() {
		CacheBuilder.newBuilder()
				.maximumSize(1000)
				.expireAfterWrite(1, TimeUnit.DAYS)
				.build(new CacheLoader<String, RateLimiter>() {
					@Override
					public RateLimiter load(String ipKey) {
						return RateLimiter.create(50);
					}
				});
	}
