收入囊中
- 高斯金字塔
- 拉普拉斯金字塔
葵花宝典
图像金字塔是一系列的图像集合,都是从单张图片获得的,连续做下采样(downsample)直到预设停止条件.最常用的是两种,高斯金字塔和拉普拉斯金字塔。
[当然还有其他的金字塔,比如小波金字塔]
高斯金字塔
对一张图像不断的模糊之后向下采样,得到不同分辨率的图像,同时每次得到的新的图像宽与高是原来图像的1/2, 最常见就是基于高斯的模糊之后采样,得到的
一系列图像称为高斯金字塔。

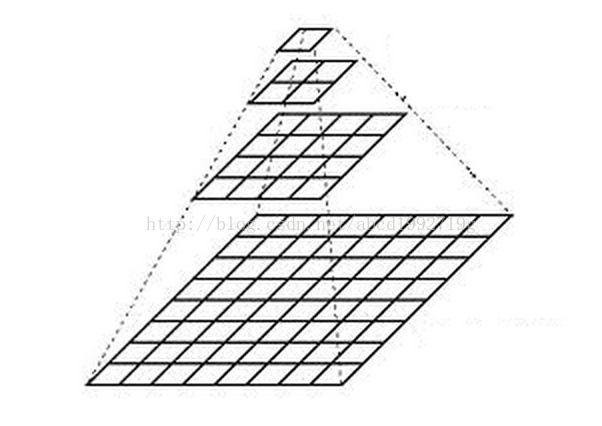

原图来自http://blog.csdn.net/jia20003/article/details/9116931
最底层我们成为G0,往上分别是G1,G2...
如何对图片作下采样呢?
- 高斯模糊[用如下卷积,注意要除以256,用上之前的知识,这是一个可分离的滤波,所以只需要2K次计算,不需要K^2]
1 4 6 4 1 4 16 24 16 4 6 24 36 24 6 4 16 24 16 4 1 4 6 4 1 - 去掉所有的偶数行和偶数列
提到下采样,就不得不提上采样(构建拉普拉斯金字塔也会用到)
如何对图片作上采样呢?
我们看看OpenCV是如何做的吧
- 每个维度都扩大两倍并插入0,也就是f(2i,2j) = f(i,j) , f(2i+1,2j+1) = 0
- 再用相同的高斯核进行高斯卷积,结果再乘4
拉普拉斯金字塔
高斯金字塔不同(DoG)又称为拉普拉斯金字塔,给出计算方式前,先加强一下定义
记得在上面我们定义了G0,G1,G2
G0下采样获得G1
G1上采样获得Upsample(G1),注意Upsample(G1)不等于G0,上采样和下采样不是可逆过程,这是因为下采样损失了图片信息
在此,给出计算拉普拉斯金字塔(DOG)的公式:L(i) = G(i) – Upsample(G(i+1))
DOG有很多用处,非常流行的SIFT特征第一步就是DOG
初识API
-
C++:
void
pyrDown
(InputArray
src, OutputArray
dst, const Size&
dstsize=Size(), int
borderType=BORDER_DEFAULT
)
-
- src – 输入图像
- dst – 输出图像
- dstsize – 输出图像的size
-
C++:
void
pyrUp
(InputArray
src, OutputArray
dst, const Size&
dstsize=Size(), int
borderType=BORDER_DEFAULT
)
-
- src – 输入图像
- dst – 输出图像
- dstsize – 输出图像的size
-
- src – 输入图像
- dst – 这是一个存储(maxlevel+1)的向量,dst[0]和源图像一样,dst[1]是第一次下采样
- maxlevel – 指定采样级数,必须为非负数
C++: void buildPyramid (InputArray src, OutputArrayOfArrays dst, int maxlevel, int borderType=BORDER_DEFAULT )
内部实现是不断call pyrDown()
荷枪实弹
第一个例子就是OpenCV自己的sample,使用PyrDown和PyrUp
#include "opencv2/imgproc/imgproc.hpp"
#include "opencv2/highgui/highgui.hpp"
#include <math.h>
#include <stdlib.h>
#include <stdio.h>
using namespace cv;
Mat src, dst, tmp;
const char* window_name = "Pyramids Demo";
int main(int argc,char **argv)
{
printf( "\n Zoom In-Out demo \n " );
printf( "------------------ \n" );
printf( " * [u] -> Zoom in \n" );
printf( " * [d] -> Zoom out \n" );
printf( " * [ESC] -> Close program \n \n" );
src = imread(argv[1]);
if( !src.data )
{ printf(" No data! -- Exiting the program \n");
return -1; }
tmp = src;
dst = tmp;
namedWindow( window_name, CV_WINDOW_AUTOSIZE );
imshow( window_name, dst );
for(;;)
{
int c;
c = waitKey(10);
if( (char)c == 27 )
{ break; }
if( (char)c == 'u' )
{ pyrUp( tmp, dst, Size( tmp.cols*2, tmp.rows*2 ) );
printf( "** Zoom In: Image x 2 \n" );
}
else if( (char)c == 'd' )
{ pyrDown( tmp, dst, Size( tmp.cols/2, tmp.rows/2 ) );
printf( "** Zoom Out: Image / 2 \n" );
}
imshow( window_name, dst );
tmp = dst;
}
return 0;
}
下面我们就用 buildPyramid和PyrUp来建立DOG(拉普拉斯金字塔)
先看一下我们的源图片
再看一下获得的DOG,请仔细看
代码也非常简单,完全不用解释
#include "opencv2/imgproc/imgproc.hpp"
#include "opencv2/highgui/highgui.hpp"
#include <math.h>
#include <stdlib.h>
#include <stdio.h>
#include <vector>
#include <sstream>
using namespace cv;
using namespace std;
Mat src,tmp;
vector<Mat>gaussPyrs;
vector<Mat>DOG;
int maxLevel = 3;
int main(int argc,char **argv)
{
src = imread(argv[1]);
if( !src.data ){
printf(" No data! -- Exiting the program \n");
return -1;
}
buildPyramid(src, gaussPyrs, maxLevel);
for(int i = 0;i < maxLevel;i++){
Size ss;
pyrUp( gaussPyrs[i+1], tmp, ss);
Mat dst = gaussPyrs[i] - tmp;
DOG.push_back(dst);
}
for(int i = 0;i < maxLevel;i++){
stringstream ss;
ss << i;
string s;
ss >> s;
namedWindow( s, CV_WINDOW_AUTOSIZE );
imshow( s, DOG[i] );
}
waitKey(0);
return 0;
}
举一反三
拉普拉斯金字塔也用于图像融合,CVAA的第三章有练习题就是用拉普拉斯金字塔进行融合,addWeighted这个函数在边界上没有过渡,效果不好,而拉普拉斯金字塔则有很好的效果
具体请见http://blog.csdn.net/abcjennifer/article/details/7628655
