如何旋转工程图的视图

原文链接：

http://adndevblog.typepad.com/manufacturing/2014/11/rotate-camera-around-any-axis-any-angle.html

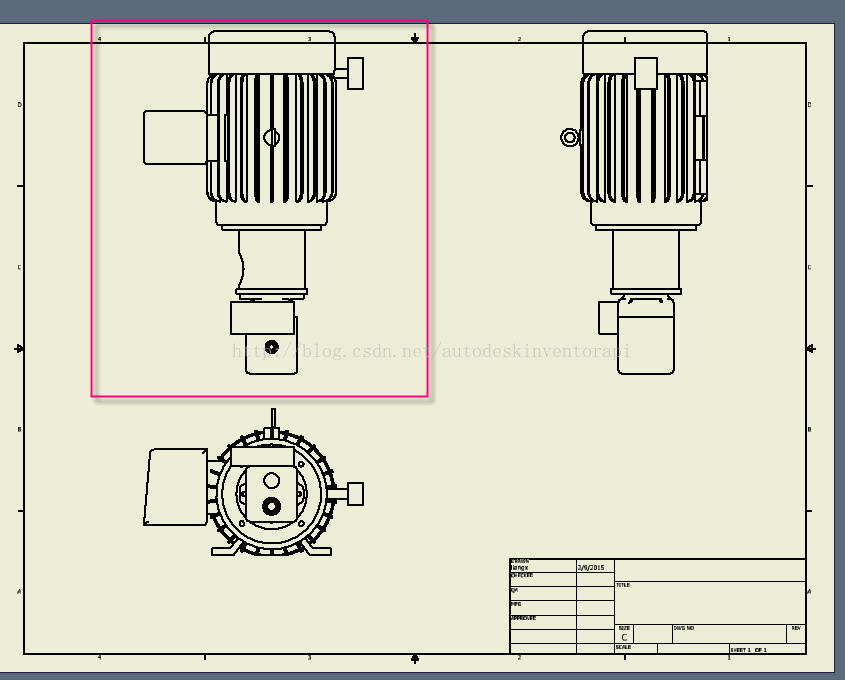

大家知道，工程图里，先是生成基础视图（也就是主视图），然后产生投影视图。例如：

DrawingView.Rotation 或 DrawingView.RotateByAngle 只能让视图绕垂直纸面的轴 (也就是视点方向）旋转。如果我们要让视图绕着相机上方向旋转怎么办？

其实，Inventor API提供了丰富的相机功能，可以轻松实现这个流程。我直接贴代码了。注意其中的解释：

Sub RotateBaseView()

   ' 预先选择好基础视图
  Dim baseView As DrawingView
  Set baseView = ThisApplication.ActiveDocument.SelectSet(1)

 ' 通过设置相机的UpVector = 相机视点方向来实现旋转
 ' 视点方向 = 眼睛到观察点的向量
 ' 然后计算新眼睛位置

  Dim c As Camera
  Set c = baseView.Camera

  Dim oldEye As Point
  Set oldEye = c.Eye.Copy

  Dim oldTarget As Point
  Set oldTarget = c.Target.Copy

  Dim oldViewDir As Vector
  Set oldViewDir = oldEye.VectorTo(oldTarget)

  Dim viewDist As Double
  viewDist = oldViewDir.Length

  Dim newTargetToEye As Vector
  Set newTargetToEye = c.UpVector.AsVector().Copy
  Call newTargetToEye.ScaleBy(viewDist)

  Call oldTarget.TranslateBy(newTargetToEye)

  c.Eye = oldTarget
  c.UpVector = oldViewDir.AsUnitVector()

  Call c.ApplyWithoutTransition
End Sub

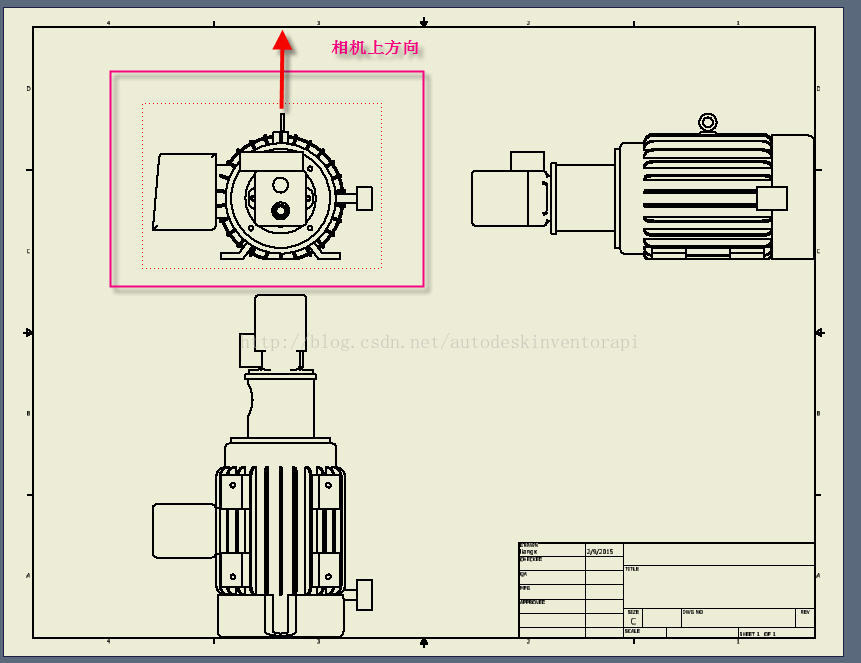

运行结果：

推荐论坛阅读：

如何在iLogoic里使用相机

http://forums.autodesk.com/t5/inventor-customization/controlling-the-camera-using-ilogic/m-p/5033496/highlight/true
