【图像分割】医学图像分割多目标分割（多分类）实践

本文已更新到【附源码】医学图像分割入门实践

1. 数据集

来自ISICDM 2019 临床数据分析挑战赛的基于磁共振成像的膀胱内外壁分割与肿瘤检测数据集。

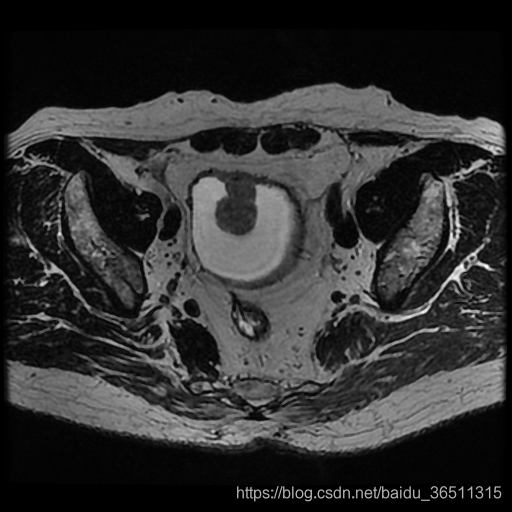

（原始数据）

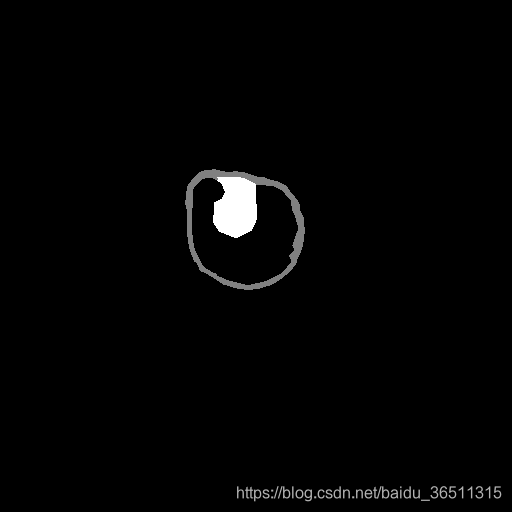

（ground truth）

灰度值：灰色128为膀胱内外壁，白色255为肿瘤。

任务是要同时分割出膀胱内外壁和肿瘤部分，加上背景，最后构成一个三分类问题。

2. 数据预处理

数据预处理最重要的一步就是要对gt进行one-hot编码，如果对one-hot编码不太清楚可以看下这篇文章（数据预处理 One-hot 编码的两种实现方式）。

由于笔记本性能较差，为了代码能够在笔记本上跑起来。在对数据预处理的时候进行了缩放（scale）和中心裁剪（center crop）。原始数据大小为512，首先将数据缩放到256，再裁剪到128的大小。

3. 代码部分

3.1 训练集和验证集划分

按照训练集80%，验证集20%的策略进行重新分配数据集。直接运行当前文件进行数据重新划分，
仅供参考，当然这一部分代码可根据自己的需求随意设计。

# repartition_dataset.py
import os
import math
import random

def partition_data(dataset_dir, ouput_root):
    """
    Divide the raw data into training sets and validation sets
    :param dataset_dir: path root of dataset
    :param ouput_root: the root path to the output file
    :return:
    """
    image_names = []
    mask_names = []
    val_size = 0.2
    train_names = []
    val_names = []

    for file in os.listdir(os.path.join(dataset_dir, "Images")):
        image_names.append(file)
        image_names.sort()
    for file in os.listdir(os.path.join(dataset_dir, "Labels")):
        mask_names.append(file)
        mask_names.sort()

    rawdata_size = len(image_names)
    random.seed(361)
    val_indices = random.sample(range(0, rawdata_size), math.floor(rawdata_size * val_size))
    train_indices = []
    for i in range(0, rawdata_size):
        if i not in val_indices:
            train_indices.append(i)

    with open(os.path.join(ouput_root, 'val.txt'), 'w') as f:
        for i in val_indices:
            val_names.append(image_names[i])
            f.write(image_names[i])
            f.write('\n')

    with open(os.path.join(ouput_root, 'train.txt'), 'w') as f:
        for i in train_indices:
            train_names.append(image_names[i])
            f.write(image_names[i])
            f.write('\n')
    train_names.sort(), val_names.sort()
    return train_names, val_names

if __name__ == '__main__':
    dataset_dir = '../media/LIBRARY/Datasets/Bladder/'
    output_root = '../media/LIBRARY/Datasets/Bladder/'
    train_names,  val_names = partition_data(dataset_dir, output_root)
    print(len(train_names))
    print(train_names)
    print(len(val_names))
    print(val_names)

3.2 数据加载和处理

数据加载写一个专门的数据类来做就可以了，最核心的其实就是实现里面的__getitem__()方法。make_dataset方法用来加载数据的文件名，真正加载数据是在__getitem__()里面，在DataLoder的时候自动调用。

# baldder.py
import os
import cv2
import torch
import numpy as np
from PIL import Image
from torch.utils import data
from torchvision import transforms
from utils import helpers

'''
128= bladder
255 = tumor
0 = background
'''
palette = [[0], [128], [255]]
num_classes = 3

def make_dataset(root, mode):
    assert mode in ['train', 'val', 'test']
    items = []
    if mode == 'train':
        img_path = os.path.join(root, 'Images')
        mask_path = os.path.join(root, 'Labels')

        if 'Augdata' in root:
            data_list = os.listdir(os.path.join(root, 'Images'))
        else:
            data_list = [l.strip('\n') for l in open(os.path.join(root, 'train.txt')).readlines()]
        for it in data_list:
            item = (os.path.join(img_path, it), os.path.join(mask_path, it))
            items.append(item)
    elif mode == 'val':
        img_path = os.path.join(root, 'Images')
        mask_path = os.path.join(root, 'Labels')
        data_list = [l.strip('\n') for l in open(os.path.join(
            root, 'val.txt')).readlines()]
        for it in data_list:
            item = (os.path.join(img_path, it), os.path.join(mask_path, it))
            items.append(item)
    else:
        pass
    return items

class Bladder(data.Dataset):
    def __init__(self, root, mode, joint_transform=None, center_crop=None, transform=None, target_transform=None):
        self.imgs = make_dataset(root, mode)
        self.palette = palette
        self.mode = mode
        if len(self.imgs) == 0:
            raise RuntimeError('Found 0 images, please check the data set')
        self.mode = mode
        self.joint_transform = joint_transform
        self.center_crop = center_crop
        self.transform = transform
        self.target_transform = target_transform

    def __getitem__(self, index):
        img_path, mask_path = self.imgs[index]

        img = Image.open(img_path)
        mask = Image.open(mask_path)

        if self.joint_transform is not None:
            img, mask = self.joint_transform(img, mask)
        if self.center_crop is not None:
            img, mask = self.center_crop(img, mask)
        img = np.array(img)
        mask = np.array(mask)
        # Image.open读取灰度图像时shape=(H, W) 而非(H, W, 1)
        # 因此先扩展出通道维度，以便在通道维度上进行one-hot映射
        img = np.expand_dims(img, axis=2)
        mask = np.expand_dims(mask, axis=2)
        mask = helpers.mask_to_onehot(mask, self.palette)
        # shape from (H, W, C) to (C, H, W)
        img = img.transpose([2, 0, 1])
        mask = mask.transpose([2, 0, 1])
        if self.transform is not None:
            img = self.transform(img)
        if self.target_transform is not None:
            mask = self.target_transform(mask)
        return img, mask

    def __len__(self):
        return len(self.imgs)

3.2.1 数据变换

# joint_transforms
import cv2
import math
import sys
import numbers
import random
from PIL import Image, ImageOps
import numpy as np
from skimage import measure
import matplotlib.pyplot as plt
from matplotlib.patches import Rectangle
from utils import helpers


class Compose(object):
    def __init__(self, transforms):
        self.transforms = transforms

    def __call__(self, img, mask):
        assert img.size == mask.size
        for t in self.transforms:
            img, mask = t(img, mask)
        return img, mask


class RandomCrop(object):
    def __init__(self, size, padding=0):
        if isinstance(size, numbers.Number):
            self.size = (int(size), int(size))
        else:
            self.size = size
        self.padding = padding

    def __call__(self, img, mask):
        if self.padding > 0:
            img = ImageOps.expand(img, border=self.padding, fill=0)
            mask = ImageOps.expand(mask, border=self.padding, fill=0)

        assert img.size == mask.size
        w, h = img.size
        th, tw = self.size
        if w == tw and h == th:
            return img, mask
        if w < tw or h < th:
            return img.resize((tw, th), Image.BILINEAR), mask.resize((tw, th), Image.NEAREST)

        x1 = random.randint(0, w - tw)
        y1 = random.randint(0, h - th)
        return img.crop((x1, y1, x1 + tw, y1 + th)), mask.crop((x1, y1, x1 + tw, y1 + th))


class CenterCrop(object):
    def __init__(self, size):
        if isinstance(size, numbers.Number):
            self.size = (int(size), int(size))
        else:
            self.size = size

    def __call__(self, img, mask):
        assert img.size == mask.size
        w, h = img.size
        th, tw = self.size
        x1 = int(math.ceil((w - tw) / 2.))
        y1 = int(math.ceil((h - th) / 2.))
        return img.crop((x1, y1, x1 + tw, y1 + th)), mask.crop((x1, y1, x1 + tw, y1 + th))


class SingleCenterCrop(object):
    def __init__(self, size):
        if isinstance(size, numbers.Number):
            self.size = (int(size), int(size))
        else:
            self.size = size

    def __call__(self, img):
        w, h = img.size
        th, tw = self.size
        x1 = int(math.ceil((w - tw) / 2.))
        y1 = int(math.ceil((h - th) / 2.))
        return img.crop((x1, y1, x1 + tw, y1 + th))


class CenterCrop_npy(object):
    def __init__(self, size):
        self.size = size

    def __call__(self, img, mask):
        assert img.shape == mask.shape
        if (self.size <= img.shape[1]) and (self.size <= img.shape[0]):
            x = math.ceil((img.shape[1] - self.size) / 2.)
            y = math.ceil((img.shape[0] - self.size) / 2.)

            if len(mask.shape) == 3:
                return img[y:y + self.size, x:x + self.size, :], mask[y:y + self.size, x:x + self.size, :]
            else:
                return img[y:y + self.size, x:x + self.size, :], mask[y:y + self.size, x:x + self.size]
        else:
            raise Exception('Crop shape (%d, %d) exceeds image dimensions (%d, %d)!' % (
                self.size, self.size, img.shape[0], img.shape[1]))

class RandomHorizontallyFlip(object):
    def __call__(self, img, mask):
        if random.random() < 0.5:
            return img.transpose(Image.FLIP_LEFT_RIGHT), mask.transpose(Image.FLIP_LEFT_RIGHT)
        return img, mask

class Scale(object):
    def __init__(self, size):
        self.size = size

    def __call__(self, img, mask):
        assert img.size == mask.size
        w, h = img.size
        if (w >= h and w == self.size) or (h >= w and h == self.size):
            return img, mask
        if w > h:
            ow = self.size
            oh = int(self.size * h / w)
            return img.resize((ow, oh), Image.BILINEAR), mask.resize((ow, oh), Image.NEAREST)
        else:
            oh = self.size
            ow = int(self.size * w / h)
            return img.resize((ow, oh), Image.BILINEAR), mask.resize((ow, oh), Image.NEAREST)


class RandomScaleCrop(object):
    def __init__(self, base_size, crop_size=0, scale_rate=0.95, fill=0):
        self.base_size = base_size
        self.crop_size = crop_size
        self.scale_rate = scale_rate
        self.fill = fill

    def __call__(self, im, gt):
        img = im.copy()
        mask = gt.copy()
        # random scale (short edge)
        short_size = random.randint(int(self.base_size * self.scale_rate), int(self.base_size * self.scale_rate))
        w, h = img.size
        if h > w:
            ow = short_size
            oh = int(1.0 * h * ow / w)
        else:
            oh = short_size
            ow = int(1.0 * w * oh / h)
        img = img.resize((ow, oh), Image.BILINEAR)
        mask = mask.resize((ow, oh), Image.NEAREST)

        # pad crop
        if short_size < self.crop_size:
            padh = self.crop_size - oh if oh < self.crop_size else 0
            padw = self.crop_size - ow if ow < self.crop_size else 0
            img = ImageOps.expand(img, border=(0, 0, padw, padh), fill=0)
            mask = ImageOps.expand(mask, border=(0, 0, padw, padh), fill=0)

        w, h = img.size
        x1 = random.randint(0, w - self.crop_size)
        y1 = random.randint(0, h - self.crop_size)
        img = img.crop((x1, y1, x1 + self.crop_size, y1 + self.crop_size))
        mask = mask.crop((x1, y1, x1 + self.crop_size, y1 + self.crop_size))

        return img, mask


class RandomRotate(object):
    def __init__(self, degree):
        self.degree = degree

    def __call__(self, img, mask):
        rotate_degree = random.random() * 2 * self.degree - self.degree
        return img.rotate(rotate_degree, Image.BILINEAR), mask.rotate(rotate_degree, Image.NEAREST)

# transforms.py

import random
import numpy as np
import torch
from PIL import Image, ImageFilter


class DeNormalize(object):
    def __init__(self, mean, std):
        self.mean = mean
        self.std = std

    def __call__(self, tensor):
        for t, m, s in zip(tensor, self.mean, self.std):
            t.mul_(s).add_(m)
        return tensor


class MaskToTensor(object):
    def __call__(self, img):
        return torch.from_numpy(np.array(img, dtype=np.float32))


class NpyToTensor(object):
    def __call__(self, img):
        return torch.from_numpy(np.array(img, dtype=np.float32))


# 不带归一化
class ImgToTensor(object):
    def __call__(self, img):
        img = torch.from_numpy(np.array(img))
        if isinstance(img, torch.ByteTensor):
            return img.float()

3.3 One-hot 工具函数

# helpers.py
import os
import csv
import numpy as np


def mask_to_onehot(mask, palette):
    """
    Converts a segmentation mask (H, W, C) to (H, W, K) where the last dim is a one
    hot encoding vector, C is usually 1 or 3, and K is the number of class.
    """
    semantic_map = []
    for colour in palette:
        equality = np.equal(mask, colour)
        class_map = np.all(equality, axis=-1)
        semantic_map.append(class_map)
    semantic_map = np.stack(semantic_map, axis=-1).astype(np.float32)
    return semantic_map


def onehot_to_mask(mask, palette):
    """
    Converts a mask (H, W, K) to (H, W, C)
    """
    x = np.argmax(mask, axis=-1)
    colour_codes = np.array(palette)
    x = np.uint8(colour_codes[x.astype(np.uint8)])
    return x

3.4 网络模型

原始数据：shape = [N, 1, H, W]

GT: shape = [N, 3, H, W]

模型输出：shape = [N, 3, H, W]

（其中N为batch size的大小，H和W分别是图像的高和宽）

使用医学图像分割里面经典的U-Net网络。

# u_net.py
from torch import nn
from utils import initialize_weights

class conv_block(nn.Module):
    def __init__(self, ch_in, ch_out):
        super(conv_block, self).__init__()
        self.conv = nn.Sequential(
            nn.Conv2d(ch_in, ch_out, kernel_size=3, stride=1, padding=1, bias=True),
            nn.BatchNorm2d(ch_out),
            nn.ReLU(inplace=True),
            nn.Conv2d(ch_out, ch_out, kernel_size=3, stride=1, padding=1, bias=True),
            nn.BatchNorm2d(ch_out),
            nn.ReLU(inplace=True)
        )

    def forward(self, x):
        x = self.conv(x)
        return x


class up_conv(nn.Module):
    def __init__(self, ch_in, ch_out):
        super(up_conv, self).__init__()
        self.up = nn.Sequential(
            nn.Upsample(scale_factor=2),
            nn.Conv2d(ch_in, ch_out, kernel_size=3, stride=1, padding=1, bias=True),
            nn.BatchNorm2d(ch_out),
            nn.ReLU(inplace=True)
        )

    def forward(self, x):
        x = self.up(x)
        return x


class U_Net(nn.Module):
    def __init__(self, img_ch=1, num_classes=3):
        super(U_Net, self).__init__()

        self.Maxpool = nn.MaxPool2d(kernel_size=2, stride=2)

        self.Conv1 = conv_block(ch_in=img_ch, ch_out=64)
        self.Conv2 = conv_block(ch_in=64, ch_out=128)
        self.Conv3 = conv_block(ch_in=128, ch_out=256)
        self.Conv4 = conv_block(ch_in=256, ch_out=512)
        self.Conv5 = conv_block(ch_in=512, ch_out=1024)

        self.Up5 = up_conv(ch_in=1024, ch_out=512)
        self.Up_conv5 = conv_block(ch_in=1024, ch_out=512)

        self.Up4 = up_conv(ch_in=512, ch_out=256)
        self.Up_conv4 = conv_block(ch_in=512, ch_out=256)

        self.Up3 = up_conv(ch_in=256, ch_out=128)
        self.Up_conv3 = conv_block(ch_in=256, ch_out=128)

        self.Up2 = up_conv(ch_in=128, ch_out=64)
        self.Up_conv2 = conv_block(ch_in=128, ch_out=64)

        self.Conv_1x1 = nn.Conv2d(64, num_classes, kernel_size=1, stride=1, padding=0)
        initialize_weights(self)

    def forward(self, x):
        # encoding path
        x1 = self.Conv1(x)

        x2 = self.Maxpool(x1)
        x2 = self.Conv2(x2)

        x3 = self.Maxpool(x2)
        x3 = self.Conv3(x3)

        x4 = self.Maxpool(x3)
        x4 = self.Conv4(x4)

        x5 = self.Maxpool(x4)
        x5 = self.Conv5(x5)

        # decoding + concat path
        d5 = self.Up5(x5)
        d5 = torch.cat((x4, d5), dim=1)

        d5 = self.Up_conv5(d5)

        d4 = self.Up4(d5)
        d4 = torch.cat((x3, d4), dim=1)
        d4 = self.Up_conv4(d4)

        d3 = self.Up3(d4)
        d3 = torch.cat((x2, d3), dim=1)
        d3 = self.Up_conv3(d3)

        d2 = self.Up2(d3)
        d2 = torch.cat((x1, d2), dim=1)
        d2 = self.Up_conv2(d2)

        d1 = self.Conv_1x1(d2)

        return d1

3.5 模型权重初始化

# utils.py
def initialize_weights(*models):
    for model in models:
        for module in model.modules():
            if isinstance(module, nn.Conv2d) or isinstance(module, nn.Linear):
                nn.init.kaiming_normal_(module.weight)
                if module.bias is not None:
                    module.bias.data.zero_()
            elif isinstance(module, nn.BatchNorm2d):
                module.weight.data.fill_(1)
                module.bias.data.zero_()

3.6 损失函数

采用dice loss，实现思路可参考【Pytorch】 Dice系数与Dice Loss损失函数实现。

# loss.py
import torch.nn as nn

from .metrics import *


class SoftDiceLoss(_Loss):
    __name__ = 'dice_loss'

    def __init__(self, num_classes, activation=None, reduction='mean'):
        super(SoftDiceLoss, self).__init__()
        self.activation = activation
        self.num_classes = num_classes

    def forward(self, y_pred, y_true):
        class_dice = []

        for i in range(1, self.num_classes):
            class_dice.append(diceCoeff(y_pred[:, i:i + 1, :], y_true[:, i:i + 1, :], activation=self.activation))
        mean_dice = sum(class_dice) / len(class_dice)
        return 1 - mean_dice

3.7 模型评价指标

Dice 系数。

# metircs.py

import torch
import torch.nn as nn
import numpy as np


def diceCoeff(pred, gt, eps=1e-5, activation='sigmoid'):
    r""" computational formula：
        dice = (2 * (pred ∩ gt)) / (pred ∪ gt)
    """

    if activation is None or activation == "none":
        activation_fn = lambda x: x
    elif activation == "sigmoid":
        activation_fn = nn.Sigmoid()
    elif activation == "softmax2d":
        activation_fn = nn.Softmax2d()
    else:
        raise NotImplementedError("Activation implemented for sigmoid and softmax2d")

    pred = activation_fn(pred)

    N = gt.size(0)
    pred_flat = pred.view(N, -1)
    gt_flat = gt.view(N, -1)

    intersection = (pred_flat * gt_flat).sum(1)
    unionset = pred_flat.sum(1) + gt_flat.sum(1)
    loss =  (2 * intersection + eps) / (unionset + eps)

    return loss.sum() / N


def diceCoeffv2(pred, gt, eps=1e-5, activation='sigmoid'):
    r""" computational formula：
        dice = (2 * tp) / (2 * tp + fp + fn)
    """

    if activation is None or activation == "none":
        activation_fn = lambda x: x
    elif activation == "sigmoid":
        activation_fn = nn.Sigmoid()
    elif activation == "softmax2d":
        activation_fn = nn.Softmax2d()
    else:
        raise NotImplementedError("Activation implemented for sigmoid and softmax2d")

    pred = activation_fn(pred)

    N = gt.size(0)
    pred_flat = pred.view(N, -1)
    gt_flat = gt.view(N, -1)

    tp = torch.sum(gt_flat * pred_flat, dim=1)
    fp = torch.sum(pred_flat, dim=1) - tp
    fn = torch.sum(gt_flat, dim=1) - tp
    loss = (2 * tp + eps) / (2 * tp + fp + fn + eps)
    return loss.sum() / N

3.8 训练

# train.py
import time
import os
from torch import optim
from torch.utils.data import DataLoader
from tensorboardX import SummaryWriter

# from datasets import bladder
from utils.loss import *
from utils import tools
from utils.metrics import diceCoeffv2
import utils.joint_transforms as joint_transforms
import utils.transforms as extended_transforms
from networks.u_net import *


crop_size = 128
batch_size = 2
n_epoch = 10
model_name = 'U_Net_'
loss_name = 'dice_'
times = 'no1_'
extra_description = ''
writer = SummaryWriter(os.path.join('../../log/bladder_trainlog', 'bladder_exp', model_name+loss_name+times+extra_description))


def main():
    net = U_Net(img_ch=1, num_classes=3).cuda()

    train_joint_transform = joint_transforms.Compose([
        joint_transforms.Scale(256),
        # joint_transforms.RandomRotate(10),
        # joint_transforms.RandomHorizontallyFlip()
    ])
    center_crop = joint_transforms.CenterCrop(crop_size)
    train_input_transform = extended_transforms.ImgToTensor()

    target_transform = extended_transforms.MaskToTensor()
    train_set = bladder.Bladder('../../media/LIBRARY/Datasets/Bladder', 'train',
                                joint_transform=train_joint_transform, center_crop=center_crop,
                                transform=train_input_transform, target_transform=target_transform)
    train_loader = DataLoader(train_set, batch_size=batch_size, shuffle=True)


    if loss_name == 'dice_':
        criterion = SoftDiceLoss(activation='sigmoid').cuda()
    elif loss_name == 'bce_':
        criterion = nn.BCEWithLogitsLoss().cuda()
    elif loss_name == 'wbce_':
        criterion = WeightedBCELossWithSigmoid().cuda()
    elif loss_name == 'er_':
        criterion = EdgeRefinementLoss().cuda()
    optimizer = optim.Adam(net.parameters(), lr=1e-4)

    train(train_loader, net, criterion, optimizer, n_epoch, 0)


def train(train_loader, net, criterion, optimizer, num_epoches , iters):
    for epoch in range(1, num_epoches + 1):
        st = time.time()
        b_dice = 0.0
        t_dice = 0.0
        d_len = 0
        for inputs, mask in train_loader:
            X = inputs.cuda()
            y = mask.cuda()
            optimizer.zero_grad()
            output = net(X)
            loss = criterion(output, y)
            # CrossEntropyLoss
            # loss = criterion(output, torch.argmax(y, dim=1))
            output = torch.sigmoid(output)
            output[output < 0.5] = 0
            output[output > 0.5] = 1
            bladder_dice = diceCoeffv2(output[:, 0:1, :], y[:, 0:1, :], activation=None).cpu().item()
            tumor_dice = diceCoeffv2(output[:, 1:2, :], y[:, 1:2, :], activation=None).cpu().item()
            mean_dice = (bladder_dice + tumor_dice) / 2
            d_len += 1
            b_dice += bladder_dice
            t_dice += tumor_dice
            loss.backward()
            optimizer.step()
            iters += batch_size
            string_print = "Epoch = %d iters = %d Current_Loss = %.4f Mean Dice=%.4f Bladder Dice=%.4f Tumor Dice=%.4f Time = %.2f"\
                           % (epoch, iters, loss.item(), mean_dice,
                              bladder_dice, tumor_dice, time.time() - st)
            tools.log(string_print)
            st = time.time()
            writer.add_scalar('train_main_loss', loss.item(), iters)
        b_dice = b_dice / d_len
        t_dice = t_dice / d_len
        m_dice = (b_dice + t_dice) / 2
        print('Epoch {}/{},Train Mean Dice {:.4}, Bladder Dice {:.4}, Tumor Dice {:.4}'.format(
            epoch, num_epoches, m_dice, b_dice, t_dice
        ))
        if epoch == num_epoches:
            torch.save(net, '../../checkpoint/exp/{}.pth'.format(model_name + loss_name + times + extra_description))
            writer.close()

if __name__ == '__main__':
    main()

3.9 模型验证

# validate.py
import os
import cv2
from PIL import Image
import utils.joint_transforms as joint_transforms
from torch.utils.data import DataLoader
from tensorboardX import SummaryWriter

from utils import helpers
import utils.transforms as extended_transforms
from utils.metrics import *
from datasets import bladder
from utils.loss import *
import train

LOSS = False
# numpy 高维数组打印不显示...
np.set_printoptions(threshold=9999999)
batch_size = 1

val_input_transform = extended_transforms.ImgToTensor()
center_crop = joint_transforms.Compose([
    joint_transforms.Scale(256),
    joint_transforms.CenterCrop(128)]
)

target_transform = extended_transforms.MaskToTensor()
val_set = bladder.Bladder('../../media/LIBRARY/Datasets/Bladder/', 'val',
                              transform=val_input_transform, center_crop=center_crop,
                              target_transform=target_transform)
val_loader = DataLoader(val_set, batch_size=batch_size, shuffle=False)

# 验证用的模型名称
model_name = train.model_name
loss_name = train.loss_name
times = train.times
extra_description = train.extra_description
model = torch.load("../../checkpoint/exp/{}.pth".format(model_name + loss_name + times + extra_description))
# model = torch.load("../../checkpoint/exp/{}.pth".format('U_Net_bce_no1_'))
model.eval()
if LOSS:
    writer = SummaryWriter(os.path.join('../../log/vallog', 'bladder_exp', model_name+loss_name+times+extra_description))


if loss_name == 'dice_':
    criterion = SoftDiceLoss(activation='sigmoid').cuda()
elif loss_name == 'bce_':
    criterion = nn.BCEWithLogitsLoss().cuda()
elif loss_name == 'wbce_':
    criterion = WeightedBCELossWithSigmoid().cuda()
elif loss_name == 'er_':
    criterion = EdgeRefinementLoss().cuda()



def val(model):
    imname = '2-IM131'
    # imname = '2-IM107'
    img = Image.open('D:\\Learning\\datasets\\基于磁共振成像的膀胱内外壁分割与肿瘤检测\\Images\\{}.png'.format(imname))
    mask = Image.open('D:\\Learning\\datasets\\基于磁共振成像的膀胱内外壁分割与肿瘤检测\\Labels\\{}.png'.format(imname))
    img, mask = center_crop(img, mask)
    img = np.asarray(img)
    img = np.expand_dims(img, axis=2)
    mri = img
    mask = np.asarray(mask)
    mask = np.expand_dims(mask, axis=2)

    gt = np.float32(helpers.mask_to_onehot(mask, bladder.palette))
    # 用来看gt的像素值
    gt_showval = gt
    gt = np.expand_dims(gt, axis=3)
    gt = gt.transpose([3, 2, 0, 1])
    gt = torch.from_numpy(gt)

    img = img.transpose([2, 0, 1])
    img = np.expand_dims(img, axis=3)
    img = img.transpose([3, 0, 1, 2])
    img = val_input_transform(img)

    img = img.cuda()
    model = model.cuda()
    pred = model(img)

    pred = torch.sigmoid(pred)
    pred[pred < 0.5] = 0
    pred[pred > 0.5] = 1
    bladder_dice = diceCoeffv2(pred[:, 0:1, :], gt.cuda()[:, 0:1, :], activation=None)
    tumor_dice = diceCoeffv2(pred[:, 1:2, :], gt.cuda()[:, 1:2, :], activation=None)
    mean_dice = (bladder_dice + tumor_dice) / 2
    acc = accuracy(pred, gt.cuda())
    p = precision(pred, gt.cuda())
    r = recall(pred, gt.cuda())
    print('mean_dice={:.4}, bladder_dice={:.4}, tumor_dice={:.4}, acc={:.4}, p={:.4}, r={:.4}'
          .format(mean_dice.item(), bladder_dice.item(), tumor_dice.item(),
                  acc.item(), p.item(), r.item()))
    pred = pred.cpu().detach().numpy()[0].transpose([1, 2, 0])
    # 用来看预测的像素值
    pred_showval = pred
    pred = helpers.onehot_to_mask(pred, bladder.palette)
    # np.uint8()反归一化到[0, 255]
    imgs = np.uint8(np.hstack([mri, pred, mask]))

    cv2.imshow("mri pred gt", imgs)
    cv2.waitKey(0)


def auto_val(model):
    # 效果展示图片数
    iters = 0
    SIZES = 8
    imgs = []
    preds = []
    gts = []
    dices = 0
    tumor_dices = 0
    bladder_dices = 0
    for i, (img, mask) in enumerate(val_loader):
        im = img
        img = img.cuda()
        model = model.cuda()
        pred = model(img)
        if LOSS:
            loss = criterion(pred, mask.cuda()).item()
        pred = torch.sigmoid(pred)
        pred = pred.cpu().detach()
        iters += batch_size
        pred[pred < 0.5] = 0
        pred[pred > 0.5] = 1
        bladder_dice = diceCoeff(pred[:, 0:1, :], mask[:, 0:1, :], activation=None)
        tumor_dice = diceCoeff(pred[:, 1:2, :], mask[:, 1:2, :], activation=None)
        mean_dice = (bladder_dice + tumor_dice) / 2
        dices += mean_dice
        tumor_dices += tumor_dice
        bladder_dices += bladder_dice
        acc = accuracy(pred, mask)
        p = precision(pred, mask)
        r = recall(pred, mask)
        print('mean_dice={:.4}, bladder_dice={:.4}, tumor_dice={:.4}, acc={:.4}, p={:.4}, r={:.4}'
              .format(mean_dice.item(), bladder_dice.item(), tumor_dice.item(),
                      acc, p, r))
        gt = mask.numpy()[0].transpose([1, 2, 0])
        gt = helpers.onehot_to_mask(gt, bladder.palette)
        pred = pred.cpu().detach().numpy()[0].transpose([1, 2, 0])
        pred = helpers.onehot_to_mask(pred, bladder.palette)
        im = im[0].numpy().transpose([1, 2, 0])
        if LOSS:
            writer.add_scalar('val_main_loss', loss, iters)
        if len(imgs) < SIZES:
            imgs.append(im * 255)
            preds.append(pred)
            gts.append(gt)
    val_mean_dice = dices / (len(val_loader) / batch_size)
    val_tumor_dice = tumor_dices / (len(val_loader) / batch_size)
    val_bladder_dice = bladder_dices / (len(val_loader) / batch_size)
    print('Val Mean Dice = {:.4}, Val Bladder Dice = {:.4}, Val Tumor Dice = {:.4}'
          .format(val_mean_dice, val_bladder_dice, val_tumor_dice))

    imgs = np.hstack([*imgs])
    preds = np.hstack([*preds])
    gts = np.hstack([*gts])
    show_res = np.vstack(np.uint8([imgs, preds, gts]))
    cv2.imshow("top is mri , middle is pred,  bottom is gt", show_res)
    cv2.waitKey(0)


if __name__ == '__main__':
    # val(model)
    auto_val(model)

3.10 实验结果

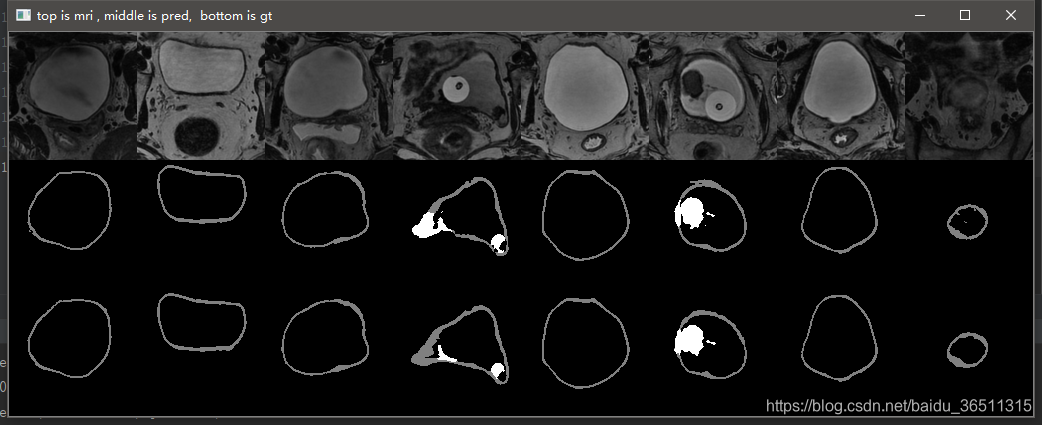

这是笔记本跑了10个epoch的结果，仅仅是测试代码有没有问题。从结果可以看到，代码目前应该是没有问题的，后期只需调参数再训练提升效果即可。

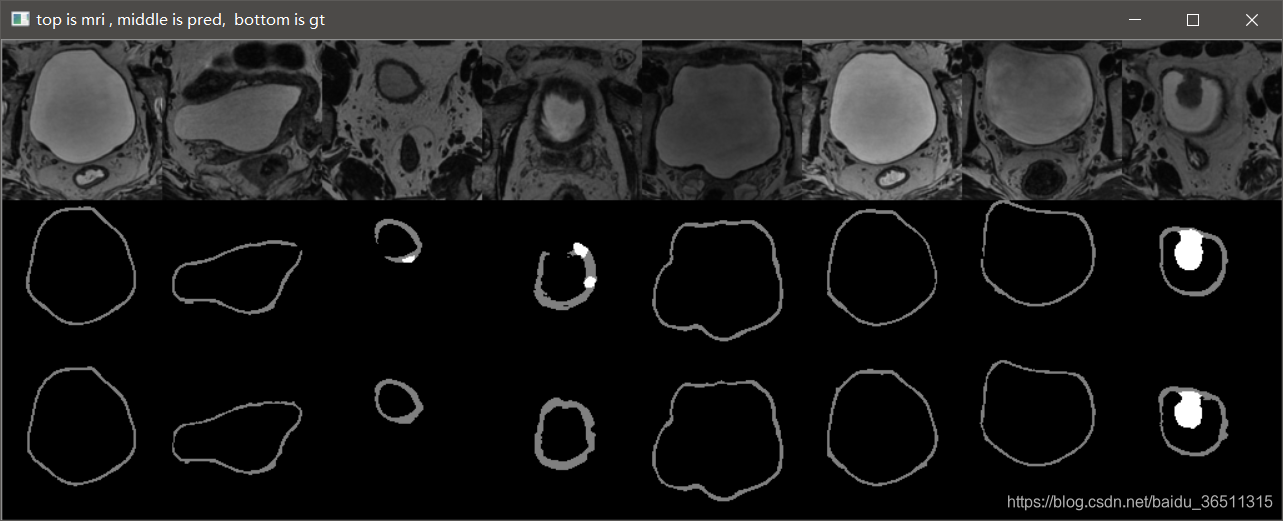

GTX2080TI 跑120个epoch的测试效果：
Val Mean Dice = 0.9051, Val Bladder Dice = 0.9012, Val Tumor Dice = 0.9091

• 2020/10/19更新：评价指标代码

import torch
import torch.nn as nn
import numpy as np


"""
True Positive （真正， TP）预测为正的正样本
True Negative（真负 , TN）预测为负的负样本
False Positive （假正， FP）预测为正的负样本
False Negative（假负 , FN）预测为负的正样本
"""


def diceCoeff(pred, gt, smooth=1e-5, ):
    r""" computational formula：
        dice = (2 * (pred ∩ gt)) / (pred ∪ gt)
    """

    N = gt.size(0)
    pred_flat = pred.view(N, -1)
    gt_flat = gt.view(N, -1)

    intersection = (pred_flat * gt_flat).sum(1)
    unionset = pred_flat.sum(1) + gt_flat.sum(1)
    score = (2 * intersection + smooth) / (unionset + smooth)

    return score.sum() / N


def diceCoeffv2(pred, gt, eps=1e-5):
    r""" computational formula：
        dice = (2 * tp) / (2 * tp + fp + fn)
    """

    N = gt.size(0)
    pred_flat = pred.view(N, -1)
    gt_flat = gt.view(N, -1)

    tp = torch.sum(gt_flat * pred_flat, dim=1)
    fp = torch.sum(pred_flat, dim=1) - tp
    fn = torch.sum(gt_flat, dim=1) - tp
    score = (2 * tp + eps) / (2 * tp + fp + fn + eps)
    return score.sum() / N


def diceCoeffv3(pred, gt, eps=1e-5):
    r""" computational formula：
        dice = (2 * tp) / (2 * tp + fp + fn)
    """

    N = gt.size(0)
    pred_flat = pred.view(N, -1)
    gt_flat = gt.view(N, -1)

    tp = torch.sum((pred_flat != 0) * (gt_flat != 0), dim=1)
    fp = torch.sum((pred_flat != 0) * (gt_flat == 0), dim=1)
    fn = torch.sum((pred_flat == 0) * (gt_flat != 0), dim=1)
    # 转为float，以防long类型之间相除结果为0
    score = (2 * tp + eps).float() / (2 * tp + fp + fn + eps).float()

    return score.sum() / N


def jaccard(pred, gt):
    """TP / (TP + FP + FN)"""

    N = gt.size(0)
    pred_flat = pred.view(N, -1)
    gt_flat = gt.view(N, -1)
    tp = torch.sum((pred_flat != 0) * (gt_flat != 0))
    fp = torch.sum((pred_flat != 0) * (gt_flat == 0))
    fn = torch.sum((pred_flat == 0) * (gt_flat != 0))

    score = tp.float() / (tp + fp + fn).float()
    return score.sum() / N


def tversky(pred, gt, eps=1e-5,  alpha=0.7):
    """TP / (TP + (1-alpha) * FP + alpha * FN)"""
    N = gt.size(0)
    pred_flat = pred.view(N, -1)
    gt_flat = gt.view(N, -1)

    tp = torch.sum(gt_flat * pred_flat, dim=1)
    fp = torch.sum(pred_flat, dim=1) - tp
    fn = torch.sum(gt_flat, dim=1) - tp
    score = (tp + eps) / (tp + (1-alpha) * fp + alpha*fn + eps)
    return score.sum() / N


def accuracy(pred, gt):
    """(TP + TN) / (TP + FP + FN + TN)"""

    N = gt.size(0)
    pred_flat = pred.view(N, -1)
    gt_flat = gt.view(N, -1)
    tp = torch.sum((pred_flat != 0) * (gt_flat != 0))
    fp = torch.sum((pred_flat != 0) * (gt_flat == 0))
    tn = torch.sum((pred_flat == 0) * (gt_flat == 0))
    fn = torch.sum((pred_flat == 0) * (gt_flat != 0))

    score = (tp + tn).float() / (tp + fp + tn + fn).float()

    return score.sum() / N


def precision(pred, gt):
    """TP / (TP + FP)"""

    N = gt.size(0)
    pred_flat = pred.view(N, -1)
    gt_flat = gt.view(N, -1)
    tp = torch.sum((pred_flat != 0) * (gt_flat != 0))
    fp = torch.sum((pred_flat != 0) * (gt_flat == 0))

    score = tp.float() / (tp + fp).float()

    return score.sum() / N


def sensitivity(pred, gt):
    """TP / (TP + FN)"""
    N = gt.size(0)
    pred_flat = pred.view(N, -1)
    gt_flat = gt.view(N, -1)
    tp = torch.sum((pred_flat != 0) * (gt_flat != 0))
    fn = torch.sum((pred_flat == 0) * (gt_flat != 0))

    score = tp.float() / (tp +  fn).float()

    return score.sum() / N


def specificity(pred, gt):
    """TN / (TN + FP)"""

    N = gt.size(0)
    pred_flat = pred.view(N, -1)
    gt_flat = gt.view(N, -1)
    fp = torch.sum((pred_flat != 0) * (gt_flat == 0))
    tn = torch.sum((pred_flat == 0) * (gt_flat == 0))

    score = tn.float() / (fp + tn).float()

    return score.sum() / N


def recall(pred, gt):

    return sensitivity(pred, gt)


if __name__ == '__main__':

    # shape = torch.Size([2, 3, 4, 4])
    # 模拟batch_size = 2
    '''
    1 0 0= bladder
    0 1 0 = tumor
    0 0 1= background
    '''
    pred = torch.Tensor([[
        [[0, 1, 0, 0],
         [1, 0, 0, 1],
         [1, 0, 0, 1],
         [0, 1, 1, 0]],
        [[0, 0, 0, 0],
         [0, 0, 0, 0],
         [0, 1, 1, 0],
         [0, 0, 0, 0]],
        [[1, 0, 1, 1],
         [0, 1, 1, 0],
         [0, 0, 0, 0],
         [1, 0, 0, 1]]],
        [
            [[0, 1, 0, 0],
             [1, 0, 0, 1],
             [1, 0, 0, 1],
             [0, 1, 1, 0]],
            [[0, 0, 0, 0],
             [0, 0, 0, 0],
             [0, 1, 1, 0],
             [0, 0, 0, 0]],
            [[1, 0, 1, 1],
             [0, 1, 1, 0],
             [0, 0, 0, 0],
             [1, 0, 0, 1]]]
    ])

    gt = torch.Tensor([[
        [[0, 1, 1, 0],
         [1, 0, 0, 1],
         [1, 0, 0, 1],
         [0, 1, 1, 0]],
        [[0, 0, 0, 0],
         [0, 0, 0, 0],
         [0, 1, 1, 0],
         [0, 0, 0, 0]],
        [[1, 0, 0, 1],
         [0, 1, 1, 0],
         [0, 0, 0, 0],
         [1, 0, 0, 1]]],
        [
            [[0, 1, 1, 0],
             [1, 0, 0, 1],
             [1, 0, 0, 1],
             [0, 1, 1, 0]],
            [[0, 0, 0, 0],
             [0, 0, 0, 0],
             [0, 1, 1, 0],
             [0, 0, 0, 0]],
            [[1, 0, 0, 1],
             [0, 1, 1, 0],
             [0, 0, 0, 0],
             [1, 0, 0, 1]]]
    ])


    dice1 = diceCoeff(pred[:, 0:1, :], gt[:, 0:1, :], activation=None)
    dice2 = jaccard(pred[:, 0:1, :], gt[:, 0:1, :], activation=None)
    dice3 = diceCoeffv3(pred[:, 0:1, :], gt[:, 0:1, :], activation=None)
    print(dice1, dice2, dice3)

tips:有些指标的代码我还没测试过，目前dice用的比较多，有问题的话还望谅解^^

• 2021/5/9更新
  好多小伙伴私信要github源码，不过之前的源码确实没有了。
  太忙（懒）了。
  最近抽时间把平时用的医学图像分割代码整理了一下，这里以2019年的心脏数据集MS-CMRseg2019为例，提供了自己平时积累的一些源码Pytorch-medical-image-segmentation源码。
  不要吐槽我的代码风格，请参考食用，喜欢的话欢迎star^ ^。
