本文通过在hdfs中三种不同数据格式文件存储相同数量的数据，通过hive和impala两种客户端查询进行比较。
本文前提：熟悉hadoop、hive和impala、kafka、flink等，并且其环境都可正常使用。（在后续的专栏中都会将对应的内容补全，目前已经完成了zookeeper和hadoop的部分。）
本文分为五个部分，即结论、三种文件介绍、需求、实现步骤、实现和网上别人的结论与验证。

由于本文太长，导致阅读可能比较麻烦，故一篇文章分为两篇，第一篇是准备数据，第二篇是查询比较。本文是第二篇。

本文接1、通过亿级数据量在hive和impala中查询比较text、orc和parquet性能表现（一），阅读本文前需要先阅读第一篇。

9、分别在hive和impala中查询验证结果(比較HDFS存儲三種格式文件的查詢性能textfile、orc、parquet)

-----------------1、sql----------------------------
select count(*) from t_kafkauser_orc;
select count(*) from t_kafkauser_parquet;

-- 2、隨便找一條信息，按照name查詢
-----------------1、sql----------------------------
select * from t_kafkauser_orc where name = '';
select * from t_kafkauser_parquet where name = '';


-- 3、按照時間區間查詢
-----------------1、sql----------------------------
select * from t_kafkauser_orc where create_time between '' and '';
select * from t_kafkauser_parquet where create_time between '' and '';

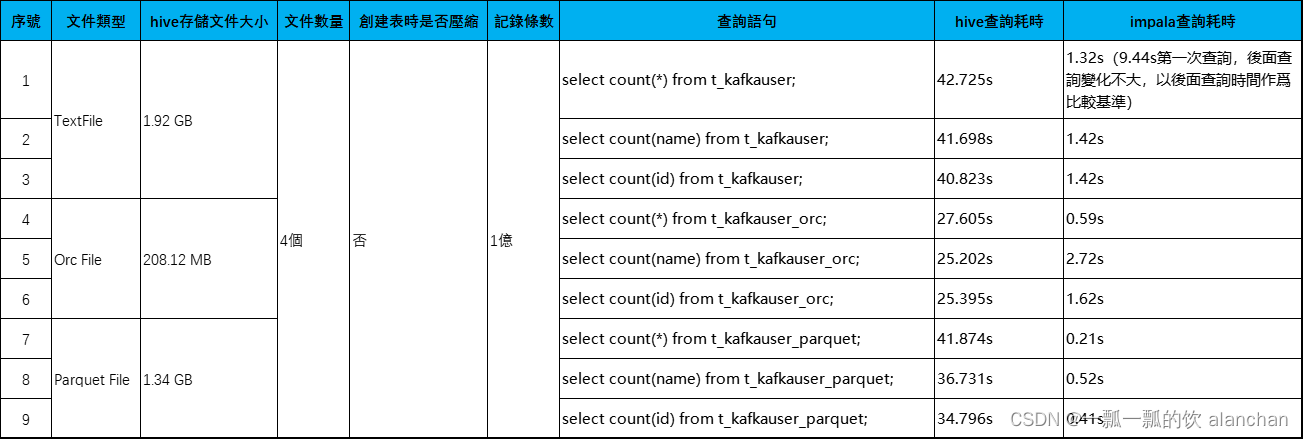

1）、查詢總條數

在这里插入图片描述
具體查詢結果如下：

sql：
    select count(*) from t_kafkauser;
    select count(name) from t_kafkauser;
    select count(id) from t_kafkauser;

    select count(*) from t_kafkauser_orc;
    select count(name) from t_kafkauser_orc;
    select count(id) from t_kafkauser_orc;

    select count(*) from t_kafkauser_parquet;
    select count(name) from t_kafkauser_parquet;
    select count(id) from t_kafkauser_parquet;

0、前提驗證MR運行正常與否
    驗證MR能否正常的運行，命令如下：
    cd /opt/cloudera/parcels/CDH-6.2.1-1.cdh6.2.1.p0.1425774/lib/hadoop-mapreduce
    hadoop jar hadoop-mapreduce-examples-3.0.0-cdh6.2.1.jar pi 1 1

1、hive查詢
    0: jdbc:hive2://server8:10000> select count(*) from t_kafkauser;

    INFO  : Total jobs = 1

    INFO  : number of splits:31

    INFO  : Stage-Stage-1: Map: 31  Reduce: 1   Cumulative CPU: 152.83 sec   HDFS Read: 8376828994 HDFS Write: 109 HDFS EC Read: 0 SUCCESS
    INFO  : Total MapReduce CPU Time Spent: 2 minutes 32 seconds 830 msec
    INFO  : Completed executing command(queryId=hive_20230202093505_2d22ca60-dc1a-4492-b2f7-493e80a136c4); Time taken: 42.478 seconds

    +------------+
    |    _c0     |
    +------------+
    | 100000000  |
    +------------+
    1 row selected (42.725 seconds)

    0: jdbc:hive2://server8:10000> select count(name) from t_kafkauser;

    INFO  : Total jobs = 1

    INFO  : number of splits:31

    INFO  : Stage-Stage-1: Map: 31  Reduce: 1   Cumulative CPU: 195.78 sec   HDFS Read: 8376832781 HDFS Write: 109 HDFS EC Read: 0 SUCCESS
    INFO  : Total MapReduce CPU Time Spent: 3 minutes 15 seconds 780 msec
    INFO  : Completed executing command(queryId=hive_20230202093616_76a6e3dc-8ec4-4409-afe7-130977713eca); Time taken: 41.496 seconds

    +------------+
    |    _c0     |
    +------------+
    | 100000000  |
    +------------+
    1 row selected (41.698 seconds)

    0: jdbc:hive2://server8:10000> select count(id) from t_kafkauser;

    INFO  : Total jobs = 1

    INFO  : number of splits:31

    INFO  : Stage-Stage-1: Map: 31  Reduce: 1   Cumulative CPU: 203.88 sec   HDFS Read: 8376832818 HDFS Write: 109 HDFS EC Read: 0 SUCCESS
    INFO  : Total MapReduce CPU Time Spent: 3 minutes 23 seconds 880 msec
    INFO  : Completed executing command(queryId=hive_20230202093719_ba62f1d1-b866-4507-b5fa-2283e59053c6); Time taken: 40.668 seconds

    +------------+
    |    _c0     |
    +------------+
    | 100000000  |
    +------------+
    1 row selected (40.823 seconds)

    0: jdbc:hive2://server8:10000> select count(*) from t_kafkauser_orc;

    INFO  : Total jobs = 1

    INFO  : number of splits:2


    INFO  : Stage-Stage-1: Map: 2  Reduce: 1   Cumulative CPU: 15.92 sec   HDFS Read: 83789 HDFS Write: 109 HDFS EC Read: 0 SUCCESS
    INFO  : Total MapReduce CPU Time Spent: 15 seconds 920 msec
    INFO  : Completed executing command(queryId=hive_20230201184450_28482688-b11e-4a18-9fa9-947cfba0589c); Time taken: 26.617 seconds

    +------------+
    |    _c0     |
    +------------+
    | 100000000  |
    +------------+
    1 row selected (27.605 seconds)

    0: jdbc:hive2://server8:10000> select count(name) from t_kafkauser_orc;

    INFO  : Total jobs = 1

    INFO  : number of splits:2

    INFO  : Stage-Stage-1: Map: 2  Reduce: 1   Cumulative CPU: 17.95 sec   HDFS Read: 293956548 HDFS Write: 109 HDFS EC Read: 0 SUCCESS
    INFO  : Total MapReduce CPU Time Spent: 17 seconds 950 msec
    INFO  : Completed executing command(queryId=hive_20230202085041_e16bf186-b3b5-4d38-8c10-d60452e75dae); Time taken: 25.029 seconds

    +------------+
    |    _c0     |
    +------------+
    | 100000000  |
    +------------+
    1 row selected (25.202 seconds)

    0: jdbc:hive2://server8:10000> select count(id) from t_kafkauser_orc;

    INFO  : Total jobs = 1

    INFO  : number of splits:2

    INFO  : Stage-Stage-1: Map: 2  Reduce: 1   Cumulative CPU: 15.19 sec   HDFS Read: 299434 HDFS Write: 109 HDFS EC Read: 0 SUCCESS
    INFO  : Total MapReduce CPU Time Spent: 15 seconds 190 msec
    INFO  : Completed executing command(queryId=hive_20230202085132_dbc210c6-18b7-45d3-9264-807346fb3fa0); Time taken: 25.213 seconds

    +------------+
    |    _c0     |
    +------------+
    | 100000000  |
    +------------+
    1 row selected (25.395 seconds)

    0: jdbc:hive2://server8:10000> select count(*) from t_kafkauser_parquet;

    INFO  : Total jobs = 1

    INFO  : number of splits:21

    INFO  : Stage-Stage-1: Map: 21  Reduce: 1   Cumulative CPU: 233.89 sec   HDFS Read: 5794677889 HDFS Write: 109 HDFS EC Read: 0 SUCCESS
    INFO  : Total MapReduce CPU Time Spent: 3 minutes 53 seconds 890 msec
    INFO  : Completed executing command(queryId=hive_20230202085230_920b24bf-4525-4412-a297-03caf7cb8a79); Time taken: 41.679 seconds

    +------------+
    |    _c0     |
    +------------+
    | 100000000  |
    +------------+
    1 row selected (41.874 seconds)

    0: jdbc:hive2://server8:10000> select count(name) from t_kafkauser_parquet;

    INFO  : Total jobs = 1

    INFO  : number of splits:21

    INFO  : Stage-Stage-1: Map: 21  Reduce: 1   Cumulative CPU: 169.43 sec   HDFS Read: 1789619337 HDFS Write: 109 HDFS EC Read: 0 SUCCESS
    INFO  : Total MapReduce CPU Time Spent: 2 minutes 49 seconds 430 msec
    INFO  : Completed executing command(queryId=hive_20230202085352_7b1b02b6-8507-4197-b74d-e0495e87cf22); Time taken: 36.554 seconds

    +------------+
    |    _c0     |
    +------------+
    | 100000000  |
    +------------+
    1 row selected (36.731 seconds)

    0: jdbc:hive2://server8:10000> select count(id) from t_kafkauser_parquet;

    INFO  : Total jobs = 1

    INFO  : number of splits:21

    INFO  : Stage-Stage-1: Map: 21  Reduce: 1   Cumulative CPU: 145.24 sec   HDFS Read: 400635630 HDFS Write: 109 HDFS EC Read: 0 SUCCESS
    INFO  : Total MapReduce CPU Time Spent: 2 minutes 25 seconds 240 msec
    INFO  : Completed executing command(queryId=hive_20230202085452_29b54852-cc94-4098-b87b-99623c9367f3); Time taken: 34.608 seconds

    +------------+
    |    _c0     |
    +------------+
    | 100000000  |
    +------------+
    1 row selected (34.796 seconds)

2、impala查詢
    [server7:21000] test_million_data> select count(*) from t_kafkauser;

    +-----------+
    | count(*)  |
    +-----------+
    | 100000000 |
    +-----------+
    Fetched 1 row(s) in 1.52s
    [server7:21000] test_million_data> select count(id) from t_kafkauser;

    +-----------+
    | count(id) |
    +-----------+
    | 100000000 |
    +-----------+
    Fetched 1 row(s) in 1.43s
    [server7:21000] test_million_data> select count(name) from t_kafkauser;

    +-------------+
    | count(name) |
    +-------------+
    | 100000000   |
    +-------------+
    Fetched 1 row(s) in 1.32s

    [server7:21000] test_million_data> select count(*) from t_kafkauser_orc;

    +-----------+
    | count(*)  |
    +-----------+
    | 100000000 |
    +-----------+
    Fetched 1 row(s) in 0.21s
    [server7:21000] test_million_data> select count(id) from t_kafkauser_orc;
    +-----------+
    | count(id) |
    +-----------+
    | 100000000 |
    +-----------+
    Fetched 1 row(s) in 1.51s
    [server7:21000] test_million_data> select count(name) from t_kafkauser_orc;

    +-------------+
    | count(name) |
    +-------------+
    | 100000000   |
    +-------------+
    Fetched 1 row(s) in 2.72s

    [server7:21000] test_million_data> select count(*) from t_kafkauser_parquet;

    +-----------+
    | count(*)  |
    +-----------+
    | 100000000 |
    +-----------+
    Fetched 1 row(s) in 0.11s
    [server7:21000] test_million_data> select count(id) from t_kafkauser_parquet;

    +-----------+
    | count(id) |
    +-----------+
    | 100000000 |
    +-----------+
    Fetched 1 row(s) in 0.41s
    [server7:21000] test_million_data> select count(name) from t_kafkauser_parquet;

    +-------------+
    | count(name) |
    +-------------+
    | 100000000   |
    +-------------+
    Fetched 1 row(s) in 0.51s

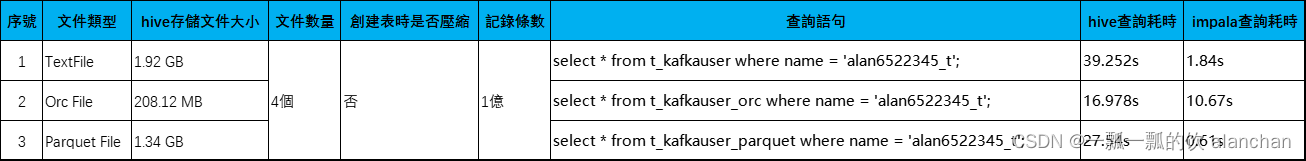

2）、隨便找一條信息，按照name查詢

在这里插入图片描述

1、SQL
    select * from t_kafkauser where  name = 'alan6522345_t';
    select * from t_kafkauser_orc where  name = 'alan6522345_t';
    select * from t_kafkauser_parquet  where name = 'alan6522345_t';

2、Hive查詢
    0: jdbc:hive2://server8:10000> select * from t_kafkauser where name = 'alan6522345_t';

    INFO  : Total jobs = 1

    INFO  : number of splits:31

    INFO  : Stage-Stage-1: Map: 31   Cumulative CPU: 193.94 sec   HDFS Read: 8376850688 HDFS Write: 2790 HDFS EC Read: 0 SUCCESS
    INFO  : Total MapReduce CPU Time Spent: 3 minutes 13 seconds 940 msec
    INFO  : Completed executing command(queryId=hive_20230202104525_12cbc21b-fcc2-4f4b-b4c5-dbebf916f8c4); Time taken: 39.02 seconds

    +-----------------+---------------------+-------------------+------------------------------+--------------------------+
    | t_kafkauser.id  | t_kafkauser.userid  | t_kafkauser.name  |       t_kafkauser.url        | t_kafkauser.create_time  |
    +-----------------+---------------------+-------------------+------------------------------+--------------------------+
    | 14565794        | 6522345             | alan6522345_t     | https://www.win.com/6522345  | 2023-01-18 07:44:05.0    |
    +-----------------+---------------------+-------------------+------------------------------+--------------------------+
    1 row selected (39.252 seconds)

    0: jdbc:hive2://server8:10000> select * from t_kafkauser_orc where name = 'alan6522345_t';

    INFO  : Total jobs = 1

    INFO  : number of splits:2

    INFO  : Stage-Stage-1: Map: 2   Cumulative CPU: 8.53 sec   HDFS Read: 12458143 HDFS Write: 267 HDFS EC Read: 0 SUCCESS
    INFO  : Total MapReduce CPU Time Spent: 8 seconds 530 msec
    INFO  : Completed executing command(queryId=hive_20230202105023_3ae232fb-d3c0-4082-b154-0a7dd9793ee4); Time taken: 16.772 seconds

    +---------------------+-------------------------+-----------------------+------------------------------+------------------------------+
    | t_kafkauser_orc.id  | t_kafkauser_orc.userid  | t_kafkauser_orc.name  |     t_kafkauser_orc.url      | t_kafkauser_orc.create_time  |
    +---------------------+-------------------------+-----------------------+------------------------------+------------------------------+
    | 14565794            | 6522345                 | alan6522345_t         | https://www.win.com/6522345  | 2023-01-18 07:44:05.0        |
    +---------------------+-------------------------+-----------------------+------------------------------+------------------------------+
    1 row selected (16.978 seconds)

    0: jdbc:hive2://server8:10000> select * from t_kafkauser_parquet where name = 'alan6522345_t';

    INFO  : Total jobs = 1

    INFO  : number of splits:21

    INFO  : Stage-Stage-1: Map: 21   Cumulative CPU: 110.97 sec   HDFS Read: 536025572 HDFS Write: 1920 HDFS EC Read: 0 SUCCESS
    INFO  : Total MapReduce CPU Time Spent: 1 minutes 50 seconds 970 msec
    INFO  : Completed executing command(queryId=hive_20230202105140_e843cd7b-79bd-4c5b-bf7f-60a525aa1faa); Time taken: 27.3 seconds

    +-------------------------+-----------------------------+---------------------------+------------------------------+----------------------------------+
    | t_kafkauser_parquet.id  | t_kafkauser_parquet.userid  | t_kafkauser_parquet.name  |   t_kafkauser_parquet.url    | t_kafkauser_parquet.create_time  |
    +-------------------------+-----------------------------+---------------------------+------------------------------+----------------------------------+
    | 14565794                | 6522345                     | alan6522345_t             | https://www.win.com/6522345  | 2023-01-18 07:44:05.0            |
    +-------------------------+-----------------------------+---------------------------+------------------------------+----------------------------------+
    1 row selected (27.54 seconds)

3、impala查詢
    [server7:21000] test_million_data> select * from t_kafkauser where name = 'alan6522345_t';

    +----------+---------+---------------+-----------------------------+-----------------------+
    | id       | userid  | name          | url                         | create_time           |
    +----------+---------+---------------+-----------------------------+-----------------------+
    | 14565794 | 6522345 | alan6522345_t | https://www.win.com/6522345 | 2023-01-18 07:44:05.0 |
    +----------+---------+---------------+-----------------------------+-----------------------+
    Fetched 1 row(s) in 1.84s
    [server7:21000] test_million_data> select * from t_kafkauser_orc where name = 'alan6522345_t';
    Query: select * from t_kafkauser_orc where name = 'alan6522345_t'
    Query submitted at: 2023-02-02 10:54:09 (Coordinator: http://server7:25000)
    Query progress can be monitored at: http://server7:25000/query_plan?query_id=9247e834afb1281b:742462f600000000
    +----------+---------+---------------+-----------------------------+-----------------------+
    | id       | userid  | name          | url                         | create_time           |
    +----------+---------+---------------+-----------------------------+-----------------------+
    | 14565794 | 6522345 | alan6522345_t | https://www.win.com/6522345 | 2023-01-18 07:44:05.0 |
    +----------+---------+---------------+-----------------------------+-----------------------+
    Fetched 1 row(s) in 10.67s
    [server7:21000] test_million_data> select * from t_kafkauser_parquet where name = 'alan6522345_t';
    Query: select * from t_kafkauser_parquet where name = 'alan6522345_t'
    Query submitted at: 2023-02-02 10:55:21 (Coordinator: http://server7:25000)
    Query progress can be monitored at: http://server7:25000/query_plan?query_id=9740d6450f2529e5:f013a3cb00000000
    +----------+---------+---------------+-----------------------------+-----------------------+
    | id       | userid  | name          | url                         | create_time           |
    +----------+---------+---------------+-----------------------------+-----------------------+
    | 14565794 | 6522345 | alan6522345_t | https://www.win.com/6522345 | 2023-01-18 07:44:05.0 |
    +----------+---------+---------------+-----------------------------+-----------------------+
    Fetched 1 row(s) in 0.61s

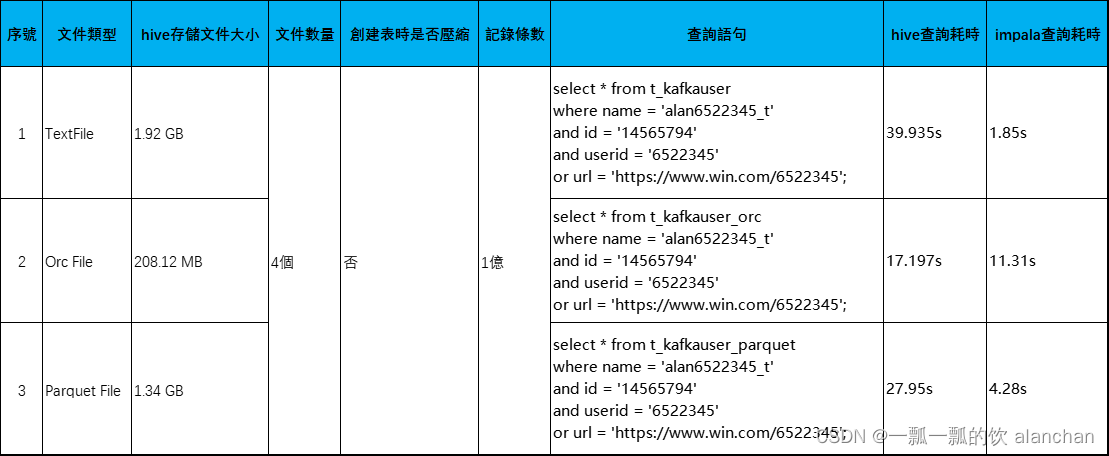

3）、按照多条件查询

在这里插入图片描述

1、sql
select
  * from t_kafkauser
    where name = 'alan6522345_t'
    and id = '14565794'
    and userid = '6522345'
    or url = 'https://www.win.com/6522345';
select
  * from t_kafkauser_orc
    where name = 'alan6522345_t'
    and id = '14565794'
    and userid = '6522345'
    or url = 'https://www.win.com/6522345';
select
  * from t_kafkauser_parquet
    where name = 'alan6522345_t'
    and id = '14565794'
    and userid = '6522345'
    or url = 'https://www.win.com/6522345';

2、hive查詢
    0: jdbc:hive2://server8:10000> select * from t_kafkauser where name = 'alan6522345_t' and id = '14565794' and userid = '6522345' or url = 'https://www.win.com/6522345';

    INFO  : Total jobs = 1

    INFO  : number of splits:31

    INFO  : Stage-Stage-1: Map: 31   Cumulative CPU: 216.8 sec   HDFS Read: 8376852455 HDFS Write: 2790 HDFS EC Read: 0 SUCCESS
    INFO  : Total MapReduce CPU Time Spent: 3 minutes 36 seconds 800 msec
    INFO  : Completed executing command(queryId=hive_20230202110048_d977e61a-f378-4d42-a4b3-81722742916c); Time taken: 39.688 seconds

    +-----------------+---------------------+-------------------+------------------------------+--------------------------+
    | t_kafkauser.id  | t_kafkauser.userid  | t_kafkauser.name  |       t_kafkauser.url        | t_kafkauser.create_time  |
    +-----------------+---------------------+-------------------+------------------------------+--------------------------+
    | 14565794        | 6522345             | alan6522345_t     | https://www.win.com/6522345  | 2023-01-18 07:44:05.0    |
    +-----------------+---------------------+-------------------+------------------------------+--------------------------+
    1 row selected (39.935 seconds)
    0: jdbc:hive2://server8:10000> select * from t_kafkauser_orc where name = 'alan6522345_t' and id = '14565794' and userid = '6522345' or url = 'https://www.win.com/6522345';

    INFO  : Total jobs = 1

    INFO  : number of splits:2

    INFO  : Stage-Stage-1: Map: 2   Cumulative CPU: 10.16 sec   HDFS Read: 12458871 HDFS Write: 267 HDFS EC Read: 0 SUCCESS
    INFO  : Total MapReduce CPU Time Spent: 10 seconds 160 msec
    INFO  : Completed executing command(queryId=hive_20230202110142_76710f60-5317-4584-9381-cc26e732843e); Time taken: 16.993 seconds

    +---------------------+-------------------------+-----------------------+------------------------------+------------------------------+
    | t_kafkauser_orc.id  | t_kafkauser_orc.userid  | t_kafkauser_orc.name  |     t_kafkauser_orc.url      | t_kafkauser_orc.create_time  |
    +---------------------+-------------------------+-----------------------+------------------------------+------------------------------+
    | 14565794            | 6522345                 | alan6522345_t         | https://www.win.com/6522345  | 2023-01-18 07:44:05.0        |
    +---------------------+-------------------------+-----------------------+------------------------------+------------------------------+
    1 row selected (17.197 seconds)
    0: jdbc:hive2://server8:10000> select * from t_kafkauser_parquet where name = 'alan6522345_t' and id = '14565794' and userid = '6522345' or url = 'https://www.win.com/6522345';

    INFO  : Total jobs = 1

    INFO  : number of splits:21

    INFO  : Stage-Stage-1: Map: 21   Cumulative CPU: 107.92 sec   HDFS Read: 536028491 HDFS Write: 1920 HDFS EC Read: 0 SUCCESS
    INFO  : Total MapReduce CPU Time Spent: 1 minutes 47 seconds 920 msec
    INFO  : Completed executing command(queryId=hive_20230202110301_3b351bdc-7262-4641-9ca0-6250e8287a93); Time taken: 27.76 seconds

    +-------------------------+-----------------------------+---------------------------+------------------------------+----------------------------------+
    | t_kafkauser_parquet.id  | t_kafkauser_parquet.userid  | t_kafkauser_parquet.name  |   t_kafkauser_parquet.url    | t_kafkauser_parquet.create_time  |
    +-------------------------+-----------------------------+---------------------------+------------------------------+----------------------------------+
    | 14565794                | 6522345                     | alan6522345_t             | https://www.win.com/6522345  | 2023-01-18 07:44:05.0            |
    +-------------------------+-----------------------------+---------------------------+------------------------------+----------------------------------+
    1 row selected (27.95 seconds)


3、impala查詢
    [server7:21000] test_million_data> select * from t_kafkauser where name = 'alan6522345_t' and id = 14565794 and userid = 6522345 or url = 'https://www.win.com/6522345';

    +----------+---------+---------------+-----------------------------+-----------------------+
    | id       | userid  | name          | url                         | create_time           |
    +----------+---------+---------------+-----------------------------+-----------------------+
    | 14565794 | 6522345 | alan6522345_t | https://www.win.com/6522345 | 2023-01-18 07:44:05.0 |
    +----------+---------+---------------+-----------------------------+-----------------------+
    Fetched 1 row(s) in 1.85s
    [server7:21000] test_million_data> select * from t_kafkauser_orc where name = 'alan6522345_t' and id = 14565794 and userid = 6522345 or url = 'https://www.win.com/6522345';

    +----------+---------+---------------+-----------------------------+-----------------------+
    | id       | userid  | name          | url                         | create_time           |
    +----------+---------+---------------+-----------------------------+-----------------------+
    | 14565794 | 6522345 | alan6522345_t | https://www.win.com/6522345 | 2023-01-18 07:44:05.0 |
    +----------+---------+---------------+-----------------------------+-----------------------+
    Fetched 1 row(s) in 11.31s
    [server7:21000] test_million_data> select * from t_kafkauser_parquet where name = 'alan6522345_t' and id = 14565794 and userid = 6522345 or url = 'https://www.win.com/6522345';

    +----------+---------+---------------+-----------------------------+-----------------------+
    | id       | userid  | name          | url                         | create_time           |
    +----------+---------+---------------+-----------------------------+-----------------------+
    | 14565794 | 6522345 | alan6522345_t | https://www.win.com/6522345 | 2023-01-18 07:44:05.0 |
    +----------+---------+---------------+-----------------------------+-----------------------+
    Fetched 1 row(s) in 4.28s

4）、按照時間區間查詢

在这里插入图片描述

1、sql
    select count(url) from t_kafkauser where create_time BETWEEN '2023-01-18 08:01:27' and '2023-01-18 08:01:28' ;
    select count(url) from  t_kafkauser_orc where create_time BETWEEN '2023-01-18 08:01:27' and  '2023-01-18 08:01:28' ;
    select count(url) from  t_kafka_user_parquet where create_time BETWEEN '2023-01-18 08:01:27' and  '2023-01-18 08:01:28' ;

2、hive查詢
    0: jdbc:hive2://server8:10000> select count(url) from t_kafkauser where create_time BETWEEN '2023-01-18 08:01:27' and '2023-01-18 08:01:28' ;

    INFO  : Total jobs = 1

    INFO  : number of splits:31

    INFO  : Stage-Stage-1: Map: 31  Reduce: 1   Cumulative CPU: 215.09 sec   HDFS Read: 8376853562 HDFS Write: 105 HDFS EC Read: 0 SUCCESS
    INFO  : Total MapReduce CPU Time Spent: 3 minutes 35 seconds 90 msec
    INFO  : Completed executing command(queryId=hive_20230202132555_547f89e1-aa9c-4234-aeca-69f33f5eceb8); Time taken: 41.917 seconds

    +--------+
    |  _c0   |
    +--------+
    | 95500  |
    +--------+
    1 row selected (42.106 seconds)

    0: jdbc:hive2://server8:10000> select count(url) from t_kafkauser_orc where create_time BETWEEN '2023-01-18 08:01:27' and '2023-01-18 08:01:28' ;

    INFO  : Total jobs = 1

    INFO  : number of splits:2

    INFO  : Stage-Stage-1: Map: 2  Reduce: 1   Cumulative CPU: 12.87 sec   HDFS Read: 828205 HDFS Write: 105 HDFS EC Read: 0 SUCCESS
    INFO  : Total MapReduce CPU Time Spent: 12 seconds 870 msec
    INFO  : Completed executing command(queryId=hive_20230202132656_c1fbba6c-05c0-4a9e-a760-b65b6eb26f58); Time taken: 22.105 seconds

    +--------+
    |  _c0   |
    +--------+
    | 95500  |
    +--------+
    1 row selected (22.274 seconds)

    0: jdbc:hive2://server8:10000> select count(url) from t_kafkauser_parquet where create_time BETWEEN '2023-01-18 08:01:27' and '2023-01-18 08:01:28' ;

    INFO  : Total jobs = 1

    INFO  : number of splits:21

    INFO  : Stage-Stage-1: Map: 21  Reduce: 1   Cumulative CPU: 130.16 sec   HDFS Read: 64663344 HDFS Write: 105 HDFS EC Read: 0 SUCCESS
    INFO  : Total MapReduce CPU Time Spent: 2 minutes 10 seconds 160 msec
    INFO  : Completed executing command(queryId=hive_20230202132729_01d23207-6ddb-45f3-8d72-d505da333fe5); Time taken: 30.511 seconds

    +--------+
    |  _c0   |
    +--------+
    | 95500  |
    +--------+
    1 row selected (30.685 seconds)


3、impala查詢
    [server7:21000] test_million_data> select count(url) from t_kafkauser where create_time BETWEEN '2023-01-18 08:01:27' and '2023-01-18 08:01:28' ;

    +------------+
    | count(url) |
    +------------+
    | 95500      |
    +------------+
    Fetched 1 row(s) in 4.33s
    [server7:21000] test_million_data> select count(url) from t_kafkauser_orc where create_time BETWEEN '2023-01-18 08:01:27' and '2023-01-18 08:01:28' ;

    +------------+
    | count(url) |
    +------------+
    | 95500      |
    +------------+
    Fetched 1 row(s) in 5.93s
    [server7:21000] test_million_data> select count(url) from t_kafkauser_parquet where create_time BETWEEN '2023-01-18 08:01:27' and '2023-01-18 08:01:28' ;

    +------------+
    | count(url) |
    +------------+
    | 95500      |
    +------------+
    Fetched 1 row(s) in 0.31s

5）、兩張表join

1、sql
    select a.* from t_kafkauser a join t_kafkauser_orc b on a.id = b.id and a.id = 108045695;
    select a.* from t_kafkauser_parquet a join t_kafkauser_orc b on a.id = b.id and a.id = 108045695;
    select a.* from t_kafkauser_parquet a join t_kafkauser b on a.id = b.id and a.id = 108045695;

2、hive查詢
    0: jdbc:hive2://server8:10000> select a.* from t_kafkauser a join t_kafkauser_orc b on a.id = b.id and a.id = 108045695;

    INFO  : Total jobs = 1

    INFO  : number of splits:33

    INFO  : Stage-Stage-1: Map: 33  Reduce: 138   Cumulative CPU: 638.43 sec   HDFS Read: 8377892321 HDFS Write: 12103 HDFS EC Read: 0 SUCCESS
    INFO  : Total MapReduce CPU Time Spent: 10 minutes 38 seconds 430 msec
    INFO  : Completed executing command(queryId=hive_20230202134136_f7336a78-9201-4be8-b721-31e4c6e19674); Time taken: 166.162 seconds

    +------------+-----------+-----------------+-------------------------------+------------------------+
    |    a.id    | a.userid  |     a.name      |             a.url             |     a.create_time      |
    +------------+-----------+-----------------+-------------------------------+------------------------+
    | 108045695  | 99999999  | alan99999999_t  | https://www.win.com/99999999  | 2023-01-18 08:01:28.0  |
    +------------+-----------+-----------------+-------------------------------+------------------------+
    1 row selected (166.772 seconds)
    0: jdbc:hive2://server8:10000> select a.* from t_kafkauser_parquet a join t_kafkauser_orc b on a.id = b.id and a.id = 108045695;

    INFO  : Total jobs = 1

    INFO  : number of splits:23

    INFO  : Stage-Stage-1: Map: 23  Reduce: 100   Cumulative CPU: 440.63 sec   HDFS Read: 117456695 HDFS Write: 8797 HDFS EC Read: 0 SUCCESS
    INFO  : Total MapReduce CPU Time Spent: 7 minutes 20 seconds 630 msec
    INFO  : Completed executing command(queryId=hive_20230202135628_4ed7755b-b567-47b5-bb93-c523a0043af6); Time taken: 121.57 seconds

    +------------+-----------+-----------------+-------------------------------+------------------------+
    |    a.id    | a.userid  |     a.name      |             a.url             |     a.create_time      |
    +------------+-----------+-----------------+-------------------------------+------------------------+
    | 108045695  | 99999999  | alan99999999_t  | https://www.win.com/99999999  | 2023-01-18 08:01:28.0  |
    +------------+-----------+-----------------+-------------------------------+------------------------+
    1 row selected (121.973 seconds)
    0: jdbc:hive2://server8:10000> select a.* from t_kafkauser_parquet a join t_kafkauser b on a.id = b.id and a.id = 108045695;

    INFO  : Total jobs = 1

    INFO  : number of splits:52

    INFO  : Stage-Stage-1: Map: 52  Reduce: 212   Cumulative CPU: 1022.64 sec   HDFS Read: 8494722690 HDFS Write: 18541 HDFS EC Read: 0 SUCCESS
    INFO  : Total MapReduce CPU Time Spent: 17 minutes 2 seconds 640 msec
    INFO  : Completed executing command(queryId=hive_20230202140053_84155ad0-e645-4c5f-bbeb-feaf41dcbac6); Time taken: 242.307 seconds

    +------------+-----------+-----------------+-------------------------------+------------------------+
    |    a.id    | a.userid  |     a.name      |             a.url             |     a.create_time      |
    +------------+-----------+-----------------+-------------------------------+------------------------+
    | 108045695  | 99999999  | alan99999999_t  | https://www.win.com/99999999  | 2023-01-18 08:01:28.0  |
    +------------+-----------+-----------------+-------------------------------+------------------------+
    1 row selected (242.882 seconds)

3、impala查詢
    [server7:21000] test_million_data> select a.* from t_kafkauser a join t_kafkauser_orc b on a.id = b.id and a.id = 108045695;

    +-----------+----------+----------------+------------------------------+-----------------------+
    | id        | userid   | name           | url                          | create_time           |
    +-----------+----------+----------------+------------------------------+-----------------------+
    | 108045695 | 99999999 | alan99999999_t | https://www.win.com/99999999 | 2023-01-18 08:01:28.0 |
    +-----------+----------+----------------+------------------------------+-----------------------+
    Fetched 1 row(s) in 2.98s
    [server7:21000] test_million_data> select a.* from t_kafkauser_parquet a join t_kafkauser_orc b on a.id = b.id and a.id = 108045695;

    +-----------+----------+----------------+------------------------------+-----------------------+
    | id        | userid   | name           | url                          | create_time           |
    +-----------+----------+----------------+------------------------------+-----------------------+
    | 108045695 | 99999999 | alan99999999_t | https://www.win.com/99999999 | 2023-01-18 08:01:28.0 |
    +-----------+----------+----------------+------------------------------+-----------------------+
    Fetched 1 row(s) in 1.62s
    [server7:21000] test_million_data> select a.* from t_kafkauser_parquet a join t_kafkauser b on a.id = b.id and a.id = 108045695;

    +-----------+----------+----------------+------------------------------+-----------------------+
    | id        | userid   | name           | url                          | create_time           |
    +-----------+----------+----------------+------------------------------+-----------------------+
    | 108045695 | 99999999 | alan99999999_t | https://www.win.com/99999999 | 2023-01-18 08:01:28.0 |
    +-----------+----------+----------------+------------------------------+-----------------------+
    Fetched 1 row(s) in 2.03s

6）、總結

1、文件存儲
  • text文件存儲文件最大，orc最小，parquet居中
  • text：1.92G 4個文件，合計大小近8G
  • orc：208.12M 4個，合計大小近832M
  • parquet：1.34G 4個，合計大小近5.36G
  • parquet-snappy：442M左右，4個 ，合計大小近1.76G
2、hive查詢與impala查詢速度
  • 總體上看，hive的查詢速度與文件類型關係較大，text最慢，orc最快，parquet居中；impala的查詢速度與文件類型關係較大，text居中，orc最慢，parquet最快。不管是hive還是impala，與查詢類別關係不大。impala的查詢速度比hive中的查詢速度快上2個數量級。
3、不同查詢類型的查詢速度
  • 查詢速度與查詢類型關係不大，只是稍微會慢一些。
4、結論
  • 僅從查詢速度上考慮，如果是hive中使用首選orc文件格式，如果是impala中使用首選parquet文件格式。
  • 如果綜合查詢速度與存儲大小上考慮，如果是hive中使用首選是orc文件格式，如果是impala中使用首選orc文件格式（文件大小相差近7倍，但查詢速度僅相差4倍）。
  • 一般而言，綜合系統應用而言，選擇parquet文件格式是常見的選擇。但還需要考慮文件的相關特性，比如parquet不支持索引頁，主要與impala配合使用。

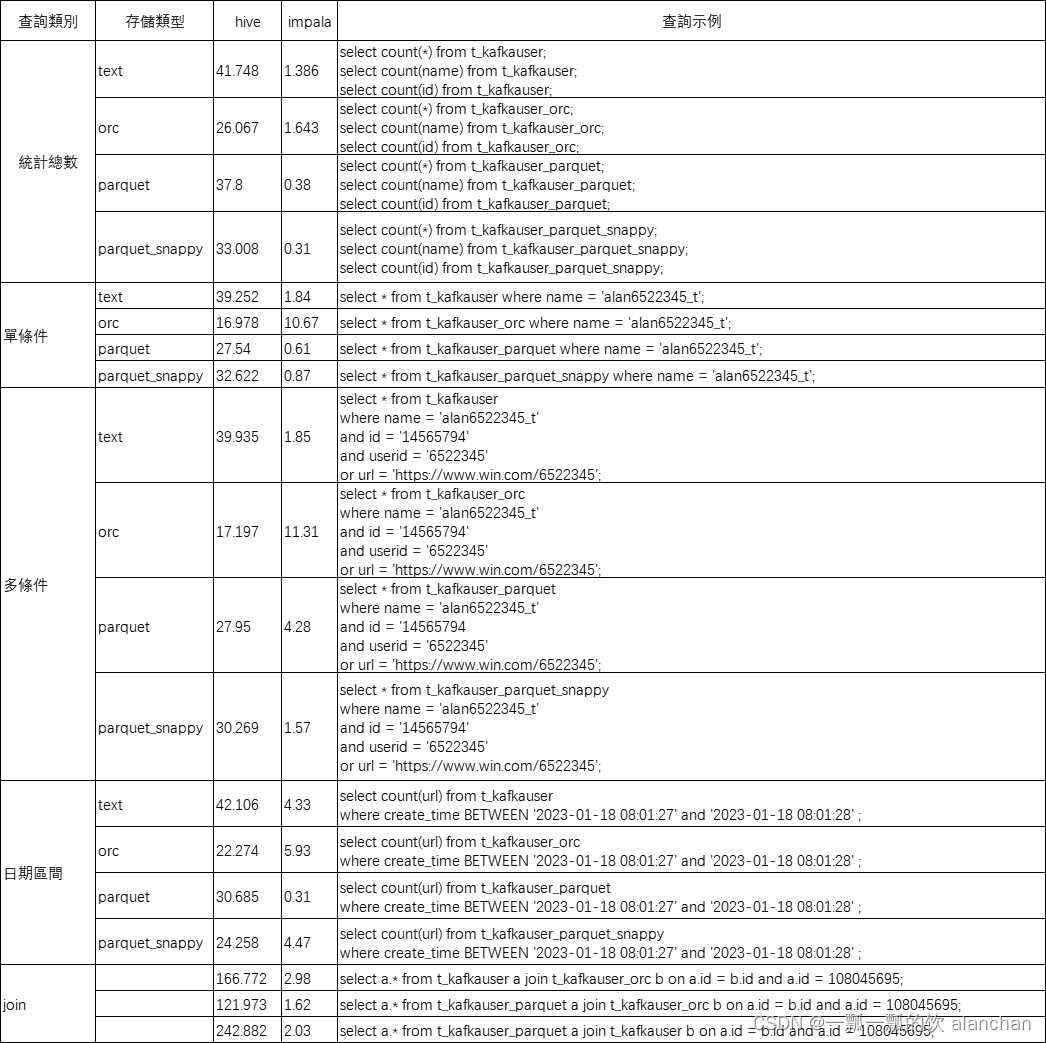

在这里插入图片描述

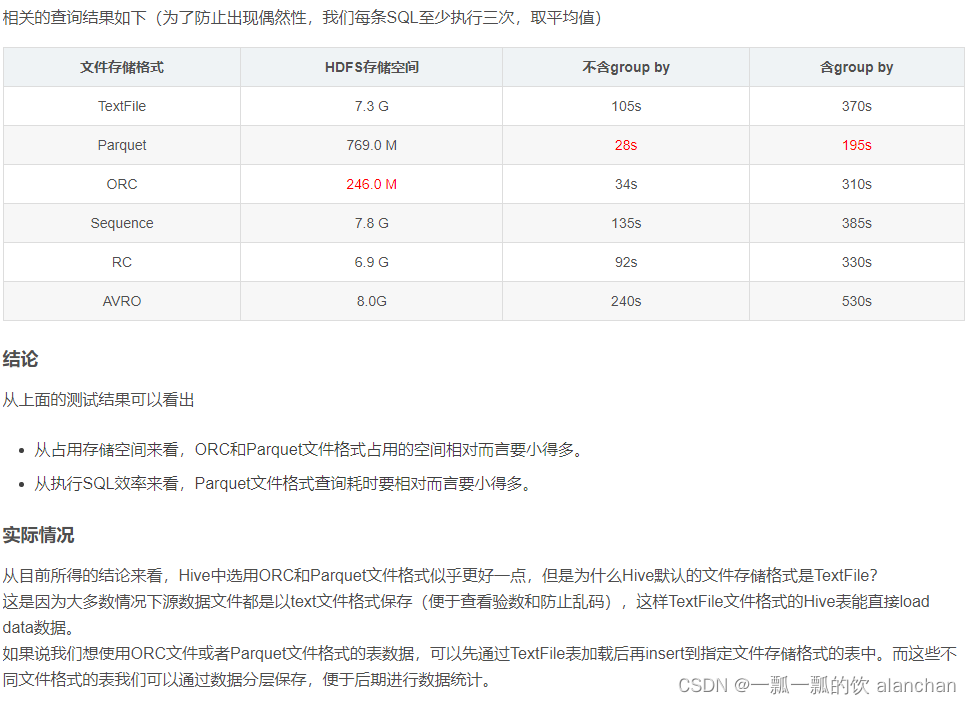

五、下文是網上找的別人驗證結果及結論

在这里插入图片描述

[server7:21000] test_million_data> select FROM_UNIXTIME(UNIX_TIMESTAMP(create_time),'yyyy-MM-dd HH:mm') dt,count(*)
                                 > from t_kafkauser
                                 > group by FROM_UNIXTIME(UNIX_TIMESTAMP(create_time),'yyyy-MM-dd HH:mm')
                                 > order by FROM_UNIXTIME(UNIX_TIMESTAMP(create_time),'yyyy-MM-dd HH:mm');

+------------------+----------+
| dt               | count(*) |
+------------------+----------+
| 2023-01-18 07:42 | 929901   |
| 2023-01-18 07:43 | 5188500  |
| 2023-01-18 07:44 | 5053100  |
| 2023-01-18 07:45 | 5495900  |
| 2023-01-18 07:46 | 5280500  |
| 2023-01-18 07:47 | 5318800  |
| 2023-01-18 07:48 | 5322200  |
| 2023-01-18 07:49 | 5310600  |
| 2023-01-18 07:50 | 5523100  |
| 2023-01-18 07:51 | 5296400  |
| 2023-01-18 07:52 | 5810100  |
| 2023-01-18 07:53 | 5374300  |
| 2023-01-18 07:54 | 5350600  |
| 2023-01-18 07:55 | 5445300  |
| 2023-01-18 07:56 | 5309300  |
| 2023-01-18 07:57 | 5350400  |
| 2023-01-18 07:58 | 5351923  |
| 2023-01-18 07:59 | 5303077  |
| 2023-01-18 08:00 | 5474800  |
| 2023-01-18 08:01 | 2511199  |
+------------------+----------+
Fetched 20 row(s) in 35.12s
[server7:21000] test_million_data> select FROM_UNIXTIME(UNIX_TIMESTAMP(create_time),'yyyy-MM-dd HH:mm') dt,count(*)
                                 > from t_kafkauser_orc
                                 > group by FROM_UNIXTIME(UNIX_TIMESTAMP(create_time),'yyyy-MM-dd HH:mm')
                                 > order by FROM_UNIXTIME(UNIX_TIMESTAMP(create_time),'yyyy-MM-dd HH:mm');

+------------------+----------+
| dt               | count(*) |
+------------------+----------+
| 2023-01-18 07:42 | 929901   |
| 2023-01-18 07:43 | 5188500  |
| 2023-01-18 07:44 | 5053100  |
| 2023-01-18 07:45 | 5495900  |
| 2023-01-18 07:46 | 5280500  |
| 2023-01-18 07:47 | 5318800  |
| 2023-01-18 07:48 | 5322200  |
| 2023-01-18 07:49 | 5310600  |
| 2023-01-18 07:50 | 5523100  |
| 2023-01-18 07:51 | 5296400  |
| 2023-01-18 07:52 | 5810100  |
| 2023-01-18 07:53 | 5374300  |
| 2023-01-18 07:54 | 5350600  |
| 2023-01-18 07:55 | 5445300  |
| 2023-01-18 07:56 | 5309300  |
| 2023-01-18 07:57 | 5350400  |
| 2023-01-18 07:58 | 5351923  |
| 2023-01-18 07:59 | 5303077  |
| 2023-01-18 08:00 | 5474800  |
| 2023-01-18 08:01 | 2511199  |
+------------------+----------+
Fetched 20 row(s) in 46.10s
[server7:21000] test_million_data> select FROM_UNIXTIME(UNIX_TIMESTAMP(create_time),'yyyy-MM-dd HH:mm') dt,count(*)
                                 > from t_kafkauser_parquet
                                 > group by FROM_UNIXTIME(UNIX_TIMESTAMP(create_time),'yyyy-MM-dd HH:mm')
                                 > order by FROM_UNIXTIME(UNIX_TIMESTAMP(create_time),'yyyy-MM-dd HH:mm');

+------------------+----------+
| dt               | count(*) |
+------------------+----------+
| 2023-01-18 07:42 | 929901   |
| 2023-01-18 07:43 | 5188500  |
| 2023-01-18 07:44 | 5053100  |
| 2023-01-18 07:45 | 5495900  |
| 2023-01-18 07:46 | 5280500  |
| 2023-01-18 07:47 | 5318800  |
| 2023-01-18 07:48 | 5322200  |
| 2023-01-18 07:49 | 5310600  |
| 2023-01-18 07:50 | 5523100  |
| 2023-01-18 07:51 | 5296400  |
| 2023-01-18 07:52 | 5810100  |
| 2023-01-18 07:53 | 5374300  |
| 2023-01-18 07:54 | 5350600  |
| 2023-01-18 07:55 | 5445300  |
| 2023-01-18 07:56 | 5309300  |
| 2023-01-18 07:57 | 5350400  |
| 2023-01-18 07:58 | 5351923  |
| 2023-01-18 07:59 | 5303077  |
| 2023-01-18 08:00 | 5474800  |
| 2023-01-18 08:01 | 2511199  |
+------------------+----------+
Fetched 20 row(s) in 36.08s
[server7:21000] test_million_data> select FROM_UNIXTIME(UNIX_TIMESTAMP(create_time),'yyyy-MM-dd HH:mm') dt,count(*)
                                 > from t_kafkauser_parquet_snappy
                                 > group by FROM_UNIXTIME(UNIX_TIMESTAMP(create_time),'yyyy-MM-dd HH:mm')
                                 > order by FROM_UNIXTIME(UNIX_TIMESTAMP(create_time),'yyyy-MM-dd HH:mm');

+------------------+----------+
| dt               | count(*) |
+------------------+----------+
| 2023-01-18 07:42 | 929901   |
| 2023-01-18 07:43 | 5188500  |
| 2023-01-18 07:44 | 5053100  |
| 2023-01-18 07:45 | 5495900  |
| 2023-01-18 07:46 | 5280500  |
| 2023-01-18 07:47 | 5318800  |
| 2023-01-18 07:48 | 5322200  |
| 2023-01-18 07:49 | 5310600  |
| 2023-01-18 07:50 | 5523100  |
| 2023-01-18 07:51 | 5296400  |
| 2023-01-18 07:52 | 5810100  |
| 2023-01-18 07:53 | 5374300  |
| 2023-01-18 07:54 | 5350600  |
| 2023-01-18 07:55 | 5445300  |
| 2023-01-18 07:56 | 5309300  |
| 2023-01-18 07:57 | 5350400  |
| 2023-01-18 07:58 | 5351923  |
| 2023-01-18 07:59 | 5303077  |
| 2023-01-18 08:00 | 5474800  |
| 2023-01-18 08:01 | 2511199  |
+------------------+----------+
Fetched 20 row(s) in 34.58s

至此，完成了整个比较。

一瓢一瓢的饮 alanchanchn
关注
  • 1
    点赞
  • 踩
  • 2
    收藏
    觉得还不错? 一键收藏
  • 打赏
    打赏
  • 0
    评论
专栏目录
1、通过亿级数据量在hive和impala中查询比较text、orc和parquet性能表现（一）
05-29
1、通过亿级数据量在hive和impala中查询比较text、orc和parquet性能表现（一） 网址：https://blog.csdn.net/chenwewi520feng/article/details/130465139 本文通过在hdfs中三种不同数据格式文件存储相同数量的数据，通过hive和impala两种客户端查询进行比较。 本文前提：熟悉hadoop、hive和impala、kafka、flink等，并且其环境都可正常使用。（在后续的专栏中都会将对应的内容补全，目前已经完成了zookeeper和hadoop的部分。） 本文分为五个部分，即结论、三种文件介绍、需求、实现步骤、实现和网上别人的结论与验证。 由于本文太长，导致阅读可能比较麻烦，故一篇文章分为两篇，第一篇是准备数据，第二篇是查询比较。本文是第一篇。 本文接1、通过亿级数据量在hive和impala中查询比较text、orc和parquet性能表现（二），比较的具体数据在第二篇。 ———————————————— 版权声明：本文为CSDN博主「一瓢一瓢的饮 alanchan」的原创文章，遵循CC 4.0
HIve之ORC与Parquet
二锅头的博客
06-25 2769
Orc与parquet的区别 表类型 默认压缩 压缩格式 描述 Orc Zlib Node、Zlib、Snappy Orc可以选择Zlib或Snappy压缩，Snappy需要额外安装 Parquet Uncompressed Uncompressed、Snappy、Gzip、Lzo Parquet使用gzip压缩率高，使用lzo、snappy效率高 ORC列式存储 但支持的压缩格式有限，Orc表支持None、Zlib、Snappy压缩，默认支持Zlib压缩。但这3种压缩格式不支持切
Impala使用ORC文件格式
ChengYanan的博客
01-12 2215
注意： Impala 3.1版本之后才可以使用ORC格式 Impala官方文档描述： https://docs.cloudera.com/documentation/enterprise/6/6.1/topics/impala_orc.html#orc $ impala-shell -i localhost [localhost:21000] default> CREATE TABLE orc_table (x INT) STORED AS ORC; [localhost:21000] defaul
Impala和Hive的关系（详解）
01-27
Impala与Hive都是构建在Hadoop之上的数据查询工具各有不同的侧重适应面，但从客户端使用来看Impala与Hive有很多的共同之处，如数据表元数 据、ODBC/JDBC驱动、SQL语法、灵活的文件格式、存储资源池等。Impala与Hive...
深入浅出数据仓库中SQL性能优化之Hive篇
01-30
一个Hive查询生成多个MapReduceJob，一个MapReduceJob又有Map，Reduce，Spill，Shuffle，Sort等多个阶段，所以针对Hive查询的优化可以大致分为针对MR中单个步骤的优化（其中又会有细分），针对MR全局的优化，和针对...
Hive ORC和Parquet
何成俭的博客
03-28 3773
相比传统数据库的行式存储引擎，列式存储引擎具有更高的压缩比，更少的IO操作，尤其是在数据列很多，但每次操作仅针对若干列进行查询和计算的情景，列式存储引擎的性价比更高。 目前在开源实现中，最有名的列式存储引擎莫过于Parquet和ORC，并且他们都是Apache的顶级项目，在数据存储引擎方面发挥着重要的作用。 本文将重点讲解ORC文件存储格式，Parquet暂不深入说明，后续抽时间整理。
hive文件存储格式orc和parquet详解
最新发布
a123op2346的博客
09-02 2571
hive orc parquet
hive orc 和 parquet简单对比
oracle8090的博客
01-14 1739
Impala推荐使用parquet格式，不支持ORC,Rcfile - Hive 0.x版本推荐使用rcfile - PrestoDB推荐使用ORC - Spark支持ORC,Parquet,Rcfile Parquet与ORC对比 orc.compress:表示ORC文件的压缩类型，「可选的类型有NONE、ZLB和SNAPPY，默认值是ZLIB（Snappy不支持切片） parquet. compression:默认值为 UNCOMPRESSED，表示页的..
hive与impala相关
m0_46168848的博客
10-25 1049
impala和hive的笔记
Impala优化，并发性能问题，压测
.
08-27 4697
在进行impala性能测试的过程中，从测试结果发现impala的并发性能非常差。1.1 环境信息测试的环境配置如下：服务器内存：250G;CPU ： 2个CPU，每cpu 6个物理核，逻辑核数24；带宽：万兆网口节点个数：3数据：TPC-DS生成的100G数据集，把数据导入parquet格式的hive表中。..........................................
Impala与MySQL：比较优化Impala数据库性能的方法
禅与计算机程序设计艺术
06-29 6186
作者：禅与计算机程序设计艺术 Impala 与 MySQL：比较优化 Impala 数据库性能的方法 引言 1.1. 背景介绍 随着大数据时代的到来，数据存储和处理能力成为企业构建高性能、高可
123.Impala查询缓慢问题与解决
大勇若怯任卷舒
09-15 1391
【代码】123.Impala查询缓慢问题与解决。
解决：10亿条数据，分区太多，T级数据量，数据执行失败
随风不随水的博客
12-24 1043
背景： 最近想要抽出日志数据（1.3T左右），统计商品的pv，uv，收藏，加车，分享，销售数等等，根据这些信息加权，用于商品推荐。 查看sparkui界面，发现数据分布在各台机器上比较均匀，但是shuffle read时间太长 在查表时，执行不出来，我推测是由于分区数太多引起，并且数据量太大。 解决： 1.将数据按天去抽取到一张中间表里 （1）可以建立一张表，不带分区，里面包含所有天的数据，然后where ds 按月 insert into 到表中，例如 ds >= 2020-01-01 and ds
ORC与PARQUET的区别
weixin_44087159的博客
04-28 7455
ORC与Parquet均为列式存储结构，那么他们有什么不同呢？ Apache Parquet 源自google Dremel 系统,Parquet 相当一Dremel中的数据存储引擎,而Apache顶级开源醒目 Drill正式Dremel的开源实现. Apache Parquet 最初的设计动机是存储嵌套式数据,比如Protocolbuffer thrift json 等 将这类数据存储成列式格式以方便对其...
ORC和Parquet的一些简单对比
zhangs_123的博客
04-02 3527
目录一、简介1.1 ORC二、测试环境说明2.1.集群环境2.2 测试数据2.2.1 TPC-H使用1）tpch下载2）解压3)配置4）生成执行命令，生成dbgen2.2.2 建表、sql和数据准备1）建表语句见附件，分别建Textfile、ORC、Parquet表2）导入数据3）查询语句见附件三、Impala查询ORC和Parquet对比四、ORC和Parquet的压缩效率对比五、ORC和Parquet的简单查询效率对比六、总结 一、简介 目前我们Hive数仓建表存储格式主要是Parquet+默认压缩，因
hive中的orc表 在impala中查不到 hive中的parquet表，可以i在impala中查到，为什么
05-16
可能是因为Impala和Hive对于ORC和Parquet文件的支持不同导致的。 Impala和Hive都可以查询ORC和Parquet格式的表，但是它们对于文件格式的支持有所不同。在Hive中，ORC文件是默认的文件格式，而在Impala中，Parquet...

“相关推荐”对你有帮助么？

  • 非常没帮助
  • 没帮助
  • 一般
  • 有帮助
  • 非常有帮助
提交
评论
添加红包

请填写红包祝福语或标题

个

红包个数最小为10个

元

红包金额最低5元

当前余额3.43元 前往充值 >
需支付：10.00元
成就一亿技术人!
领取后你会自动成为博主和红包主的粉丝 规则
hope_wisdom
发出的红包

打赏作者

一瓢一瓢的饮 alanchanchn

你的鼓励将是我创作的最大动力

¥1 ¥2 ¥4 ¥6 ¥10 ¥20
扫码支付：¥1
获取中
扫码支付

您的余额不足，请更换扫码支付或充值

打赏作者

实付元
使用余额支付
点击重新获取
扫码支付
钱包余额 0

抵扣说明：

1.余额是钱包充值的虚拟货币，按照1:1的比例进行支付金额的抵扣。
2.余额无法直接购买下载，可以购买VIP、付费专栏及课程。

余额充值
