使用lsbus打印摄像头硬件信息

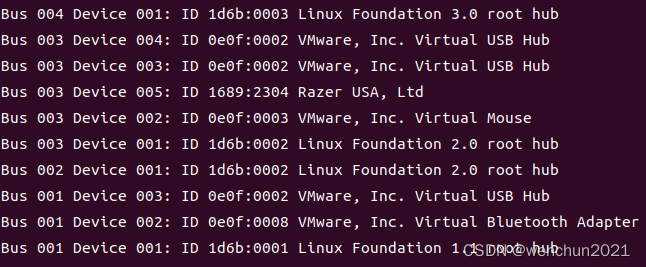

lsusb
这里我的摄像头的厂家id是 1689:2304
lsusb -v -d 1689:2304
得到
Bus 003 Device 005: ID 1689:2304 Razer USA, Ltd
Couldn't open device, some information will be missing
Device Descriptor:
bLength 18
bDescriptorType 1
bcdUSB 2.00
bDeviceClass 239 Miscellaneous Device
bDeviceSubClass 2
bDeviceProtocol 1 Interface Association
bMaxPacketSize0 64
idVendor 0x1689 Razer USA, Ltd
idProduct 0x2304
bcdDevice 10.11
iManufacturer 0
iProduct 0
iSerial 0
bNumConfigurations 1
Configuration Descriptor:
bLength 9
bDescriptorType 2
wTotalLength 0x011a
bNumInterfaces 2
bConfigurationValue 1
iConfiguration 0
bmAttributes 0x80
(Bus Powered)
MaxPower 500mA
Interface Association:
bLength 8
bDescriptorType 11
bFirstInterface 0
bInterfaceCount 2
bFunctionClass 14 Video
bFunctionSubClass 3 Video Interface Collection
bFunctionProtocol 0
iFunction 0
Interface Descriptor:
bLength 9
bDescriptorType 4
bInterfaceNumber 0
bAlternateSetting 0
bNumEndpoints 1
bInterfaceClass 14 Video
bInterfaceSubClass 1 Video Control
bInterfaceProtocol 0
iInterface 0
VideoControl Interface Descriptor:
bLength 13
bDescriptorType 36
bDescriptorSubtype 1 (HEADER)
bcdUVC 1.00
wTotalLength 0x0050
dwClockFrequency 6.000000MHz
bInCollection 1
baInterfaceNr( 0) 1
VideoControl Interface Descriptor:
bLength 18
bDescriptorType 36
bDescriptorSubtype 2 (INPUT_TERMINAL)
bTerminalID 1
wTerminalType 0x0201 Camera Sensor
bAssocTerminal 0
iTerminal 0
wObjectiveFocalLengthMin 0
wObjectiveFocalLengthMax 0
wOcularFocalLength 0
bControlSize 3
bmControls 0x000200a2
Auto-Exposure Mode
Focus (Absolute)
Iris (Absolute)
Focus, Auto
VideoControl Interface Descriptor:
bLength 11
bDescriptorType 36
bDescriptorSubtype 5 (PROCESSING_UNIT)
Warning: Descriptor too short
bUnitID 3
bSourceID 1
wMaxMultiplier 0
bControlSize 2
bmControls 0x0000147f
Brightness
Contrast
Hue
Saturation
Sharpness
Gamma
White Balance Temperature
Power Line Frequency
White Balance Temperature, Auto
iProcessing 0
bmVideoStandards 0x1d
None
PAL - 625/50
SECAM - 625/50
NTSC - 625/50
VideoControl Interface Descriptor:
bLength 29
bDescriptorType 36
bDescriptorSubtype 6 (EXTENSION_UNIT)
bUnitID 4
guidExtensionCode {5a215226-3289-4156-894a-5c557cdf9664}
bNumControls 4
bNrInPins 1
baSourceID( 0) 3
bControlSize 4
bmControls( 0) 0xff
bmControls( 1) 0xff
bmControls( 2) 0xff
bmControls( 3) 0xff
iExtension 0
VideoControl Interface Descriptor:
bLength 9
bDescriptorType 36
bDescriptorSubtype 3 (OUTPUT_TERMINAL)
bTerminalID 2
wTerminalType 0x0101 USB Streaming
bAssocTerminal 0
bSourceID 4
iTerminal 0
Endpoint Descriptor:
bLength 7
bDescriptorType 5
bEndpointAddress 0x81 EP 1 IN
bmAttributes 3
Transfer Type Interrupt
Synch Type None
Usage Type Data
wMaxPacketSize 0x0008 1x 8 bytes
bInterval 9
Interface Descriptor:
bLength 9
bDescriptorType 4
bInterfaceNumber 1
bAlternateSetting 0
bNumEndpoints 1
bInterfaceClass 14 Video
bInterfaceSubClass 2 Video Streaming
bInterfaceProtocol 0
iInterface 0
Endpoint Descriptor:
bLength 7
bDescriptorType 5
bEndpointAddress 0x82 EP 2 IN
bmAttributes 5
Transfer Type Isochronous
Synch Type Asynchronous
Usage Type Data
wMaxPacketSize 0x0000 1x 0 bytes
bInterval 1
INTERFACE CLASS: 0e 24 01 01 84 00 82 00 02 02 01 00 01 00
INTERFACE CLASS: 0b 24 06 01 03 00 01 00 00 00 00
INTERFACE CLASS: 1e 24 07 01 00 80 02 e0 01 00 00 08 ca 00 00 08 ca 00 60 09 00 15 16 05 00 01 15 16 05 00
INTERFACE CLASS: 1e 24 07 02 00 40 01 f0 00 00 00 08 ca 00 00 08 ca 00 58 02 00 95 45 01 00 01 95 45 01 00
INTERFACE CLASS: 1e 24 07 01 00 80 02 e0 01 00 00 08 ca 00 00 08 ca 00 60 09 00 15 16 05 00 01 15 16 05 00
INTERFACE CLASS: 0b 24 03 00 01 80 02 e0 01 01 00
INTERFACE CLASS: 06 24 0d 00 00 00
Interface Descriptor:
bLength 9
bDescriptorType 4
bInterfaceNumber 1
bAlternateSetting 1
bNumEndpoints 1
bInterfaceClass 14 Video
bInterfaceSubClass 2 Video Streaming
bInterfaceProtocol 0
iInterface 0
Endpoint Descriptor:
bLength 7
bDescriptorType 5
bEndpointAddress 0x82 EP 2 IN
bmAttributes 5
Transfer Type Isochronous
Synch Type Asynchronous
Usage Type Data
wMaxPacketSize 0x13fc 3x 1020 bytes
bInterval
使用v4l2-ctl 得到摄像头采集的数据格式
安装
sudo apt install v4l-utils
v4l2-ctl --list-formats-ext -d /dev/video0
得到
ioctl: VIDIOC_ENUM_FMT
Type: Video Capture
[0]: 'MJPG' (Motion-JPEG, compressed)
Size: Discrete 640x480
Interval: Discrete 0.033s (30.000 fps)
Interval: Discrete 0.033s (30.000 fps)
Size: Discrete 320x240
Interval: Discrete 0.008s (119.977 fps)
Size: Discrete 640x480
Interval: Discrete 0.033s (30.000 fps)
Interval: Discrete 0.033s (30.000 fps)
可知 该摄像头支持Motion-JPEG(MJPG)格式的视频采集
- 在640x480分辨率下,支持30帧每秒(fps)的视频采集。
- 在320x240分辨率下,支持最高达120帧每秒(具体是119.977 fps)的视频采集
