BFV全同态密码实现和应用：图片加密

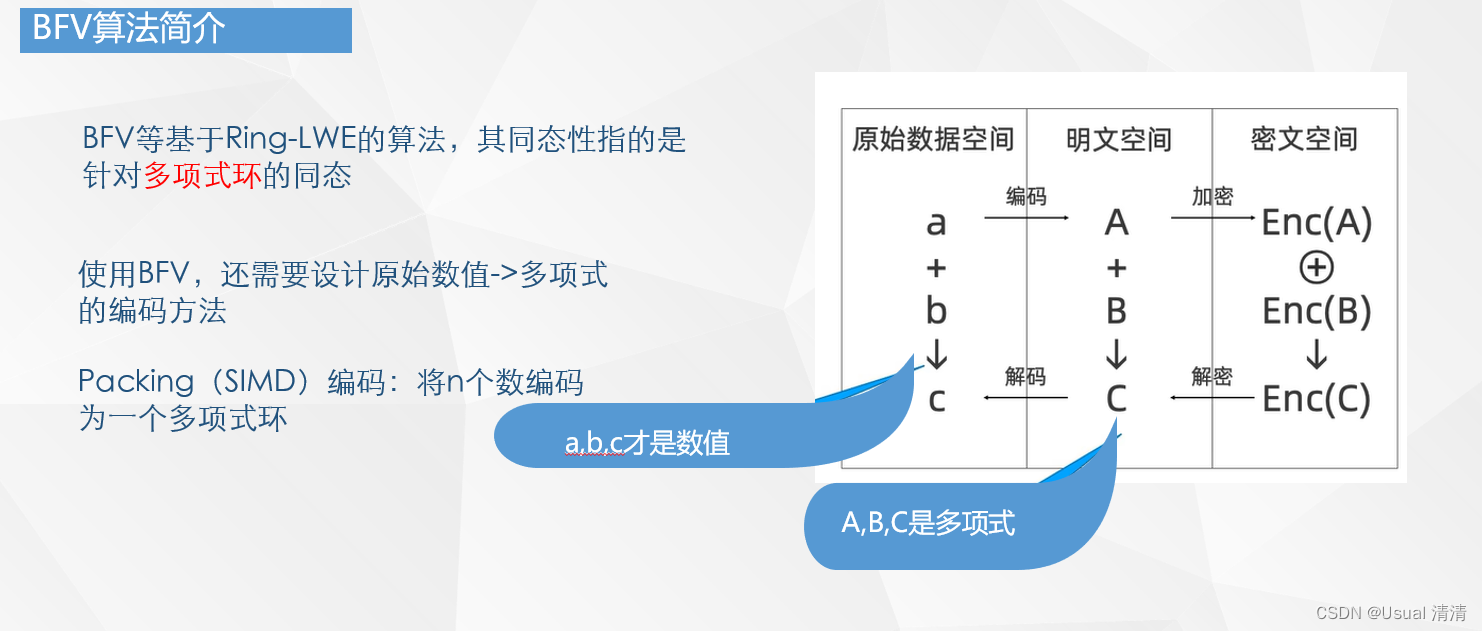

BFV算法原理

个人感觉 这个视频 讲得很好

上面是根据视频看得重点。

不关心编码，加密的大致步骤如下
源自 https://zhuanlan.zhihu.com/p/638191070

密钥生成

加密多项式m

解密

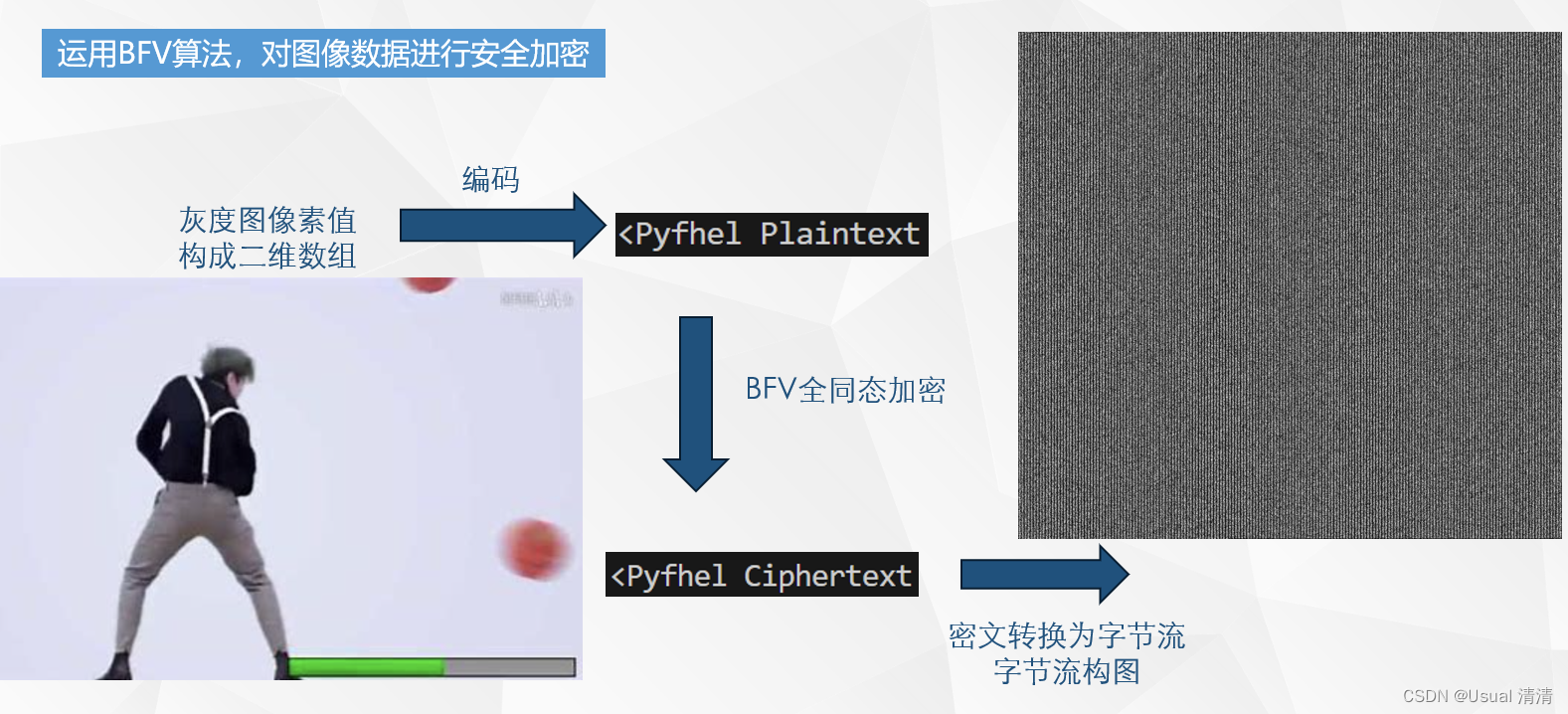

图片加密

注意：同态性只针对密文，图片只是密文的一种呈现，不具同态性
BFV同态加密，基于Pyfhel库实现，详细参考 Pyfhel的官方说明

主程序中修改image_path = "kun.jpg"为你要加密的图片，可实现对图片的BFV加解密。

from PIL import Image
import numpy as np
from Pyfhel import Pyfhel

def enc_au(img_array, key):
    # 2*2的数组线性化
    img_L = img_array.flatten().tolist()
    img_array= np.array(img_L,dtype=np.int64)   #一维数组

    #bfv编码和加密
    ptxt_img = key.encodeInt(img_array)
    ctxt_img = key.encryptPtxt(ptxt_img)


    # 将ctxt 转化为 图片列表
    cimg_bytes= ctxt_img.to_bytes()
    cimg_L = [byte for byte in cimg_bytes] #bytes 转化为数组 数值在 0 到 256 范围内

    #图片数组是一维的，转化为二维数组
    one_dimensional_list = cimg_L
    side_length = int(len(one_dimensional_list) ** 0.5)    # 计算最接近正方形的边长
    padding_count = side_length - (len(one_dimensional_list) % side_length)    # 计算最后一行需要填充的个数
    one_dimensional_list += [0] * (padding_count-1)    # 在一维列表末尾填充0
    one_dimensional_list += [padding_count]
    two_dimensional_list = [one_dimensional_list[i:i+side_length] for i in range(0, len(one_dimensional_list), side_length)]
    cimg_array = np.array(two_dimensional_list)

    cimg_array = cimg_array.astype(np.uint8)

    return cimg_array

def dec_au(encrypted_img_array, key):
    enc_arr = encrypted_img_array.astype(np.int64)
    enc_arr = encrypted_img_array.tolist()
    enc_L = encrypted_img_array.flatten().tolist()
    num_del = enc_L[-1]
    enc_L = enc_L[:-1]
    # 去除末尾的256
    for j in range(num_del-1):
        enc_L = enc_L[:-1]

    flag = True
    while ( flag == True):
        for i in range(256):
            if (enc_L[-i-1] != 0):
                flag = False
                break
        if flag == True:
            for i in range(256):
                enc_L = enc_L[:-1]
        else: break

    byte_string = bytes(enc_L)

    #创建ctxt2用于存储图片密文
    ptxt2 = key.encode(2)  # plaintexts created from arrays shorter than 'n' are filled with zeros.
    ctxt2 = key.encrypt(ptxt2)  # Alternatively you can use HE.encryptInt(arr2)

    ctxt2.from_bytes(byte_string)

    rctxt  = key.decryptInt(ctxt2 )

    one_dimensional_list = rctxt.tolist()
    side_length = 128
    two_dimensional_list = [one_dimensional_list[i:i+side_length] for i in range(0, len(one_dimensional_list), side_length)]
    mimg_array = np.array(two_dimensional_list)

    mimg_array = mimg_array.astype(np.uint8)

    return mimg_array

def image_encrypt(image_path, key):
    # 加载 RGB 图片
    rgb_image = Image.open(image_path)

    # 转换为灰度图
    gray_image = rgb_image.convert('L')

    # 映射到 256 灰度级
    gray_image_256 = gray_image.point(lambda x: round(x * 255 / 255))

    img = gray_image_256.resize((128, 128))  # 调整大小

    img_array = np.array(img)

    # 加密过程
    encrypted_img_array = enc_au(img_array, key)

    aaa=encrypted_img_array.tolist()
    encrypted_img = Image.fromarray(encrypted_img_array)
    encrypted_img.save("encrypted_image.png")

    print("2.Image encrypted and saved as encrypted_image.png\n")

def image_decrypt(encrypted_image_path, key):
    encrypted_img = Image.open(encrypted_image_path)
    encrypted_img = encrypted_img.convert('L')
    encrypted_img_array = np.array(encrypted_img)

    # 解密过程
    decrypted_img_array = dec_au(encrypted_img_array, key)


    decrypted_img = Image.fromarray(decrypted_img_array)
    decrypted_img.save("decrypted_image.png")

    print("3.Image decrypted and saved as decrypted_image.png\n")


def Create_bfvkey():
    HE = Pyfhel()  # Creating empty Pyfhel object
    bfv_params = {
        'scheme': 'BFV',  # can also be 'bfv'
        'n': 2**14,  # Polynomial modulus degree, the num. of slots per plaintext,
        #  of elements to be encoded in a single ciphertext in a
        #  2 by n/2 rectangular matrix (mind this shape for rotations!)
        #  Typ. 2^D for D in [10, 16]
        't': 256,  # Plaintext modulus. Encrypted operations happen modulo t
        #  Must be prime such that t-1 be divisible by 2^N.
        't_bits': 20,  # Number of bits in t. Used to generate a suitable value
        #  for t. Overrides t if specified.
        'sec': 128,  # Security parameter. The equivalent length of AES key in bits.
        #  Sets the ciphertext modulus q, can be one of {128, 192, 256}
        #  More means more security but also slower computation.
    }
    HE.contextGen(**bfv_params)  # Generate context for bfv scheme
    HE.keyGen()  # Key Generation: generates a pair of public/secret keys
    # HE.relinKeyGen()  # Relinearization key generation

    print("\n1. Pyfhel FHE context generation")
    print(f"\t{HE}\n")

    return HE

# 主程序

key =  Create_bfvkey()


image_path = "kun.jpg"
# pkey = 123
# skey = 123

# 加密原始图像
image_encrypt(image_path, key)

# 解密加密后的图像
encrypted_image_path = "encrypted_image.png"
image_decrypt(encrypted_image_path, key)
