十一作业 中断

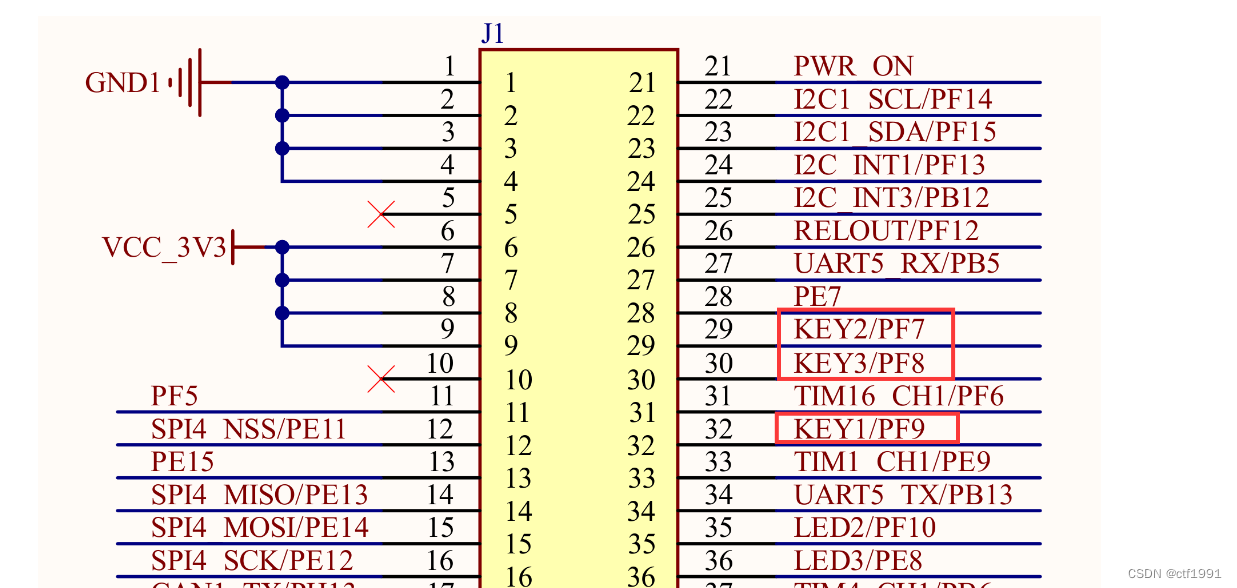

分析电路图

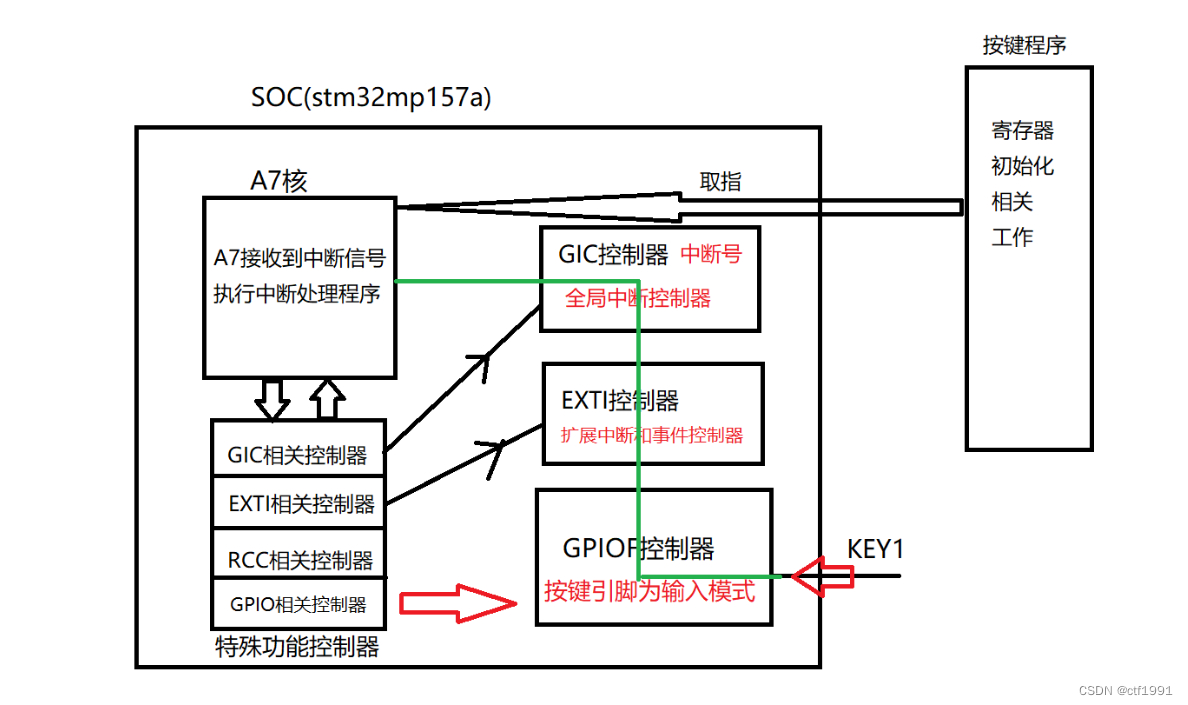

分析框图

1.通过框图分析可知：RCC章节/GPIOF章节/EXTI章节/GIC章节
2.需要分析GPIOF章节：设置引脚为输入模式
3.需要分析EXTI章节：检测中断的触发方式
3.需要分析GIC章节：设置GPIOF引脚对应的中断号

代码

main.c

#include "interrupt.h"
extern void printf(const char *fmt, ...);

void delay_ms(int ms)
{
    int i,j;
    for(i = 0; i < ms;i++)
        for (j = 0; j < 1800; j++);
}
int main()
{
    //1.EXTI初始化
    pf9_exti_init();

    //2.GICD初始化
    pf9_gicd_init();

    //3.GICC初始化
    pf9_gicc_init();


    //1.EXTI初始化
    pf7_exti_init();

    //2.GICD初始化
    pf7_gicd_init();

    //3.GICC初始化
    pf7_gicc_init();


    //1.EXTI初始化
    pf8_exti_init();

    //2.GICD初始化
    pf8_gicd_init();

    //3.GICC初始化
    pf8_gicc_init();

    while(1)
    {


    }

    return 0;
}

intrrupt.h

#ifndef __INTERRUPT_H__
#define __INTERRUPT_H__

#include "stm32mp1xx_gpio.h"
#include "stm32mp1xx_exti.h"
#include "stm32mp1xx_gic.h"
#include "stm32mp1xx_rcc.h"

/**************KEY1 PF9******************/
//初始化EXTI层
void pf9_exti_init();

//初始化GICD层
void pf9_gicd_init();

//初始化GICC层
void pf9_gicc_init();



/**************KEY2 PF7******************/
//初始化EXTI层
void pf7_exti_init();

//初始化GICD层
void pf7_gicd_init();

//初始化GICC层
void pf7_gicc_init();


/**************KEY3 PF8******************/
//初始化EXTI层
void pf8_exti_init();

//初始化GICD层
void pf8_gicd_init();

//初始化GICC层
void pf8_gicc_init();

#endif



intrrupt.c

#include "interrupt.h"
/*******KEY1----->PF9*******/
//初始化EXTI层
void pf9_exti_init()
{
    /***********RCC***********/
    //使能GPIOF控制器
    RCC->MP_AHB4ENSETR |= (0x1 << 5);
    /***********GPIO**********/
    //将模式设置为输入模式
    GPIOF->MODER &= (~(0x3 << 18));
    /**********EXTI**********/
    //1.中断选择寄存器
    EXTI->EXTICR3 |= (0x05 << 8);
    //2.中断屏蔽寄存器
    EXTI->C1IMR1 |= (0x1 << 9);
    //3.检测方式下降沿
    EXTI->FTSR1 |= (0x1 << 9);

}
//初始化GICD层
void pf9_gicd_init()
{
    /**********GICD**********/
    //1.总使能
    GICD->CTRL |= 0x1;
    //2.中断设置使能寄存器
    GICD->ISENABLER[3] |= (0x1 << 3);
    //3,中断优先级寄存器
    GICD->IPRIORITYR[24] |= (0x1 << 27);
    //4.中断处理器选择寄存器
    GICD->ITARGETSR[24] |= (0x1 << 24);
}
//初始化GICC层
void pf9_gicc_init()
{
    /*********GICC***********/
    //1.使能
    GICC->CTRL |= (0x1 << 0);
    //2.优先级
    GICC->PMR |= (0x2 << 3);
}

/*******KEY2----->PF7*******/
//初始化EXTI层
void pf7_exti_init()
{
    /***********RCC***********/
    //使能GPIOF控制器
    RCC->MP_AHB4ENSETR |= (0x1 << 5);
    /***********GPIO**********/
    //将模式设置为输入模式
    GPIOF->MODER &= (~(0x3 << 14));
    /**********EXTI**********/
    //1.中断选择寄存器
    EXTI->EXTICR2 |= (0x05 << 24);
    //2.中断屏蔽寄存器
    EXTI->C1IMR1 |= (0x1 << 7);
    //3.检测方式下降沿
    EXTI->FTSR1 |= (0x1 << 7);

}
//初始化GICD层
void pf7_gicd_init()
{
    /**********GICD**********/
    //1.总使能
    GICD->CTRL |= 0x1;
    //2.中断设置使能寄存器
    GICD->ISENABLER[3] |= (0x1 << 1);
    //3,中断优先级寄存器
    GICD->IPRIORITYR[24] |= (0x1 << 11);
    //4.中断处理器选择寄存器
    GICD->ITARGETSR[24] |= (0x1 << 8);
}
//初始化GICC层
void pf7_gicc_init()
{
    /*********GICC***********/
    //1.使能
    GICC->CTRL |= (0x1 << 0);
    //2.优先级
    GICC->PMR |= (0x2 << 3);
}

/*******KEY3----->PF8*******/
//初始化EXTI层
void pf8_exti_init()
{
    /***********RCC***********/
    //使能GPIOF控制器
    RCC->MP_AHB4ENSETR |= (0x1 << 5);
    /***********GPIO**********/
    //将模式设置为输入模式
    GPIOF->MODER &= (~(0x3 << 16));
    /**********EXTI**********/
    //1.中断选择寄存器
    EXTI->EXTICR3 |= (0x05 << 0);
    //2.中断屏蔽寄存器
    EXTI->C1IMR1 |= (0x1 << 8);
    //3.检测方式下降沿
    EXTI->FTSR1 |= (0x1 << 8);

}
//初始化GICD层
void pf8_gicd_init()
{
    /**********GICD**********/
    //1.总使能
    GICD->CTRL |= 0x1;
    //2.中断设置使能寄存器
    GICD->ISENABLER[3] |= (0x1 << 2);
    //3,中断优先级寄存器
    GICD->IPRIORITYR[24] |= (0x1 << 19);
    //4.中断处理器选择寄存器
    GICD->ITARGETSR[24] |= (0x1 << 16);
}
//初始化GICC层
void pf8_gicc_init()
{
    /*********GICC***********/
    //1.使能
    GICC->CTRL |= (0x1 << 0);
    //2.优先级
    GICC->PMR |= (0x2 << 3);
}
