FPGA的64点FFT代码及报告，verilog快速傅里叶变换

本文链接：https://blog.csdn.net/diaojiangxue/article/details/133967357

该篇文章详细描述了如何使用Verilog语言在Quartus软件中实现64点PipelineFFT处理器的设计，包括模块结构、输入输出信号以及代码片段。代码资源可以在hdlcode.com下载，同时附带一份设计报告。

摘要生成于 C知道，由 DeepSeek-R1 满血版支持，前往体验 >

名称：64点FFT快速傅里叶变换Radix4

软件：Quartus

语言：Verilog

代码功能：

使用verilog实现64-point Pipeline FFT处理器

FPGA代码资源下载网：hdlcode.com

代码下载：

名称：64点FFT快速傅里叶变换Radix4（代码在文末付费下载）软件：Quartus 语言：Verilog 代码功能：使用verilog实现64-point Pipeline FFT处理器名称：64点FFT快速傅里叶变换Radix4（代码在文末付费下载）软件：Quartus语言：Verilog代码功能：使用verilog实现64-point Pipeline FFT处理器FPGA代码资源下载网：hdlcode.com部分代码展示module fft64_top(//input clk , rhttp://www.hdlcode.com/index.php?m=home&c=View&a=index&aid=209

部分代码展示

module fft64_top(
//input
                 clk           ,
                 rst_n           ,
                 data_in_valid ,
                 data_in_re    ,
                 data_in_im    ,
//output
                 data_out_valid,
                 data_out_re   ,
                 data_out_im   ,
                 out_index
                 );

parameter DATAWIDTH = 10 ;
input                           clk             ;
input                           rst_n             ;
input                           data_in_valid   ;
input   [DATAWIDTH-1:0]         data_in_re      ;
input   [DATAWIDTH-1:0]         data_in_im      ;
output                          data_out_valid  ;
output  [DATAWIDTH-1:0]         data_out_re     ;
output  [DATAWIDTH-1:0]         data_out_im     ;
output  [5:0]                   out_index       ;
reg                            data_out_valid  ;
reg    [DATAWIDTH-1:0]         data_out_re     ;
reg    [DATAWIDTH-1:0]         data_out_im     ;
reg    [5:0]                   out_index       ;
wire                            data_out_valid_tmp  ;
wire    [DATAWIDTH-1:0]         data_out_re_tmp     ;
wire    [DATAWIDTH-1:0]         data_out_im_tmp     ;
wire    [5:0]                   out_index_tmp       ;
wire                            data_out_valid_st1  ;
wire    [DATAWIDTH-1:0]         data_out_re_st1     ;
wire    [DATAWIDTH-1:0]         data_out_im_st1     ;
wire                            data_out_valid_st2  ;
wire    [DATAWIDTH-1:0]         data_out_re_st2     ;
wire    [DATAWIDTH-1:0]         data_out_im_st2     ;
always  @(posedge clk or negedge rst_n)
  if (!rst_n)
    data_out_valid <= 1'b0   ;
  else
    data_out_valid <= data_out_valid_tmp  ;

always  @(posedge clk or negedge rst_n)
  if (!rst_n)
    data_out_re <= {DATAWIDTH{1'b0}}   ;
  else
    data_out_re <= data_out_re_tmp  ;

always  @(posedge clk or negedge rst_n)
  if (!rst_n)
    data_out_im <= {DATAWIDTH{1'b0}}   ;
  else
    data_out_im <= data_out_im_tmp  ;


always  @(posedge clk or negedge rst_n)
  if (!rst_n)
    out_index <= 6'b0   ;
  else
    out_index <= out_index_tmp  ;


fft4_st1      u_fft4_st1_top(
//input
                             .clk(clk),
                             .rst_n(rst_n),
                             .data_in_valid(data_in_valid),
                             .data_in_re(data_in_re),
                             .data_in_im(data_in_im),
//output
                             .data_out_valid_st1(data_out_valid_st1),
                             .data_out_re_st1(data_out_re_st1),
                             .data_out_im_st1(data_out_im_st1)
                             );
fft4_st2        u_fft4_st2_top(
//input
                               .clk          (clk)                  ,
                               .rst_n        (rst_n)                  ,
                               .data_in_valid(data_out_valid_st1)   ,
                               .data_in_re   (data_out_re_st1)      ,
                               .data_in_im   (data_out_im_st1)      ,
//output
                               .data_out_valid_st2(data_out_valid_st2)    ,
                               .data_out_re_st2   (data_out_re_st2)       ,
                               .data_out_im_st2   (data_out_im_st2)
                               );


bu4_st3       u_bu4_st3_top(
//input
                              .clk           (clk)                      ,
                              .rst_n         (rst_n)                    ,
                              .data_in_valid (data_out_valid_st2)       ,
                              .data_in_re    (data_out_re_st2)          ,
                              .data_in_im    (data_out_im_st2)          ,
//output
                              .data_out_valid (data_out_valid_tmp)  ,
                              .data_out_re    (data_out_re_tmp   )  ,
                              .data_out_im    (data_out_im_tmp   )
                              );

out_index     u_out_index_top(
//input
                              .clk       (clk)     ,
                              .rst_n     (rst_n)   ,
                              .start     (data_out_valid_tmp)   ,
//output
                              .out_index (out_index_tmp)
                              );


endmodule

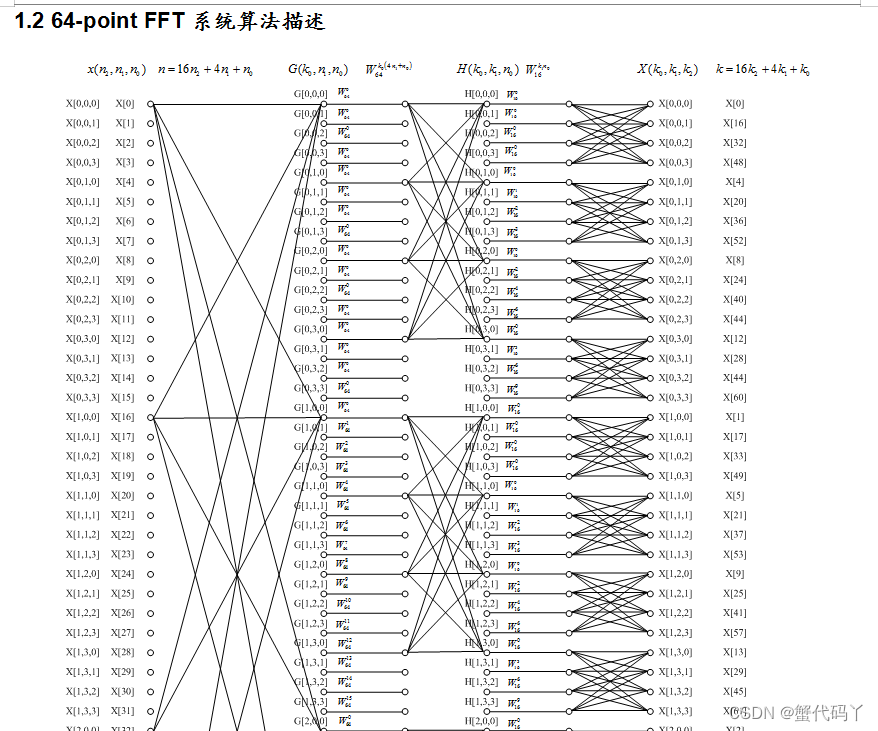

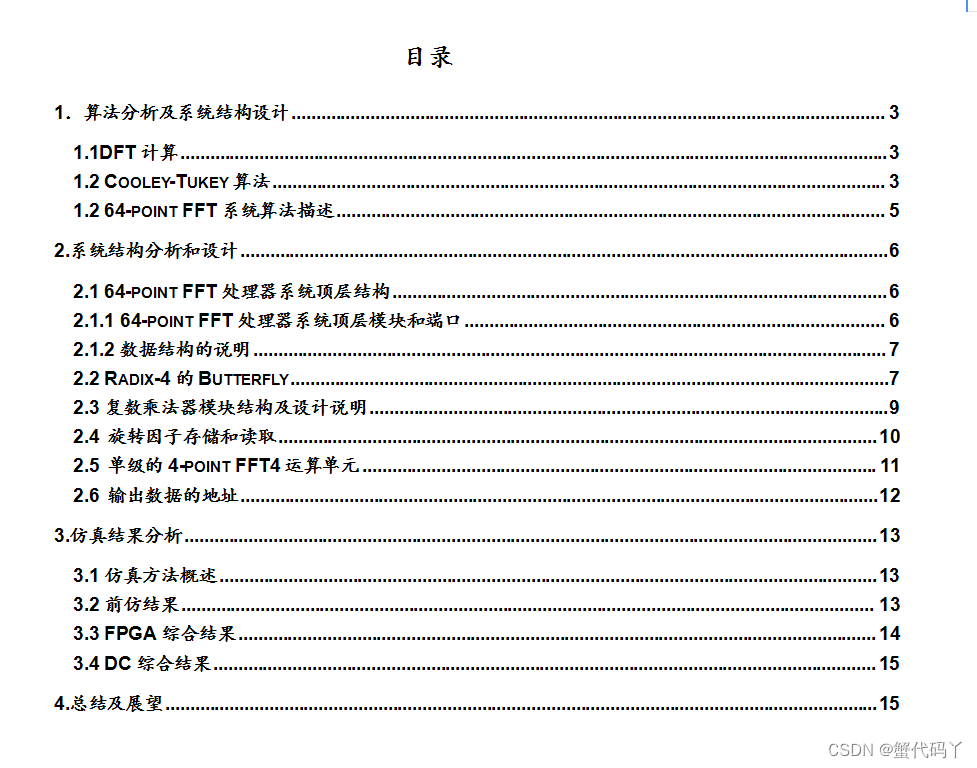

设计报告（可下载）：

64-point_Radix4_Pipeline_FFT.doc
