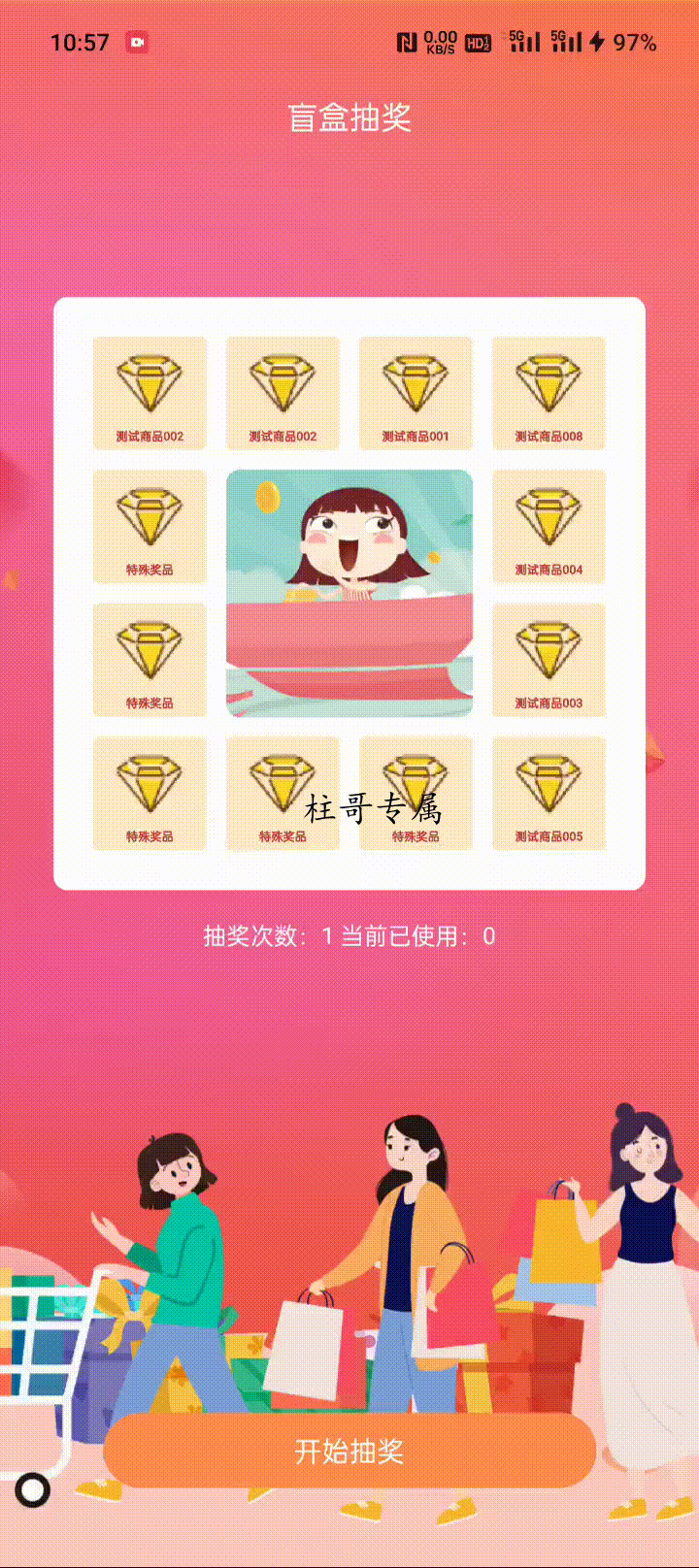

先看视频，比较卡，毕竟是视频转gif导出的
/**
* @Author : 马占柱
* E-mail : mazhanzhu_3351@163.com
* Time : 2023/5/24 17:46
* Desc : 12宫格 盲盒抽奖
*/
public class NineLuckPan extends View {
private Paint mPaint;
private ArrayList<RectF> mRects;//存储矩形的集合
private float mStrokWidth = 5;//矩形的描边宽度
private int[] mItemColor = {Color.GREEN, Color.YELLOW};//矩形的颜色
private int mRectSize;//矩形的宽和高（矩形为正方形）
private boolean mClickStartFlag = false;//是否点击中间矩形的标记
private int mRepeatCount = 3;//转的圈数
private int mLuckNum = 3;//最终中奖位置
private int mPosition = -1;//抽奖块的位置
private int mStartLuckPosition = 0;//开始抽奖的位置
private ValueAnimator valueAnimator = ValueAnimator.ofInt(mStartLuckPosition, mRepeatCount * 12 + getmLuckNum()).setDuration(5000);
// private int[] mImgs = {
// R.mipmap.ic_launcher,
// R.mipmap.ic_launcher,
// R.mipmap.ic_launcher,
// R.mipmap.ic_launcher,
// R.mipmap.ic_launcher,
// R.mipmap.ic_launcher,
// R.mipmap.ic_launcher,
// R.mipmap.ic_launcher,
// R.mipmap.ic_launcher,
// R.mipmap.ic_launcher,
// R.mipmap.ic_launcher,
// R.mipmap.ic_launcher};
private String[] mLuckStr = {"子鼠", "丑牛", "萝卜", "刺猬", "北极虾", "糖葫芦", "钝角", "香肠", "南瓜", "IP地址", "安装", "土狗"};
private OnLuckPanAnimEndListener onLuckPanAnimEndListener;
private int mOuterCircleWidth; // 最外边圆环
private Paint mOuterCirclePaint;
private int mOuterCircleBackgroundColor;
private int mSmallCircleRadius; // 小圆圈半径
private Paint mSmallCirclePaint;
private int mSmallCircleBlueColor;
private int mSmallCircleYellowColor;
private Paint mTxtPaint;
/**
* 转盘背景底色
**/
private int mInnerCircleBackgroundColor;
private List<Bitmap> bitmaps;
private List<String> titles;
private int padding;
private float left;
private float top;
public OnLuckPanAnimEndListener getOnLuckPanAnimEndListener() {
return onLuckPanAnimEndListener;
}
public void setOnLuckPanAnimEndListener(OnLuckPanAnimEndListener onLuckPanAnimEndListener) {
this.onLuckPanAnimEndListener = onLuckPanAnimEndListener;
}
public NineLuckPan(Context context) {
this(context, null);
}
public NineLuckPan(Context context, @Nullable AttributeSet attrs) {
this(context, attrs, 0);
}
public NineLuckPan(Context context, @Nullable AttributeSet attrs, int defStyleAttr) {
super(context, attrs, defStyleAttr);
init(context);
}
public int getmLuckNum() {
return mLuckNum;
}
/**
* @param mLuckNum 最终中奖位置
*/
public void setmLuckNum(int mLuckNum) {
this.mLuckNum = mLuckNum;
valueAnimator = ValueAnimator.ofInt(mStartLuckPosition, mRepeatCount * 12 + getmLuckNum()).setDuration(5000);
}
// public int[] getmImgs() {
// return mImgs;
// }
//
// public void setmImgs(int[] mImgs) {
// this.mImgs = mImgs;
// invalidate();
// }
public String[] getmLuckStr() {
return mLuckStr;
}
public void setmLuckStr(String[] mLuckStr) {
this.mLuckStr = mLuckStr;
invalidate();
}
public List<Bitmap> getBitmaps() {
return bitmaps;
}
public void setBitmaps(List<Bitmap> bitmaps) {
this.bitmaps = bitmaps;
invalidate();
}
public List<String> getTitles() {
return titles;
}
public void setTitles(List<String> titles) {
this.titles = titles;
}
/**
* 初始化数据
*/
private void init(Context context) {
mOuterCircleWidth = (int) context.getResources().getDimension(R.dimen.dp_10);
mOuterCircleBackgroundColor = context.getResources().getColor(R.color.lucky_outside);
mOuterCirclePaint = new Paint();
mOuterCirclePaint.setColor(mOuterCircleBackgroundColor);
mOuterCirclePaint.setAntiAlias(true);
mOuterCirclePaint.setStrokeWidth(mOuterCircleWidth);
mOuterCirclePaint.setStyle(Paint.Style.FILL);
mSmallCircleRadius = (int) context.getResources().getDimension(R.dimen.dp_10);
mSmallCircleBlueColor = mSmallCircleBlueColor != 0 ? mSmallCircleBlueColor : context.getResources().getColor(R.color.blue);
mSmallCircleYellowColor = mSmallCircleYellowColor != 0 ? mSmallCircleYellowColor : context.getResources().getColor(R.color.dark);
mSmallCirclePaint = new Paint();
mSmallCirclePaint.setColor(mSmallCircleBlueColor);
mSmallCirclePaint.setAntiAlias(true);
mInnerCircleBackgroundColor = context.getResources().getColor(R.color.gray);
mTxtPaint = new Paint();
mTxtPaint.setAntiAlias(true);
mTxtPaint.setColor(mInnerCircleBackgroundColor);
mTxtPaint.setStyle(Paint.Style.FILL_AND_STROKE);
mTxtPaint.setTextAlign(Paint.Align.CENTER);//Paint.Align.CENTER 中心对齐
mPaint = new Paint(Paint.ANTI_ALIAS_FLAG);
mPaint.setStyle(Paint.Style.FILL);
mPaint.setStrokeWidth(mStrokWidth);
mRects = new ArrayList<>();
padding = dp2px(getContext(), 10);
}
/**
* 外层带圆角矩形圆环
*/
private void drawOuterRoundCircle(Canvas canvas) {
canvas.save();
canvas.clipRect(
mOuterCircleWidth + getPaddingLeft(),
mOuterCircleWidth + getPaddingTop(),
getWidth() - mOuterCircleWidth - getPaddingRight(),
getWidth() - mOuterCircleWidth - getPaddingBottom(),
Region.Op.DIFFERENCE);
canvas.drawRoundRect(
getPaddingLeft(),
getPaddingTop(),
getWidth() - getPaddingRight(),
getWidth() - getPaddingBottom(),
18, 18, mOuterCirclePaint);
canvas.restore();
}
private void drawOuterDecorateSmallCircle(Canvas canvas) {
int result = 0;
// top
int x = 0, y = 0;
int sideSize = getWidth() - mOuterCircleWidth * 2 - getPaddingLeft() - getPaddingRight(); // 除去最外边圆环后的边长
for (int i = 0; i < 10; i++) {
mSmallCirclePaint.setColor(i % 2 == result ? mSmallCircleYellowColor : mSmallCircleBlueColor);
x = mOuterCircleWidth + (sideSize - mSmallCircleRadius * 2 * 9) / 9 * i + mSmallCircleRadius * 2 * i + getPaddingLeft();
y = (mOuterCircleWidth - mSmallCircleRadius * 2) / 2 + mSmallCircleRadius + getPaddingTop();
canvas.drawCircle(x, y, mSmallCircleRadius, mSmallCirclePaint);
}
// bottom
for (int i = 0; i < 10; i++) {
mSmallCirclePaint.setColor(i % 2 == result ? mSmallCircleYellowColor : mSmallCircleBlueColor);
x = mOuterCircleWidth + (sideSize - mSmallCircleRadius * 2 * 9) / 9 * i + mSmallCircleRadius * 2 * i + getPaddingLeft();
y = getWidth() - mOuterCircleWidth + (mOuterCircleWidth - mSmallCircleRadius * 2) / 2 + mSmallCircleRadius - getPaddingBottom();
canvas.drawCircle(x, y, mSmallCircleRadius, mSmallCirclePaint);
}
// left
for (int i = 0; i < 9; i++) {
mSmallCirclePaint.setColor(i % 2 == (result == 0 ? 1 : 0) ? mSmallCircleYellowColor : mSmallCircleBlueColor);
x = mOuterCircleWidth / 2 + getPaddingLeft();
y = mOuterCircleWidth * 2 + (sideSize - mSmallCircleRadius * 2 * 9) / 9 * i + mSmallCircleRadius * 2 * i + getPaddingTop();
canvas.drawCircle(x, y, mSmallCircleRadius, mSmallCirclePaint);
}
// right
for (int i = 0; i < 9; i++) {
mSmallCirclePaint.setColor(i % 2 == result ? mSmallCircleYellowColor : mSmallCircleBlueColor);
x = getWidth() - mOuterCircleWidth / 2 - getPaddingRight();
y = mOuterCircleWidth * 2 + (sideSize - mSmallCircleRadius * 2 * 9) / 9 * i + mSmallCircleRadius * 2 * i + getPaddingTop();
canvas.drawCircle(x, y, mSmallCircleRadius, mSmallCirclePaint);
}
}
private void drawInnerBackground(Canvas canvas) {
canvas.drawRect(mOuterCircleWidth + getPaddingLeft(), mOuterCircleWidth + getPaddingTop(),
getWidth() - mOuterCircleWidth - getPaddingRight(),
getWidth() - mOuterCircleWidth - getPaddingBottom(), mTxtPaint);
}
@Override
protected void onSizeChanged(int w, int h, int oldw, int oldh) {
super.onSizeChanged(w, h, oldw, oldh);
mRectSize = (Math.min(w, h) - mOuterCircleWidth * 2 - padding * 5) / 4;//获取矩形的宽和高
mRects.clear();//当控件大小改变的时候清空数据
initRect();//重新加载矩形数据
}
/**
* 加载矩形数据
*/
private void initRect() {
//加载前三个矩形
int itemWidth = getWidth() - mOuterCircleWidth * 2;
//加载第1个
mRects.add(new RectF(0 + mOuterCircleWidth + padding, mOuterCircleWidth + padding, mRectSize + mOuterCircleWidth + padding, mRectSize + mOuterCircleWidth + padding));
//加载第2个
mRects.add(new RectF(mRectSize + mOuterCircleWidth + padding * 2, mOuterCircleWidth + padding, mRectSize * 2 + mOuterCircleWidth + padding * 2, mRectSize + mOuterCircleWidth + padding));
//加载第3个
mRects.add(new RectF(mRectSize * 2 + mOuterCircleWidth + padding * 3, mOuterCircleWidth + padding, mRectSize * 3 + mOuterCircleWidth + padding * 3, mRectSize + mOuterCircleWidth + padding));
//加载第4个
mRects.add(new RectF(mRectSize * 3 + mOuterCircleWidth + padding * 4, mOuterCircleWidth + padding, mRectSize * 4 + mOuterCircleWidth + padding * 4, mRectSize + mOuterCircleWidth + padding));
//加载第5个
mRects.add(new RectF(mRectSize * 3 + mOuterCircleWidth + padding * 4, mRectSize + mOuterCircleWidth + padding * 2, mRectSize * 4 + mOuterCircleWidth + padding * 4, mRectSize * 2 + mOuterCircleWidth + padding * 2));
//加载第6个
mRects.add(new RectF(mRectSize * 3 + mOuterCircleWidth + padding * 4, mRectSize * 2 + mOuterCircleWidth + padding * 3, mRectSize * 4 + mOuterCircleWidth + padding * 4, mRectSize * 3 + mOuterCircleWidth + padding * 3));
//加载第7个
mRects.add(new RectF(mRectSize * 3 + mOuterCircleWidth + padding * 4, mRectSize * 3 + mOuterCircleWidth + padding * 4, mRectSize * 4 + mOuterCircleWidth + padding * 4, mRectSize * 4 + mOuterCircleWidth + padding * 4));
//加载第8个
mRects.add(new RectF(mRectSize * 2 + mOuterCircleWidth + padding * 3, mRectSize * 3 + mOuterCircleWidth + padding * 4, mRectSize * 3 + mOuterCircleWidth + padding * 3, mRectSize * 4 + mOuterCircleWidth + padding * 4));
//加载第9个
mRects.add(new RectF(mRectSize + mOuterCircleWidth + padding * 2, mRectSize * 3 + mOuterCircleWidth + padding * 4, mRectSize * 2 + mOuterCircleWidth + padding * 2, mRectSize * 4 + mOuterCircleWidth + padding * 4));
//加载第10个
mRects.add(new RectF(0 + mOuterCircleWidth + padding, mRectSize * 3 + mOuterCircleWidth + padding * 4, mRectSize + mOuterCircleWidth + padding, mRectSize * 4 + mOuterCircleWidth + padding * 4));
//加载第11个
mRects.add(new RectF(0 + mOuterCircleWidth + padding, mRectSize * 2 + mOuterCircleWidth + padding * 3, mRectSize + mOuterCircleWidth + padding, mRectSize * 3 + mOuterCircleWidth + padding * 3));
//加载第12个
mRects.add(new RectF(0 + mOuterCircleWidth + padding, mRectSize + mOuterCircleWidth + padding * 2, mRectSize + mOuterCircleWidth + padding, mRectSize * 2 + mOuterCircleWidth + padding * 2));
}
@Override
protected void onDraw(Canvas canvas) {
super.onDraw(canvas);
//下列三个方法去掉，内容为外框，不符合UI设计，不用调用。
// drawOuterRoundCircle(canvas);
// drawOuterDecorateSmallCircle(canvas);
// drawInnerBackground(canvas);
drawRects(canvas);
drawImages(canvas);
}
/**
* 画图片
*
* @param canvas
*/
private void drawImages(Canvas canvas) {
for (int x = 0; x < mRects.size(); x++) {
RectF rectF = mRects.get(x);
float left = rectF.centerX() - mRectSize / 3;
float top = rectF.centerY() - mRectSize / 3;
if (bitmaps != null && bitmaps.size() > 0) {
canvas.drawBitmap(Bitmap.createScaledBitmap(bitmaps.get(x), mRectSize / 3 * 2, mRectSize / 3 * 2, false)
, left, top - mRectSize / 12, null);
}
if (titles != null && titles.size() > 0) {
mTxtPaint.setTextSize(getContext().getResources().getDimension(R.dimen.sp_6));
//文字加粗
mTxtPaint.setStrokeWidth(1);
mTxtPaint.setColor(Color.parseColor("#BF3C35"));
String title = titles.get(x);
if (title.length() > 7) {
title = title.substring(0, 7);
title = title + "...";
}
canvas.drawText(title, rectF.centerX(), top + mRectSize / 12 + mRectSize / 3 * 2, mTxtPaint);
}
}
}
private int getTextWidth(Paint paint, String text) {
int iRet = 0;
if (text != null && text.length() > 0) {
int len = text.length();
float[] widths = new float[len];
paint.getTextWidths(text, widths);
for (int j = 0; j < len; j++) {
iRet += (int) Math.ceil(widths[j]);
}
}
return iRet;
}
/**
* 画矩形
*
* @param canvas
*/
private void drawRects(Canvas canvas) {
for (int x = 0; x < mRects.size(); x++) {
RectF rectF = mRects.get(x);
mPaint.setColor(getContext().getResources().getColor(R.color.cs_ffe9c6));//item背景色
if (mPosition == x) {
//动画的转动框
mPaint.setColor(getContext().getResources().getColor(R.color.cs_f8de9b));//item选中背景色
}
canvas.drawRoundRect(rectF, 10, 10, mPaint);
if (mPosition == x) {
//转动框底色
mPaint.setColor(getContext().getResources().getColor(R.color.load_purple));
RectF rectF1 = new RectF();
rectF1.left = rectF.left + 10;
rectF1.top = rectF.top + 10;
rectF1.right = rectF.right - 10;
rectF1.bottom = rectF.bottom - 10;
canvas.drawRect(rectF1, mPaint);
}
}
}
public void setPosition(int position) {
mPosition = position;
invalidate();
}
/**
* 开始动画
*/
public void startAnim() {
if (!mClickStartFlag) {
mClickStartFlag = true;
valueAnimator.addUpdateListener(new ValueAnimator.AnimatorUpdateListener() {
@Override
public void onAnimationUpdate(ValueAnimator animation) {
int position = (int) animation.getAnimatedValue();
setPosition(position % 12);
}
});
valueAnimator.addListener(new AnimatorListenerAdapter() {
@Override
public void onAnimationEnd(Animator animation) {
mClickStartFlag = false;
mStartLuckPosition = mLuckNum;
if (onLuckPanAnimEndListener != null) {
onLuckPanAnimEndListener.onAnimEnd(mPosition, mLuckStr[mPosition]);
}
}
});
valueAnimator.start();
}
}
/**
* 结束动画
**/
public void endAnim(int mEndPosition) {
valueAnimator.addListener(new AnimatorListenerAdapter() {
@Override
public void onAnimationEnd(Animator animation) {
mClickStartFlag = false;
mStartLuckPosition = mLuckNum;
if (onLuckPanAnimEndListener != null) {
onLuckPanAnimEndListener.onAnimEnd(mEndPosition, mLuckStr[mEndPosition]);
}
}
});
}
public interface OnLuckPanAnimEndListener {
void onAnimEnd(int position, String msg);
}
public int dp2px(Context context, float dpValue) {
final float scale = context.getResources().getDisplayMetrics().density;
return (int) (dpValue * scale + 0.5f);
}

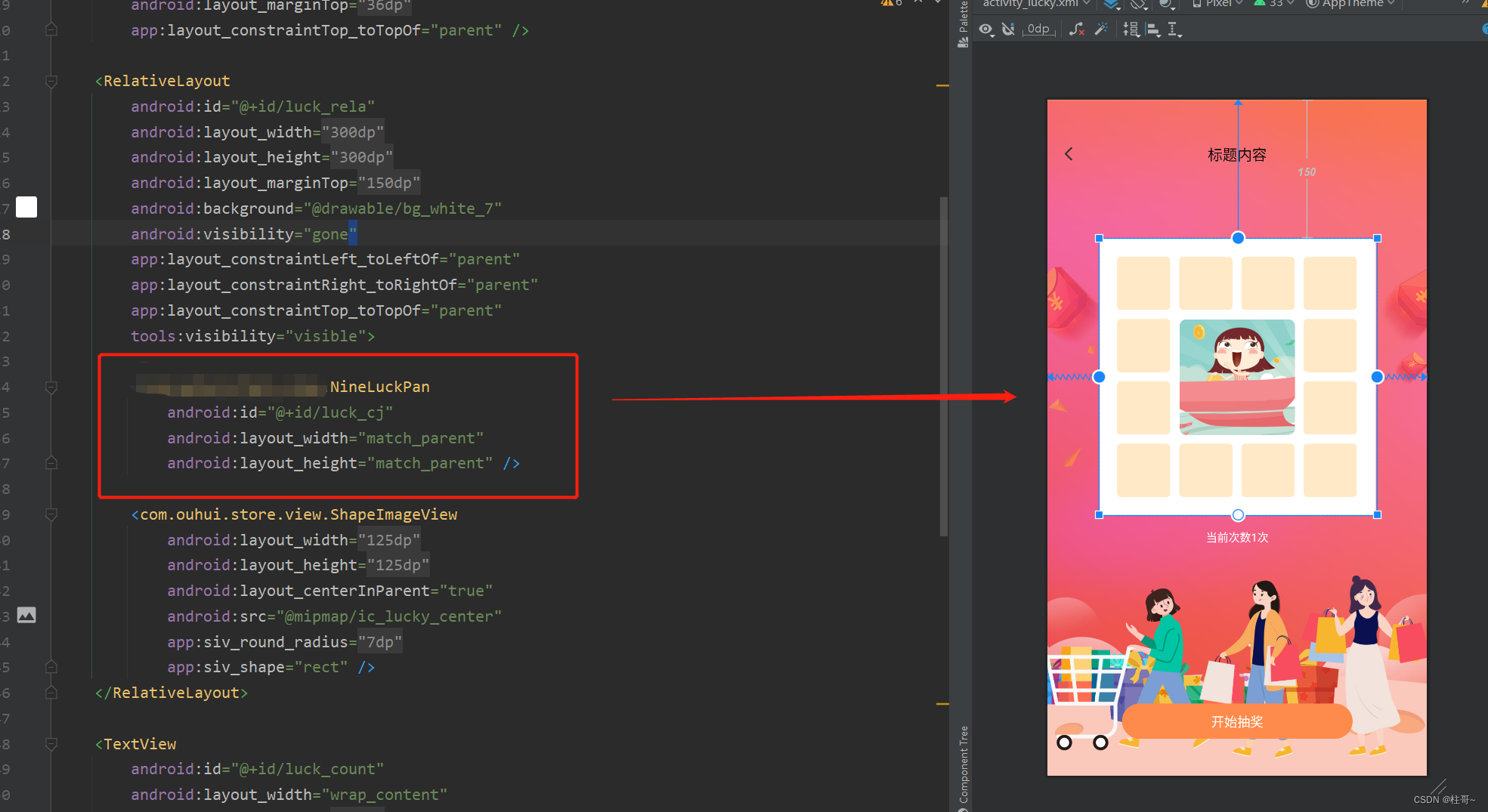

}布局里面进行使用
代码里面进行使用
private ArrayList<Bitmap> mBitmaps = new ArrayList<>(); private ArrayList<String> mTitlelist = new ArrayList<>();
省略添加数据的过程
转的圈数可以在代码里面设定，我这是直接写死的转三圈，所以懒得设置了
vb.luckCj.setTitles(mTitlelist); vb.luckCj.setBitmaps(mBitmaps);
vb.luckCj.setmLuckNum(luckNum);//最终中奖位置
vb.luckCj.startAnim();//开始动画
vb.luckCj.endAnim(0);//结束动画
好吧，怕有些人不知道怎么获取本地和在线的图片bitmap，我这里也有工具类，可以直接使用
public Bitmap getbitmap(Object obj) {
try {
if (obj instanceof String) {
if (((String) obj).contains(".")) {
return Glide.with(getApplicationContext())
.asBitmap()
.load(obj)
.submit(300, 300)
.get();
}
}
} catch (Exception e) {
Log_Ma.e(TAG, "getbitmap=" + e.toString());
}
return Base64Util.getSmallBitmap(getContext(), R.mipmap.ic_zuanshi, 300, 300);
}其中 getSmallBitmap 方法
/**
* @param context
* @param filePath 路径
* @param reqWidth 要求压缩的宽
* @param reqHeight 要求压缩的高
* @return
*/
public static Bitmap getSmallBitmap(Context context, int filePath, int reqWidth, int reqHeight) {
final BitmapFactory.Options options = new BitmapFactory.Options();
options.inJustDecodeBounds = true;//只解析图片边沿，获取宽高
// 计算缩放比
options.inSampleSize = calculateInSampleSize(options, reqWidth, reqHeight);
// 完整解析图片返回bitmap
options.inJustDecodeBounds = false;
return BitmapFactory.decodeResource(context.getResources(), filePath, options);
}
public static int calculateInSampleSize(BitmapFactory.Options options,
int reqWidth, int reqHeight) {
final int height = options.outHeight;
final int width = options.outWidth;
int inSampleSize = 1;
if (height > reqHeight || width > reqWidth) {
final int heightRatio = Math.round((float) height / (float) reqHeight);
final int widthRatio = Math.round((float) width / (float) reqWidth);
inSampleSize = heightRatio < widthRatio ? heightRatio : widthRatio;
}
return inSampleSize;
}好了，这就是所有的代码了，只要复制不出错，你也能实现出来跟我一样的效果！该到吃饭点了，
597
被折叠的 条评论
为什么被折叠?
到【灌水乐园】发言
