CAN通信

文章目录

前言

基于MPC5748G开发板的CAN通信

一、CAN_PAL配置

在这里插入图片描述
在这里插入图片描述

二、编写代码

1.采用轮询方式

代码如下（示例）：

/* Including necessary module. Cpu.h contains other modules needed for compiling.*/
#include "Cpu.h"

  volatile int exit_code = 0;
/* User includes (#include below this line is not maintained by Processor Expert) */

#define TX_MAILBOX1  0UL


#define RX_MAILBOX1  1UL
#define RX_MAILBOX2  2UL


#define RX_MSG_ID1   0x7E6
#define RX_MSG_ID2   0x7DF
#define TX_MSG_ID    0x7EE

can_buff_config_t RxBuffCfg =  {
	.enableFD = false,
	.enableBRS = false,
	.fdPadding = 0U,
	.idType = CAN_MSG_ID_STD,
	.isRemote = false
};

can_buff_config_t TxBuffCfg =  {
	.enableFD = false,
	.enableBRS = false,
	.fdPadding = 0U,
	.idType = CAN_MSG_ID_STD,
	.isRemote = false
};

can_message_t TxMsg = {
	.cs = 0U,
	.id = TX_MSG_ID,
	.data[0] = 0xAA,
	.length = 1U
};

can_message_t RxMsg;

void pitCh0Handler(void)
{
   PIT_DRV_ClearStatusFlags(INST_PIT1, 0U);
   PINS_DRV_TogglePins(PTA, 1UL<<0);
   PINS_DRV_TogglePins(PTA, 1UL<<10);
}

/*!
  \brief The main function for the project.
  \details The startup initialization sequence is the following:
 * - startup asm routine
 * - main()
*/
int main(void)
{
  /* Write your local variable definition here */

  /*** Processor Expert internal initialization. DON'T REMOVE THIS CODE!!! ***/
  #ifdef PEX_RTOS_INIT
    PEX_RTOS_INIT();                   /* Initialization of the selected RTOS. Macro is defined by the RTOS component. */
  #endif
  /*** End of Processor Expert internal initialization.                    ***/

  /* Write your code here */
  /* For example: for(;;) { } */

    CLOCK_DRV_Init(&clockMan1_InitConfig0);
    PINS_DRV_Init(NUM_OF_CONFIGURED_PINS, g_pin_mux_InitConfigArr);
    INT_SYS_InstallHandler(PIT_Ch0_IRQn, &pitCh0Handler, NULL);
    PIT_DRV_Init(INST_PIT1, &pit1_InitConfig);

    PIT_DRV_InitChannel(INST_PIT1, &pit1_ChnConfig0);

    PIT_DRV_StartChannel(INST_PIT1, 0U);


    CAN_Init(&can_pal1_instance, &can_pal1_Config0);

    CAN_ConfigRxBuff(&can_pal1_instance, RX_MAILBOX1, &RxBuffCfg, RX_MSG_ID1);
    CAN_SetRxFilter(&can_pal1_instance, CAN_MSG_ID_STD, RX_MAILBOX1, 0);


    CAN_ConfigTxBuff(&can_pal1_instance, TX_MAILBOX1, &TxBuffCfg);

    for(;;)
    {
    	RxMsg.id = 0;
    	CAN_Receive(&can_pal1_instance, RX_MAILBOX1, &RxMsg);

    	if(RxMsg.id == RX_MSG_ID1)
    	{
    		CAN_Send(&can_pal1_instance, TX_MAILBOX1, &TxMsg);
    	}


    }

  /*** Don't write any code pass this line, or it will be deleted during code generation. ***/
  /*** RTOS startup code. Macro PEX_RTOS_START is defined by the RTOS component. DON'T MODIFY THIS CODE!!! ***/
  #ifdef PEX_RTOS_START
    PEX_RTOS_START();                  /* Startup of the selected RTOS. Macro is defined by the RTOS component. */
  #endif
  /*** End of RTOS startup code.  ***/
  /*** Processor Expert end of main routine. DON'T MODIFY THIS CODE!!! ***/
  for(;;) {
    if(exit_code != 0) {
      break;
    }
  }
  return exit_code;
  /*** Processor Expert end of main routine. DON'T WRITE CODE BELOW!!! ***/
} /*** End of main routine. DO NOT MODIFY THIS TEXT!!! ***/

2.采用中断形式

建议采用中断方式，避免帧丢失

/* Including necessary module. Cpu.h contains other modules needed for compiling.*/
#include "Cpu.h"

  volatile int exit_code = 0;
/* User includes (#include below this line is not maintained by Processor Expert) */

#define TX_MAILBOX1  0UL


#define RX_MAILBOX1  1UL
#define RX_MAILBOX2  2UL


#define RX_MSG_ID1   0x7E6
#define RX_MSG_ID2   0x7DF
#define TX_MSG_ID    0x7EE

can_buff_config_t RxBuffCfg =  {
	.enableFD = false,
	.enableBRS = false,
	.fdPadding = 0U,
	.idType = CAN_MSG_ID_STD,
	.isRemote = false
};

can_buff_config_t TxBuffCfg =  {
	.enableFD = false,
	.enableBRS = false,
	.fdPadding = 0U,
	.idType = CAN_MSG_ID_STD,
	.isRemote = false
};

can_message_t TxMsg = {
	.cs = 0U,
	.id = TX_MSG_ID,
	.data[0] = 0xAA,
	.length = 1U
};

can_message_t RxMsg;

void pitCh0Handler(void)
{
   PIT_DRV_ClearStatusFlags(INST_PIT1, 0U);
   PINS_DRV_TogglePins(PTA, 1UL<<0);
   PINS_DRV_TogglePins(PTA, 1UL<<10);
}

void CAN0_CallBackHandle(uint32_t instance, can_event_t eventType, uint32_t objIdx, void *driverState)
{
	(void)driverState;
	(void)instance;

	switch(eventType)
	{
	case CAN_EVENT_RX_COMPLETE:
        if(objIdx == RX_MAILBOX1)
        {
        	CAN_Receive(&can_pal1_instance, RX_MAILBOX1, &RxMsg);
        	CAN_Send(&can_pal1_instance, TX_MAILBOX1, &TxMsg);
        }
		break;
	case CAN_EVENT_TX_COMPLETE:
		break;
	default:
		break;
	}

}
/*!
  \brief The main function for the project.
  \details The startup initialization sequence is the following:
 * - startup asm routine
 * - main()
*/
int main(void)
{
  /* Write your local variable definition here */

  /*** Processor Expert internal initialization. DON'T REMOVE THIS CODE!!! ***/
  #ifdef PEX_RTOS_INIT
    PEX_RTOS_INIT();                   /* Initialization of the selected RTOS. Macro is defined by the RTOS component. */
  #endif
  /*** End of Processor Expert internal initialization.                    ***/

  /* Write your code here */
  /* For example: for(;;) { } */

    CLOCK_DRV_Init(&clockMan1_InitConfig0);
    PINS_DRV_Init(NUM_OF_CONFIGURED_PINS, g_pin_mux_InitConfigArr);
    INT_SYS_InstallHandler(PIT_Ch0_IRQn, &pitCh0Handler, NULL);
    PIT_DRV_Init(INST_PIT1, &pit1_InitConfig);

    PIT_DRV_InitChannel(INST_PIT1, &pit1_ChnConfig0);

    PIT_DRV_StartChannel(INST_PIT1, 0U);


    CAN_Init(&can_pal1_instance, &can_pal1_Config0);

    CAN_ConfigRxBuff(&can_pal1_instance, RX_MAILBOX1, &RxBuffCfg, RX_MSG_ID1);
    CAN_SetRxFilter(&can_pal1_instance, CAN_MSG_ID_STD, RX_MAILBOX1, 0);


    CAN_ConfigTxBuff(&can_pal1_instance, TX_MAILBOX1, &TxBuffCfg);
    CAN_InstallEventCallback(&can_pal1_instance, CAN0_CallBackHandle, NULL);
    CAN_Receive(&can_pal1_instance, RX_MAILBOX1, &RxMsg);

    for(;;)
    {
    	//RxMsg.id = 0;
    	//CAN_Receive(&can_pal1_instance, RX_MAILBOX1, &RxMsg);

    	if(RxMsg.id == RX_MSG_ID2)
    	{
    		//CAN_Send(&can_pal1_instance, TX_MAILBOX1, &TxMsg);
    	}

    	if(exit_code != 0)
    	{
    	    break;
    	}

    }

  /*** Don't write any code pass this line, or it will be deleted during code generation. ***/
  /*** RTOS startup code. Macro PEX_RTOS_START is defined by the RTOS component. DON'T MODIFY THIS CODE!!! ***/
  #ifdef PEX_RTOS_START
    PEX_RTOS_START();                  /* Startup of the selected RTOS. Macro is defined by the RTOS component. */
  #endif
  /*** End of RTOS startup code.  ***/
  /*** Processor Expert end of main routine. DON'T MODIFY THIS CODE!!! ***/
  for(;;) {
    if(exit_code != 0) {
      break;
    }
  }
  return exit_code;
  /*** Processor Expert end of main routine. DON'T WRITE CODE BELOW!!! ***/
} /*** End of main routine. DO NOT MODIFY THIS TEXT!!! ***/

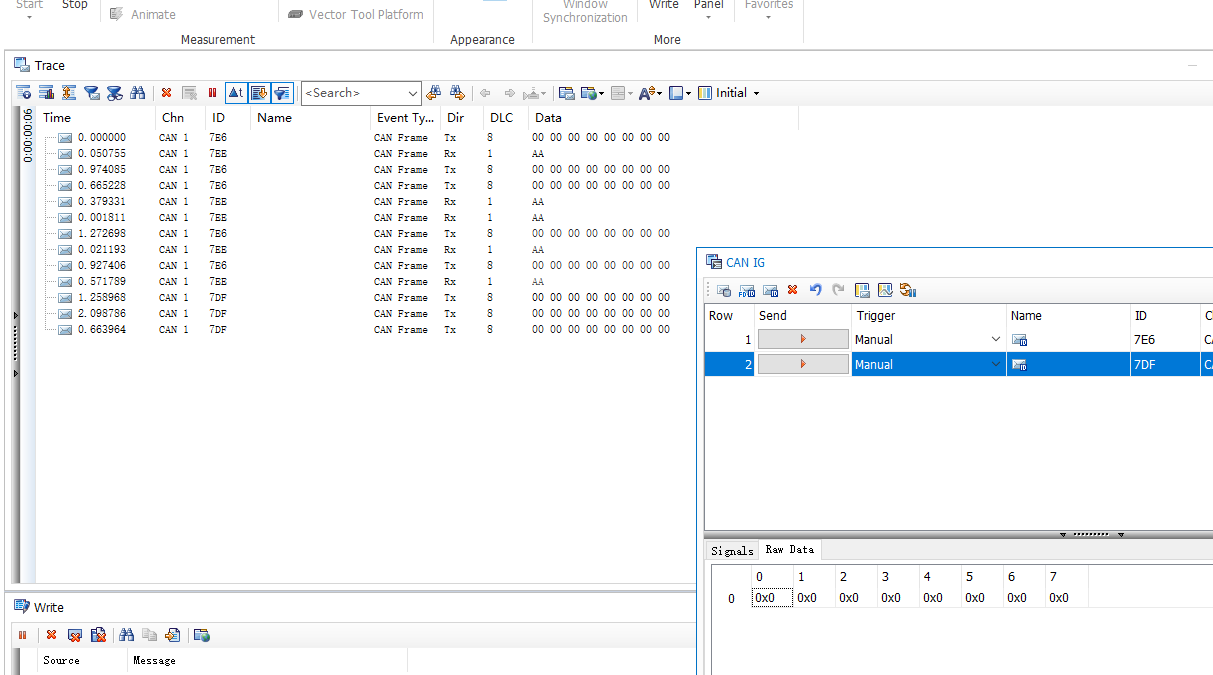

3.CANoe测试

![在这里插入图片描述](https://img-blog.csdnimg.cn/20210228140819473.png?x-oss-process=image/watermark,type_ZmFuZ3poZW5naGVpdGk,shadow_10,text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L2Z6ODM1MzA0MjA1,size_16,color_FFFFFF,t_70)

总结

通过can_pal完成简单的CAN通信。

参考代码：

/* ###################################################################
**     Filename    : main.c
**     Processor   : S32K144
**     Abstract    :
**         Main module.
**         This module contains user's application code.
**     Settings    :
**     Contents    :
**         No public methods
**
** ###################################################################*/
/*!
** @file main.c
** @version 01.00
** @brief
**         Main module.
**         This module contains user's application code.
*/
/*!
**  @addtogroup main_module main module documentation
**  @{
*/
/* MODULE main */


/* Including needed modules to compile this module/procedure */
#include "Cpu.h"
#include "pin_mux.h"
#include "clockMan1.h"
#include "canCom1.h"
#include "dmaController1.h"
#include "osif1.h"

volatile int exit_code = 0;
/* User includes (#include below this line is not maintained by Processor Expert) */
#include <string.h>
#include <stdlib.h>

const uint8_t message1[] = "Hello World!";
const uint8_t message2[] = "Hello Board!";

const uint8_t * pMessage;
volatile bool toSend;
volatile bool dataReceived;

uint8_t rxDataBuffer[16];

void PORTC_IRQHandler(void)
{
	uint32_t buttonsPressed;
	buttonsPressed = PORT_HAL_GetPortIntFlag(PORTC);

	switch(buttonsPressed)
	{
		case (1 << 12):
				pMessage = message1;
				toSend = true;
				break;
		case (1 << 13):
				pMessage = message2;
				toSend = true;
				break;
		default:
			break;
	}

	PORT_HAL_ClearPortIntFlagCmd(PORTC);
}

void flexcan0_Callback(uint8_t instance,
					   flexcan_event_type_t eventType,
					   flexcan_state_t *flexcanState)
{
	(void)flexcanState;
	(void)instance;

	switch(eventType)
	{
	case FLEXCAN_EVENT_RX_COMPLETE:
		dataReceived = true;
		break;
	case FLEXCAN_EVENT_TX_COMPLETE:
		break;
	default:
		break;
	}
}

/*!
  \brief The main function for the project.
  \details The startup initialization sequence is the following:
 * - startup asm routine
 * - main()
*/
int main(void)
{
  /* Write your local variable definition here */
	flexcan_data_info_t canDataInfo;
	flexcan_msgbuff_t rxDataBuff;
  /*** Processor Expert internal initialization. DON'T REMOVE THIS CODE!!! ***/
  #ifdef PEX_RTOS_INIT
    PEX_RTOS_INIT();                   /* Initialization of the selected RTOS. Macro is defined by the RTOS component. */
  #endif
  /*** End of Processor Expert internal initialization.                    ***/

    CLOCK_SYS_Init(g_clockManConfigsArr, CLOCK_MANAGER_CONFIG_CNT,
    			   g_clockManCallbacksArr, CLOCK_MANAGER_CALLBACK_CNT);
    CLOCK_SYS_UpdateConfiguration(0U, CLOCK_MANAGER_POLICY_AGREEMENT);

    PINS_DRV_Init(NUM_OF_CONFIGURED_PINS, g_pin_mux_InitConfigArr);

    FLEXCAN_DRV_Init(INST_CANCOM1, &canCom1_State, &canCom1_InitConfig0);

    INT_SYS_EnableIRQ(PORTC_IRQn);

    GPIO_HAL_WritePin(PTD, 15, 1);
    GPIO_HAL_WritePin(PTD, 16, 1);

    canDataInfo.msg_id_type = FLEXCAN_MSG_ID_STD;
    canDataInfo.is_remote = false;
    canDataInfo.enable_brs = true;
    canDataInfo.fd_enable = true;
    canDataInfo.fd_padding = 0U;
    canDataInfo.data_length = sizeof(message1);

    FLEXCAN_DRV_ConfigTxMb(INST_CANCOM1, 0U, &canDataInfo, 1U);
    FLEXCAN_DRV_ConfigRxMb(INST_CANCOM1, 1U, &canDataInfo, 0U);

    FLEXCAN_DRV_InstallEventCallback(INST_CANCOM1, flexcan0_Callback, NULL);

    FLEXCAN_DRV_Receive(INST_CANCOM1, 1U, &rxDataBuff);

    while(1)
    {
    	if(toSend)
    	{
    		FLEXCAN_DRV_Send(INST_CANCOM1, 0U, &canDataInfo, 1U, pMessage);
    		toSend = false;
    	}
    	if(dataReceived)
    	{
    		memcpy(rxDataBuffer, rxDataBuff.data, rxDataBuff.dataLen);
    		if(strcmp((char *)rxDataBuffer, (char *)message1) == 0)
    		{
    			GPIO_HAL_TogglePins(PTD, (1 << 16));
    		}
    		else if(strcmp((char *)rxDataBuffer, (char *)message2) == 0)
    		{
    			GPIO_HAL_TogglePins(PTD, (1 << 15));
    		}
    		else
    		{
    			GPIO_HAL_WritePin(PTD, 15, 1);
				GPIO_HAL_WritePin(PTD, 16, 1);
    		}
    		FLEXCAN_DRV_Receive(INST_CANCOM1, 1U, &rxDataBuff);
    		dataReceived = false;
    	}
    }

  /*** Don't write any code pass this line, or it will be deleted during code generation. ***/
  /*** RTOS startup code. Macro PEX_RTOS_START is defined by the RTOS component. DON'T MODIFY THIS CODE!!! ***/
  #ifdef PEX_RTOS_START
    PEX_RTOS_START();                  /* Startup of the selected RTOS. Macro is defined by the RTOS component. */
  #endif
  /*** End of RTOS startup code.  ***/
  /*** Processor Expert end of main routine. DON'T MODIFY THIS CODE!!! ***/
  for(;;) {
    if(exit_code != 0) {
      break;
    }
  }
  return exit_code;
  /*** Processor Expert end of main routine. DON'T WRITE CODE BELOW!!! ***/
} /*** End of main routine. DO NOT MODIFY THIS TEXT!!! ***/

/* END main */
/*!
** @}
*/
/*
** ###################################################################
**
**     This file was created by Processor Expert 10.1 [05.21]
**     for the Freescale S32K series of microcontrollers.
**
** ###################################################################
*/
fz835304205
关注
  • 4
    点赞
  • 踩
  • 21
    收藏
    觉得还不错? 一键收藏
  • 4
    评论
专栏目录
MPC5748 图片集
weixin_43863896的博客
02-14 515
基于NXP MPC5748xB-C-G 车联、工业网关控制系统-电路方案
04-20
MPC5748G可满足功能安全性，安全性和工业/汽车网关应用需求。 跟S32K系列相比，Calypso系列带有更多的资源和接口，提供多达6到8个CAN总线(均支持CAN FD)。 对以太网应用，请注意S32K148可以提供100MB以太网，...
mpc5748g_can_pal_test0.zip
01-15
参见我的博客: MPC5748G笔记 CAN can_pal. S32工程, 使用S32_SDK_PA_RTM_3.0.0, PE配置, 生成代码, 补全CAN收发用例
mpc5748G开发板学习笔记（一：点灯）
最新发布
guojingyue123的博客
06-19 1469
最近公司给了一个恩智浦的MPC5748G开发板，这是一款基于Power Archite技术的32位汽车MCU，好像要几千块，所以抓紧学习一下。
MPC5748G.pdf
10-28
mpc5748g data sheet
MPC5748G笔记 CAN can_pal
weifengdq的专栏
01-15 4645
文章目录前言CAN简介新建工程PE配置补全代码代码分析调试运行代码下载微信公众号 前言 MPC5748G开发环境搭建 MPC5748G S32_SDK_PA_RTM_3.0.0 GPIO 调试仿真设置 MPC5748G SDK 定时器 timing_pal MPC5748G UART uart_pal 前四篇讲了开发环境的搭建, GPIO的读写操作, 调试仿真的设置, 定时器的使用, 串口的使用等...
【MPC5748G】Bootloader移植（CAN通讯方式）
weixin_43186792的博客
11-13 2434
目录前言5748G flash分布以及启动原理boot程序解析app程序上位机移植过程中的问题下载地址参考 前言 笔者所在的公司近期选型用的新MCU，型号为NXP的MPC5748G，最近接到搞bootloader的任务，CSDN浏览一番发现MPC5744系列的文章比较多，于是参考了两个大佬的程序，将bootloader移植到了MPC5748G中。 参考的上位机 参考的MCU中的下位机 参考的5748 bootloader demo 上面第三个链接中，该作者只提供了bootloader的跳转demo，具体思路
mpc5748_gpio.zip
01-13
详细见我的博客MPC5748G S32_SDK_PA_RTM_3.0.0 GPIO 调试仿真设置 一篇, 使用S32 Design Studio for Power Architecture打开, GPIO的读写操作, 使用PE生成初始代码,
DEVKIT-MPC5748G-SCH.pdf
08-22
文档"DEVKIT-MPC5748G-SCH.pdf"主要涵盖了...总结来说，这份文档详细介绍了MPC5748G开发套件的电路设计，涵盖了通信接口、电源管理、用户交互和PCB布局等多个方面，对于开发基于MPC5748G的硬件系统有着重要的指导价值。
DEVKIT-MPC5748G-LAB_NXPMPC5748G_
09-28
通过分析这些文件名，我们可以推断，这个开发套件提供了全面的MPC5748G功能示例，涵盖了时钟管理、定时器、通信接口、内存保护、低功耗模式以及固件更新等多个方面，对于MPC5748G的开发人员来说，是一个宝贵的资源库...
MPC5748_MCAL.zip_388123c_MPC5747C_MPC5748例程_autosar mcal_autosar
07-14
实现MPC5748平台的AUTOSAR的MCAL部分代码
MPC5748G_bootloader+app
11-13
MPC5748G_bootloader+app程序，硬件为DEVKIT开发板，IDE为S32DS for powerPC
mpc5748g_can_demo.zip
01-30
基于MPC5748G的can例程，包含轮询和中断两种模式，官方例程比较少，有需要的可以下载 。
MPC5748GRM 完整版本手册
10-12
The MPC5748G is a 32-bit Power Architecture® based microcontroller unit (MCU) for automotive applications and builds on the successful legacy of the MPC56xx family of microcontrollers.
MPC5748G flash擦写例程
05-30
MPC5748G flash擦写例程 ，工程是greenhill ,有兴趣的可以下载看看
Example-MPC5744P-FlexPWM-CTU-ADC
12-16
《MPC5744P-FlexPWM-CTU-ADC技术详解——PMSM电机控制的关键要素》 在工业自动化领域，微处理器的应用日益广泛，尤其在电机控制中，高性能的微处理器如MPC5744P扮演着至关重要的角色。本篇文章将深入探讨MPC5744P...
MPC5744P-DEV-KIT-REVE-QSG.pdf
02-27
MPC5744P-DEV-KIT-REVE-QSG.pdf, NXP出品的开发板相关的快速入门相关的文档，一步一步教你如何使用开发板，以及其相关的软件环境。
MPC5748G笔记 以太网 LwIP
weifengdq的专栏
01-16 4414
文章目录前言ENET简介新建工程PE配置代码简析调试运行微信公众号 前言 MPC5748G开发环境搭建 MPC5748G S32_SDK_PA_RTM_3.0.0 GPIO 调试仿真设置 MPC5748G SDK 定时器 timing_pal MPC5748G UART uart_pal MPC5748G笔记 CAN can_pal 前几篇讲了开发环境的搭建, GPIO的读写操作, 调试仿真的设置...
MPC5748G开发环境搭建
weifengdq的专栏
01-08 6405
文章目录前言下载安装IDE安装更新补丁微信公众号 前言 前面介绍过NXP的S32K148, 这个是ARM Cortex-M4F内核, 本篇开始会介绍下Power Architecture®技术构建的MPC5748G, 另一款常用的汽车电子MCU. 开发环境为S32DS for Power Architecture®: 下载 打开 S32DS-PA: S32 Design Studio for P...
飞思卡尔mpc5125 U-boot移植步骤详解
"这篇文档是关于在飞思卡尔MPC5125芯片上移植U-boot的操作记录，详细描述了移植过程中的关键步骤，包括文件夹版本更新、新板型配置、启动代码修改以及硬件相关参数的设定。" 在移植U-boot到飞思卡尔MPC5125芯片的...
评论 4
添加红包

请填写红包祝福语或标题

个

红包个数最小为10个

元

红包金额最低5元

当前余额3.43元 前往充值 >
需支付：10.00元
成就一亿技术人!
领取后你会自动成为博主和红包主的粉丝 规则
hope_wisdom
发出的红包
实付元
使用余额支付
点击重新获取
扫码支付
钱包余额 0

抵扣说明：

1.余额是钱包充值的虚拟货币，按照1:1的比例进行支付金额的抵扣。
2.余额无法直接购买下载，可以购买VIP、付费专栏及课程。

余额充值
