sherpa-onnx部署笔记

Python接口调用

该项目分为sherpa-onnx版本与sherpa-ncnn版本，本文采用的是sherpa-onnx版本地址为

https://github.com/k2-fsa/sherpa-onnx

另一版本地址为

https://github.com/k2-fsa/sherpa-ncnn

需要事先安装sherpa-onnx包
cpu版本：

pip install sherpa-onnx -f https://k2-fsa.github.io/sherpa/onnx/cpu-cn.html

gpu版本需要安装对应的包，需要实现安装11.8版本的cuda，参考链接：

https://k2-fsa.github.io/sherpa/onnx/python/install.html#method-2-from-pre-compiled-wheels-cpu-cuda

再安装

pip install sherpa-onnx==1.11.1+cuda -f https://k2-fsa.github.io/sherpa/onnx/cuda.html

1、语音唤醒：

该项目位于sherpa-onnx/python-api-examples/目录下的keyword-spotter.py与keyword-spotter-from-microphone.py，一个是用于进行实时麦克风唤醒，另一个是音频唤醒

下载模型权重文件：
GitHub

cd /path/to/sherpa-onnx
wget https://github.com/k2-fsa/sherpa-onnx/releases/download/kws-models/sherpa-onnx-kws-zipformer-wenetspeech-3.3M-2024-01-01.tar.bz2
tar xf sherpa-onnx-kws-zipformer-wenetspeech-3.3M-2024-01-01.tar.bz2
rm sherpa-onnx-kws-zipformer-wenetspeech-3.3M-2024-01-01.tar.bz2

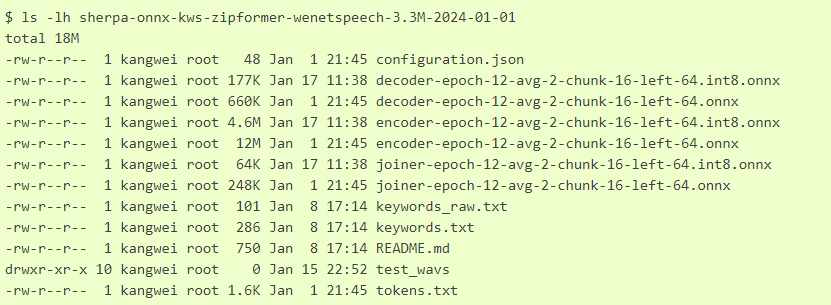

ls -lh sherpa-onnx-kws-zipformer-wenetspeech-3.3M-2024-01-01

Modelscope

cd /path/to/sherpa-onnx
git lfs install
git clone https://www.modelscope.cn/pkufool/sherpa-onnx-kws-zipformer-wenetspeech-3.3M-2024-01-01.git
ls -lh sherpa-onnx-kws-zipformer-wenetspeech-3.3M-2024-01-01

代码分别如下：
keyword-spotter-from-microphone.py

#!/usr/bin/env python3

# Real-time keyword spotting from a microphone with sherpa-onnx Python API
#
# Please refer to
# https://k2-fsa.github.io/sherpa/onnx/kws/pretrained_models/index.html
# to download pre-trained models

import argparse
import sys
from pathlib import Path

from typing import List

try:
    import sounddevice as sd
except ImportError:
    print("Please install sounddevice first. You can use")
    print()
    print("  pip install sounddevice")
    print()
    print("to install it")
    sys.exit(-1)

import sherpa_onnx


def assert_file_exists(filename: str):
    assert Path(filename).is_file(), (
        f"{
     filename} does not exist!\n"
        "Please refer to "
        "https://k2-fsa.github.io/sherpa/onnx/kws/pretrained_models/index.html to download it"
    )


def get_args():
    parser = argparse.ArgumentParser(
        formatter_class=argparse.ArgumentDefaultsHelpFormatter
    )

    parser.add_argument(
        "--tokens",
        type=str,
        default=r"./sherpa-onnx-kws-zipformer-wenetspeech-3.3M-2024-01-01/tokens.txt",  # 这里设置默认值
        help="Path to tokens.txt",
    )

    parser.add_argument(
        "--encoder",
        type=str,
        default=r"./sherpa-onnx-kws-zipformer-wenetspeech-3.3M-2024-01-01/encoder-epoch-12-avg-2-chunk-16-left-64.onnx",
        help="Path to the transducer encoder model",
    )

    parser.add_argument(
        "--decoder",
        type=str,
        default=r"./sherpa-onnx-kws-zipformer-wenetspeech-3.3M-2024-01-01/decoder-epoch-12-avg-2-chunk-16-left-64.onnx",
        help="Path to the transducer decoder model",
    )

    parser.add_argument(
        "--joiner",
        type=str,
        default=r"./sherpa-onnx-kws-zipformer-wenetspeech-3.3M-2024-01-01/joiner-epoch-12-avg-2-chunk-16-left-64.onnx",
        help="Path to the transducer joiner model",
    )

    parser.add_argument(
        "--num-threads",
        type=int,
        default=1,
        help="Number of threads for neural network computation",
    )

    parser.add_argument(
        "--provider",
        type=str,
        default="cpu",
        help="Valid values: cpu, cuda, coreml",
    )

    parser.add_argument(
        "--max-active-paths",
        type=int,
        default=4,
        help="""
        It specifies number of active paths to keep during decoding.  它指定了解码过程中要保留的活动路径的数量。
        """,
    )

    parser.add_argument(
        "--num-trailing-blanks",
        type=int,
        default=1,
        help="""The number of trailing blanks a keyword should be followed. Setting
        to a larger value (e.g. 8) when your keywords has overlapping tokens
        between each other.
        """,
    )

    parser.add_argument(
        "--keywords-file",
        type=str,
        default=r"./sherpa-onnx-kws-zipformer-wenetspeech-3.3M-2024-01-01/test_wavs/test_keywords.txt",
        help="""
        The file containing keywords, one words/phrases per line, and for each
        phrase the bpe/cjkchar/pinyin are separated by a space. For example:

        ▁HE LL O ▁WORLD
        x iǎo ài t óng x ué
        """,
    )

    parser.add_argument(
        "--keywords-score",
        type=float,
        default=1.0,
        help="""
        The boosting score of each token for keywords. The larger the easier to
        survive beam search.
        """,
    )

    parser.add_argument(
        "--keywords-threshold",
        type=float,
        default=0.25,
        help="""
        The trigger threshold (i.e. probability) of the keyword. The larger the
        harder to trigger.
        """,
    )

    return parser.parse_args()


def main():
    args = get_args()

    devices = sd.query_devices()
    if len(devices) == 0:
        print("No microphone devices found")
        sys.exit(0)

    print(devices)
    default_input_device_idx = sd.default.device[0]
    print(f'Use default device: {
     devices[default_input_device_idx]["name"]
