将sherpa-onnx嵌入unity中进行语音识别（ASR）

起因

因为有语音识别需求，且需要低延迟，在查找了很多ASR项目后，偶然间发现sherpa-onnx比较契合我的需求，因为可以本地部署还免费，查找了不少资料后发现很少有sherpa-onnx+unity的资料，因此尝试自己研究下。

sherpa-onnx项目基础介绍

sherpa-onnx 是一个开源项目，旨在提供离线的语音识别、文本转语音、说话人识别和语音活动检测（VAD）功能。该项目支持很多语言，其中包括C#，在原项目文件中有C#示例，因此可以移植到unity中，本文参考了sherpa-onnx的TTS实现和原项目C#示例代码。

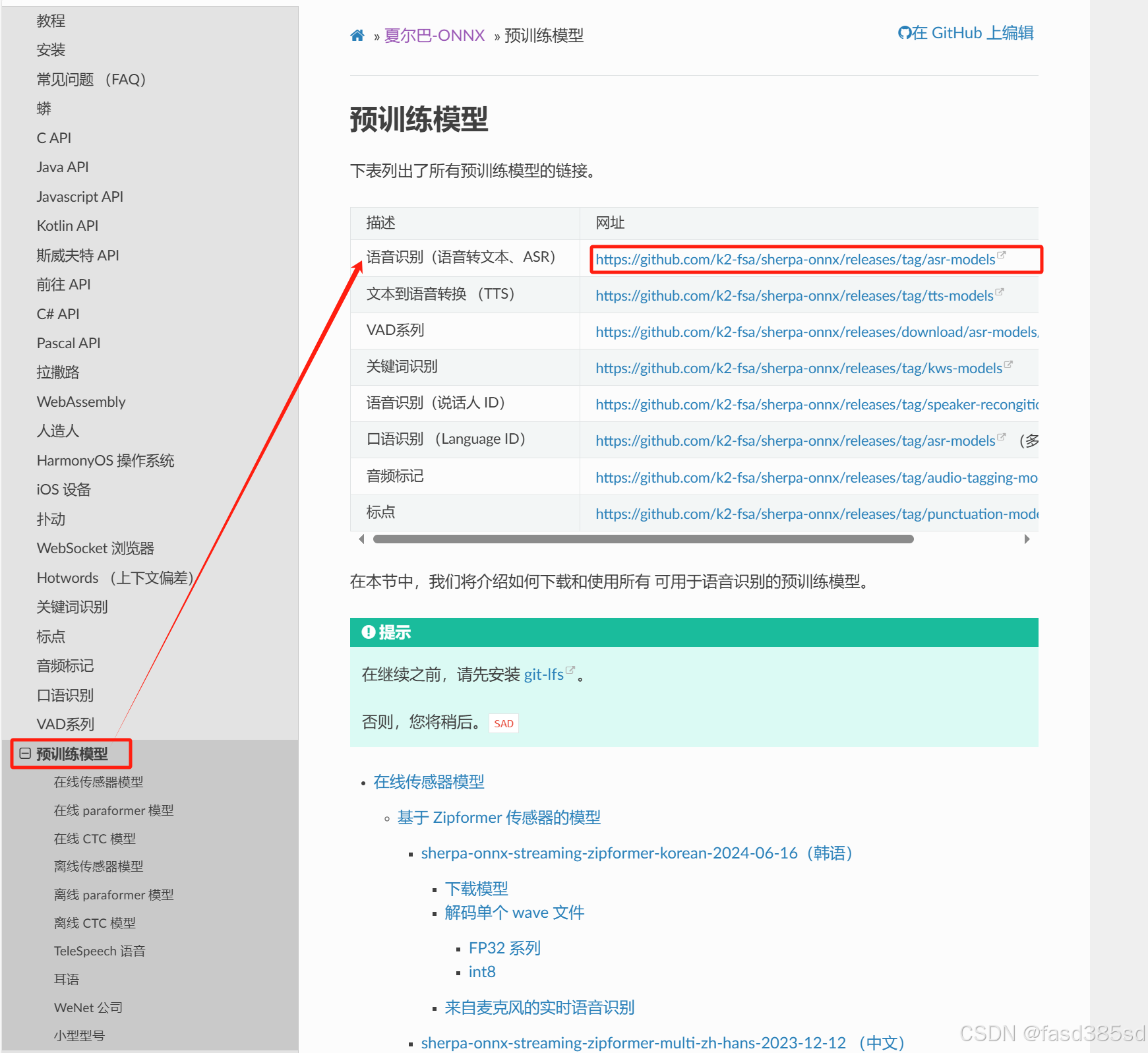

 首先该项目进行语音识别需要语音识别大模型，我这边以 sherpa-onnx-streaming-zipformer-bilingual-zh-en-2023-02-20 模型作为测试，要下载该模型请自行去该项目的官方网址去下载。​

然后需要导入相关dll库和lib库，我在原项目文件中找了很久都没找到，最后在他的示例项目中找到。

现在万事俱备，接下来可以开始了。

首先在官方的C#示例代码中有流式和非流式的示例代码，此处先以流式作为例子，至于非流式道理差不多。直接上代码：

using SherpaOnnx;
using System;
using System.Collections;
using System.Collections.Generic;
using System.IO;
using System.Threading;
using UnityEngine;

public class MyAsr_Test : MonoBehaviour
{
    private static int minFreq, maxFreq;//最小和最大频率
    WaitForSeconds seconds = new WaitForSeconds(0.2f);
    /// <summary>
    /// 上一次采样位置
    /// </summary>
    int lastSampling;

    float[] f = new float[16000];
    AudioClip microphoneClip;
    bool recoeding = true;

    bool Init()
    {
        if (Microphone.devices.Length > 0)
        {
            Debug.Log($"设备名称为：{Microphone.devices[0]}");
            Microphone.GetDeviceCaps(null, out minFreq, out maxFreq);
            if (minFreq == 0 && maxFreq == 0)
            {
                maxFreq = 44100;
            }
            return true;
        }
        return false;
    }

    /// <summary>
    /// 设置录音状态
    /// </summary>
    void SetRecoeding(bool recoeding)
    {
        this.recoeding = recoeding;
        if (recoeding)
            lastSampling = 0;
    }

    private IEnumerator Start()
    {
        Init();
        yield return seconds;
        var model_dir = Path.Combine(Application.streamingAssetsPath, "SoundToTextModel");
        var modelDir = Path.Combine(model_dir, "sherpa-onnx-streaming-zipformer-bilingual-zh-en-2023-02-20");
        OnlineRecognizerConfig config = new();
        config.FeatConfig.SampleRate = 16000;
        config.FeatConfig.FeatureDim = 80;
        config.ModelConfig.Transducer.Encoder = Path.Combine(modelDir, "encoder-epoch-99-avg-1.onnx");
        config.ModelConfig.Transducer.Decoder = Path.Combine(modelDir, "decoder-epoch-99-avg-1.onnx");
        config.ModelConfig.Transducer.Joiner = Path.Combine(modelDir, "joiner-epoch-99-avg-1.onnx");
        config.ModelConfig.Paraformer.Encoder = "";
        config.ModelConfig.Paraformer.Decoder = "";
        config.ModelConfig.Tokens = Path.Combine(modelDir, "tokens.txt");
        config.ModelConfig.Provider = "cpu";
        config.ModelConfig.NumThreads = 1;
        config.ModelConfig.Debug = 0;
        config.DecodingMethod = "greedy_search";
        config.MaxActivePaths = 4;
        config.EnableEndpoint = 1;
        config.Rule1MinTrailingSilence = 2.4f;
        config.Rule2MinTrailingSilence = 0.8f;
        config.Rule3MinUtteranceLength = 20;

        #region 添加识别标点符号的模型
        OfflinePunctuationConfig opc = new OfflinePunctuationConfig();
        OfflinePunctuationModelConfig opmc = new OfflinePunctuationModelConfig();
        string model_path = Path.Combine(model_dir, "sherpa-onnx-punct-ct-transformer-zh-en-vocab272727-2024-04-12", "model.onnx");
        if (!File.Exists(model_path))
        {
            yield break;
        }
        opmc.CtTransformer = model_path;
        opmc.NumThreads = 2;
        opmc.Provider = "cpu";
        opmc.Debug = 1;
        opc.Model = opmc;
        var offlinePunctuation = new OfflinePunctuation(opc);
        #endregion
        OnlineRecognizer recognizer = new(config);
        OnlineStream s = recognizer.CreateStream();
        string lastText = string.Empty;
        int segmentIndex = 0;

        // 等待应用获取麦克风权限
        yield return Application.RequestUserAuthorization(UserAuthorization.Microphone);
        // 如果未获取到麦克风权限
        if (!Application.HasUserAuthorization(UserAuthorization.Microphone))
            yield break;
        do
        {
            microphoneClip = Microphone.Start(null, true, 1, 16000);
            yield return null;
        }
        while (!Microphone.IsRecording(null));
        Application.quitting += () => Microphone.End(null);
        Debug.Log("开始录音");
        while (true)
        {
            yield return seconds;
            int currentPos = Microphone.GetPosition(null);
            bool isSucceed = microphoneClip.GetData(f, 0);
            if (!recoeding)
                continue;
            if (isSucceed)
            {
                if (lastSampling != currentPos)
                {
                    int count = 0;
                    float[] p = default;
                    if (currentPos > lastSampling)
                    {
                        count = currentPos - lastSampling;
                        p = new float[count];
                        Array.Copy(f, lastSampling, p, 0, count);
                    }
                    else
                    {
                        count = 16000 - lastSampling;
                        p = new float[count + currentPos];
                        Array.Copy(f, lastSampling, p, 0, count);

                        Array.Copy(f, 0, p, count, currentPos);

                        count += currentPos;
                    }
                    lastSampling = currentPos;
                    s.AcceptWaveform(16000, p);
                }
            }

            while (recognizer.IsReady(s))
            {
                recognizer.Decode(s);
            }

            var text = recognizer.GetResult(s).Text;
            bool isEndpoint = recognizer.IsEndpoint(s);
            if (!string.IsNullOrWhiteSpace(text) && lastText != text)
            {
                lastText = text;
                Debug.Log($"\r{segmentIndex}: {lastText}");
            }

            if (isEndpoint)
            {
                if (!string.IsNullOrWhiteSpace(text))
                {
                    ++segmentIndex;
                    lastText = offlinePunctuation.AddPunct(text);
                    Debug.Log($"\r{segmentIndex}: {lastText}");
                }
                recognizer.Reset(s);
            }
        }
    }
}

上述是一个测试脚本，引入了sherpa-onnx自动添加标点的模型（该模型同样去官网自行下载），因为仅使用sherpa-onnx的asr语音识别模型那么它识别的结果不会自动添加标点符号，如果不需要自动添加标点可以将自动添加标点的部分代码删掉。

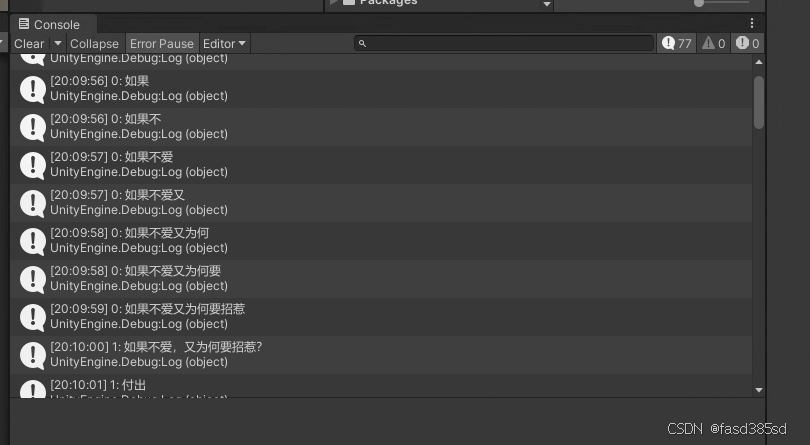

将该脚本随便挂在一个物体上就可以测试了，个人觉得还行（这里以音乐来测试）。
