比如要生成.bin文件: fromelf.exe --bin -o “XX.bin” "#L"

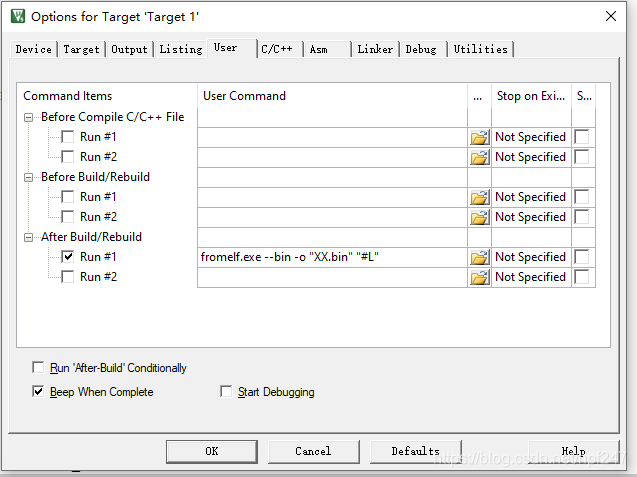

工程配置如下:
最终生成了XX.bin格式文件 :
下面列出fromelf.exe语法:
fromelf [options] input_file (命令的格式)
Options:
--help display this help screen (显示帮助信息)
--vsn display version information (显示版本信息)
--output file the output file. (defaults to stdout for -text format) (输出文件(默认的输出为文本格式))
--nodebug do not put debug areas in the output image (在生成的映象中不包含调试信息)
--nolinkview do not put sections in the output image (在生成的映象中不包含段的信息)
Binary Output Formats:
--bin Plain Binary (生成Plain Binary格式的文件)
--m32 Motorola 32 bit Hex (生成Motorola 32位十六进制格式的文件)
--i32 Intel 32 bit Hex (生成Intel 32位十六进制格式的文件)
--vhx Byte Oriented Hex format (面向字节的位十六进制格式的文件t)
--base addr Optionally set base address for m32,i32 (设置m32,i32格式文件的基地址)
Output Formats Requiring Debug Information (需要调试信息的格式)
--fieldoffsets Assembly Language Description of Structures/Classes (结构/类的汇编语言描述)
--expandarrays Arrays inside and outside structures are expanded (扩展数组内部和外部结构被扩展)
Other Output Formats:
--elf ELF
--text Text Information (显示文本信息)
Flags for Text Information
-v verbose (打印详细信息)
-a print data addresses (For images built with debug) (打印数据地址(针对带调试信息的映象))
-c disassemble code (打印反汇编代码)
-d print contents of data section (打印数据段的内容)
-e print exception tables (打印表达式表)
-g print debug tables (打印调试表)
-r print relocation information (打印重定位信息)
-s print symbol table (打印字符表)
-t print string table (打印字符串表)
-y print dynamic segment contents (打印动态段的内容)
-z print code and data size information (打印代码和数据大小的信息)
