使用VS传统方法制作

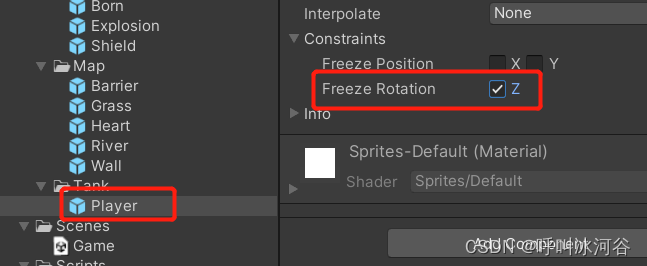

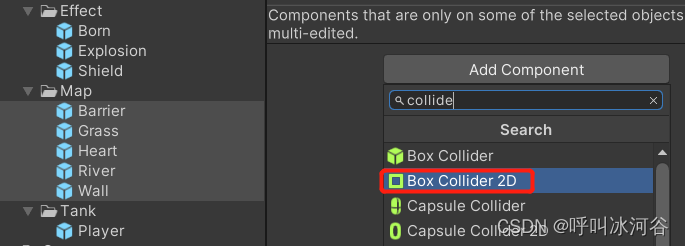

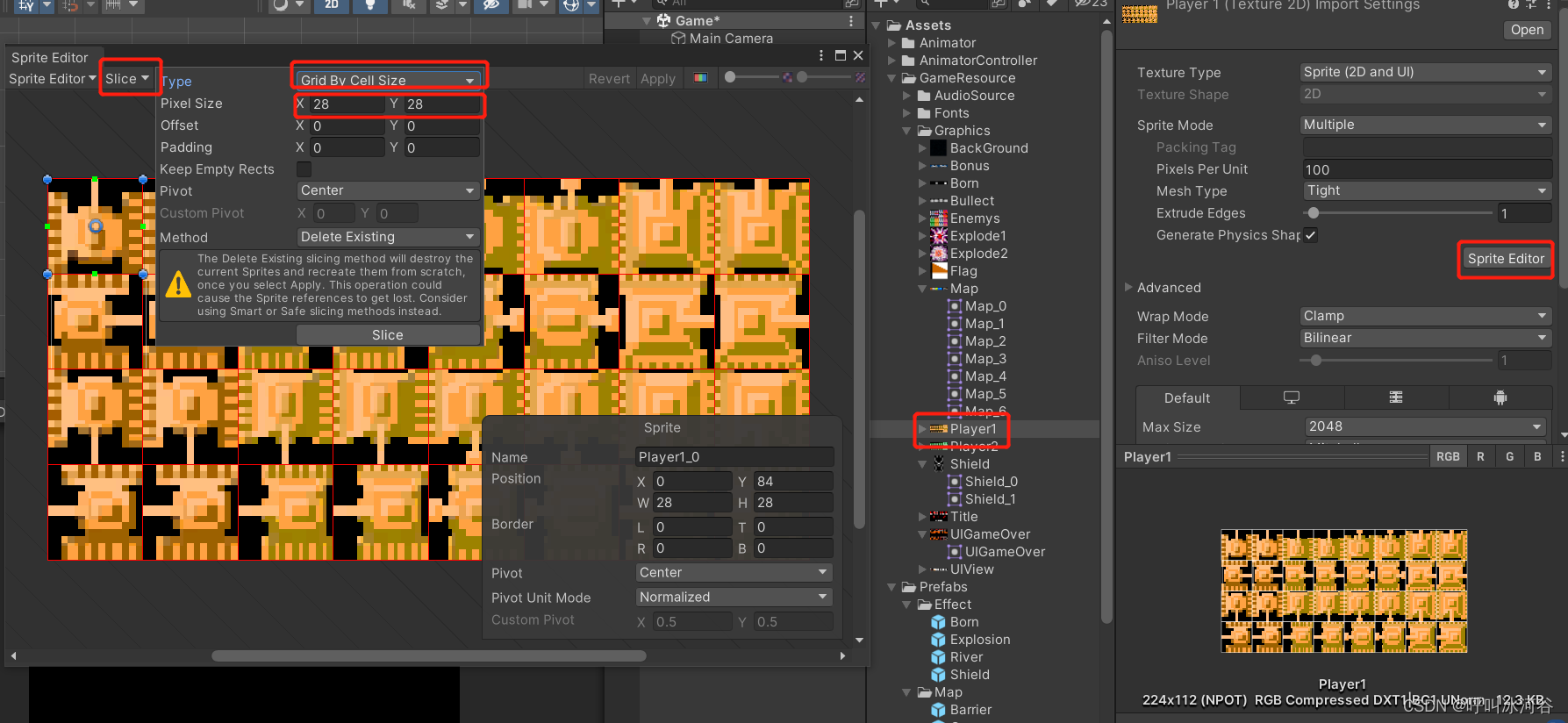

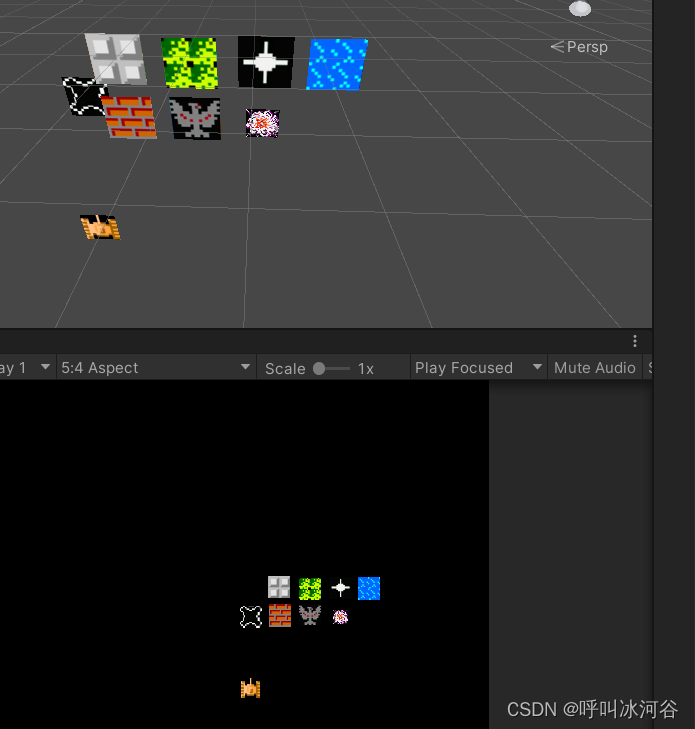

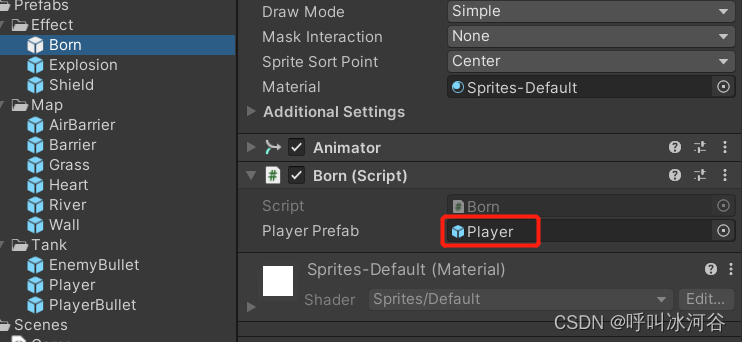

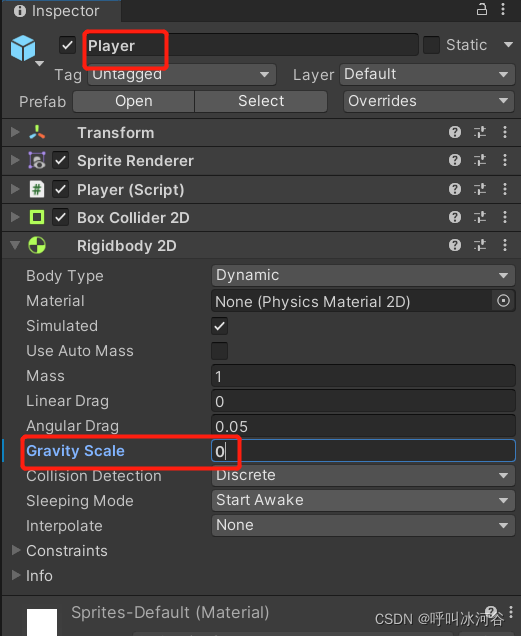

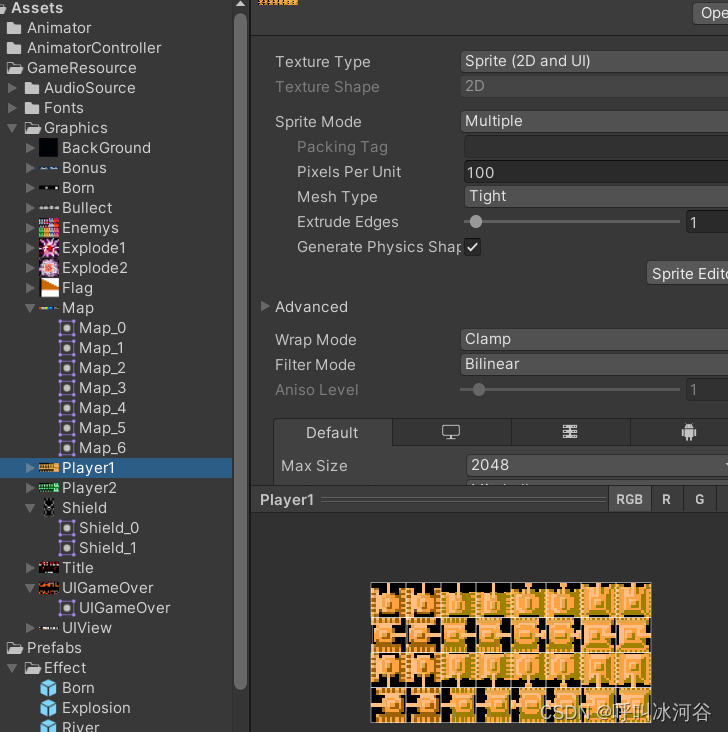

使用Unity制作

使用VS传统方法制作

写在前面的话

C#可以干什么？

桌面应用开发（用的少，现在市面上的桌面应用大部分是C++开发的）
Unity游戏开发
Web开发（用的少，现在市面上的网站是Java/PHP开发的）

开发工具：Unity、VS

注意：杀毒软件可能会把开发完成阶段生成的exe文件误当成病毒删除，所以使用时注意关闭

一、准备

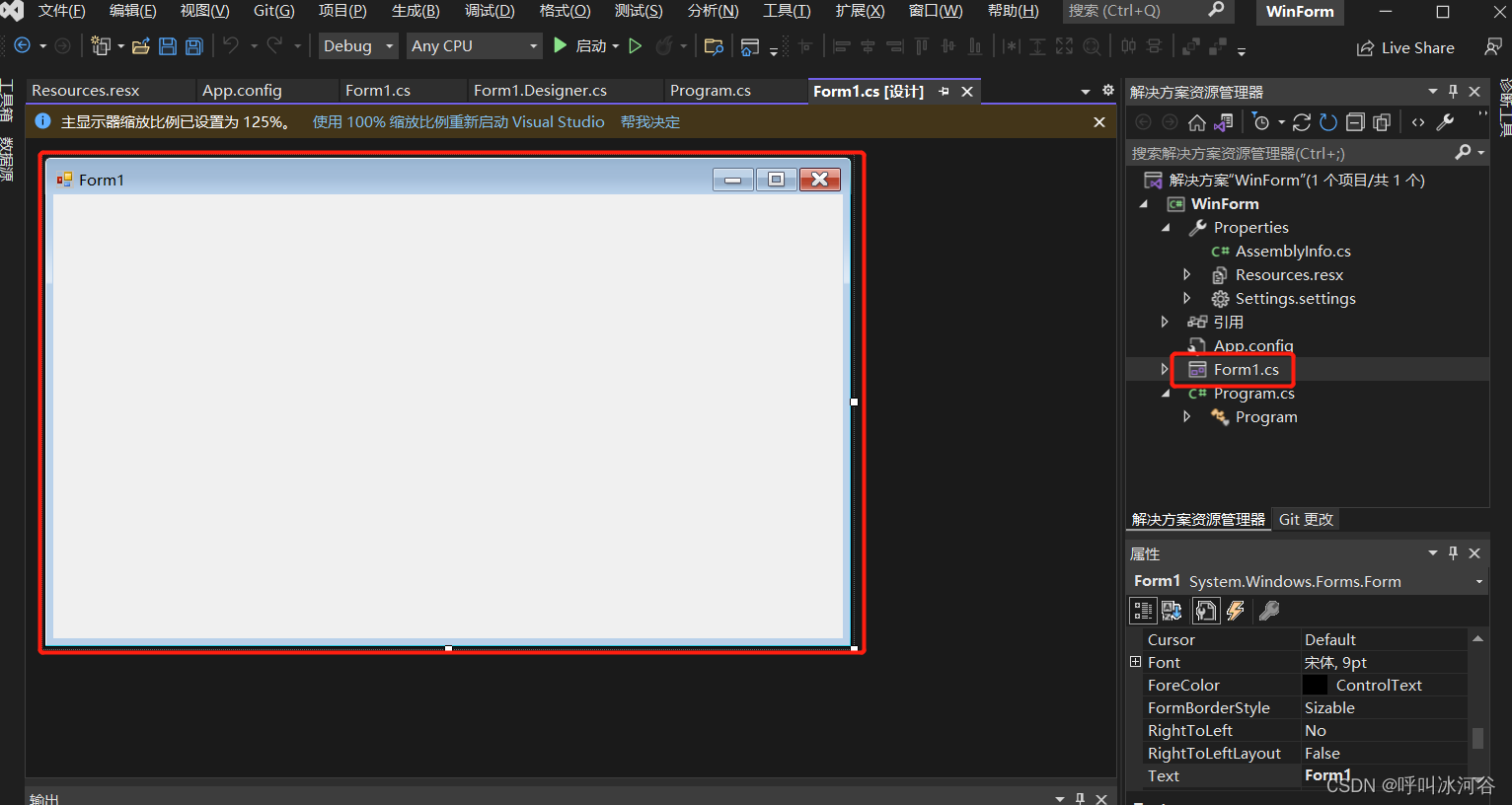

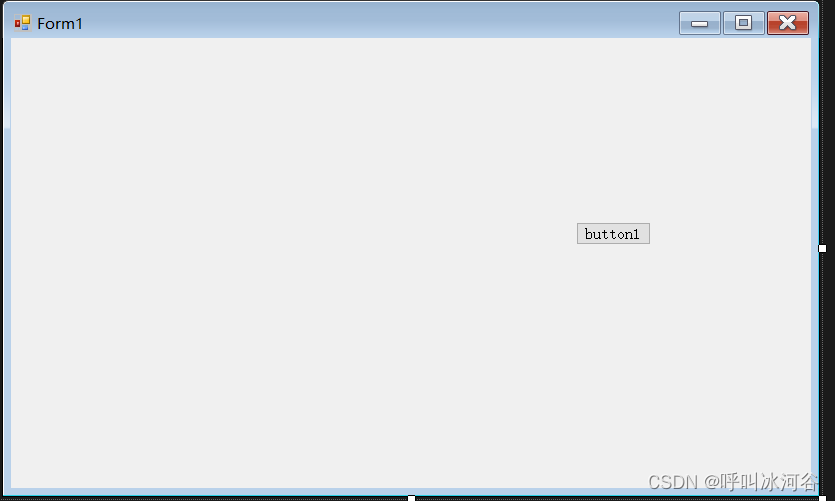

进入项目后可以看到Form1.cs的设计模型框

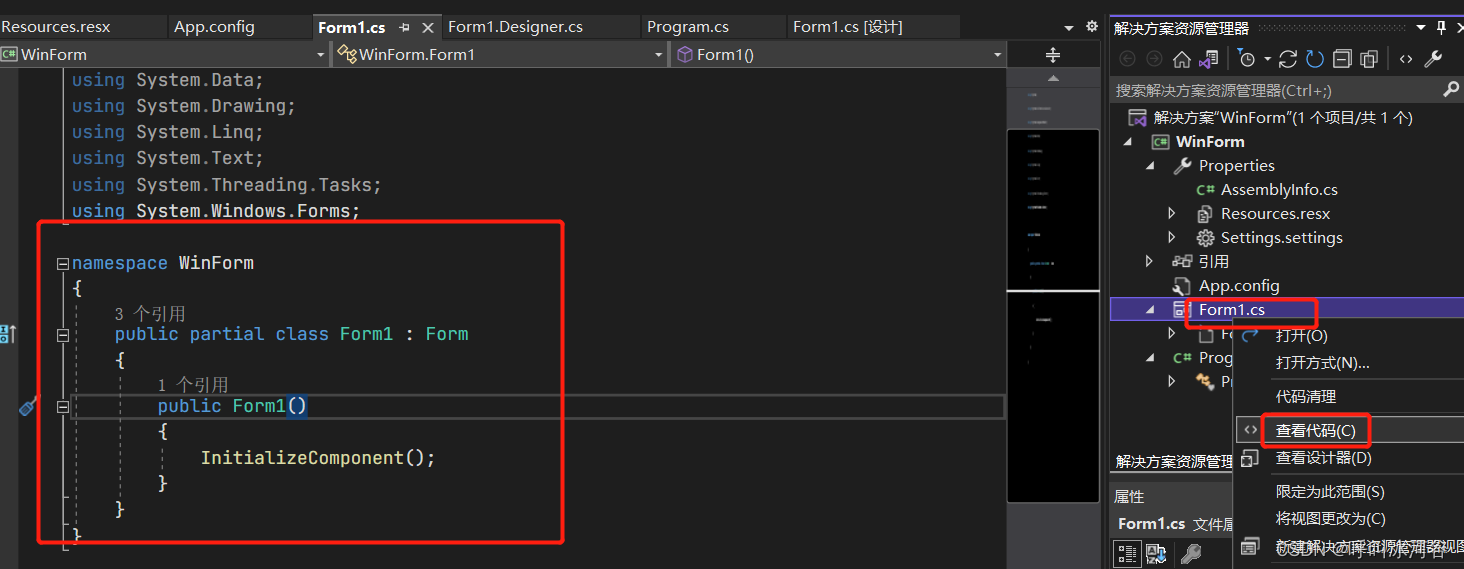

鼠标右键选择查看代码，可查看Form1.cs的具体代码

选择视图->工具箱，在工具箱中有一些系统自带组件鼠标拖动到Form1.cs进行UI布局的设计

控制窗体显示的位置

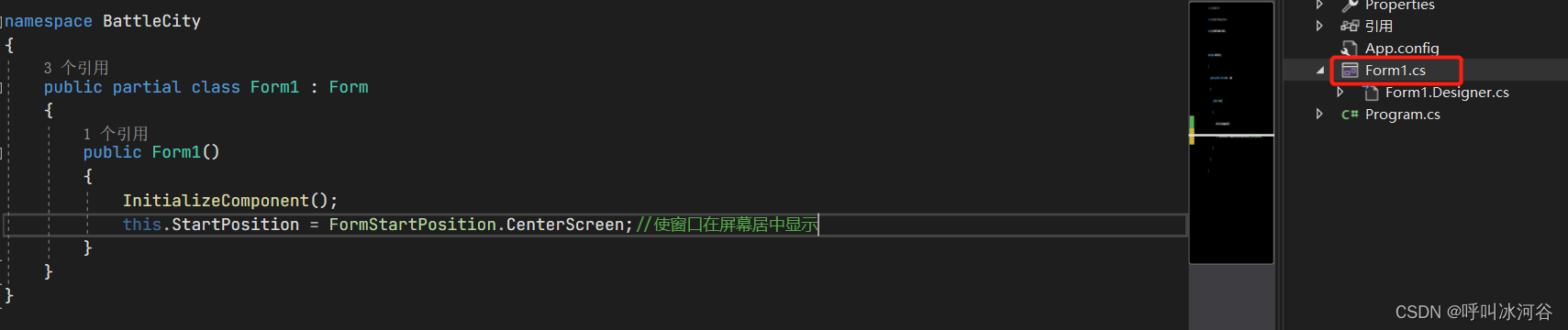

居中显示

自定义位置显示

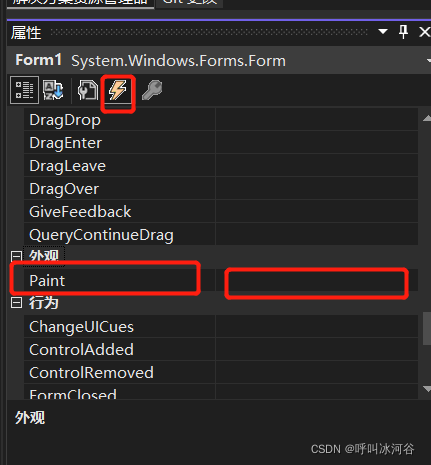

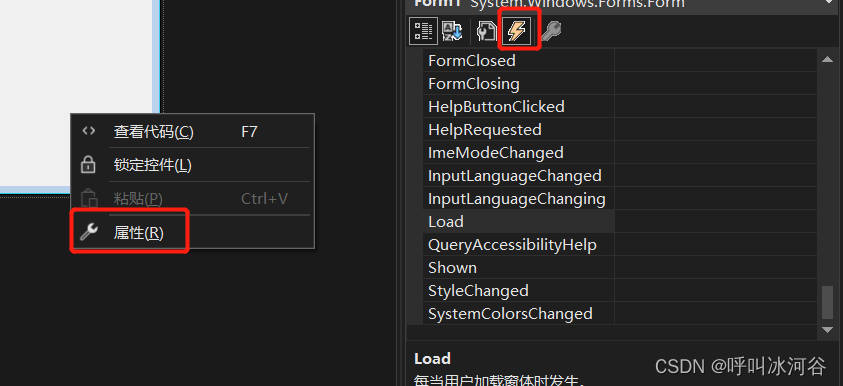

查看窗体事件有哪些

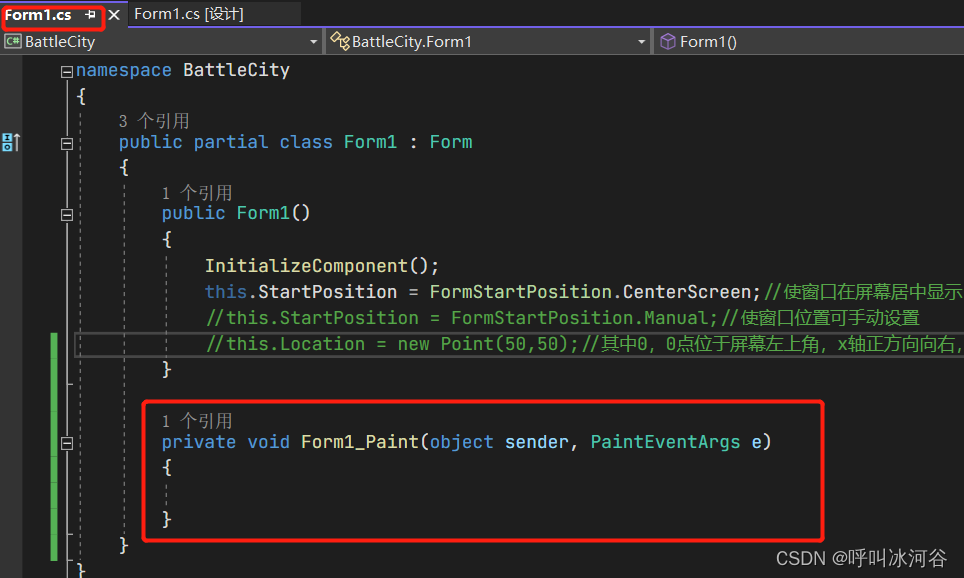

我们找到Paint（这个事件是用于更新画布的），然后在其后面的空格处双击，然后我们就会得到一个Form1_Paint方法

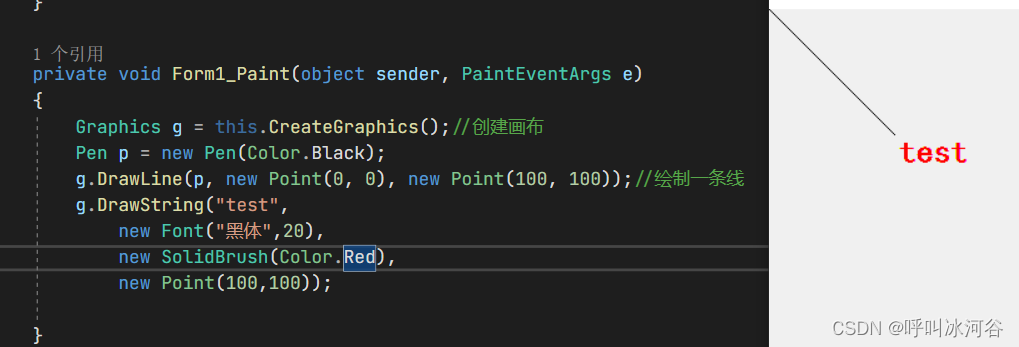

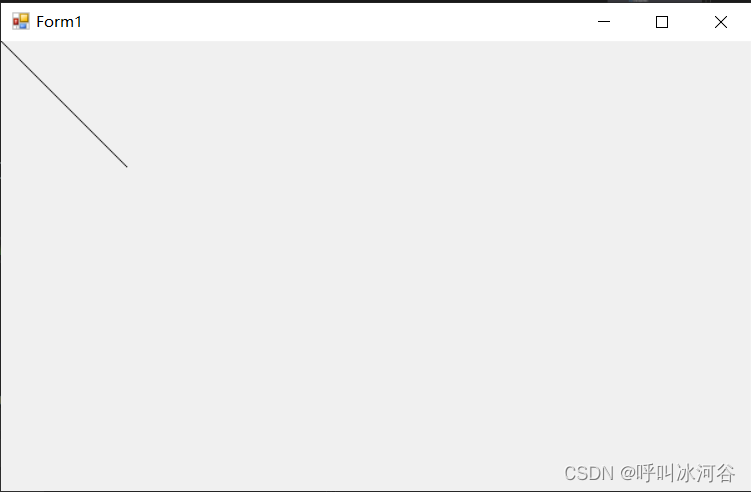

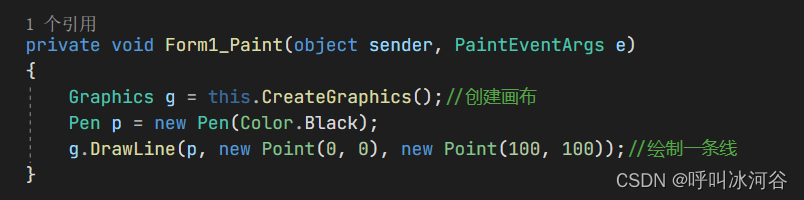

下面我们在此方法中编写代码去画一条线段

注意这里的坐标原点是表头以下部分的左上角

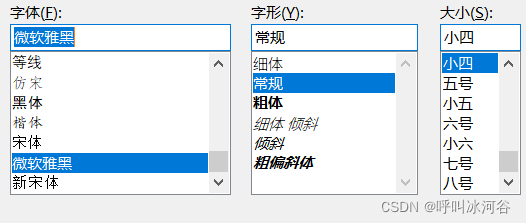

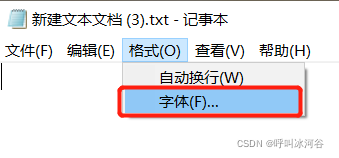

查看本机有哪些字体？新建一个txt文件打开，然后找到字体即可查看

绘制文字

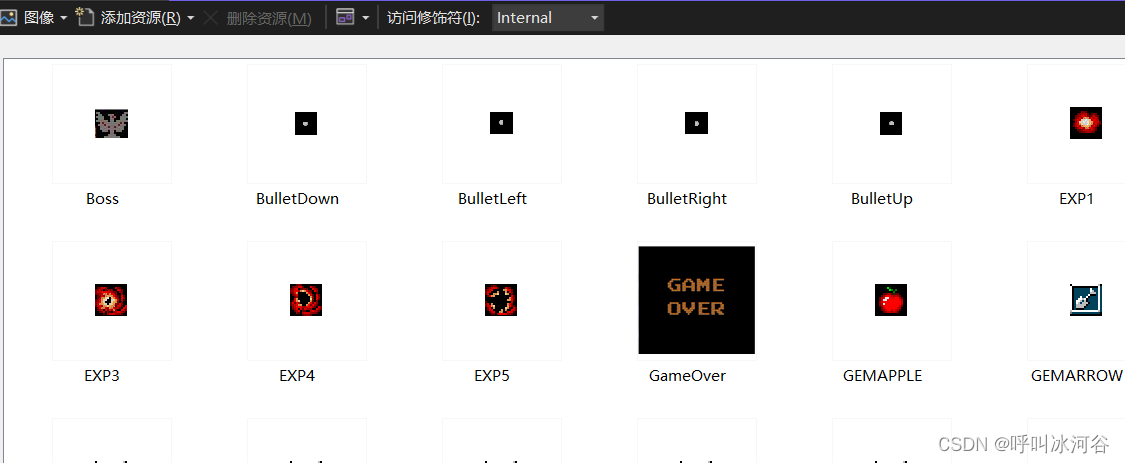

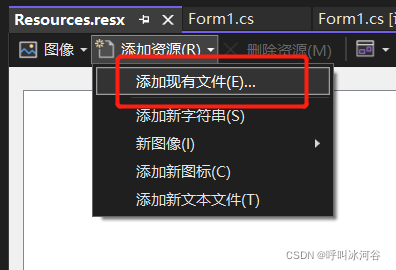

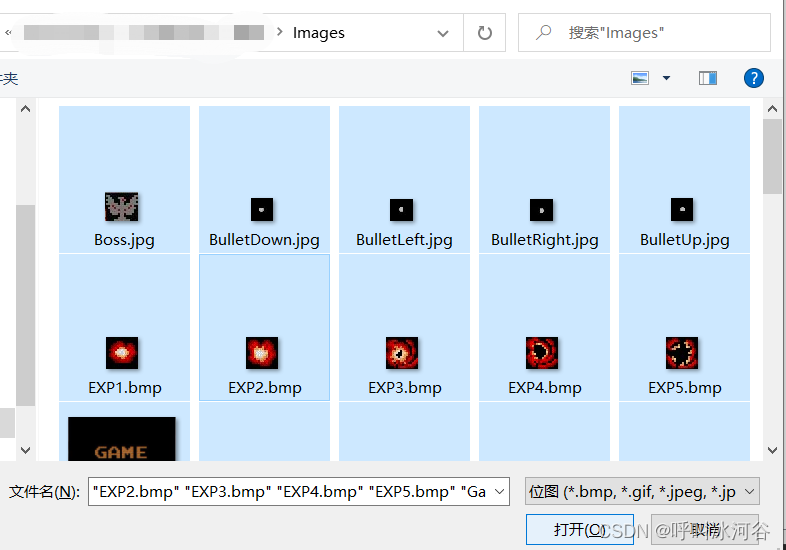

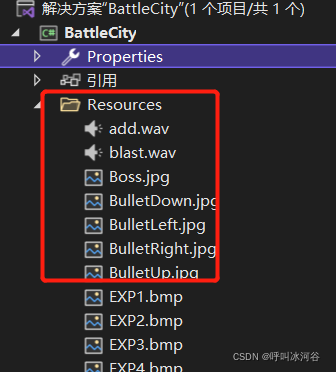

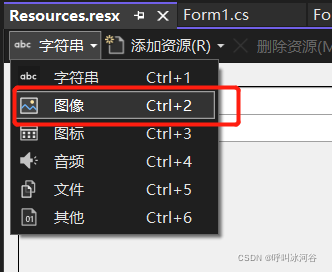

绘制图片，双击打开Resources文件，选择图像，选择添加现有文件，选择导入即可

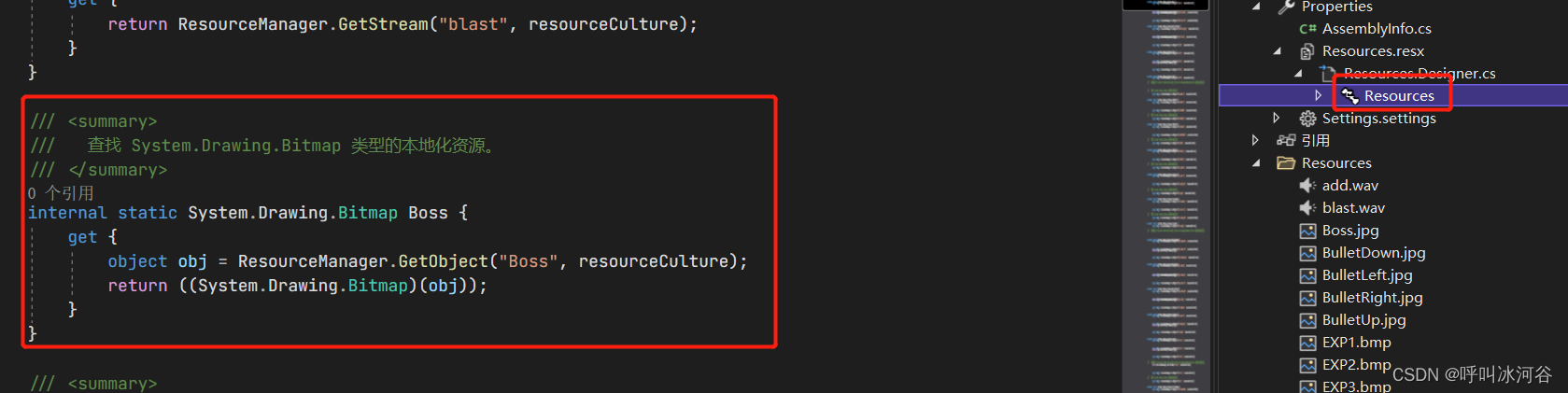

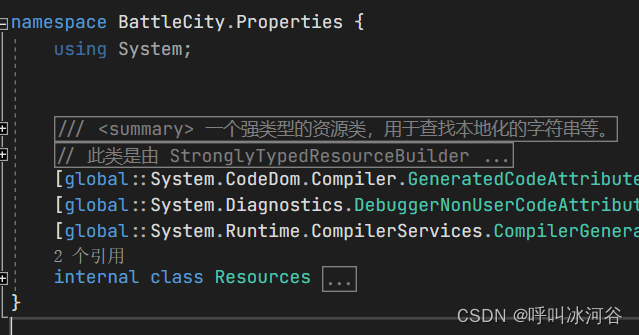

我们可以在Resources类下发现有自动生成的代码

同理，添加音频

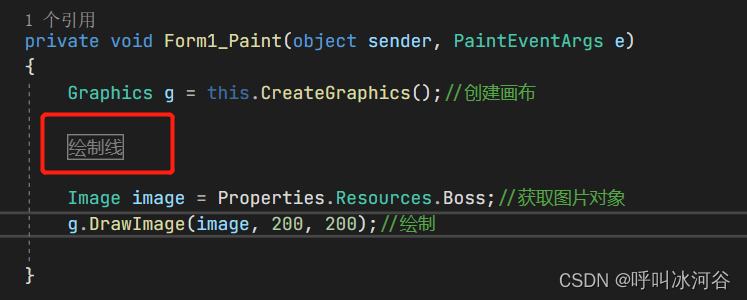

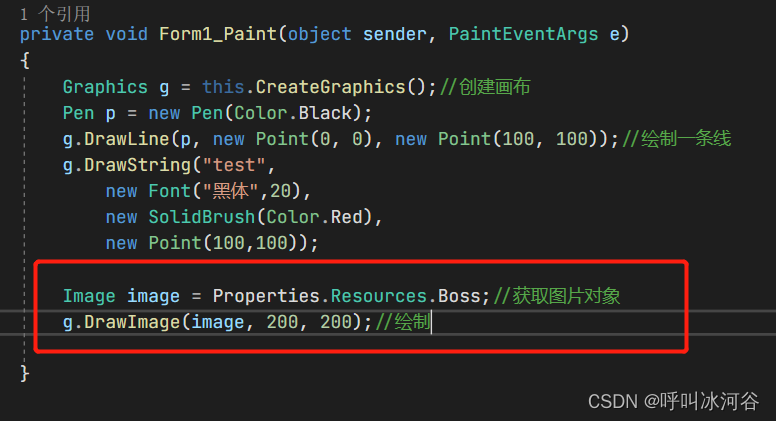

编写代码

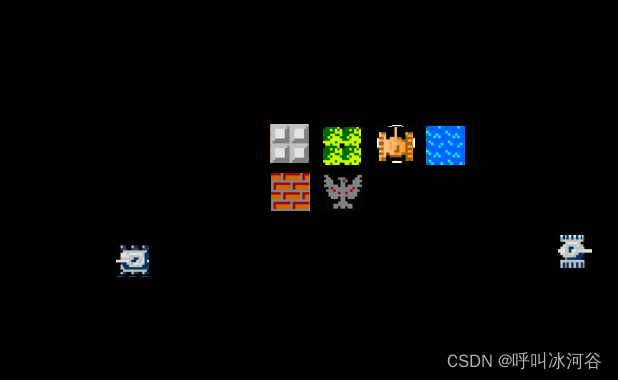

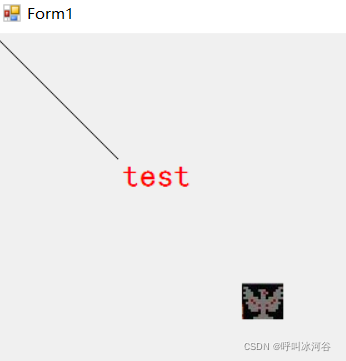

绘制图片成功

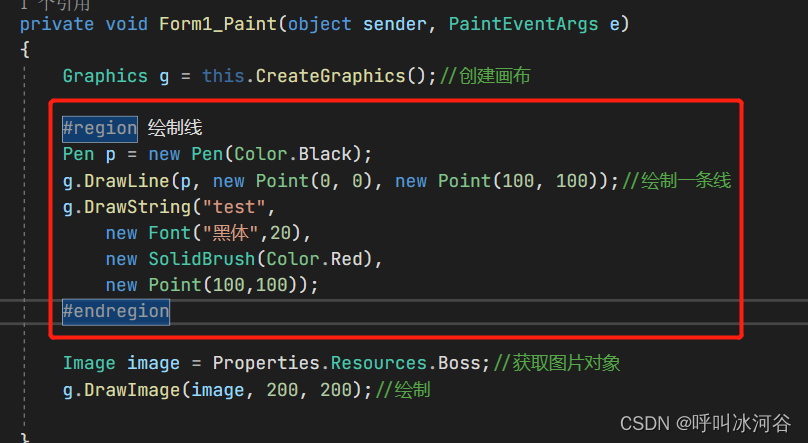

控制代码收缩，使用region和endregion

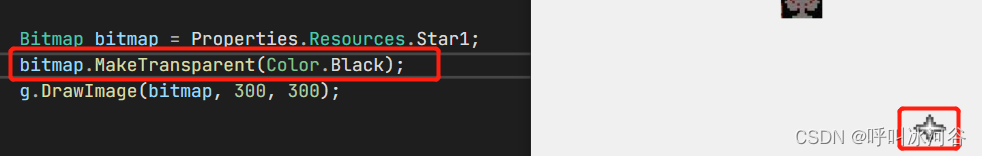

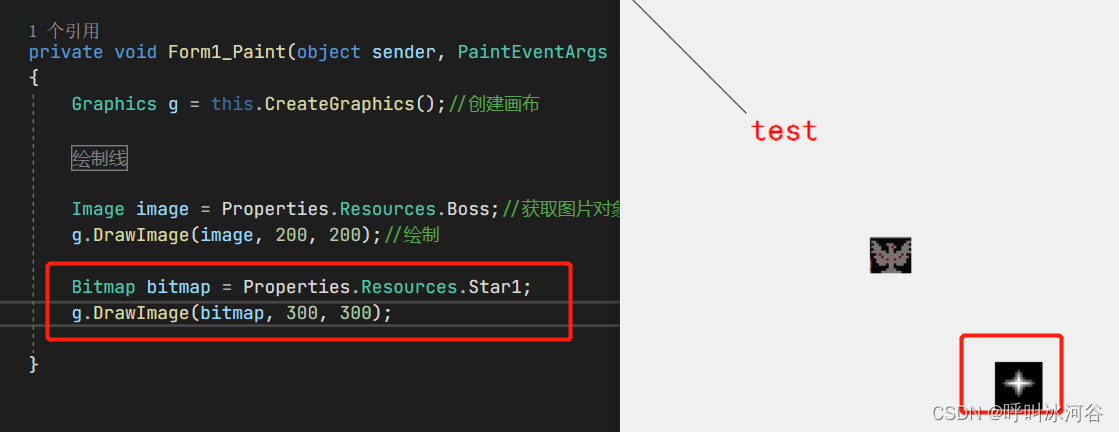

也可用Bitmap来获取图片对象且使用它可以对颜色进行透明处理

二、正式开始

1.创建画布窗口

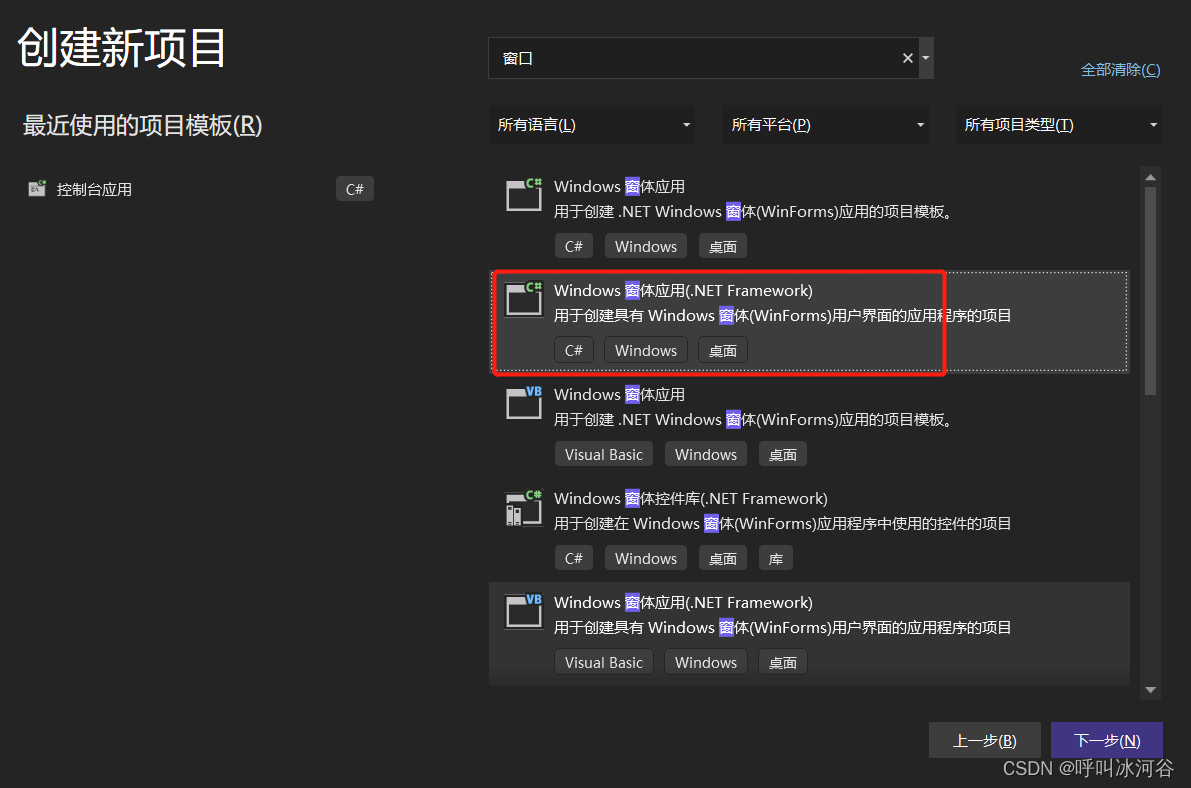

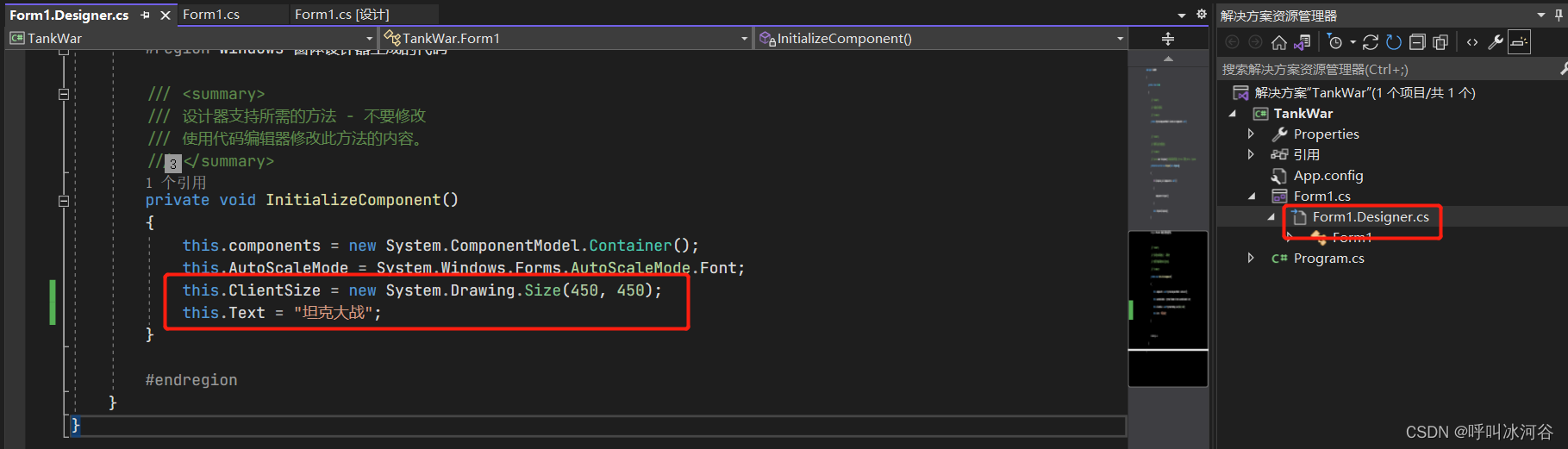

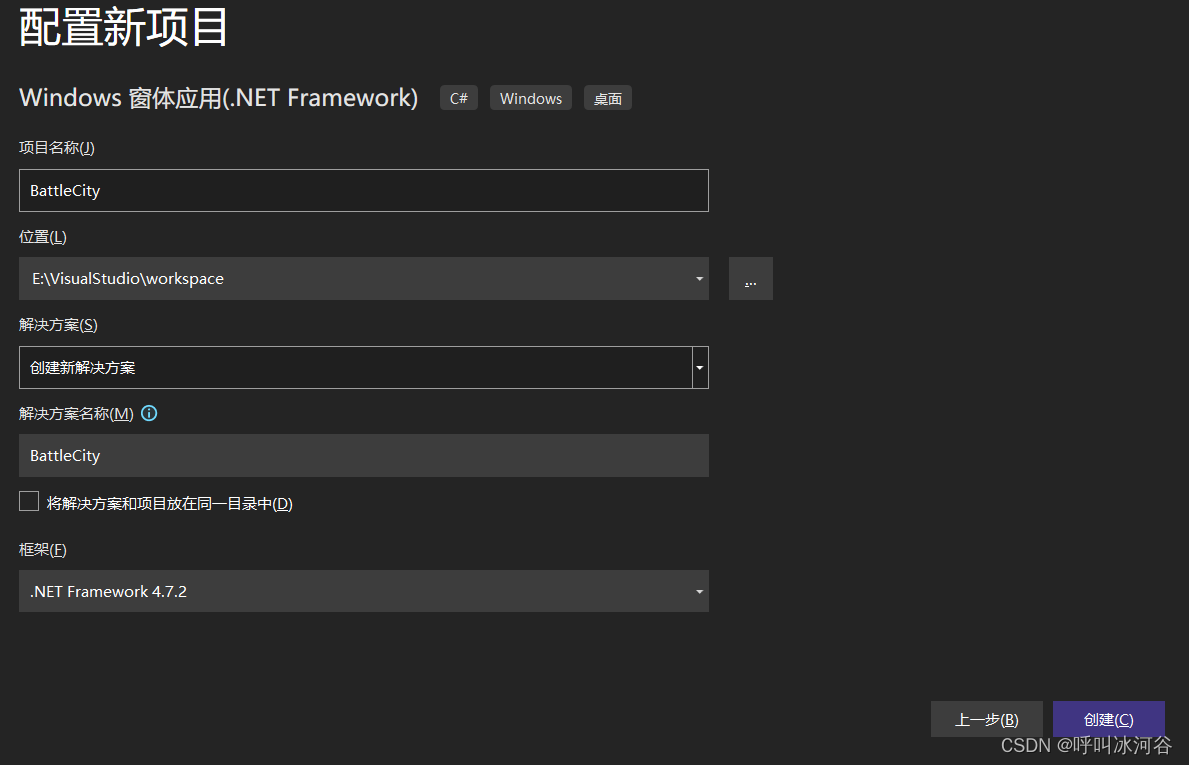

创建窗体应用项目，设置窗口居中显示，设置标题（长宽均为15*30像素，为了对此取奇数）和游戏标题

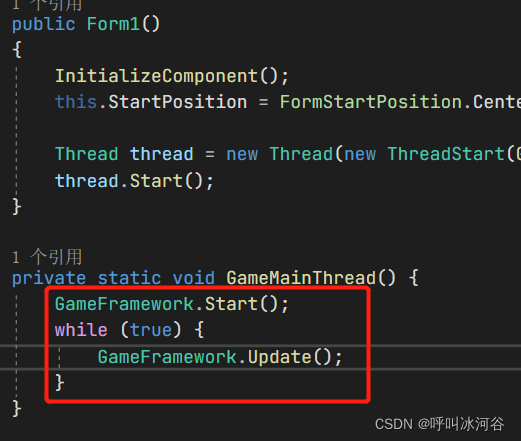

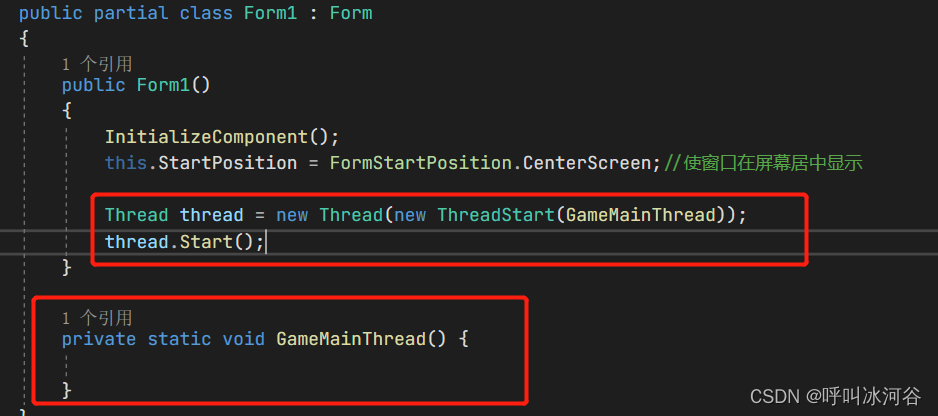

新建一个线程

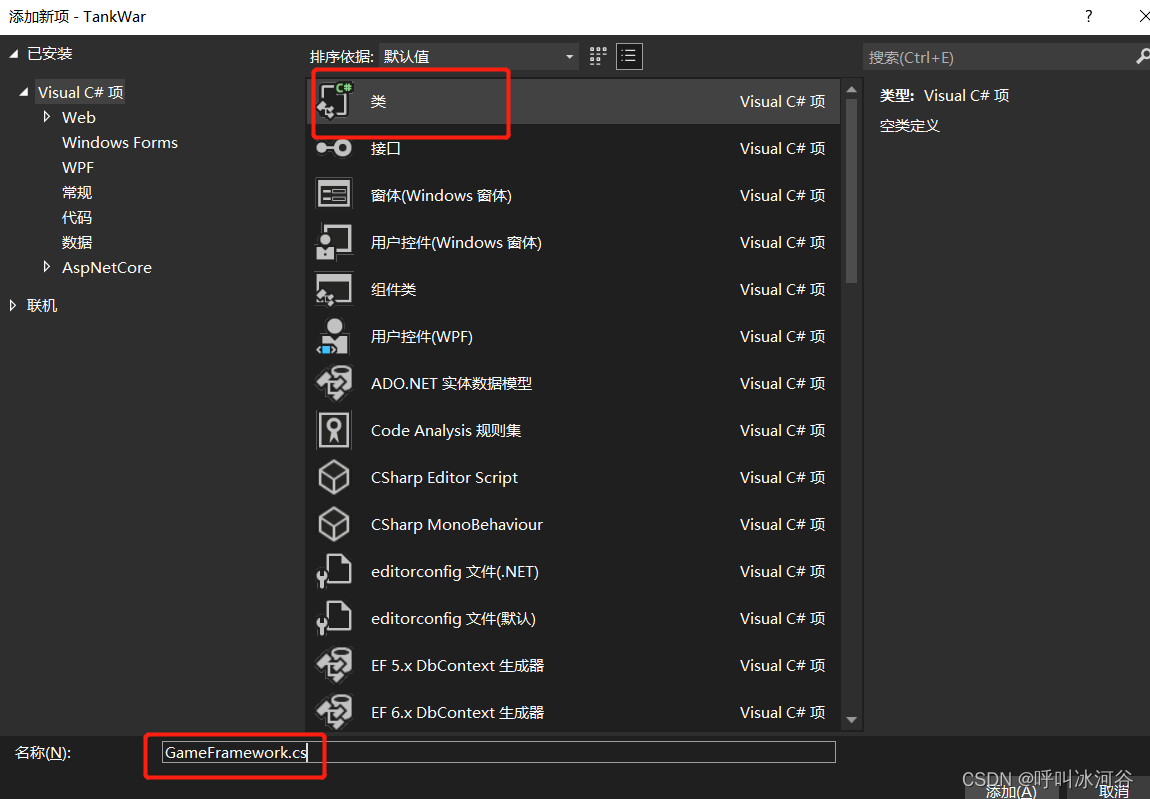

新建一个类（项目右键添加->类）

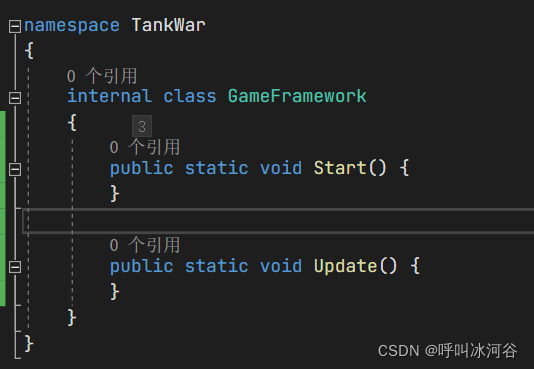

创建Start和Update方法，Start方法用于游戏启动时的初始化，Update用于游戏每帧画面的更新逻辑操作

为了优化性能，限制1s执行60次update方法

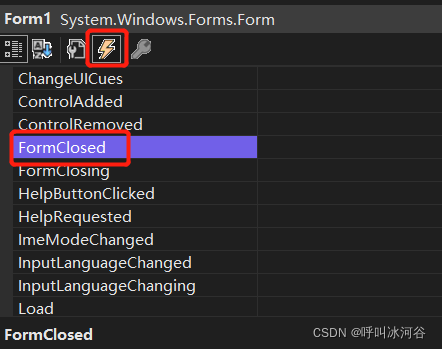

我们在调试时可以发现，当关闭窗口后主线程没有关闭，这是因为子线程没有关闭的情况下子线程是不会关闭的，我们添加一个FormClosed事件（方法见一）

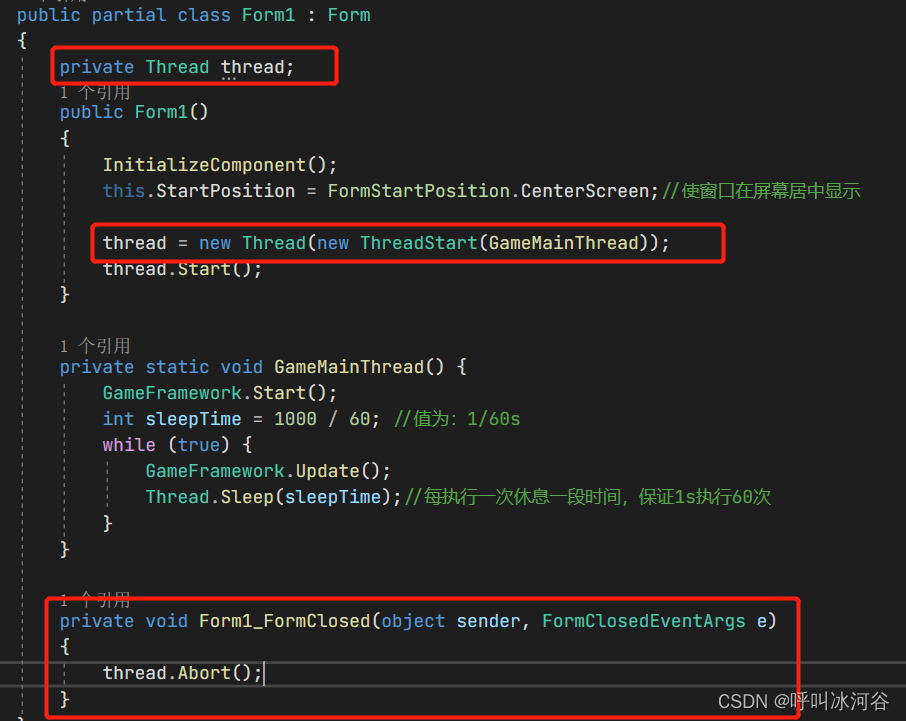

修改Thread作用域，然后在FormClosed方法中调用中断线程的方法

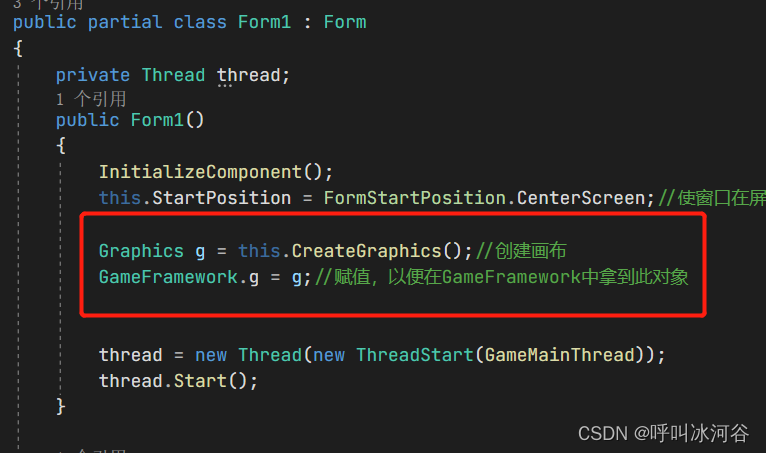

创建画布并赋值

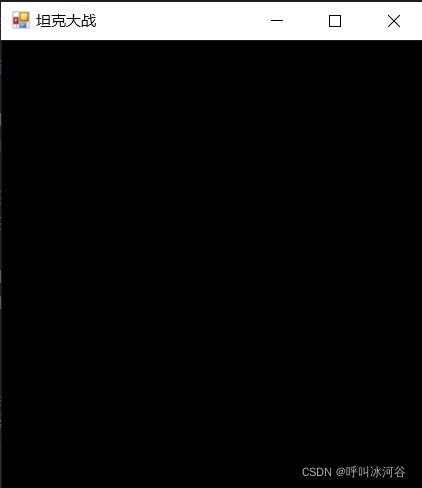

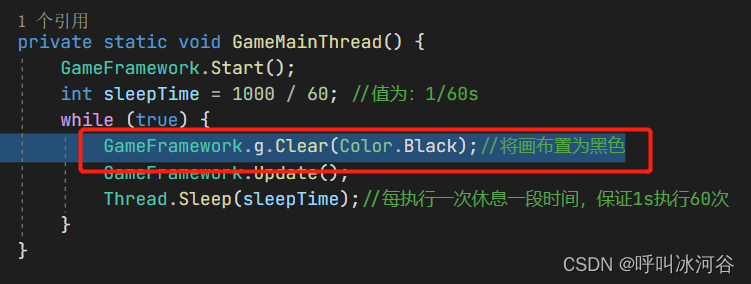

将画布置为黑色 (为什么要把置为黑色代码放到每一帧里面重复执行？我直接执行一次不就好了吗？答案是：因为我们在游戏中还有动态的坦克，如果只执行一次则在创建坦克时会有重复)

2.绘制地图

创建GameObject类

using System;
using System.Collections.Generic;
using System.Linq;
using System.Text;
using System.Threading.Tasks;

namespace TankWar
{
    class GameObject
    {
        public int X { get; set; }
        public int Y { get; set; }

        //上述等价于
        //public int y;
        //public int Y {
        //    get {
        //        return y;
        //    }
        //    set {
        //        value = y;
        //    }
        //}
    }
}

创建NotMovingThing类，继承GameObject，新建Image对象

using System;
using System.Collections.Generic;
using System.Drawing;
using System.Linq;
using System.Text;
using System.Threading.Tasks;

namespace TankWar
{
    class NotMoveThing:GameObject
    {
        public Image img { get; set; }
    }
}

创建MoveThing类

using System;
using System.Collections.Generic;
using System.Drawing;
using System.Linq;
using System.Text;
using System.Threading.Tasks;

namespace TankWar
{
    enum Direction{
        UP,
        DOWN,
        LEFT,
        RIGHT
    }
    class MoveThing:GameObject
    {
        public Bitmap BitmapUp { get; set; }
        public Bitmap BitmapDown { get; set; }
        public Bitmap BitmapLeft { get; set; }
        public Bitmap BitmapRight { get; set; }
        public int Speed { get; set; }
        public Direction direction { get; set; }
    }
}

创建MyTank、EnemyTank、Bullet，分别继承MoveThing

using System;
using System.Collections.Generic;
using System.Linq;
using System.Text;
using System.Threading.Tasks;

namespace TankWar
{
    class MyTank:MoveThing
    {
    }
}

using System;
using System.Collections.Generic;
using System.Linq;
using System.Text;
using System.Threading.Tasks;

namespace TankWar
{
    class EnemyTank:MoveThing
    {
    }
}

using System;
using System.Collections.Generic;
using System.Linq;
using System.Text;
using System.Threading.Tasks;

namespace TankWar
{
    class Bullet:MoveThing
    {
    }
}

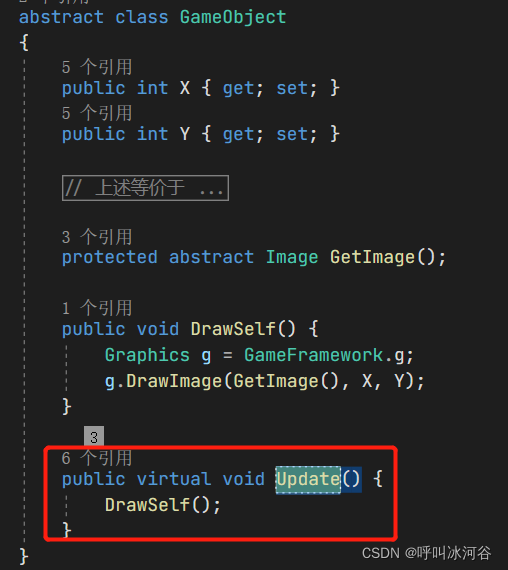

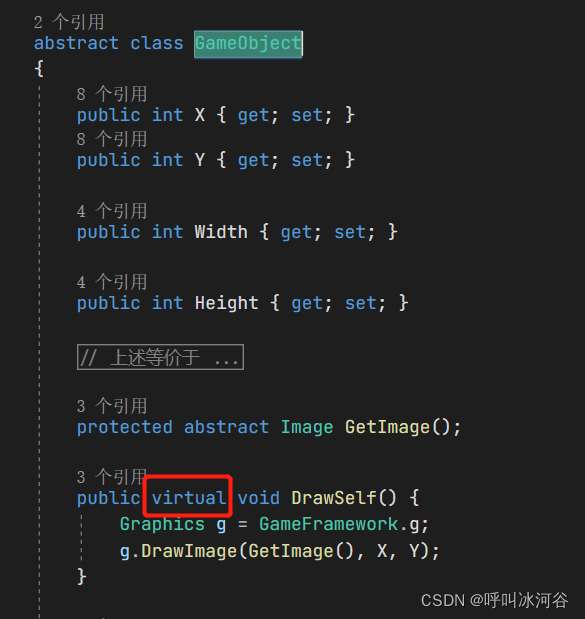

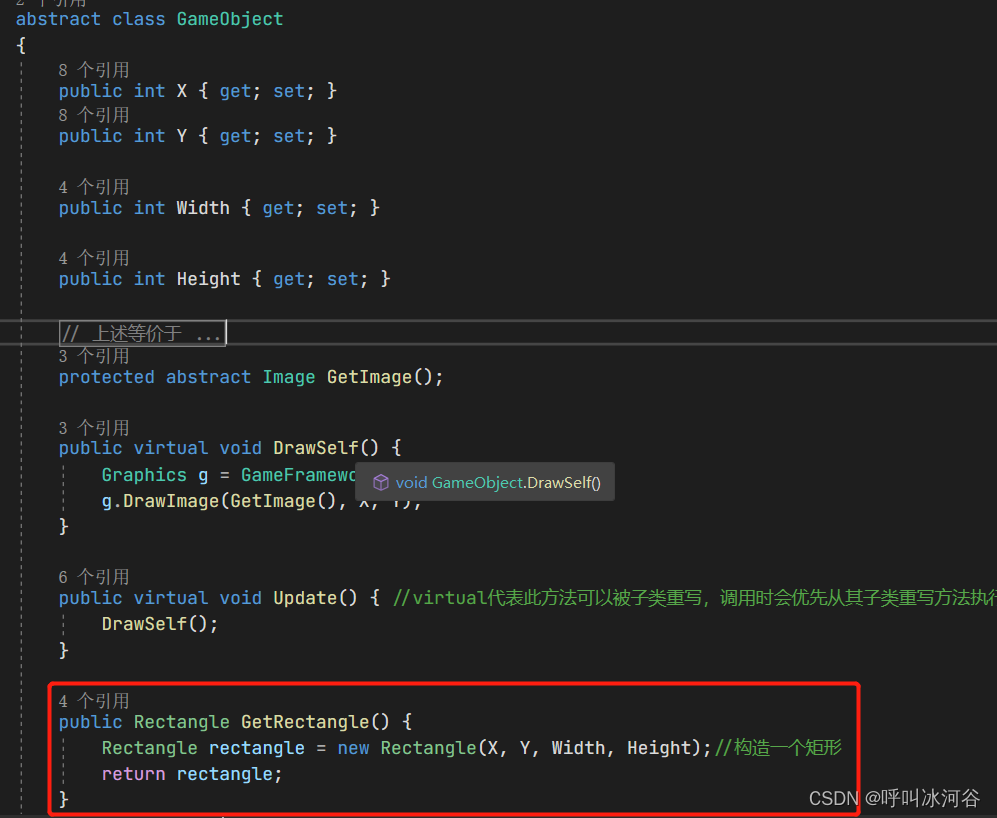

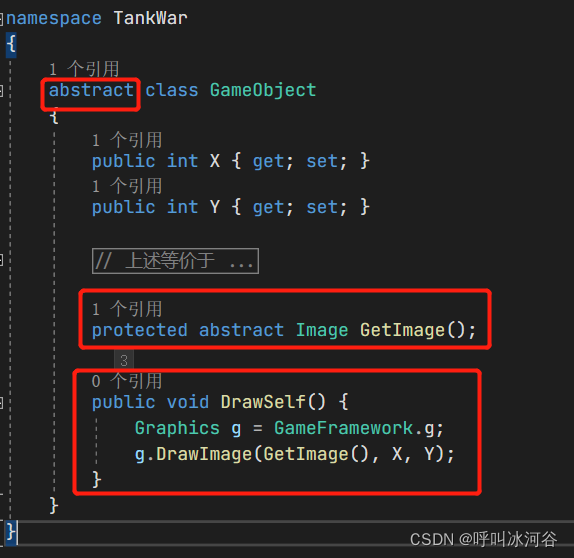

为GameObject添加抽象方法以获取图片对象和在画布上画图片的公共方法

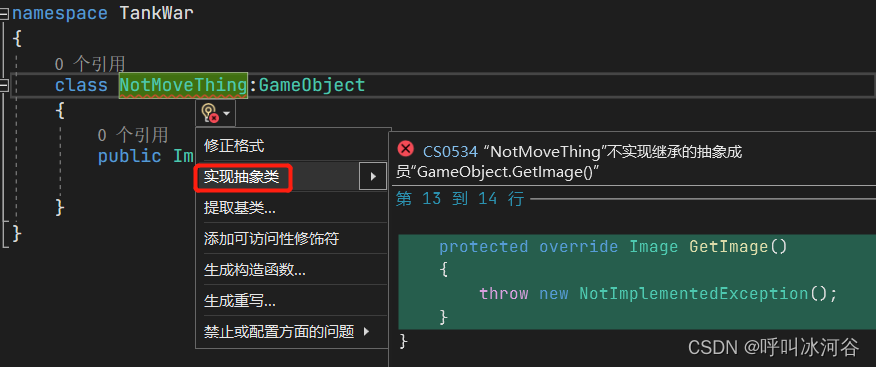

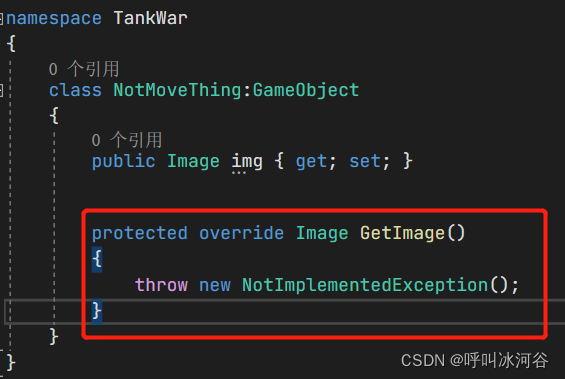

子类实现抽象方法，红线部分按下alt+enter选择实现抽象类，就会自动补充好实现方法，然后根据自己的逻辑需要修改即可

using System;
using System.Collections.Generic;
using System.Drawing;
using System.Linq;
using System.Text;
using System.Threading.Tasks;

namespace TankWar
{
    class NotMoveThing:GameObject
    {
        public Image img { get; set; }

        protected override Image GetImage()
        {
            return img;
        }
    }
}

using System;
using System.Collections.Generic;
using System.Drawing;
using System.Linq;
using System.Text;
using System.Threading.Tasks;

namespace TankWar
{
    enum Direction{
        UP,
        DOWN,
        LEFT,
        RIGHT
    }
    class MoveThing:GameObject
    {
        public Bitmap BitmapUp { get; set; }
        public Bitmap BitmapDown { get; set; }
        public Bitmap BitmapLeft { get; set; }
        public Bitmap BitmapRight { get; set; }
        public int Speed { get; set; }
        public Direction direction { get; set; }

        protected override Image GetImage()
        {
            switch (direction) {
                case Direction.UP:
                    return BitmapUp;
                case Direction.DOWN:
                    return BitmapDown;
                case Direction.LEFT:
                    return BitmapLeft;
                case Direction.RIGHT:
                    return BitmapRight;
                default:
                    return BitmapUp;
            }
        }
    }
}

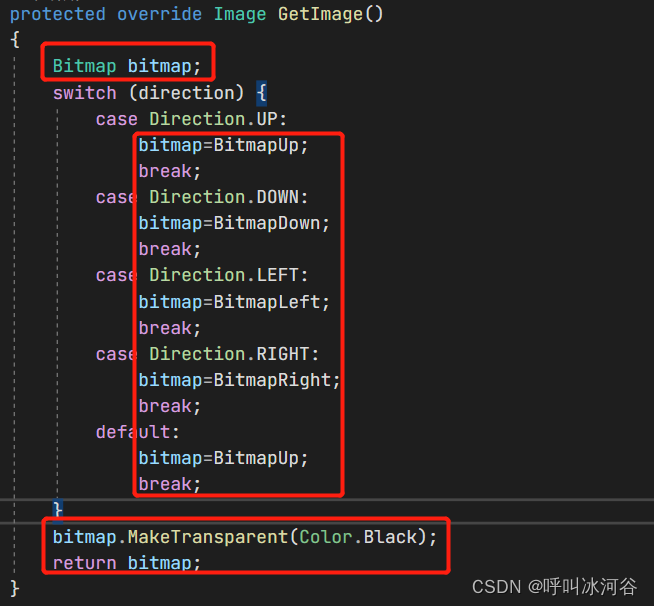

将黑底图片设为透明

绘制墙，导入图片和音频资源（同上），创建GameObjectManager

using System;
using System.Collections.Generic;
using System.Linq;
using System.Text;
using System.Threading.Tasks;
using TankWar.Properties;

namespace TankWar
{
    class GamebjectManager
    {
        private static List<NotMoveThing> wallList = new List<NotMoveThing>();//保存所有墙对象

        public static void DrawMap() {
            foreach (NotMoveThing  wall in wallList) {
                wall.DrawSelf();//绘制墙
            }
        }
        public static void CreateMap() {
            CreateWall(1, 1, 5,wallList);//创建墙对象
        }

        /**
         * x,y代表一个30*30的方格的位置，如第一格是0，0，我们在绘画时从1，1位置开始画
         * count代表要创建的强对象个数
         */
        private static void CreateWall(int x,int y,int count,List<NotMoveThing> wallList) {
            int xPosition = x * 30;
            int yPosition = y * 30;
            for (int i=yPosition;i<yPosition+count*30; i+=15) {
                NotMoveThing wall1 = new NotMoveThing(xPosition,i,Resources.wall);
                NotMoveThing wall2 = new NotMoveThing(xPosition+15, i, Resources.wall);
                wallList.Add(wall1);
                wallList.Add(wall2);
            }
        }
    }
}

新增NotMoveThing构造f方法


新增NotMoveThing构造方法

using System;
using System.Collections.Generic;
using System.Drawing;
using System.Linq;
using System.Text;
using System.Threading.Tasks;

namespace TankWar
{
    class NotMoveThing:GameObject
    {
        public Image img { get; set; }

        protected override Image GetImage()
        {
            return img;
        }

        public NotMoveThing(int x,int y,Image img) {
            this.X = x;
            this.Y = y;
            this.img = img;
        }
    }
}

在GameFrameWork中调用

using System;
using System.Collections.Generic;
using System.Drawing;
using System.Linq;
using System.Text;
using System.Threading.Tasks;

namespace TankWar
{
    class GameFramework
    {
        public static Graphics g;
        public static void Start() {
            GamebjectManager.CreateMap();
        }

        public static void Update() {
            GamebjectManager.DrawMap();
        }
    }
}

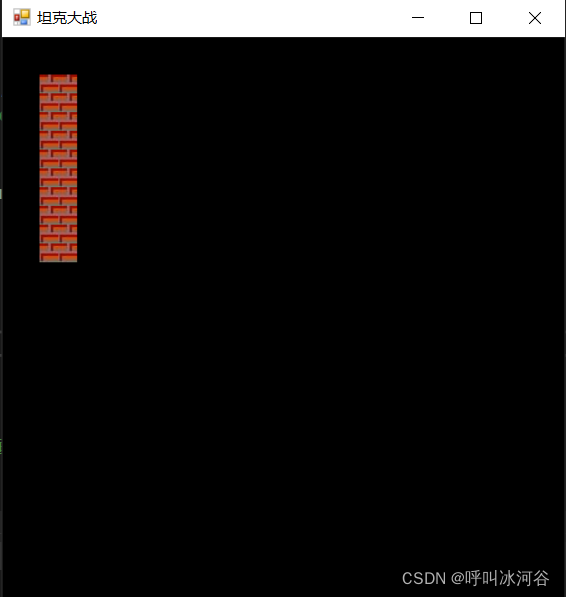

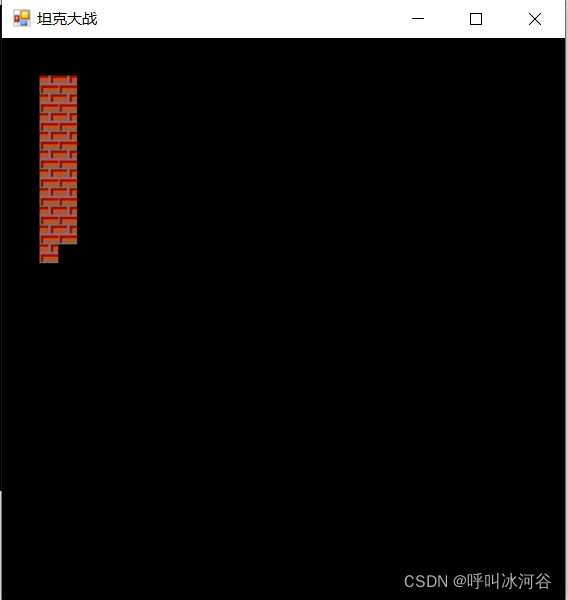

效果如下，但是会出现闪烁问题（这是因为每一帧都需要重新绘制）

为了解决闪烁问题，我们可以采用把所有的图像绘制在一张图片上，然后再把图片绘制到画布上

using System;
using System.Collections.Generic;
using System.ComponentModel;
using System.Data;
using System.Drawing;
using System.Linq;
using System.Text;
using System.Threading;
using System.Threading.Tasks;
using System.Windows.Forms;

namespace TankWar
{
    public partial class Form1 : Form
    {
        private Thread thread;
        private static Graphics windowG;//窗口画布对象
        private static Bitmap tempBmp;//临时图片对象

        public Form1()
        {
            InitializeComponent();
            this.StartPosition = FormStartPosition.CenterScreen;//使窗口在屏幕居中显示

            windowG = this.CreateGraphics();//创建窗体画布

            tempBmp = new Bitmap(450,450);//创建临时图片
            Graphics bmpG = Graphics.FromImage(tempBmp);//根据图片对象创建临时画布对象
            GameFramework.g = bmpG;//赋值，以便在GameFramework中拿到此对象


            thread = new Thread(new ThreadStart(GameMainThread));
            thread.Start();
        }

        private static void GameMainThread() {
            GameFramework.Start();
            int sleepTime = 1000 / 60; //值为：1/60s
            while (true)
            {
                GameFramework.g.Clear(Color.Black);//将画布内容清空，并置为黑色
                GameFramework.Update();//画画
                windowG.DrawImage(tempBmp, 0, 0);
                Thread.Sleep(sleepTime);//每执行一次休息一段时间，保证1s执行60次
            }
        }

        private void Form1_FormClosed(object sender, FormClosedEventArgs e)
        {
            thread.Abort();
        }
    }
}

这样图像就不再闪动了

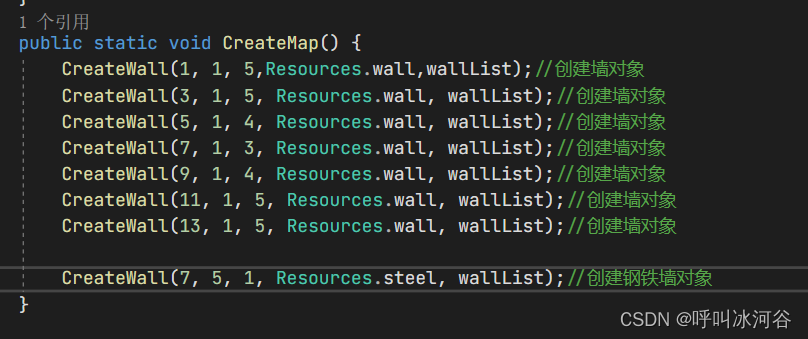

继续创建其他墙，并添加图片参数

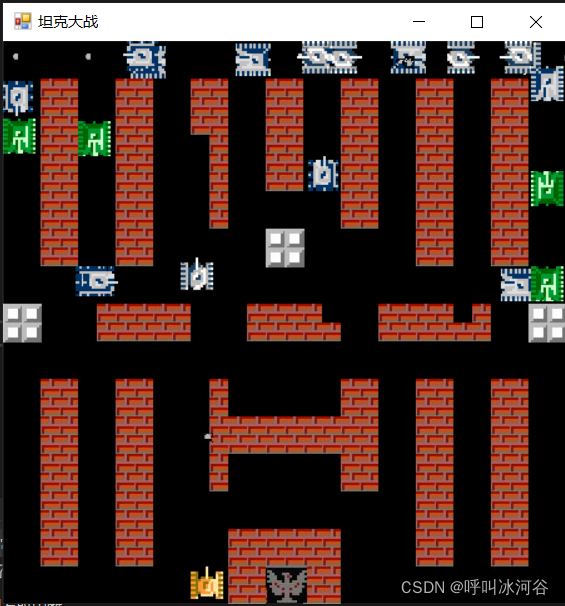

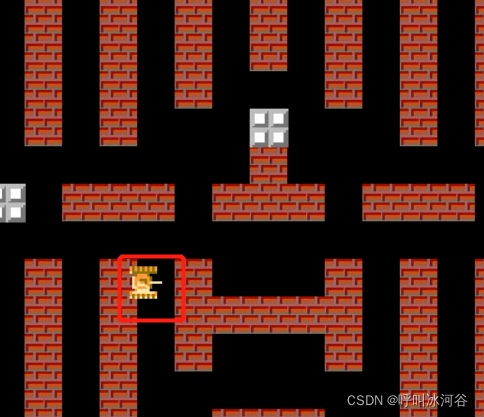

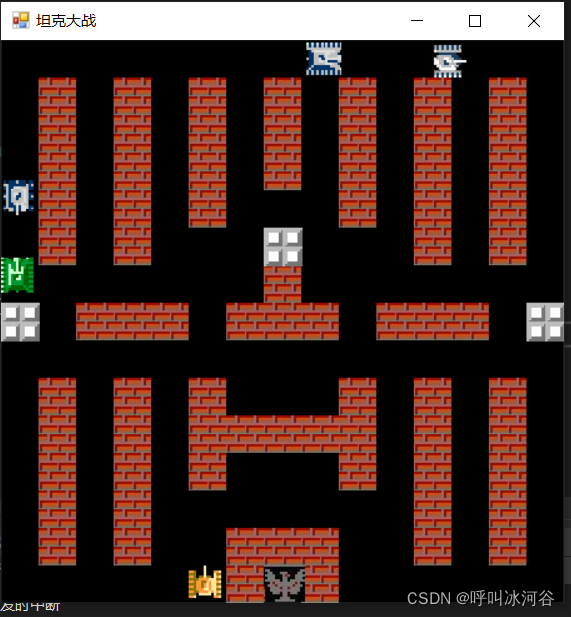

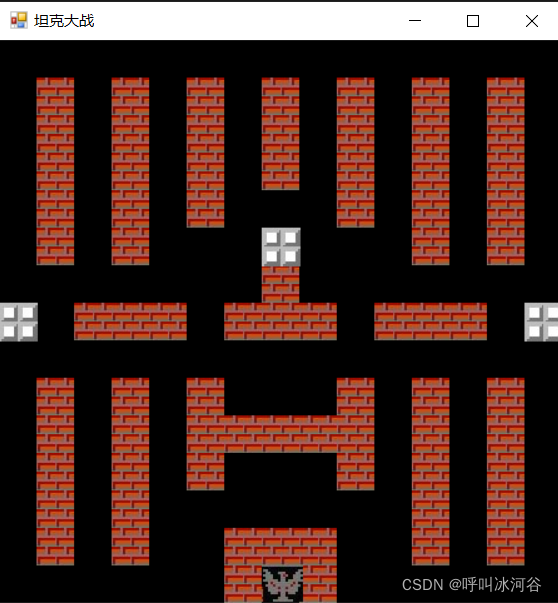

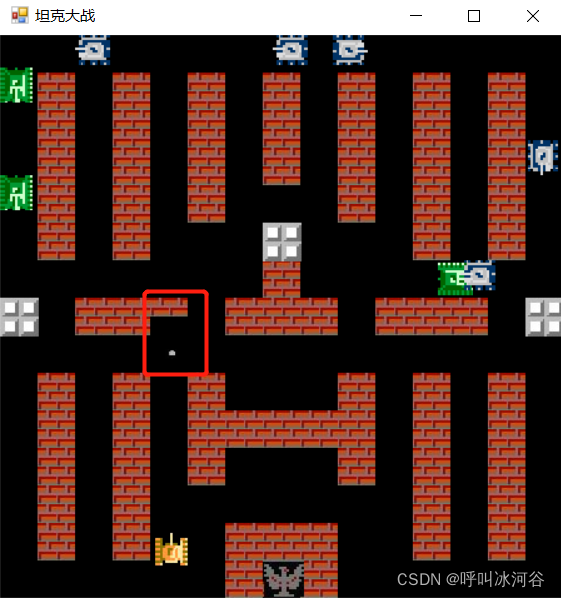

继续添加墙和boss，最终代码和最终效果

using System;
using System.Collections.Generic;
using System.Drawing;
using System.Linq;
using System.Text;
using System.Threading.Tasks;
using TankWar.Properties;

namespace TankWar
{
    class GamebjectManager
    {
        private static List<NotMoveThing> wallList = new List<NotMoveThing>();//保存所有普通墙对象
        private static List<NotMoveThing> steelList = new List<NotMoveThing>();//保存所有钢铁墙对象
        private static NotMoveThing boss;//保存boss对象
        public static void DrawMap() {
            foreach (NotMoveThing  wall in wallList) {
                wall.DrawSelf();//绘制墙
            }
            foreach (NotMoveThing wall in steelList) {
                wall.DrawSelf();//绘制墙
            }
            boss.DrawSelf();
        }
        public static void CreateMap() {
            CreateWall(1, 1, 5,Resources.wall,wallList);//创建墙对象
            CreateWall(3, 1, 5, Resources.wall, wallList);//创建墙对象
            CreateWall(5, 1, 4, Resources.wall, wallList);//创建墙对象
            CreateWall(7, 1, 3, Resources.wall, wallList);//创建墙对象
            CreateWall(9, 1, 4, Resources.wall, wallList);//创建墙对象
            CreateWall(11, 1, 5, Resources.wall, wallList);//创建墙对象
            CreateWall(13, 1, 5, Resources.wall, wallList);//创建墙对象

            CreateWall(7, 5, 1, Resources.steel, steelList);//创建钢铁墙对象
            CreateWall(0, 7, 1, Resources.steel, steelList);//创建钢铁墙对象
            CreateWall(14, 7, 1, Resources.steel, steelList);//创建钢铁墙对象

            CreateWall(2, 7, 1, Resources.wall, wallList);
            CreateWall(3, 7, 1, Resources.wall, wallList);
            CreateWall(4, 7, 1, Resources.wall, wallList);
            CreateWall(6, 7, 1, Resources.wall, wallList);
            CreateWall(7, 6, 2, Resources.wall, wallList);
            CreateWall(8, 7, 1, Resources.wall, wallList);
            CreateWall(10, 7, 1, Resources.wall, wallList);
            CreateWall(11, 7, 1, Resources.wall, wallList);
            CreateWall(12, 7, 1, Resources.wall, wallList);

            CreateWall(1, 9, 5, Resources.wall, wallList);//创建墙对象
            CreateWall(3, 9, 5, Resources.wall, wallList);//创建墙对象
            CreateWall(5, 9, 3, Resources.wall, wallList);//创建墙对象
            CreateWall(6, 10, 1, Resources.wall, wallList);//创建墙对象
            CreateWall(7, 10, 1, Resources.wall, wallList);//创建墙对象
            CreateWall(8, 10, 1, Resources.wall, wallList);//创建墙对象
            CreateWall(9, 9, 3, Resources.wall, wallList);//创建墙对象

            CreateWall(11, 9, 5, Resources.wall, wallList);//创建墙对象
            CreateWall(13, 9, 5, Resources.wall, wallList);//创建墙对象

            CreateWall(6, 13, 2, Resources.wall, wallList);//创建墙对象
            CreateWall(7, 13, 1, Resources.wall, wallList);//创建墙对象
            CreateWall(8, 13, 2, Resources.wall, wallList);//创建墙对象

            CreateBoss(7, 14,Resources.Boss);
        }

        /**
         * x,y代表一个30*30的方格的位置，如第一格是0，0，我们在绘画时从1，1位置开始画
         * count代表要创建的强对象个数
         */

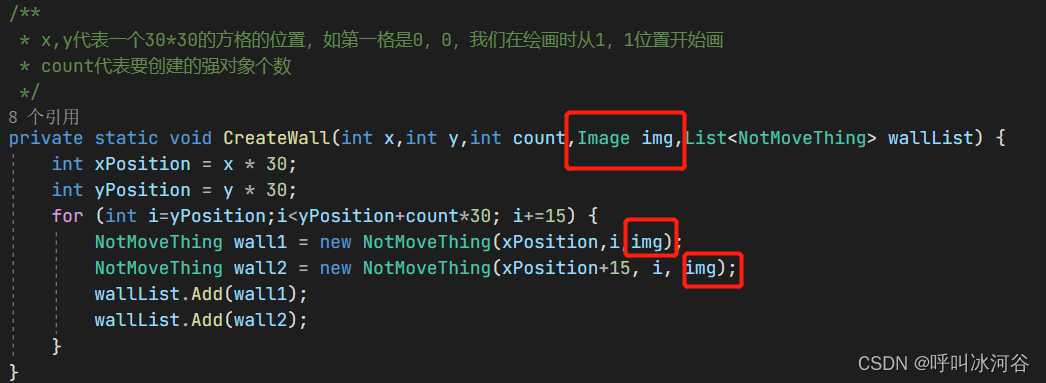

        private static void CreateWall(int x,int y,int count,Image img,List<NotMoveThing> wallList) {
            int xPosition = x * 30;
            int yPosition = y * 30;
            for (int i=yPosition;i<yPosition+count*30; i+=15) {//例如从30到180(150+30),需执行10次
                NotMoveThing wall1 = new NotMoveThing(xPosition,i,img);
                NotMoveThing wall2 = new NotMoveThing(xPosition+15, i, img);
                wallList.Add(wall1);
                wallList.Add(wall2);
            }
        }

        private static void CreateBoss(int x,int y,Image img) {
            int xPosition = x * 30;
            int yPosition = y * 30;
            boss = new NotMoveThing(xPosition, yPosition,img);
        }
    }
}

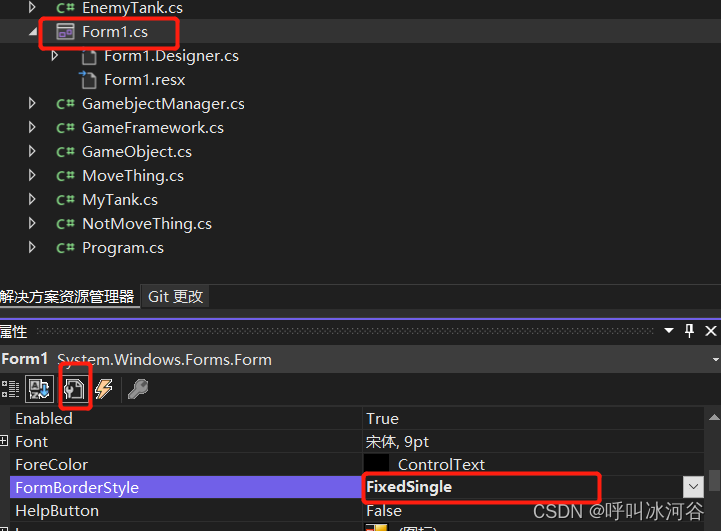

修改窗体属性，使其不能用鼠标拖动改变窗体大小，但可以最大化和最小化

3.绘制主角（即自己的坦克）

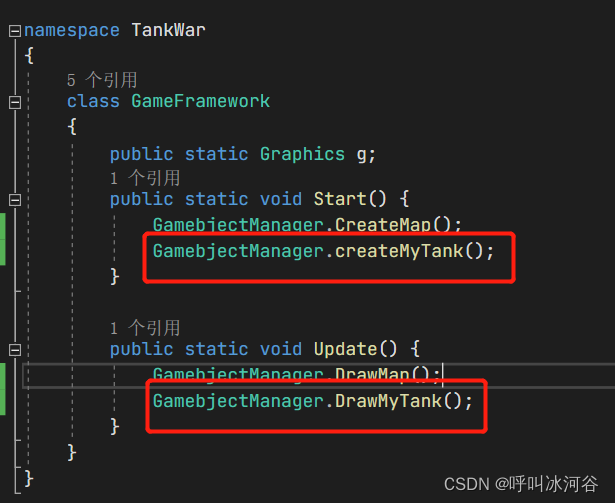

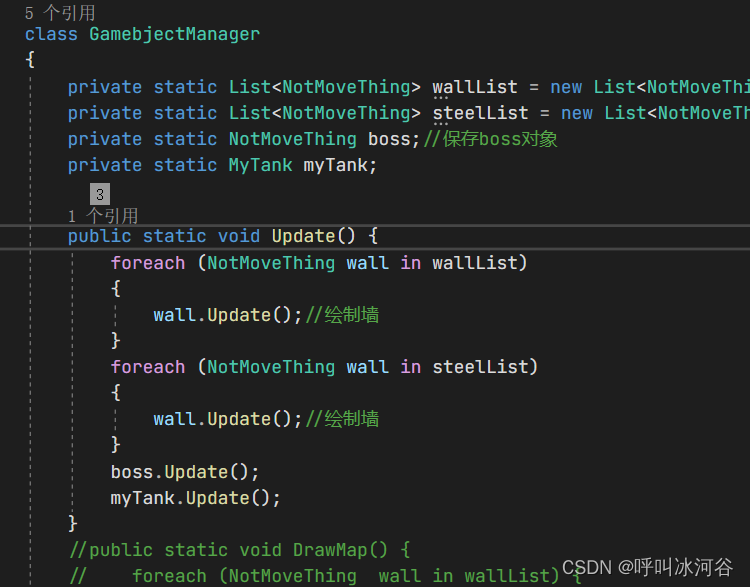

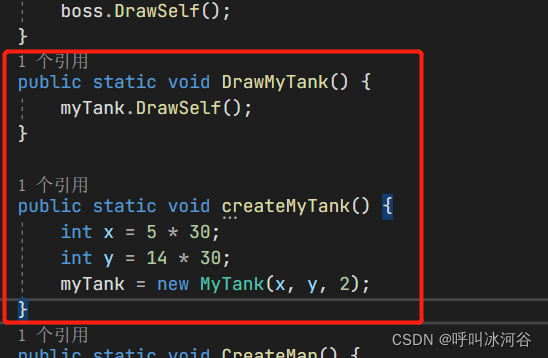

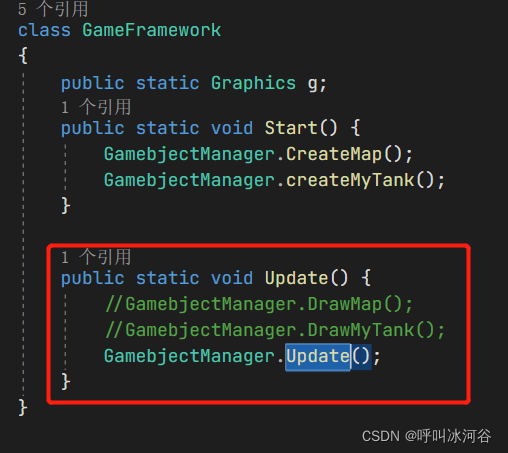

GameObjectManager类新增如下两个方法，并在GameFramework中添加调用

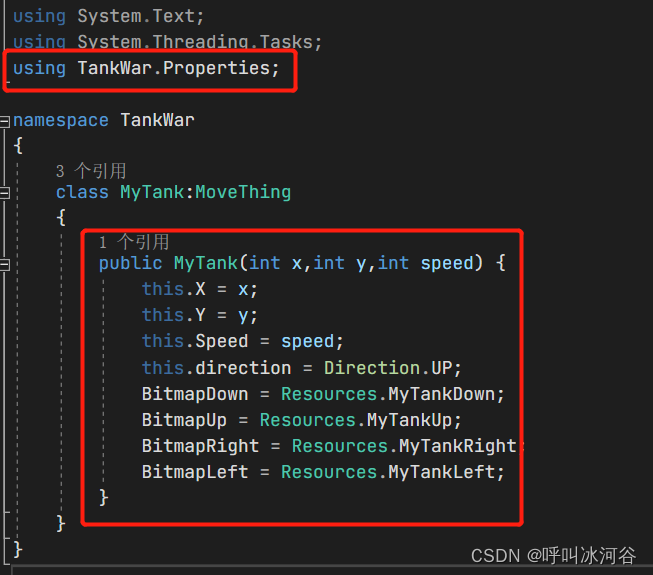

添加对应的构造方法

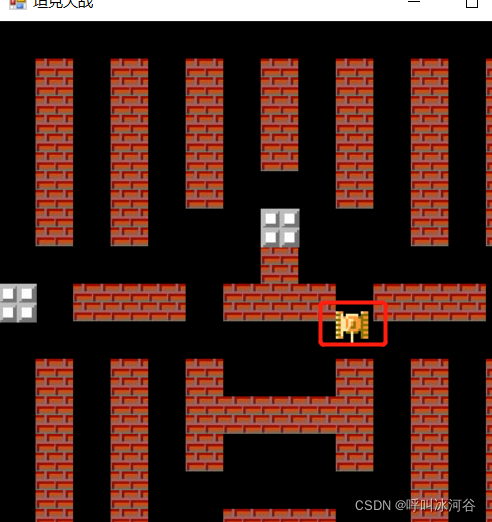

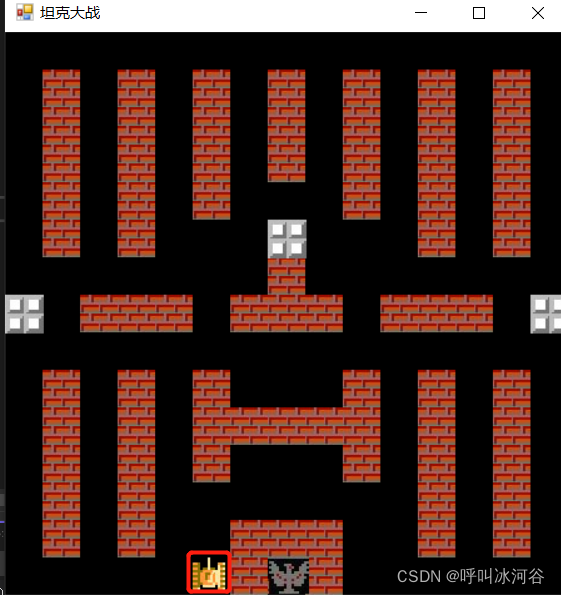

最终效果图：

4.控制坦克的移动

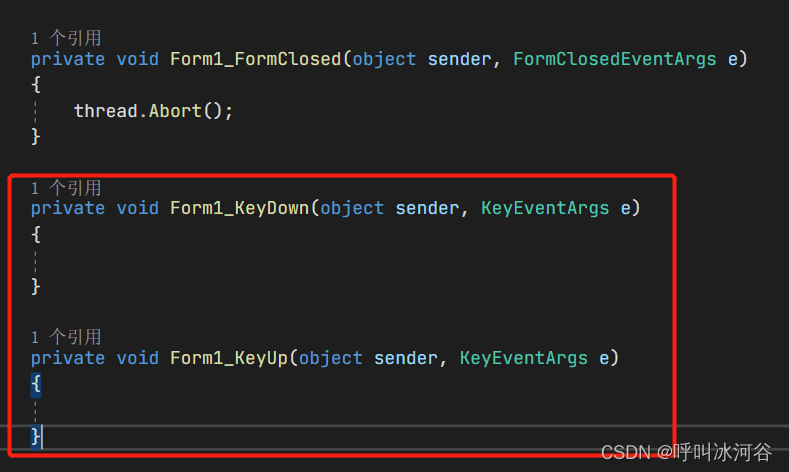

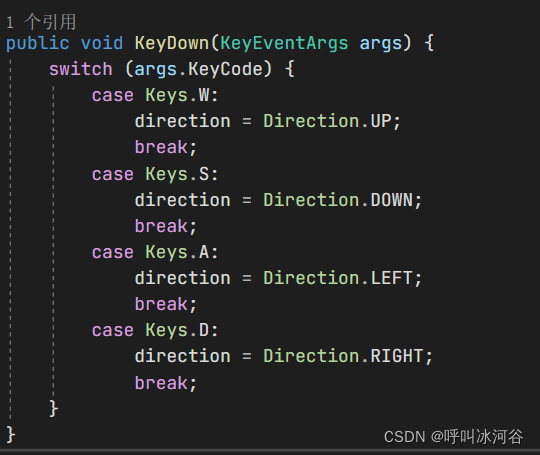

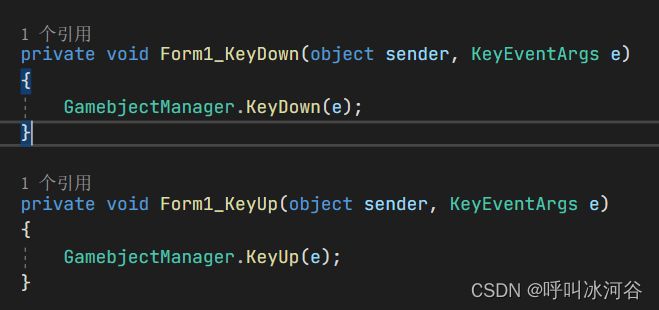

添加键盘监听事件函数(同上，再Form的属性->事件下找到KeyDown和KeyUp)

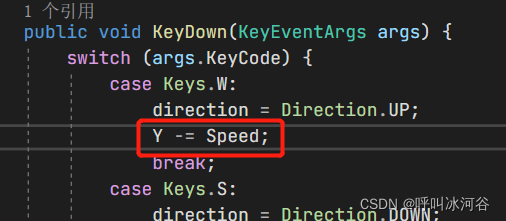

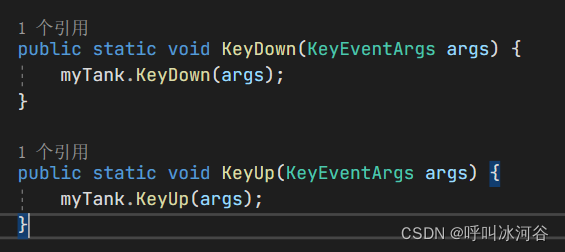

调用鼠标按下和起来的方法

这样控制坦克移动随可以，但会有一个一开始的卡顿（按下后移动一下然后停顿一s再往前走）

因此我们这样做，定义一个isMoving变量，当键盘按下后设置为true，当键盘起来时设置为false。然后根据isMoving来控制移动

using System;
using System.Collections.Generic;
using System.Linq;
using System.Text;
using System.Threading.Tasks;
using System.Windows.Forms;
using TankWar.Properties;

namespace TankWar
{
    class MyTank:MoveThing
    {
        public bool IsMoving { get; set; }
        public MyTank(int x,int y,int speed) {
            this.IsMoving = false;
            this.X = x;
            this.Y = y;
            this.Speed = speed;
            this.direction = Direction.UP;
            BitmapDown = Resources.MyTankDown;
            BitmapUp = Resources.MyTankUp;
            BitmapRight = Resources.MyTankRight;
            BitmapLeft = Resources.MyTankLeft;
        }

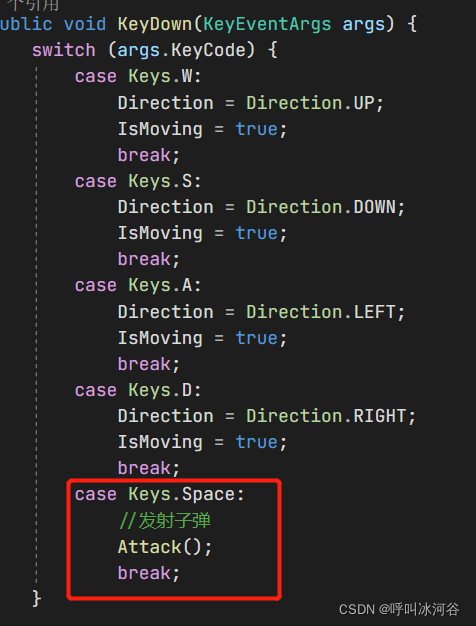

        public void KeyDown(KeyEventArgs args) {
            switch (args.KeyCode) {
                case Keys.W:
                    direction = Direction.UP;
                    IsMoving = true;
                    break;
                case Keys.S:
                    direction = Direction.DOWN;
                    IsMoving = true;
                    break;
                case Keys.A:
                    direction = Direction.LEFT;
                    IsMoving = true;
                    break;
                case Keys.D:
                    direction = Direction.RIGHT;
                    IsMoving = true;
                    break;
            }
        }

        public void KeyUp(KeyEventArgs args) {
            switch (args.KeyCode)
            {
                case Keys.W:
                    IsMoving = false;
                    break;
                case Keys.S:
                    IsMoving = false;
                    break;
                case Keys.A:
                    IsMoving = false;
                    break;
                case Keys.D:
                    IsMoving = false;
                    break;
            }
        }

        private void Move() {
            if (IsMoving==false) {
                return;
            }
            switch (direction) {
                case Direction.UP:
                    Y -= Speed;
                    break;
                case Direction.DOWN:
                    Y += Speed;
                    break;
                case Direction.LEFT:
                    X -= Speed;
                    break;
                case Direction.RIGHT:
                    X += Speed;
                    break;
            }
        }

        public override void Update()
        {
            Move();
            base.Update();
        }
    }
}

现在我们的坦克可以移动了，但是会穿过墙体和外边界

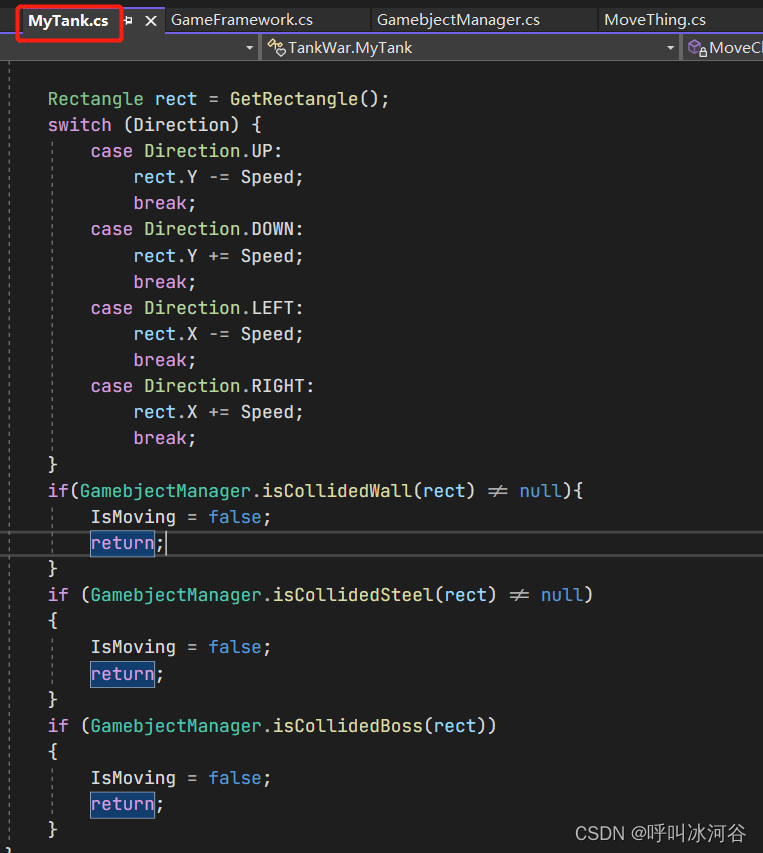

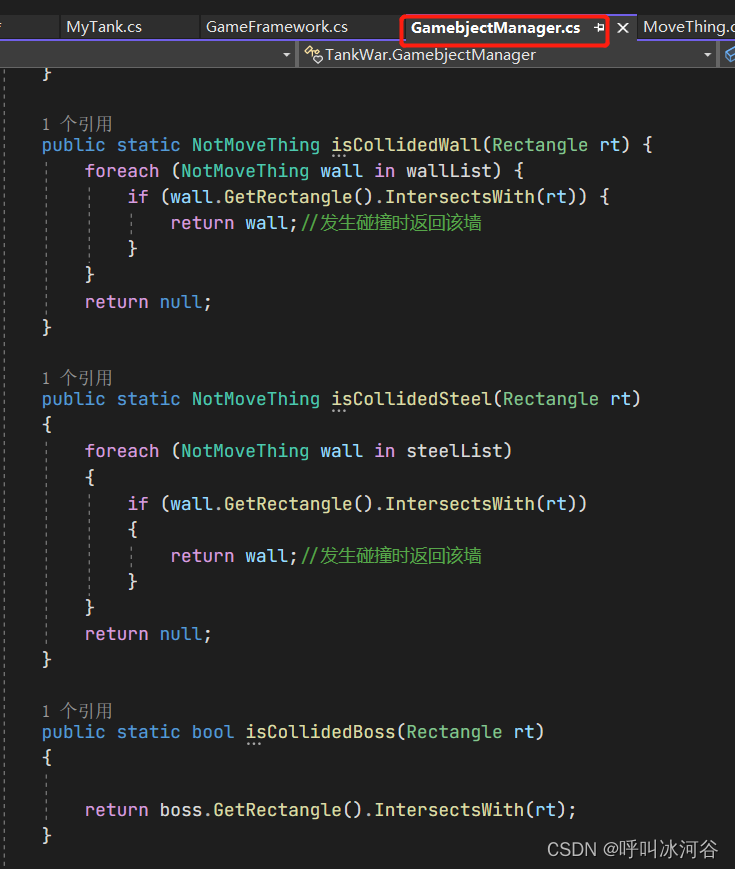

添加墙体检测，在MoveCheck方法添加墙体检测

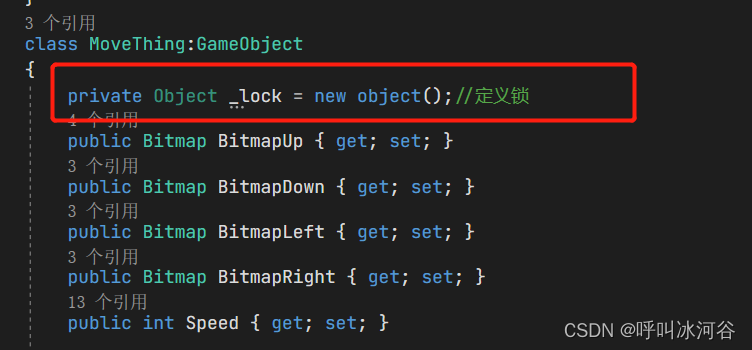

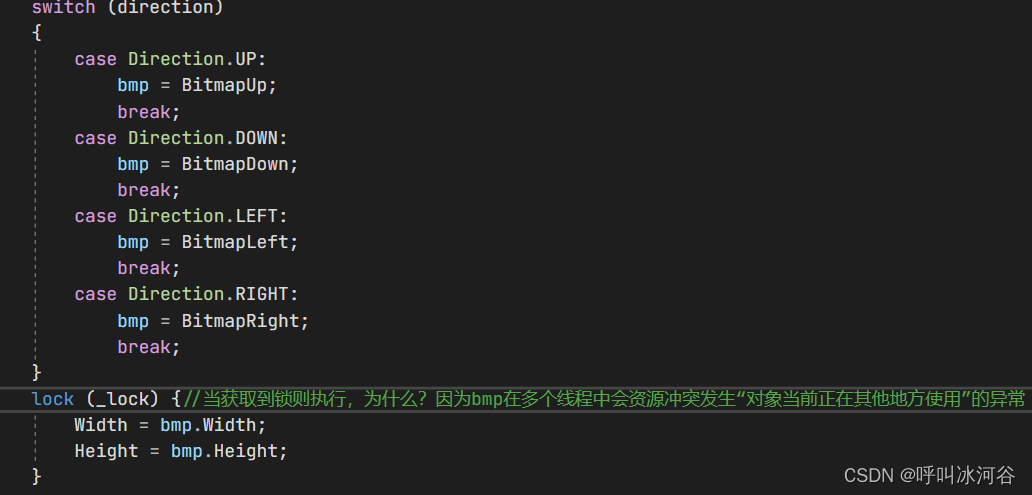

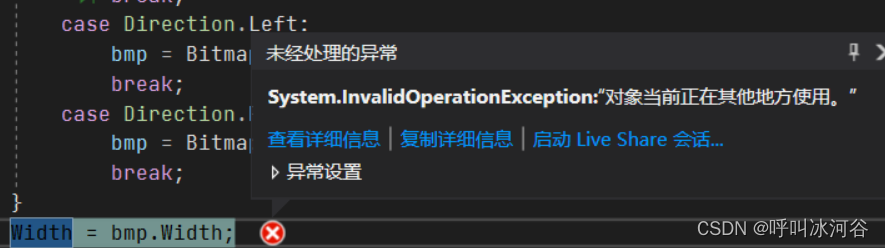

处理资源冲突异常：

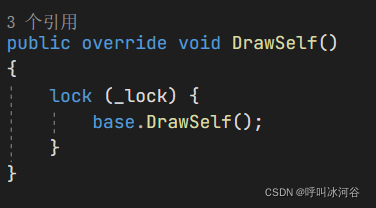

在MoveThing中重写此方法

5.添加敌人坦克

添加EnemyTank生成方法

using System;
using System.Collections.Generic;
using System.Drawing;
using System.Linq;
using System.Text;
using System.Threading.Tasks;
using System.Windows.Forms;
using TankWar.Properties;

namespace TankWar
{
    class GamebjectManager
    {
        ...
        private static List<EnemyTank> tankList = new List<EnemyTank>();//保存敌人坦克对象
        private static int enemyBornSpeed = 60;//敌人坦克的生成速度
        private static int enemyBornCount = 60;//敌人坦克的生成数量
        private static Point[] points=new Point[3];

        public static void Start() {
            points[0].X = 0;
            points[0].Y = 0;
            points[1].X = 7*30;
            points[1].Y = 0;
            points[2].X = 14*30;
            points[2].Y = 0;
        }

        public static void Update() {
            ...
            foreach (EnemyTank tank in tankList) {
                tank.Update();
            }
            ...
            EnemyBorn();
        }

        public static void EnemyBorn() {
            enemyBornCount++;
            if (enemyBornCount<enemyBornSpeed) {
                return;
            }
            Random rd = new Random();
            int index=rd.Next(0, 3);//生成0-3之间的随机整数，不包含3
            Point positon = points[index];
            int enemyType = rd.Next(1, 5);
            switch (enemyType) {
                case 1:
                    CreateEnemyTank1(positon.X,positon.Y);
                    break;
                case 2:
                    CreateEnemyTank2(positon.X, positon.Y);
                    break;
                case 3:
                    CreateEnemyTank3(positon.X, positon.Y);
                    break;
                case 4:
                    CreateEnemyTank4(positon.X, positon.Y);
                    break;
            }
            enemyBornCount = 0;
        }

        private static void CreateEnemyTank1(int x,int y) {
            EnemyTank tank = new EnemyTank(x, y, 2, Resources.GrayDown, Resources.GrayUp, Resources.GrayLeft, Resources.GrayRight);
            tankList.Add(tank);
        }
        private static void CreateEnemyTank2(int x, int y)
        {
            EnemyTank tank = new EnemyTank(x, y, 2, Resources.GreenDown, Resources.GreenUp, Resources.GreenLeft, Resources.GreenRight);
            tankList.Add(tank);
        }
        private static void CreateEnemyTank3(int x, int y)
        {
            EnemyTank tank = new EnemyTank(x, y, 4, Resources.QuickDown, Resources.QuickUp, Resources.QuickLeft, Resources.QuickRight);
            tankList.Add(tank);
        }
        private static void CreateEnemyTank4(int x, int y)
        {
            EnemyTank tank = new EnemyTank(x, y, 1, Resources.SlowDown, Resources.SlowUp, Resources.SlowLeft, Resources.SlowRight);
            tankList.Add(tank);
        }
    }
}

创建EnemyTank构造函数及移动

using System;
using System.Collections.Generic;
using System.Drawing;
using System.Linq;
using System.Text;
using System.Threading.Tasks;

namespace TankWar
{
    class EnemyTank:MoveThing
    {
        private Random r = new Random();
        public EnemyTank(int x, int y, int speed,Bitmap bmpDown,Bitmap bmpUp,Bitmap bmpLeft,Bitmap bmpRight)
        {
            //this.IsMoving = true;
            this.X = x;
            this.Y = y;
            this.Speed = speed;
            BitmapDown = bmpDown;
            BitmapUp = bmpUp;
            BitmapRight = bmpRight;
            BitmapLeft = bmpLeft;
            this.Direction = Direction.DOWN;
        }

        public override void Update()
        {
            MoveCheck();//移动前检查
            Move();
            base.Update();
        }

        private void ChangeDirection() {
            while (true) {
                Direction dir = (Direction)r.Next(0, 4);
                if (Direction == dir)
                {
                    continue;
                } else {
                    Direction = dir;
                    break;
                }
            }
            MoveCheck();
        }

        private void Move()
        {
            switch (Direction)
            {
                case Direction.UP:
                    Y -= Speed;
                    break;
                case Direction.DOWN:
                    Y += Speed;
                    break;
                case Direction.LEFT:
                    X -= Speed;
                    break;
                case Direction.RIGHT:
                    X += Speed;
                    break;
            }
        }

        private void MoveCheck()
        {
            #region 检查是否超过窗体边界
            if (Direction == Direction.UP)
            {
                if (Y - Speed < 0)
                {
                    ChangeDirection();
                    return;
                }
            }
            else if (Direction == Direction.DOWN)
            {
                if (Y + Speed + Height > 450)
                {
                    ChangeDirection();
                    return;
                }
            }
            else if (Direction == Direction.LEFT)
            {
                if (X - Speed < 0)
                {
                    ChangeDirection();
                    return;
                }
            }
            else if (Direction == Direction.RIGHT)
            {
                if (X + Speed + Width > 450)
                {
                    ChangeDirection();
                    return;
                }
            }
            #endregion

            Rectangle rect = GetRectangle();
            switch (Direction)
            {
                case Direction.UP:
                    rect.Y -= Speed;
                    break;
                case Direction.DOWN:
                    rect.Y += Speed;
                    break;
                case Direction.LEFT:
                    rect.X -= Speed;
                    break;
                case Direction.RIGHT:
                    rect.X += Speed;
                    break;
            }
            if (GamebjectManager.isCollidedWall(rect) != null)
            {
                ChangeDirection();
                return;
            }
            if (GamebjectManager.isCollidedSteel(rect) != null)
            {
                ChangeDirection();
                return;
            }
            if (GamebjectManager.isCollidedBoss(rect))
            {
                ChangeDirection();
                return;
            }
        }
    }
}

6.发射子弹

在MyTank中添加空格监听，当按下空格后发射子弹

using System;
using System.Collections.Generic;
using System.Drawing;
using System.Linq;
using System.Text;
using System.Threading.Tasks;
using TankWar.Properties;

namespace TankWar
{
    enum Tag {
        MyTank,
        EnemyTank
    }
    class Bullet:MoveThing
    {
        public Tag Tag { get; set; } //用于判断是自己的坦克发射的子弹还是敌人的坦克发射的子弹
        public bool isDestroy { get; set; }
        public Bullet(int x, int y, int speed,Direction dir,Tag tag)
        {
            isDestroy = false;
            this.X = x;
            this.Y = y;
            this.Speed = speed;
            BitmapDown = Resources.BulletDown;
            BitmapUp = Resources.BulletUp;
            BitmapRight = Resources.BulletRight;
            BitmapLeft = Resources.BulletLeft;
            this.Direction = dir;
            this.Tag = tag;
            this.X -= Width / 2;
            this.Y -= Height / 2;
        }

        public override void DrawSelf()
        {
            base.DrawSelf();
        }

        public override void Update()
        {
            MoveCheck();//移动前检查
            Move();
            base.Update();
        }

        private void Move()
        {
            switch (Direction)
            {
                case Direction.UP:
                    Y -= Speed;
                    break;
                case Direction.DOWN:
                    Y += Speed;
                    break;
                case Direction.LEFT:
                    X -= Speed;
                    break;
                case Direction.RIGHT:
                    X += Speed;
                    break;
            }
        }

        private void MoveCheck()
        {
            #region 检查是否超过窗体边界
            if (Direction == Direction.UP)
            {
                if (Y +Height/2+3< 0)//子弹图片自身的高度/2和子弹本身的高度的一半(大约为3)
                {
                    isDestroy=true;
                    return;
                }
            }
            else if (Direction == Direction.DOWN)
            {
                if (Y + Height/2 -3 > 450)
                {
                    isDestroy = true;
                    return;
                }
            }
            else if (Direction == Direction.LEFT)
            {
                if (X+Width/2-3 < 0)
                {
                    isDestroy = true;
                    return;
                }
            }
            else if (Direction == Direction.RIGHT)
            {
                if (X+Width/2+3 > 450)
                {
                    isDestroy = true;
                    return;
                }
            }
            #endregion

            ...
        }
    }
}

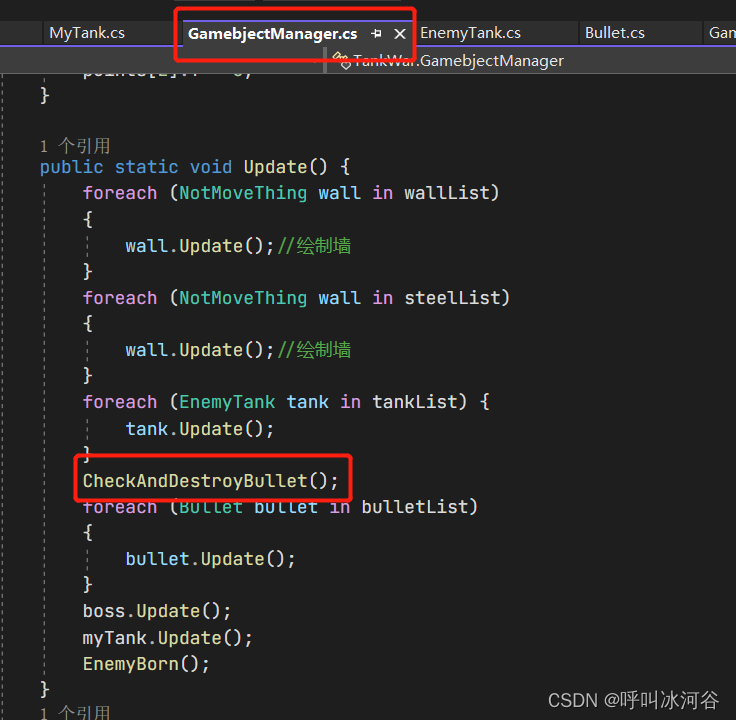

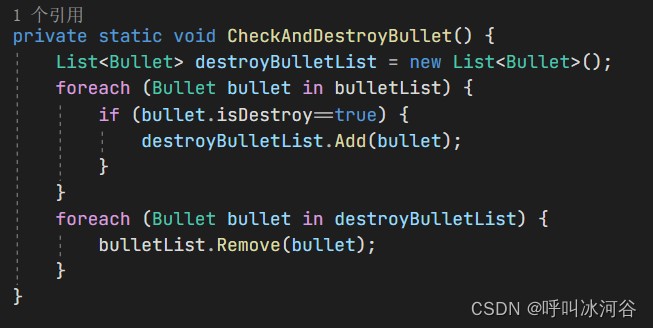

当子弹超出边界时，判断isDestroy并销毁

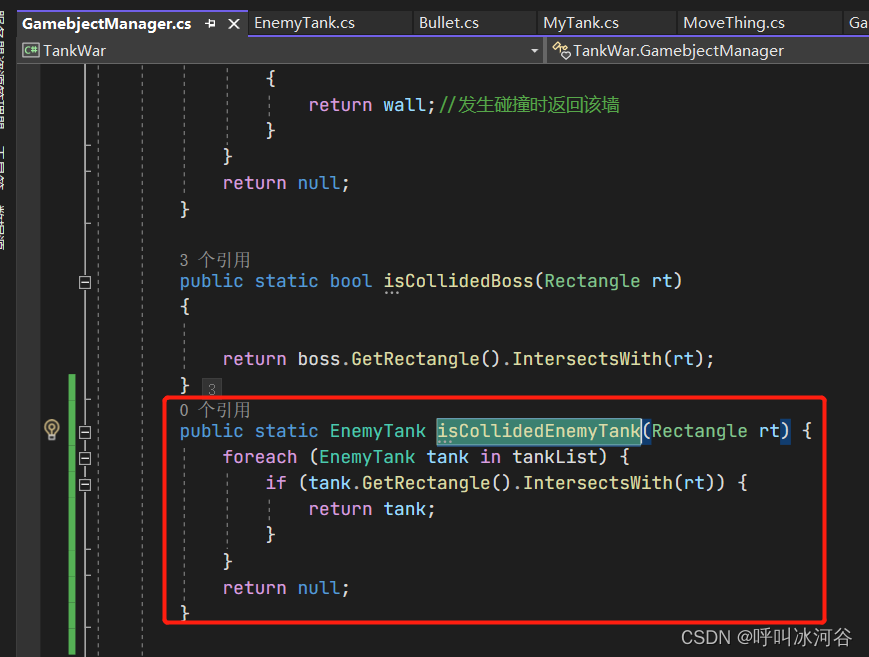

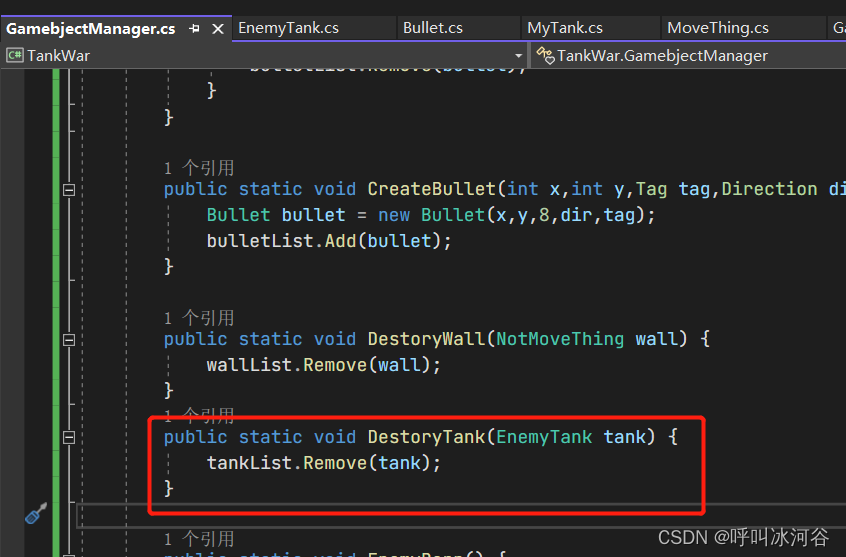

当子弹遇到墙或者敌人后销毁它们

using System;
using System.Collections.Generic;
using System.Drawing;
using System.Linq;
using System.Text;
using System.Threading.Tasks;
using TankWar.Properties;

namespace TankWar
{
    enum Tag {
        MyTank,
        EnemyTank
    }
    class Bullet:MoveThing
    {
        ...

        private void MoveCheck()
        {
            ...

            Rectangle rect = GetRectangle();
            rect.X = X + Width / 2 - 3;//取到子弹实际位置的左上角横坐标
            rect.Y = Y + Height / 2 - 3;
            rect.Height = 3;
            rect.Width = 3;
            NotMoveThing wall = null;
            if ((wall=GamebjectManager.isCollidedWall(rect)) != null)
            {
                isDestroy = true;
                GamebjectManager.DestoryWall(wall);
                return;
            }
            if (GamebjectManager.isCollidedSteel(rect) != null)
            {
                isDestroy = true;
                return;
            }
            if (GamebjectManager.isCollidedBoss(rect))
            {
                //ChangeDirection();
                return;
            }
            if (Tag==Tag.MyTank) {
                EnemyTank tank = null;
                if ((tank = GamebjectManager.isCollidedEnemyTank(rect))!=null)
                {
                    isDestroy = true;
                    GamebjectManager.DestoryTank(tank);
                    return;
                }
            }

        }
    }
}

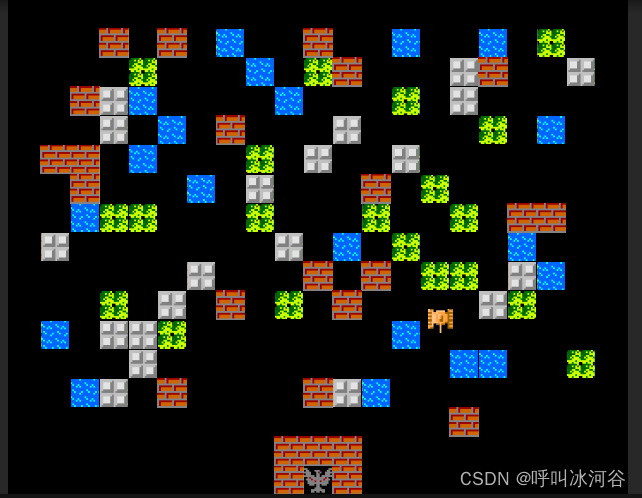

效果

7.添加爆炸效果

创建爆炸效果类

using System;
using System.Collections.Generic;
using System.Drawing;
using System.Linq;
using System.Text;
using System.Threading.Tasks;
using TankWar.Properties;

namespace TankWar
{
    class Explosion : GameObject
    {
        public bool IsNeedDestory { get; set;}
        private int playSpeed = 1;
        private int playCount = 0;//0/2=0 1/2=0 2/2=1 3/2=1..每张图片停留2帧
        private int index = 0;
        private Bitmap[] bmpArray = new Bitmap[] {
            Resources.EXP1,
            Resources.EXP2,
            Resources.EXP3,
            Resources.EXP4,
            Resources.EXP5
        };
        public Explosion(int x,int y) {
            foreach (Bitmap bmp in bmpArray) {
                bmp.MakeTransparent(Color.Black);
            }
            this.X = x - bmpArray[0].Width / 2;//得到左上角坐标
            this.Y = y - bmpArray[0].Height / 2;
            IsNeedDestory = false;
        }

        protected override Image GetImage()
        {
            if (index>4) {
                return bmpArray[4];
            }
            return bmpArray[index];
        }

        public override void Update()
        {
            playCount++;
            index = (playCount - 1) / playSpeed;//获取播放图片的索引
            if (index>4) {
                IsNeedDestory = true;
            }
            base.Update();
        }
    }
}

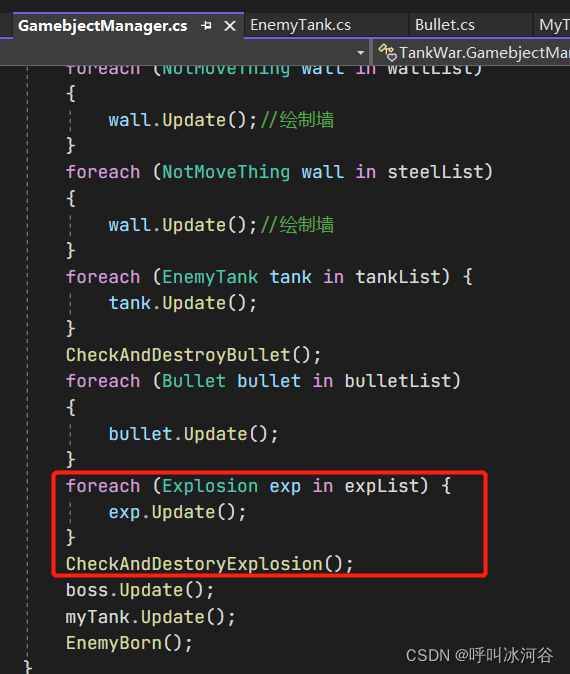

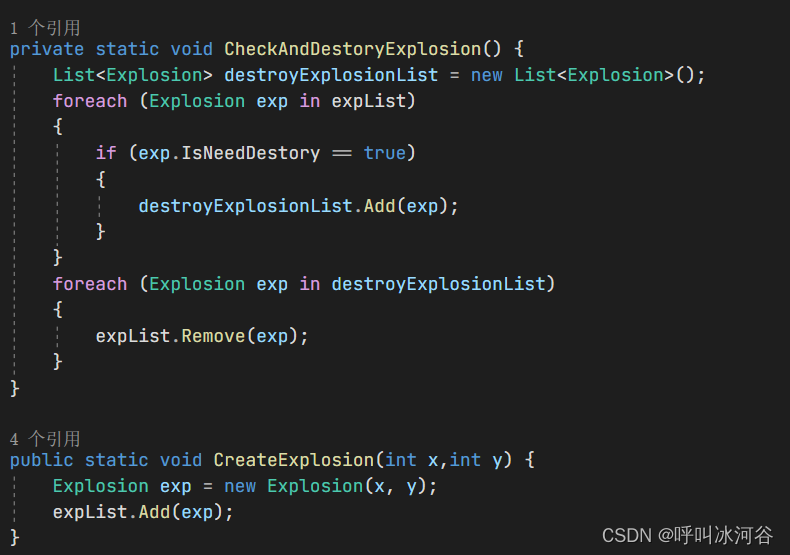

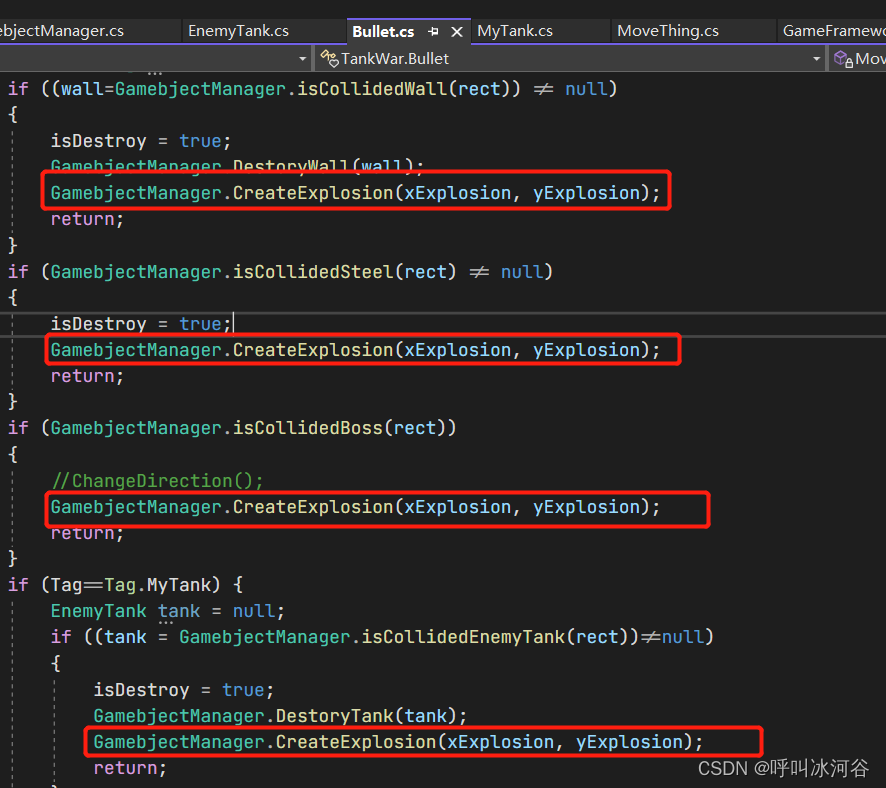

添加生成爆炸效果的代码

8.优化敌人坦克

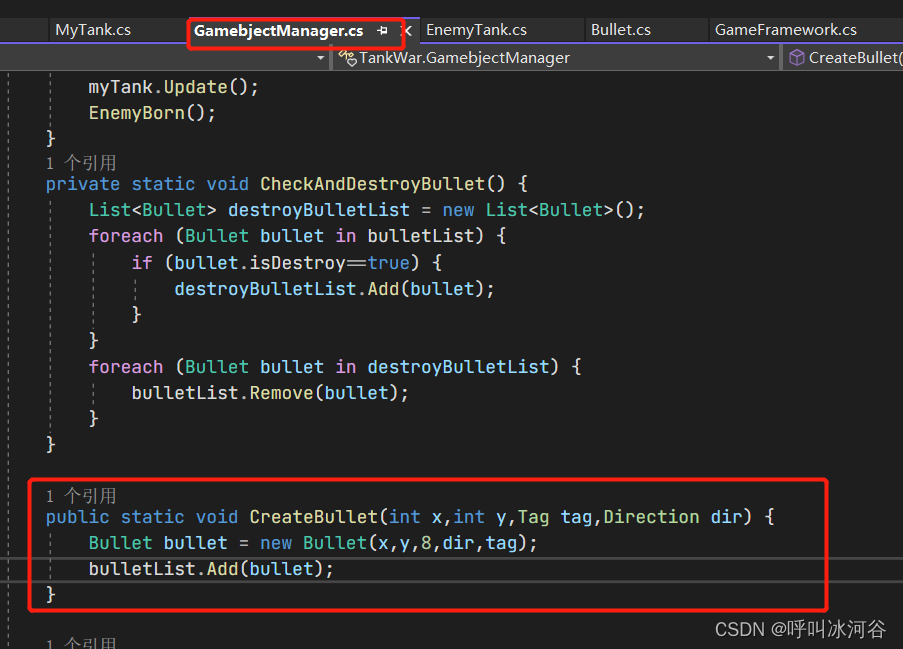

敌人坦克可发射子弹

using System;
using System.Collections.Generic;
using System.Drawing;
using System.Linq;
using System.Text;
using System.Threading.Tasks;

namespace TankWar
{
    class EnemyTank:MoveThing
    {
        public int AttackSpeed { get; set; }
        private int attackCount = 0;
        ...
        public EnemyTank(int x, int y, int speed,Bitmap bmpDown,Bitmap bmpUp,Bitmap bmpLeft,Bitmap bmpRight)
        {
            ...
            AttackSpeed = 60;
        }

        public override void Update()
        {
            ...
            AttackCheck();//是否需要攻击
            ...
        }

        ...
        private void AttackCheck() {
            attackCount++;
            if (attackCount < AttackSpeed) return;
            Attack();
            attackCount = 0;
        }

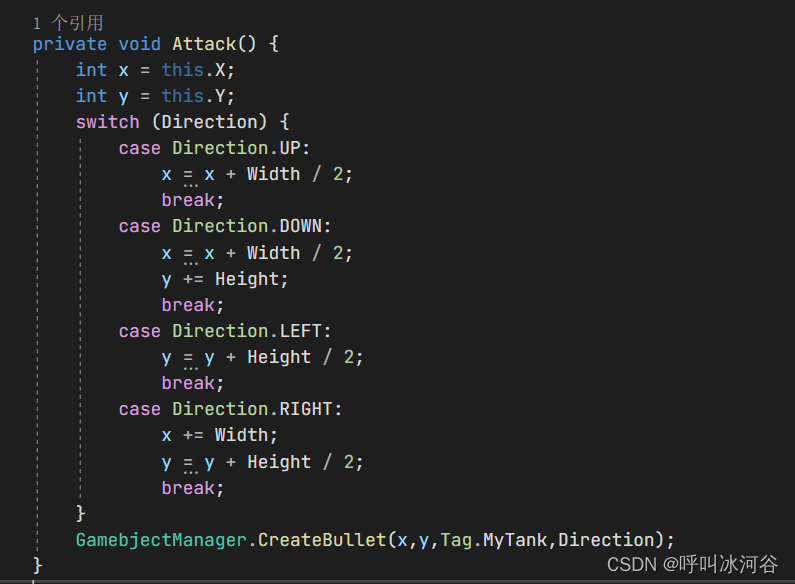

        private void Attack()
        {
            int x = this.X;
            int y = this.Y;
            switch (Direction)
            {
                case Direction.UP:
                    x = x + Width / 2;
                    break;
                case Direction.DOWN:
                    x = x + Width / 2;
                    y += Height;
                    break;
                case Direction.LEFT:
                    y = y + Height / 2;
                    break;
                case Direction.RIGHT:
                    x += Width;
                    y = y + Height / 2;
                    break;
            }
            GamebjectManager.CreateBullet(x, y, Tag.EnemyTank, Direction);
        }
    }
}

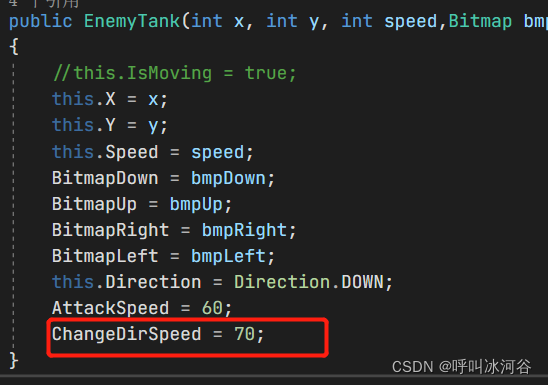

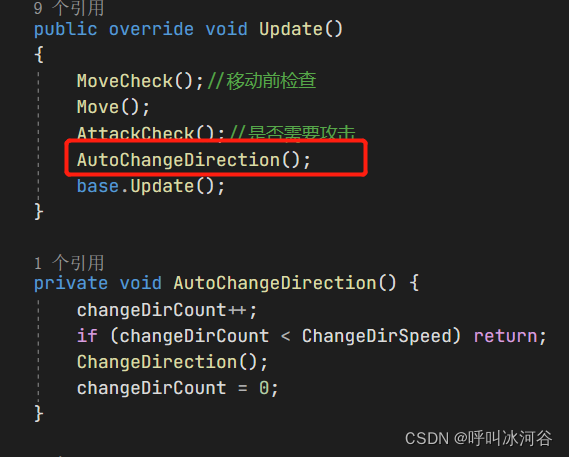

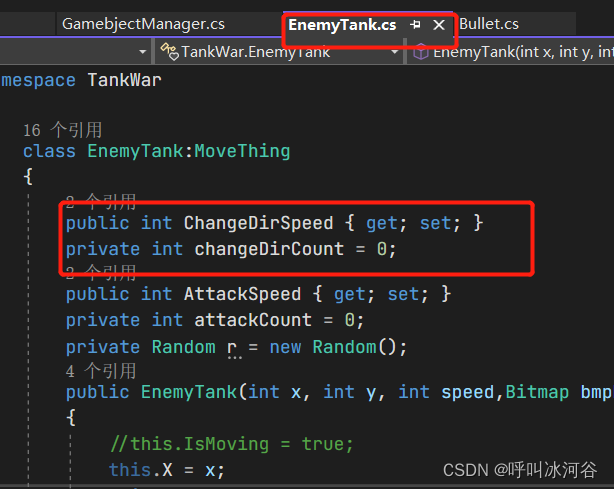

敌人可随机转向，而不是遇到障碍我才转向

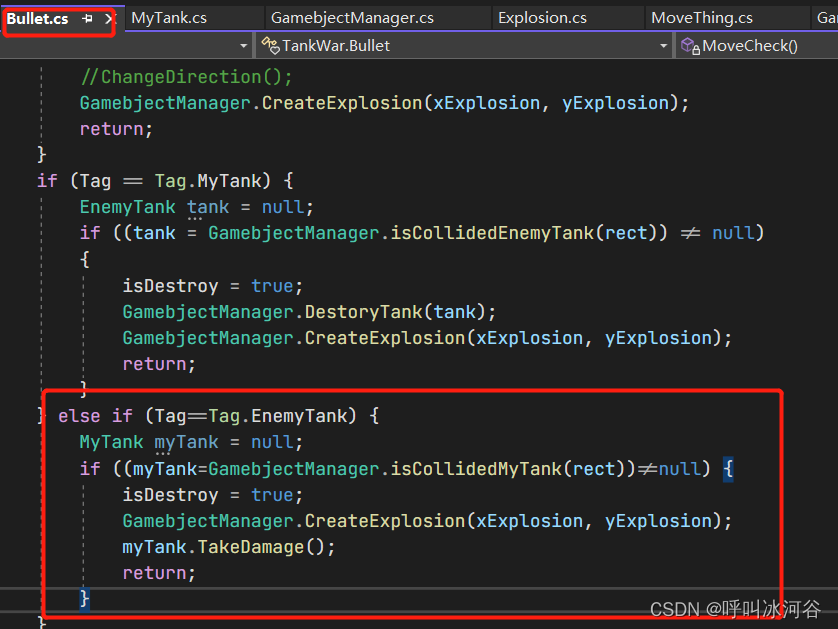

子弹可以攻击主角坦克，主角坦克可以被攻击4次，第4次主角坦克消失并回归起点

using System;
using System.Collections.Generic;
using System.Drawing;
using System.Linq;
using System.Text;
using System.Threading.Tasks;
using System.Windows.Forms;
using TankWar.Properties;

namespace TankWar
{
    class MyTank:MoveThing
    {
        public int HP { get; set; }//血量
        ...
        private int originalX, originalY;
        public MyTank(int x,int y,int speed) {
            ...
            originalX = x;
            originalY = y;
            ...
            HP = 4;
        }

        ...

        public void TakeDamage() {
            HP--;
            if (HP<=0) {
                X = originalX;
                Y = originalY;
                HP = 4;
            }
        }
    }
}

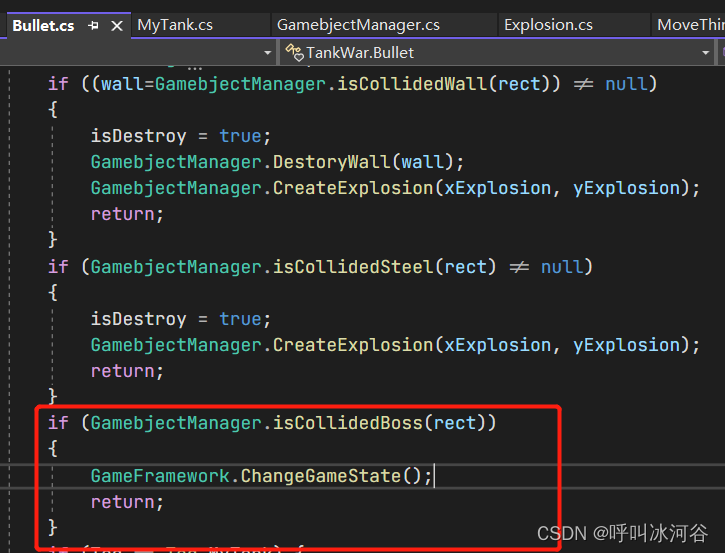

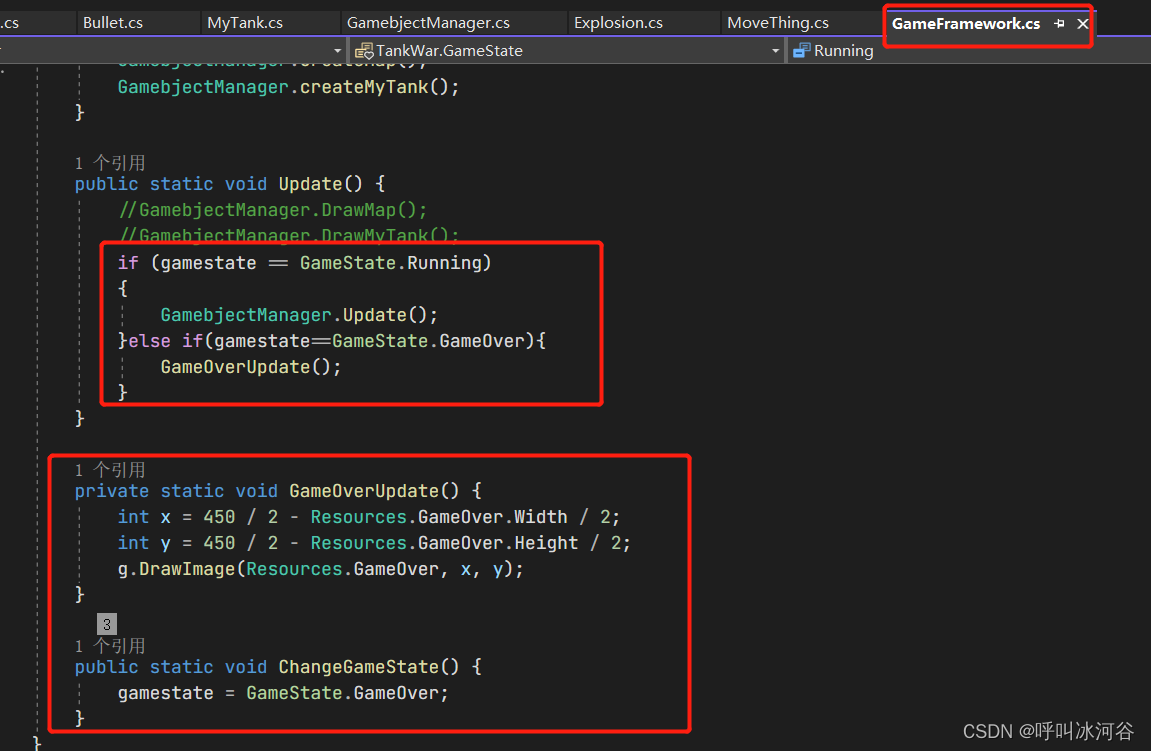

子弹攻击boss时游戏结束

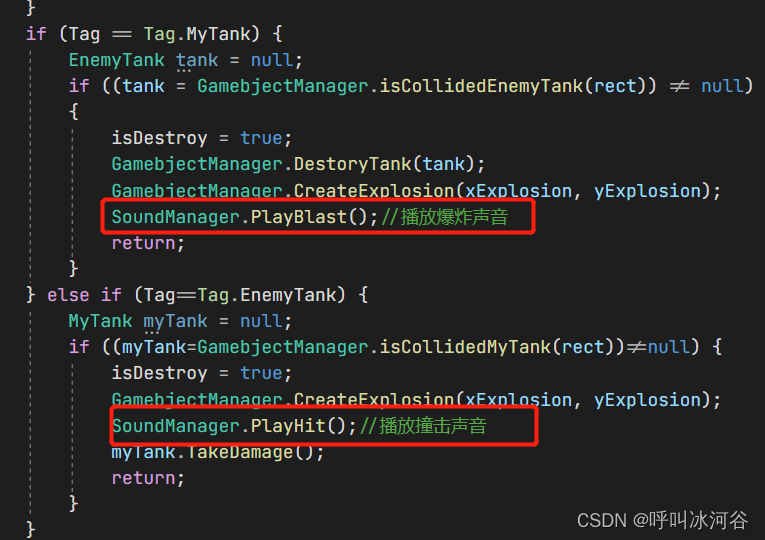

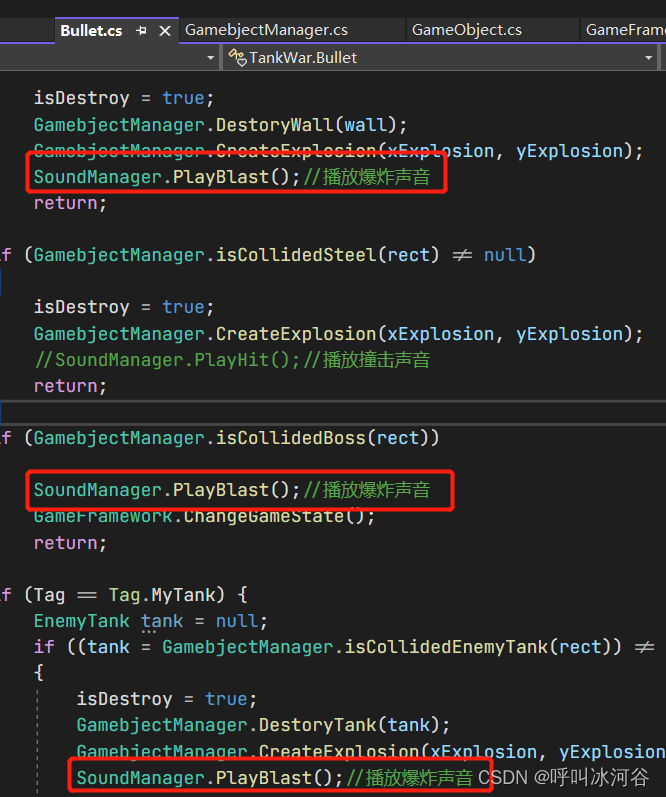

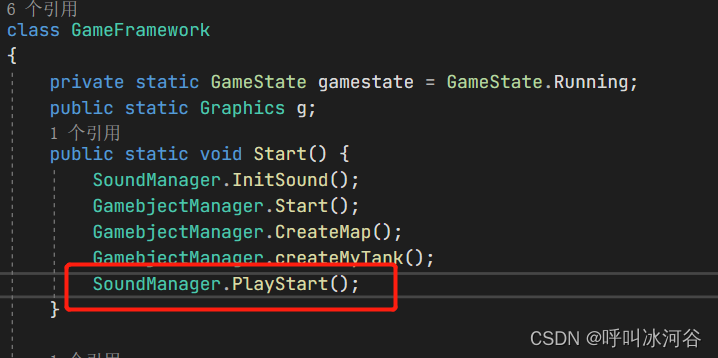

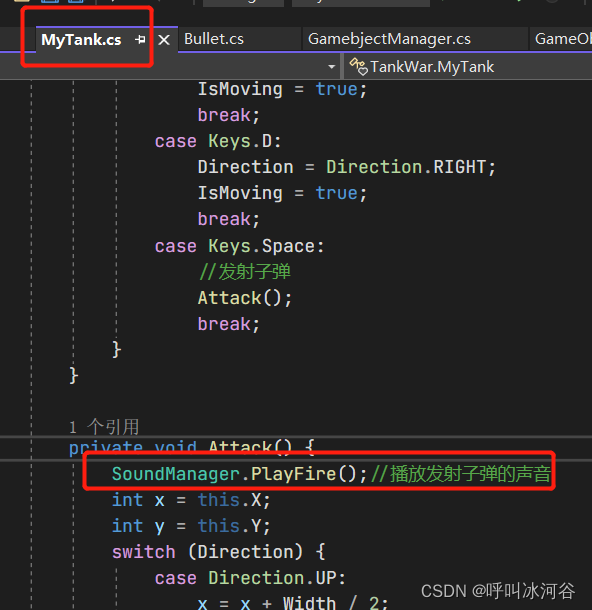

9.添加音效

using System;
using System.Collections.Generic;
using System.Linq;
using System.Media;
using System.Text;
using System.Threading;
using System.Threading.Tasks;
using TankWar.Properties;

namespace TankWar
{
    class SoundManager
    {

        private static SoundPlayer startPlayer = new SoundPlayer();
        private static SoundPlayer addPlayer = new SoundPlayer();
        private static SoundPlayer blastPlayer = new SoundPlayer();
        private static SoundPlayer firePlayer = new SoundPlayer();
        private static SoundPlayer hitPlayer = new SoundPlayer();

        public static void InitSound() {
            startPlayer.Stream = Resources.start;
            addPlayer.Stream = Resources.add;
            blastPlayer.Stream = Resources.blast;
            firePlayer.Stream = Resources.fire;
            hitPlayer.Stream = Resources.hit;
        }
        public static void PlayStart() {
            startPlayer.Play();
        }
        public static void PlayAdd()
        {
            addPlayer.Play();
        }
        public static void PlayBlast() {
            blastPlayer.Play();
        }
        public static void PlayFire()
        {
            firePlayer.Play();
        }
        public static void PlayHit()
        {
            hitPlayer.Play();
        }

    }
}

使用Unity制作

1.创建工程

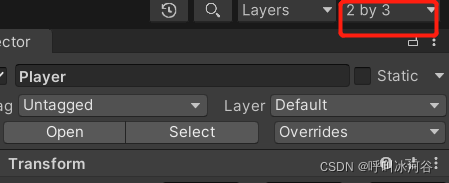

修改布局模式为2 by 3

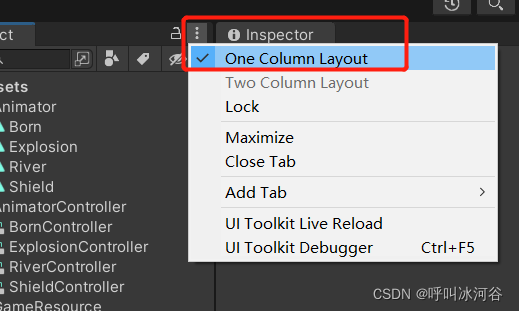

Project面板切换单行模式

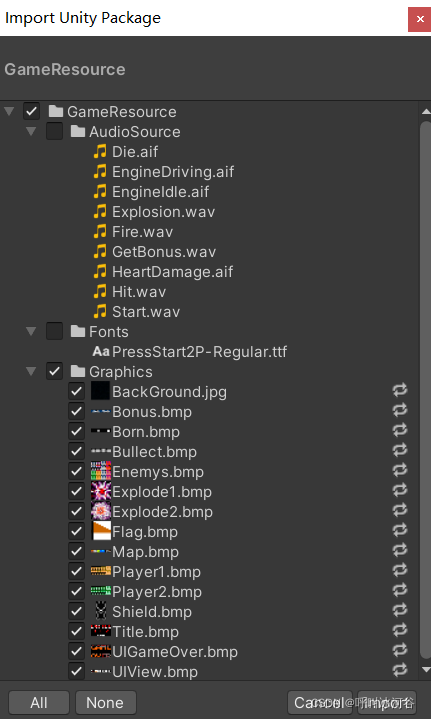

导入资源（将unitypackage文件拖到Project面板，在弹出的弹窗点击Import即可）

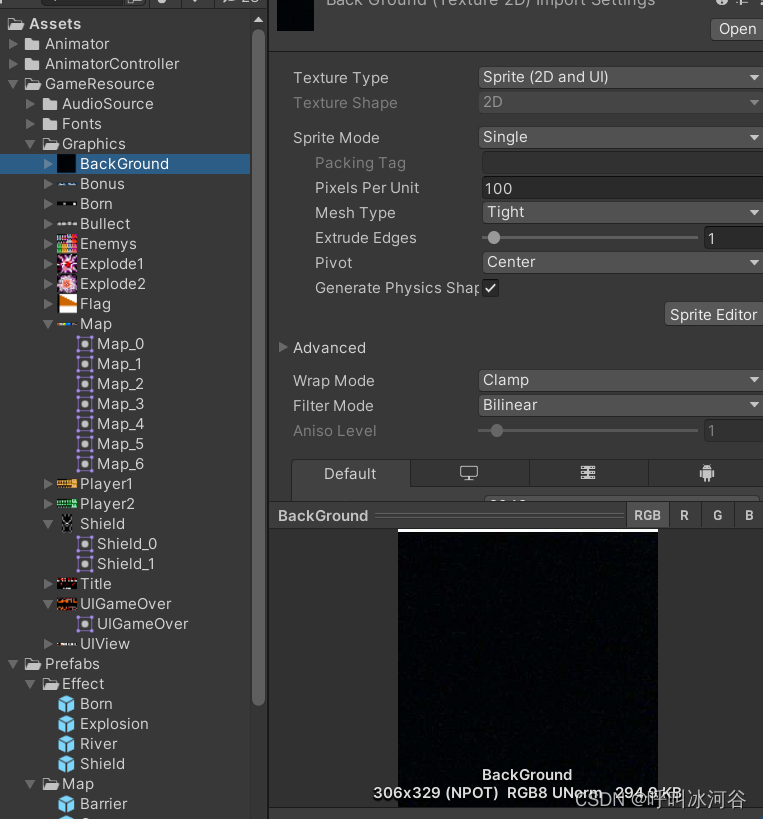

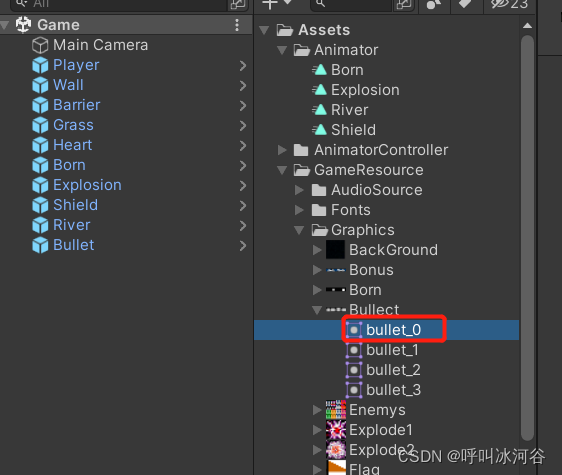

确保单张图片的SpriteMode选择为Single，多张小图片组成的图片选择为Multiple，TextureType选择为Sprite2D

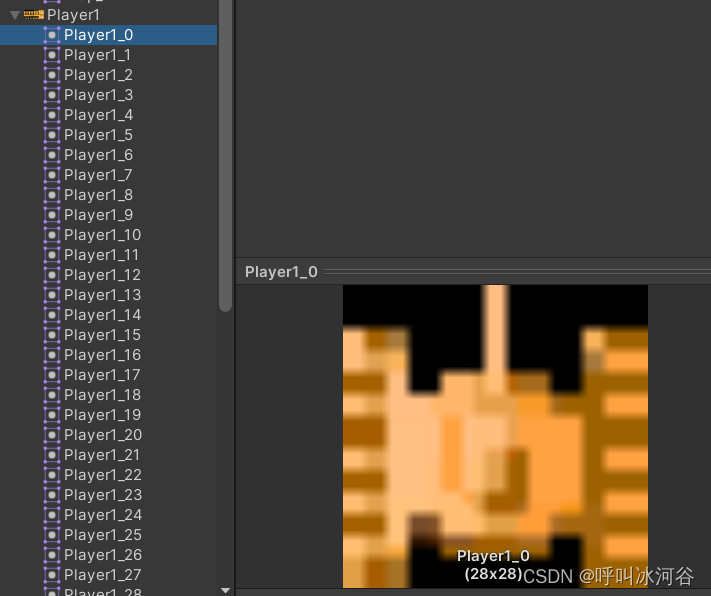

切割图片（点击Sprite Editor->Slice->Gride By Cell Size，输入最小图片大小点击Slice即可，之后就可以展开看到切割后图片）

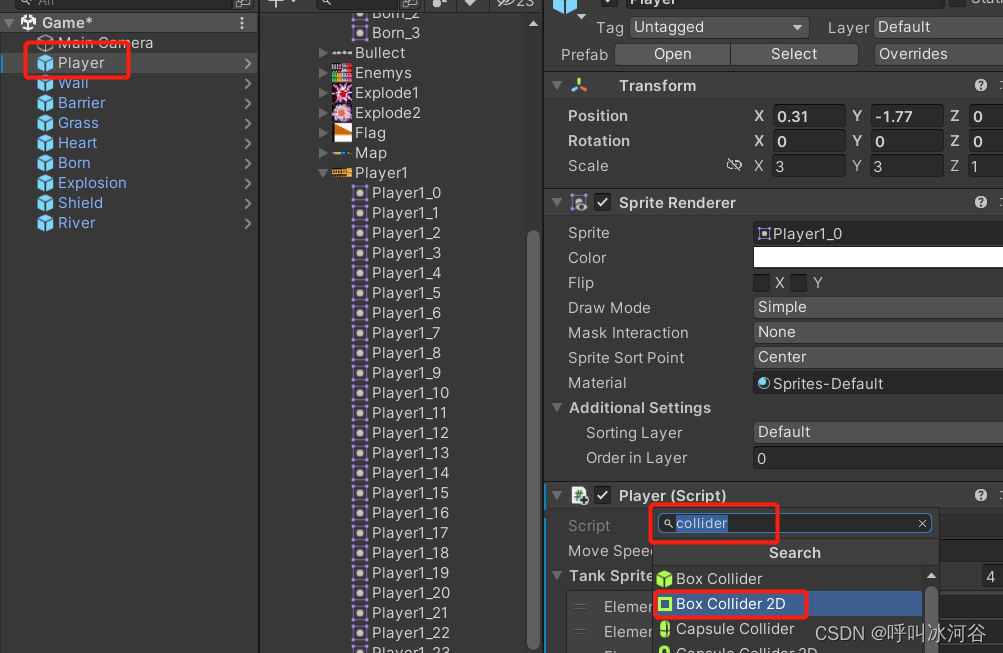

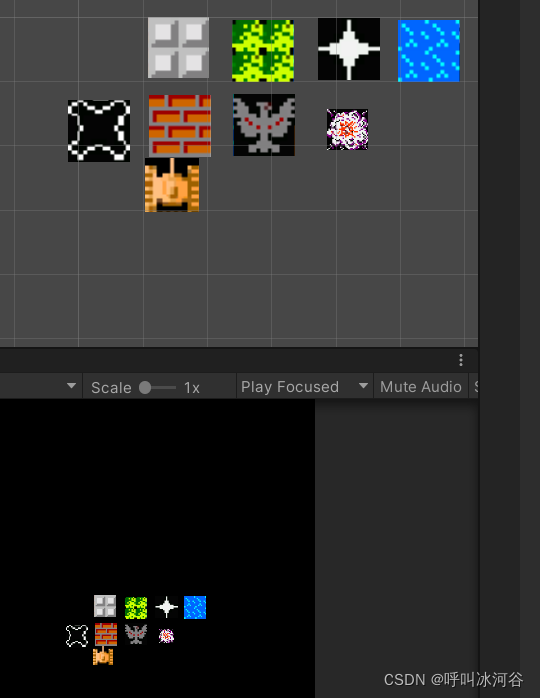

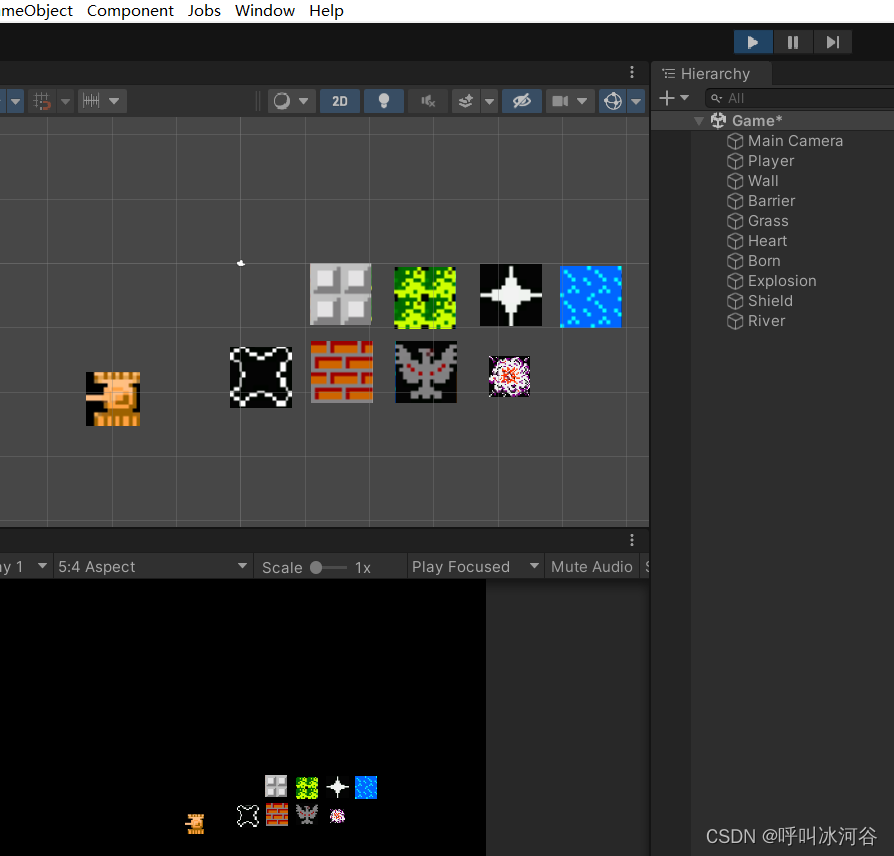

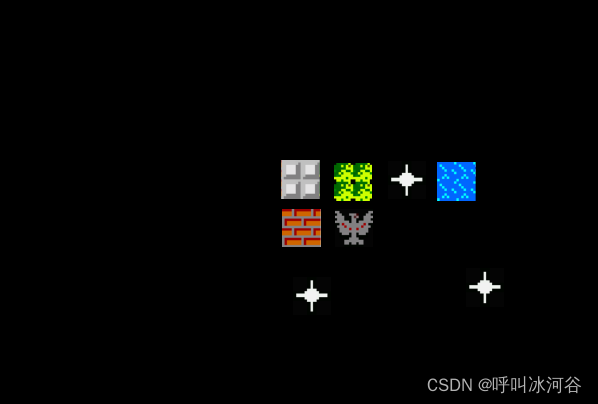

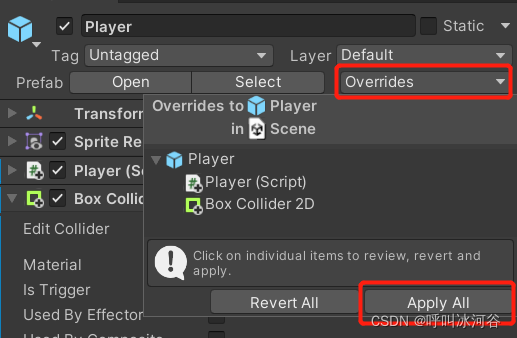

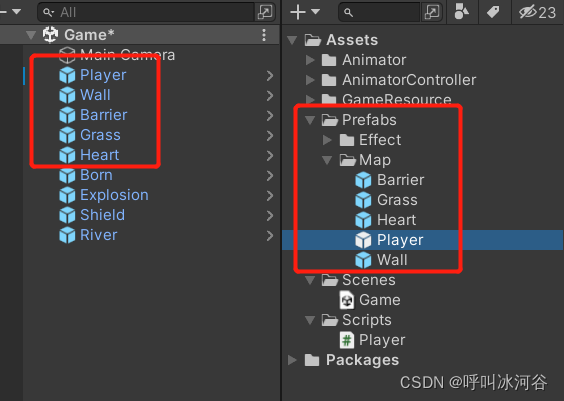

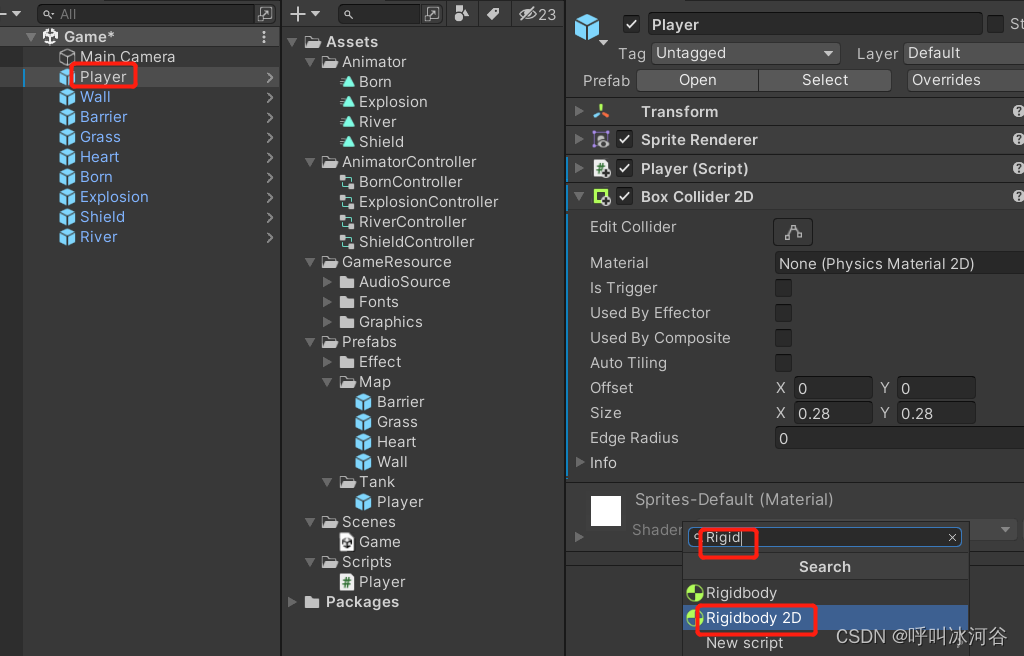

创建Player（将Player1拖到Hierarchy面板即可），创建其对应预制体，同理可创建Wall、Barrier、Grass、Heart

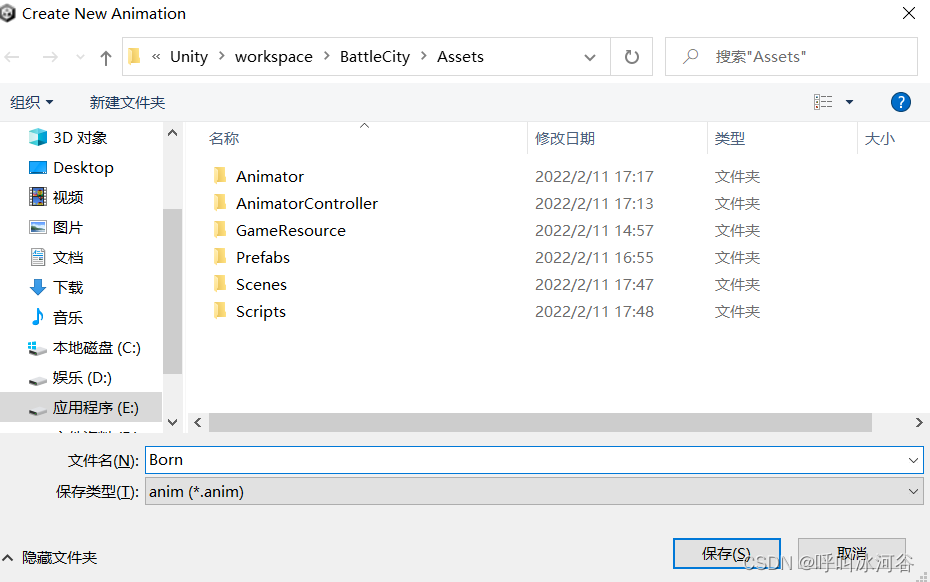

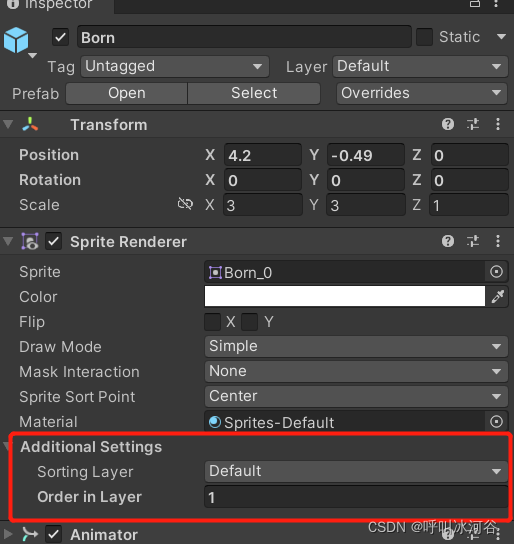

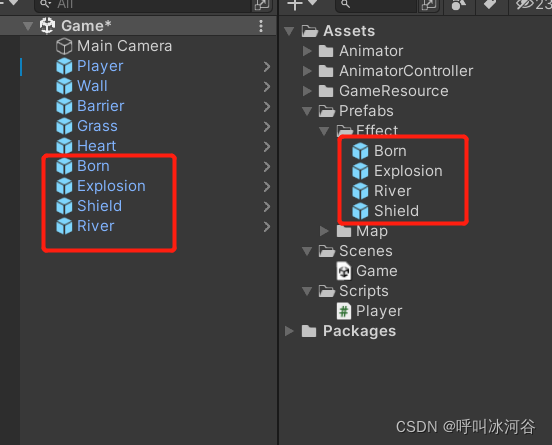

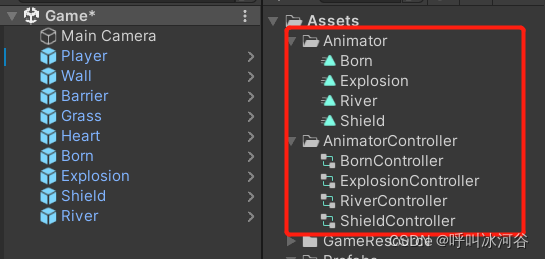

创建动画效果（出生动画、爆炸动画、护盾动画、河流动画），选择动画然后拖到Hierarchy面板，然后命名即可，然后创建其对于预制体，然后会自动产生俩个文件，将其放到新建文件夹Animator和AnimatorController中（适当改名以清晰结构）

2.控制Player移动

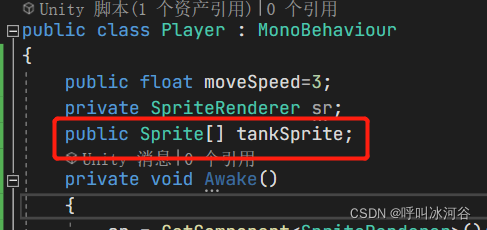

新建脚本Player放在新建文件夹Scripts下，与Player对象关联，然后编辑内容

using System.Collections;
using System.Collections.Generic;
using UnityEngine;

public class Player : MonoBehaviour
{
    public float moveSpeed=3;
    // Start is called before the first frame update
    void Start()
    {

    }

    // Update is called once per frame
    void Update()
    {
        float h = Input.GetAxisRaw("Horizontal");
        transform.Translate(Vector3.right * h * moveSpeed * Time.deltaTime,Space.World);//乘以delTatime表示按每一秒移动,以世界坐标轴移动
        float v = Input.GetAxisRaw("Vertical");
        transform.Translate(Vector3.up * v * moveSpeed * Time.deltaTime, Space.World);
    }
}

新建一个数组，用以存放4个方向的图片

获取SpriteRender对象控制图片的显示

using System.Collections;
using System.Collections.Generic;
using UnityEngine;

public class Player : MonoBehaviour
{
    public float moveSpeed=3;
    private SpriteRenderer sr;
    public Sprite[] tankSprite;
    private void Awake()
    {
        sr = GetComponent<SpriteRenderer>();//得到图片渲染组件
    }
    // Start is called before the first frame update
    void Start()
    {

    }

    // Update is called once per frame
    void Update()
    {
        float h = Input.GetAxisRaw("Horizontal");
        transform.Translate(Vector3.right * h * moveSpeed * Time.deltaTime,Space.World);//乘以delTatime表示按每一秒移动,以世界坐标轴移动
        if (h < 0) {
            sr.sprite = tankSprite[3];//左
        } else if (h>0) {
            sr.sprite = tankSprite[1];//右
        }
        float v = Input.GetAxisRaw("Vertical");
        transform.Translate(Vector3.up * v * moveSpeed * Time.deltaTime, Space.World);
        if (v < 0)
        {
            sr.sprite = tankSprite[2];
        }
        else if (v > 0)
        {
            sr.sprite = tankSprite[0];
        }
    }
}

3.为Player添加碰撞效果

添加碰撞器（点击Add Component后如图）

添加刚体组件

然后将Player的所有新加属性应用到其预制体上

然后为剩余的Map预制体添加碰撞器（这里把River换到了Map文件中，Player放在了新文件夹下）

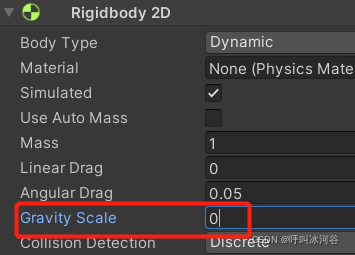

然后在运行后发现坦克下落了（这是因为重力的原因，我们将其重力设为0即可）

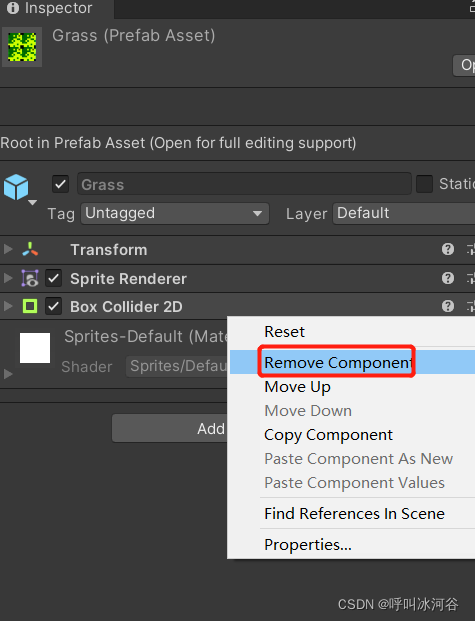

去掉Grass的碰撞器，因为逻辑上不需要碰撞

当我们在运行时会发现坦克会在碰撞体边角处发生z轴的旋转，所以我们在这里勾选如图选项即可

处理坦克遇到墙面时抖动滚动的情形（将所有代码放大FixedUpdate方法中并改Time.DeltaTime为Time.fixedDeltaTime，即固定每一帧执行的时间从而保证物理碰撞时相同的）

using System.Collections;
using System.Collections.Generic;
using UnityEngine;

public class Player : MonoBehaviour
{
    public float moveSpeed=3;
    private SpriteRenderer sr;
    public Sprite[] tankSprite;
    private void Awake()
    {
        sr = GetComponent<SpriteRenderer>();//得到图片渲染组件
    }
    // Start is called before the first frame update
    void Start()
    {

    }

    // Update is called once per frame
    void Update()
    {

    }

    private void FixedUpdate()
    {
        float h = Input.GetAxisRaw("Horizontal");
        transform.Translate(Vector3.right * h * moveSpeed * Time.deltaTime, Space.World);//乘以delTatime表示按每一秒移动,以世界坐标轴移动
        if (h < 0)
        {
            sr.sprite = tankSprite[3];//左
        }
        else if (h > 0)
        {
            sr.sprite = tankSprite[1];//右
        }
        float v = Input.GetAxisRaw("Vertical");
        transform.Translate(Vector3.up * v * moveSpeed * Time.deltaTime, Space.World);
        if (v < 0)
        {
            sr.sprite = tankSprite[2];
        }
        else if (v > 0)
        {
            sr.sprite = tankSprite[0];
        }
    }
}

在测试过程种，我们发现同时按下两个键（如左上、左下等）坦克会歇着走，这样是不好的用户体验，所以我们添加如下内容，同时为了代码简洁我们把它放到一个Move方法中调用

using System.Collections;
using System.Collections.Generic;
using UnityEngine;

public class Player : MonoBehaviour
{
    ...
    private void FixedUpdate()
    {
        Move();
    }

    private void Move()
    {
        float h = Input.GetAxisRaw("Horizontal");
        transform.Translate(Vector3.right * h * moveSpeed * Time.fixedDeltaTime, Space.World);//乘以delTatime表示按每一秒移动,以世界坐标轴移动
        if (h < 0)
        {
            sr.sprite = tankSprite[3];//左
        }
        else if (h > 0)
        {
            sr.sprite = tankSprite[1];//右
        }

        if (h != 0)
        {
            return;//处理两键同时按下导致坦克斜着走问题
        }


        float v = Input.GetAxisRaw("Vertical");
        transform.Translate(Vector3.up * v * moveSpeed * Time.fixedDeltaTime, Space.World);
        if (v < 0)
        {
            sr.sprite = tankSprite[2];
        }
        else if (v > 0)
        {
            sr.sprite = tankSprite[0];
        }
    }
}

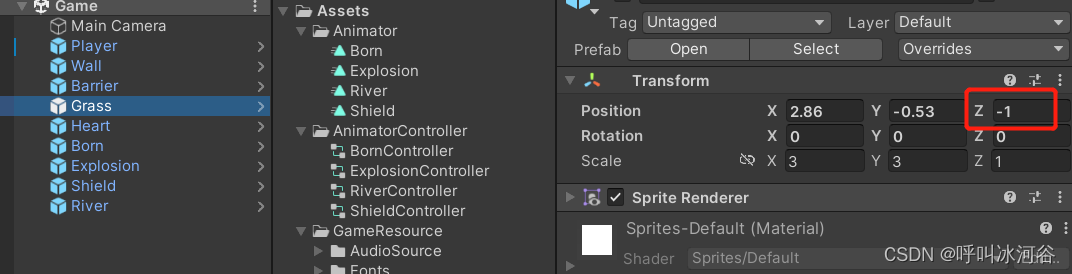

设置层级显示（即多张图片叠在一起后优先显示那张图片），下图将出生动画层级设为1（默认为0）则坦克图片经过时就会被遮盖了，同理可设置Grass、Explosion等

然后我们添加Bullet（子弹），将图片拖入左侧面板即可，然后再创建其预制体（放在Tank下）

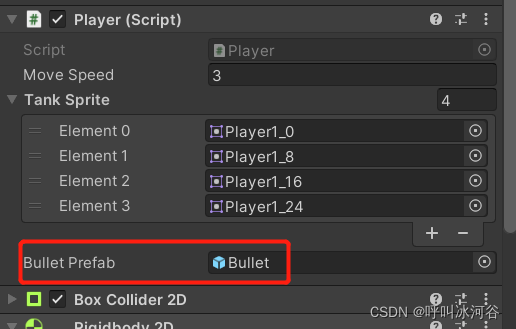

添加发射子弹的函数Attack，并绑定预制体

using System.Collections;
using System.Collections.Generic;
using UnityEngine;

public class Player : MonoBehaviour
{
    ...
    public GameObject bulletPrefab;//子弹预制体
    private void Awake()
    {
        sr = GetComponent<SpriteRenderer>();//得到图片渲染组件
    }
    // Start is called before the first frame update
    void Start()
    {

    }

    // Update is called once per frame
    void Update()
    {
        Attack(); //发射子弹,一定要放在Update中，如果放在FixedUpdate会偶尔发出不出子弹
    }

    private void FixedUpdate()
    {
        Move(); //坦克移动

    }

    private void Attack() {
        if (Input.GetKeyDown(KeyCode.Space)) {
            Instantiate(bulletPrefab, transform.position, transform.rotation);
        }
    }
    ...
}

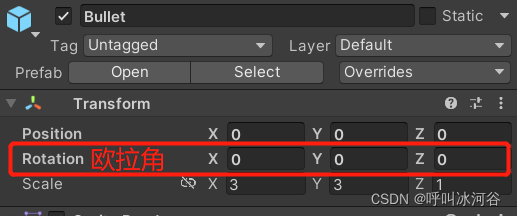

控制子弹的角度（这里需要把欧拉角转换为四元数表示传入），然后再每次坦克变向时设置bulletAngle

using System.Collections;
using System.Collections.Generic;
using UnityEngine;

public class Player : MonoBehaviour
{
    ...
    private Vector3 bulletAngle;//子弹的发射角度
    ...

    // Update is called once per frame
    void Update()
    {
        Attack(); //发射子弹
    }

    private void FixedUpdate()
    {
        Move(); //坦克移动

    }

    private void Attack() {
        if (Input.GetKeyDown(KeyCode.Space)) {
            Instantiate(bulletPrefab, transform.position, Quaternion.Euler(transform.eulerAngles+bulletAngle));
        }
    }

    private void Move()
    {
        float v = Input.GetAxisRaw("Vertical");
        transform.Translate(Vector3.up * v * moveSpeed * Time.fixedDeltaTime, Space.World);
        if (v < 0)
        {
            sr.sprite = tankSprite[2];
            bulletAngle = new Vector3(0, 0, -180);
        }
        else if (v > 0)
        {
            sr.sprite = tankSprite[0];
            bulletAngle = new Vector3(0, 0, 0);
        }

        if (v != 0)
        {
            return;//处理两键同时按下导致坦克斜着走问题
        }

        float h = Input.GetAxisRaw("Horizontal");
        transform.Translate(Vector3.right * h * moveSpeed * Time.fixedDeltaTime, Space.World);//乘以delTatime表示按每一秒移动,以世界坐标轴移动
        if (h < 0)
        {
            sr.sprite = tankSprite[3];//左
            bulletAngle = new Vector3(0, 0, 90);//这里记住坐标是反着的，
        }
        else if (h > 0)
        {
            sr.sprite = tankSprite[1];//右
            bulletAngle = new Vector3(0, 0, -90);
        }
    }
}

欧拉角：欧拉角包括3个旋转，根据这3个旋转来指定一个刚体的朝向。这3个旋转分别绕x轴，y轴和z轴，分别称为Pitch，Yaw和Roll

绕X轴（红线旋转）

绕Y轴（绿线）旋转

绕Z轴（蓝线）旋转

与我们在Unity的坐标一一对应

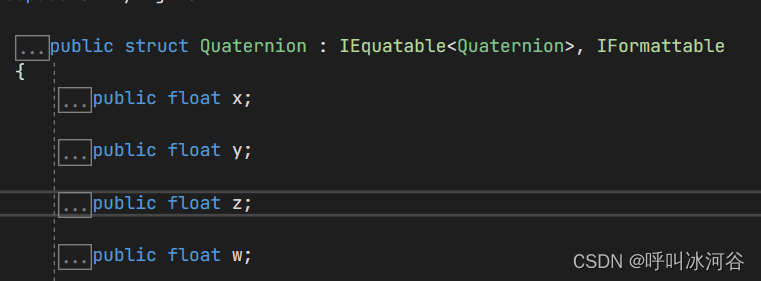

四元数

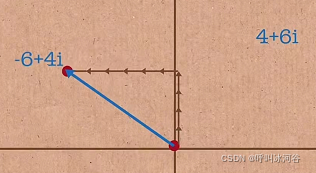

这个四元数真的很难理解，我们先来看一个我们好理解的二元数（也即我们学过的复数），如图我们画一条线段AB（用3+4i表示从A点到B点的路程变化，而B的坐标为(3，4)），当我们想把这条线段旋转90度时，我们得到-6+4i，从而达到旋转后B点的坐标为(-6，4)，这并非巧合，而是可通过计算得到：(4+6i)*i=4i-6，即乘以i代表旋转90度。如果想旋转45度呢？乘以 $1/\sqrt{2}+1/\sqrt{2}i$ 就可以得到（即旋转度数为 $\theta$ ，乘以cos $\theta$ +sin $\theta$ i）

然后我们推广到三维空间，同样的几何意义，一个空间线段旋转指定度数得到新的坐标，虚四元数表示为：q=q0+q1i+q2j+q3k，其中 $i^{2}+j^{2}+k^{2}=ijk=-1$ ，则旋转后的四元数记为p=(q0+q1i+q2j+q3k)*(cos $\theta$ +sin $\theta$ i+sin $\theta$ j+sin $\theta$ k)即可得到了

控制子弹的移动，创建Bullet脚本，并放在Scripts下，并于Bullet预制体绑定

using System.Collections;
using System.Collections.Generic;
using UnityEngine;

public class Bullet : MonoBehaviour
{
    public float moveSpeed = 10;
    // Start is called before the first frame update
    void Start()
    {

    }

    // Update is called once per frame
    void Update()
    {
        transform.Translate(transform.up * moveSpeed * Time.deltaTime, Space.World);//世界坐标轴
    }
}

为子弹添加CD（不添加会随这快速按键发射太快）

using System.Collections;
using System.Collections.Generic;
using UnityEngine;

public class Player : MonoBehaviour
{
    ...
    private float timeVal;//发射子弹CD



    // Update is called once per frame
    void Update()
    {
        Attack();
        if (timeVal >= 0.4){
            Attack(); //发射子弹
        }else {
            timeVal += Time.deltaTime;
        }
    }

    private void FixedUpdate()
    {
        Move(); //坦克移动

    }

    private void Attack() {
        if (Input.GetKeyDown(KeyCode.Space)) {
            Instantiate(bulletPrefab, transform.position, Quaternion.Euler(transform.eulerAngles+bulletAngle));
            timeVal = 0;
        }
    }
    ...
}

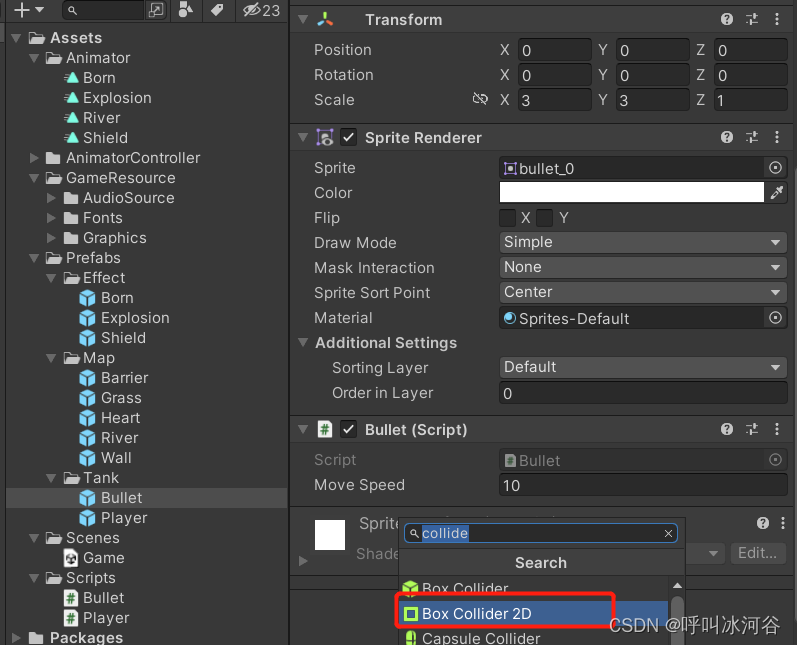

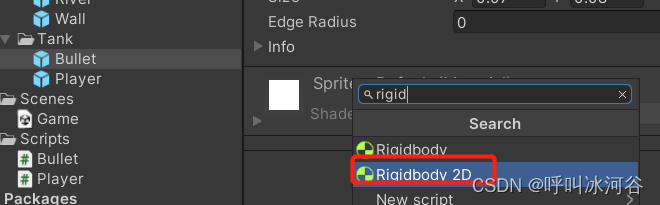

为子弹添加触发器（记得勾选Is Trigger）和钢体组件（重力设为0）

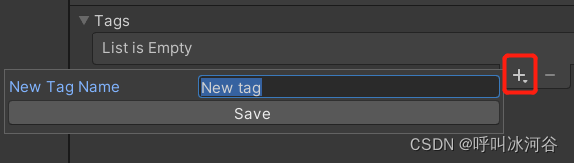

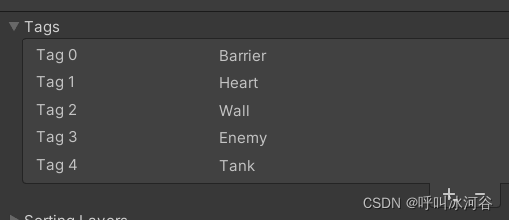

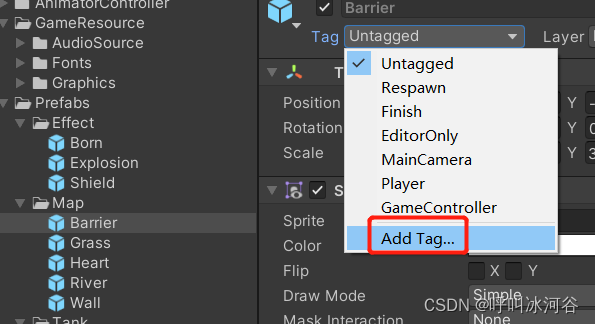

为预制体添加Tag，并修改对应Player、Barrier、Wall的Tag

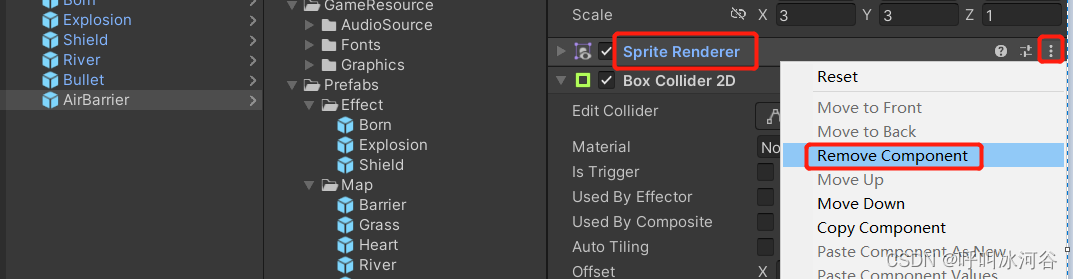

创建空气墙（为了给四周做一个边界，从而判断子弹何时被销毁）复制一个Barrier取名为AirBarrier，删除其SpriteRenderer组件（这样它就变透明不会渲染样式了，即看不见的墙）然后创建其对应预制体

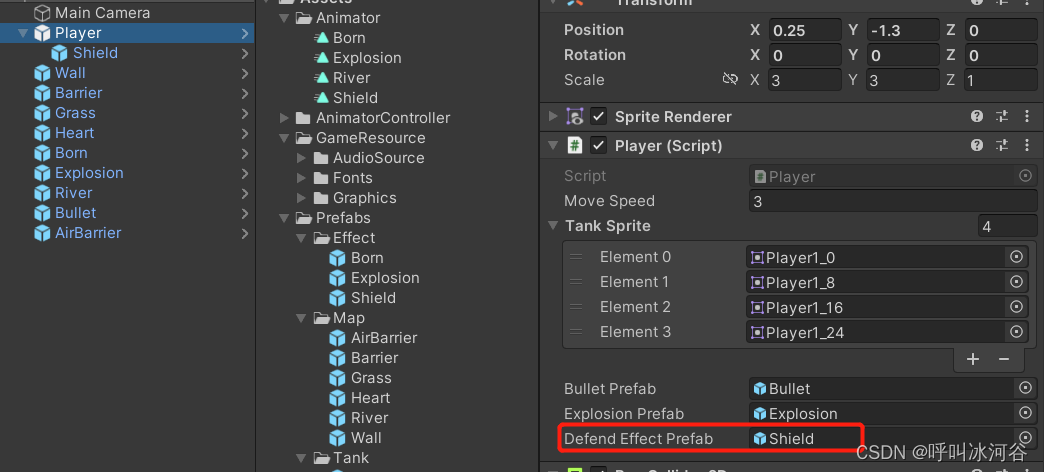

添加坦克开始时的护盾效果，将护盾效果放在Player下面（这样就会随着坦克移动了），然后在Player脚本添加护盾效果预制体（记得绑定）、护盾效果时间和是否保护标志等逻辑代码（当护盾时间不大于0时隐藏护盾效果）最后将Player的属性Apply到预制体上

using System.Collections;
using System.Collections.Generic;
using UnityEngine;

public class Player : MonoBehaviour
{
    ...
    private float defendTimeVal=3;//保护时间
    private bool isDefended=true;//是否保护
    ...
    public GameObject defendEffectPrefab;//护盾特效预制体
    ...

    // Update is called once per frame
    void Update()
    {
        //是否处于无敌状态
        if (isDefended) {
            defendEffectPrefab.SetActive(true);
            defendTimeVal -= Time.deltaTime;
            if (defendTimeVal<=0) {
                isDefended = false;
                defendEffectPrefab.SetActive(false);
            }
        }
        if (timeVal >= 0.4)
        {
            Attack(); //发射子弹
        }
        else
        {
            timeVal += Time.deltaTime;
        }

    }
}

添加Boos的破坏效果，新建Heart脚本，并于Heart预制体绑定，编码，然后绑定图片

using System.Collections;
using System.Collections.Generic;
using UnityEngine;

public class Heart : MonoBehaviour
{
    private SpriteRenderer sr;
    public Sprite BrokenSprite;
    // Start is called before the first frame update
    void Start()
    {
        sr= GetComponent<SpriteRenderer>();
    }

    // Update is called once per frame
    void Update()
    {

    }

    public void Die() {
        sr.sprite = BrokenSprite;
    }
}

为子弹创建触发方法（针对Wall、Heart、Barrier）（Barrier的IsPlayerBullet要勾选）

using System.Collections;
using System.Collections.Generic;
using UnityEngine;

public class Bullet : MonoBehaviour
{
    public float moveSpeed = 10;
    public bool isPlayerBullet;//是否为玩家子弹
    // Start is called before the first frame update
    void Start()
    {

    }

    // Update is called once per frame
    void Update()
    {
        transform.Translate(transform.up * moveSpeed * Time.deltaTime, Space.World);//世界坐标轴
    }

    private void OnTriggerEnter2D(Collider2D collision)
    {
        switch (collision.tag) {
            case "Tank":
                if (!isPlayerBullet) {
                    collision.SendMessage("Die");//执行碰撞到的物体的Die方法
                }
                break;
            case "Heart":
                collision.SendMessage("Die");//执行碰撞到的物体的Die方法
                Destroy(gameObject);//销毁子弹自身
                break;
            case "Enemy":
                break;
            case "Wall":
                Destroy(collision.gameObject);//销毁碰撞到的物体
                Destroy(gameObject);//销毁子弹自身
                break;
            case "Barrier":
                Destroy(gameObject);//销毁子弹自身
                break;
            default:
                break;
        }
    }
}

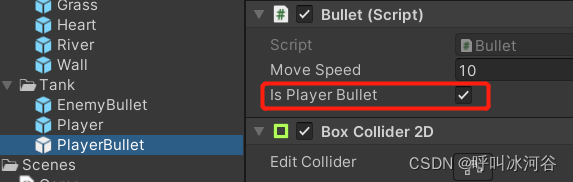

重命名子弹名称，并新建一个EnemyBullet，然后其IsPlayerBullet取消勾选，PlayerBullet则勾选

创建爆炸特效脚本并与预制体绑定

using System.Collections;
using System.Collections.Generic;
using UnityEngine;

public class Explosion : MonoBehaviour
{
    // Start is called before the first frame update
    void Start()
    {
        Destroy(gameObject, 0.2f);
    }

    // Update is called once per frame
    void Update()
    {

    }
}

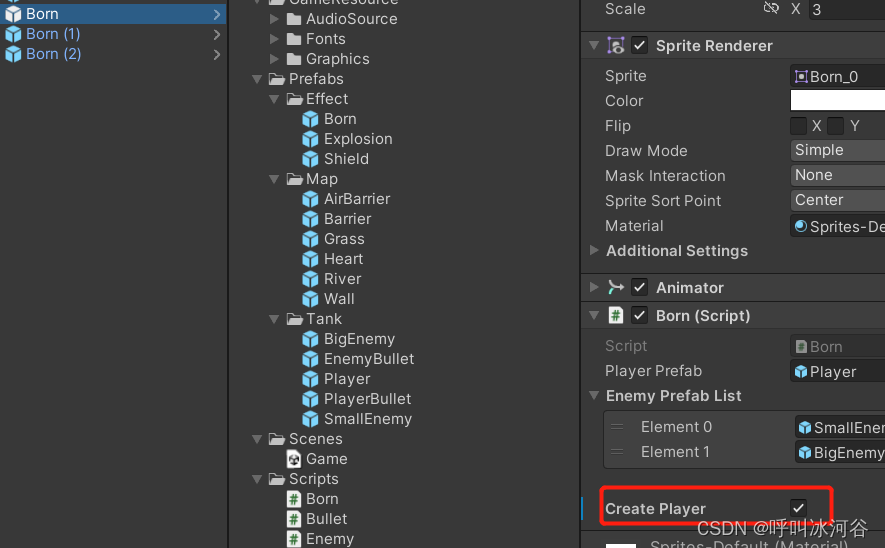

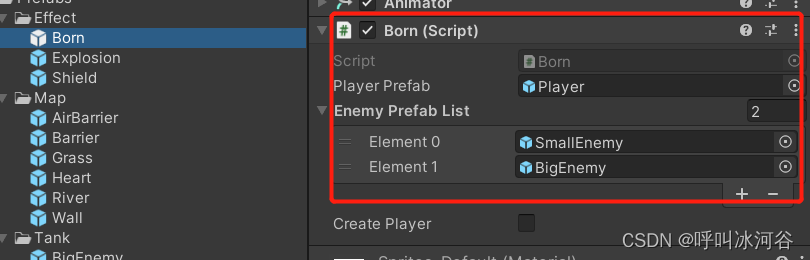

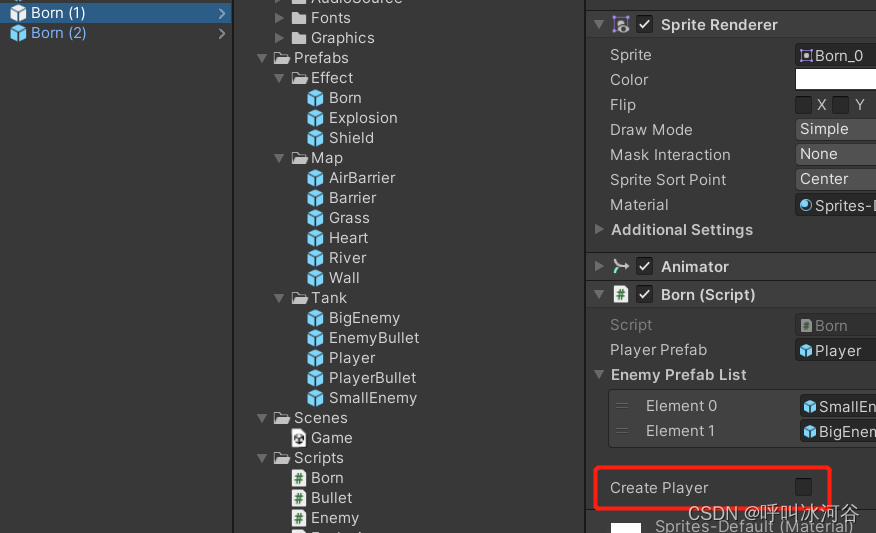

创建出生效果，创建Born脚本(与Born预制体绑定)，然后将Player预制体与脚本绑定

using System.Collections;
using System.Collections.Generic;
using UnityEngine;

public class Born : MonoBehaviour
{
    public GameObject playerPrefab;
    // Start is called before the first frame update
    void Start()
    {
        Invoke("BornTank", 1f);//延时调用
        Destroy(gameObject, 1f);//延时销毁
    }

    // Update is called once per frame
    void Update()
    {

    }

    private void BornTank() {
        Instantiate(playerPrefab, transform.position, Quaternion.identity);
    }
}

创建敌人（设置钢体、碰撞器、重力为0，Z轴定向，设置4各方向图片、创建对应预制体，绑定爆炸效果预制体和子弹预制体）添加移动AI（每3秒进行一次攻击，每4秒进行一次转向），并添加敌人子弹的判定效果

using System.Collections;
using System.Collections.Generic;
using UnityEngine;

public class Enemy : MonoBehaviour
{
    public float moveSpeed = 3;
    private Vector3 bulletAngle;//子弹的发射角度
    private float v, h;
    private float timeVal;//发射子弹CD
    private float timeValChangeDirection=4;//改变方向的时间


    private SpriteRenderer sr;
    public Sprite[] tankSprite;
    public GameObject bulletPrefab;//子弹预制体
    public GameObject explosionPrefab;//爆炸效果预制体
    private void Awake()
    {
        sr = GetComponent<SpriteRenderer>();//得到图片渲染组件
    }
    // Start is called before the first frame update
    void Start()
    {

    }

    // Update is called once per frame
    void Update()
    {
        if (timeVal >= 3)
        {
            Attack(); //发射子弹
        }
        else
        {
            timeVal += Time.deltaTime;
        }

    }

    private void FixedUpdate()
    {
        Move(); //坦克移动

    }

    private void Attack()
    {
            Instantiate(bulletPrefab, transform.position, Quaternion.Euler(transform.eulerAngles + bulletAngle));
            timeVal = 0;
    }

    private void Move()
    {
        if (timeValChangeDirection >= 4)
        {
            int num = Random.Range(0, 8);
            if (num > 5)
            {
                v = -1;//向下走
                h = 0;
            }
            else if (num == 0)
            {
                v = 1;//向后走
                h = 0;
            }
            else if (num > 0 && num <= 2)
            {
                h = -1;//向左走
                v = 0;
            }
            else if (num > 2 && num <= 4)
            {
                h = 1;//向右走
                v = 0;
            }
            timeValChangeDirection = 0;
        } else {
            timeValChangeDirection += Time.fixedDeltaTime;
        }
        transform.Translate(Vector3.right * h * moveSpeed * Time.fixedDeltaTime, Space.World);//乘以delTatime表示按每一秒移动,以世界坐标轴移动
        if (h < 0)
        {
            sr.sprite = tankSprite[3];//左
            bulletAngle = new Vector3(0, 0, 90);//这里记住坐标是反着的，
        }
        else if (h > 0)
        {
            sr.sprite = tankSprite[1];//右
            bulletAngle = new Vector3(0, 0, -90);
        }

        if (h != 0)
        {
            return;//处理两键同时按下导致坦克斜着走问题
        }

        transform.Translate(Vector3.up * v * moveSpeed * Time.fixedDeltaTime, Space.World);
        if (v < 0)
        {
            sr.sprite = tankSprite[2];
            bulletAngle = new Vector3(0, 0, -180);
        }
        else if (v > 0)
        {
            sr.sprite = tankSprite[0];
            bulletAngle = new Vector3(0, 0, 0);
        }
    }

    private void Die()
    {
        Instantiate(explosionPrefab, transform.position, transform.rotation);//产生爆炸效果
        Destroy(gameObject);
    }
}

using System.Collections;
using System.Collections.Generic;
using UnityEngine;

public class Bullet : MonoBehaviour
{
    public float moveSpeed = 10;
    public bool isPlayerBullet;//是否为玩家子弹
    // Start is called before the first frame update
    void Start()
    {

    }

    // Update is called once per frame
    void Update()
    {
        transform.Translate(transform.up * moveSpeed * Time.deltaTime, Space.World);//世界坐标轴
    }

    private void OnTriggerEnter2D(Collider2D collision)
    {
        switch (collision.tag) {
            case "Tank":
                if (!isPlayerBullet) {
                    collision.SendMessage("Die");//执行碰撞到的物体的Die方法
                    Destroy(gameObject);//销毁子弹自身
                }
                break;
            case "Heart":
                collision.SendMessage("Die");//执行碰撞到的物体的Die方法
                Destroy(gameObject);//销毁子弹自身
                break;
            case "Enemy":
                if (isPlayerBullet) {
                    collision.SendMessage("Die");
                    Destroy(gameObject);//销毁子弹自身
                }
                break;
            case "Wall":
                Destroy(collision.gameObject);//销毁碰撞到的物体
                Destroy(gameObject);//销毁子弹自身
                break;
            case "Barrier":
                Destroy(gameObject);//销毁子弹自身
                break;
            default:
                break;
        }
    }
}

创建多个Born（绑定敌人坦克预制体，多个Born中有一个是用来生成Player的，所以需要勾选CreatePlayer）编写代码控制显示和销毁以及产生的坦克类型

using System.Collections;
using System.Collections.Generic;
using UnityEngine;

public class Born : MonoBehaviour
{
    public GameObject playerPrefab;
    public GameObject[] enemyPrefabList;
    public bool createPlayer;
    // Start is called before the first frame update
    void Start()
    {
        Invoke("BornTank", 1f);//延时调用
        Destroy(gameObject, 1f);//延时销毁
    }

    // Update is called once per frame
    void Update()
    {

    }

    private void BornTank() {
        if (createPlayer) {
            Instantiate(playerPrefab, transform.position, Quaternion.identity);
        }else {
            int num = Random.Range(0, 2);
            Instantiate(enemyPrefabList[num], transform.position, Quaternion.identity);
        }
    }
}

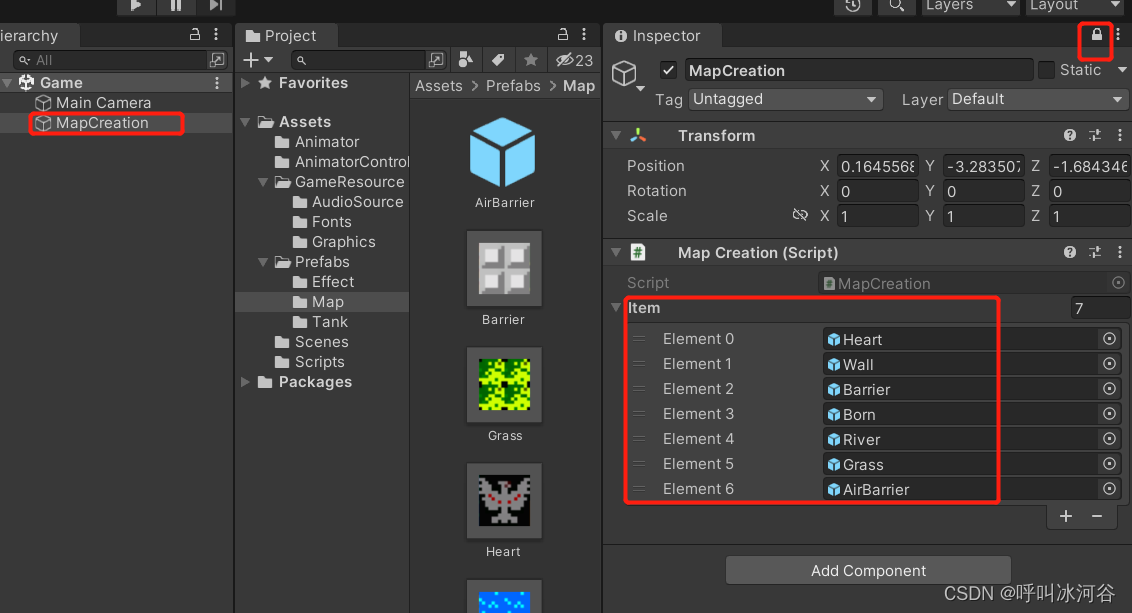

创建空对象命名为MapCreation，创建MapCreation脚本，声明一个GameObject数组，将下图种相关预制体拖入（右上角的锁可以锁定该页面方便拖放预制体）

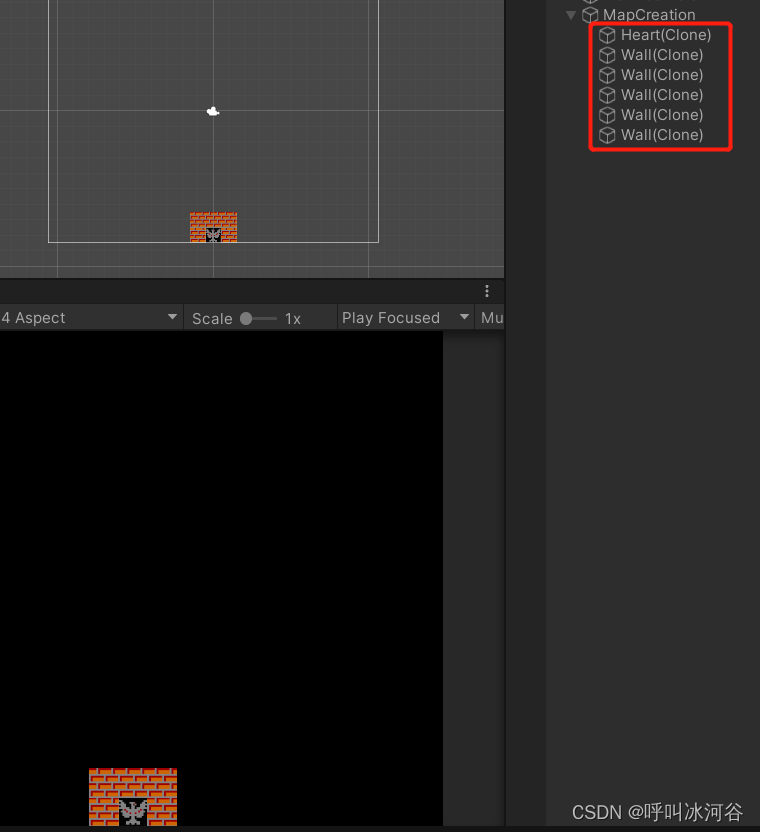

创建BOSS和BOSS周围的墙

using System.Collections;
using System.Collections.Generic;
using UnityEngine;

public class MapCreation : MonoBehaviour
{
    public GameObject[] item;//保存Boss、墙、障碍、出生效果、河流、草、空气墙
    private void Awake()
    {
        //在界面下边界中间位置，创建Boss
        CreateItem(item[0], new Vector3(0, -8, 0), Quaternion.identity);
        //Boss周围的墙
        CreateItem(item[1], new Vector3(-1,-8,0), Quaternion.identity);
        CreateItem(item[1], new Vector3(1, -8, 0), Quaternion.identity);
        for (int i=-1;i<2;i++) {
            CreateItem(item[1], new Vector3(i, -7, 0), Quaternion.identity);
        }
    }

    private void CreateItem(GameObject createObject,Vector3 position,Quaternion rotation) {
        GameObject item = Instantiate(createObject, position, rotation);
        item.transform.SetParent(gameObject.transform);//将新建的对象放在MapCreation下使目录简洁
    }
}

创建外围空气墙，随机位置创建其他对象（墙、障碍、海、草等），拖入一个主角坦克生成点Born

using System.Collections;
using System.Collections.Generic;
using UnityEngine;

public class MapCreation : MonoBehaviour
{
    public GameObject[] item;//保存Boss、墙、障碍、出生效果、河流、草、空气墙
    private List<Vector3> itemPostionList=new List<Vector3>();//保存每个对象的位置，用于判断随机生成的位置是否已有对象
    private void Awake()
    {
        //在界面下边界中间位置，创建Boss
        CreateItem(item[0], new Vector3(0, -8, 0), Quaternion.identity);
        //Boss周围的墙
        CreateItem(item[1], new Vector3(-1,-8,0), Quaternion.identity);
        CreateItem(item[1], new Vector3(1, -8, 0), Quaternion.identity);
        for (int i=-1;i<2;i++) {
            CreateItem(item[1], new Vector3(i, -7, 0), Quaternion.identity);
        }
        //创建外围空气墙
        for (int i=-11;i<12;i++) {//上边界
            CreateItem(item[6], new Vector3(i, 9, 0), Quaternion.identity);
        }
        for (int i = -11; i < 12; i++)//下边界
        {
            CreateItem(item[6], new Vector3(i, -9, 0), Quaternion.identity);
        }
        for (int i = -8; i < 9; i++)//左边界
        {
            CreateItem(item[6], new Vector3(-11, i, 0), Quaternion.identity);
        }
        for (int i = -8; i < 9; i++)//右边界
        {
            CreateItem(item[6], new Vector3(11, i, 0), Quaternion.identity);
        }

        //创建其他对象（墙、障碍、河流、草）
        for (int i=0;i<20;i++) {
            CreateItem(item[1], createRandomPosition(), Quaternion.identity);
        }
        for (int i = 0; i < 20; i++)
        {
            CreateItem(item[2], createRandomPosition(), Quaternion.identity);
        }
        for (int i = 0; i < 20; i++)
        {
            CreateItem(item[4], createRandomPosition(), Quaternion.identity);
        }
        for (int i = 0; i < 20; i++)
        {
            CreateItem(item[5], createRandomPosition(), Quaternion.identity);
        }


    }

    private void CreateItem(GameObject createObject,Vector3 position,Quaternion rotation) {
        GameObject item = Instantiate(createObject, position, rotation);
        item.transform.SetParent(gameObject.transform);//将新建的对象放在MapCreation、下
        itemPostionList.Add(position);//将新建的对象位置放入列表
    }

    private Vector3 createRandomPosition() {
        while (true) {
            Vector3 position = new Vector3(Random.Range(-9, 10), Random.Range(-7, 8), 0);//不在四个边界产生游戏物体
            if (!IsUsedPosition(position)) {
                return position;
            }
        }
    }

    private bool IsUsedPosition(Vector3 position) {
        for (int i=0;i<itemPostionList.Count;i++) {
            if (position==itemPostionList[i]) {
                return true;
            }
        }
        return false;
    }
}

呼叫冰河谷

关注

3
点赞
踩
35

收藏

觉得还不错? 一键收藏
0
评论
Unity开发笔记（五）—— 制作第四个小游戏《坦克大战》

写在前面的话C#可以干什么？桌面应用开发（用的少，现在市面上的桌面应用大部分是C++开发的） Unity游戏开发 Web开发（用的少，现在市面上的网站是Java/PHP开发的）开发工具：Unity、VS注意：杀毒软件可能会把开发完成阶段生成的exe文件误当成病毒删除，所以使用时注意关闭...
复制链接

扫一扫
