continuous-remeshing
https://github.com/Profactor/continuous-remeshing
Qremeshfy:

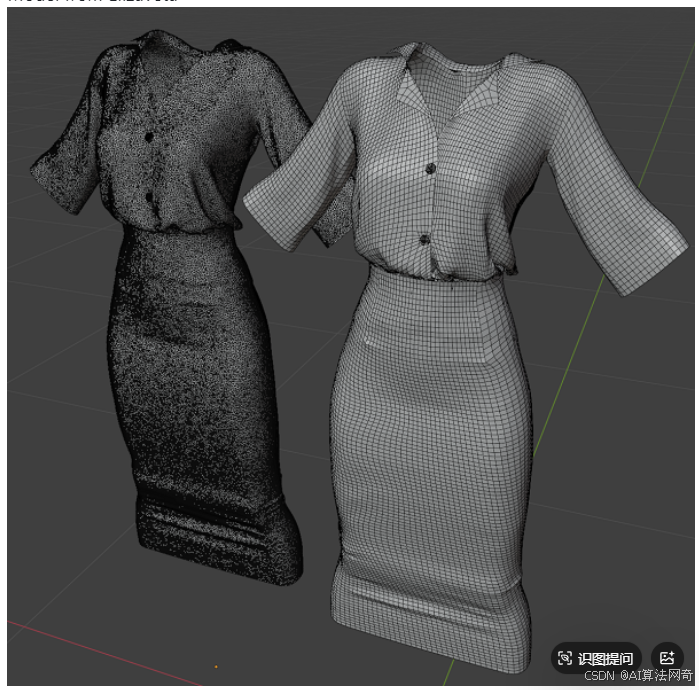

Blender-CWF-Remesher
https://github.com/AIGODLIKE/Blender-CWF-Remesher

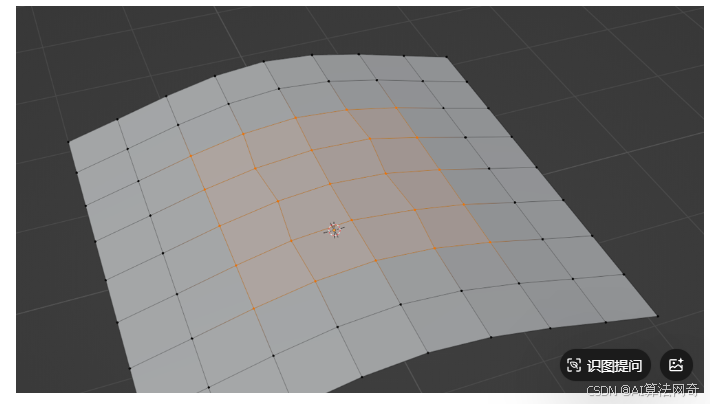

LocalRemesher
pshuman中就有重训网格化算法
reconstruct.py
import argparse
import os
import pickle
import zipfile
from glob import glob
import kornia
import numpy as np
import torch
import torch.nn as nn
import torch.optim as optim
import torchvision
import trimesh
import math
import pytorch3d
import cv2
import copy
from icecream import ic
from omegaconf import OmegaConf
from PIL import Image
from scipy.spatial import KDTree
from scipy.spatial.transform import Rotation as R
from tqdm import tqdm
from core.opt import MeshOptimizer
from core.remesh import calc_vertex_normals
from lib.dataset.mesh_util import apply_vertex_mask, keep_largest, part_removal, poisson
from utils.func import make_round_views, make_sparse_camera
from utils.mesh_utils import rot6d_to_rotmat, tensor2variable, to_py3d_mesh
from utils.project_mesh import get_cameras_list, multiview_color_projection, project_color # NOQA
from utils.render import NormalsRenderer
from utils.smpl_util import SMPLX
from utils.video_utils import write_video
from instant_texture import Converter, convert_vertex_color_to_texture, build_lama_model, lama_model_path, lama_config_path # NOQA
from avatarizer import avatarizer
from econdataset import SMPLDataset
from pytorch3d.transforms import euler_angles_to_matrix, axis_angle_to_matrix
bg_color = np.array([1, 1, 1])
def split_mv(mv):
rot = mv[:, :3, :3]
trans = mv[:, :3, 3:4]
rot = rot[(1, 5), :, :].clone()
trans = trans[(1, 5), :, :].clone()
return rot, trans
def merge_mv(rot6d, trans, raw_mv):
rot = rot6d
# rot = rot6d_to_rotmat(rot6d)
mv34 = torch.concat((rot, trans), dim=-1)
additional_row = torch.tensor([[0, 0, 0, 1]], dtype=mv34.dtype, device=rot6d.device, requires_grad=False)
additional_row = additional_row.unsqueeze(0).expand(mv34.shape[0], -1, -1)
mv = torch.cat((mv34, additional_row), dim=1)
mv = torch.stack((raw_mv[0], mv[0], raw_mv[2], raw_mv[3], raw_mv[4], mv[1]), dim=0)
return mv
def angles_to_rotation_y(angles_degrees, device='cuda:0'):
angles_rad = torch.tensor(angles_degrees, device=device) * math.pi / 180.0
cos_theta = torch.cos(angles_rad)
sin_theta = torch.sin(angles_rad)
zeros = torch.zeros_like(cos_theta)
ones = torch.ones_like(cos_theta)
rotation_matrices = torch.stack([torch.stack([cos_theta, zeros, -sin_theta], dim=1), torch.stack([zeros, ones, zeros], dim=1), torch.stack([sin_theta, zeros, cos_theta], dim=1)], dim=1)
return rotation_matrices
def rotation_to_angles_y(rotation_matrices, device='cuda:0'):
cos_theta = rotation_matrices[:, 0, 0]
sin_theta = rotation_matrices[:, 2, 0]
angles_rad = torch.atan2(sin_theta, cos_theta)
angles_degrees = angles_rad * 180.0 / math.pi
# 确保角度在[-180, 180]范围内
angles_degrees = torch.where(angles_degrees > 180, angles_degrees - 360, angles_degrees)
angles_degrees = torch.where(angles_degrees < -180, angles_degrees + 360, angles_degrees)
return angles_degrees
def remove_long_edge(mesh, opath, depth = 10):
import open3d as o3d
pcd_path = opath.replace(".obj", ".ply")
assert (mesh.vertex_normals.shape[1] == 3)
mesh.export(pcd_path)
pcl = o3d.io.read_point_cloud(pcd_path)
with o3d.utility.VerbosityContextManager(o3d.utility.VerbosityLevel.Error) as cm:
mesh, densities = o3d.geometry.TriangleMesh.create_from_point_cloud_poisson(
pcl, depth=depth, n_threads=6
)
mesh2 = trimesh.Trimesh(np.array(mesh.vertices), np.array(mesh.triangles))
if os.path.isfile(pcd_path):
os.unlink(pcd_path)
return mesh2
class colorModel(nn.Module):
def __init__(self, renderer, v, f, c):
super().__init__()
self.renderer = renderer
self.v = v
self.f = f
self.colors = nn.Parameter(c, requires_grad=True)
self.bg_color = torch.from_numpy(bg_color).float().to(self.colors.device)
def forward(self, return_mask=False):
rgba = self.renderer.render(self.v, self.f, colors=self.colors)
if return_mask:
return rgba
else:
mask = rgba[..., 3:]
return rgba[..., :3] * mask + self.bg_color * (1 - mask)
def scale_mesh(vert):
min_bbox, max_bbox = vert.min(0)[0], vert.max(0)[0]
center = (min_bbox + max_bbox) / 2
offset = -center
vert = vert + offset
max_dist = torch.max(torch.sqrt(torch.sum(vert**2, dim=1)))
scale = 1.0 / max_dist
return scale, offset
def save_mesh(save_name, vertices, faces, color=None):
v = vertices.detach().cpu().numpy().squeeze()
f = faces.detach().cpu().numpy().squeeze()
vertex_colors = (color.detach().cpu().numpy() * 255).astype(np.uint8) if color is not None else None
trimesh.Trimesh(v, f, vertex_colors=vertex_colors, process=False, maintain_order=True).export(save_name)
class ReMesh:
def __init__(self, opt, econ_dataset: SMPLDataset):
print(f"ReMesh init {opt}")
self.opt = opt
self.device = torch.device(f"cuda:{opt.gpu_id}" if torch.cuda.is_available() else "cpu")
self.num_view = opt.num_view
self.res_path = opt.res_path
os.makedirs(self.res_path, exist_ok=True)
self.resolution = opt.resolution
self.views = ['front_face', 'front_right', 'right', 'back', 'left', 'front_left']
self.weights = torch.Tensor([1.0, 0.1, 0.8, 1.0, 0.8, 0.1]).view(6, 1, 1, 1).to(self.device)
self.renderer: NormalsRenderer = self.prepare_render()
# pose prediction
self.econ_dataset = econ_dataset
self.smplx_face = torch.Tensor(econ_dataset.faces.astype(np.int64)).long().to(self.device)
self.lama_model = build_lama_model(lama_config_path, lama_model_path, device=self.device)
def prepare_render(self):
### ------------------- prepare camera and renderer----------------------
# make_sparse_camera 角度是 0， 45, 90, 180, -90, -45. 可以使用angles_to_rotation_y来生成，测试数据是一样的。
mv, proj = make_sparse_camera(self.opt.cam_path, self.opt.scale, views=[0, 1, 2, 4, 6, 7], device=self.device) # 默认是一个正交相机, # mv[0, :3, :3]是一个旋转矩阵 需要对他做优化
renderer = NormalsRenderer(mv, proj, [self.resolution, self.resolution], device=self.device)
return renderer
def proj_texture(self, fused_images, vertices, faces):
mesh = to_py3d_mesh(vertices, faces)
mesh = mesh.to(self.device)
camera_focal = 1 / 2
cameras_list = get_cameras_list([0, 45, 90, 180, 270, 315], device=self.device, focal=camera_focal)
mesh = multiview_color_projection(
mesh,
fused_images,
camera_focal=camera_focal,
resolution=self.resolution,
weights=self.weights.squeeze().cpu().numpy(),
device=self.device,
complete_unseen=True,
confidence_threshold=0.2,
cameras_list=cameras_list,
)
return mesh
def get_invisible_idx(self, imgs, vertices, faces):
mesh = to_py3d_mesh(vertices, faces)
mesh = mesh.to(self.device)
camera_focal = 1 / 2
if self.num_view == 6:
cameras_list = get_cameras_list([0, 45, 90, 180, 270, 315], device=self.device, focal=camera_focal)
elif self.num_view == 4:
cameras_list = get_cameras_list([0, 90, 180, 270], device=self.device, focal=camera_focal)
valid_vert_id = []
vertices_colors = torch.zeros((vertices.shape[0], 3)).float().to(self.device)
valid_cnt = torch.zeros((vertices.shape[0])).to(self.device)
for cam, img, weight in zip(cameras_list, imgs, self.weights.squeeze()):
ret = project_color(mesh, cam, img, eps=0.01, resolution=self.resolution, device=self.device)
# print(ret['valid_colors'].shape)
valid_cnt[ret['valid_verts']] += weight
vertices_colors[ret['valid_verts']] += ret['valid_colors'] * weight
valid_mask = valid_cnt > 1
invalid_mask = valid_cnt < 1
vertices_colors[valid_mask] /= valid_cnt[valid_mask][:, None]
# visibility
invisible_vert = valid_cnt < 1
invisible_vert_indices = torch.nonzero(invisible_vert).squeeze()
# vertices_colors[invalid_vert] = torch.tensor([1.0, 0.0, 0.0]).float().to("cuda")
return vertices_colors, invisible_vert_indices
def inpaint_missed_colors(self, all_vertices, all_colors, missing_indices):
all_vertices = all_vertices.detach().cpu().numpy()
all_colors = all_colors.detach().cpu().numpy()
missing_indices = missing_indices.detach().cpu().numpy()
non_missing_indices = np.setdiff1d(np.arange(len(all_vertices)), missing_indices)
kdtree = KDTree(all_vertices[non_missing_indices])
for missing_index in missing_indices:
missing_vertex = all_vertices[missing_index]
_, nearest_index = kdtree.query(missing_vertex.reshape(1, -1))
interpolated_color = all_colors[non_missing_indices[nearest_index]]
all_colors[missing_index] = interpolated_color
return torch.from_numpy(all_colors).to(self.device)
def load_training_data(self, case):
###------------------ load target images -------------------------------
kernal = torch.ones(3, 3)
erode_iters = 2
normals = []
masks = []
colors = []
for idx, view in enumerate(self.views):
# for idx in [0,2,3,4]:
normal = Image.open(f'{self.opt.mv_path}/{case}/normals_{view}_masked.png')
# normal = Image.open(f'{data_path}/{case}/normals/{idx:02d}_rgba.png')
normal = normal.convert('RGBA').resize((self.resolution, self.resolution), Image.BILINEAR)
normal = np.array(normal).astype(np.float32) / 255.0
mask = normal[..., 3:] # alpha
mask_troch = torch.from_numpy(mask).unsqueeze(0)
for _ in range(erode_iters):
mask_torch = kornia.morphology.erosion(mask_troch, kernal)
mask_erode = mask_torch.squeeze(0).numpy()
masks.append(mask_erode)
normal = normal[..., :3] * mask_erode
normals.append(normal)
color = Image.open(f'{self.opt.mv_path}/{case}/color_{view}_masked.png')
color = color.convert('RGBA').resize((self.resolution, self.resolution), Image.BILINEAR)
color = np.array(color).astype(np.float32) / 255.0
color_mask = color[..., 3:] # alpha
# color_dilate = color[..., :3] * color_mask + bg_color * (1 - color_mask)
color_dilate = color[..., :3] * mask_erode + bg_color * (1 - mask_erode)
colors.append(color_dilate)
masks = np.stack(masks, 0)
masks = torch.from_numpy(masks).to(self.device)
normals = np.stack(normals, 0)
target_normals = torch.from_numpy(normals).to(self.device)
colors = np.stack(colors, 0)
target_colors = torch.from_numpy(colors).to(self.device)
return masks, target_colors, target_normals
def preprocess(self, color_pils, normal_pils):
###------------------ load target images -------------------------------
kernal = torch.ones(3, 3)
erode_iters = 2
normals = []
masks = []
colors = []
for normal, color in zip(normal_pils[:6], color_pils[:6]):
normal = normal.resize((self.resolution, self.resolution), Image.BILINEAR)
normal = np.array(normal).astype(np.float32) / 255.0
mask = normal[..., 3:] # alpha
mask_troch = torch.from_numpy(mask).unsqueeze(0)
for _ in range(erode_iters):
mask_torch = kornia.morphology.erosion(mask_troch, kernal)
mask_erode = mask_torch.squeeze(0).numpy()
masks.append(mask_erode)
normal = normal[..., :3] * mask_erode
normals.append(normal)
color = color.resize((self.resolution, self.resolution), Image.BILINEAR)
color = np.array(color).astype(np.float32) / 255.0
color_mask = color[..., 3:] # alpha
# color_dilate = color[..., :3] * color_mask + bg_color * (1 - color_mask)
color_dilate = color[..., :3] * mask_erode + bg_color * (1 - mask_erode)
colors.append(color_dilate)
masks = np.stack(masks, 0)
masks = torch.from_numpy(masks).to(self.device)
normals = np.stack(normals, 0)
target_normals = torch.from_numpy(normals).to(self.device)
colors = np.stack(colors, 0)
target_colors = torch.from_numpy(colors).to(self.device)
return masks, target_colors, target_normals
def optimize_case(self, case, pose, clr_img, nrm_img, opti_texture=True):
case_path = self.res_path
os.makedirs(case_path, exist_ok=True)
self.renderer: NormalsRenderer = self.prepare_render() # 重新置render
if clr_img is not None:
masks, target_colors, target_normals = self.preprocess(clr_img, nrm_img) # 拼接起来 6 x 1024 x 1024 x 1; 6 x 1024 x 1024 x 3 ; 6 x 1024 x 1024 x 3
else:
masks, target_colors, target_normals = self.load_training_data(case)
torchvision.utils.save_image(target_normals.permute(0, 3, 1, 2), os.path.join(case_path, "optimize_case_input_target_normals.jpg"))
torchvision.utils.save_image(target_colors.permute(0, 3, 1, 2), os.path.join(case_path, "optimize_case_input_target_colors.jpg"))
torchvision.utils.save_image(masks.permute(0, 3, 1, 2), os.path.join(case_path, "optimize_case_input_masks.jpg"))
# rotation
rz = R.from_euler('z', 180, degrees=True).as_matrix() # [-1, 0, 0] [0, -1, 0] [0, 0, 1]
ry = R.from_euler('y', 180, degrees=True).as_matrix() # [-1, 0, 0] [0, 1, 0] [0, 0, -1]
rz = torch.from_numpy(rz).float().to(self.device)
ry = torch.from_numpy(ry).float().to(self.device)
scale, offset = None, None
global_orient = pose["global_orient"] # pymaf_res[idx]['smplx_params']['body_pose'][:, :1, :, :2].to(device).reshape(1, 1, -1) # data["global_orient"] # 1 x 1 x 6
body_pose = pose["body_pose"] # pymaf_res[idx]['smplx_params']['body_pose'][:, 1:22, :, :2].to(device).reshape(1, 21, -1) # data["body_pose"] # 1 x 21 x 6
left_hand_pose = pose["left_hand_pose"] # pymaf_res[idx]['smplx_params']['left_hand_pose'][:, :, :, :2].to(device).reshape(1, 15, -1) # 1 x 15 x 3 x 3
right_hand_pose = pose["right_hand_pose"] # pymaf_res[idx]['smplx_params']['right_hand_pose'][:, :, :, :2].to(device).reshape(1, 15, -1) # 1 x 15 x 3 x 3
beta = pose["betas"] # 1 x 200
# The optimizer and variables
optimed_pose = torch.tensor(body_pose, device=self.device, requires_grad=True) # [1,21,6]
optimed_trans = torch.tensor(pose["trans"], device=self.device, requires_grad=True) # [3]
optimed_betas = torch.tensor(beta, device=self.device, requires_grad=True) # [1,200]
optimed_orient = torch.tensor(global_orient, device=self.device, requires_grad=True) # [1,1,6]
optimed_rhand = torch.tensor(right_hand_pose, device=self.device, requires_grad=True)
optimed_lhand = torch.tensor(left_hand_pose, device=self.device, requires_grad=True)
# split mv use for opt
mv_rot, mv_trans = split_mv(self.renderer._mv.clone())
optimed_mv_rot = torch.tensor(mv_rot, device=self.device, requires_grad=True)
optimed_params = [
{'params': [optimed_lhand, optimed_rhand], 'lr': 1e-3},
{'params': [optimed_betas, optimed_trans, optimed_orient, optimed_pose], 'lr': 3e-3},
]
optimizer_smpl = torch.optim.Adam(
optimed_params,
amsgrad=True,
)
scheduler_smpl = torch.optim.lr_scheduler.ReduceLROnPlateau(
optimizer_smpl,
mode="min",
factor=0.5,
verbose=0,
min_lr=1e-5,
patience=5,
)
optimizer_pose = torch.optim.Adam(
[{'params': [optimed_mv_rot], 'lr': 1e-2}],
amsgrad=True,
)
scheduler_pose = torch.optim.lr_scheduler.ReduceLROnPlateau(
optimizer_pose,
mode="min",
factor=0.5,
verbose=0,
min_lr=1e-5,
patience=5,
)
############### step1 opt smpl #################
smpl_steps = 200
smpl_loss = torch.Tensor([0.0]).to(self.device)
pbar = tqdm(range(smpl_steps), mininterval=1)
for i in pbar:
optimizer_smpl.zero_grad()
optimizer_pose.zero_grad()
# 6d_rot to rot_mat
optimed_orient_mat = rot6d_to_rotmat(optimed_orient.view(-1, 6)).unsqueeze(0)
optimed_pose_mat = rot6d_to_rotmat(optimed_pose.view(-1, 6)).unsqueeze(0)
smpl_verts, smpl_landmarks, smpl_joints = self.econ_dataset.smpl_model(
shape_params=optimed_betas,
expression_params=tensor2variable(pose["exp"], self.device),
body_pose=optimed_pose_mat,
global_pose=optimed_orient_mat,
jaw_pose=tensor2variable(pose["jaw_pose"], self.device),
left_hand_pose=optimed_lhand,
right_hand_pose=optimed_rhand,
)
smpl_verts = smpl_verts + optimed_trans
v_smpl = torch.matmul(torch.matmul(smpl_verts.squeeze(0), rz.T), ry.T)
if scale is None:
scale, offset = scale_mesh(v_smpl.detach()) # scale, center
v_smpl = (v_smpl + offset) * scale * 2 # 2 std
normals = calc_vertex_normals(v_smpl, self.smplx_face)
mv = merge_mv(optimed_mv_rot, mv_trans, self.renderer._mv)
nrm = self.renderer.render(v_smpl, self.smplx_face, normals=normals, mv=mv)
masks_ = nrm[..., 3:]
smpl_mask_loss = ((masks_ - masks) * self.weights).abs().mean()
smpl_nrm_loss = ((nrm[..., :3] - target_normals) * self.weights).abs().mean()
smpl_loss = smpl_mask_loss + smpl_nrm_loss
# smpl_loss = smpl_mask_loss
smpl_loss.backward()
if i < 150:
optimizer_smpl.step()
scheduler_smpl.step(smpl_loss)
if i % 5 == 0 or i >= 150:
optimizer_pose.step()
scheduler_pose.step(smpl_loss)
pbar.set_description(f"step1 loss: {smpl_loss.item():.4f}")
if (i == 0 or i == pbar.total - 1) and self.opt.debug:
opath = f'{case_path}/{case}_step1_opt_{i:03d}.obj'
save_mesh(opath, v_smpl, self.smplx_face)
torchvision.utils.save_image(nrm[..., :3].clone().permute(0, 3, 1, 2), opath.replace(".obj", "_normal.jpg"), nrow=6)
mesh_smpl = trimesh.Trimesh(vertices=v_smpl.detach().cpu().numpy(), faces=self.smplx_face.detach().cpu().numpy())
if self.opt.debug:
mesh_smpl.export(f'{case_path}/{case}_smpl_opt.obj')
pose["faces"] = self.smplx_face.detach().cpu()
pose_raw = copy.deepcopy(pose)
pose["betas"] = optimed_betas.detach()
pose["body_pose"] = optimed_pose.detach()
pose["global_orient"] = optimed_orient.detach()
pose["left_hand_pose"] = optimed_lhand.detach()
pose["right_hand_pose"] = optimed_rhand.detach()
pose["scale_mesh_scale"] = scale
pose["scale_mesh_offset"] = offset
pose["trans"] = optimed_trans.detach()
smpl_param_path = f'{case_path}/{case}_step1_smpl.pkl'
pickle.dump((pose, pose_raw), open(smpl_param_path, 'wb'))
self.renderer._mv = mv.detach()
print("优化前后的pose角度", rotation_to_angles_y(mv_rot), rotation_to_angles_y(optimed_mv_rot))
nrm_opt = MeshOptimizer(v_smpl.detach(), self.smplx_face.detach(), edge_len_lims=[0.01, 0.1])
vertices, faces = nrm_opt.vertices, nrm_opt.faces
# ### step2----------------------- optimization iterations-------------------------------------
pbar = tqdm(range(self.opt.iters), mininterval=1)
for i in pbar:
nrm_opt.zero_grad()
normals = calc_vertex_normals(vertices, faces)
nrm = self.renderer.render(vertices, faces, normals=normals)
normals = nrm[..., :3]
loss = ((normals - target_normals) * self.weights).abs().mean()
alpha = nrm[..., 3:]
loss += ((alpha - masks) * self.weights).abs().mean()
loss.backward()
nrm_opt.step()
torch.cuda.synchronize()
vertices, faces = nrm_opt.remesh()
pbar.set_description(f"step2 loss: {loss.item():.4f}")
opath = f'{case_path}/{case}_step2_opt_{i:03d}.obj'
if self.opt.debug and (i % self.opt.snapshot_step == 0 or i == pbar.total - 1):
save_mesh(opath, vertices, faces)
torchvision.utils.save_image(normals.permute(0, 3, 1, 2), opath.replace(".obj", "_normal.jpg"), nrow=6)
mesh_remeshed = trimesh.Trimesh(vertices=vertices.detach().cpu().numpy(), faces=faces.detach().cpu().numpy())
if True: # self.opt.debug:
remeshed_obj_path = f'{case_path}/{case}_remeshed.obj'
mesh_remeshed.export(remeshed_obj_path)
torchvision.utils.save_image(target_normals.permute(0, 3, 1, 2), opath.replace(".obj", "_target_normals.jpg"), nrow=6)
# refine depth
from lib.dataset.mesh_util import get_closest_points
mesh_remeshed1 = remove_long_edge(mesh_remeshed, remeshed_obj_path)
mesh_list = mesh_remeshed1.split(only_watertight=False)
mesh_list = sorted(mesh_list, key=lambda x: -x.vertices.shape[0])
largest_mesh = mesh_list[0].copy()
mesh_list1 = []
for k, mesh in enumerate(mesh_list):
if mesh.vertices.shape[0] > 100:
# mesh.export(f"{case_path}/part_{k}.obj")
mesh.vertices[:, 2] += np.median(largest_mesh.vertices[:, 2]) - np.median(mesh.vertices[:, 2])
mesh_list1.append(mesh)
# mesh.export(f"{case_path}/part_{k}_1.obj")
mesh_remeshed2 = sum(mesh_list1)
mesh_remeshed2 = poisson(mesh_remeshed2, remeshed_obj_path + ".obj", decimation=False, depth=9, face_count=100000, only_largest=False)
mesh_remeshed2.export(remeshed_obj_path)
target_vertices = torch.tensor(mesh_remeshed2.vertices, dtype=torch.float32, requires_grad=False).to(self.device)
##############3 step3 继续优化smpl的参数 mesh_remeshed2更加的贴合。 #################
pbar = tqdm(range(smpl_steps // 2), mininterval=1)
for i in pbar: # step3
optimizer_smpl.zero_grad()
optimizer_pose.zero_grad()
# 6d_rot to rot_mat
optimed_orient_mat = rot6d_to_rotmat(optimed_orient.view(-1, 6)).unsqueeze(0)
optimed_pose_mat = rot6d_to_rotmat(optimed_pose.view(-1, 6)).unsqueeze(0)
smpl_verts, smpl_landmarks, smpl_joints = self.econ_dataset.smpl_model(
shape_params=optimed_betas,
expression_params=tensor2variable(pose["exp"], self.device),
body_pose=optimed_pose_mat,
global_pose=optimed_orient_mat,
jaw_pose=tensor2variable(pose["jaw_pose"], self.device),
left_hand_pose=optimed_lhand,
right_hand_pose=optimed_rhand,
)
smpl_verts = smpl_verts + optimed_trans
v_smpl = torch.matmul(torch.matmul(smpl_verts.squeeze(0), rz.T), ry.T)
if scale is None:
scale, offset = scale_mesh(v_smpl.detach()) # scale, center
v_smpl = (v_smpl + offset) * scale * 2 # 2 std
loss, _ = pytorch3d.loss.chamfer_distance(v_smpl[None, :, :], target_vertices[None, :, :])
loss.backward()
optimizer_smpl.step()
pbar.set_description(f"step3 loss: {loss.item():.4f}")
if self.opt.debug and (i % self.opt.snapshot_step == 0 or i == pbar.total - 1):
opath = f'{case_path}/{case}_step3_opt_{i:03d}.obj'
save_mesh(opath, v_smpl, self.smplx_face)
mesh_smpl = trimesh.Trimesh(vertices=v_smpl.detach().cpu().numpy(), faces=self.smplx_face.detach().cpu().numpy())
if True: # self.opt.debug:
mesh_smpl.export(f'{case_path}/{case}_smpl_opt.obj')
pose["faces"] = self.smplx_face.detach().cpu()
pose_raw = copy.deepcopy(pose)
pose["betas"] = optimed_betas.detach()
pose["body_pose"] = optimed_pose.detach()
pose["global_orient"] = optimed_orient.detach()
pose["left_hand_pose"] = optimed_lhand.detach()
pose["right_hand_pose"] = optimed_rhand.detach()
pose["scale_mesh_scale"] = scale
pose["scale_mesh_offset"] = offset
pose["trans"] = optimed_trans.detach()
smpl_param_path = f'{case_path}/{case}_smpl.pkl'
pickle.dump(pose, open(smpl_param_path, 'wb'))
# avatarizer
# econ_pose, econ_dict = avatarizer(remeshed_obj_path, smpl_param_path, f"{case_path}/avatar", with_dress=False, replace_hand=False)
econ_pose = trimesh.load_mesh(remeshed_obj_path, process=False, maintain_order=True)
econ_dict = {}
# 顶点模型
vertices = torch.from_numpy(econ_pose.vertices).float().to(self.device)
faces = torch.from_numpy(econ_pose.faces).long().to(self.device)
masked_color = []
for tmp in clr_img:
# tmp = Image.open(f'{self.opt.mv_path}/{case}/color_{view}_masked.png')
tmp = tmp.resize((self.resolution, self.resolution), Image.BILINEAR)
tmp = np.array(tmp).astype(np.float32) / 255.0
masked_color.append(torch.from_numpy(tmp).permute(2, 0, 1).to(self.device))
meshes = self.proj_texture(masked_color, vertices, faces)
vertices = meshes.verts_packed().float()
faces = meshes.faces_packed().long()
colors = meshes.textures.verts_features_packed().float()
opath = f"{case_path}/{case}.obj"
save_mesh(opath, vertices, faces, colors)
if self.opt.debug:
self.evaluate(vertices, colors, faces, save_path=f'{opath}.mp4', save_nrm=True)
# 转为纹理模型``
print("convert_vertex_color_to_texture ...")
vmapping, new_faces = convert_vertex_color_to_texture(opath, opath, texture_size=2048, lama_model=self.lama_model)
econ_pkl = f"{case_path}/{case}_bind.pkl"
econ_dict["vmapping"] = vmapping # 存储uv后的点的映射
econ_dict["new_faces"] = new_faces # 新的faces
pickle.dump(econ_dict, open(econ_pkl, "wb"))
# 保存结果数据
zip_path = opath + ".zip"
material_files = glob(os.path.join(os.path.dirname(opath), "material*"))
extra_files = [remeshed_obj_path, smpl_param_path, econ_pkl]
with zipfile.ZipFile(zip_path, 'w') as zipf:
for file in [opath] + material_files + extra_files:
zipf.write(file, os.path.basename(file))
return zip_path
#### replace hand
def replace_hand(self, pose, mesh_smpl, mesh_remeshed):
smpl_data = SMPLX()
if self.opt.replace_hand and True in pose['hands_visibility'][0]:
hand_mask = torch.zeros(smpl_data.smplx_verts.shape[0])
if pose['hands_visibility'][0][0]:
hand_mask.index_fill_(0, torch.tensor(smpl_data.smplx_mano_vid_dict["left_hand"]), 1.0)
if pose['hands_visibility'][0][1]:
hand_mask.index_fill_(0, torch.tensor(smpl_data.smplx_mano_vid_dict["right_hand"]), 1.0)
hand_mesh = apply_vertex_mask(mesh_smpl.copy(), hand_mask)
body_mesh = part_removal(mesh_remeshed.copy(), hand_mesh, 0.08, self.device, mesh_smpl.copy(), region="hand")
final = poisson(sum([hand_mesh, body_mesh]), f'temp/temp_final.obj', 10, False)
else:
final = poisson(mesh_remeshed, f'temp/temp_final.obj', 10, False)
return final
def evaluate(self, target_vertices, target_colors, target_faces, save_path=None, save_nrm=False):
mv, proj = make_round_views(60, self.opt.scale, device=self.device)
renderer = NormalsRenderer(mv, proj, [512, 512], device=self.device)
target_images = renderer.render(target_vertices, target_faces, colors=target_colors)
target_images = target_images.detach().cpu().numpy()
target_images = target_images[..., :3] * target_images[..., 3:4] + bg_color * (1 - target_images[..., 3:4])
target_images = (target_images.clip(0, 1) * 255).astype(np.uint8)
if save_nrm:
target_normals = calc_vertex_normals(target_vertices, target_faces)
# target_normals[:, 2] *= -1
target_normals = renderer.render(target_vertices, target_faces, normals=target_normals)
target_normals = target_normals.detach().cpu().numpy()
target_normals = target_normals[..., :3] * target_normals[..., 3:4] + bg_color * (1 - target_normals[..., 3:4])
target_normals = (target_normals.clip(0, 1) * 255).astype(np.uint8)
frames = [np.concatenate([img, nrm], 1) for img, nrm in zip(target_images, target_normals)]
else:
frames = [img for img in target_images]
if save_path is not None:
write_video(frames, fps=25, save_path=save_path)
return frames
def run(self):
cases = sorted(os.listdir(self.opt.imgs_path))
for idx in range(len(cases)):
case = cases[idx].split('.')[0]
print(f'Processing {case}')
pose = self.econ_dataset.__getitem__(idx)
v, f, c = self.optimize_case(case, pose, None, None, opti_texture=True)
self.evaluate(v, c, f, save_path=f'{self.opt.res_path}/{case}/result_clr_scale{self.opt.scale}_{case}.mp4', save_nrm=True)
if __name__ == '__main__':
# parser = argparse.ArgumentParser()
# parser.add_argument("--config", help="path to the yaml configs file", default='config.yaml')
# args, extras = parser.parse_known_args()
# opt = OmegaConf.merge(OmegaConf.load(args.config), OmegaConf.from_cli(extras))
cfg = OmegaConf.load("args.yaml")
dataset_param = {'image_dir': cfg.validation_dataset.root_dir, 'seg_dir': None, 'colab': False, 'has_det': True, 'hps_type': 'pixie'}
econdata = SMPLDataset(dataset_param, device='cuda')
EHuman = ReMesh(cfg.recon_opt, econdata)
EHuman.case_path = "examples/3D人体图片0120_out/joker/recon"
(scene, pose, colors, normals) = pickle.load(open("examples/3D人体图片0120_out4/沙滩风外国小男孩1/carving_input.pkl", "rb"))
zip_path = EHuman.optimize_case(scene, pose, colors[:6], normals[:6])
print(zip_path)
三角网格优化：
delaunay三角网格优化中的相关问题_delaunay三角网转mesh-CSDN博客
remesh 重训网格化 2019年
扫一扫
被折叠的 条评论
为什么被折叠?
到【灌水乐园】发言
