目标:
实现图像中多个物体的分割,多个物体的标注方式为0,1,2,3,,,,,0表示背景,1表示一种物体,2表示另一种物体,假设我们现在的分割任务里面有5个目标需要,如肺叶分割,5个肺叶的标注方式为:0表示背景,1表示右上叶,2表示右中叶,3表示右下叶,4表示左上页,5表示左下叶。
前提:
首先我们拿到的标注应该是单通道的,如大小为96*96*64*1,但在网络模型设计中输出通道数应该是分割类别数,即网络模型最后的输出大小为96*96*64*6(这里最后一维6指背景+5个目标),这样在训练的时候网络输出和标注之间大小不匹配,不能进行损失值计算,所以需要将原来单通道的标注图像变成6个通道,这就需要用到One-hot编码,在每个通道上(即将每一类进行二值化)。
正文:
One-hot编码:

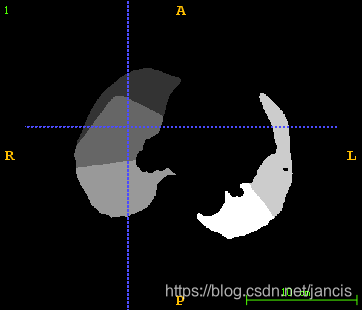

以上是肺叶的标注图像,可以看到背景像素值是0,其余叶标注值分别为1,2,3,4,5,以矩阵表示大概为(二维图像举例,并不是这个图的真正矩阵):
[00000000 01211110 01222330 01123340 01223440 01233550 02234450 02334550]
经过One-hot编码后变成6个通道:
[11111111 10000001 10000001 10000001 10000001 10000001 10000001 10000001]
[00000000 01011110 01000000 01100000 01000000 01000000 00000000 00000000]
[00000000 00100000 00111000 00010000 00110000 00100000 01100000 01000000]
[00000000 00000000 00000110 00001100 00001000 00011000 00010000 00110000]
[00000000 00000000 00000000 00000010 00000110 00000000 00001100 00001000]
[00000000 00000000 00000000 00000000 00000000 00000110 00000010 00000110]
One-hot代码实现:
def mask_to_onehot(mask, palette): """ Converts a segmentation mask (H, W, C) to (H, W, K) where the last dim is a one hot encoding vector, C is usually 1, and K is the number of segmented class. eg: mask:单通道的标注图像 palette:[[0],[1],[2],[3],[4],[5]] """ semantic_map = [] for colour in palette: equality = np.equal(mask, colour) class_map = np.all(equality, axis=-1) semantic_map.append(class_map) semantic_map = np.stack(semantic_map, axis=-1).astype(np.float32) return semantic_map
多label分割dice损失函数代码实现:
将背景通道的权重设置为0
def categorical_dice(self, Y_pred, Y_gt, weight_loss): """ multi label dice loss with weighted Y_pred: [None, self.image_depth, self.image_height, self.image_width, self.numclass],Y_pred is softmax result Y_gt:[None, self.image_depth, self.image_height, self.image_width, self.numclass],Y_gt is one hot result weight_loss: numpy array of shape (C,) where C is the number of classes,eg:[0,1,1,1,1,1] :return: """ # print('Y_pred.shape',Y_pred.shape) # print('Y_gt.shape',Y_gt.shape) weight_loss = np.array(weight_loss) smooth = 1.e-5 smooth_tf = tf.constant(smooth, tf.float32) Y_pred = tf.cast(Y_pred, tf.float32) Y_gt = tf.cast(Y_gt, tf.float32) # Compute gen dice coef: numerator = Y_gt * Y_pred # print('intersection shape',numerator.shape) intersection shape (?, 64, 96, 96, 6) numerator = tf.reduce_sum(numerator, axis=(1, 2, 3)) # print('after reduce_sum intersection shape', numerator.shape) after reduce_sum intersection shape (?, 6) denominator = Y_gt + Y_pred denominator = tf.reduce_sum(denominator, axis=(1, 2, 3)) gen_dice_coef = tf.reduce_mean(2. * (numerator + smooth_tf) / (denominator + smooth_tf), axis=0) # print('gen_dice_coef',gen_dice_coef.shape) gen_dice_coef (6,) loss = -tf.reduce_mean(weight_loss * gen_dice_coef) return loss
最后可视化预测结果的时候,需要将6个通道的预测结果再转为单通道:
One-hot实现:
def onehot_to_mask(self, mask, palette): """ Converts a mask (H, W, K) to (H, W, C) K is the number of segmented class,C is usually 1 """ x = np.argmax(mask, axis=-1) colour_codes = np.array(palette) x = np.uint8(colour_codes[x.astype(np.uint8)]) return x
