文章目录

分类代码：https://github.com/microsoft/Swin-Transformer

分割代码：https://github.com/SwinTransformer/Swin-Transformer-Semantic-Segmentation

检测代码：https://github.com/SwinTransformer/Swin-Transformer-Object-Detection

一、背景

Transformer 最开始是在 NLP 中使用较多，因为其 self-attention 组件能够对 Long-range 的信息进行建模，近期有很多人开始将 Transformer 应用到计算机视觉中，作为一个类似于 CNN 的特征提取器。

二、动机

NLP 到 CV ，主要有两个问题：

视觉场景中，目标大小不同
视觉场景中，图像的分辨率远远大于句子中的单词

基于这两个问题，Transformer通常使用如下方法解决：

Transformer 通常将图像划分为大小相同的图像块，即为 “token” (NLP 中的token通常为单词），这其实不是很合适，因为目标的大小是不同的。
Transformer 中使用了 self-attention 机制，而检测/分割这些密集任务要求输入图像分辨率较大，所以self-attention的计算量和图像大小成次方关系，计算量很大

所以本文中，作者提出了一个通用的 Transformer backbone：Swin Transformer，该方法特点如下，也正是由于这两个特点，使得 swin transformer 能够作为一个通用的 backbone：

将多级特征进行融合：

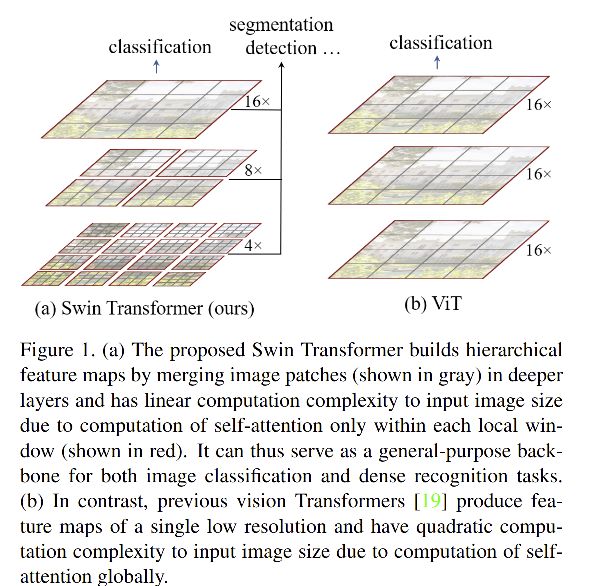

如图1a，该方法从最小尺度的 patches（灰色框）开始，逐级和邻域 patches 进行融合，也正是这个模式，使得swin transformer 能够方便的和密集预测网络 FPN 、U-Net 等配合使用。
计算量和图像大小呈线性关系：

由于每个 window 中的 patches 数量都是固定的，所以计算量和图像大小是呈线性的变化的。

在这里插入图片描述

三、方法

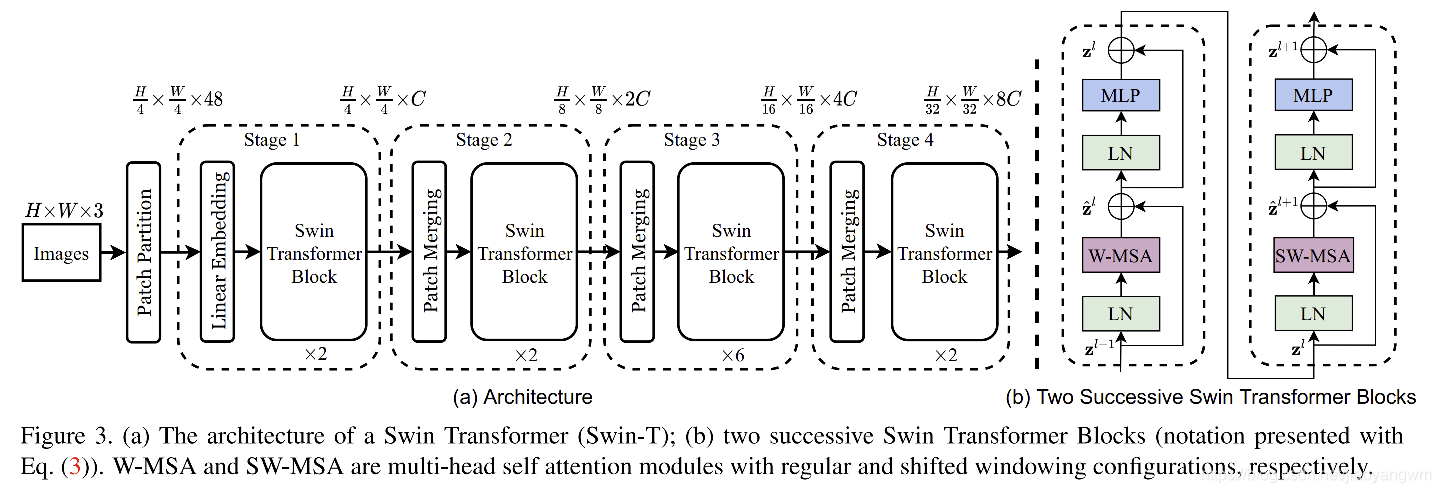

3.1 整体结构

在这里插入图片描述

首先，将输入的 RGB 图像分成无重叠的patches，每个 patch 被当做一个 token，并且其特征会和原始的输入图像进行concat，本文中，作者将 patch size 设置为 4x4 大小，每个patch的特征维度为 4x4x3=48。
Stage1：输入： $\frac{H}{4} \times \frac{W}{4} \times 3$ ，输出为 $\frac{H}{4}\times \frac{W}{4} \times C$

使用线性编码层，来将其变换到特定的维度（C维），然后使用 2 个 swin transformer block 提取特征。

为了融合不同层级特征，token的数量随着网络的加深而减少
Stage2：输入： $\frac{H}{4} \times \frac{W}{4} \times C$ ，输出为 $\frac{H}{8}\times \frac{W}{8} \times 2C$

patch merging 的合并过程，将 2x2 的相邻 patch 特征进行拼接，并对拼接后的 4C 维特征使用线性层，token 的数量减少 4 倍，输出通道数为 2C
Stage3：输入： $\frac{H}{8} \times \frac{W}{8} \times 2C$ ，输出为 $\frac{H}{16}\times \frac{W}{16} \times 4C$
Stage4：输入： $\frac{H}{16}\times \frac{W}{16} \times 4C$ ，输出为 $\frac{H}{32}\times \frac{W}{32} \times 8C$

我们可以看到所有stage的 swin transformer block 都是偶数个，这是因为每个 window MHSA 后面都要跟一个 shift window MHSA。所以都是偶数个。

Patch Merging 代码：

patch merging 代码会将特征图分辨率下降为1/2，通道升为原来的 4 倍，但这里为了和卷积一致，在 C 维度上使用 1x1 卷积将通道降低到了 2C，和卷积那边就对等起来了，也可以看做 CNN 中的提升感受野的过程。

patch merging 一个简单的示意图，假设输入为 1x4x4x1，则经过 patch merging 后得到 1x2x2x4

# 输入
 ~ + ~ +
 ^ * ^ *
 ~ + ~ +
 ^ * ^ *

# 输出
~ ~ + + ^ ^ * *
~ ~ + + ^ ^ * *

class PatchMerging(nn.Module):
    r""" Patch Merging Layer.

    Args:
        input_resolution (tuple[int]): Resolution of input feature.
        dim (int): Number of input channels.
        norm_layer (nn.Module, optional): Normalization layer.  Default: nn.LayerNorm
    """

    def __init__(self, input_resolution, dim, norm_layer=nn.LayerNorm):
        super().__init__()
        self.input_resolution = input_resolution
        self.dim = dim
        self.reduction = nn.Linear(4 * dim, 2 * dim, bias=False)
        self.norm = norm_layer(4 * dim)

    def forward(self, x):
        """
        x: B, H*W, C
        """
        H, W = self.input_resolution
        B, L, C = x.shape
        assert L == H * W, "input feature has wrong size"
        assert H % 2 == 0 and W % 2 == 0, f"x size ({H}*{W}) are not even."

        x = x.view(B, H, W, C)
        # patch merging 的输入假设为 1x14x14x384
        # patch merging 会首先使用如下方法将其扩展为 1x7x7x1526
        x0 = x[:, 0::2, 0::2, :]  # B H/2 W/2 C
        x1 = x[:, 1::2, 0::2, :]  # B H/2 W/2 C
        x2 = x[:, 0::2, 1::2, :]  # B H/2 W/2 C
        x3 = x[:, 1::2, 1::2, :]  # B H/2 W/2 C
        x = torch.cat([x0, x1, x2, x3], -1)  # B H/2 W/2 4*C
        x = x.view(B, -1, 4 * C)  # B H/2*W/2 4*C
        # 对 1x49x1526 进行规范化
        x = self.norm(x)
        # 通道降为为 2C， 1x49x768
        x = self.reduction(x)

        return x

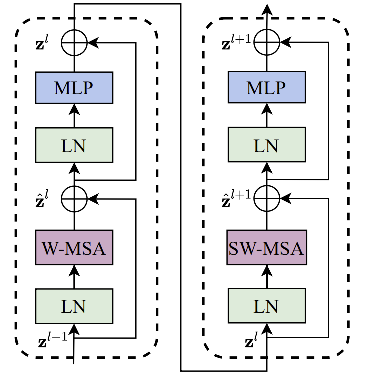

Swin Transformer block：

该结构是使用基于 shifted windows 的 Transformer block 代替 multi-head self attention （MSA) 得到的。

组成结构：基于 shifted window 的 MSA + MLP，每个 MSA 和 MLP 前面都有一个 LN 层（Layer Norm），每个模块之间都使用了 residual connection 连接。

在这里插入图片描述

3.2 Shifted Window based Self-Attention

现有的标准 transformer [61][19]等，通常使用全局的self-attention，也就是计算每个token和其他token的关系，所以计算量是和token的数量呈平方关系的，导致其难以适用于高分辨率的任务。

self-attention in non-overlapped windows：

为了更高效的建模，作者提出了只计算局部window内的 self-attention，这些windows是将输入图像均匀的划分为不重叠的块。每个 window 包含 MxM 个 patches。

当输入图像大小为 hxw时，不同方法的self-attention计算量如下：

MSA：和 hw 呈二次方关系
W-MSA：和 hw 呈线性关系

Shifted window partitioning in successive blocks：

window-based self-attention 无法在window之间进行信息提取，这就会限制模型的建模能力，为了实现window之间的联系同时保持高效的计算效率，作者使用 shifted-window 的方法来实现，也就是在连续的 swin transformer block 使用滑动的window，使得不同层级的block的window包含的内容不同。

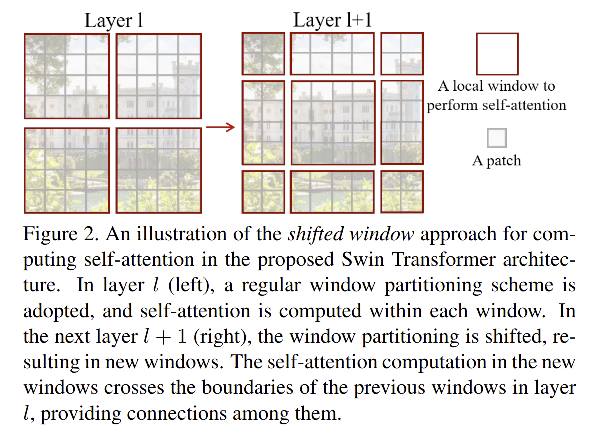

如图2所示：

第一个 module 使用常规的window划分策略，从左上角开始，把8x8大小的特征图划分成2x2大小的window，每个window的大小为 4x4（M=4）。
第二个 module 将前一级的 module 的window进行了滑动，将window滑动了 ( $\lfloor M/2 \rfloor, \lfloor M/2 \rfloor$ ) 个pixels

在这里插入图片描述

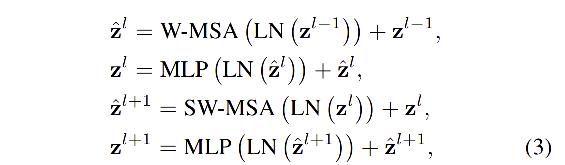

基于此，连续的 swin transformer block 计算如下：

在这里插入图片描述

$\hat z ^l$ ：(S)W-MSA 模块的输出特征（block $l$ ），SW-MSA 表示基于shift window，W-MSA 表示基于普通 window 的multi-head self-attention。
$z^l$ ：MLP 模块的输出特征（block $l$ ）

Efficient batch computation for shifted configuration：

shfited window 分块会产生一个问题，即会产生很多 windows，从 $\lceil \frac{h}{M} \rceil \times \lceil \frac{w}{M} \rceil$ 到 $（\lceil \frac{h}{M} \rceil +1）\times （\lceil \frac{w}{M} \rceil+1）$ ，而且许多window的大小会小于 $M\times M$ 。

一个比较简单的解决方法：对小于 $M\times M$ 的 window 进行 padding，然后在进行attention计算的时候把填充的东西忽略掉。但这样也带来了计算量的增加。

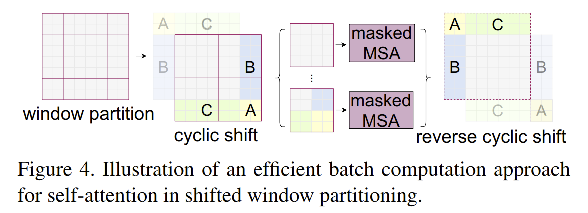

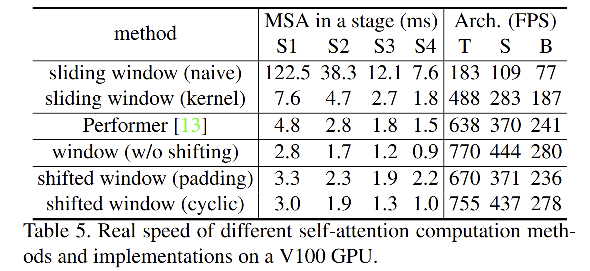

本文的解决方法：cyclic-shifting toward the top-left direction

在这里插入图片描述

通过移位的方法，组成一个可以处理的窗口，这个可处理的窗口是由几个不相邻的子窗口组成的，然后使用掩膜的方式来辅助计算自注意力特征。这种 cyclic-shift 的方法使得shift window 的方法和普通window的方法没有什么计算量上的差别。

在这里插入图片描述

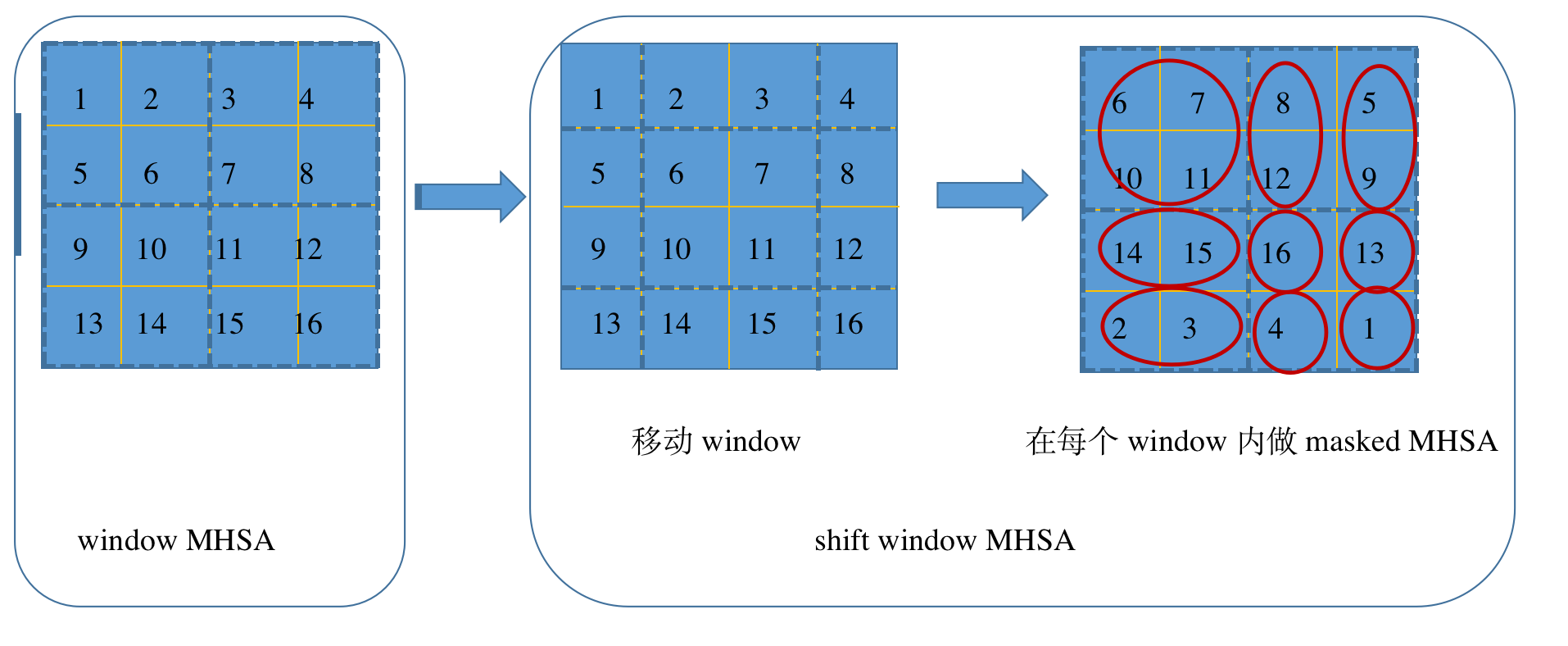

Shift window 的具体做法：

第一步：先把 window 的位置往右和往下移动 $\lfloor M/2 \rfloor, \lfloor M/2 \rfloor$
第二步：把 window 里边像素不足的 window 进行移动，在每个 window 内部做 mask MHSA 。
第三步：将元素移动到原始位置

为什么是 mask 的 MHSA 呢？

如下图所示，黄线表示 patch，蓝色粗虚线表示 window，虽然把最左边一列和最上边一行进行移动之后，能凑够四个 window，如下图所示，但其实8/12 和 5/9 是原本没有空间联系的（下图右侧每个红圈内是属于一个空间位置的），所以不能强行计算他们四个元素的 attention，所以作者提出了 mask 的 attention，即计算 8 和其他三个元素的 attention 的时候，计算完attention后，会把5和9对应的权重分别减去100，之后再进行 softmax，该两者对应的权重就为 0 了（-100相比原来的权重来说，是一个非常大的负数，做完softmax 就为0 了）。

在这里插入图片描述

Relative position bias：

以每个像素做完基准点来计算其和其他位置的像素的 attention 权重的时候，会给其后面加一个相对位置索引，比如有四个像素点，则总共会有 16 个位置索引组成的 4x4 的相对位置索引的矩阵。

在计算 self-attention 时，作者在每个 head 计算相似度的时候，使用了包含相对位置偏移 $\in R^{M^2\times M^2}$ 的方法[48,1,31,32]。

在这里插入图片描述

Q/K/V 分别是 query/key/value
d 是 query/key 的维度
$M^2$ 是window中 patch 的数量
由于相对位置的范围为 [-M+1, M+1]，所以作者将位置偏移小型化了， $\hat B \in R^{(2M-1)\times (2M-1)}$

在这里插入图片描述

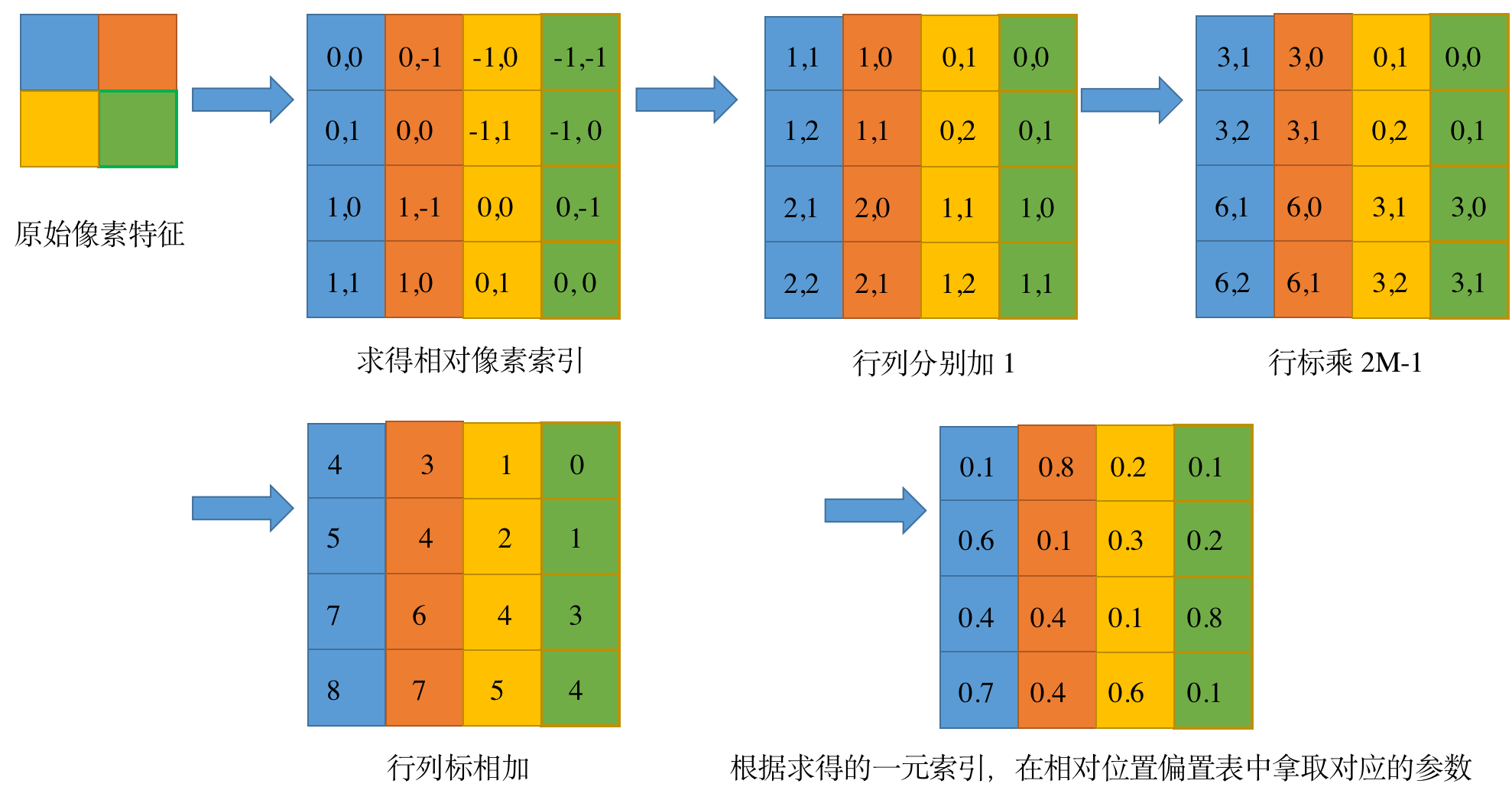

对于大小为 M 的窗口，其中元素的相对索引其实是在 [-M-1, M+1] 这个范围内，共有 2M-1 个参数可以取，组合之后，就是 $(2M-1)\times (2M-1)$ 个可取的索引。相对位置偏置表总共也有 $(2M-1)\times (2M-1)$ 个元素与可取的索引对应。

作者使用的是单个索引，如果直接相加的话会有很多相同的索引，无法使用，索引作者给所有行、列标加上了 M-1（即1）

3.3 Architecture Variants

作者建立的 base model 叫做 Swin-B，模型大小和 ViT-B/DeiT-B差不多

作者还建立了其他的模型：

Swin-T：0.25x model size
Swin-S：0.5x
Swin-L：2x

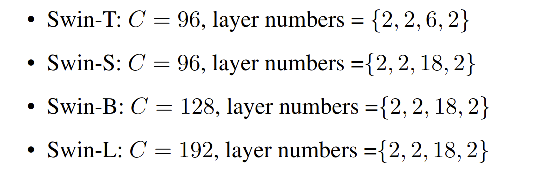

不同模型的超参数如下：C 是 first stage 的隐藏层数

在这里插入图片描述

Window size： $M = 7$
query dimension of each head： $d = 32$
expansion layer of each MLP： $\alpha=4$

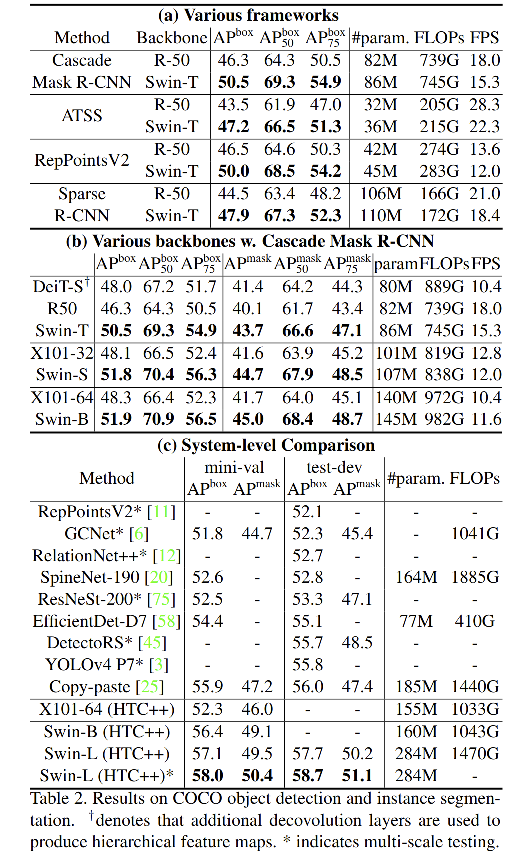

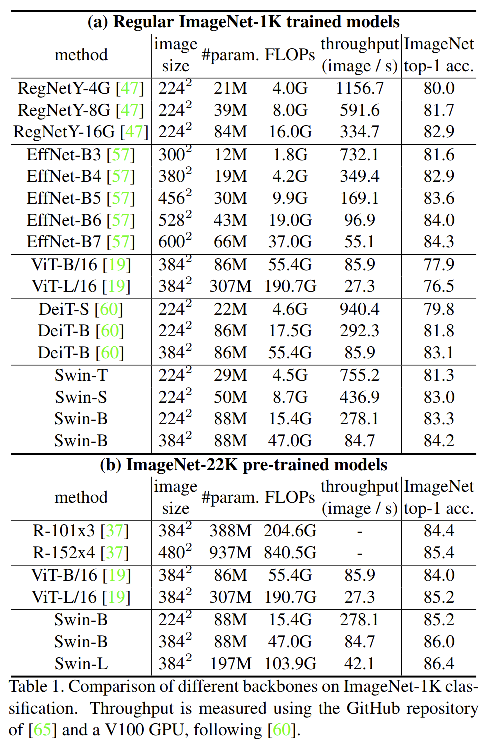

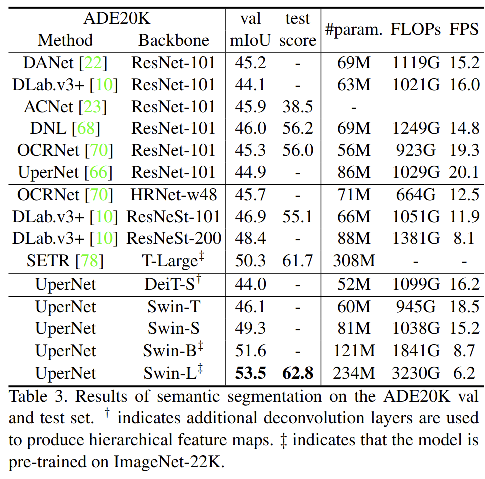

四、效果

在这里插入图片描述

五、代码

使用单GPU训练 Swin-B：

python -m torch.distributed.launch --nproc_per_node 1 --master_port 12345 main.py --eval \
--cfg configs/swin_base_patch4_window7_224.yaml --resume swin_base_patch4_window7_224.pth --data-path <imagenet-path>

如果报错 subprocess.CalledProcessError ,可以改一下 master_port：

python -m torch.distributed.launch --nproc_per_node 2 --master_port 23464 main.py --cfg configs/swin_tiny_patch4_window7_224.yaml --data-path imagenet --batch-size 4

config：

CfgNode({
'BASE': [''],
'DATA': CfgNode({'BATCH_SIZE': 4, 'DATA_PATH': 'imagenet', 'DATASET': 'imagenet', 'IMG_SIZE': 224, 'INTERPOLATION': 'bicubic', 'ZIP_MODE': False, 'CACHE_MODE': 'part', 'PIN_MEMORY': True, 'NUM_WORKERS': 8}),
'MODEL': CfgNode({'TYPE': 'swin', 'NAME': 'swin_tiny_patch4_window7_224', 'RESUME': '', 'NUM_CLASSES': 1000, 'DROP_RATE': 0.0, 'DROP_PATH_RATE': 0.2, 'LABEL_SMOOTHING': 0.1, 'SWIN': CfgNode({'PATCH_SIZE': 4, 'IN_CHANS': 3, 'EMBED_DIM': 96, 'DEPTHS': [2, 2, 6, 2], 'NUM_HEADS': [3, 6, 12, 24], 'WINDOW_SIZE': 7, 'MLP_RATIO': 4.0, 'QKV_BIAS': True, 'QK_SCALE': None, 'APE': False, 'PATCH_NORM': True}),
'SWIN_MLP': CfgNode({'PATCH_SIZE': 4, 'IN_CHANS': 3, 'EMBED_DIM': 96, 'DEPTHS': [2, 2, 6, 2], 'NUM_HEADS': [3, 6, 12, 24], 'WINDOW_SIZE': 7, 'MLP_RATIO': 4.0, 'APE': False, 'PATCH_NORM': True})}),
'TRAIN': CfgNode({'START_EPOCH': 0, 'EPOCHS': 300, 'WARMUP_EPOCHS': 20, 'WEIGHT_DECAY': 0.05, 'BASE_LR': 3.90625e-06, 'WARMUP_LR': 3.90625e-09, 'MIN_LR': 3.90625e-08, 'CLIP_GRAD': 5.0, 'AUTO_RESUME': True, 'ACCUMULATION_STEPS': 0, 'USE_CHECKPOINT': False, 'LR_SCHEDULER': CfgNode({'NAME': 'cosine', 'DECAY_EPOCHS': 30, 'DECAY_RATE': 0.1}),
'OPTIMIZER': CfgNode({'NAME': 'adamw', 'EPS': 1e-08, 'BETAS': (0.9, 0.999), 'MOMENTUM': 0.9})}),
'AUG': CfgNode({'COLOR_JITTER': 0.4, 'AUTO_AUGMENT': 'rand-m9-mstd0.5-inc1', 'REPROB': 0.25, 'REMODE': 'pixel', 'RECOUNT': 1, 'MIXUP': 0.8, 'CUTMIX': 1.0, 'CUTMIX_MINMAX': None, 'MIXUP_PROB': 1.0, 'MIXUP_SWITCH_PROB': 0.5, 'MIXUP_MODE': 'batch'}),
'TEST': CfgNode({'CROP': True}), 'AMP_OPT_LEVEL': 'O1', 'OUTPUT': 'output/swin_tiny_patch4_window7_224/default', 'TAG': 'default', 'SAVE_FREQ': 1, 'PRINT_FREQ': 10, 'SEED': 0, 'EVAL_MODE': False, 'THROUGHPUT_MODE': False, 'LOCAL_RANK': 0})

Swin-B结构：

SwinTransformer(
  (patch_embed): PatchEmbed(
    (proj): Conv2d(3, 96, kernel_size=(4, 4), stride=(4, 4))
    (norm): LayerNorm((96,), eps=1e-05, elementwise_affine=True)
  )
  (pos_drop): Dropout(p=0.0, inplace=False)
  (layers): ModuleList(
    (0): BasicLayer(
      dim=96, input_resolution=(56, 56), depth=2
      (blocks): ModuleList(
        (0): SwinTransformerBlock(
          dim=96, input_resolution=(56, 56), num_heads=3, window_size=7, shift_size=0, mlp_ratio=4.0
          (norm1): LayerNorm((96,), eps=1e-05, elementwise_affine=True)
          (attn): WindowAttention(
            dim=96, window_size=(7, 7), num_heads=3
            (qkv): Linear(in_features=96, out_features=288, bias=True)
            (attn_drop): Dropout(p=0.0, inplace=False)
            (proj): Linear(in_features=96, out_features=96, bias=True)
            (proj_drop): Dropout(p=0.0, inplace=False)
            (softmax): Softmax(dim=-1)
          )
          (drop_path): Identity()
          (norm2): LayerNorm((96,), eps=1e-05, elementwise_affine=True)
          (mlp): Mlp(
            (fc1): Linear(in_features=96, out_features=384, bias=True)
            (act): GELU()
            (fc2): Linear(in_features=384, out_features=96, bias=True)
            (drop): Dropout(p=0.0, inplace=False)
          )
        )
        (1): SwinTransformerBlock(
          dim=96, input_resolution=(56, 56), num_heads=3, window_size=7, shift_size=3, mlp_ratio=4.0
          (norm1): LayerNorm((96,), eps=1e-05, elementwise_affine=True)
          (attn): WindowAttention(
            dim=96, window_size=(7, 7), num_heads=3
            (qkv): Linear(in_features=96, out_features=288, bias=True)
            (attn_drop): Dropout(p=0.0, inplace=False)
            (proj): Linear(in_features=96, out_features=96, bias=True)
            (proj_drop): Dropout(p=0.0, inplace=False)
            (softmax): Softmax(dim=-1)
          )
          (drop_path): DropPath()
          (norm2): LayerNorm((96,), eps=1e-05, elementwise_affine=True)
          (mlp): Mlp(
            (fc1): Linear(in_features=96, out_features=384, bias=True)
            (act): GELU()
            (fc2): Linear(in_features=384, out_features=96, bias=True)
            (drop): Dropout(p=0.0, inplace=False)
          )
        )
      )
      (downsample): PatchMerging(
        input_resolution=(56, 56), dim=96
        (reduction): Linear(in_features=384, out_features=192, bias=False)
        (norm): LayerNorm((384,), eps=1e-05, elementwise_affine=True)
      )
    )
    (1): BasicLayer(
      dim=192, input_resolution=(28, 28), depth=2
      (blocks): ModuleList(
        (0): SwinTransformerBlock(
          dim=192, input_resolution=(28, 28), num_heads=6, window_size=7, shift_size=0, mlp_ratio=4.0
          (norm1): LayerNorm((192,), eps=1e-05, elementwise_affine=True)
          (attn): WindowAttention(
            dim=192, window_size=(7, 7), num_heads=6
            (qkv): Linear(in_features=192, out_features=576, bias=True)
            (attn_drop): Dropout(p=0.0, inplace=False)
            (proj): Linear(in_features=192, out_features=192, bias=True)
            (proj_drop): Dropout(p=0.0, inplace=False)
            (softmax): Softmax(dim=-1)
          )
          (drop_path): DropPath()
          (norm2): LayerNorm((192,), eps=1e-05, elementwise_affine=True)
          (mlp): Mlp(
            (fc1): Linear(in_features=192, out_features=768, bias=True)
            (act): GELU()
            (fc2): Linear(in_features=768, out_features=192, bias=True)
            (drop): Dropout(p=0.0, inplace=False)
          )
        )
        (1): SwinTransformerBlock(
          dim=192, input_resolution=(28, 28), num_heads=6, window_size=7, shift_size=3, mlp_ratio=4.0
          (norm1): LayerNorm((192,), eps=1e-05, elementwise_affine=True)
          (attn): WindowAttention(
            dim=192, window_size=(7, 7), num_heads=6
            (qkv): Linear(in_features=192, out_features=576, bias=True)
            (attn_drop): Dropout(p=0.0, inplace=False)
            (proj): Linear(in_features=192, out_features=192, bias=True)
            (proj_drop): Dropout(p=0.0, inplace=False)
            (softmax): Softmax(dim=-1)
          )
          (drop_path): DropPath()
          (norm2): LayerNorm((192,), eps=1e-05, elementwise_affine=True)
          (mlp): Mlp(
            (fc1): Linear(in_features=192, out_features=768, bias=True)
            (act): GELU()
            (fc2): Linear(in_features=768, out_features=192, bias=True)
            (drop): Dropout(p=0.0, inplace=False)
          )
        )
      )
      (downsample): PatchMerging(
        input_resolution=(28, 28), dim=192
        (reduction): Linear(in_features=768, out_features=384, bias=False)
        (norm): LayerNorm((768,), eps=1e-05, elementwise_affine=True)
      )
    )
    (2): BasicLayer(
      dim=384, input_resolution=(14, 14), depth=6
      (blocks): ModuleList(
        (0): SwinTransformerBlock(
          dim=384, input_resolution=(14, 14), num_heads=12, window_size=7, shift_size=0, mlp_ratio=4.0
          (norm1): LayerNorm((384,), eps=1e-05, elementwise_affine=True)
          (attn): WindowAttention(
            dim=384, window_size=(7, 7), num_heads=12
            (qkv): Linear(in_features=384, out_features=1152, bias=True)
            (attn_drop): Dropout(p=0.0, inplace=False)
            (proj): Linear(in_features=384, out_features=384, bias=True)
            (proj_drop): Dropout(p=0.0, inplace=False)
            (softmax): Softmax(dim=-1)
          )
          (drop_path): DropPath()
          (norm2): LayerNorm((384,), eps=1e-05, elementwise_affine=True)
          (mlp): Mlp(
            (fc1): Linear(in_features=384, out_features=1536, bias=True)
            (act): GELU()
            (fc2): Linear(in_features=1536, out_features=384, bias=True)
            (drop): Dropout(p=0.0, inplace=False)
          )
        )
        (1): SwinTransformerBlock(
          dim=384, input_resolution=(14, 14), num_heads=12, window_size=7, shift_size=3, mlp_ratio=4.0
          (norm1): LayerNorm((384,), eps=1e-05, elementwise_affine=True)
          (attn): WindowAttention(
            dim=384, window_size=(7, 7), num_heads=12
            (qkv): Linear(in_features=384, out_features=1152, bias=True)
            (attn_drop): Dropout(p=0.0, inplace=False)
            (proj): Linear(in_features=384, out_features=384, bias=True)
            (proj_drop): Dropout(p=0.0, inplace=False)
            (softmax): Softmax(dim=-1)
          )
          (drop_path): DropPath()
          (norm2): LayerNorm((384,), eps=1e-05, elementwise_affine=True)
          (mlp): Mlp(
            (fc1): Linear(in_features=384, out_features=1536, bias=True)
            (act): GELU()
            (fc2): Linear(in_features=1536, out_features=384, bias=True)
            (drop): Dropout(p=0.0, inplace=False)
          )
        )
        (2): SwinTransformerBlock(
          dim=384, input_resolution=(14, 14), num_heads=12, window_size=7, shift_size=0, mlp_ratio=4.0
          (norm1): LayerNorm((384,), eps=1e-05, elementwise_affine=True)
          (attn): WindowAttention(
            dim=384, window_size=(7, 7), num_heads=12
            (qkv): Linear(in_features=384, out_features=1152, bias=True)
            (attn_drop): Dropout(p=0.0, inplace=False)
            (proj): Linear(in_features=384, out_features=384, bias=True)
            (proj_drop): Dropout(p=0.0, inplace=False)
            (softmax): Softmax(dim=-1)
          )
          (drop_path): DropPath()
          (norm2): LayerNorm((384,), eps=1e-05, elementwise_affine=True)
          (mlp): Mlp(
            (fc1): Linear(in_features=384, out_features=1536, bias=True)
            (act): GELU()
            (fc2): Linear(in_features=1536, out_features=384, bias=True)
            (drop): Dropout(p=0.0, inplace=False)
          )
        )
        (3): SwinTransformerBlock(
          dim=384, input_resolution=(14, 14), num_heads=12, window_size=7, shift_size=3, mlp_ratio=4.0
          (norm1): LayerNorm((384,), eps=1e-05, elementwise_affine=True)
          (attn): WindowAttention(
            dim=384, window_size=(7, 7), num_heads=12
            (qkv): Linear(in_features=384, out_features=1152, bias=True)
            (attn_drop): Dropout(p=0.0, inplace=False)
            (proj): Linear(in_features=384, out_features=384, bias=True)
            (proj_drop): Dropout(p=0.0, inplace=False)
            (softmax): Softmax(dim=-1)
          )
          (drop_path): DropPath()
          (norm2): LayerNorm((384,), eps=1e-05, elementwise_affine=True)
          (mlp): Mlp(
            (fc1): Linear(in_features=384, out_features=1536, bias=True)
            (act): GELU()
            (fc2): Linear(in_features=1536, out_features=384, bias=True)
            (drop): Dropout(p=0.0, inplace=False)
          )
        )
        (4): SwinTransformerBlock(
          dim=384, input_resolution=(14, 14), num_heads=12, window_size=7, shift_size=0, mlp_ratio=4.0
          (norm1): LayerNorm((384,), eps=1e-05, elementwise_affine=True)
          (attn): WindowAttention(
            dim=384, window_size=(7, 7), num_heads=12
            (qkv): Linear(in_features=384, out_features=1152, bias=True)
            (attn_drop): Dropout(p=0.0, inplace=False)
            (proj): Linear(in_features=384, out_features=384, bias=True)
            (proj_drop): Dropout(p=0.0, inplace=False)
            (softmax): Softmax(dim=-1)
          )
          (drop_path): DropPath()
          (norm2): LayerNorm((384,), eps=1e-05, elementwise_affine=True)
          (mlp): Mlp(
            (fc1): Linear(in_features=384, out_features=1536, bias=True)
            (act): GELU()
            (fc2): Linear(in_features=1536, out_features=384, bias=True)
            (drop): Dropout(p=0.0, inplace=False)
          )
        )
        (5): SwinTransformerBlock(
          dim=384, input_resolution=(14, 14), num_heads=12, window_size=7, shift_size=3, mlp_ratio=4.0
          (norm1): LayerNorm((384,), eps=1e-05, elementwise_affine=True)
          (attn): WindowAttention(
            dim=384, window_size=(7, 7), num_heads=12
            (qkv): Linear(in_features=384, out_features=1152, bias=True)
            (attn_drop): Dropout(p=0.0, inplace=False)
            (proj): Linear(in_features=384, out_features=384, bias=True)
            (proj_drop): Dropout(p=0.0, inplace=False)
            (softmax): Softmax(dim=-1)
          )
          (drop_path): DropPath()
          (norm2): LayerNorm((384,), eps=1e-05, elementwise_affine=True)
          (mlp): Mlp(
            (fc1): Linear(in_features=384, out_features=1536, bias=True)
            (act): GELU()
            (fc2): Linear(in_features=1536, out_features=384, bias=True)
            (drop): Dropout(p=0.0, inplace=False)
          )
        )
      )
      (downsample): PatchMerging(
        input_resolution=(14, 14), dim=384
        (reduction): Linear(in_features=1536, out_features=768, bias=False)
        (norm): LayerNorm((1536,), eps=1e-05, elementwise_affine=True)
      )
    )
    (3): BasicLayer(
      dim=768, input_resolution=(7, 7), depth=2
      (blocks): ModuleList(
        (0): SwinTransformerBlock(
          dim=768, input_resolution=(7, 7), num_heads=24, window_size=7, shift_size=0, mlp_ratio=4.0
          (norm1): LayerNorm((768,), eps=1e-05, elementwise_affine=True)
          (attn): WindowAttention(
            dim=768, window_size=(7, 7), num_heads=24
            (qkv): Linear(in_features=768, out_features=2304, bias=True)
            (attn_drop): Dropout(p=0.0, inplace=False)
            (proj): Linear(in_features=768, out_features=768, bias=True)
            (proj_drop): Dropout(p=0.0, inplace=False)
            (softmax): Softmax(dim=-1)
          )
          (drop_path): DropPath()
          (norm2): LayerNorm((768,), eps=1e-05, elementwise_affine=True)
          (mlp): Mlp(
            (fc1): Linear(in_features=768, out_features=3072, bias=True)
            (act): GELU()
            (fc2): Linear(in_features=3072, out_features=768, bias=True)
            (drop): Dropout(p=0.0, inplace=False)
          )
        )
        (1): SwinTransformerBlock(
          dim=768, input_resolution=(7, 7), num_heads=24, window_size=7, shift_size=0, mlp_ratio=4.0
          (norm1): LayerNorm((768,), eps=1e-05, elementwise_affine=True)
          (attn): WindowAttention(
            dim=768, window_size=(7, 7), num_heads=24
            (qkv): Linear(in_features=768, out_features=2304, bias=True)
            (attn_drop): Dropout(p=0.0, inplace=False)
            (proj): Linear(in_features=768, out_features=768, bias=True)
            (proj_drop): Dropout(p=0.0, inplace=False)
            (softmax): Softmax(dim=-1)
          )
          (drop_path): DropPath()
          (norm2): LayerNorm((768,), eps=1e-05, elementwise_affine=True)
          (mlp): Mlp(
            (fc1): Linear(in_features=768, out_features=3072, bias=True)
            (act): GELU()
            (fc2): Linear(in_features=3072, out_features=768, bias=True)
            (drop): Dropout(p=0.0, inplace=False)
          )
        )
      )
    )
  )
  (norm): LayerNorm((768,), eps=1e-05, elementwise_affine=True)
  (avgpool): AdaptiveAvgPool1d(output_size=1)
  (head): Linear(in_features=768, out_features=1000, bias=True)
)

简化一下就是这个样子的：

SwinTransformer(
  (patch_embed): PatchEmbed(
    (proj): Conv2d(3, 96, kernel_size=(4, 4), stride=(4, 4))
    (norm): LayerNorm((96,), eps=1e-05, elementwise_affine=True))

  (pos_drop): Dropout(p=0.0, inplace=False)

  (layers): ModuleList(
    (0): BasicLayer(dim=96, input_resolution=(56, 56), depth=2
      (blocks): ModuleList(
        (0): SwinTransformerBlock()
        (1): SwinTransformerBlock()
      (downsample): PatchMerging())
    (1): BasicLayer(dim=192, input_resolution=(28, 28), depth=2
      (blocks): ModuleList(
        (0): SwinTransformerBlock()
        (1): SwinTransformerBlock()
      (downsample): PatchMerging())
    (2): BasicLayer(dim=384, input_resolution=(14, 14), depth=6
      (blocks): ModuleList(
        (0): SwinTransformerBlock()
        (1): SwinTransformerBlock()
        (2): SwinTransformerBlock()
        (3): SwinTransformerBlock()
        (4): SwinTransformerBlock()
        (5): SwinTransformerBlock()
      (downsample): PatchMerging())
    (3): BasicLayer(dim=768, input_resolution=(7, 7), depth=2
      (blocks): ModuleList(
        (0): SwinTransformerBlock()
        (1): SwinTransformerBlock()))
  (norm): LayerNorm((768,), eps=1e-05, elementwise_affine=True)
  (avgpool): AdaptiveAvgPool1d(output_size=1)
  (head): Linear(in_features=768, out_features=1000, bias=True)

PatchEmbed 结构：

PatchEmbed(
  (proj): Conv2d(3, 96, kernel_size=(4, 4), stride=(4, 4))
  (norm): LayerNorm((96,), eps=1e-05, elementwise_affine=True)
)

Swin Transformer block 结构：

SwinTransformerBlock(
          dim=96, input_resolution=(56, 56), num_heads=3, window_size=7, shift_size=0, mlp_ratio=4.0
          (norm1): LayerNorm((96,), eps=1e-05, elementwise_affine=True)
          (attn): WindowAttention(
            dim=96, window_size=(7, 7), num_heads=3
            (qkv): Linear(in_features=96, out_features=288, bias=True)
            (attn_drop): Dropout(p=0.0, inplace=False)
            (proj): Linear(in_features=96, out_features=96, bias=True)
            (proj_drop): Dropout(p=0.0, inplace=False)
            (softmax): Softmax(dim=-1)
          )
          (drop_path): Identity()
          (norm2): LayerNorm((96,), eps=1e-05, elementwise_affine=True)
          (mlp): Mlp(
            (fc1): Linear(in_features=96, out_features=384, bias=True)
            (act): GELU()
            (fc2): Linear(in_features=384, out_features=96, bias=True)
            (drop): Dropout(p=0.0, inplace=False)
          )
        )

class SwinTransformerBlock(nn.Module):
    r""" Swin Transformer Block.

    Args:
        dim (int): Number of input channels.
        input_resolution (tuple[int]): Input resulotion.
        num_heads (int): Number of attention heads.
        window_size (int): Window size.
        shift_size (int): Shift size for SW-MSA.
        mlp_ratio (float): Ratio of mlp hidden dim to embedding dim.
        qkv_bias (bool, optional): If True, add a learnable bias to query, key, value. Default: True
        qk_scale (float | None, optional): Override default qk scale of head_dim ** -0.5 if set.
        drop (float, optional): Dropout rate. Default: 0.0
        attn_drop (float, optional): Attention dropout rate. Default: 0.0
        drop_path (float, optional): Stochastic depth rate. Default: 0.0
        act_layer (nn.Module, optional): Activation layer. Default: nn.GELU
        norm_layer (nn.Module, optional): Normalization layer.  Default: nn.LayerNorm
    """

    def __init__(self, dim, input_resolution, num_heads, window_size=7, shift_size=0,
                 mlp_ratio=4., qkv_bias=True, qk_scale=None, drop=0., attn_drop=0., drop_path=0.,
                 act_layer=nn.GELU, norm_layer=nn.LayerNorm):
        super().__init__()
        self.dim = dim
        self.input_resolution = input_resolution
        self.num_heads = num_heads
        self.window_size = window_size
        self.shift_size = shift_size
        self.mlp_ratio = mlp_ratio
        if min(self.input_resolution) <= self.window_size:
            # if window size is larger than input resolution, we don't partition windows
            self.shift_size = 0
            self.window_size = min(self.input_resolution)
        assert 0 <= self.shift_size < self.window_size, "shift_size must in 0-window_size"

        self.norm1 = norm_layer(dim)
        self.attn = WindowAttention(
            dim, window_size=to_2tuple(self.window_size), num_heads=num_heads,
            qkv_bias=qkv_bias, qk_scale=qk_scale, attn_drop=attn_drop, proj_drop=drop)

        self.drop_path = DropPath(drop_path) if drop_path > 0. else nn.Identity()
        self.norm2 = norm_layer(dim)
        mlp_hidden_dim = int(dim * mlp_ratio)
        self.mlp = Mlp(in_features=dim, hidden_features=mlp_hidden_dim, act_layer=act_layer, drop=drop)

        if self.shift_size > 0:
            # calculate attention mask for SW-MSA
            H, W = self.input_resolution
            img_mask = torch.zeros((1, H, W, 1))  # 1 H W 1
            h_slices = (slice(0, -self.window_size),
                        slice(-self.window_size, -self.shift_size),
                        slice(-self.shift_size, None))
            w_slices = (slice(0, -self.window_size),
                        slice(-self.window_size, -self.shift_size),
                        slice(-self.shift_size, None))
            cnt = 0
            for h in h_slices:
                for w in w_slices:
                    img_mask[:, h, w, :] = cnt
                    cnt += 1

            mask_windows = window_partition(img_mask, self.window_size)  # nW, window_size, window_size, 1
            mask_windows = mask_windows.view(-1, self.window_size * self.window_size)
            attn_mask = mask_windows.unsqueeze(1) - mask_windows.unsqueeze(2)
            attn_mask = attn_mask.masked_fill(attn_mask != 0, float(-100.0)).masked_fill(attn_mask == 0, float(0.0))
        else:
            attn_mask = None

        self.register_buffer("attn_mask", attn_mask)

    def forward(self, x):
        import pdb; pdb.set_trace()
        H, W = self.input_resolution  # first layer H=W=56
        B, L, C = x.shape # [4, 3136, 96]
        assert L == H * W, "input feature has wrong size"

        shortcut = x
        x = self.norm1(x)
        x = x.view(B, H, W, C) # [4, 56, 56, 96]

        # cyclic shift
        if self.shift_size > 0:
            shifted_x = torch.roll(x, shifts=(-self.shift_size, -self.shift_size), dims=(1, 2))
        else:
            shifted_x = x

        # partition windows
        x_windows = window_partition(shifted_x, self.window_size)  # nW*B, window_size, window_size, C # [256, 7, 7, 96]
        x_windows = x_windows.view(-1, self.window_size * self.window_size, C)  # nW*B, window_size*window_size, C # [256, 49, 96]

        # W-MSA/SW-MSA
        attn_windows = self.attn(x_windows, mask=self.attn_mask)  # nW*B, window_size*window_size, C # [256, 49, 96]

        # merge windows
        attn_windows = attn_windows.view(-1, self.window_size, self.window_size, C) # [256, 7, 7, 96]
        shifted_x = window_reverse(attn_windows, self.window_size, H, W)  # B H' W' C # [4, 56, 56, 96]

        # reverse cyclic shift
        if self.shift_size > 0:
            x = torch.roll(shifted_x, shifts=(self.shift_size, self.shift_size), dims=(1, 2))
        else:
            x = shifted_x
        x = x.view(B, H * W, C) # [4, 3136, 96]

        # FFN
        x = shortcut + self.drop_path(x)
        x = x + self.drop_path(self.mlp(self.norm2(x)))

        return x

window_partition 结构：切分 window操作

def window_partition(x, window_size):
    """
    Args:
        x: (B, H, W, C)
        window_size (int): window size

    Returns:
        windows: (num_windows*B, window_size, window_size, C)
    """
    B, H, W, C = x.shape # [4, 56, 56, 96]
    x = x.view(B, H // window_size, window_size, W // window_size, window_size, C) # [4, 8, 7, 8, 7, 96]
    # x.permute(0, 1, 3, 2, 4, 5).shape = [4, 8, 8, 7, 7, 96]
    windows = x.permute(0, 1, 3, 2, 4, 5).contiguous().view(-1, window_size, window_size, C) # [256, 7, 7, 96]
    return windows

输入尺寸: x.shape = [4, 56, 56, 96]
window_size = 7
经过切分后的尺寸：x.shape = [4, 8, 7, 8, 7, 96]
也就是一组 [56, 56, 96] 的特征图，会被切分成 [64, 7, 7, 96] 的特征图块

window attention 的结构：

WindowAttention(
  dim=96, window_size=(7, 7), num_heads=3
  (qkv): Linear(in_features=96, out_features=288, bias=True)
  (attn_drop): Dropout(p=0.0, inplace=False)
  (proj): Linear(in_features=96, out_features=96, bias=True)
  (proj_drop): Dropout(p=0.0, inplace=False)
  (softmax): Softmax(dim=-1)
)

# 以第一层 swin transformer 的特征为例
class WindowAttention(nn.Module):
    r""" Window based multi-head self attention (W-MSA) module with relative position bias.
    It supports both of shifted and non-shifted window.

    Args:
        dim (int): Number of input channels.
        window_size (tuple[int]): The height and width of the window.
        num_heads (int): Number of attention heads.
        qkv_bias (bool, optional):  If True, add a learnable bias to query, key, value. Default: True
        qk_scale (float | None, optional): Override default qk scale of head_dim ** -0.5 if set
        attn_drop (float, optional): Dropout ratio of attention weight. Default: 0.0
        proj_drop (float, optional): Dropout ratio of output. Default: 0.0
    """

    def __init__(self, dim, window_size, num_heads, qkv_bias=True, qk_scale=None, attn_drop=0., proj_drop=0.):

        super().__init__()
        self.dim = dim
        self.window_size = window_size  # Wh, Ww
        self.num_heads = num_heads
        head_dim = dim // num_heads
        self.scale = qk_scale or head_dim ** -0.5

        # define a parameter table of relative position bias
        self.relative_position_bias_table = nn.Parameter(
            torch.zeros((2 * window_size[0] - 1) * (2 * window_size[1] - 1), num_heads))  # 2*Wh-1 * 2*Ww-1, nH

        # get pair-wise relative position index for each token inside the window
        coords_h = torch.arange(self.window_size[0])
        coords_w = torch.arange(self.window_size[1])
        coords = torch.stack(torch.meshgrid([coords_h, coords_w]))  # 2, Wh, Ww
        coords_flatten = torch.flatten(coords, 1)  # 2, Wh*Ww
        relative_coords = coords_flatten[:, :, None] - coords_flatten[:, None, :]  # 2, Wh*Ww, Wh*Ww
        relative_coords = relative_coords.permute(1, 2, 0).contiguous()  # Wh*Ww, Wh*Ww, 2
        relative_coords[:, :, 0] += self.window_size[0] - 1  # shift to start from 0
        relative_coords[:, :, 1] += self.window_size[1] - 1
        relative_coords[:, :, 0] *= 2 * self.window_size[1] - 1
        relative_position_index = relative_coords.sum(-1)  # Wh*Ww, Wh*Ww
        self.register_buffer("relative_position_index", relative_position_index)

        self.qkv = nn.Linear(dim, dim * 3, bias=qkv_bias)
        self.attn_drop = nn.Dropout(attn_drop)
        self.proj = nn.Linear(dim, dim)
        self.proj_drop = nn.Dropout(proj_drop)

        trunc_normal_(self.relative_position_bias_table, std=.02)
        self.softmax = nn.Softmax(dim=-1)

    def forward(self, x, mask=None):
        """
        Args:
            x: input features with shape of (num_windows*B, N, C)
            mask: (0/-inf) mask with shape of (num_windows, Wh*Ww, Wh*Ww) or None
        """
        B_, N, C = x.shape # [256, 49, 96]
        # self.qkv(x).shape = [256, 49, 288]
        # self.qkv(x).reshape(B_, N, 3, self.num_heads, C // self.num_heads).shape = [256, 49, 3, 3, 32]
        qkv = self.qkv(x).reshape(B_, N, 3, self.num_heads, C // self.num_heads).permute(2, 0, 3, 1, 4) # [3, 256, 3, 49, 32]
        q, k, v = qkv[0], qkv[1], qkv[2]  # make torchscript happy (cannot use tensor as tuple)
        # q.shape=k.shape=v.shape=[256, 3, 49, 32]
        q = q * self.scale
        attn = (q @ k.transpose(-2, -1)) # [256, 3, 49, 49]

        relative_position_bias = self.relative_position_bias_table[self.relative_position_index.view(-1)].view(
            self.window_size[0] * self.window_size[1], self.window_size[0] * self.window_size[1], -1)  # Wh*Ww,Wh*Ww,nH [49, 49, 3]
        relative_position_bias = relative_position_bias.permute(2, 0, 1).contiguous()  # nH, Wh*Ww, Wh*Ww [3, 49, 49]
        attn = attn + relative_position_bias.unsqueeze(0)

        if mask is not None:
            nW = mask.shape[0]
            attn = attn.view(B_ // nW, nW, self.num_heads, N, N) + mask.unsqueeze(1).unsqueeze(0)
            attn = attn.view(-1, self.num_heads, N, N)
            attn = self.softmax(attn)
        else:
            attn = self.softmax(attn)

        attn = self.attn_drop(attn)

        x = (attn @ v).transpose(1, 2).reshape(B_, N, C) # [256, 49, 96]
        x = self.proj(x) # [256, 49, 96]
        x = self.proj_drop(x)
        return x

使用mmsegmentation训练分割网络的时候，要将预训练权重转为mmseg可用的形式，转换方式如下：

python tools/model_converters/swin2mmseg.py \
https://github.com/SwinTransformer/storage/releases/download/v1.0.0/swin_tiny_patch4_window7_224.pth \
pretrain/swin_tiny_patch4_window7_224.pth

呆呆的猫

关注

11
点赞
踩
32

收藏

觉得还不错? 一键收藏
打赏
5
评论
【Transformer】4、Swin Transformer

文章目录一、背景二、动机三、方法四、效果代码：https://github.com/microsoft/Swin-Transformer一、背景Transformer 最开始是在 NLP 中使用较多，因为其 self-attention 组件能够对 Long-range 的信息进行建模，近期有很多人开始将 Transformer 应用到计算机视觉中，作为一个类似于 CNN 的特征提取器。二、动机NLP 到 CV ，主要有两个问题：视觉场景中，目标大小不同视觉场景中，图像的分辨率远远大于句子.
复制链接

扫一扫
