论文

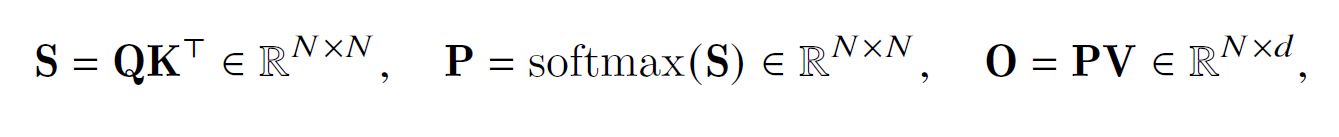

attention计算公式如下
传统实现需要将S和P都存到HBM，需要占用
O
(
N
2
)
O(N^{2})

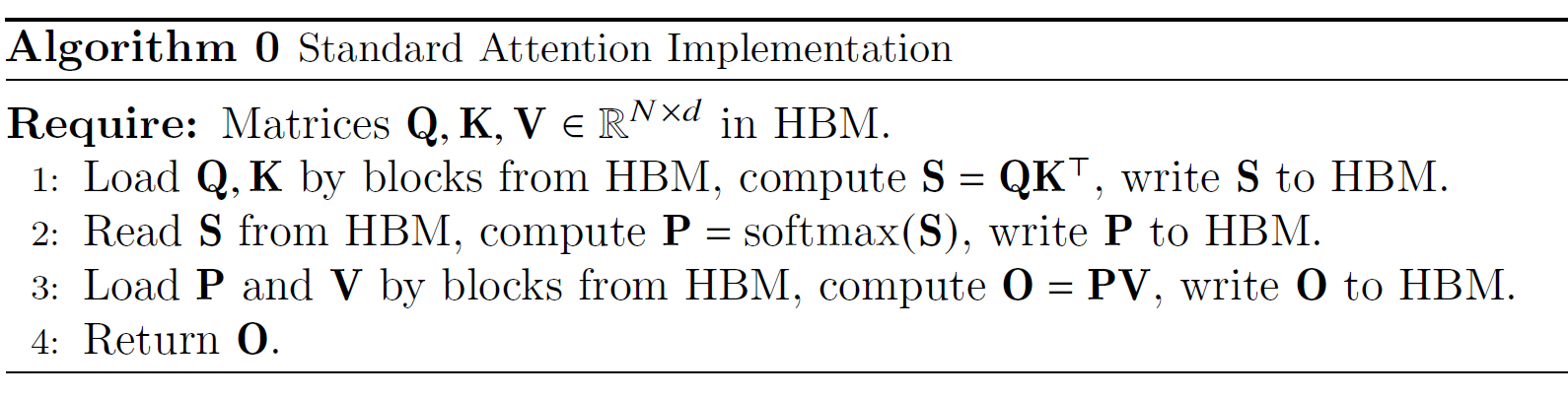

O(N2)内存，计算流程为
因此前向HBM访存为
O
(
N
d
+
N
2
)
O(Nd + N^2)

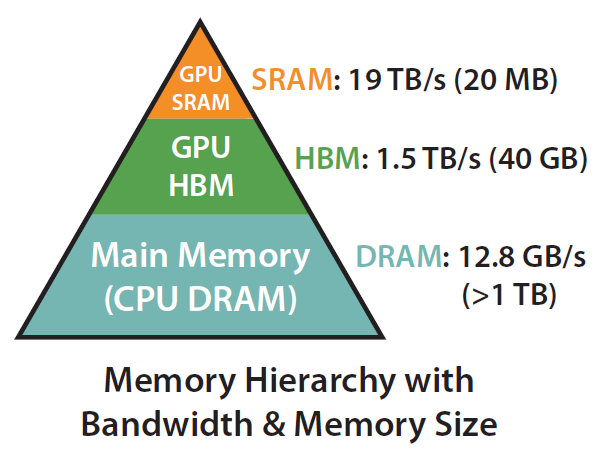

O(Nd+N2)，通常N远大于d，GPT2中N=1024，d=64。HBM带宽较小，因此访存会成为瓶颈。
该论文主要出发点就是考虑到IO的影响，降低内存占用和访问，主要贡献点为：
- 重新设计了计算流程，使用softmax tiling的方法执行block粒度的计算
- 不需要存储矩阵P，只存储归一化因子，再反向的时候可以快速的recompute

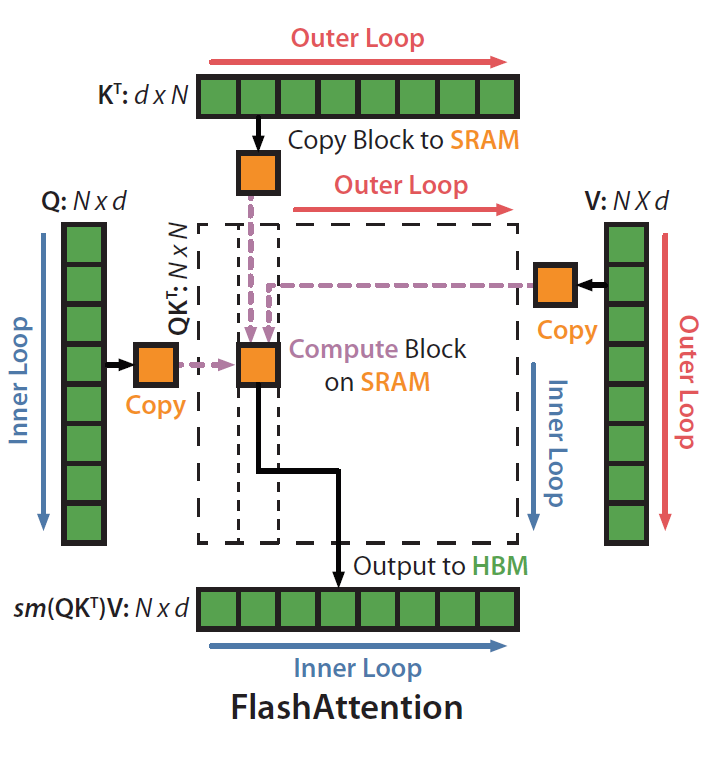

softmax tiling的整体流程如下图，外层第j次循环拿到K矩阵的第j个block k j kj kj，内层第i次循环拿到Q矩阵的第i个block Q i Qi Qi，计算得到S和P，然后再和 V j Vj Vj相乘得到 O i Oi Oi

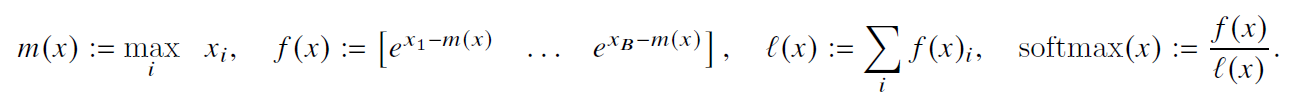

然后看下如何计算出softmax。考虑数值稳定性的softmax的传统计算流程如下，需要减去当前行的最大值
这里的max和sum都需要一行的完整结果。

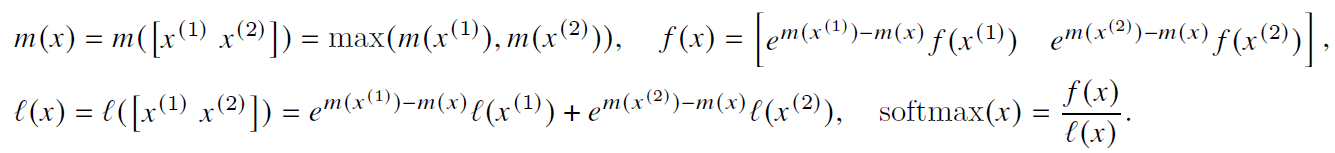

而flash attention的流程基于递推实现block粒度的计算：
单看S的一行，假设
m
(
x
)
m(x)
m(x)为执行到第i个block即
S
(
i
)
S(i)
S(i)的最大值，现在执行第i + 1个block
S
(
i
+
1
)
S(i + 1)
S(i+1)，那么新的
m
(
x
)
=
m
a
x
(
m
(
x
)
,
m
(
S
(
i
+
1
)
)
)
m(x) = max(m(x), m(S(i + 1)))
m(x)=max(m(x),m(S(i+1)))，由于最大值发生了变化，因此之前i个block对应的f(x)要进行修正，之前减去的是
m
(
x
(
1
)
)
m(x^{(1)})
m(x(1))，因此要将他加回来，再减去新的
m
(
x
)
m(x)
m(x)，即
e
m
(
x
(
1
)
−
m
(
x
)
)
f
(
x
(
1
)
)
e^{m({x^{(1)} - m(x))}} f(x^{(1)})

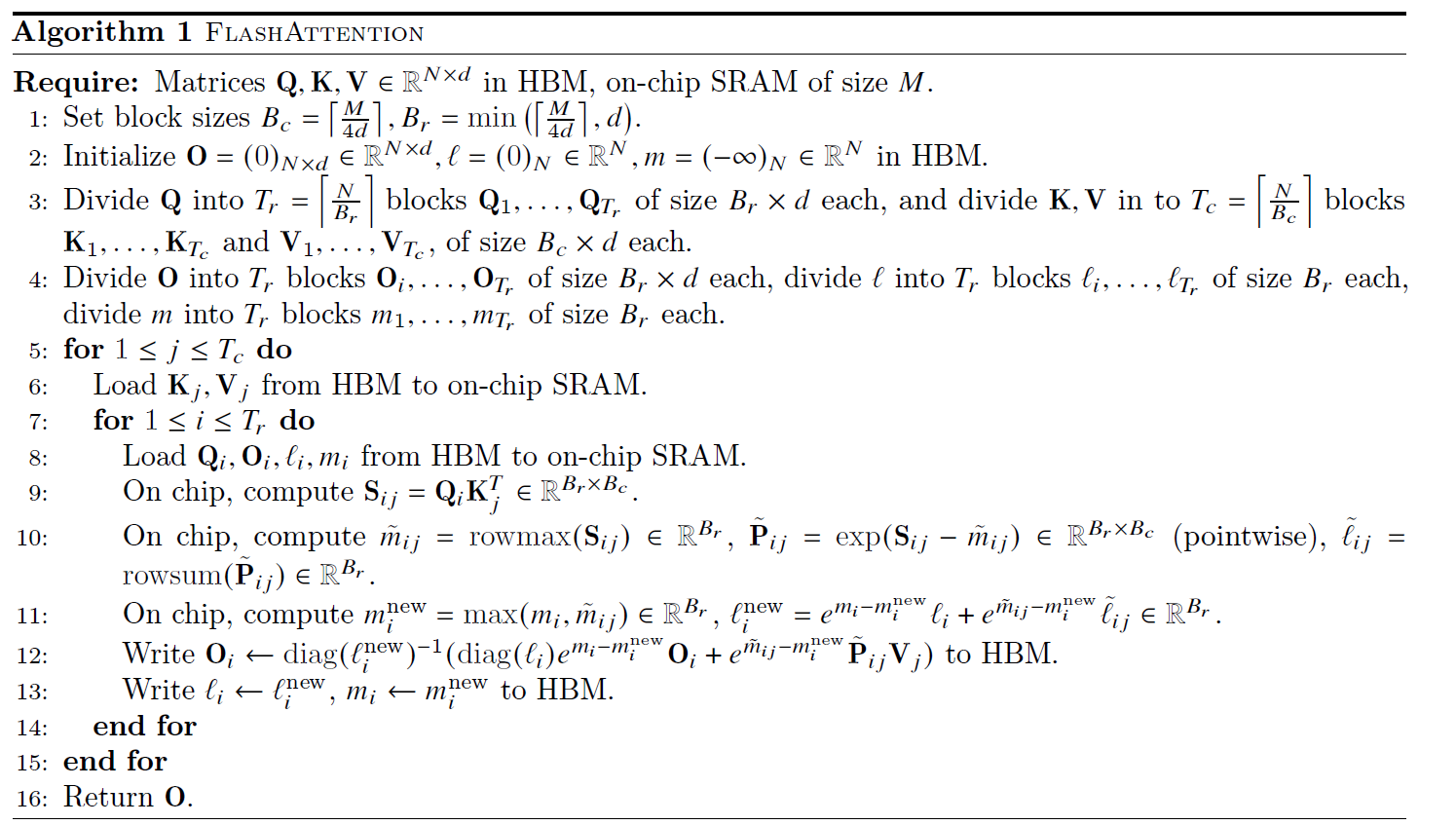

em(x(1)−m(x))f(x(1))，同理对于sum，最后就可以得到softmax，完整流程如下
因此内存占用为O(N)，假设share mem大小为M，那么对于HBM的访存为 O ( N 2 d 2 M − 1 ) O(N^{2}d^{2}M^{-1}) O(N2d2M−1)
A100 Tensor Core

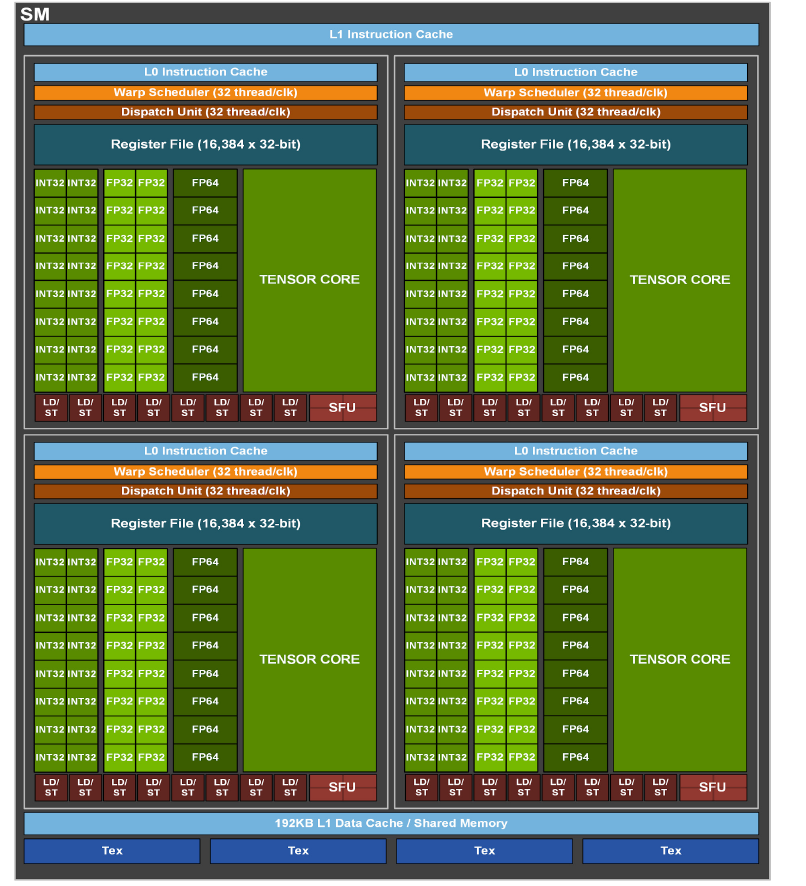

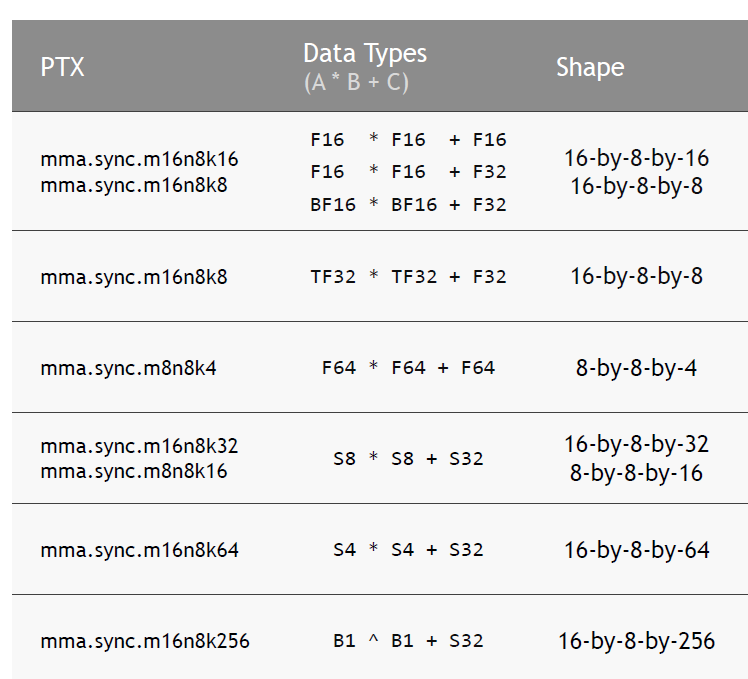

为了加速深度学习里的fc和卷积，nvidia引入了Tensor Core到gpu里，单个sm如下所示
std::vector<at::Tensor>
mha_fwd(const at::Tensor &q, // total_q x num_heads x head_size, total_q := \sum_{i=0}^{b} s_i
const at::Tensor &k, // total_k x num_heads x head_size, total_k := \sum_{i=0}^{b} s_i
const at::Tensor &v, // total_k x num_heads x head_size, total_k := \sum_{i=0}^{b} s_i
at::Tensor &out, // total_q x num_heads x head_size, total_k := \sum_{i=0}^{b} s_i
const at::Tensor &cu_seqlens_q, // b+1
const at::Tensor &cu_seqlens_k, // b+1
const int max_seqlen_q_,
const int max_seqlen_k_,
const float p_dropout,
const float softmax_scale,
const bool zero_tensors,
const bool is_causal,
const bool return_softmax,
const int num_splits,
c10::optional<at::Generator> gen_)
q，k，v的shape均为[total_q, num_heads, head_size]，dtype为FP16或者BF16，total_q就是按照batchsize累加token，cu_seqlens_q为每个batch的token数量的前缀和
不加说明的话假设后续total_q和total_k相等，head_size为32，dtype为FP16
Launch_params<FMHA_fprop_params> launch_params(dprops, stream, is_dropout, return_softmax);
at::Tensor o_tmp;
if (loop) { o_tmp = torch::empty({total_q, num_heads, head_size}, opts.dtype(at::kFloat)); }
auto softmax_lse = torch::empty({batch_size, num_heads, max_seqlen_q}, opts.dtype(at::kFloat));
set_params_fprop(launch_params.params,
batch_size,
max_seqlen_q,
max_seqlen_k,
num_heads,
head_size,
q, k, v, out,
cu_seqlens_q.data_ptr(),
cu_seqlens_k.data_ptr(),
loop ? o_tmp.data_ptr() : nullptr,
return_softmax ? s.data_ptr() : nullptr,
softmax_lse.data_ptr(),
p_dropout,
softmax_scale,
is_causal,
num_splits);
Launch_params里最核心的就是params，即FMHA_fprop_params，保存了kernel的上下文信息，比如Q，K，V的指针，stride，shape等信息，这里通过set_params_fprop保存了context。
void run_fmha_fwd_hdim32(Launch_params<FMHA_fprop_params> &launch_params) {
...
using Kernel_traits = FMHA_kernel_traits<128, 32, 16, 1, 4, 0x08u, elem_type>;
run_fmha_fwd_loop<Kernel_traits>(launch_params);
...
}
FMHA_kernel_traits 为当前规模下的各种类型定义，先看下Q相关的几个，注释写了当前规模下的值，elem_type为__half
// 128 32 16 1 4
template<int S, int D, int STEP, int WARPS_M, int WARPS_N, uint32_t FLAGS = 0x08u, typename elem_type_=__half>
struct FMHA_kernel_traits {
using Cta_tile_p = fmha::Cta_tile_extd<STEP, S, D, WARPS_M, WARPS_N, 1>;
...
using Gmem_tile_q = fmha::Gmem_tile_qkv<Cta_tile_p, fmha::BITS_PER_ELEMENT_A, STEP, D>;
using Smem_tile_q = fmha::Smem_tile_a<Cta_tile_p, fmha::Row, Gmem_tile_q::BYTES_PER_LDG, 2>;
...
}

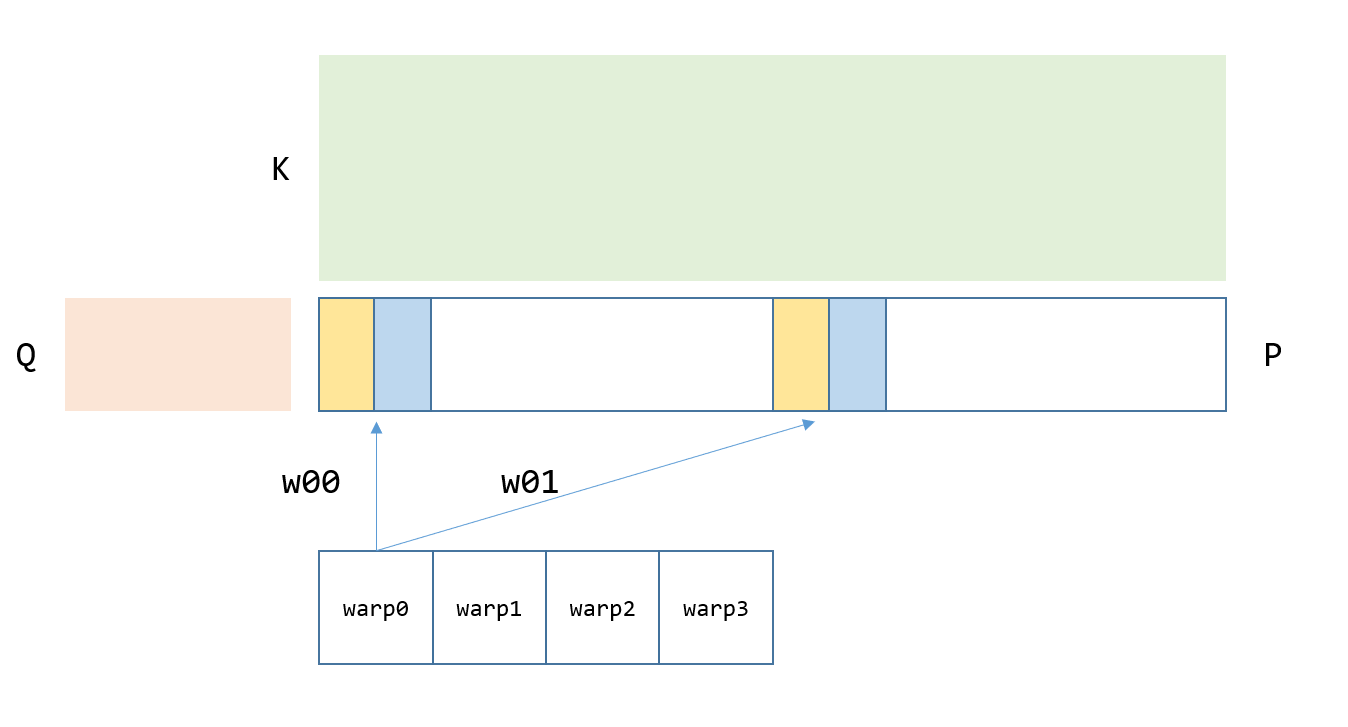

cta_tile表示一个计算矩阵乘的cta线程怎么排布，去处理一个多大的tile，对于第一个矩阵乘Cta_tile_p相关变量见注释
template<
// The number of rows in the CTA tile.
int M_, // STEP ：16
// The number of cols in the CTA tile.
int N_, // S ：128
// The number of elements in the the K dimension of the GEMM loop.
int K_, // D ：32
// The number of rows of warps.
int WARPS_M_, // 4
// The number of cols of warps.
int WARPS_N_, // 1
// The number of warps in the K dimension of the GEMM loop.
int WARPS_K_> // 1
struct Cta_tile_ {
static constexpr int M = M_, N = N_, K = K_;
// The number of warps.
static constexpr int WARPS_M = WARPS_M_, WARPS_N = WARPS_N_, WARPS_K = WARPS_K_;
// The number of warps per CTA.
static constexpr int WARPS_PER_CTA = WARPS_M * WARPS_N * WARPS_K;
// The number of threads per warp.
static constexpr int THREADS_PER_WARP = 32;
// The number of threads per CTA.
static constexpr int THREADS_PER_CTA = WARPS_PER_CTA * THREADS_PER_WARP;
};
然后通过run_fmha_fwd_loop启动kernel，简便起见，假设num_splits为1，所以一共启动了[batch_size, num_head]个cta，每个cta负责一个batch里的一个head
template<typename Kernel_traits>
void run_fmha_fwd_loop(Launch_params<FMHA_fprop_params> &launch_params) {
...
dim3 grid(launch_params.params.b, launch_params.params.h, launch_params.params.num_splits);
kernel<<<grid, Kernel_traits::THREADS, smem_size, launch_params.stream>>>(
launch_params.params);
FMHA_CHECK_CUDA(cudaPeekAtLastError());
...
}
然后看下kernel，这里就是论文中的外层循环，每次计算完成k矩阵的一个block计算，blockIdx.x表示哪个batch，blockIdx.y表示哪个head。
template<typename Kernel_traits, bool Is_dropout, bool Is_causal, bool Return_softmax, typename Params>
inline __device__ void device_1xN_loop(const Params ¶ms) {
// The block index for the batch.
const int bidb = blockIdx.x;
// The block index for the head.
const int bidh = blockIdx.y;
// The thread index.
const int tidx = threadIdx.x;
auto seeds = at::cuda::philox::unpack(params.philox_args);
Philox ph(std::get<0>(seeds), 0, std::get<1>(seeds) + (bidb * params.h + bidh) * 32 + tidx % 32);
constexpr int M = Kernel_traits::Cta_tile_p::M;
const int STEPS = (params.seqlen_q + M - 1) / M;
constexpr int blocksize_c = Kernel_traits::Cta_tile_p::N;
if (params.seqlen_k == blocksize_c) {
fmha::device_1xN_<Kernel_traits, Is_dropout, Is_causal, Return_softmax, true, true>(params, bidb, bidh, STEPS, ph, 0);
} else {
const int max_loop_steps = (params.seqlen_k + blocksize_c - 1) / blocksize_c;
fmha::device_1xN_<Kernel_traits, Is_dropout, Is_causal, Return_softmax, true, false>(params, bidb, bidh, STEPS, ph, 0);
for (int loop_step_idx = 1; loop_step_idx < max_loop_steps - 1; loop_step_idx++) {
fmha::device_1xN_<Kernel_traits, Is_dropout, Is_causal, Return_softmax, false, false>(params, bidb, bidh, STEPS, ph, loop_step_idx);
}
fmha::device_1xN_<Kernel_traits, Is_dropout, Is_causal, Return_softmax, false, true>(params, bidb, bidh, STEPS, ph, max_loop_steps - 1);
}
}
然后是最核心的一次内层循环的流程
template<typename Kernel_traits, bool Is_dropout, bool Is_causal, bool Return_softmax, bool Is_first, bool Is_last, typename Params, typename Prng>
inline __device__ void device_1xN_(const Params ¶ms, const int bidb, const int bidh, int steps, Prng &ph, const int loop_step_idx) {
...
extern __shared__ char smem_[];
const int tidx = threadIdx.x;
...
const BlockInfoPadded<Kernel_traits::THREADS> binfo(params, bidb, bidh, tidx);
// if( binfo.stop_early() ) return;
if( binfo.stop_early(loop_step_idx * Cta_tile_p::N) ) return;
Gemm1 gemm_q_k(smem_, tidx);
...
}
BlockInfoPadded的核心就是sum_s_q和actual_seqlen_q，分别表示前边的batch一共有多少token，和当前batch有多少token
template<int THREADS_PER_CTA>
struct BlockInfoPadded {
template<typename Params>
__device__ BlockInfoPadded(const Params ¶ms,
const int bidb,
const int bidh,
const int tidx)
: bidb(bidb), bidh(bidh), h(params.h) {
// The block index.
sum_s_k = params.cu_seqlens_k[bidb];
actual_seqlen_k = params.cu_seqlens_k[bidb + 1] - sum_s_k;
sum_s_q = params.cu_seqlens_q[bidb];
actual_seqlen_q = params.cu_seqlens_q[bidb + 1] - sum_s_q;
tidx_global = (bidb * params.h + bidh) * THREADS_PER_CTA + tidx;
}
...
};
global mem到寄存器
然后实例化gemm_q_k，负责第一个gemm，后边介绍，即QK，后边介绍。gmem_q负责将Q矩阵从global mem中load到寄存器
inline __device__ void device_1xN_(const Params ¶ms, const int bidb, const int bidh, int steps, Prng &ph, const int loop_step_idx) {
...
Gemm1 gemm_q_k(smem_, tidx);
// Allocate the global memory tile loader for Q.
Gmem_tile_q gmem_q(params.q_ptr, params.q_row_stride_in_elts, params.q_head_stride_in_elts,
params.d, binfo, tidx, true);
...
}
using Gmem_tile_q = fmha::Gmem_tile_qkv<Cta_tile_p, fmha::BITS_PER_ELEMENT_A, STEP, D>;
先看下Gmem_tile_q，这里ROWS和COLS为一次处理的block大小，对于q矩阵来说为16x32，BITS_PER_ELEMENT为q矩阵中每个元素为多少bit，由于为FP16，这里为16，BYTES_PER_LDGS_ 表示一个线程一次load的字节数，这里为16字节，一行需要4个线程去load
template<
// The dimensions of the tile computed by the CTA.
typename Cta_tile_,
// The number of bits per element.
int BITS_PER_ELEMENT,
// The number of rows of Q, K or V loaded by this tile.
int ROWS_,
// The number of columns.
int COLS,
int BYTES_PER_LDGS_ = 16
>
然后看下构造函数，row和col计算出当前线程在这个tile中需要从哪行哪里开始load，通过binfo.sum_s_q + row跳过前边batch的token并定位到当前应该处理的是哪个token，row_stride就是num_heads x head_size，然后再跳过前边的head，再加上col就可以定位到当前起始的位置，即ptr
template< typename BInfo >
inline __device__ Gmem_tile_qkv(void *ptr_, const uint32_t row_stride_in_elts,
const uint32_t head_stride_in_elts, const int headdim,
const BInfo &binfo, const int tidx, bool use_seqlen_q)
: row_stride_in_bytes(row_stride_in_elts * BYTES_PER_ELEMENT)
, actual_seqlen(use_seqlen_q ? binfo.actual_seqlen_q : binfo.actual_seqlen_k)
, ptr(reinterpret_cast<char *>(ptr_))
, tidx_(tidx)
, col_predicate((tidx % THREADS_PER_ROW) * (BYTES_PER_LDG / BYTES_PER_ELEMENT) < headdim) {
// Compute the position in the sequence (within the CTA for the moment).
int row = tidx / THREADS_PER_ROW;
// Compute the position of the thread in the row.
int col = tidx % THREADS_PER_ROW;
uint32_t row_offset = (uint32_t)(((use_seqlen_q ? binfo.sum_s_q : binfo.sum_s_k) + row) * row_stride_in_bytes);
row_offset += (uint32_t)(binfo.bidh * head_stride_in_elts * BYTES_PER_ELEMENT);
// Assemble the final pointer.
ptr += row_offset + col * BYTES_PER_LDG;
}
Gmem_tile_qkv的load就是从global mem加载到寄存器的过程，LDGS表示load当前tile需要几次，对于q矩阵为1，preds表示当前线程是否需要load对应的位置，由于q为16x32，因此只有前64线程会执行load，由于一个线程一次load16字节，所以这里使用uint4去load，结果存在了寄存器fetch_中。
inline __device__ void load() {
int row_ = tidx_ / THREADS_PER_ROW;
const void *ptrs[LDGS];
uint32_t preds[LDGS];
#pragma unroll
for( int ii = 0; ii < LDGS; ++ii ) {
ptrs[ii] = ptr + (uint32_t)ii * ROWS_PER_LDG * row_stride_in_bytes;
preds[ii] = col_predicate && ((row_ + ii * ROWS_PER_LDG) < min(ROWS, actual_seqlen));
fetch_[ii] = make_uint4(0, 0, 0, 0);
}
Ldg_functor<uint4, LDGS> fct(fetch_, ptrs);
#pragma unroll
for( int ii = 0; ii < LDGS; ++ii ) {
fct.load(ii, preds[ii]);
}
}
template< typename Smem_tile >
inline __device__ void commit(Smem_tile &smem_tile) {
smem_tile.store(fetch_);
}
inline __device__ void ldg(uint4 &dst, const void *ptr) {
dst = *reinterpret_cast<const uint4*>(ptr);
}

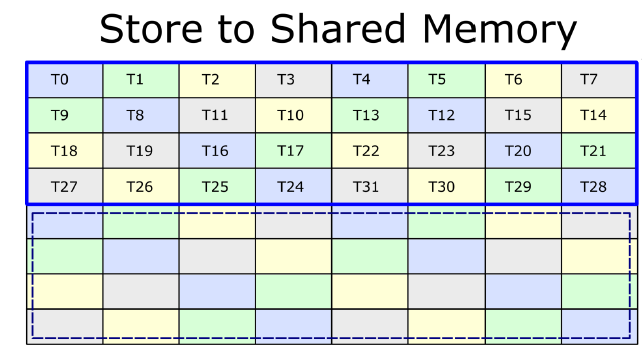

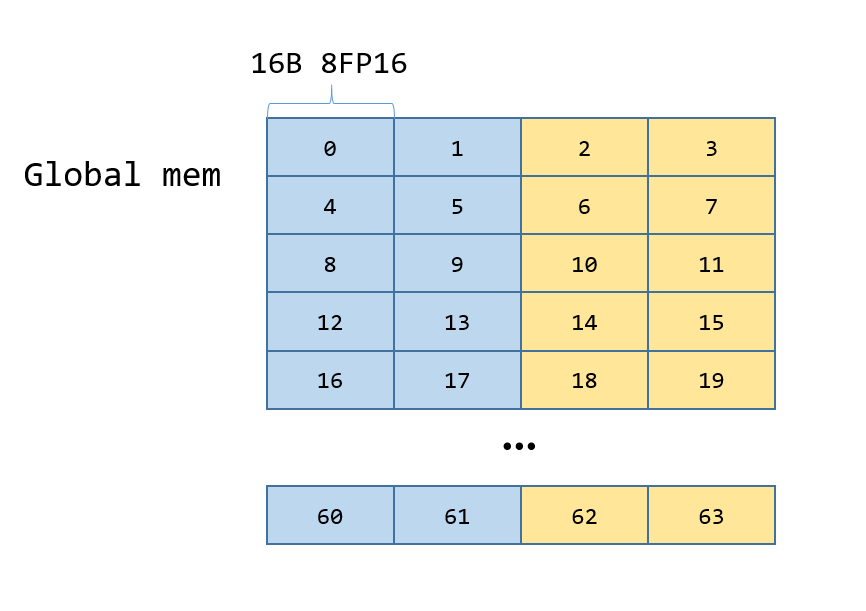

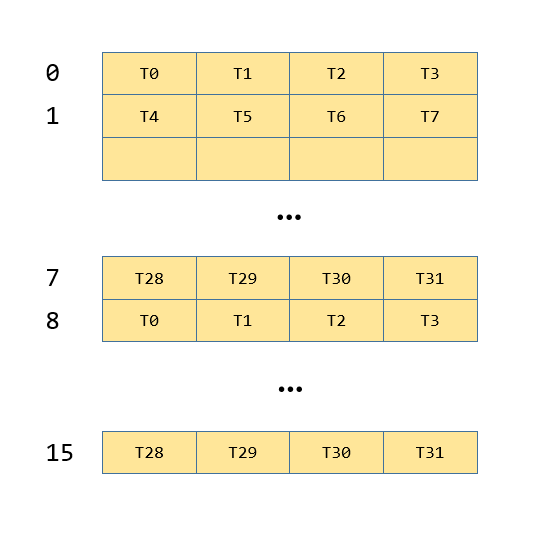

这一过程如下图所示，一个方块表示16B，方块中数字表示线程号，蓝色为第一个16x16矩阵，黄色为第二个16x16矩阵。
inline __device__ void device_1xN_(const Params ¶ms, const int bidb, const int bidh, int steps, Prng &ph, const int loop_step_idx) {
...
gmem_k.load();
// Trigger the loads for Q.
gmem_q.load();
// Trigger the loads for V.
gmem_v.load();
if (!Is_first) { __syncthreads(); }
...
// Commit the data for Q and V to shared memory.
gmem_q.commit(gemm_q_k.smem_q);
gmem_v.commit(smem_v);
}
smem_q的类型为Smem_tile_q，继承关系如下
template<
// The description of the tile computed by this CTA.
typename Cta_tile,
// The number of rows in the 2D shared memory buffer.
int M_,
// The number of cols.
int N_,
// The size in bits of each element.
int BITS_PER_ELEMENT_,
// The number of bytes per STS.
int BYTES_PER_STS_ = 16,
// The number of buffers. (Used in multistage and double buffer cases.)
int BUFFERS_PER_TILE_ = 1,
// Do we enable the fast path for LDS.128 and friends.
int ENABLE_LDS_FAST_PATH_ = 0,

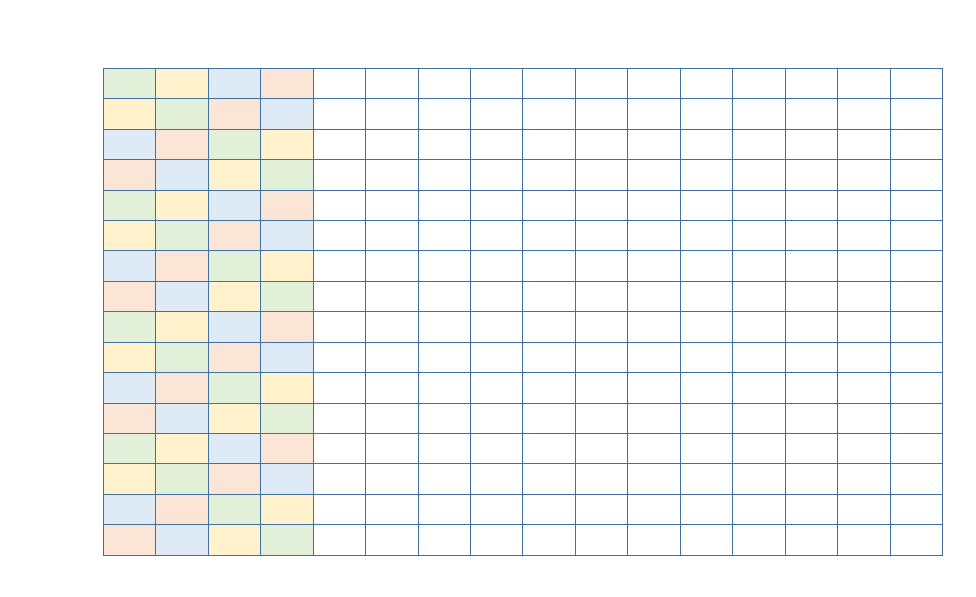

// The number of rows that are used for the XOR swizzling to allow fast STS/LDS.
int ROWS_PER_XOR_PATTERN_ = 8,
// The number of cols that are used for the XOR swizzling to allow fast STS/LDS.
int COLS_PER_XOR_PATTERN_ = 1,
// Use or not predicates
bool USE_PREDICATES_ = true
>
struct Smem_tile_without_skews
template<
// The dimensions of the tile computed by the CTA.
typename Cta_tile,
// The size of the STS.
int BYTES_PER_STS,
// The number of buffers per tile.
int BUFFERS_PER_TILE,

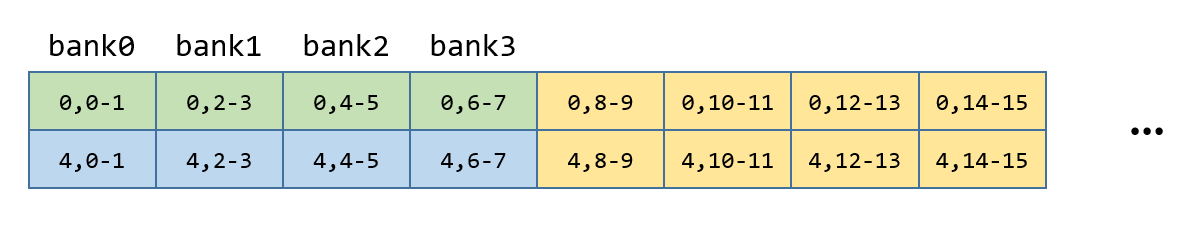

// How many rows to use for the XOR pattern to avoid bank conflicts?
int ROWS_PER_XOR_PATTERN_ = Rows_per_xor_pattern_row_a<Cta_tile::K>::VALUE
>
struct Smem_tile_row_a : public Smem_tile_without_skews<Cta_tile,
Cta_tile::M,
Cta_tile::K,
fmha::BITS_PER_ELEMENT_A,
BYTES_PER_STS,
BUFFERS_PER_TILE,
0,
ROWS_PER_XOR_PATTERN_,
1>
template<
// The dimensions of the tile computed by the CTA.
typename Cta_tile,
// The size of the STS.
int BYTES_PER_STS,
// The number of buffers per tile.
int BUFFERS_PER_TILE
>
struct Smem_tile_a<Cta_tile, Row, BYTES_PER_STS, BUFFERS_PER_TILE>
: public Smem_tile_row_a<Cta_tile,
BYTES_PER_STS,
BUFFERS_PER_TILE> {
// The base class.
using Base = Smem_tile_row_a<Cta_tile, BYTES_PER_STS, BUFFERS_PER_TILE>;
// Ctor.
inline __device__ Smem_tile_a(void *smem, int tidx) : Base(smem, tidx) {
}
};
先看下构造函数，主要就是设置当前线程应该写哪里
inline __device__ Smem_tile_without_skews(void *smem, int tidx)
: smem_(__nvvm_get_smem_pointer(smem)), tidx_(tidx) {
// The row written by a thread. See doc/mma_smem_layout.xlsx.
int smem_write_row = tidx / THREADS_PER_ROW;
// The XOR pattern.
int smem_write_xor = smem_write_row % ROWS_PER_XOR_PATTERN * COLS_PER_XOR_PATTERN;
// Compute the column and apply the XOR pattern.
int smem_write_col = (tidx % THREADS_PER_ROW) ^ smem_write_xor;
// The offset.
this->smem_write_offset_ = smem_write_row*BYTES_PER_ROW + smem_write_col*BYTES_PER_STS;
}
gmem的commit其实执行的就是smem的store，由于q矩阵每个线程只需要store一次，即N为1，因此只是在smem_write_offset_ 处写一次即可。
template< int N >
inline __device__ void compute_store_pointers(uint32_t (&ptrs)[N]) {
#pragma unroll
for( int ii = 0; ii < N; ++ii ) {
// Decompose the STS into row/col.
int row = ii / STS_PER_ROW;
int col = ii % STS_PER_ROW;
// Assemble the offset.
int offset = smem_write_offset_ + row*ROWS_PER_STS*BYTES_PER_ROW;
// Take the column into account.
if( STS_PER_ROW > 1 ) {
offset += col*THREADS_PER_ROW*BYTES_PER_STS;
}
// Apply the XOR pattern if needed.
if( ROWS_PER_STS < ROWS_PER_XOR_PATTERN ) {
const int m = row * ROWS_PER_STS % ROWS_PER_XOR_PATTERN;
offset ^= m * COLS_PER_XOR_PATTERN * BYTES_PER_STS;
}
ptrs[ii] = smem_ + offset;
}
}
template< int N >
inline __device__ void store(const Store_type (&data)[N], uint64_t = 0) {
uint32_t smem_ptrs[N];
this->compute_store_pointers(smem_ptrs);
// Trying to reduce the shared mem for Q from 4KB per buffer to 2KB per buffer.
if (!PARTIAL_STORE || (tidx_ / THREADS_PER_ROW < ROWS)) {
sts(smem_ptrs, data);
}
}
写完之后如下，每个格子为16B，即8个FP16，Ti为线程id，和global mem中对应，这个过程中不会bank冲突
inline __device__ void device_1xN_(const Params ¶ms, const int bidb, const int bidh, int steps, Prng &ph, const int loop_step_idx) {
...
gemm_q_k.load_q();
// Load the fragments for V. We keep the data in registers during the entire kernel.
typename Smem_tile_v::Fragment frag_v[Mma_tile_o::MMAS_K][Mma_tile_o::MMAS_N];
#pragma unroll
for( int ki = 0; ki < Mma_tile_o::MMAS_K; ++ki ) {
smem_v.load(frag_v[ki], ki);
}
// Commit the data for V to shared memory if it has not been done already.
if( Kernel_traits::SHARE_SMEM_FOR_K_AND_V ) {
// Make sure we are done loading the fragments for K.
__syncthreads();
// Commit the data to shared memory for V.
gmem_k.commit(gemm_q_k.smem_k);
// Make sure the data is in shared memory.
__syncthreads();
}
// Load the fragments for K.
gemm_q_k.load_k();
...
}
实就是通过ldmatrix指令将数据从shared mem中load到寄存器中，首先看下Gemm_Q_K的继承关系，成员就是Fragment和两个Smem_tile，Fragment的核心成员就是多个32位寄存器变量。
template<typename Kernel_traits>
struct Gemm_Q_K_base {
using Smem_tile_o = typename Kernel_traits::Smem_tile_o;
using Smem_tile_q = typename Kernel_traits::Smem_tile_q;
using Smem_tile_k = typename Kernel_traits::Smem_tile_k;
using Fragment_q = typename Smem_tile_q::Fragment;
using Fragment_k = typename Smem_tile_k::Fragment;
// The description of the CTA tile for the 1st batched GEMM.
using Cta_tile_p = typename Kernel_traits::Cta_tile_p;
// The MMA tile for the 1st GEMM.
using Mma_tile_p = fmha::Hmma_tile<Cta_tile_p>;
static constexpr int SMEM_BYTES_SOFTMAX = Cta_tile_p::M * Cta_tile_p::WARPS_N * sizeof(float) * 2;
__device__ inline Gemm_Q_K_base(char * smem_ptr_q, char * smem_ptr_k, const int tidx)
: smem_q(smem_ptr_q, tidx)
, smem_k(smem_ptr_k, tidx) {
}
__device__ inline void load_q() {
smem_q.load(frag_q[0], 0);
}
__device__ inline void reload_q() {
smem_q.load(frag_q[0], 0);
}
Fragment_q frag_q[2][Mma_tile_p::MMAS_M];
Smem_tile_q smem_q;
Smem_tile_k smem_k;
};
template<typename Kernel_traits, bool K_in_regs, typename elem_type_=__half>
struct Gemm_Q_K : public Gemm_Q_K_base<Kernel_traits>

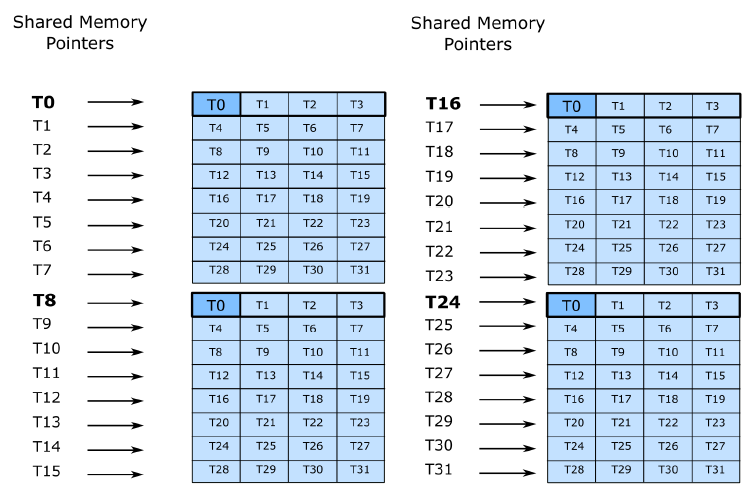

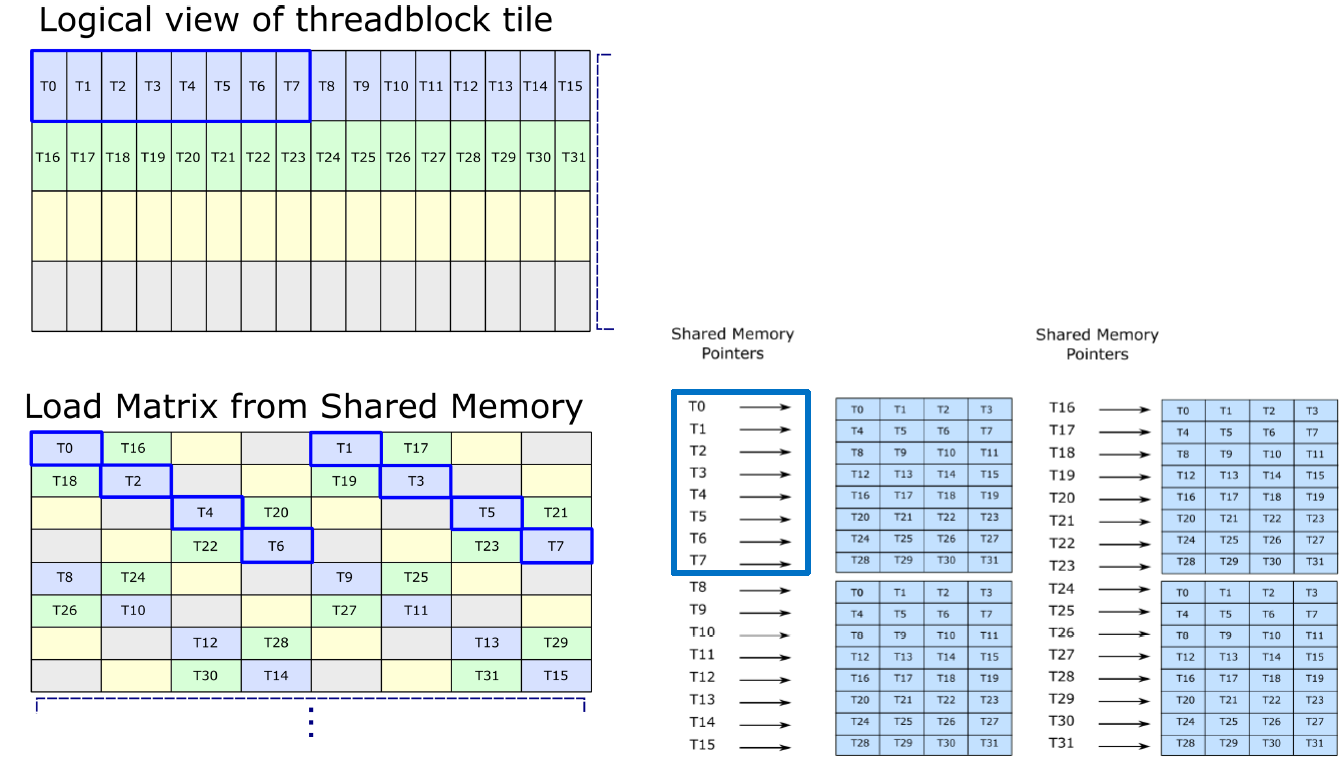

然后看下Smem_tile如何执行load，在构造函数中会计算出每个线程应该读哪行哪列，如图2-7
inline __device__ Smem_tile_row_a(void *smem, int tidx) : Base(smem, tidx) {
const int WARPS_M = Cta_tile::WARPS_M;
const int WARPS_N = Cta_tile::WARPS_N;
const int WARPS_K = Cta_tile::WARPS_K;
static_assert(WARPS_M == 1);
static_assert(WARPS_N == 4 || WARPS_N == 8);
static_assert(WARPS_K == 1);
static_assert(Base::ROWS_PER_XOR_PATTERN == 2 || Base::ROWS_PER_XOR_PATTERN == 4 || Base::ROWS_PER_XOR_PATTERN == 8);
// The row and column read by the thread.
int smem_read_row = (tidx & 0x0f);
constexpr int ROWS_PER_PACKING = Base::BYTES_PER_ROW / Base::BYTES_PER_ROW_BEFORE_PACKING; // 2
int smem_read_col = ((smem_read_row / ROWS_PER_PACKING) % Base::ROWS_PER_XOR_PATTERN) * Base::COLS_PER_XOR_PATTERN;
smem_read_col ^= (tidx & 0x10) / 16;
// The shared memory offset.
this->smem_read_offset_ = smem_read_row*Base::BYTES_PER_ROW_BEFORE_PACKING + smem_read_col*BYTES_PER_LDS;
}

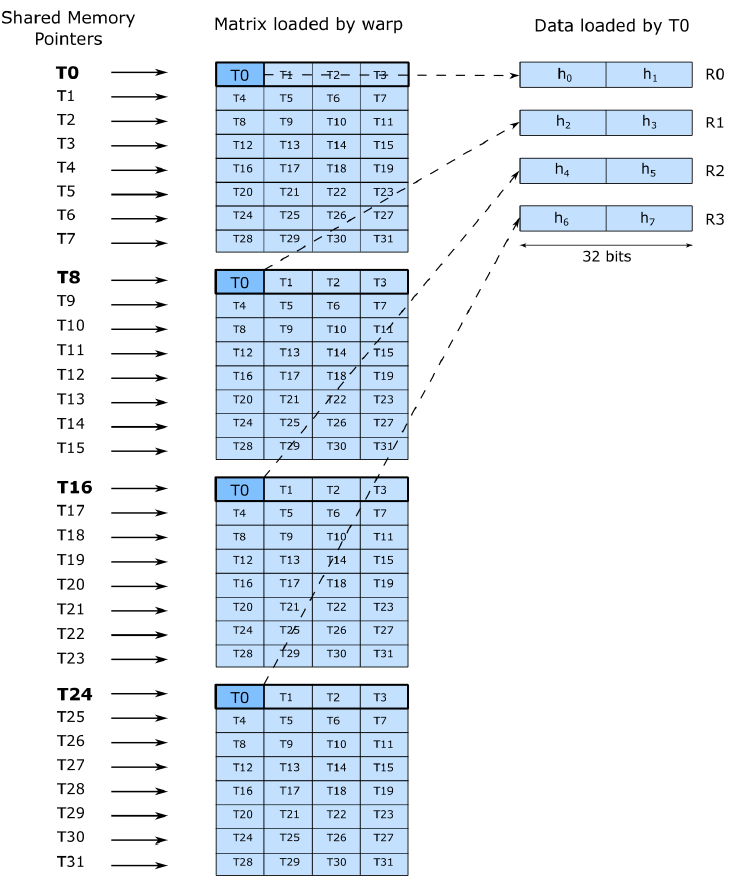

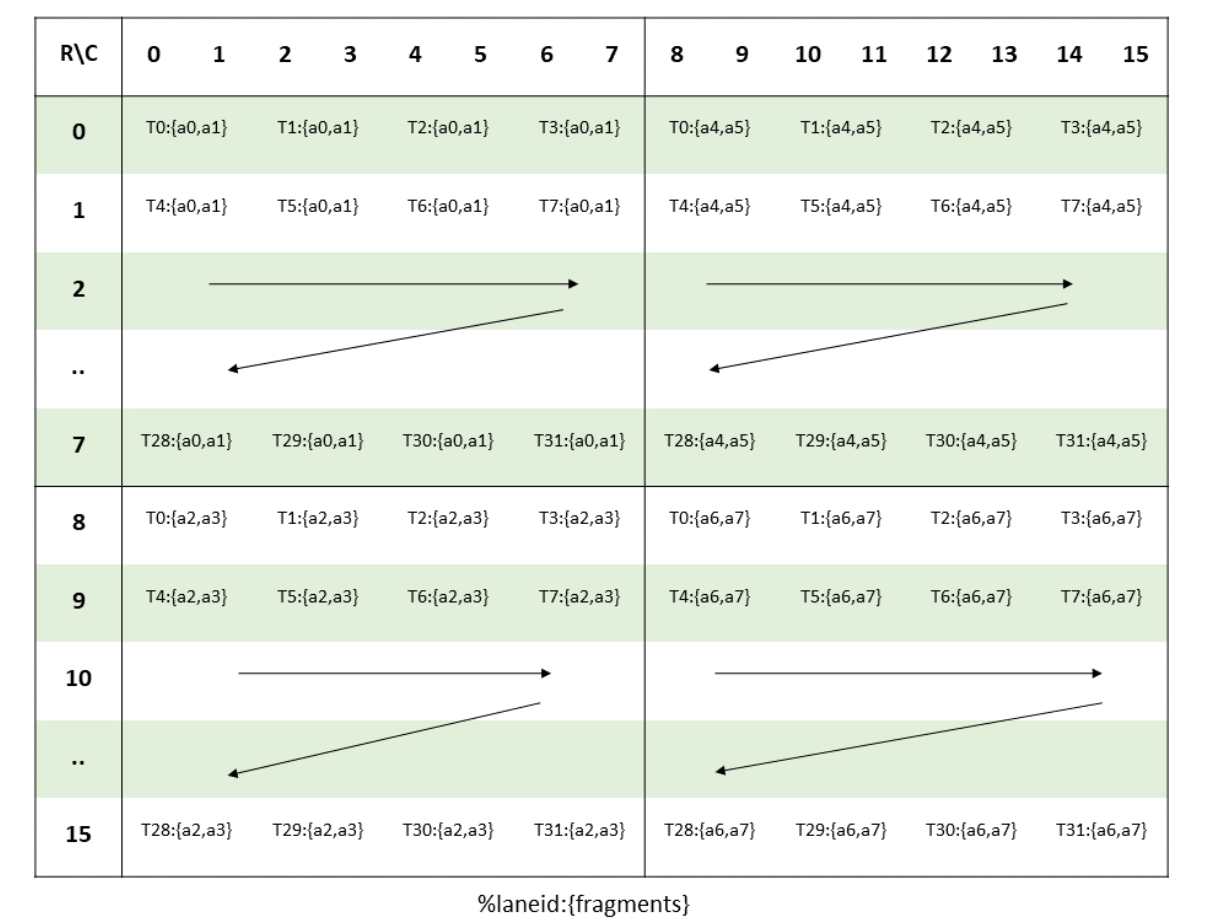

然后执行load，通过ldmatrix将数据从shared mem load到了寄存器，执行结束之后，寄存器变量和原始矩阵关系如图2-5，load结束后会计算smem_read_offset，指向下一个16x16矩阵，即k维度上边的下一个矩阵。
inline __device__ void load(Fragment (&a)[Mma_tile::MMAS_M], int ki) {
#pragma unroll
for( int mi = 0; mi < Mma_tile::MMAS_M; ++mi ) {
// Jump by as many matrix rows as needed (a row in smem may pack multiple matrix rows).
int offset = mi * Mma_tile::M_PER_MMA_PER_CTA * Base::BYTES_PER_ROW_BEFORE_PACKING;
// Load using LDSM.M88.4.
uint4 tmp;
// ldsm(tmp, this->smem_ + this->smem_read_offset_ + this->smem_read_buffer_ + offset);
ldsm(tmp, this->smem_ + this->smem_read_offset_ + offset);
// Store the value into the fragment.
a[mi].reg(0) = tmp.x;
a[mi].reg(1) = tmp.y;
a[mi].reg(2) = tmp.z;
a[mi].reg(3) = tmp.w;
}
// Move the offset to the next possition. See doc/mma_smem_layout.xlsx.
static_assert(Mma_tile_with_padding::MMAS_K < 64, "Not implemented");
if( Mma_tile_with_padding::MMAS_K >= 32 && ki % 16 == 15 ) {
this->smem_read_offset_ ^= 31 * BYTES_PER_LDS * 2;
} else if( Mma_tile_with_padding::MMAS_K >= 16 && ki % 8 == 7 ) {
this->smem_read_offset_ ^= 15 * BYTES_PER_LDS * 2;
} else if( Mma_tile_with_padding::MMAS_K >= 8 && ki % 4 == 3 ) {
this->smem_read_offset_ ^= 7 * BYTES_PER_LDS * 2;
} else if( Mma_tile_with_padding::MMAS_K >= 4 && ki % 2 == 1 ) {
this->smem_read_offset_ ^= 3 * BYTES_PER_LDS * 2;
} else if( Mma_tile_with_padding::MMAS_K >= 2 ) {
this->smem_read_offset_ ^= 1 * BYTES_PER_LDS * 2;
}
}
然后执行矩阵运算，注意这里做了访存和计算的流水线，先load下一个矩阵，再执行当前的计算，结果存到Fragment acc_p的寄存器中。
template<typename Acc, int M, int N>
__device__ inline void operator()(Acc (&acc_p)[M][N]){
// Do this part of P^T = (Q * K^T)^T.
#pragma unroll
for( int ki = 1; ki < Mma_tile_p::MMAS_K; ++ki ) {
// Trigger the load from shared memory for the next series of Q values.
Base::smem_q.load(Base::frag_q[ki & 1], ki);
// Do the math for the values already in registers.
fmha::gemm_cl<elem_type>(acc_p, Base::frag_q[(ki - 1) & 1], frag_k[(ki - 1)]);
}
// Do the final stage of math.
{
int ki = Mma_tile_p::MMAS_K;
fmha::gemm_cl<elem_type>(acc_p, Base::frag_q[(ki - 1) & 1], frag_k[(ki - 1)]);
}
}
这里gemm_cl用了cutlass，我们直接看下原始apex的逻辑，其实就是对每个16x16的tile执行mma函数，mma函数中会执行两次16x8x16的mma.sync
template<typename Acc, typename A, typename B, int M, int N>
inline __device__ void gemm(Acc (&acc)[M][N], const A (&a)[M], const B (&b)[N]) {
#pragma unroll
for( int mi = 0; mi < M; ++mi ) {
#pragma unroll
for( int ni = 0; ni < N; ++ni ) {
acc[mi][ni].mma(a[mi], b[ni]);
}
}
}
template< typename Layout_a, typename Layout_b >
inline __device__ void mma(const Fragment_a<Layout_a> &a,
const Fragment_b<Layout_b> &b) {
asm volatile( \
"mma.sync.aligned.m16n8k16.row.col.f32.f16.f16.f32 \n" \
" {%0, %1, %2, %3}, \n" \
" {%4, %5, %6, %7}, \n" \
" {%8, %9}, \n" \
" {%0, %1, %2, %3}; \n" \
: "+f"( elt(0)), "+f"( elt(1)), "+f"( elt(2)), "+f"( elt(3))
: "r"(a.reg(0)), "r"(a.reg(1)), "r"(a.reg(2)), "r"(a.reg(3))
, "r"(b.reg(0)), "r"(b.reg(1)));
asm volatile( \
"mma.sync.aligned.m16n8k16.row.col.f32.f16.f16.f32 \n" \
" {%0, %1, %2, %3}, \n" \
" {%4, %5, %6, %7}, \n" \
" {%8, %9}, \n" \
" {%0, %1, %2, %3}; \n" \
: "+f"( elt(4)), "+f"( elt(5)), "+f"( elt(6)), "+f"( elt(7))
: "r"(a.reg(0)), "r"(a.reg(1)), "r"(a.reg(2)), "r"(a.reg(3))
, "r"(b.reg(2)), "r"(b.reg(3)));
}

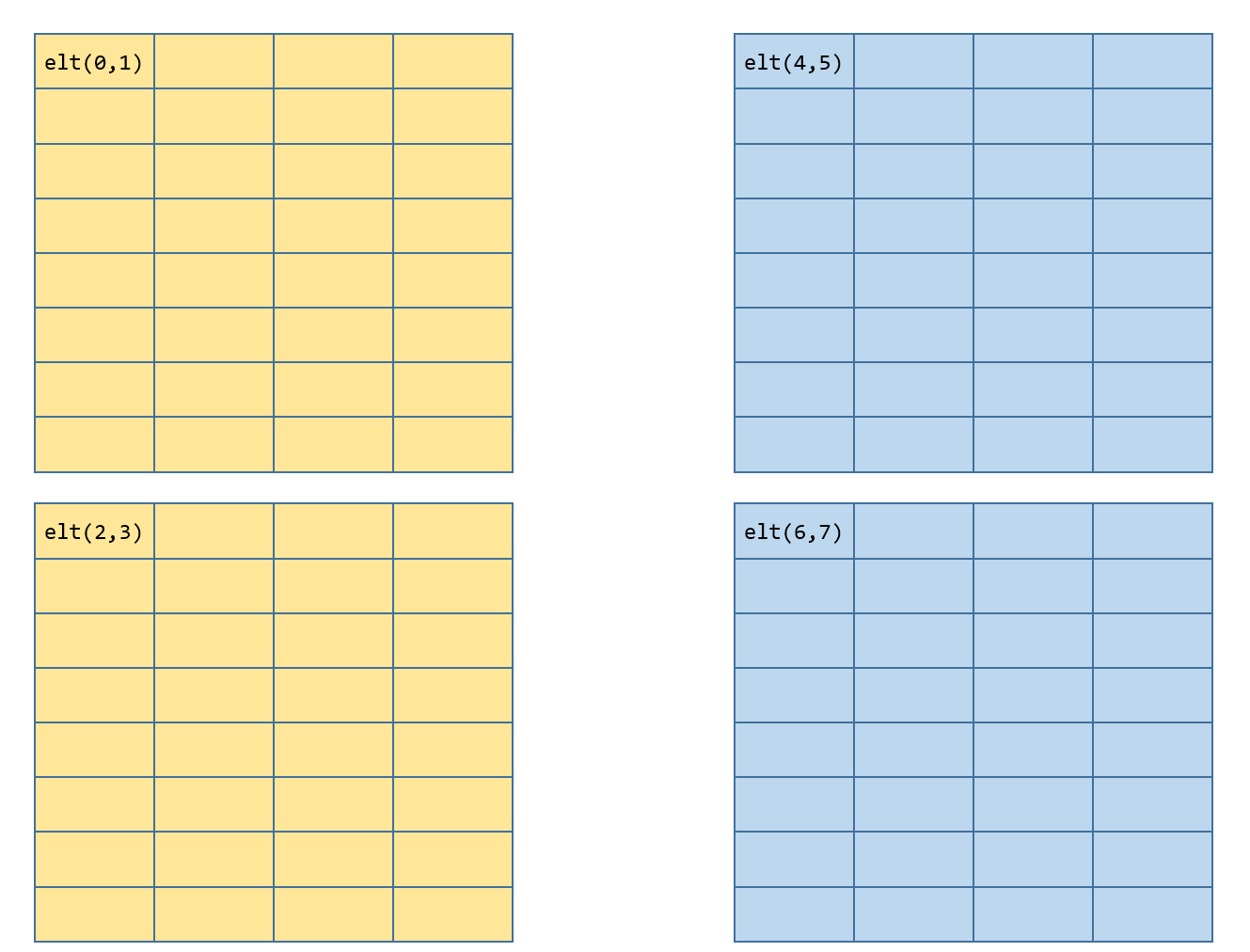

对于第一个线程的第一个acc_p的第一个Fragment，寄存器和结果矩阵对应关系如下，黄色为第一个16x8，蓝色为第二个16x8
template<typename Cta_tile, typename Kernel_traits>
struct Softmax_base {
...
float elt_[MMAS_M * 2][MMAS_N * 4];
};
template<typename Cta_tile, typename Kernel_traits>
struct Softmax : public Softmax_base<Cta_tile, Kernel_traits> {
Smem_tile_red smem_max_;
Smem_tile_red smem_sum_;
};
然后继续看下内循环
template<typename Kernel_traits, bool Is_dropout, bool Is_causal, bool Return_softmax, typename Params>
inline __device__ void device_1xN_loop(const Params ¶ms) {
...
softmax.unpack_noscale(acc_p);
float p_max[Mma_tile_p::MMAS_M * 2];
softmax.template reduce_max</*zero_init=*/Is_first>(p_max);
...
}
首先通过unpack_noscale将数据从acc_p中存到Softmax的elt_。
inline __device__ void unpack_noscale(const Accumulator (&acc)[MMAS_M][MMAS_N]) {
#pragma unroll
for( int mi = 0; mi < MMAS_M; ++mi ) {
#pragma unroll
for( int ni = 0; ni < MMAS_N; ++ni ) {
// 1st row - 4 elements per row.
this->elt_[2 * mi + 0][4 * ni + 0] = acc[mi][ni].elt(0);
this->elt_[2 * mi + 0][4 * ni + 1] = acc[mi][ni].elt(1);
this->elt_[2 * mi + 0][4 * ni + 2] = acc[mi][ni].elt(4);
this->elt_[2 * mi + 0][4 * ni + 3] = acc[mi][ni].elt(5);
// 2nd row - 4 elements per row.
this->elt_[2 * mi + 1][4 * ni + 0] = acc[mi][ni].elt(2);
this->elt_[2 * mi + 1][4 * ni + 1] = acc[mi][ni].elt(3);
this->elt_[2 * mi + 1][4 * ni + 2] = acc[mi][ni].elt(6);
this->elt_[2 * mi + 1][4 * ni + 3] = acc[mi][ni].elt(7);
}
}
}

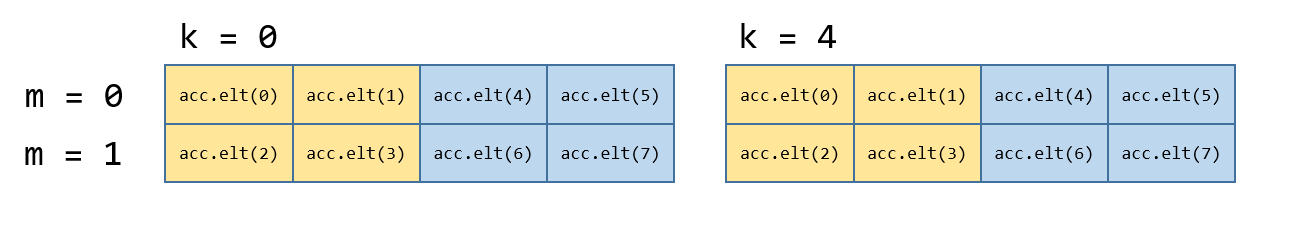

w00 unpack之后的数据在softmax中分布如图3-4左侧k = 0,1,2,3，w01 unpack之后如图3-4右侧k = 4,5,6,7
template<bool zero_init=true, typename Operator>
__device__ inline void reduce_(float (&frag)[2 * MMAS_M], Operator &op, Smem_tile_red & smem_red) {
thread_reduce_<zero_init>(frag, op);
quad_reduce(frag, frag, op);
smem_red.store(frag);
__syncthreads();
typename Smem_tile_red::read_t tmp[2 * MMAS_M];
smem_red.load(tmp);
quad_allreduce(frag, tmp, op);
}
第一步为执行thread_reduce，就是将单个线程内同一行的做一次reduce，对于图3-4，m=0,2的8个float会执行一次reduce得到个最大值存到p_max[0]，m=2,3的8个float会执行一次reduce得到个最大值存到p_max[1]
template<bool zero_init=true, typename Operator>
__device__ inline void thread_reduce_(float (&frag)[2 * MMAS_M], Operator &op) {
#pragma unroll
for( int mi = 0; mi < 2 * MMAS_M; mi++ ) {
frag[mi] = zero_init ? this->elt_[mi][0] : op(frag[mi], this->elt_[mi][0]);
#pragma unroll
for( int ni = 1; ni < 4 * MMAS_N; ni++ ) {
frag[mi] = op(frag[mi], this->elt_[mi][ni]);
}
}
}
第二步执行warp内同一行的reduce，T0-3一行，T4-7一行，因此要执行quad之间的reduce，这里使用warp shuffle来做的，经过第一次shuffle之后T0 = max(T0, T2)，T1 = max(T1, T3)，经过第二次shuffle之后T0就拿到了当前warp当前行(即第0行)的最大值
template<typename Operator, int M>
__device__ inline void quad_reduce(float (&dst)[M], float (&src)[M], Operator &op) {
#pragma unroll
for(int mi=0; mi < M; mi++){
dst[mi] = src[mi];
dst[mi] = op(dst[mi], __shfl_down_sync(uint32_t(-1), dst[mi], 2));
dst[mi] = op(dst[mi], __shfl_down_sync(uint32_t(-1), dst[mi], 1));
}
}

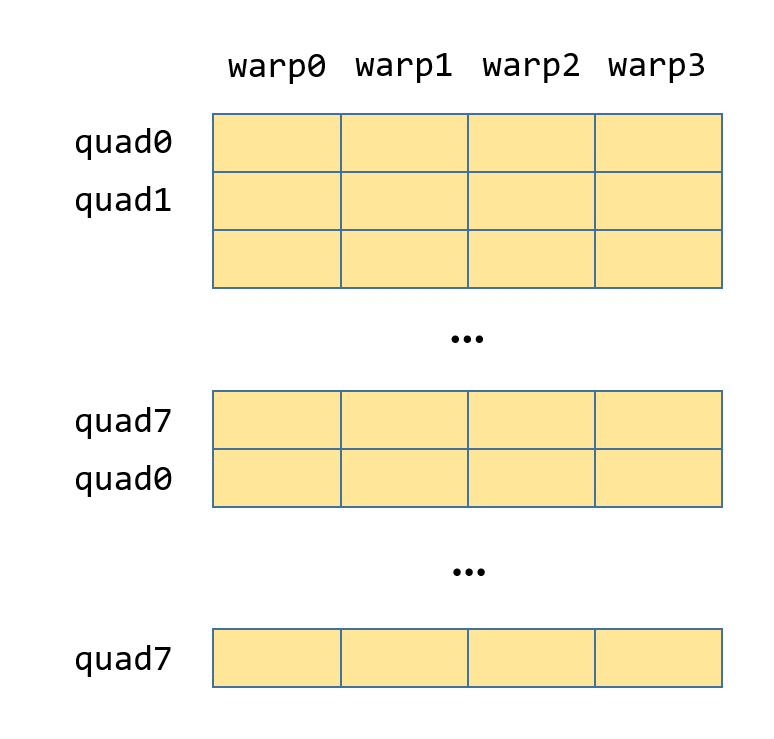

第三步会将warp内的每行的最大值写入到shared mem，只有每个quad的第0个线程会写，写完之后如图3-5
template<typename Operator, int M>
__device__ inline void quad_allreduce(float (&dst)[M], float (&src)[M], Operator &op) {
#pragma unroll
for(int mi=0; mi < M; mi++){
dst[mi] = src[mi];
dst[mi] = Allreduce<4>::run(dst[mi], op);
}
}
template<int THREADS>
struct Allreduce {
static_assert(THREADS == 32 || THREADS == 16 || THREADS == 8 || THREADS == 4);
template<typename T, typename Operator>
static __device__ inline T run(T x, Operator &op) {
constexpr int OFFSET = THREADS / 2;
x = op(x, __shfl_xor_sync(uint32_t(-1), x, OFFSET));
return Allreduce<OFFSET>::run(x, op);
}
};
template<>
struct Allreduce<2> {
template<typename T, typename Operator>
static __device__ inline T run(T x, Operator &op) {
x = op(x, __shfl_xor_sync(uint32_t(-1), x, 1));
return x;
}
到这里，最大值就计算出来存到p_max中了。
然后根据max计算exp
softmax.scale_apply_exp(p_max, params.scale_bmm1f);
然后计算sum，这里sum整体流程和求max完全一致，不过只执行到第三步，即将quad reduce的结果写回到shared mem，原因后续会提到
float p_sum[Mma_tile_p::MMAS_M * 2];
softmax.reduce_sum_before_sync_(p_sum);
然后将softmax的结果，并将softmax的FP32转为FP16存到frag_p中
using Frag_p = fmha::Fragment_a<fmha::Row>;
Frag_p frag_p[Mma_tile_o::MMAS_K][Mma_tile_o::MMAS_M];
softmax.template pack<elem_type>(frag_p);
P乘V

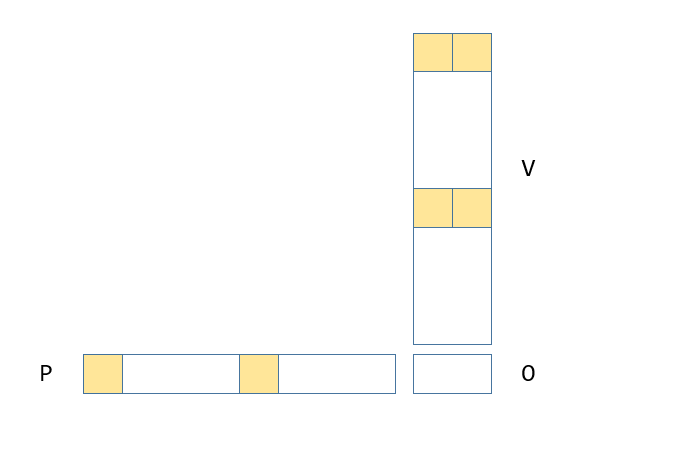

然后开始算PxV，P的shape为[16, 128]，V的shape为[128, 32]，对于QxK的warp是在M维度分块，PxV的分块在K维度，具体分块逻辑如图3-7，黄色部分为warp0负责计算。
for (int jj = 0; jj < Gmem_tile_o::STGS_PER_LOOP; jj++) {
float sum = p_sum_o[jj][0];
p_sum_log[jj][0] = (sum == 0.f || sum != sum) ? -INFINITY : p_max_o[jj][0] + __logf(sum);
if (tidx % Gmem_tile_o::THREADS_PER_ROW == 0) {
gmem_softmax_lse.store_row(
reinterpret_cast<uint32_t(&)[Mma_tile_p::MMAS_M]>(p_sum_log[jj]), rows[jj]);
}
}
之后的外循环会先计算max，不过new_max = max(prev_lse, cur_max)，这里是为了实现方便，只保存lse，而不需要保存max，效果上是等价的，new_max一定大于max。
float p_max[Mma_tile_p::MMAS_M * 2];
if (!Is_first) {
smem_softmax_lse.store_pair(p_prev_lse);
for (int mi = 0; mi < Mma_tile_p::MMAS_M * 2; mi++) { p_max[mi] = p_prev_lse[mi] / params.scale_bmm1f; }
}
softmax.template reduce_max</*zero_init=*/Is_first>(p_max);
然后计算p_prev_scale_o，即 ( e m i − m i n e w ) l i (e^{m_i - m^{new}_i}) l_i (emi−minew)li，和p_sum_o，即 l i n e w l^{new}_i linew，由于p_sum_o计算过程中使用的是new_max，所以不需要对p_sum_o进行修正。
for (int jj = 0; jj < Gmem_tile_o::STGS_PER_LOOP; jj++) {
p_prev_scale_o[jj] = expf(p_prev_scale_o[jj] - p_max_o[jj][0]);
p_sum_o[jj][0] += p_prev_scale_o[jj];
}
然后计算
uint4 out[Gmem_tile_o::STGS_PER_LOOP];
if (!Is_first) { gmem_o_tmp.load(out, 0); }
...
if (!Is_first) {
for (int jj = 0; jj < Gmem_tile_o::STGS_PER_LOOP; jj++) {
out[jj] = fmha::fmul4(out[jj], p_prev_scale_o[jj]);
}
}
学习过程中和lw911014讨论了很多，非常感谢
391
被折叠的 条评论
为什么被折叠?
到【灌水乐园】发言
