最简单的基于FFmpeg的AVfilter的例子-纯净版

=====================================================

最简单的基于FFmpeg的AVfilter例子系列文章:

最简单的基于FFmpeg的AVfilter例子(水印叠加)

最简单的基于FFmpeg的AVfilter的例子-纯净版

=====================================================


有关FFmpeg的avfilter已经写过一个水印叠加的例子《最简单的基于FFmpeg的AVfilter例子(水印叠加)》,本文作为补充再记录一个纯净版的avfilter的例子。此前libavfilter一直是结合着libavcodec等类库的接口函数使用的,因此我一直以为libavfilter库与libavcodec等类库是高度耦合的(也就是如果想使用libavfilter的视音频特效功能的话必须使用libavcodec等类库的函数)。这两天空闲的时候研究了一下libavfilter的代码后发现实际情况不是这样的:libavfilter可以独立于libavcodec等类库的接口函数作为一个“纯粹”的视音频特效类库进行使用。本文记录的“纯净版”的avfilter的例子即实现了一个纯粹的视频特效添加的功能。该例子输入为一个YUV文件,输出也是一个YUV文件,通过avfilter的功能可以处理该YUV文件实现去色调、模糊、水平翻转、裁剪、加方框、叠加文字等功能。


流程图

该程序的流程图如下所示。AVFilter的初始化比较复杂,而使用起来比较简单。初始化的时候需要调用avfilter_register_all()到avfilter_graph_config()一系列函数。而使用的时候只有两个函数:av_buffersrc_add_frame()用于向FilterGraph中加入一个AVFrame,而av_buffersink_get_frame()用于从FilterGraph中取出一个AVFrame。


流程中的关键函数如下所示:
avfilter_register_all():注册所有AVFilter。
avfilter_graph_alloc():为FilterGraph分配内存。
avfilter_graph_create_filter():创建并向FilterGraph中添加一个Filter。
avfilter_graph_parse_ptr():将一串通过字符串描述的Graph添加到FilterGraph中。
avfilter_graph_config():检查FilterGraph的配置。
av_buffersrc_add_frame():向FilterGraph中加入一个AVFrame。

av_buffersink_get_frame():从FilterGraph中取出一个AVFrame。


代码

/**
 * 最简单的基于FFmpeg的AVFilter例子 - 纯净版
 * Simplest FFmpeg AVfilter Example - Pure
 *
 * 雷霄骅 Lei Xiaohua
 * leixiaohua1020@126.com
 * 中国传媒大学/数字电视技术
 * Communication University of China / Digital TV Technology
 * http://blog.csdn.net/leixiaohua1020
 *
 * 本程序使用FFmpeg的AVfilter实现了YUV像素数据的滤镜处理功能。
 * 可以给YUV数据添加各种特效功能。
 * 是最简单的FFmpeg的AVFilter方面的教程。
 * 适合FFmpeg的初学者。
 *
 * This software uses FFmpeg's AVFilter to process YUV raw data.
 * It can add many excellent effect to YUV data.
 * It's the simplest example based on FFmpeg's AVFilter.
 * Suitable for beginner of FFmpeg
 *
 */
#include <stdio.h>

#define __STDC_CONSTANT_MACROS

#ifdef _WIN32
#define snprintf _snprintf
//Windows
extern "C"
{
#include "libavfilter/avfiltergraph.h"
#include "libavfilter/buffersink.h"
#include "libavfilter/buffersrc.h"
#include "libavutil/avutil.h"
#include "libavutil/imgutils.h"
};
#else
//Linux...
#ifdef __cplusplus
extern "C"
{
#endif
#include <libavfilter/avfiltergraph.h>
#include <libavfilter/buffersink.h>
#include <libavfilter/buffersrc.h>
#include <libavutil/avutil.h>
#include <libavutil/imgutils.h>
#ifdef __cplusplus
};
#endif
#endif




int main(int argc, char* argv[])
{
    int ret;
    AVFrame *frame_in;
	AVFrame *frame_out;
	unsigned char *frame_buffer_in;
	unsigned char *frame_buffer_out;

	AVFilterContext *buffersink_ctx;
	AVFilterContext *buffersrc_ctx;
	AVFilterGraph *filter_graph;
	static int video_stream_index = -1;

	//Input YUV
	FILE *fp_in=fopen("sintel_480x272_yuv420p.yuv","rb+");
	if(fp_in==NULL){
		printf("Error open input file.\n");
		return -1;
	}
	int in_width=480;
	int in_height=272;

	//Output YUV
	FILE *fp_out=fopen("output.yuv","wb+");
	if(fp_out==NULL){
		printf("Error open output file.\n");
		return -1;
	}

	//const char *filter_descr = "lutyuv='u=128:v=128'";
	const char *filter_descr = "boxblur";
	//const char *filter_descr = "hflip";
	//const char *filter_descr = "hue='h=60:s=-3'";
	//const char *filter_descr = "crop=2/3*in_w:2/3*in_h";
	//const char *filter_descr = "drawbox=x=100:y=100:w=100:h=100:color=pink@0.5";
	//const char *filter_descr = "drawtext=fontfile=arial.ttf:fontcolor=green:fontsize=30:text='Lei Xiaohua'";

	avfilter_register_all();

	char args[512];
	AVFilter *buffersrc  = avfilter_get_by_name("buffer");
	AVFilter *buffersink = avfilter_get_by_name("ffbuffersink");
	AVFilterInOut *outputs = avfilter_inout_alloc();
	AVFilterInOut *inputs  = avfilter_inout_alloc();
	enum PixelFormat pix_fmts[] = { AV_PIX_FMT_YUV420P, PIX_FMT_NONE };
	AVBufferSinkParams *buffersink_params;

	filter_graph = avfilter_graph_alloc();

	/* buffer video source: the decoded frames from the decoder will be inserted here. */
	snprintf(args, sizeof(args),
		"video_size=%dx%d:pix_fmt=%d:time_base=%d/%d:pixel_aspect=%d/%d",
		in_width,in_height,AV_PIX_FMT_YUV420P,
		1, 25,1,1);

	ret = avfilter_graph_create_filter(&buffersrc_ctx, buffersrc, "in",
		args, NULL, filter_graph);
	if (ret < 0) {
		printf("Cannot create buffer source\n");
		return ret;
	}

	/* buffer video sink: to terminate the filter chain. */
	buffersink_params = av_buffersink_params_alloc();
	buffersink_params->pixel_fmts = pix_fmts;
	ret = avfilter_graph_create_filter(&buffersink_ctx, buffersink, "out",
		NULL, buffersink_params, filter_graph);
	av_free(buffersink_params);
	if (ret < 0) {
		printf("Cannot create buffer sink\n");
		return ret;
	}

	/* Endpoints for the filter graph. */
	outputs->name       = av_strdup("in");
	outputs->filter_ctx = buffersrc_ctx;
	outputs->pad_idx    = 0;
	outputs->next       = NULL;

	inputs->name       = av_strdup("out");
	inputs->filter_ctx = buffersink_ctx;
	inputs->pad_idx    = 0;
	inputs->next       = NULL;

	if ((ret = avfilter_graph_parse_ptr(filter_graph, filter_descr,
		&inputs, &outputs, NULL)) < 0)
		return ret;

	if ((ret = avfilter_graph_config(filter_graph, NULL)) < 0)
		return ret;

	frame_in=av_frame_alloc();
	frame_buffer_in=(unsigned char *)av_malloc(av_image_get_buffer_size(AV_PIX_FMT_YUV420P, in_width,in_height,1));
	av_image_fill_arrays(frame_in->data, frame_in->linesize,frame_buffer_in,
		AV_PIX_FMT_YUV420P,in_width, in_height,1);

	frame_out=av_frame_alloc();
	frame_buffer_out=(unsigned char *)av_malloc(av_image_get_buffer_size(AV_PIX_FMT_YUV420P, in_width,in_height,1));
	av_image_fill_arrays(frame_out->data, frame_out->linesize,frame_buffer_out,
		AV_PIX_FMT_YUV420P,in_width, in_height,1);

	frame_in->width=in_width;
	frame_in->height=in_height;
	frame_in->format=AV_PIX_FMT_YUV420P;

    while (1) {

		if(fread(frame_buffer_in, 1, in_width*in_height*3/2, fp_in)!= in_width*in_height*3/2){
			break;
		}
		//input Y,U,V
		frame_in->data[0]=frame_buffer_in;
		frame_in->data[1]=frame_buffer_in+in_width*in_height;
		frame_in->data[2]=frame_buffer_in+in_width*in_height*5/4;

        if (av_buffersrc_add_frame(buffersrc_ctx, frame_in) < 0) {
            printf( "Error while add frame.\n");
            break;
        }

        /* pull filtered pictures from the filtergraph */
		ret = av_buffersink_get_frame(buffersink_ctx, frame_out);
        if (ret < 0)
            break;

		//output Y,U,V
		if(frame_out->format==AV_PIX_FMT_YUV420P){
			for(int i=0;i<frame_out->height;i++){
				fwrite(frame_out->data[0]+frame_out->linesize[0]*i,1,frame_out->width,fp_out);
			}
			for(int i=0;i<frame_out->height/2;i++){
				fwrite(frame_out->data[1]+frame_out->linesize[1]*i,1,frame_out->width/2,fp_out);
			}
			for(int i=0;i<frame_out->height/2;i++){
				fwrite(frame_out->data[2]+frame_out->linesize[2]*i,1,frame_out->width/2,fp_out);
			}
		}
		printf("Process 1 frame!\n");
		av_frame_unref(frame_out);
    }

	fclose(fp_in);
	fclose(fp_out);

	av_frame_free(&frame_in);
	av_frame_free(&frame_out);
    avfilter_graph_free(&filter_graph);

    return 0;
}



结果

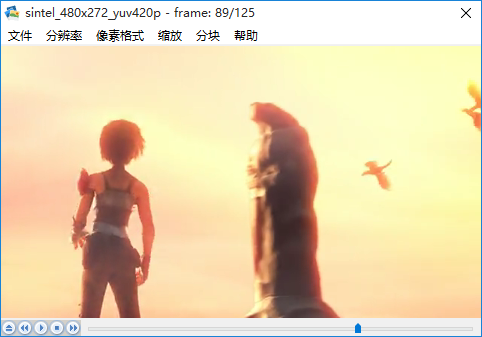

本程序输入为一个名称为“sintel_480x272_yuv420p.yuv”的YUV420P视频数据,输出为一个名称为“output.yuv” 的YUV420P视频数据。输入的视频数据的内容如下所示。


程序中提供了几种特效:
  • lutyuv='u=128:v=128'
  • boxblur
  • hflip
  • hue='h=60:s=-3'
  • crop=2/3*in_w:2/3*in_h
  • drawbox=x=100:y=100:w=100:h=100:color=pink@0.5
  • drawtext=fontfile=arial.ttf:fontcolor=green:fontsize=30:text='Lei Xiaohua'

可以通过修改程序中的filter_descr字符串实现上述几种特效。下面展示几种特效的效果图。

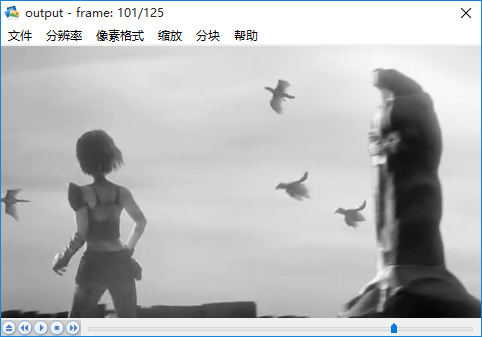

lutyuv='u=128:v=128'

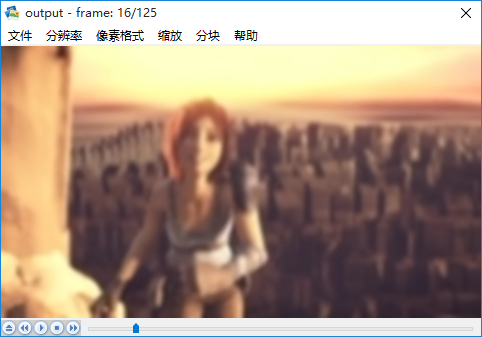

boxblur

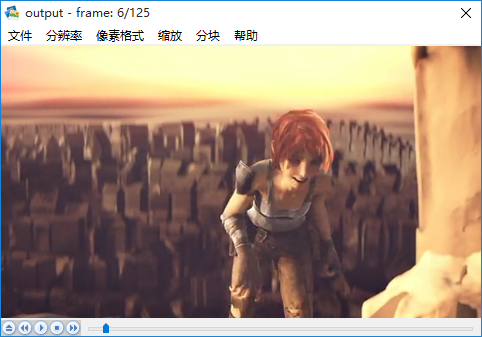

hflip

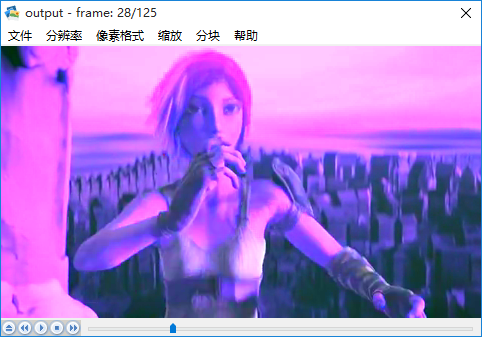

hue='h=60:s=-3'

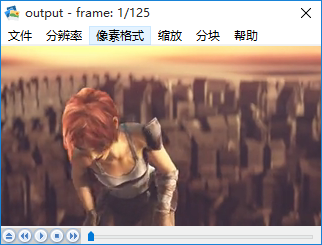

crop=2/3*in_w:2/3*in_h

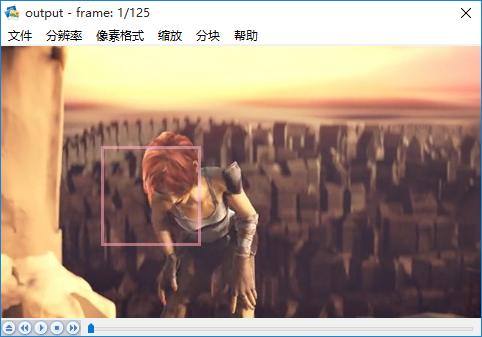

drawbox=x=100:y=100:w=100:h=100:color=pink@0.5

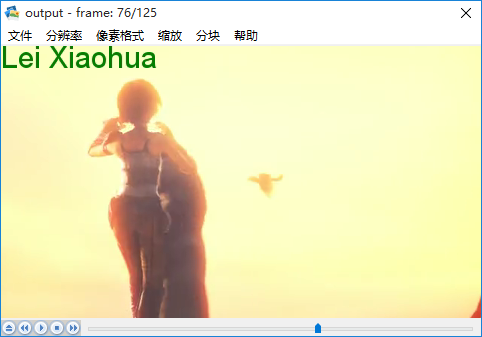

drawtext=fontfile=arial.ttf:fontcolor=green:fontsize=30:text='Lei Xiaohua'


下载


simplest ffmpeg video filter

项目主页

SourceForge:https://sourceforge.net/projects/simplestffmpegvideofilter/

Github:https://github.com/leixiaohua1020/simplest_ffmpeg_video_filter

开源中国:http://git.oschina.net/leixiaohua1020/simplest_ffmpeg_video_filter


CSDN下载地址: http://download.csdn.net/detail/leixiaohua1020/9424521


本程序使用包含下面两个项目:
simplest_ffmpeg_video_filter:可以将一张PNG图片作为水印叠加到视频上,结合使用了libavfilter,libavcodec等类库。
simplest_ffmpeg_video_filter_pure:可以给YUV像素数据加特效,只用了libavfilter库。
