为什么要求一元六次方程在某区间的所有根?
原因是:
后面在用ray tracing画回旋体(rotational sweeping/ revolution)时,若侧面曲线是三次b样条曲线,求光线和回旋体的交点时会出现一元六次方程,而且我们要求的是离光线起点最近的交点,所有,我们需要先求出所有交点,然后选出最近的交点。
接下来,我们会分两步来做这个事情:
第一步:判断方程在区间内不相等的实根的总个数N;
第二步:求出所有N个不相等的实根
59.1判断一元六次方程在区间内不相等的实根的总数
59.1.1 理论分析
对于多项式方程在区间内不等实根总数的判断,我们可以参照Sturm's theorem。
维基百科:https://en.wikipedia.org/wiki/Sturm%27s_theorem
判断过程分两步:
(为什么要这么做?参考如上链接,研究一下“Sturm’s theorem”,我们这一章节的内容相当于“Sturm’s theorem”的一个实例)

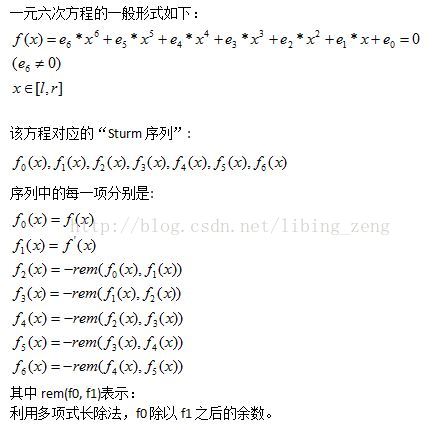

首先,构造一个叫做“sturm序列”的东东。

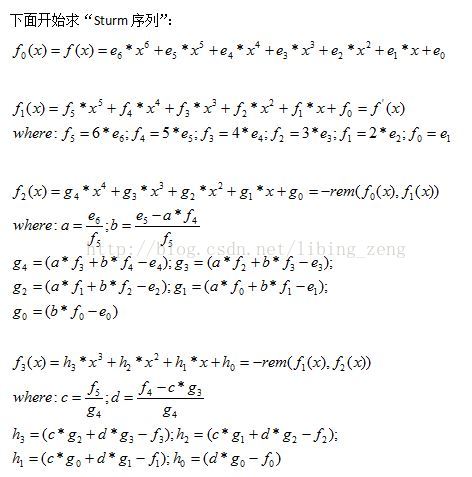

关于“多项式长除法”,看这里:
https://en.wikipedia.org/wiki/Polynomial_long_division
然后,将区间两端点值l,r代入各个序列项,计算符号的变化次数。
59.1.2 看C++代码实现
----------------------------------------------vec3.h ------------------------------------------
vec3.h
bool roots_num_equation_6th(float ee6[7], double a, double b, int &num);
----------------------------------------------vec3.cpp ------------------------------------------
vec3.cpp
bool roots_num_equation_6th(float ee6[7], double a, double b, int &num) {
double temp1, temp2;
double ee77[7][7] = {0.0};
double fun_a[7] = {0.0};
double fun_b[7] = {0.0};
int change_num_a = 0;
int change_num_b = 0;
for (int i=0; i<6; i++) {
//determine f0, f1
ee77[0][i] = ee6[i];
ee77[1][i] = (6-i)*ee6[i];
}
ee77[0][6] = ee6[6];
for (int i=2; i<6; i++) {
//determine f2, f3, f4, f5
temp1 = ee77[i-2][0] / ee77[i-1][0];
temp2 = (ee77[i-2][1] - temp1*ee77[i-1][1]) / ee77[i-1][0];
for (int j=0; j<(6-i); j++) {
ee77[i][j] = temp1*ee77[i-1][j+2] + temp2*ee77[i-1][j+1] - ee77[i-2][j+2];
if (fabs(ee77[i][j])<1e-5) {
ee77[i][j] = 0.0;
}
}
ee77[i][6-i] = temp2*ee77[i-1][6-i+1] - ee77[i-2][6-i+2];
if (fabs(ee77[i][6-i])<1e-5) {
ee77[i][6-i] = 0.0;
}
if ((ee77[i][0] == 0.0) && (ee77[i][1] == 0.0) && (ee77[i][2] == 0.0) &&
(ee77[i][3] == 0.0) && (ee77[i][4] == 0.0) && (ee77[i][5] == 0.0) &&
(ee77[i][6] == 0.0)) {
break;
}
}
if (fabs(ee77[5][0])>1e-5) {
//determine f6
temp1 = ee77[4][0] / ee77[5][0];
temp2 = (ee77[4][1] - temp1*ee77[5][1]) / ee77[5][0];
ee77[6][0] = temp2*ee77[5][1] - ee77[4][2];
if (fabs(ee77[6][0])<1e-5) {
ee77[6][0] = 0.0;
}
}
else {
ee77[6][0] = 0.0;
}
for (int j=0; j<7; j++) {
fun_a[0] = fun_a[0] + ee77[0][j]*pow(a, (6-j));
fun_b[0] = fun_b[0] + ee77[0][j]*pow(b, (6-j));
}
for (int i=1; i<7; i++) {
for (int j=0; j<(7-i); j++) {
fun_a[i] = fun_a[i] + ee77[i][j]*pow(a, ((6-i)-j));
fun_b[i] = fun_b[i] + ee77[i][j]*pow(b, ((6-i)-j));
}
if ((fun_a[i]*fun_a[i-1]) < 0) {
change_num_a ++;
}
if ((fun_b[i]*fun_b[i-1]) < 0) {
change_num_b ++;
}
}
num = abs(change_num_a - change_num_b);
return true;
}
----------------------------------------------main.cpp ------------------------------------------
main.cpp
int main(){
// float ee6[7] = {1.0, 0.0, 0.0, 0.0, 0.0, 0.0, 0.0};//x^6------------1
// float ee6[7] = {1.0, -1.0, 0.0, 0.0, 0.0, 0.0, 0.0};//x^5*(x-1)------------2
// float ee6[7] = {1.0, 0.0, -1.0, 0.0, 0.0, 0.0, 0.0};//x^4*(x-1)*(x+1)------------3
// float ee6[7] = {1.0, 0.0, -5.0, 0.0, 4.0, 0.0, 0.0};//x^2*(x-1)*(x+1)*(x-2)*(x+2)------------5
// float ee6[7] = {1.0, 3.0, -5.0, -15.0, 4.0, 12.0, 0.0};//x*(x-1)*(x+1)*(x-2)*(x+2)*(x+3)------------6
float ee6[7] = {1.0, 0.0, -0.4236111, 0.0, 0.050347222, 0.0, -0.0017361111};//(x-1/2)*(x+1/2)*(x-1/3)*(x+1/3)*(x-1/4)*(x+1/4)------------6
float a = -2.5;
float b = 2.5;
int num;
float tol = 1e-6;
float roots[7];
roots_num_equation_6th(ee6, a, b, num);
std::cout << "the coefficients of the equation of 6th degree are:" << endl;
for (int i=0; i<7; i++) {
std::cout << ee6[i] << " ";
}
std::cout << endl;
std::cout << "the number of the roots of this equation is: " << num << endl;
}
输出结果如下:
float ee6[7] ={1.0, 0.0, -0.4236111, 0.0, 0.050347222, 0.0, -0.0017361111};
//(x-1/2)*(x+1/2)*(x-1/3)*(x+1/3)*(x-1/4)*(x+1/4)------------6
float ee6[7] ={1.0, 3.0, -5.0, -15.0, 4.0, 12.0, 0.0};
//x*(x-1)*(x+1)*(x-2)*(x+2)*(x+3)------------6
float ee6[7] ={1.0, 0.0, -5.0, 0.0, 4.0, 0.0, 0.0};
//x^2*(x-1)*(x+1)*(x-2)*(x+2)------------5
float ee6[7] ={1.0, 0.0, 0.0, 0.0, 0.0, 0.0, 0.0};//x^6------------1
求得一元六次方程在区间内不相等的实根的总个数之后,怎么具体求出区间内的这些所有的不相等实根呢?
下一章节就干这事~~~~
