K线形态识别_圆底

写在前面：
1. 本文中提到的“K线形态查看工具”的具体使用操作请查看该博文；
2. K线形体所处背景，诸如处在上升趋势、下降趋势、盘整等，背景内容在K线形态策略代码中没有体现；
3. 文中知识内容来自书籍《K线技术分析》by邱立波。

目录

解说

技术特征

技术含义

K线形态策略代码

结果

---

解说

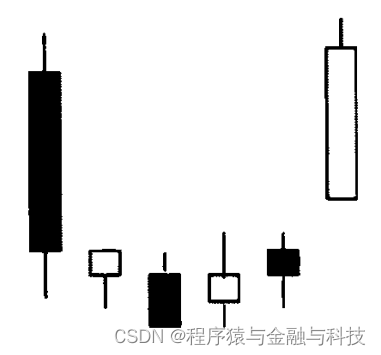

        圆底是下跌过程中或横向整理时，一根大阴线或中阴线后，在阴线底部收出若干走势呈向上圆弧形的小阴线和小阳线，最后以向上跳空缺口确认成立的K线组合。

技术特征

1）出现在下跌趋势或整理过程中。

2）先收出一根大阴线或中阴线，然后在其底部由若干小阴线、小阳线形成一个圆弧底。

3）一个向上跳空缺口确认圆底形态成立。

技术含义

        圆底形态是见底信号，后市看涨。和塔形底一样，圆底也是一种比较可靠的反转形态，并且由于圆底向上突破时留下跳空缺口，因此其转势信号强于塔形底。

        圆底的形状和塔形底很类似，其转势原理以及交易者心理变化也与塔形底差不多。交易者见到圆底后，可以适量介入。

K线形态策略代码

def excute_strategy(daily_file_path):
    '''
    名称：圆底
    识别：一根大阴线或中阴线后，在阴线底部收出若干走势呈向上圆弧形的小阳线或小阴线，最后以向上跳空缺口确认成立
    自定义：
    1. 是否是圆弧 =》代码不判断，先依靠肉眼
    2. 若干 =》 至少3根
    3. 阴线底部 =》最高价在阴线实体底部三分之一以下
    前置条件：计算时间区间 2021-01-01 到 2022-01-01
    :param daily_file_path: 股票日数据文件路径
    :return:
    '''
    import pandas as pd
    import os

    start_date_str = '2017-01-01'
    end_date_str = '2018-01-01'
    df = pd.read_csv(daily_file_path,encoding='utf-8')
    # 删除停牌的数据
    df = df.loc[df['openPrice'] > 0].copy()
    df['o_date'] = df['tradeDate']
    df['o_date'] = pd.to_datetime(df['o_date'])
    df = df.loc[(df['o_date'] >= start_date_str) & (df['o_date']<=end_date_str)].copy()
    # 保存未复权收盘价数据
    df['close'] = df['closePrice']
    # 计算前复权数据
    df['openPrice'] = df['openPrice'] * df['accumAdjFactor']
    df['closePrice'] = df['closePrice'] * df['accumAdjFactor']
    df['highestPrice'] = df['highestPrice'] * df['accumAdjFactor']
    df['lowestPrice'] = df['lowestPrice'] * df['accumAdjFactor']

    # 开始计算
    df['type'] = 0
    df.loc[df['closePrice'] >= df['openPrice'], 'type'] = 1
    df.loc[df['closePrice'] < df['openPrice'], 'type'] = -1

    df['body_length'] = abs(df['closePrice']-df['openPrice'])

    df['m_body_type'] = 0
    df.loc[(df['type']==-1) & (df['body_length']/df['closePrice'].shift(1)>0.02),'m_body_type'] = 2
    df['small_type'] = 0
    df.loc[df['body_length']/df['closePrice'].shift(1)<0.015,'small_type'] = 1
    # 向上跳空缺口
    df['breakaway_gap'] = 0
    df.loc[(df['type']==1) & (df['type'].shift(1)==1),'breakaway_gap'] = df['openPrice'] - df['closePrice'].shift(1)
    df.loc[(df['type']==1) & (df['type'].shift(1)==-1),'breakaway_gap'] = df['openPrice'] - df['openPrice'].shift(1)
    df.loc[(df['type']==-1) & (df['type'].shift(1)==1),'breakaway_gap'] = df['closePrice'] - df['closePrice'].shift(1)
    df.loc[(df['type']==-1) & (df['type'].shift(1)==-1),'breakaway_gap'] = df['closePrice'] - df['openPrice'].shift(1)

    df.reset_index(inplace=True)
    df['i_row'] = [i for i in range(0,len(df))]
    df_m_n = df.loc[df['m_body_type']==2].copy()
    df_m_p = df.loc[df['breakaway_gap']>0].copy()
    i_row_n = df_m_n['i_row'].values.tolist()
    i_row_p = df_m_p['i_row'].values.tolist()

    i_row_two = i_row_n + i_row_p
    i_row_two.sort()
    n_list = []
    p_list = []
    for i in range(0,len(i_row_two)-1):
        if i_row_two[i] in i_row_n and i_row_two[i+1] in i_row_p:
            n_list.append(i_row_two[i])
            p_list.append(i_row_two[i+1])
        pass

    df['signal'] = 0
    df['signal_name'] = ''
    for n,p in zip(n_list,p_list):
        if p-n < 3:
            continue
        enter_yeah = True
        for i in range(n+1,p):
            if df.iloc[i]['small_type']!=1:
                enter_yeah = False
                break
            pass
        if enter_yeah:
            final_yeah = False
            target_body_length = df.iloc[n]['body_length']
            for m_i in range(n+1,p):
                if (df.iloc[n]['closePrice'] + target_body_length*0.33) < df.iloc[m_i]['highestPrice']:
                    final_yeah = True
                    break
            if final_yeah:
                continue
            df.loc[(df['i_row']>=n) & (df['i_row']<=p),'signal'] = 1
            df.loc[(df['i_row']>=n) & (df['i_row']<=p),'signal_name'] = str(p-n)
            pass

    file_name = os.path.basename(daily_file_path)
    title_str = file_name.split('.')[0]

    line_data = {
        'title_str':title_str,
        'whole_header':['日期','收','开','高','低'],
        'whole_df':df,
        'whole_pd_header':['tradeDate','closePrice','openPrice','highestPrice','lowestPrice'],
        'start_date_str':start_date_str,
        'end_date_str':end_date_str,
        'signal_type':'duration_detail',
        'duration_len':[],
        'temp':len(df.loc[df['signal']==1])
    }
    return line_data

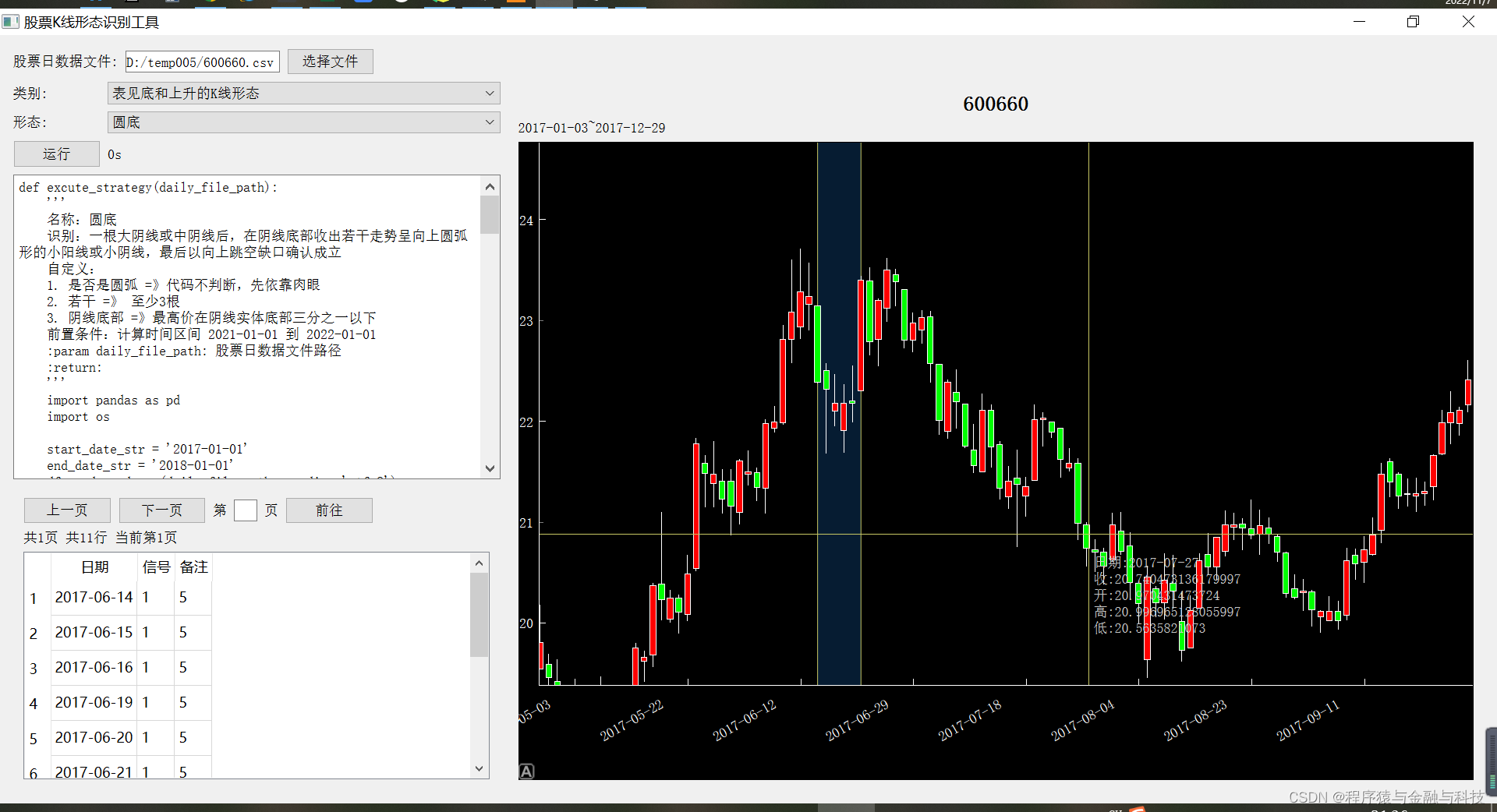

结果
