前言

正文

一、YCbCr

1.1 什么是YCbCr

Y通道：表示图像的强度、亮度
Cb通道：表示图像蓝色色度
Cr通道：表示图像红色色度

1.2 为什么要用YCbCr

减少色彩信息，进而来减少存储空间 参考资料

对比

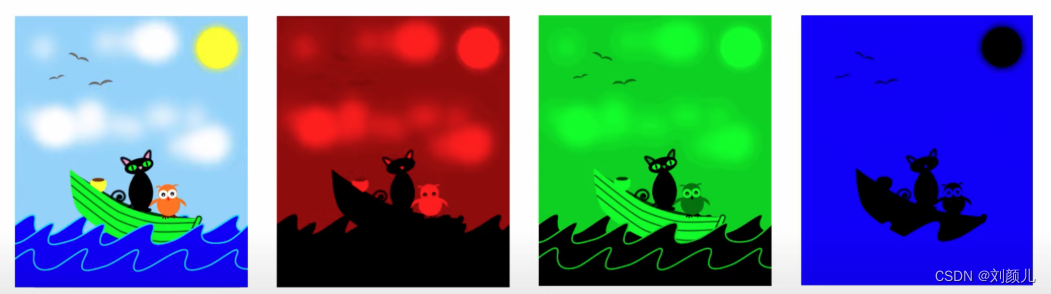

用RGB表示一张图片，其中GRB三个通道分别如下：
在这里插入图片描述

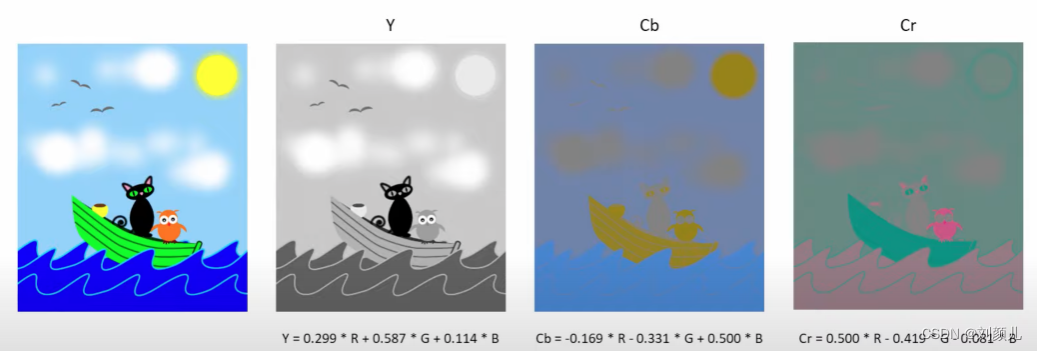

用YCbCr表示的图像如下：

1.3 如何实现

计算公式
$*B)>>8\\ Cb = (-43*R - 85 *G + 128*B + 32768)>>8\\ Cr = (128*R - 107*G - 21 *B + 32768)>>8$
流水线：相乘——相加——右移8位（舍弃低8位）
行信号打拍

在这里插入图片描述

`timescale 1ns / 1ps

module RGB888_YCbCr444
(
	//global clock
	input					clk,  				//cmos video pixel clock
	input					rst_n,				//global reset

	//Image data prepred to be processd
	input					per_frame_vsync,	//Prepared Image data vsync valid signal
	input					per_frame_href,		//Prepared Image data href vaild  signal
	input					per_frame_clken,	//Prepared Image data output/capture enable clock
	input		[7:0]		per_img_red,		//Prepared Image red data to be processed
	input		[7:0]		per_img_green,		//Prepared Image green data to be processed
	input		[7:0]		per_img_blue,		//Prepared Image blue data to be processed

	//Image data has been processd
	output				    post_frame_vsync,	//Processed Image data vsync valid signal
	output				    post_frame_href,	//Processed Image data href vaild  signal
	output				    post_frame_clken,	//Processed Image data output/capture enable clock
	output		[7:0]	    post_img_Y,			//Processed Image brightness output
	output		[7:0]	    post_img_Cb,		//Processed Image blue shading output
	output		[7:0]	    post_img_Cr			//Processed Image red shading output
);

//==========================================parameter===========================================================
	/*********************************************
	//Refer to <OV7725 Camera Module Software Applicaton Note> page 5
		Y 	=	(77 *R 	+ 	150*G 	+ 	29 *B)>>8
		Cb 	=	(-43*R	- 	85 *G	+ 	128*B)>>8 + 128
		Cr 	=	(128*R 	-	107*G  	-	21 *B)>>8 + 128

		Y 	=	(77 *R 	+ 	150*G 	+ 	29 *B)>>8
		Cb 	=	(-43*R	- 	85 *G	+ 	128*B + 32768)>>8
		Cr 	=	(128*R 	-	107*G  	-	21 *B + 32768)>>8
	**********************************************/

//==========================================reg=================================================================
reg	[15:0]	img_red_r0,		img_red_r1,		img_red_r2;
reg	[15:0]	img_green_r0,	img_green_r1,	img_green_r2;
reg	[15:0]	img_blue_r0,	img_blue_r1,	img_blue_r2;

reg	[15:0]	img_Y_r0;
reg	[15:0]	img_Cb_r0;
reg	[15:0]	img_Cr_r0;

reg	[7:0]	img_Y_r1;
reg	[7:0]	img_Cb_r1;
reg	[7:0]	img_Cr_r1;

reg	[2:0]	per_frame_vsync_r;
reg	[2:0]	per_frame_href_r;
reg	[2:0]	per_frame_clken_r;
//==========================================wire=================================================================

//==========================================assign=================================================================
assign	post_frame_vsync 	= 	per_frame_vsync_r[2];
assign	post_frame_href 	= 	per_frame_href_r [2];
assign	post_frame_clken 	= 	per_frame_clken_r[2];

// 当有行信号时，就输出
assign	post_img_Y 	= 	post_frame_href ? img_Y_r1 : 8'd0;
assign	post_img_Cb =	post_frame_href ? img_Cb_r1: 8'd0;
assign	post_img_Cr = 	post_frame_href ? img_Cr_r1: 8'd0;

//==========================================always=================================================================

	// 第一级流水线：执行乘法
	always@(posedge clk or negedge rst_n)begin
		if(!rst_n)
			begin
			    img_red_r0		<=	0;
			    img_red_r1		<=	0;
			    img_red_r2		<=	0;
			    img_green_r0	<=	0;
			    img_green_r1	<=	0;
			    img_green_r2	<=	0;
			    img_blue_r0		<=	0;
			    img_blue_r1		<=	0;
			    img_blue_r2		<=	0;
			end
		else
			begin
			    img_red_r0		<=	per_img_red 	* 	8'd77;
			    img_red_r1		<=	per_img_red 	* 	8'd43;
			    img_red_r2		<=	per_img_red 	* 	8'd128;
			    img_green_r0	<=	per_img_green 	* 	8'd150;
			    img_green_r1	<=	per_img_green 	* 	8'd85;
			    img_green_r2	<=	per_img_green 	* 	8'd107;
			    img_blue_r0		<=	per_img_blue 	* 	8'd29;
			    img_blue_r1		<=	per_img_blue 	* 	8'd128;
			    img_blue_r2		<=	per_img_blue 	* 	8'd21;
			end
	end


	// 第二级流水线：执行加法
	always@(posedge clk or negedge rst_n)begin
		if(!rst_n)
			begin
			    img_Y_r0	<=	0;
			    img_Cb_r0	<=	0;
			    img_Cr_r0	<=	0;
			end
		else
			begin
			    img_Y_r0	<=	img_red_r0 	+ 	img_green_r0 	+ 	img_blue_r0;
			    img_Cb_r0	<=	img_blue_r1 - 	img_red_r1 		- 	img_green_r1	+	16'd32768;
			    img_Cr_r0	<=	img_red_r2 	+ 	img_green_r2 	+ 	img_blue_r2		+	16'd32768;
			end
	end

	// 第三级流水线：右移8位=除以256 ？？是的，往右移8位，把低8位挤走了
	always@(posedge clk or negedge rst_n)begin
		if(!rst_n)
			begin
			    img_Y_r1	<=	0;
			    img_Cb_r1	<=	0;
			    img_Cr_r1	<=	0;
			end
		else
			begin
			    img_Y_r1	<=	img_Y_r0 [15:8];
			    img_Cb_r1	<=	img_Cb_r0[15:8];
			    img_Cr_r1	<=	img_Cr_r0[15:8];
			end
	end

	//------------------------------------------
	//lag 3 clocks signal sync
	// 上面有3级流水线，因此经历了3个时钟，于是需要把输入的行、使能信号等进行3次打拍操作
	// 这里的打拍操作比较厉害，值得学习！！
	//---------------------------------------------

	always@(posedge clk or negedge rst_n)begin
		if(!rst_n)
			begin
			    per_frame_vsync_r <= 0;
			    per_frame_href_r  <= 0;
			    per_frame_clken_r <= 0;
			end
		else
			begin
			    per_frame_vsync_r 	<= 	{per_frame_vsync_r[1:0], 	per_frame_vsync};
			    per_frame_href_r	<= 	{per_frame_href_r [1:0], 	per_frame_href};
			    per_frame_clken_r 	<= 	{per_frame_clken_r[1:0], 	per_frame_clken};
			end
	end


//==========================================状态机=================================================================


//==========================================模块例化=================================================================

endmodule
