ensp基本路由配置（为什么ping不通呢）

最新推荐文章于 2025-03-14 13:44:50 发布

_GUOGUO

最新推荐文章于 2025-03-14 13:44:50 发布

阅读量1.6w

点赞数 2

本文链接：https://blog.csdn.net/m0_51186260/article/details/109062679

版权

该配置展示了华为路由器R1、R2和R3的接口配置及静态路由设置。R1配置了到192.168.10.0/24和192.168.20.0/24的路由，通过192.168.1.3和192.168.1.2作为出口。R2和R3分别配置了到达相应网络的静态路由，并设置了默认路由。网络间通信通过优先级为80的路由进行。

摘要生成于 C知道，由 DeepSeek-R1 满血版支持，前往体验 >

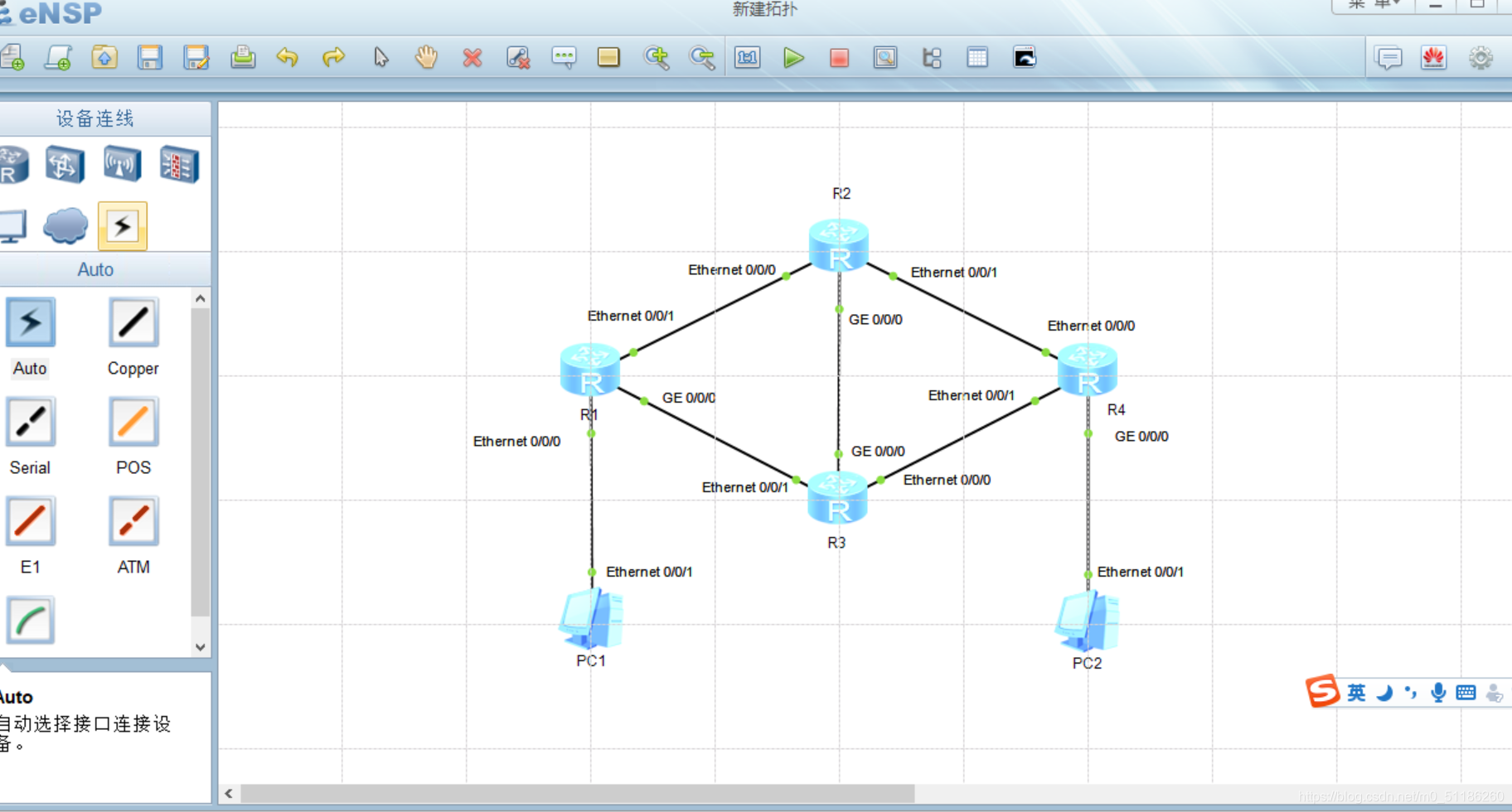

在这里插入图片描述 [Huawei]sys
[Huawei]sy R1
[R1]int e0/0/0
[R1-Ethernet0/0/0]ip
[R1-Ethernet0/0/0]ip address 192.168.10.20 24
[R1-Ethernet0/0/0]
[R1-Ethernet0/0/0]int e0/0/1
[R1-Ethernet0/0/1]ip address 192.168.1.1 24
[R1-Ethernet0/0/1]int g0/0/0
[R1-GigabitEthernet0/0/0]ip address 192.168.2.1 24
[R1]ip route-static 0.0.0.0 0 192.168.1.3
[R1]ip route-static 0.0.0.0 0 192.168.1.2 preference 80

[Huawei]sys
[Huawei]sy R2
[R2]int e0/0/0
[R2-Ethernet0/0/0]ip address 192.168.3.1 24
[R2-Ethernet0/0/0]int e0/0/1
[R2-Ethernet0/0/1]ip address 192.168.1.2 24
[R2-Ethernet0/0/1]
[R2-Ethernet0/0/1]int g0/0/0
[R2-GigabitEthernet0/0/0]ip address 192.168.2.4 24
[R2]ip route
[R2]ip route-static 192.168.10.0 24 192.168.1.1
[R2]ip route
[R2]ip route-static 192.168.20.0 24 192.168.1.4
[R2]ip route
[R2]ip route-static 0.0.0.0 0 192.168.4.1 preference 80

[Huawei]sys
[Huawei]sy R3
[R3]int e0/0/0
[R3-Ethernet0/0/0]ip address 192.168.4.1 24
[R3-Ethernet0/0/0]int e0/0/1
[R3-Ethernet0/0/1] ip address 192.168.1.3 24
[R3-Ethernet0/0/1]int g0/0/0
[R3-GigabitEthernet0/0/0]ip address 192.168.2.5 24
[R3]ip route
[R3]ip route-static 192.168.10.0 24 192.168.2.1
[R3]ip route
[R3]ip route-static 192.168.20.0 24 192.168.2.6
[R3]ip route
[R3]ip route-static 0.0.0.0 0 192.168.3.1 preference 80

[Huawei]sys
[Huawei]sy R4
[R4]int e0/0/0
[R4-Ethernet0/0/0]ip address 192.168.5.1 24
[R4-Ethernet0/0/0]
[R4-Ethernet0/0/0]int e0/0/1
[R4-Ethernet0/0/1]ip address 192.168.1.4 24
[R4-Ethernet0/0/1]
[R4-Ethernet0/0/1]int g0/0/0
[R4-GigabitEthernet0/0/0]ip address 192.168.2.6 24
[R4]ip route
[R4]ip route-static 0.0.0.0 0 192.168.2.5
[R4]ip route
[R4]ip route-static 0.0.0.0 0 192.168.2.4 preference 80
