【计算机图形学】图形变换(以任意直线为对称轴的对称变换)

模块3-2 图形变换

一 实验目的

  1. 编写图形各种变换的算法

二 实验内容

1:任意直线的对称变换。要求将变换矩阵写在实验报告中,并与代码匹配。求对任意直线Ax+By+C=0的对称变换矩阵。

实验结果如下图所示:


1:预设图形初始化

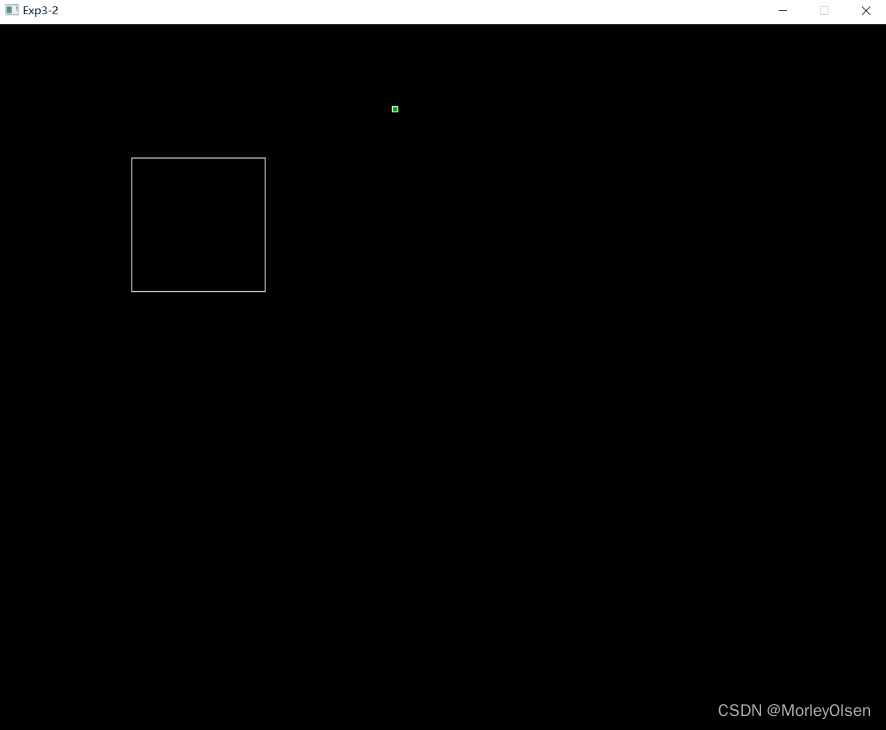

2:鼠标左键点击直线起点

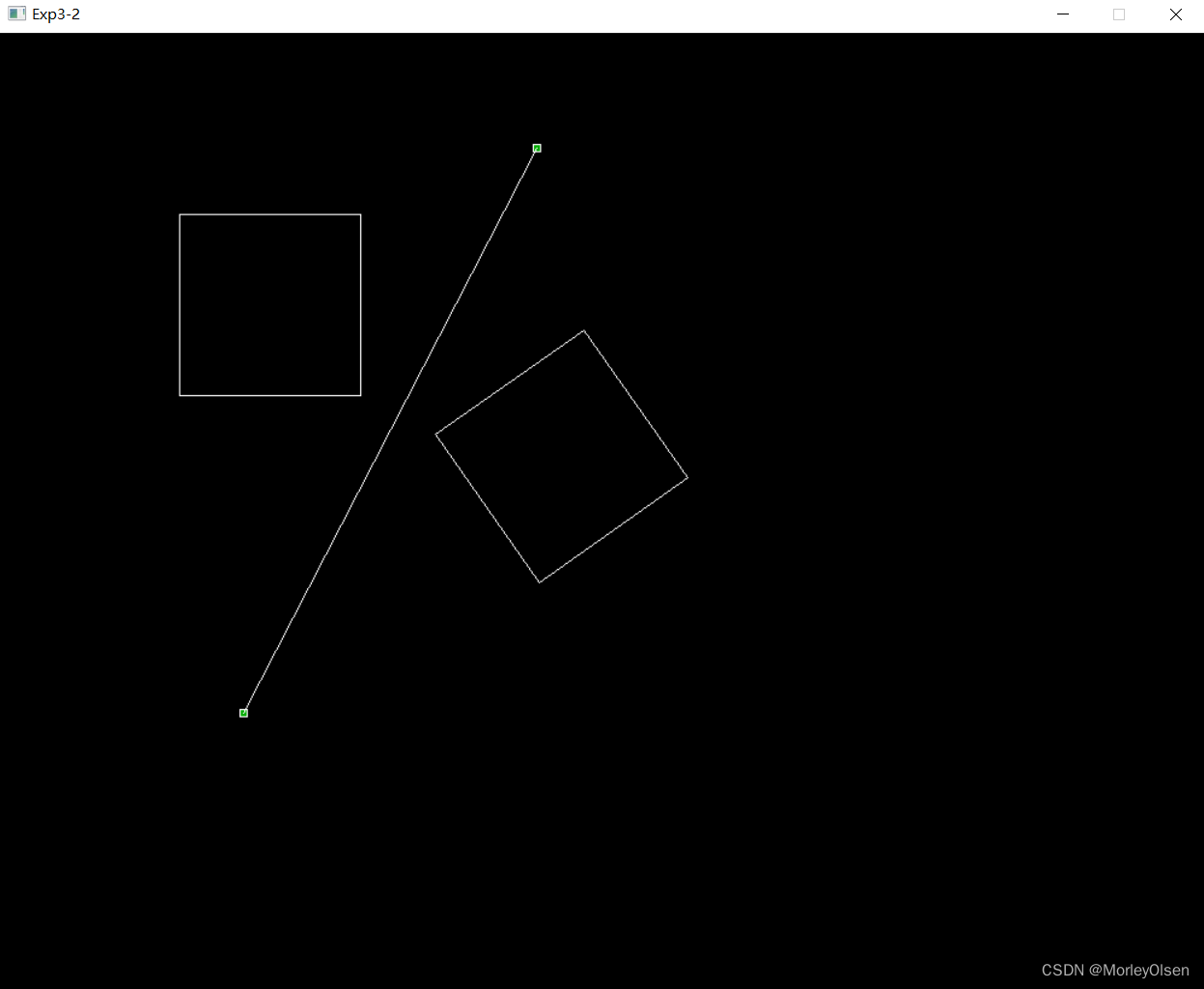

3:鼠标右键点击直线终点

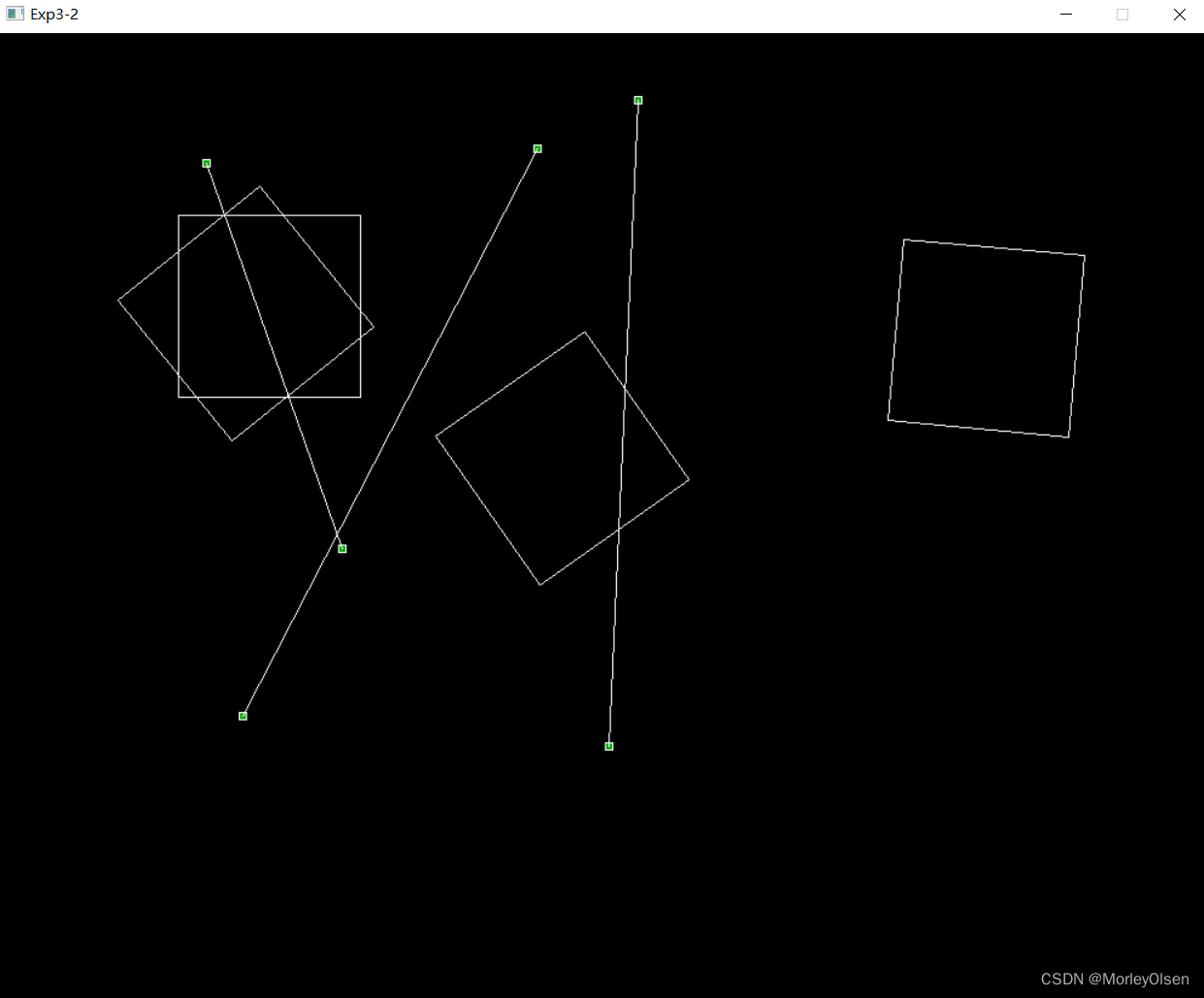

4:继续添加对称情况

求对任意直线Ax+By+C=0的对称变换矩阵:

对于任意直线Ax + By + C = 0,对称变换矩阵为M = (1-2A^2/(A^2+B^2), -2AB/(A^2+B^2), -2AC/(A^2+B^2); -2AB/(A^2+B^2), 1-2B^2/(A^2+B^2), -2BC/(A^2+B^2); 0, 0, 1),其中A和B不同时为0。

1-2A^2/(A^2+B^2)

-2AB/(A^2+B^2)

-2AC/(A^2+B^2)

-2AB/(A^2+B^2)

1-2B^2/(A^2+B^2)

-2BC/(A^2+B^2)

0

0

1

三 程序说明

最终的实验代码如下表所示:

1

//

// 程序名称:任意直线对称变换

// 功    能:实现图形以任意直线为基准的对称变换

// 编译环境:VS2019,EasyX_20220116

// 最后修改:2022-4-7

#include <graphics.h>

#include <conio.h>

#include <iostream>

#include <math.h>

using namespace std;

double points[4][2] = { {150,150},{150,300},{300,300},{300,150} };

const double newpoints[4][2] = { {150,150},{150,300},{300,300},{300,150} };

int num = 4, dimension = 3;

#define PI 3.1415927

//旋转变换

void rotate(double degree);

//平移变换

void trans(double tx, double ty);

//矩阵乘法

void mutiply(double a[5][5], int ar, int ac, double b[5][5], int br, int bc);

//画图函数

void paint();

//任意对称变换

void anysymmetry(int x1, int y1, int x2, int y2);

//坐标轴对称变换

void symmetry(int flag);

void anysymmetry(int x1, int y1, int x2, int y2) {

    double k = 0, b = 0;

    if (x1 == x2) {

         trans(-x1, 0);

         symmetry(1);

         trans(x1, 0);

    }

    else if (y1 == y2) {

         trans(0, -y1);

         symmetry(0);

         trans(0, y1);

    }

    else {

         k = 1.0 * (y1 - y2) / (x1 - x2);

         b = y1 - k * x1;

         trans(0, -b);

         rotate(-atan(k) * 180 * 1.0 / PI);

         symmetry(0);

         rotate(atan(k) * 180 * 1.0 / PI);

         trans(0, b);

    }

}

void symmetry(int flag) {

    int i;

    if (flag == 0) {

         for (i = 0; i < num; i++) {

             points[i][1] = -points[i][1];

         }

    }

    else if (flag == 1) {

         for (i = 0; i < num; i++) {

             points[i][0] = -points[i][0];

         }

    }

    else {

         return;

    }

}

void paint() {

    for (int i = 0; i < num; i++) {

         if (i == num - 1) {

             line(int(points[i][0]), int(points[i][1]), int(points[0][0]), int(points[0][1]));

             break;

         }

         line(int(points[i][0]), int(points[i][1]), int(points[i + 1][0]), int(points[i + 1][1]));

    }

}

void rotate(double degree) {

    double sita = 1.0 * degree / 180 * PI;

    double R[5][5] = { {cos(sita),-sin(sita),0},{sin(sita),cos(sita),0},{0,0,1.0} };

    double point[5][5];

    int i;

    for (i = 0; i < num; i++) {

         point[0][0] = 1.0 * points[i][0];

         point[1][0] = 1.0 * points[i][1];

         point[2][0] = 1;

         mutiply(R, dimension, dimension, point, dimension, 1);

         points[i][0] = point[0][0];

         points[i][1] = point[1][0];

    }

}

void trans(double tx, double ty) {

    double T[5][5] = { {1,0,tx},{0,1,ty},{0,0,1} };

    double point[5][5];

    int i;

    for (i = 0; i < num; i++) {

         point[0][0] = 1.0 * points[i][0];

         point[1][0] = 1.0 * points[i][1];

         point[2][0] = 1;

         mutiply(T, dimension, dimension, point, dimension, 1);

         points[i][0] = point[0][0];

         points[i][1] = point[1][0];

    }

}

void mutiply(double a[5][5], int ar, int ac, double b[5][5], int br, int bc) {

    int i, j, k;

    double c[5][5];

    for (i = 0; i < ar; i++) {

         for (j = 0; j < bc; j++) {

             c[i][j] = 0;

         }

    }

    for (i = 0; i < ar; i++) {

         for (j = 0; j < bc; j++) {

             for (k = 0; k < ac; k++) {

                  c[i][j] += 1.0 * a[i][k] * b[k][j];

             }

         }

    }

    for (i = 0; i < ar; i++) {

         for (j = 0; j < bc; j++) {

             b[i][j] = c[i][j];

         }

    }

}

int main() {

    initgraph(1000, 800);

    ExMessage m;

    //绘画初始矩形

    setcolor(WHITE);

    rectangle(points[0][0], points[0][1], points[2][0], points[2][1]);

    int x0, y0, x1, y1;

    while (1) {

         m = getmessage(EX_MOUSE | EX_KEY);

         switch (m.message) {

             case WM_LBUTTONDOWN:

                  x0 = m.x;

                  y0 = m.y;

                  //画直线起点

                  setlinecolor(WHITE);

                  setfillcolor(GREEN);

                  fillrectangle(m.x - 3, m.y - 3, m.x + 3, m.y + 3);

                  break;

             case WM_RBUTTONDOWN:

                  x1 = m.x;

                  y1 = m.y;

                  //画直线终点

                  setlinecolor(WHITE);

                  setfillcolor(GREEN);

                  fillrectangle(m.x - 3, m.y - 3, m.x + 3, m.y + 3);

                  //处理直线

                  line(x0, y0, x1, y1);

                  anysymmetry(x0, y0, x1, y1);

                  paint();

                  for (int i = 0; i < 4; i++) {

                      points[0][0] = newpoints[0][0];

                      points[0][1] = newpoints[0][1];

                      points[1][0] = newpoints[1][0];

                      points[1][1] = newpoints[1][1];

                      points[2][0] = newpoints[2][0];

                      points[2][1] = newpoints[2][1];

                      points[3][0] = newpoints[3][0];

                      points[3][1] = newpoints[3][1];

                  }

                  break;

             case WM_KEYDOWN:

                  if (m.vkcode == VK_ESCAPE) {

                      return 0;

                  }

        }

    }

    _getch();

    closegraph();

    return 0;

}
