milvus和相似度检索

流程

milvus的使用流程是 创建collection -> 创建partition -> 创建索引(如果需要检索) -> 插入数据 -> 检索
这里以Python为例, 使用的milvus版本为2.3.x
首先按照库， python3 -m pip install pymilvus

Connect

from pymilvus import connections
connections.connect(
  alias="default",
  user='username',
  password='password',
  host='localhost',
  port='19530'
)


connections.list_connections()
connections.get_connection_addr('default')

connections.disconnect("default")

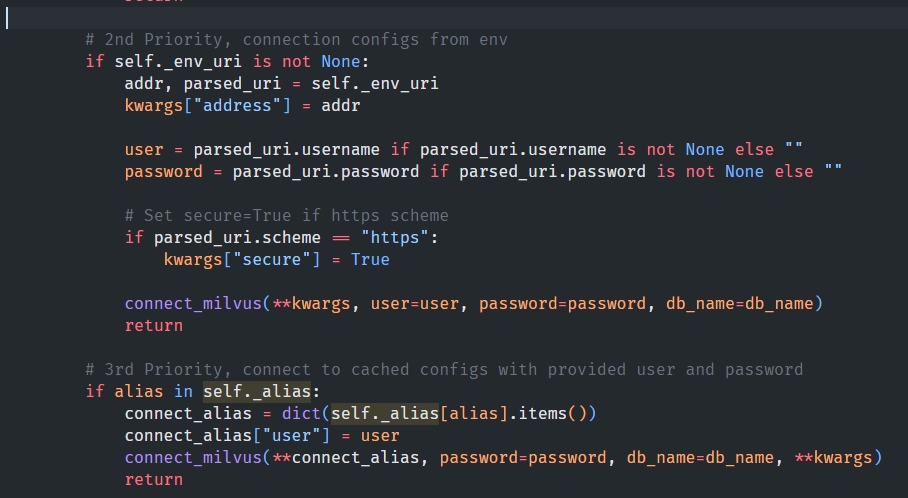

以上是源码，可以看出alias只是一个字典的映射的key

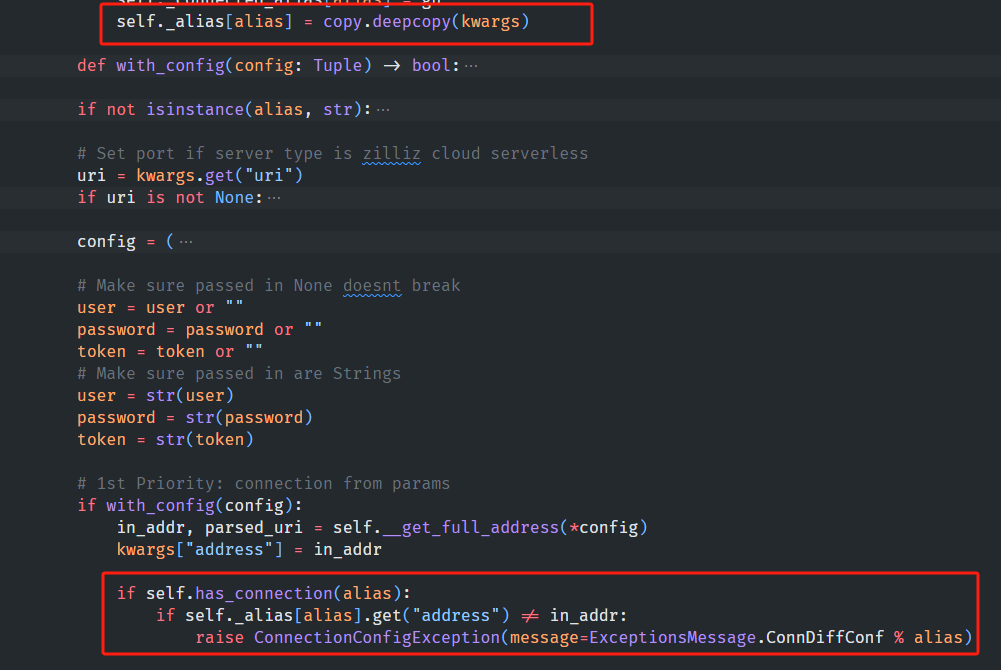

通过源码可以看到，还有两种连接方式:

1. 在.env文件中添加参数，MILVUS_URI=milvus://<Your_Host>:<Your_Port>，之后可以使用connections.connect()连接
2. 在一次连接成功后，将连接配置数据保存在内存，下次近执行connections.connect()即可连接，可以通过connections.remove_connection删除连接配置数据

Database

from pymilvus import connections, db

conn = connections.connect(host="127.0.0.1", port=19530)

database = db.create_database("book")

db.using_database("book") # 切换数据库
db.list_database()
db.drop_database("book")

Collection

和一些非关系型数据库(MongoDB)类似，Collection就是表

# collection
from pymilvus import Collection, CollectionSchema, FieldSchema, DataType, utility

## 需要提前创建列的名称、类型等数据，并且必须添加一个主键
book_id = FieldSchema(
  name="book_id",
  dtype=DataType.INT64,
  is_primary=True,
)
book_name = FieldSchema(
  name="book_name",
  dtype=DataType.VARCHAR,
  max_length=200,
  # The default value will be used if this field is left empty during data inserts or upserts.
  # The data type of `default_value` must be the same as that specified in `dtype`.
  default_value="Unknown"
)
word_count = FieldSchema(
  name="word_count",
  dtype=DataType.INT64,
  # The default value will be used if this field is left empty during data inserts or upserts.
  # The data type of `default_value` must be the same as that specified in `dtype`.
  default_value=9999
)
book_intro = FieldSchema(
  name="book_intro",
  dtype=DataType.FLOAT_VECTOR,
  dim=2
)
# dim=2是向量的维度

schema = CollectionSchema(
  fields=[book_id, book_name, word_count, book_intro],
  description="Test book search",
  enable_dynamic_field=True
)


collection_name = "book"

collection = Collection(
    name=collection_name,
    schema=schema,
    using='default',
    shards_num=2
    )

utility.rename_collection("book", "lights4")
utility.has_collection("lights1")
utility.list_collections()
# utility.drop_collection("lights")

collection = Collection("lights3")
collection.load(replica_number=2)
# reduce memory usage
collection.release()

Partition

# Create a Partition

collection = Collection("book")      # Get an existing collection.
collection.create_partition("novel")

Index

milvus的索引决定了搜索所用的算法，必须设置好所引才能进行搜索。

# Index
index_params = {
  "metric_type":"L2",
  "index_type":"IVF_FLAT",
  "params":{"nlist":1024}
}

collection.create_index(
  field_name="book_intro",
  index_params=index_params
)

## metric_type是相似性计算算法，可选的有以下
## For floating point vectors:
## L2 (Euclidean distance)
## IP (Inner product)
## COSINE (Cosine similarity)
## For binary vectors:
## JACCARD (Jaccard distance)
## HAMMING (Hamming distance)
utility.index_building_progress("<Your_Collection>")

Data

数据可以从dataFrame来，也可以从其他方式获得，只要列名对上，即可。

import pandas as pd
import numpy as np

insert_data = pd.read_csv("<Your_File>")
mr = collection.insert(insert_data)

Search

# search
search_params = {
    "metric_type": "L2",
    "offset": 5,
    "ignore_growing": False,
    "params": {"nprobe": 10}
}

results = collection.search(
    data=[[0.1, 0.2]],
    anns_field="book_intro",
    # the sum of `offset` in `param` and `limit`
    # should be less than 16384.
    param=search_params,
    limit=10,
    expr=None,
    # 这里需要将想看的列名列举出来
    output_fields=['title'],
    consistency_level="Strong"
)

# get the IDs of all returned hits
results[0].ids

# get the distances to the query vector from all returned hits
results[0].distances

# get the value of an output field specified in the search request.
hit = results[0][0]
hit.entity.get('title')

具体的代码在我的github。希望对你有所帮助！
