基于matlab模拟OFDM中SNR和BER的关系附完整代码

✅作者简介：热爱科研的Matlab仿真开发者，修心和技术同步精进，matlab项目合作可私信。

🍎个人主页：Matlab科研工作室

🍊个人信条：格物致知。

更多Matlab仿真内容点击👇

智能优化算法  神经网络预测 雷达通信  无线传感器

信号处理 图像处理 路径规划 元胞自动机 无人机  电力系统

⛄ 内容介绍

The proliferation of mobile platforms has put lot of stress in terms of power limitations and Quality of Service being offered by OFDM systems. BER and SNR analysis plays an important and imperative role in understanding and improving the design of OFDM systems. In this paper we have presented a comprehensive analysis about BER and SNR for various scenarios which include different channels, different modulation techniques and carrier frequency offsets.

⛄完整代码

clc;

clear all;

close all;

%% Initializing parameters

L=input('Length Of OFDM Data = ');

Ncp=L*0.0625

%% Transmitter

% data generation

Tx_data=randi([0 15],L,Ncp);

%%%%%%%%%%%%%%%%%%% QAM modulation %%%%%%%%%%%%%%%%%%%%%

mod_data=qammod(Tx_data,16);

% Serial to Parallel

s2p=mod_data.';

% IFFT

am=ifft(s2p);

% Parallel to series

p2s=am.';

% Cyclic Prefixing

CP_part=p2s(:,end-Ncp+1:end); %Cyclic Prefix part to be appended.

cp=[CP_part p2s];

%%  Reciever

% Adding Noise using AWGN

SNRstart=0;

SNRincrement=1;

SNRend=25;

c=0;

r=zeros(size(SNRstart:SNRincrement:SNRend));

for snr=SNRstart:SNRincrement:SNRend

    c=c+1;

    noisy=awgn(cp,snr,'measured');

% Remove cyclic prefix part

    cpr=noisy(:,Ncp+1:Ncp+Ncp); %remove the Cyclic prefix

% series to parallel

    parallel=cpr.';

% FFT

    amdemod=fft(parallel);

% Parallel to serial

    rserial=amdemod.';

%%%%%%%%%%%%%%%%%%%% QAM demodulation %%%%%%%%%%%%%%%%%%%%%

    Umap=qamdemod(rserial,16);

% Calculating the Bit Error Rate

    [n, r(c)]=biterr(Tx_data,Umap);

end

snr=SNRstart:SNRincrement:SNRend;

%% Plotting BER vs SNR

semilogy(snr,r,'-ok');

grid;

title('OFDM Bit Error Rate .VS. Signal To Noise Ratio');

ylabel('BER');

xlabel('SNR [dB]');

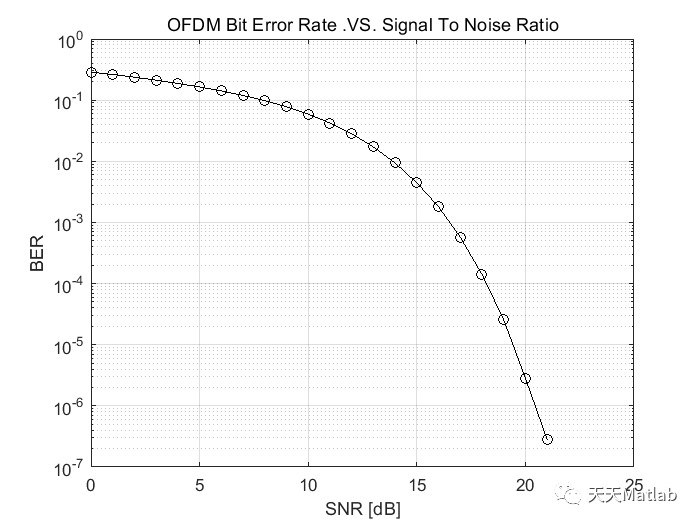

⛄ 运行结果

⛄ 参考文献

​[1] Mr. S V ,  Siddaiah. P . Comprehensive Analysis of BER and SNR in OFDM Systems.  1970.
