cocos creator开关按钮动画实现
1.首先最简单的实现方式(没有动画),可以通过复选框
1.1当点击复选框为选择时,可以更改图片,显示为开
1.2档复选框取消时,图片更改为关
2.用tween动画实现
2.1用mask来进行遮挡
2.2通过变量进行判断,点击后相应的按钮进行移动.

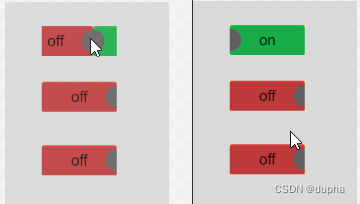

如下图所示gif
cocos switch实现、cocos creator switch按钮实现、cocos 开关按钮实现、cocos switch切换按钮实现]、cocos动画switch切换
(也可以通过复选框进行切换)
原代码在下方,免费下载无需积分
节点目录:
脚本实现:
import { _decorator, Component, Node, tween, Vec3, UITransform } from 'cc';
const { ccclass, property } = _decorator;
@ccclass('SwitchController')
export class SwitchController extends Component {
@property(Node)
SwitchButton:Node = null;
@property(Node)
Off:Node = null;
@property(Node)
On:Node = null;
@property(Node)
Switch:Node = null;
@property(Boolean)
SwitchFlag:Boolean = true;
radius = 0;
radiusSwitch = 0;
onLoad(){
this.radius = this.SwitchButton.getComponent(UITransform).contentSize.width;
this.radiusSwitch = this.SwitchButton.getComponent(UITransform).contentSize.width/2;
this.switchHandle();
this.SwitchButton.on(Node.EventType.TOUCH_END,()=>{
this.SwitchFlag = !this.SwitchFlag;
this.switchHandle();
})
}
switchHandle(){
if(!this.SwitchFlag){
tween(this.Off)
.to(0.3, {position: new Vec3(this.SwitchButton.position.x,this.Off.position.y, 10)})
.start();
tween(this.Switch)
.to(0.3, {position: new Vec3(this.radiusSwitch,this.On.position.y, 10)})
.start();
tween(this.On)
.to(0.3, {position: new Vec3(this.radius,this.On.position.y, 0)})
.start();
}else{
tween(this.On)
.to(0.3, {position: new Vec3(this.SwitchButton.position.x,this.On.position.y, 10)})
.start();
tween(this.Switch)
.to(0.3, {position: new Vec3(-this.radiusSwitch,this.On.position.y, 10)})
.start();
tween(this.Off)
.to(0.3, {position: new Vec3(-this.radius,this.Off.position.y, 0)})
.start()
}
}
start() {
}
update(deltaTime: number) {
}
}
