LeetCode //SQL - 608. Tree Node

608. Tree Node

Table: Tree

±------------±-----+
| Column Name | Type |
±------------±-----+
| id | int |
| p_id | int |
±------------±-----+
id is the column with unique values for this table.
Each row of this table contains information about the id of a node and the id of its parent node in a tree.
The given structure is always a valid tree.

Each node in the tree can be one of three types:

“Leaf”: if the node is a leaf node.
“Root”: if the node is the root of the tree.
“Inner”: If the node is neither a leaf node nor a root node.
Write a solution to report the type of each node in the tree.

Return the result table in any order.

The result format is in the following example.


Example 1:

Input:
Tree table:
±—±-----+

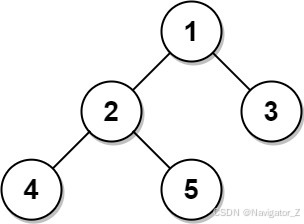

| id | p_id |
±—±-----+
| 1 | null |
| 2 | 1 |
| 3 | 1 |
| 4 | 2 |
| 5 | 2 |
Output:
±—±------+
| id | type |
±—±------+
| 1 | Root |
| 2 | Inner |
| 3 | Leaf |
| 4 | Leaf |
| 5 | Leaf |
±—±------+
Explanation:
Node 1 is the root node because its parent node is null and it has child nodes 2 and 3.
Node 2 is an inner node because it has parent node 1 and child node 4 and 5.
Nodes 3, 4, and 5 are leaf nodes because they have parent nodes and they do not have child nodes.

Example 2:

Input:
Tree table:
±—±-----+
| id | p_id |
±—±-----+
| 1 | null |
±—±-----+
Output:
±—±------+
| id | type |
±—±------+
| 1 | Root |
±—±------+
Explanation: If there is only one node on the tree, you only need to output its root attributes.

From: LeetCode
Link: 608. Tree Node

---

Solution:

Ideas:

1. Root Node: Identified by t.p_id IS NULL.
2. Inner Node: Determined by checking if the node t.id appears as a parent in the p_id column of the Tree table.
3. Leaf Node: If it doesn’t satisfy the above two conditions, it is a leaf node.

Code:

# Write your MySQL query statement below
SELECT
    t.id,
    CASE
        WHEN t.p_id IS NULL THEN 'Root'
        WHEN t.id IN (SELECT p_id FROM Tree WHERE p_id IS NOT NULL) THEN 'Inner'
        ELSE 'Leaf'
    END AS type
FROM Tree t;
