之前发布的代码只有一个reset功能,这次加入了可自定义的列表编辑功能,功能更强大了。同时优化了之前版本的reset逻辑。非常值得更新。

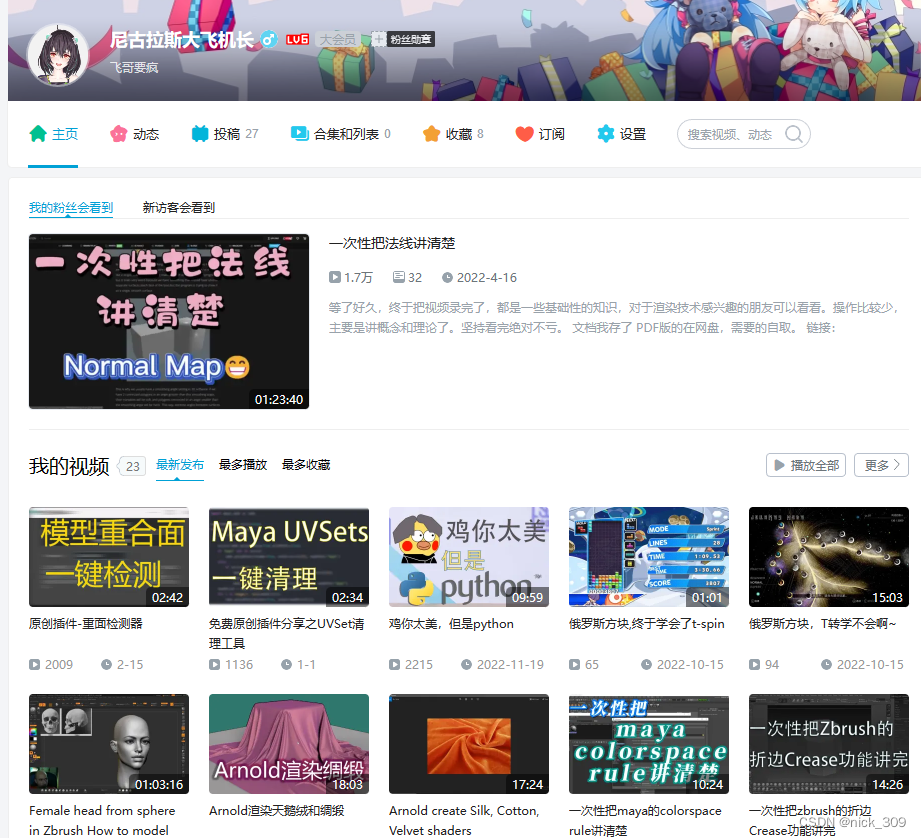

视频教程在B站,搜索尼古拉斯大飞机长。

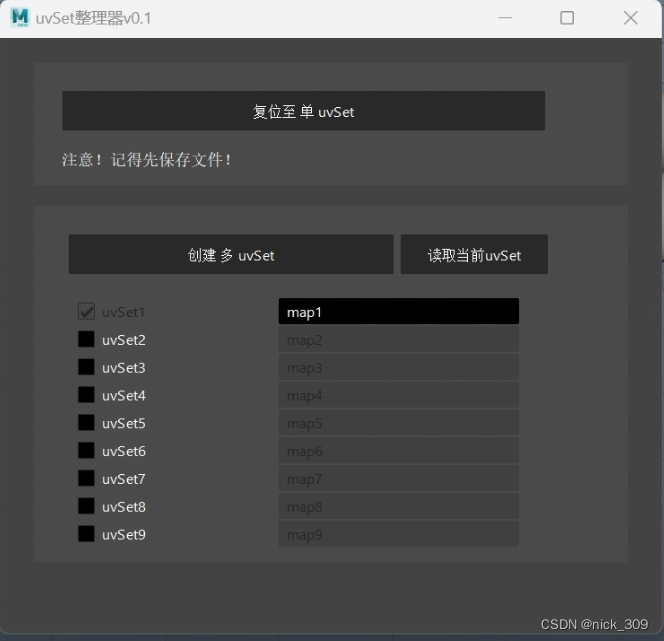

软件界面
代码如下
# coding=utf-8
# written by zhaofei
import maya.cmds as cmds
import random
def gen_random_str(randomlength=8):
"""
生成一个指定长度的随机字符串
"""
random_str = 'cu'
base_str = 'ABCDEFGHIGKLMNOPQRSTUVWXYZabcdefghigklmnopqrstuvwxyz0123456789'
length = len(base_str) - 1
for i in range(randomlength):
random_str += base_str[random.randint(0, length)]
return random_str
def resetUV():
selectOBJs = cmds.ls(sl=True, dag=True, type="mesh")
if len(selectOBJs) == 0:
cmds.warning("请选择polygon模型")
return
for obj in selectOBJs:
uvList = cmds.polyUVSet(obj, q=True, allUVSets=True)
if "map1" not in uvList:
cmds.polyUVSet(obj, rename=True, uvSet=uvList[0], newUVSet="map1")
else:
if uvList[0] != "map1":
cmds.polyUVSet(obj, delete=True, uvSet="map1")
cmds.polyUVSet(obj, rename=True, uvSet=uvList[0], newUVSet="map1")
newUVList = cmds.polyUVSet(obj, q=True, allUVSets=True)
for uvName in range(1, len(newUVList)):
cmds.polyUVSet(obj, delete=True, uvSet=newUVList[uvName])
cmds.warning("执行完毕")
def renameUV(newNameList): # 重命名UVSET输入uv数量和新名字列表
if len(cmds.ls(sl=True)) == 0:
cmds.warning("请选择polygon模型")
return
for obj in cmds.ls(sl=True):
uvList = cmds.polyUVSet(obj, q=True, allUVSets=True)
for uvIndex in range(len(newNameList)):
if uvIndex < len(uvList):
cmds.polyUVSet(obj, rename=True, uvSet=uvList[uvIndex], newUVSet=newNameList[uvIndex])
else:
cmds.polyUVSet(obj, create=True, uvSet=newNameList[uvIndex])
if len(newNameList) < len(uvList):
for uvIndex in range(len(newNameList), len(uvList)):
cmds.polyUVSet(obj, delete=True, uvSet=uvList[uvIndex])
cmds.warning("执行完毕")
def checkOnCommand(selfNum):
for cbInde in range(1, selfNum):
cmds.checkBox('uvSetCB{}'.format(cbInde), e=True, v=True)
cmds.textField("uvSetTF{}".format(cbInde + 1), en=True, e=True)
def checkOffCommand(selfNum):
for cbInde in range(selfNum, 10):
cmds.checkBox('uvSetCB{}'.format(cbInde), e=True, v=False)
cmds.textField("uvSetTF{}".format(cbInde), en=False, e=True)
def createMultiUvs():
for cbInde in range(1, 10)[::-1]:
uvAvailStat = cmds.checkBox('uvSetCB{}'.format(cbInde), q=True, v=True)
if uvAvailStat:
break
nameList = []
for nameInde in range(1, cbInde + 1):
name = cmds.textField("uvSetTF{}".format(nameInde), q=True, tx=True)
if len(name):
nameList.append(name)
else:
cmds.warning("文本框请输入uvSet {} 命名".format(nameInde))
return
tempNameList = []
for i in range(cbInde):
tempNameList.append(gen_random_str())
renameUV(tempNameList)
renameUV(nameList)
def getCurrentUVset():
selectOBJs = cmds.ls(sl=True, dag=True, type="mesh")
if len(selectOBJs) == 0:
cmds.warning("请选择模型再点击按钮,程序会读取第一个模型的uvSet信息")
return
uvList = cmds.polyUVSet(selectOBJs[0], q=True, allUVSets=True)
for uvInde, uvName in enumerate(uvList):
if uvInde <= 8:
cmds.checkBox('uvSetCB{}'.format(uvInde + 1), e=True, v=True)
cmds.textField("uvSetTF{}".format(uvInde + 1), e=True, en=True, tx=uvName)
else:
cmds.warning("当前模型uvSet数量超过9个")
break
def showUvSetRanger():
noteText_A = "注意!记得先保存文件!"
if cmds.window("uvSetRanger", ex=1) == 1:
cmds.deleteUI("uvSetRanger", window=True)
cmds.window("uvSetRanger", t="uvSet整理器v0.1", w=500, h=550)
cmds.columnLayout(columnAttach=('both', 25), rowSpacing=15, columnWidth=440, adj=1)
cmds.separator(height=2, style='none')
cmds.columnLayout(columnAttach=('both', 20), rowSpacing=15, columnWidth=400, adj=0, bgc=(0.29, 0.29, 0.29), h=90)
# cmds.columnLayout(columnAttach=('both', 20), rowSpacing=15, columnWidth=400, adj=0, bgc=(0.29, 0.29, 0.29), h=4)
# cmds.setParent("..")
cmds.separator(height=4, style='none')
cmds.button(l="复位至 单 uvSet", h=30, w=150, bgc=(0.16, 0.16, 0.16), c="resetUV()")
cmds.text(noteText_A, fn="fixedWidthFont", al="left")
cmds.setParent('..')
cmds.columnLayout(columnAttach=('both', 20), rowSpacing=15, columnWidth=440, adj=0, bgc=(0.29, 0.29, 0.29), h=265)
# cmds.columnLayout(columnAttach=('both', 20), rowSpacing=15, columnWidth=400, adj=0, bgc=(0.29, 0.29, 0.29), h=4)
# cmds.setParent("..")
cmds.separator(height=4, style='none')
cmds.rowColumnLayout(numberOfColumns=2, columnAttach=(1, 'both', 4), columnWidth=[(1, 250), (2, 110)])
cmds.button(l="创建 多 uvSet", h=30, bgc=(0.16, 0.16, 0.16), c="createMultiUvs()")
cmds.button(l="读取当前uvSet", h=30, bgc=(0.16, 0.16, 0.16), c="getCurrentUVset()")
cmds.setParent("..")
cmds.rowColumnLayout(numberOfColumns=2, columnAttach=(1, 'both', 11), columnWidth=[(1, 160), (2, 180)])
for i in range(1, 10):
if i == 1:
cmds.checkBox('uvSetCB{}'.format(i), label='uvSet{}'.format(i), v=True, en=False)
cmds.textField("uvSetTF{}".format(i), tx="map{}".format(i), en=True)
else:
cmds.checkBox('uvSetCB{}'.format(i), label='uvSet{}'.format(i), v=False,
onc='checkOnCommand({})'.format(i),
ofc='checkOffCommand({})'.format(i))
cmds.textField("uvSetTF{}".format(i), tx="map{}".format(i), en=False)
cmds.showWindow()
if __name__ == "__main__":
showUvSetRanger()
