SAP 超级BOM物料语法报表（SAP配置BOM攻略七）

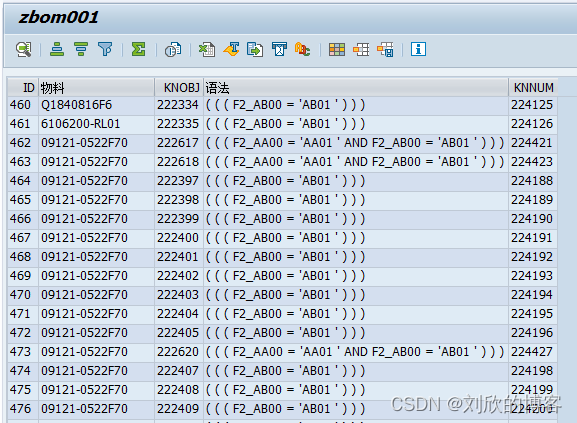

        我需要一个报表，输入超级BOM，把其中的物料的语法相关性展现出来，CS12和CS03都没有这个清单功能。网上很多CS_BOM_EXPL_MAT_V2函数的使用了，我也来一篇我的吧。



*&---------------------------------------------------------------------*
*& Report ZBOM001
*&---------------------------------------------------------------------*
*&
*&---------------------------------------------------------------------*
REPORT ZBOM001.
TABLES:CUOB,CUKN,MARC.

"定义结构体
TYPES: BEGIN OF ty_flight,
         index TYPE SY-TABIX,
         matnr TYPE STPOX-IDNRK,
         KNOBJ TYPE CUOB-knobj,
         KNBLK(250) TYPE C,
         KNNUM TYPE CUKN-KNNUM,
       END OF ty_flight.


DATA gt_flight TYPE  TABLE OF ty_flight.
DATA gs_flight TYPE  ty_flight.
DATA gt_stb like TABLE OF STPOX.
DATA gt_MAT like TABLE OF CSCMAT.

SELECTION-SCREEN BEGIN OF BLOCK b1 WITH FRAME TITLE TEXT-001.

PARAMETERS:p_matnr LIKE STPOX-IDNRK.
PARAMETERS:p_w LIKE MARC-werks.

SELECTION-SCREEN END OF BLOCK b1.


CALL FUNCTION 'CS_BOM_EXPL_MAT_V2'
 EXPORTING
   CAPID                       = 'PP01'
   DATUV                       = '20230814'
*   MMORY                       = ' '
   MTNRV                       = p_matnr
*   NLINK                       = ' '
*   STKKZ                       = ' '
   STLAL                       = '1'
   STLAN                       = '1'
*   STPST                       = 0
*   SVWVO                       = 'X'
   WERKS                       = p_w
*   NORVL                       = ' '
* IMPORTING
*   TOPMAT                      =
*   DSTST                       =
  TABLES
    stb                         = gt_stb
   MATCAT                       = gt_MAT

   EXCEPTIONS
      alt_not_found         = 1
      call_invalid          = 2
      material_not_found    = 3
      missing_authorization = 4
      no_bom_found          = 5
      no_plant_data         = 6
      no_suitable_bom_found = 7
      conversion_error      = 8
      OTHERS                = 9.

IF sy-subrc <> 0.

case sy-subrc.
  when 1. message 'alt_not_found' type 'S' display like 'E'.
  when 2. message 'call_invalid ' type 'S' display like 'E'.
  when 3. message 'material_not_found' type 'S' display like 'E'.
  when 4. message 'missing_authorization' type 'S' display like 'E'.
  when 5. message 'no_bom_found ' type 'S' display like 'E'.
  when 6. message 'no_plant_data ' type 'S' display like 'E'.
  when 7. message 'no_suitable_bom_found' type 'S' display like 'E'.
  when 8. message 'conversion_error' type 'S' display like 'E'.
endcase.

    exit.

ENDIF.





  DATA gt_CUOB TYPE SORTED TABLE OF CUOB WITH NON-UNIQUE KEY KNOBJ.
  DATA gs_CUOB TYPE CUOB.

  DATA gt_CUKN TYPE SORTED TABLE OF CUKN WITH NON-UNIQUE KEY KNNUM.
  DATA gs_CUKN TYPE CUKN.

  SELECT * INTO TABLE gt_CUOB FROM CUOB.
  SELECT * INTO TABLE gt_CUKN FROM CUKN.


  LOOP AT gt_stb ASSIGNING FIELD-SYMBOL(<FS109>) .



    READ TABLE gt_CUOB WITH  KEY  KNOBJ = <fs109>-KNOBJ INTO gs_CUOB.

         IF sy-subrc = 0.


            READ TABLE gt_CUKN WITH  KEY  KNNUM = gs_CUOB-KNNUM INTO gs_CUKN.

            IF sy-subrc = 0.
              gs_flight-matnr = <FS109>-idnrk.
              gs_flight-KNOBJ = <FS109>-KNOBJ.
              CONDENSE gs_CUKN-KNBLK.
              gs_flight-KNBLK = gs_CUKN-KNBLK+6(1024).
              gs_flight-KNNUM = gs_CUKN-KNNUM.

             APPEND gs_flight TO gt_flight.
            ENDIF.

         ENDIF.
  ENDLOOP.




LOOP AT gt_flight ASSIGNING FIELD-SYMBOL(<FS144>) .

    <FS144>-index = SY-TABIX.

ENDLOOP.




DATA: LT_FIELDCAT        TYPE SLIS_T_FIELDCAT_ALV,
        LS_FIELDCAT        TYPE SLIS_FIELDCAT_ALV,
        WS_FIELDGROUPS_TAB TYPE SLIS_T_SP_GROUP_ALV,
        WS_LAYOUT          TYPE SLIS_LAYOUT_ALV,
        WS_SORTFIELDS_TAB  TYPE SLIS_T_SORTINFO_ALV WITH HEADER LINE,
        WS_EVENTS          TYPE SLIS_T_EVENT.
  DATA: lv_pos TYPE I VALUE 0.
  DATA: TITLE TYPE LVC_TITLE.
  DATA: COLOR TYPE SLIS_T_SPECIALCOL_ALV WITH HEADER LINE.


  DEFINE macro_fieldcat.
    lv_pos = lv_pos + 1.
    ls_fieldcat-col_pos       =  lv_pos.
    ls_fieldcat-tabname       = 'gt_flight'.
    ls_fieldcat-fieldname     = &1.
    ls_fieldcat-seltext_l     = &2.
    ls_fieldcat-inttype       = &3.
    ls_fieldcat-no_zero       = &4.
    ls_fieldcat-INTLEN        = &5.
    append ls_fieldcat to lt_fieldcat .
    clear ls_fieldcat.
  END-OF-DEFINITION.

  macro_fieldcat:

    'index' 'ID' '' '' '',
    'matnr' '物料' '' '' '',
    'KNOBJ' 'KNOBJ' '' '' '',
    'KNBLK' '语法' '' '' '',
    'KNNUM' 'KNNUM' '' '' ''
  .


  WS_LAYOUT-ZEBRA             = 'X'.
  WS_LAYOUT-GET_SELINFOS      = 'X'.
  WS_LAYOUT-COLWIDTH_OPTIMIZE = 'X'.
  WS_LAYOUT-DETAIL_POPUP      = 'X'.

    CALL FUNCTION 'REUSE_ALV_GRID_DISPLAY'
      EXPORTING
        I_CALLBACK_PROGRAM       = SY-REPID
        IS_LAYOUT                = WS_LAYOUT
        IT_FIELDCAT              = LT_FIELDCAT
        IT_SPECIAL_GROUPS        = WS_FIELDGROUPS_TAB[]
        IT_SORT                  = WS_SORTFIELDS_TAB[]
        IT_EVENTS                = WS_EVENTS[]
        I_GRID_TITLE             = TITLE
        I_DEFAULT                = 'X'
        I_SAVE                   = 'A'
      TABLES
        T_OUTTAB           = gt_flight
      EXCEPTIONS
        PROGRAM_ERROR      = 1
        OTHERS             = 2.
