GEE计算DEM，坡度，坡向，山体阴影

本文主要使用gee计算坡度，坡向等，代码参考了 这篇文章，并批量导出，导入arcgis中并掩膜提取。

获取SRTMGL1_003数据

SRTM高程数据由美国宇航局（NASA）、美国国家地理空间情报局（NGA）和德国、意大利航天机构于 2000年2月 通过航天飞机 Endeavour 号联合采集，覆盖范围在北纬60°至南纬56°之间的全球陆地表面，大约覆盖全球80%的陆地。

在gee中的获取

//研究区的矢量数据
var roi = ee.FeatureCollection("projects/ee-gorilla/assets/shenyang");
Map.centerObject(roi,7);

//获取SRTMGL1_003 数据
var dataset = ee.Image('USGS/SRTMGL1_003')
                .clip(roi);

分别提取各地形因子

// 计算地形特征
var terrain = ee.Algorithms.Terrain(dataset);
Map.addLayer(terrain,{},"terrain");
print("terrain",terrain);

//海拔
var elevation = terrain.select('elevation');
Map.addLayer(elevation,{},"elevation")

//坡度
var slope = terrain.select('slope');
Map.addLayer(slope,{},"slope")

//坡向
var aspect = terrain.select('aspect');
Map.addLayer(aspect,{},"aspect")

//山体阴影
var hillshade = terrain.select('hillshade');
Map.addLayer(hillshade,{},"hillshade")

批量导出

function batchExport(img, bandName) {
  var clippedImg = img.clipToCollection(roi);
  Export.image.toDrive({
    image: clippedImg,
    description: bandName + '_Export',
    fileNamePrefix: 'SY_' + bandName,
    region: roi.geometry(),
    scale: 30,
    maxPixels: 1e13,
    crs: 'EPSG:4326',
    fileFormat: 'GeoTIFF'
  });
}


batchExport(elevation, 'Elevation');
batchExport(slope, 'Slope');
batchExport(aspect, 'Aspect');
batchExport(hillshade, 'Hillshade');

完整代码

var roi = ee.FeatureCollection("projects/ee-gorilla/assets/shenyang");
Map.centerObject(roi,7);

//获取SRTMGL1_003 数据
var dataset = ee.Image('USGS/SRTMGL1_003')
                .clip(roi);
// 计算地形特征
var terrain = ee.Algorithms.Terrain(dataset);
Map.addLayer(terrain,{},"terrain");
print("terrain",terrain);

//海拔
var elevation = terrain.select('elevation');
Map.addLayer(elevation,{},"elevation")

//坡度
var slope = terrain.select('slope');
Map.addLayer(slope,{},"slope")

//坡向
var aspect = terrain.select('aspect');
Map.addLayer(aspect,{},"aspect")

//山体阴影
var hillshade = terrain.select('hillshade');
Map.addLayer(hillshade,{},"hillshade")

// 批量导出函数
function batchExport(img, bandName) {
  var clippedImg = img.clipToCollection(roi);
  Export.image.toDrive({
    image: clippedImg,
    description: bandName + '_Export',
    fileNamePrefix: 'SY_' + bandName,
    region: roi.geometry(),
    scale: 30,
    maxPixels: 1e13,
    crs: 'EPSG:4326',
    fileFormat: 'GeoTIFF'
  });
}


batchExport(elevation, 'Elevation');
batchExport(slope, 'Slope');
batchExport(aspect, 'Aspect');
batchExport(hillshade, 'Hillshade');

结果如下

提示：由于从gee导出的结果没有裁剪，需要掩膜提取

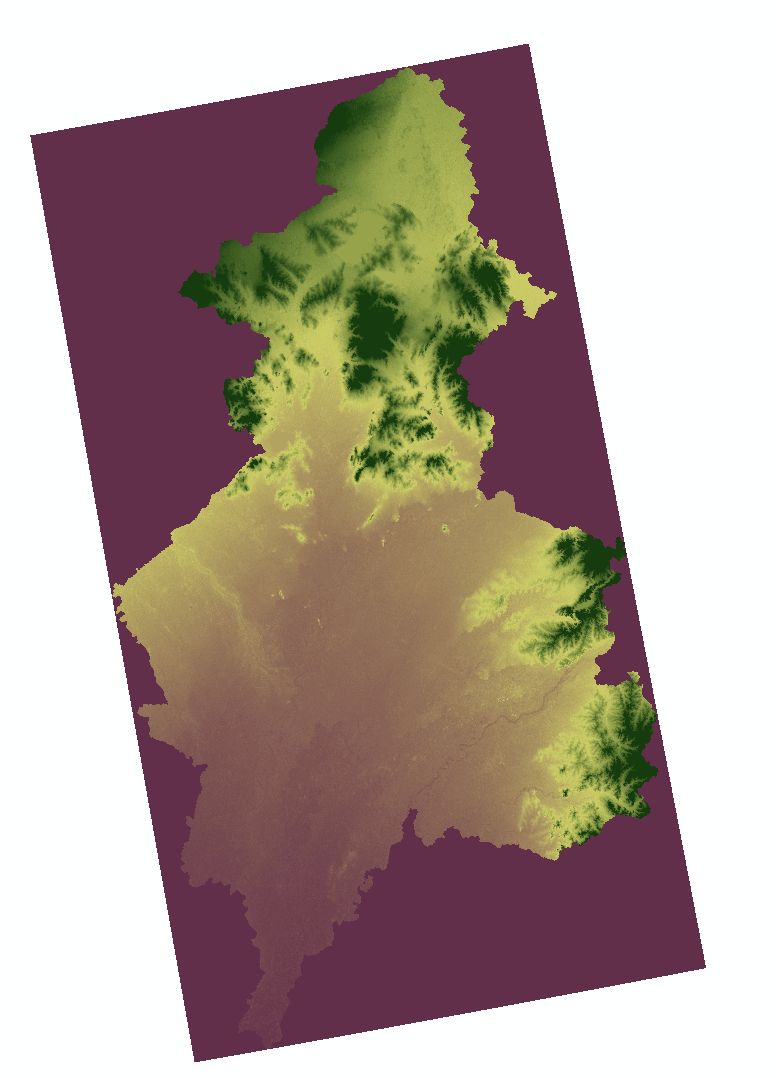

Elevation:

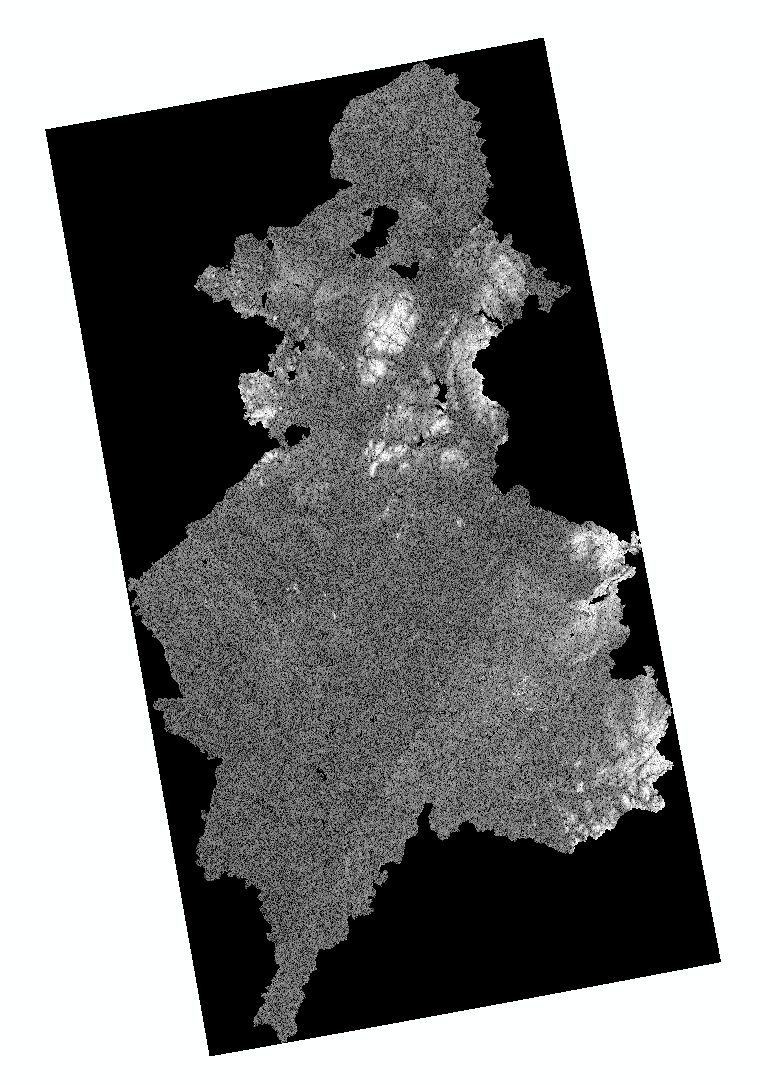

Slope:

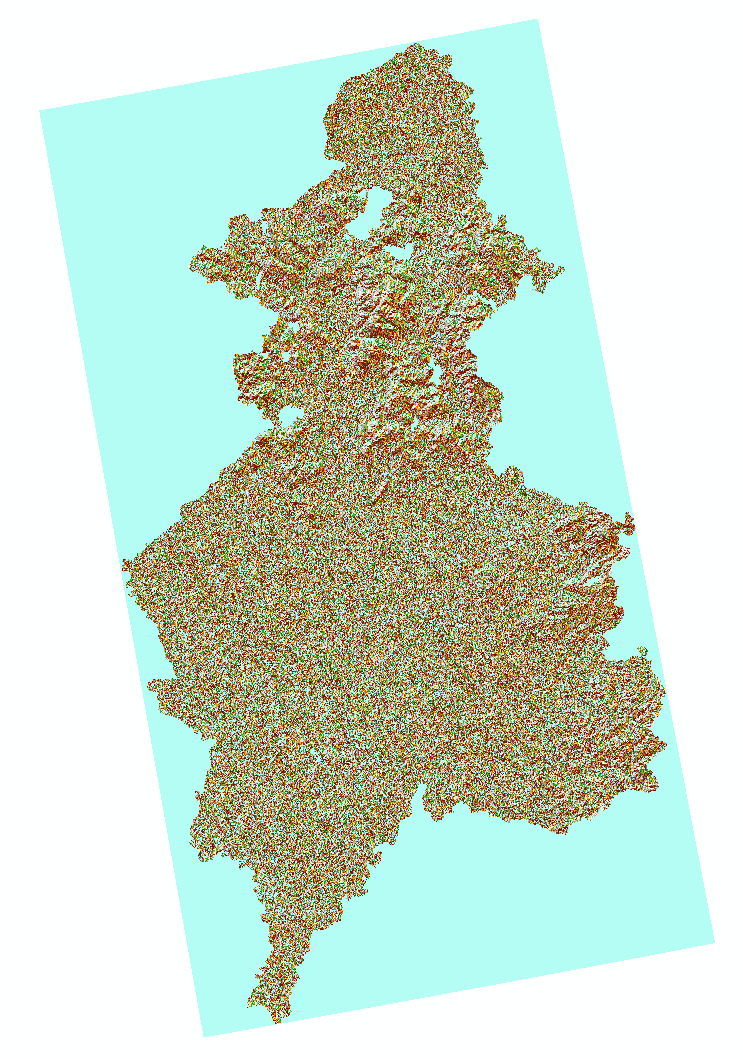

Aspect:

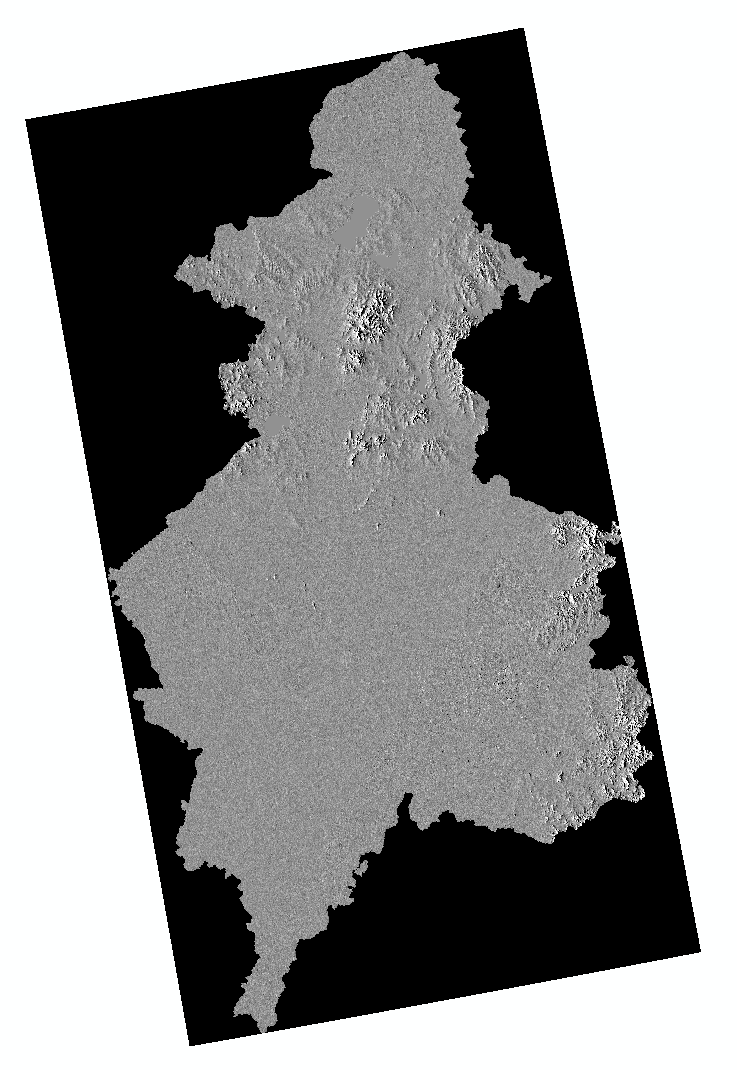

Hillshade:

掩膜提取

在Arcgis中的工具箱中找到【Spatial Analyst 工具】->【提取分析】->【按掩膜提取】
