WPF ComboBox里嵌入TreeView的实现（MVVM）

WPF ComboBox里嵌入TreeView的实现（MVVM）

前言

因为项目需要，需要ComboBox控件里有树形结构，也在网上看到很多，有复杂的也有简单实现的，自己在实现过程中也遇到了一些问题，在此分享一下自己的实现方式，有问题也欢迎大家私信我共同探讨和指教。
首先我是参考网友的实现方式：WPF之Treeview实现MVVM双向绑定
废话不多说，切入正题。。。

Xaml文件

    <StackPanel Orientation="Vertical">
        <ComboBox Name="com" SelectedIndex="{Binding ComboSelected}">
            <i:Interaction.Triggers>
                <i:EventTrigger EventName="SelectionChanged">
                    <i:InvokeCommandAction Command="{Binding SelectionChangedCommand}"
                             CommandParameter="{Binding ElementName=com,Path=SelectedItem}"/>
                </i:EventTrigger>
            </i:Interaction.Triggers>
            <ComboBoxItem Content="{Binding ShowName}" Visibility="Collapsed"/>
            <ComboBoxItem  FocusVisualStyle="{x:Null}">
                <ItemsControl>
                    <TreeView x:Name="treeView" ItemsSource="{Binding TypeList}" Height="200" Width="{Binding ElementName=com, Path=ActualWidth}">
                        <i:Interaction.Triggers>
                            <i:EventTrigger EventName="SelectedItemChanged">
                                <i:InvokeCommandAction Command="{Binding SelectItemChangeCommand}"
                             CommandParameter="{Binding ElementName=treeView,Path=SelectedItem}"/>
                            </i:EventTrigger>
                        </i:Interaction.Triggers>
                        <TreeView.Resources>
                            <HierarchicalDataTemplate DataType="{x:Type m:TypeTreeModel}" ItemsSource="{Binding ChildList}">
                                <StackPanel Orientation="Horizontal">
                                    <!--<Image Source="/images/OIP-C.jpg" Width="15" Height="15"/>-->
                                    <TextBlock Text="{Binding Name}" Margin="3,2"/>
                                    <TextBlock Text=" [" Foreground="Blue" />
                                    <TextBlock Text="{Binding ChildList.Count}" Foreground="Blue" />
                                    <TextBlock Text="]" Foreground="Blue" />
                                </StackPanel>
                                <!--<TextBlock Text="{Binding Name}" Margin="3,2"/>-->
                            </HierarchicalDataTemplate>
                            <DataTemplate DataType="{x:Type m:TypeModel}">
                                <StackPanel Orientation="Horizontal">
                                    <!--<Image Source="/images/OIP-D.jpg" Width="15" Height="15"/>-->
                                    <!--<TextBlock Text="{Binding Name}" ToolTip="{Binding Id}" Margin="3,2"/>-->
                                    <TextBlock Text="{Binding Name}" Margin="3,2"/>
                                    <TextBlock Text=" (" Foreground="Green" />
                                    <TextBlock Text="{Binding Id}" Foreground="Green" />
                                    <TextBlock Text=" )" Foreground="Green" />
                                </StackPanel>
                                <!--<TextBlock Text="{Binding Name}" ToolTip="{Binding Id}" Margin="3,2"></TextBlock>-->
                            </DataTemplate>
                        </TreeView.Resources>
                    </TreeView>
                </ItemsControl>
            </ComboBoxItem>
        </ComboBox>
        <!--<TreeView x:Name="treeView" ItemsSource="{Binding TypeList}">
            <i:Interaction.Triggers>
                <i:EventTrigger EventName="SelectedItemChanged">
                    <i:InvokeCommandAction Command="{Binding SelectItemChangeCommand}"
                             CommandParameter="{Binding ElementName=treeView,Path=SelectedItem}"/>
                </i:EventTrigger>
            </i:Interaction.Triggers>
            <TreeView.Resources>
                <HierarchicalDataTemplate DataType="{x:Type m:TypeTreeModel}" ItemsSource="{Binding ChildList}">
                    <TextBlock Text="{Binding Name}" Margin="3,2"/>
                </HierarchicalDataTemplate>
                <DataTemplate DataType="{x:Type m:TypeModel}">
                    <TextBlock Text="{Binding Name}" ToolTip="{Binding Id}" Margin="3,2"></TextBlock>
                </DataTemplate>
            </TreeView.Resources>
        </TreeView>-->
    </StackPanel>

需要注意的是，将直接绑定事件切换到通过Command绑定的实现方式：

• 添加GuNet包（搜索Interactivity）
• XAML文件引入：xmlns:i=“clr-namespace:System.Windows.Interactivity;assembly=System.Windows.Interactivity”
• 添加代码

            <i:Interaction.Triggers>
                <i:EventTrigger EventName="SelectionChanged">
                    <i:InvokeCommandAction Command="{Binding SelectionChangedCommand}"
                             CommandParameter="{Binding ElementName=com,Path=SelectedItem}"/>
                </i:EventTrigger>
            </i:Interaction.Triggers>

• 引用MVVM库，可以参考：WPF MVVM通用封装库
• 后台逻辑（ViewModel）命令声明与使用

            SelectItemChangeCommand = new RelayCommand<TypeModel>(onSelectItemChange);
            SelectionChangedCommand = new RelayCommand(onSelectionChanged);

        public RelayCommand<TypeModel> SelectItemChangeCommand { get; set; }
        public RelayCommand SelectionChangedCommand { get; set; }

后台逻辑（ViewModel）

    public class ViewModel:ViewModelBase
    {

        public ObservableCollection<TypeTreeModel> TypeList { get; set; } = new ObservableCollection<TypeTreeModel>();

        public ViewModel()
        {
            TypeList = new ObservableCollection<TypeTreeModel>(GetData());

            SelectItemChangeCommand = new RelayCommand<TypeModel>(onSelectItemChange);
            SelectionChangedCommand = new RelayCommand(onSelectionChanged);
        }

        public RelayCommand<TypeModel> SelectItemChangeCommand { get; set; }
        public RelayCommand SelectionChangedCommand { get; set; }

        private TypeModel selectItem;
        public TypeModel SelectItem
        {
            get { return selectItem; }
            set
            {
                selectItem = value;
                RaisePropertyChanged(() => SelectItem);
            }
        }

        private string showName;
        public string ShowName
        {
            get { return showName; }
            set
            {
                showName = value;
                RaisePropertyChanged(() => ShowName);
            }
        }


        private int comboSelected;
        public int ComboSelected
        {
            get { return comboSelected; }
            set
            {
                comboSelected = value;
                RaisePropertyChanged(() => ComboSelected);
            }
        }


        private List<TypeTreeModel> GetData()
        {
            List<TypeTreeModel> typeTrees = new List<TypeTreeModel>()
            {
                new TypeTreeModel()
                {
                    Id = 1,
                    Name = "手机",
                    ChildList = new ObservableCollection<TypeTreeModel>()
                    {
                        new TypeTreeModel(){ Id=2,Name="苹果" },
                        new TypeTreeModel(){ Id=3,Name="华为",
                            ChildList = new ObservableCollection<TypeTreeModel>()
                            {
                                new TypeTreeModel(){Id=4,Name="荣耀" },
                            }},
                        new TypeTreeModel(){ Id=5,Name="小米",
                            ChildList = new ObservableCollection<TypeTreeModel>()
                            {
                                new TypeTreeModel(){Id=6,Name="红米" }
                            }}
                    }
                },
                new TypeTreeModel()
                {
                    Id=7,
                    Name="笔记本",
                    ChildList = new ObservableCollection<TypeTreeModel>()
                    {
                        new TypeTreeModel(){Id=8,Name="联想"}
                    }
                },
                new TypeTreeModel()
                {
                    Id=9,
                    Name="耳机"
                }
            };
            return typeTrees;
        }

        private void onSelectItemChange(TypeModel type)
        {
            SelectItem=type;
            ShowName = SelectItem.Name;

        }

        private void onSelectionChanged()
        {
            ComboSelected = 0;
        }
    }

数据类

    public class TypeTreeModel: TypeModel
    {
        public ObservableCollection<TypeTreeModel> ChildList { get; set; }
            = new ObservableCollection<TypeTreeModel>();
    }

    public class TypeModel
    {
        public int Id { get; set; }
        public string Name { get; set; }
        public bool IsSelected { get; set; }
    }

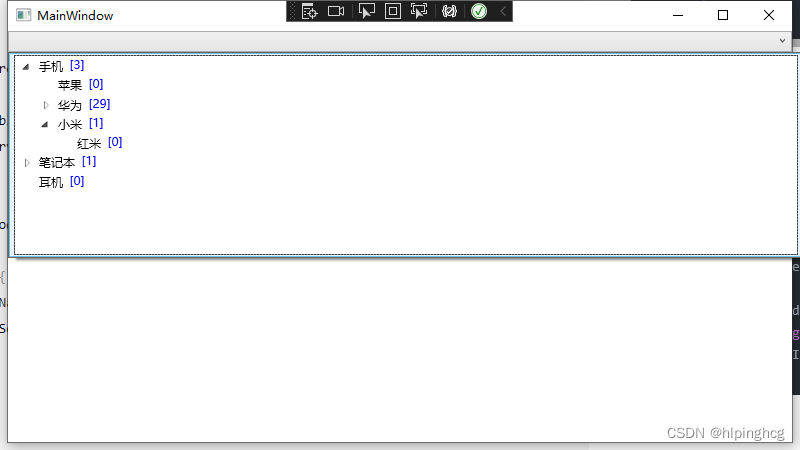

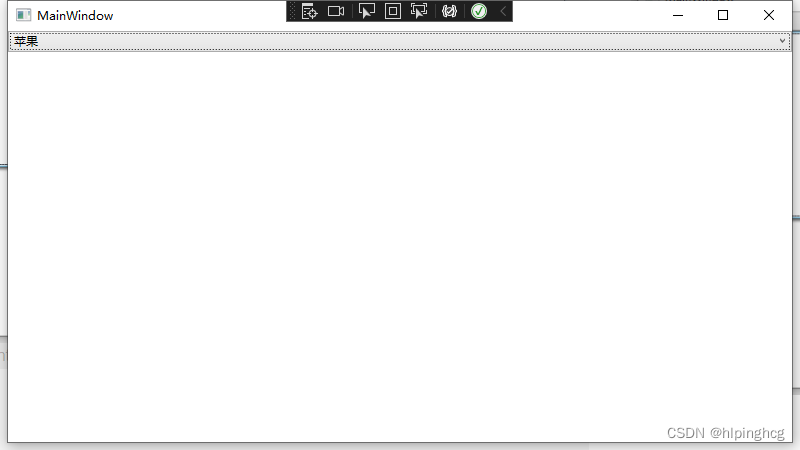

最终效果
