esp32c3 xiao 脚本记录

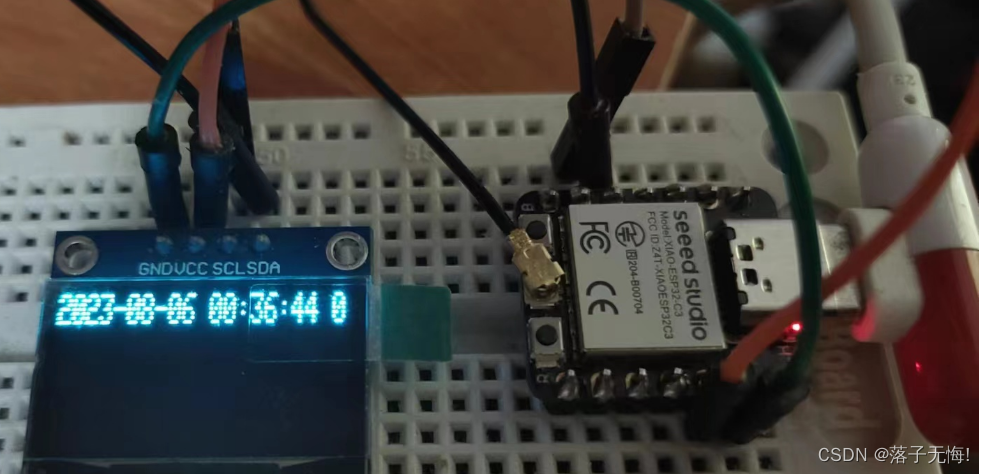

1. oled显示网络时间, wifi链接网络

// ntp_get_date.h
#include "time.h"

String week[8] = {
  "Sun", "Mon", "Tues", "Wednes", "Thur", "Fri", "Sat"
};

void printLocalTime(Adafruit_SSD1306 &display) { //打印本地时间函数
  struct tm timeinfo;
  if(!getLocalTime( & timeinfo)) {
    Serial.println("Failed to obtain time");
    return;
  }
  Serial.println(&timeinfo, "%A, %Y-%m-%d %H:%M:%S");
  char display_str[30] = {0};
  sprintf(display_str,"%04d-%02d-%02d %02d:%02d:%02d %01d",
    timeinfo.tm_year+1900,
    timeinfo.tm_mon+1,
    timeinfo.tm_mday,
    timeinfo.tm_hour,
    timeinfo.tm_min,
    timeinfo.tm_sec, timeinfo.tm_wday);
  display.clearDisplay();
  display.setCursor(0, 0);
  display.println(display_str);
  display.display();
}

const char * ntpServer = "pool.ntp.org";
const long gmtOffset_sec = 28800;
const int daylightOffset_sec = 0;

void ntp_get_date_init() {
  // 将请求数据包传输到NTP服务器，并将接收到的时间戳数据包解析为可读格式
  configTime(gmtOffset_sec, daylightOffset_sec, ntpServer);
}

// main.cpp
#include <Arduino.h>
#include <WiFi.h>
#include <Adafruit_SSD1306.h>
#include "ntp_get_date.h"
Adafruit_SSD1306 display = Adafruit_SSD1306(128, 32, &Wire);

const char* id="Wifi账号";   //定义两个字符串指针常量
const char* psw="wifi密码";

void setup() {
  // 串口初始化
  Serial.begin(115200);
  // oled初始化
  if (!display.begin(SSD1306_SWITCHCAPVCC, 0x3C)) { // Address 0x3C for 128x32
    Serial.println(F("SSD1306 allocation failed"));
    for (;;)
      ; // Don't proceed, loop forever
  }
  display.display();
  delay(500);
  display.setTextSize(1);
  display.setTextColor(WHITE);
  display.setRotation(0);
  display.clearDisplay();
  // wifi初始化
  WiFi.begin(id,psw);
  while(WiFi.status()!=WL_CONNECTED){			//未连接上
    delay(500);
    Serial.println("connection...");
  }
  display.setCursor(0, 0);
  display.println("wifi connect to Wifi007 success");
  display.display();
  Serial.println("wifi connect to Wifi007 success");

  ntp_get_date_init();
}


void loop() {
  printLocalTime(display);
  delay(500);
}

2. mqtt订阅和发布信息

服务端 docker安装emqx

# http://t.csdn.cn/PqPEo
docker run -dit --name emqx -p 18083:18083 -p 1883:1883 -p 8083:8083 -p 8084:8084 emqx/emqx:latest

浏览器登录: http://192.168.3.12:18083/#/dashboard/overview
admin 密码是public

18083 管理控制端口
1883 mqtt协议端口
8083 MQTTwebSocket端口

# 认证方式
https://blog.csdn.net/weixin_43869518/article/details/127558282

客户端 esp32c3 xiao

#include <Arduino.h>
#include <WiFi.h>
#include <PubSubClient.h>

const char* id="wifi账号";   //定义两个字符串指针常量
const char* psw="wifi密码";
const char* mqtt_server = "192.168.3.12"; // 服务IP
const uint16_t mqtt_port = 1883; // 服务端口

WiFiClient espClient; // WiFi客户端节点
PubSubClient mqttClient(espClient); //

void callback(char* topic, byte* payload, unsigned int length);
void reconnect();


void setup() {
  // 串口初始化
  Serial.begin(115200);

  // wifi初始化
  WiFi.mode(WIFI_STA);
  WiFi.begin(id, psw);
  while(WiFi.status()!=WL_CONNECTED){			//未连接上
    delay(500);
    Serial.println("connection...");
  }
  Serial.println("wifi connect to Wifi007 success");
  mqttClient.setServer(mqtt_server, mqtt_port);
  mqttClient.setCallback(callback);
  randomSeed(micros());
}


#define MSG_BUFFER_SIZE	(50)
char msg[MSG_BUFFER_SIZE];
int value = 0;
unsigned long lastMsg = 0;

void loop() {
  if (!mqttClient.connected()) {
    reconnect();
  }
  mqttClient.loop();

  /*
    下面是给订阅的消息队列发送随机数, 也就是mqtt的发布
  */
  unsigned long now = millis();
  if (now - lastMsg > 2000) {
    lastMsg = now;
    value = random(1,50);//生成一个随机数
    snprintf (msg, MSG_BUFFER_SIZE, "%ld", value);//将随机数转变成为字符串
    Serial.print("Publish message: ");
    Serial.println(msg);
    mqttClient.publish("test/topic2", msg);//发布这个随机数
  }
}

/**
 * 下面是订阅获取数据
*/
void callback(char* topic, byte* payload, unsigned int length) {
  Serial.print("Message arrived [");
  Serial.print(topic);
  Serial.print("] ");
  for (int i = 0; i < length; i++) {
    Serial.print((char)payload[i]);
  }
  Serial.println();
}

void reconnect() {
  while (!mqttClient.connected()) {
    Serial.print("Attempting MQTT connection...");
    if (mqttClient.connect("ESP32Client")) {
      Serial.println("connected");

      // 一旦连接上了，就发布一个主题，这个主题是自定义的，您可以在自己的MQTT服务器进行查看
      mqttClient.publish("test/topic2", "hello world");
      // subscribe是订阅的意思，MQTT通信的核心就是“订阅+发布”

      mqttClient.subscribe("test/topic1");
      mqttClient.subscribe("test/topic2");
    } else {
      Serial.print("failed, rc=");
      Serial.print(mqttClient.state());
      Serial.println(" try again in 5 seconds");
      delay(5000);
    }
  }
}

客户端加密码校验

1. 服务端通过访问数据库来校验账号密码
2. 客户端通过账号密码进行connect

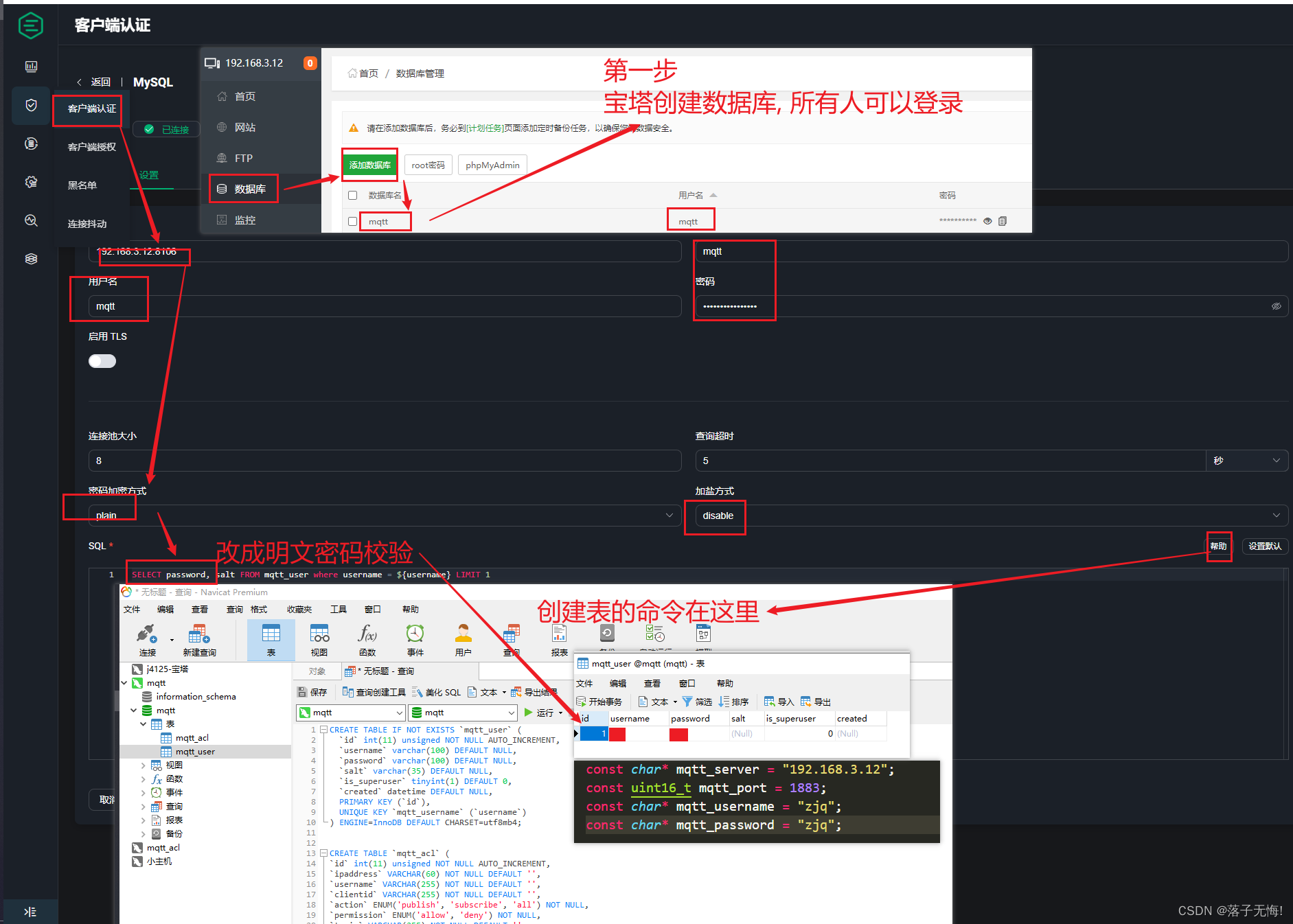

服务端配置

第一步创建数据库, 并且根据emqx的创建表提示创建表
第二步在表中添加数据
第三步在emqx的客户端认证中增加账号密码

客户端通过账号密码登录

void reconnect() {
  while (!mqttClient.connected()) {
    Serial.print("Attempting MQTT connection...");
    if (mqttClient.connect(CLIENT_ID, mqtt_username, mqtt_password)) {
      Serial.println("connected");

      // 一旦连接上了，就发布一个主题，这个主题是自定义的，您可以在自己的MQTT服务器进行查看
      mqttClient.publish("test/topic2", "hello world");
      // subscribe是订阅的意思，MQTT通信的核心就是“订阅+发布”

      mqttClient.subscribe("test/topic1");
      mqttClient.subscribe("test/topic2");
    } else {
      Serial.print("failed, rc=");
      Serial.print(mqttClient.state());
      Serial.println(" try again in 5 seconds");
      delay(5000);
    }
  }
}

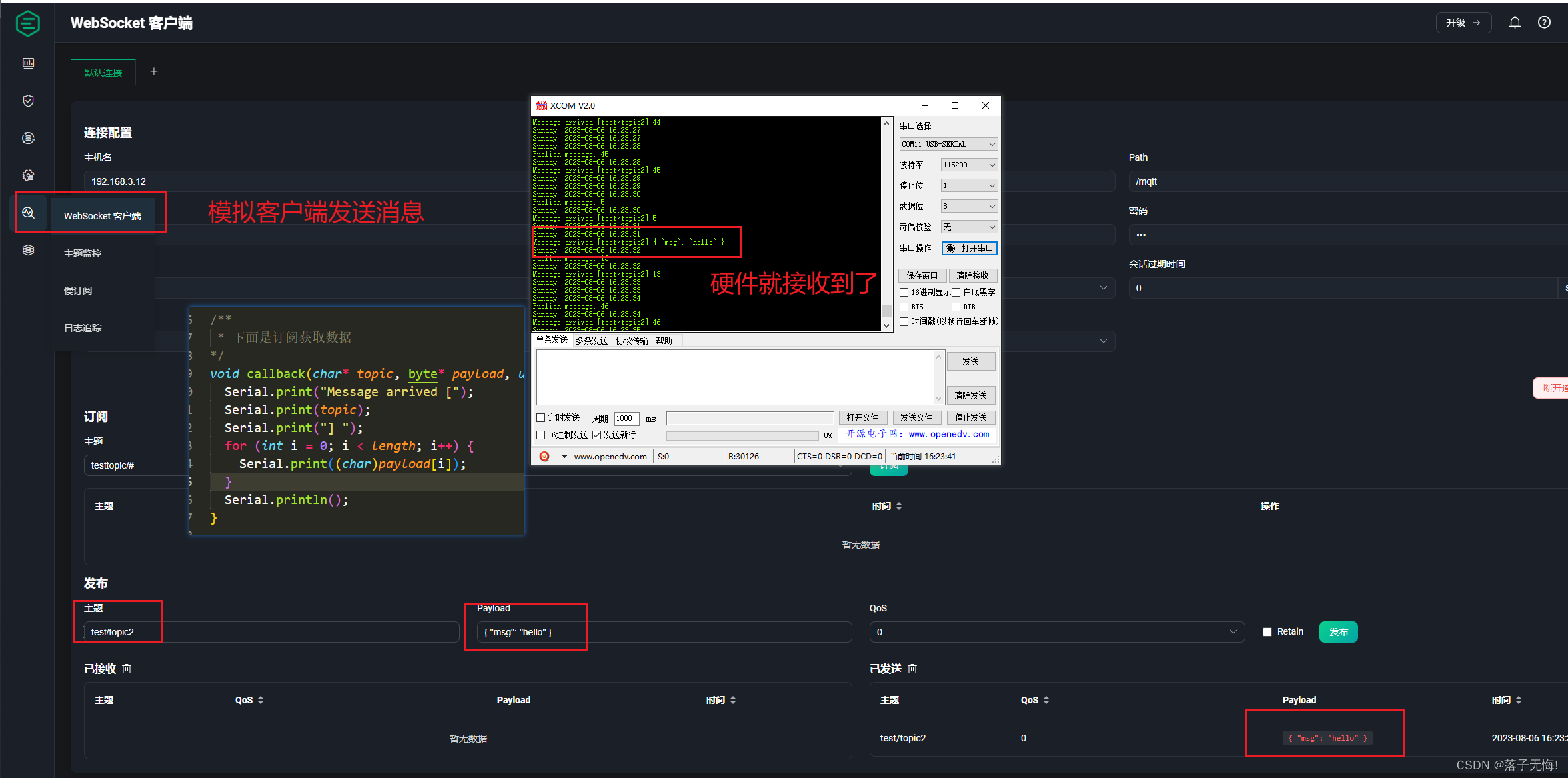

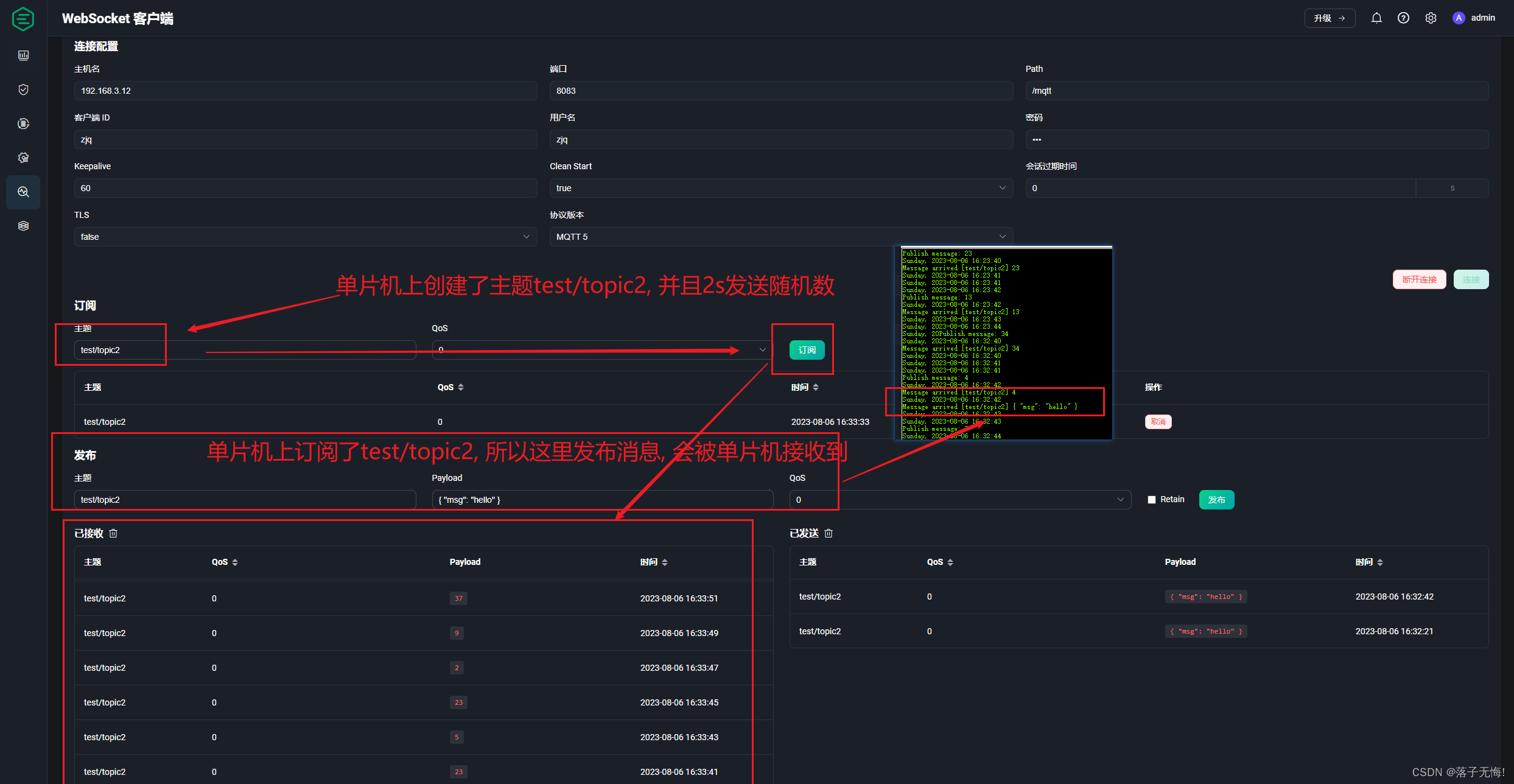

最后的效果图, 通过web客户端发送主题消息, topic2, 客户端能够接收到

这里在增加一个demo， arduino显示电脑CPU和内存的信息(脚本自己写，只提供思路)

# 服务器上安装客户端
sudo apt  install mosquitto-clients

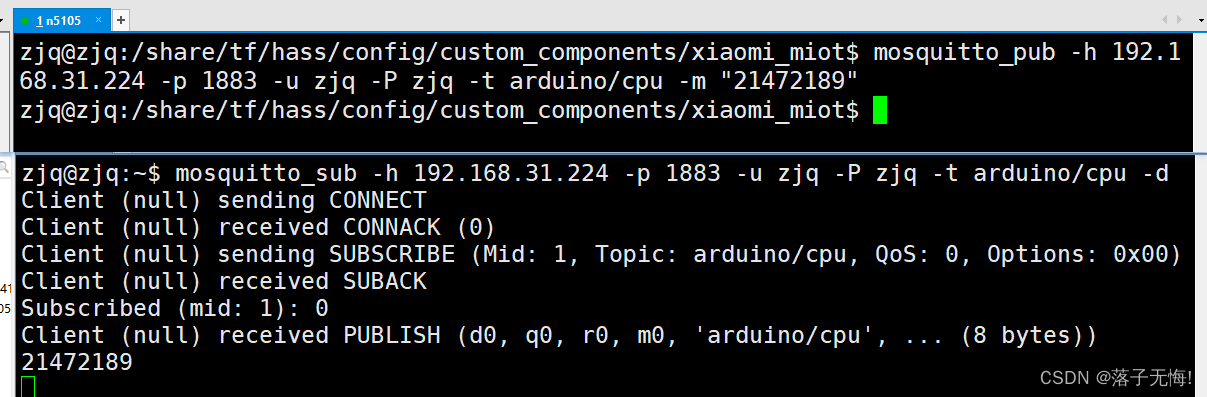

zjq@zjq:~$ mosquitto_sub -h 192.168.31.224 -p 8083 -u zjq -P zjq -t arduino/cpu

# 这里可以查一下mqtt docker部署的端口号到底是啥
^Czjq@zjq:~$ mosquitto_sub -h 192.168.31.224 -p 1883 -u zjq -P zjq -t arduino/cpu -d
Client (null) sending CONNECT
Client (null) received CONNACK (0)
Client (null) sending SUBSCRIBE (Mid: 1, Topic: arduino/cpu, QoS: 0, Options: 0x00)
Client (null) received SUBACK
Subscribed (mid: 1): 0
Client (null) received PUBLISH (d0, q0, r0, m0, 'arduino/cpu', ... (18 bytes))
{ "msg": "hello" }


# 发送信息
mosquitto_pub -h 192.168.31.224 -p 1883 -u zjq -P zjq -t arduino/cpu -m "21472189"
