yolov8剪枝实践

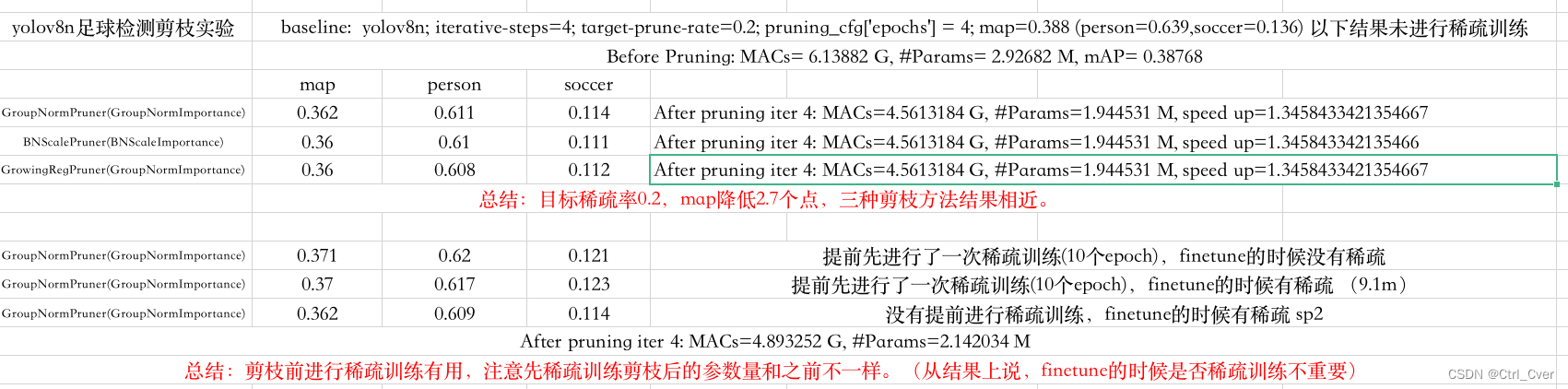

本文使用的剪枝库是torch-pruning ，实验了该库的三个剪枝算法GroupNormPruner、BNScalePruner和GrowingRegPruner。

更新： 有读者说下载最新的yolov8会报错；本文使用的版本是 https://pypi.org/project/ultralytics/8.0.132/#files

安装使用

1. 安装依赖库

pip install torch-pruning

2. 把 https://github.com/VainF/Torch-Pruning/blob/master/examples/yolov8/yolov8_pruning.py，文件拷贝到yolov8的根目录下。或者使用我的剪枝代码，在原有的基础上稍作修改，保存了不同剪枝阶段的模型。注意：稀疏化训练这个参数is_regularize不要开启，开启了会报错。这个需要读者把pruner传进源代码里才可以正常进行稀疏训练

# This code is adapted from Issue [#147](https://github.com/VainF/Torch-Pruning/issues/147), implemented by @Hyunseok-Kim0.
import argparse
import math
import os
os.environ["CUDA_VISIBLE_DEVICES"] = "4"
from copy import deepcopy
from datetime import datetime
from pathlib import Path
from typing import List, Union

import numpy as np
import torch
import torch.nn as nn
from matplotlib import pyplot as plt
from ultralytics import YOLO, __version__
from ultralytics.nn.modules import Detect, C2f, Conv, Bottleneck
from ultralytics.nn.tasks import attempt_load_one_weight
from ultralytics.yolo.engine.model import TASK_MAP
from ultralytics.yolo.engine.trainer import BaseTrainer
from ultralytics.yolo.utils import yaml_load, LOGGER, RANK, DEFAULT_CFG_DICT, DEFAULT_CFG_KEYS
from ultralytics.yolo.utils.checks import check_yaml
from ultralytics.yolo.utils.torch_utils import initialize_weights, de_parallel

import torch_pruning as tp


def save_pruning_performance_graph(x, y1, y2, y3):
    """
    Draw performance change graph
    Parameters
    ----------
    x : List
        Parameter numbers of all pruning steps
    y1 : List
        mAPs after fine-tuning of all pruning steps
    y2 : List
        MACs of all pruning steps
    y3 : List
        mAPs after pruning (not fine-tuned) of all pruning steps

    Returns
    -------

    """
    try:
        plt.style.use("ggplot")
    except:
        pass

    x, y1, y2, y3 = np.array(x), np.array(y1), np.array(y2), np.array(y3)
    y2_ratio = y2 / y2[0]

    # create the figure and the axis object
    fig, ax = plt.subplots(figsize=(8, 6))

    # plot the pruned mAP and recovered mAP
    ax.set_xlabel('Pruning Ratio')
    ax.set_ylabel('mAP')
    ax.plot(x, y1, label='recovered mAP')
    ax.scatter(x, y1)
    ax.plot(x, y3, color='tab:gray', label='pruned mAP')
    ax.scatter(x, y3, color='tab:gray')

    # create a second axis that shares the same x-axis
    ax2 = ax.twinx()

    # plot the second set of data
    ax2.set_ylabel('MACs')
    ax2.plot(x, y2_ratio, color='tab:orange', label='MACs')
    ax2.scatter(x, y2_ratio, color='tab:orange')

    # add a legend
    lines, labels = ax.get_legend_handles_labels()
    lines2, labels2 = ax2.get_legend_handles_labels()
    ax2.legend(lines + lines2, labels + labels2, loc='best')

    ax.set_xlim(105, -5)
    ax.set_ylim(0, max(y1) + 0.05)
    ax2.set_ylim(0.05, 1.05)

    # calculate the highest and lowest points for each set of data
    max_y1_idx = np.argmax(y1)
    min_y1_idx = np.argmin(y1)
    max_y2_idx = np.argmax(y2)
    min_y2_idx = np.argmin(y2)
    max_y1 = y1[max_y1_idx]
    min_y1 = y1[min_y1_idx]
    max_y2 = y2_ratio[max_y2_idx]
    min_y2 = y2_ratio[min_y2_idx]

    # add text for the highest and lowest values near the points
    ax.text(x[max_y1_idx], max_y1 - 0.05, f'max mAP = {max_y1:.2f}', fontsize=10)
    ax.text(x[min_y1_idx], min_y1 + 0.02, f'min mAP = {min_y1:.2f}', fontsize=10)
    ax2.text(x[max_y2_idx], max_y2 - 0.05, f'max MACs = {max_y2 * y2[0] / 1e9:.2f}G', fontsize=10)
    ax2.text(x[min_y2_idx], min_y2 + 0.02, f'min MACs = {min_y2 * y2[0] / 1e9:.2f}G', fontsize=10)

    plt.title('Comparison of mAP and MACs with Pruning Ratio')
    plt.savefig('pruning_perf_change.png')


def infer_shortcut(bottleneck):
    c1 = bottleneck.cv1.conv.in_channels
    c2 = bottleneck.cv2.conv.out_channels
    return c1 == c2 and hasattr(bottleneck, 'add') and bottleneck.add


class C2f_v2(nn.Module):
    # CSP Bottleneck with 2 convolutions
    def __init__(self, c1, c2, n=1, shortcut=False, g=1, e=0.5):  # ch_in, ch_out, number, shortcut, groups, expansion
        super().__init__()
        self.c = int(c2 * e)  # hidden channels
        self.cv0 = Conv(c1, self.c, 1, 1)
        self.cv1 = Conv(c1, self.c, 1, 1)
        self.cv2 = Conv((2 + n) * self.c, c2, 1)  # optional act=FReLU(c2)
        self.m = nn.ModuleList(Bottleneck(self.c, self.c, shortcut, g, k=((3, 3), (3, 3)), e=1.0) for _ in range(n))

    def forward(self, x):
        # y = list(self.cv1(x).chunk(2, 1))
        y = [self.cv0(x), self.cv1(x)]
        y.extend(m(y[-1]) for m in self.m)
        return self.cv2(torch.cat(y, 1))


def transfer_weights(c2f, c2f_v2):
    c2f_v2.cv2 = c2f.cv2
    c2f_v2.m = c2f.m

    state_dict = c2f.state_dict()
    state_dict_v2 = c2f_v2.state_dict()

    # Transfer cv1 weights from C2f to cv0 and cv1 in C2f_v2
    old_weight = state_dict['cv1.conv.weight']
    half_channels = old_weight.shape[0] // 2
    state_dict_v2['cv0.conv.weight'] = old_weight[:half_channels]
    state_dict_v2['cv1.conv.weight'] = old_weight[half_channels:]

    # Transfer cv1 batchnorm weights and buffers from C2f to cv0 and cv1 in C2f_v2
    for bn_key in ['weight', 'bias', 'running_mean', 'running_var']:
        old_bn = state_dict[f'cv1.bn.{bn_key}']
        state_dict_v2[f'cv0.bn.{bn_key}'] = old_bn[:half_channels]
        state_dict_v2[f'cv1.bn.{bn_key}'] = old_bn[half_channels:]

    # Transfer remaining weights and buffers
    for key in state_dict:
        if not key.startswith('cv1.'):
            state_dict_v2[key] = state_dict[key]

    # Transfer all non-method attributes
    for attr_name in dir(c2f):
        attr_value = getattr(c2f, attr_name)
        if not callable(attr_value) and '_' not in attr_name:
            setattr(c2f_v2, attr_name, attr_value)

    c2f_v2.load_state_dict(state_dict_v2)


def replace_c2f_with_c2f_v2(module):
    for name, child_module in module.named_children():
        if isinstance(child_module, C2f):
            # Replace C2f with C2f_v2 while preserving its parameters
            shortcut = infer_shortcut(child_module.m[0])
            c2f_v2 = C2f_v2(child_module.cv1.conv.in_channels, child_module.cv2.conv.out_channels,
                            n=len(child_module.m), shortcut=shortcut,
                            g=child_module.m[0].cv2.conv.groups,
                            e=child_module.c / child_module.cv2.conv.out_channels)
            transfer_weights(child_module, c2f_v2)
            setattr(module, name, c2f_v2)
        else:
            replace_c2f_with_c2f_v2(child_module)


def save_model_v2(self: BaseTrainer):
    """
    Disabled half precision saving. originated from ultralytics/yolo/engine/trainer.py
    """
    ckpt = {
        'epoch': self.epoch,
        'best_fitness': self.best_fitness,
        'model': deepcopy(de_parallel(self.model)),
        'ema': deepcopy(self.ema.ema),
        'updates': self.ema.updates,
        'optimizer': self.optimizer.state_dict(),
        'train_args': vars(self.args),  # save as dict
        'date': datetime.now().isoformat(),
        'version': __version__}

    # Save last, best and delete
    torch.save(ckpt, self.last)
    if self.best_fitness == self.fitness:
        torch.save(ckpt, self.best)
    if (self.epoch > 0) and (self.save_period > 0) and (self.epoch % self.save_period == 0):
        torch.save(ckpt, self.wdir / f'epoch{self.epoch}.pt')
    del ckpt


def final_eval_v2(self: BaseTrainer):
    """
    originated from ultralytics/yolo/engine/trainer.py
    """
    for f in self.last, self.best:
        if f.exists():
            strip_optimizer_v2(f)  # strip optimizers
            if f is self.best:
                LOGGER.info(f'\nValidating {f}...')
                self.metrics = self.validator(model=f)
                self.metrics.pop('fitness', None)
                self.run_callbacks('on_fit_epoch_end')


def strip_optimizer_v2(f: Union[str, Path] = 'best.pt', s: str = '') -> None:
    """
    Disabled half precision saving. originated from ultralytics/yolo/utils/torch_utils.py
    """
    x = torch.load(f, map_location=torch.device('cpu'))
    args = {**DEFAULT_CFG_DICT, **x['train_args']}  # combine model args with default args, preferring model args
    if x.get('ema'):
        x['model'] = x['ema']  # replace model with ema
    for k in 'optimizer', 'ema', 'updates':  # keys
        x[k] = None
    for p in x['model'].parameters():
        p.requires_grad = False
    x['train_args'] = {k: v for k, v in args.items() if k in DEFAULT_CFG_KEYS}  # strip non-default keys
    # x['model'].args = x['train_args']
    torch.save(x, s or f)
    mb = os.path.getsize(s or f) / 1E6  # filesize
    LOGGER.info(f"Optimizer stripped from {f},{f' saved as {s},' if s else ''} {mb:.1f}MB")


def train_v2(self: YOLO,pruner=None, pruning=False, **kwargs):
    """
    Disabled loading new model when pruning flag is set. originated from ultralytics/yolo/engine/model.py
    """

    self._check_is_pytorch_model()
    if self.session:  # Ultralytics HUB session
        if any(kwargs):
            LOGGER.warning('WARNING ⚠️ using HUB training arguments, ignoring local training arguments.')
        kwargs = self.session.train_args
    overrides = self.overrides.copy()
    overrides.update(kwargs)
    if kwargs.get('cfg'):
        LOGGER.info(f"cfg file passed. Overriding default params with {kwargs['cfg']}.")
        overrides = yaml_load(check_yaml(kwargs['cfg']))
    overrides['mode'] = 'train'
    if not overrides.get('data'):
        raise AttributeError("Dataset required but missing, i.e. pass 'data=coco128.yaml'")
    if overrides.get('resume'):
        overrides['resume'] = self.ckpt_path

    self.task = overrides.get('task') or self.task
    self.trainer = TASK_MAP[self.task][1](overrides=overrides, _callbacks=self.callbacks)

    if not pruning:
        if not overrides.get('resume'):  # manually set model only if not resuming
            self.trainer.model = self.trainer.get_model(weights=self.model if self.ckpt else None, cfg=self.model.yaml)
            self.model = self.trainer.model

    else:
        # pruning mode
        self.trainer.pruning = True
        self.trainer.model = self.model

        # replace some functions to disable half precision saving
        self.trainer.save_model = save_model_v2.__get__(self.trainer)
        self.trainer.final_eval = final_eval_v2.__get__(self.trainer)

    self.trainer.hub_session = self.session  # attach optional HUB session
    if pruner is None:
        self.trainer.train()
    else:
        self.trainer.train(pruner)
    # Update model and cfg after training
    if RANK in (-1, 0):
        self.model, _ = attempt_load_one_weight(str(self.trainer.best))
        self.overrides = self.model.args
        self.metrics = getattr(self.trainer.validator, 'metrics', None)


def prune(args):
    # load trained yolov8 model
    base_name = 'prune/' + str(datetime.now()) + '/'
    model = YOLO(args.model)
    model.__setattr__("train_v2", train_v2.__get__(model))
    pruning_cfg = yaml_load(check_yaml(args.cfg))
    batch_size = pruning_cfg['batch']
    is_regularize = args.is_regularize
    sparse_train_epoch = args.sparse_train_epoch
    finetune_epoch = args.finetune_epoch

    # use coco128 dataset for 10 epochs fine-tuning each pruning iteration step
    # this part is only for sample code, number of epochs should be included in config file
    pruning_cfg['data'] = "./ultralytics/datasets/soccer-big.yaml"
    pruning_cfg['epochs'] = finetune_epoch

    model.model.train()
    replace_c2f_with_c2f_v2(model.model)
    initialize_weights(model.model)  # set BN.eps, momentum, ReLU.inplace

    for name, param in model.model.named_parameters():
        param.requires_grad = True

    example_inputs = torch.randn(1, 3, pruning_cfg["imgsz"], pruning_cfg["imgsz"]).to(model.device)
    macs_list, nparams_list, map_list, pruned_map_list = [], [], [], []
    base_macs, base_nparams = tp.utils.count_ops_and_params(model.model, example_inputs)

    # do validation before pruning model, 剪枝前测精度和flops
    pruning_cfg['name'] = base_name+f"baseline_val"
    pruning_cfg['batch'] = 64
    validation_model = deepcopy(model)
    metric = validation_model.val(**pruning_cfg)
    init_map = metric.box.map
    macs_list.append(base_macs)
    nparams_list.append(100)
    map_list.append(init_map)
    pruned_map_list.append(init_map)
    print(f"Before Pruning: MACs={base_macs / 1e9: .5f} G, #Params={base_nparams / 1e6: .5f} M, mAP={init_map: .5f}")

    # prune same ratio of filter based on initial size
    ch_sparsity = 1 - math.pow((1 - args.target_prune_rate), 1 / args.iterative_steps)


    for i in range(args.iterative_steps):

        model.model.train()
        for name, param in model.model.named_parameters():
            param.requires_grad = True

        ignored_layers = []
        unwrapped_parameters = []
        for m in model.model.modules():
            if isinstance(m, (Detect,)):
                ignored_layers.append(m)

        example_inputs = example_inputs.to(model.device)
        pruner = tp.pruner.GroupNormPruner(
            model.model,
            example_inputs,
            importance=tp.importance.GroupNormImportance(),  # L2 norm pruning,
            iterative_steps=1,
            ch_sparsity=ch_sparsity,
            ignored_layers=ignored_layers,
            unwrapped_parameters=unwrapped_parameters
        )

        # 稀疏训练，只进行一次
        if is_regularize:
            sparse_pruner = tp.pruner.GroupNormPruner(
                model.model,
                example_inputs,
                importance=tp.importance.GroupNormImportance(),  # L2 norm pruning,
                iterative_steps=args.iterative_steps,
                ch_sparsity=args.target_prune_rate,
                ignored_layers=ignored_layers,
                unwrapped_parameters=unwrapped_parameters
            )
            pruning_cfg['epochs'] = sparse_train_epoch
            pruning_cfg['name'] = base_name+"sparse_training"
            pruning_cfg['batch'] = batch_size  # restore batch size
            model.train_v2(sparse_pruner, pruning=True, **pruning_cfg)

        # 剪枝
        pruner.step()
        pruning_cfg['epochs'] = finetune_epoch
        # pre fine-tuning validation, 剪枝后计算map
        pruning_cfg['name'] = base_name+f"step_{i}_pre_val"
        pruning_cfg['batch'] = 64
        validation_model.model = deepcopy(model.model)
        metric = validation_model.val(**pruning_cfg)
        pruned_map = metric.box.map
        if is_regularize:
            is_regularize = False
            pruned_macs, pruned_nparams = tp.utils.count_ops_and_params(pruner.model, example_inputs.cuda()) # to(model.device)
        else:
            pruned_macs, pruned_nparams = tp.utils.count_ops_and_params(pruner.model, example_inputs.to(model.device))
        current_speed_up = float(macs_list[0]) / pruned_macs
        print(f"After pruning iter {i + 1}: MACs={pruned_macs / 1e9} G, #Params={pruned_nparams / 1e6} M, "
              f"mAP={pruned_map}, speed up={current_speed_up}")

        # fine-tuning, 微调
        for name, param in model.model.named_parameters():
            param.requires_grad = True
        pruning_cfg['name'] = base_name+f"step_{i}_finetune"
        pruning_cfg['batch'] = batch_size  # restore batch size
        model.train_v2(pruning=True, **pruning_cfg)

        # post fine-tuning validation, 微调后计算map
        pruning_cfg['name'] = base_name+f"step_{i}_post_val"
        pruning_cfg['batch'] = 64
        validation_model = YOLO(model.trainer.best)
        metric = validation_model.val(**pruning_cfg)
        current_map = metric.box.map
        print(f"After fine tuning mAP={current_map}")

        macs_list.append(pruned_macs)
        nparams_list.append(pruned_nparams / base_nparams * 100)
        pruned_map_list.append(pruned_map)
        map_list.append(current_map)

        # remove pruner after single iteration
        del pruner

        model.model.zero_grad() # Remove gradients
        save_path = 'runs/detect/'+base_name+f"step_{i}_pruned_model.pth"
        torch.save(model.model,save_path) # without .state_dict
        print('pruned model saved in',save_path)
        # model = torch.load('model.pth') # load the pruned model
        save_pruning_performance_graph(nparams_list, map_list, macs_list, pruned_map_list)

        # if init_map - current_map > args.max_map_drop:
        #     print("Pruning early stop")
        #     break

    # model.export(format='onnx')


if __name__ == "__main__":
    parser = argparse.ArgumentParser()
    parser.add_argument('--model', default='runs/detect/train/weights/last.pt', help='Pretrained pruning target model file')
    parser.add_argument('--cfg', default='default.yaml',
                        help='Pruning config file.'
                             ' This file should have same format with ultralytics/yolo/cfg/default.yaml')
    parser.add_argument('--is_regularize', default=False, type=bool, help='Sparse training')
    parser.add_argument('--max-map-drop', default=1, type=float, help='Allowed maximum map drop after fine-tuning')
    parser.add_argument('--target-prune-rate', default=0.2, type=float, help='Target pruning rate')
    parser.add_argument('--iterative-steps', default=4, type=int, help='Total pruning iteration step')

    parser.add_argument('--sparse_train_epoch', default=10, type=int) # 稀疏训练次数
    parser.add_argument('--finetune_epoch', default=4, type=int) # finetune次数

    args = parser.parse_args()

    prune(args)

3. 在代码的这些位置加上一些限制，不然它会经常的验证模型：



实验结果： 结果如图所示：

额外实验：增加稀疏训练后，再剪枝。
