# 【动手教你学故障诊断:Python实现Tensorflow+CNN深度学习的轴承故障诊断（西储大学数据集）（含完整代码）】

1 篇文章 6 订阅
9 篇文章 9 订阅

### 项目相关展示

##### 基本环境介绍

Windows10

Python环境

Conda + python3.7
Tensorflow：1.7.1
keras
h5py==2.10.0

##### 数据预处理

from scipy.io import loadmat
import numpy as np
import os
from sklearn import preprocessing  # 0-1编码
from sklearn.model_selection import StratifiedShuffleSplit  # 随机划分，保证每一类比例相同

def prepro(d_path, length=864, number=1000, normal=True, rate=[0.5, 0.25, 0.25], enc=True, enc_step=28):
"""对数据进行预处理,返回train_X, train_Y, valid_X, valid_Y, test_X, test_Y样本.

:param d_path: 源数据地址
:param length: 信号长度，默认2个信号周期，864
:param number: 每种信号个数,总共10类,默认每个类别1000个数据
:param normal: 是否标准化.True,False.默认True
:param rate: 训练集/验证集/测试集比例.默认[0.5,0.25,0.25],相加要等于1
:param enc: 训练集、验证集是否采用数据增强.Bool,默认True
:param enc_step: 增强数据集采样顺延间隔
:return: Train_X, Train_Y, Valid_X, Valid_Y, Test_X, Test_Y


import preprocess.preprocess_nonoise as pre

train_X, train_Y, valid_X, valid_Y, test_X, test_Y = pre.prepro(d_path=path,
length=864,
number=1000,
normal=False,
rate=[0.5, 0.25, 0.25],
enc=True,
enc_step=28)

"""
# 获得该文件夹下所有.mat文件名
filenames = os.listdir(d_path)

def capture(original_path):
"""读取mat文件，返回字典

:param original_path: 读取路径
:return: 数据字典
"""
files = {}
for i in filenames:
# 文件路径
file_path = os.path.join(d_path, i)
file_keys = file.keys()
for key in file_keys:
if 'DE' in key:
files[i] = file[key].ravel()
return files

def slice_enc(data, slice_rate=rate[1] + rate[2]):
"""将数据切分为前面多少比例，后面多少比例.

:param data: 单挑数据
:param slice_rate: 验证集以及测试集所占的比例
:return: 切分好的数据
"""
keys = data.keys()
Train_Samples = {}
Test_Samples = {}
for i in keys:
slice_data = data[i]
all_lenght = len(slice_data)
end_index = int(all_lenght * (1 - slice_rate))
samp_train = int(number * (1 - slice_rate))  # 700
Train_sample = []
Test_Sample = []
if enc:
enc_time = length // enc_step
samp_step = 0  # 用来计数Train采样次数
for j in range(samp_train):
random_start = np.random.randint(low=0, high=(end_index - 2 * length))
label = 0
for h in range(enc_time):
samp_step += 1
random_start += enc_step
sample = slice_data[random_start: random_start + length]
Train_sample.append(sample)
if samp_step == samp_train:
label = 1
break
if label:
break
else:
for j in range(samp_train):
random_start = np.random.randint(low=0, high=(end_index - length))
sample = slice_data[random_start:random_start + length]
Train_sample.append(sample)

# 抓取测试数据
for h in range(number - samp_train):
random_start = np.random.randint(low=end_index, high=(all_lenght - length))
sample = slice_data[random_start:random_start + length]
Test_Sample.append(sample)
Train_Samples[i] = Train_sample
Test_Samples[i] = Test_Sample
return Train_Samples, Test_Samples

# 仅抽样完成，打标签
X = []
Y = []
label = 0
for i in filenames:
x = train_test[i]
X += x
lenx = len(x)
Y += [label] * lenx
label += 1
return X, Y

# one-hot编码
def one_hot(Train_Y, Test_Y):
Train_Y = np.array(Train_Y).reshape([-1, 1])
Test_Y = np.array(Test_Y).reshape([-1, 1])
Encoder = preprocessing.OneHotEncoder()
Encoder.fit(Train_Y)
Train_Y = Encoder.transform(Train_Y).toarray()
Test_Y = Encoder.transform(Test_Y).toarray()
Train_Y = np.asarray(Train_Y, dtype=np.int32)
Test_Y = np.asarray(Test_Y, dtype=np.int32)
return Train_Y, Test_Y

def scalar_stand(Train_X, Test_X):
# 用训练集标准差标准化训练集以及测试集
scalar = preprocessing.StandardScaler().fit(Train_X)
Train_X = scalar.transform(Train_X)
Test_X = scalar.transform(Test_X)
return Train_X, Test_X

def valid_test_slice(Test_X, Test_Y):
test_size = rate[2] / (rate[1] + rate[2])
ss = StratifiedShuffleSplit(n_splits=1, test_size=test_size)
for train_index, test_index in ss.split(Test_X, Test_Y):
X_valid, X_test = Test_X[train_index], Test_X[test_index]
Y_valid, Y_test = Test_Y[train_index], Test_Y[test_index]
return X_valid, Y_valid, X_test, Y_test

# 从所有.mat文件中读取出数据的字典
data = capture(original_path=d_path)
# 将数据切分为训练集、测试集
train, test = slice_enc(data)
# 为训练集制作标签，返回X，Y
# 为测试集制作标签，返回X，Y
# 为训练集Y/测试集One-hot标签
Train_Y, Test_Y = one_hot(Train_Y, Test_Y)
# 训练数据/测试数据 是否标准化.
if normal:
Train_X, Test_X = scalar_stand(Train_X, Test_X)
else:
# 需要做一个数据转换，转换成np格式.
Train_X = np.asarray(Train_X)
Test_X = np.asarray(Test_X)
# 将测试集切分为验证集合和测试集.
Valid_X, Valid_Y, Test_X, Test_Y = valid_test_slice(Test_X, Test_Y)
return Train_X, Train_Y, Valid_X, Valid_Y, Test_X, Test_Y

if __name__ == "__main__":
path = r'data\0HP'
train_X, train_Y, valid_X, valid_Y, test_X, test_Y = prepro(d_path=path,
length=864,
number=1000,
normal=False,
rate=[0.5, 0.25, 0.25],
enc=False,
enc_step=28)

##### 训练部分

data_input=Input(shape=(4000,1))
#这相当于是第一段卷积

conv1=BatchNormalization(momentum=0.8)(conv1)
conv1=MaxPool1D(pool_size=4)(conv1)

conv2=BatchNormalization(momentum=0.8)(conv2)
conv2=MaxPool1D(pool_size=4)(conv2)

conv3=BatchNormalization(momentum=0.8)(conv3)
conv3=MaxPool1D(pool_size=4)(conv3)

flatten=Flatten()(conv3)
dense_1=Dense(128)(flatten)
dense_1=Dropout(0.3)(dense_1)

output = Dense(3, activation='softmax')(dense_1)

cnn_model= Model(input=data_input, output=output)
cnn_model.summary() #打印模型结构与参数


def train(cnn_model):
# checkpoint
epoch = 50
filepath = "model\cnn-"+str(step)+"_weights"+str(epoch)+"-improvement-{epoch:02d}-{val_acc:.2f}.hdf5"
# 中途训练效果提升, 则将文件保存, 每提升一次, 保存一次
checkpoint = ModelCheckpoint(filepath, monitor='val_acc', verbose=1, save_best_only=True, mode='max')
callbacks_list = [checkpoint]

loss='categorical_crossentropy',metrics=['accuracy'])

#下面是训练了

history = cnn_model.fit( X_train, y_train, batch_size=128, epochs=epoch, verbose=1, validation_data=[X_test,y_test],callbacks=callbacks_list)

# epochs = range(len(history.history['acc']))
epochs = range(epoch)
plt.figure()

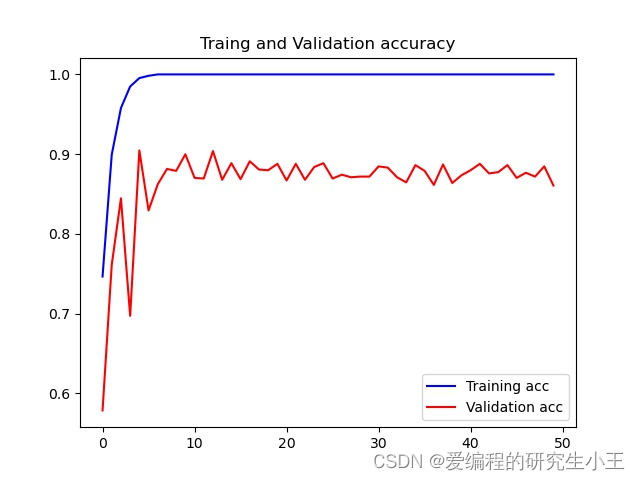

plt.plot(epochs, history.history['acc'], 'b', label='Training acc')
plt.plot(epochs, history.history['val_acc'], 'r', label='Validation acc')
plt.title('Traing and Validation accuracy')
plt.legend()
plt.savefig('model_'+str(step)+'_'+str(epoch)+'V0.1_acc.jpg')

plt.figure()

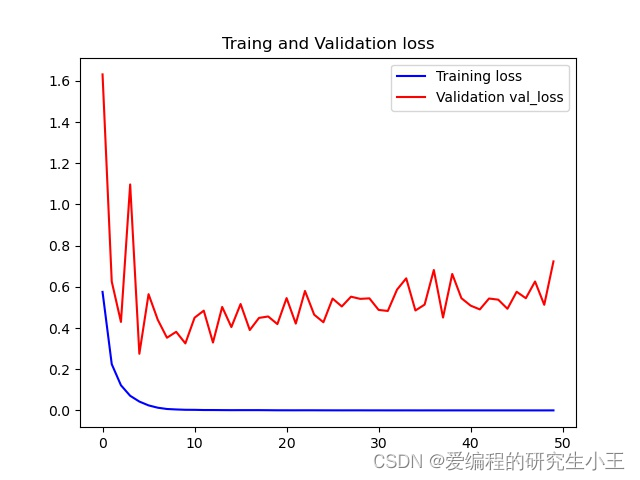

plt.plot(epochs, history.history['loss'], 'b', label='Training loss')
plt.plot(epochs, history.history['val_loss'], 'r', label='Validation val_loss')
plt.title('Traing and Validation loss')
plt.legend()
plt.savefig('model_'+str(step)+'V1'+str(epoch)+'_loss.jpg')
