Latex并列摆放两张表格

一、方法

        首先,制作两个表格,第一个表格如下

\begin{tabular}{|c|c|c|}
\hline
 A & B & C \\
\hline
 1 & 2 & 3  \\
\hline
 4 & 5 & 6 \\
\hline
\end{tabular}
\captionof{table}{table no. 1}

        第二个表格如下

\begin{tabular}{|c|c|c|}
\hline
 A & B & C \\
\hline
 1 & 2 & 3  \\
\hline
 4 & 5 & 6 \\
\hline
\end{tabular}
\captionof{table}{table no. 2}

        然后使用minipage实现表格的并列

\begin{minipage}[c]{0.5\textwidth}
\centering
表格1
\end{minipage}
\begin{minipage}[c]{0.5\textwidth}
\centering
表格2
\end{minipage}

        如果你需要在文中引用表格,请参考这篇文章的作法,为表格添加label:labels with tabular。如果不想查看这篇文章,可以这样做:在captionof中添加label,也就是

\captionof{table}{表格标题\label{表格label名}}

二、效果

        例如,LaTeX代码如下

\documentclass{article}
%...
\usepackage{caption}
%...
\begin{document}
%...
\begin{minipage}[c]{0.5\textwidth}
\centering
\begin{tabular}{|c|c|c|}
\hline
 A & B & C \\
\hline
 1 & 2 & 3  \\
\hline
 4 & 5 & 6 \\
\hline
\end{tabular}
\captionof{table}{table no. 1}
\end{minipage}
\begin{minipage}[c]{0.5\textwidth}
\centering
\begin{tabular}{|c|c|c|}
\hline
 A & B & C \\
\hline
 1 & 2 & 3  \\
\hline
 4 & 5 & 6 \\
\hline
\end{tabular}
\captionof{table}{table no. 2}
\end{minipage}
%...
\end{document}

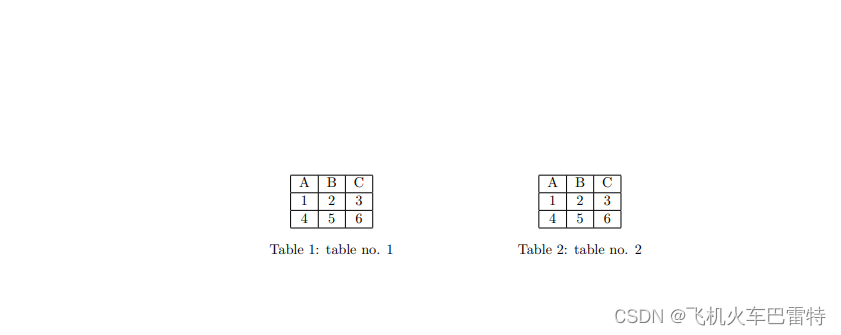

        最终的效果如下

三、参考

        two tables side by side

        tables - labels with tabular
