原创不易。

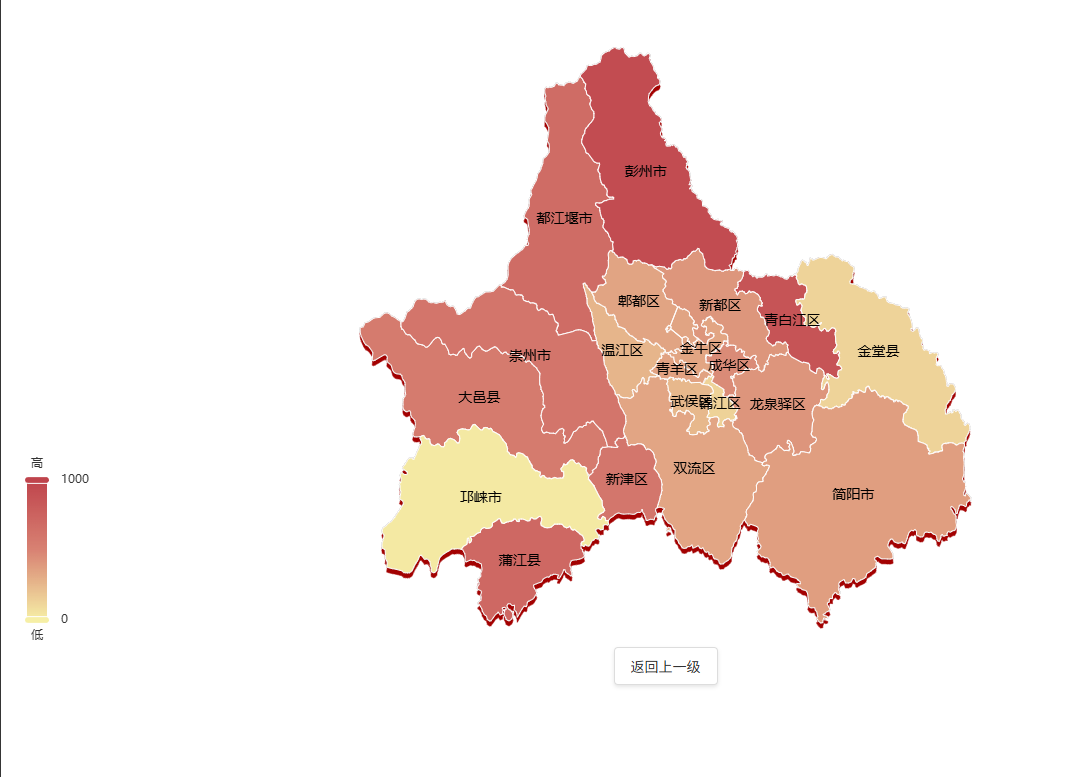

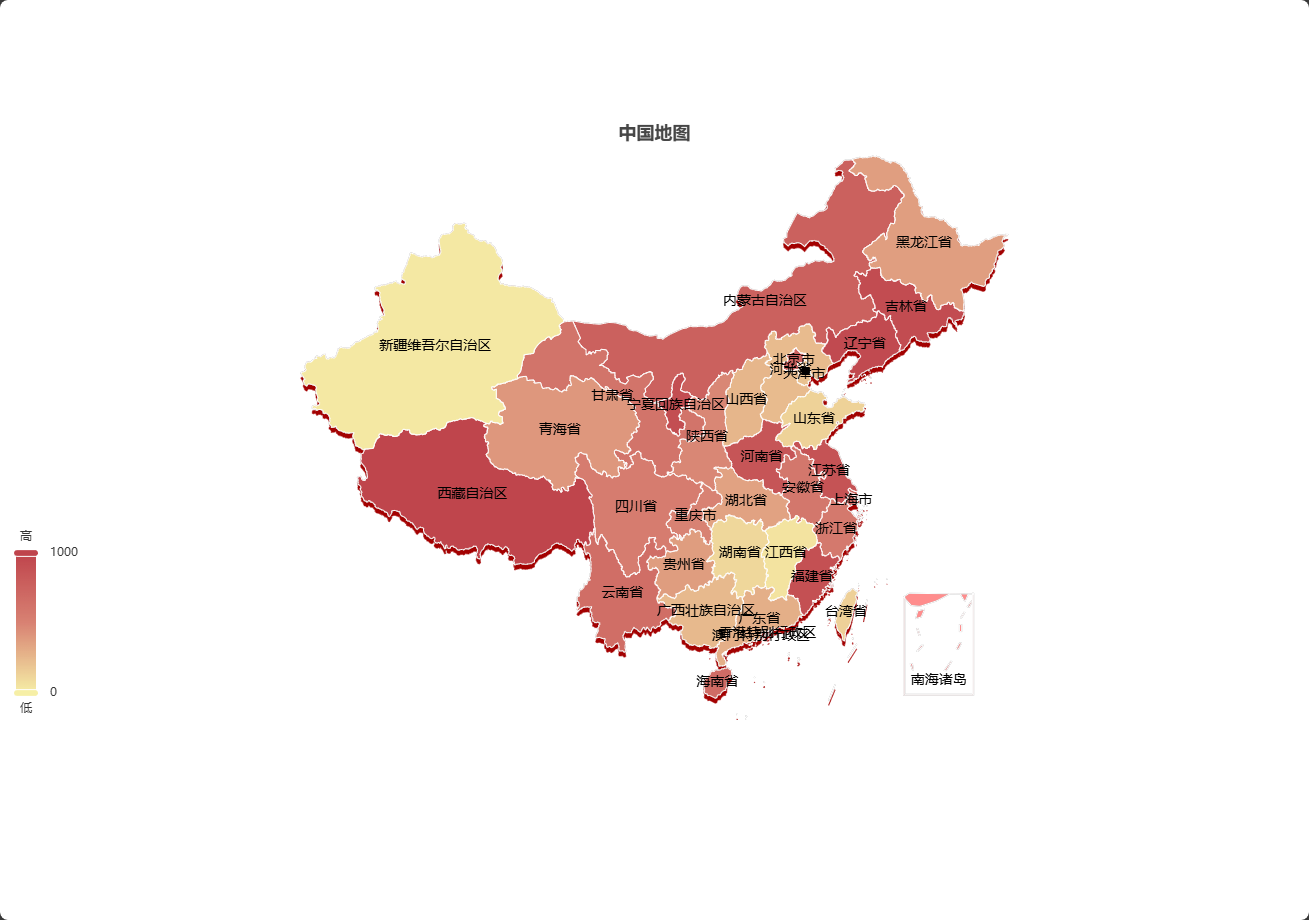

这是一个完整的，复制粘贴代码即可用的中国地图（全网绝对良心的demo），已实现省市区下钻效果，同时也能返回上一级地图
我用的vue2，echarts是5.6.0版本
<template>
<div class="map-container">
<div class="map-header" v-if="currentLevel !== 'china'">
<button class="back-button" @click="handleBack">返回上一级</button>
</div>
<div ref="chartContainer" style="width: 100%; height: 600px;"></div>
<div v-if="loading" class="loading">加载中...</div>
<!-- <div v-if="error" class="error">{{ error }}</div> -->
</div>
</template>
<script>
import * as echarts from 'echarts'
import axios from 'axios'
export default {
name: 'ChinaMap',
data() {
return {
chart: null,
currentLevel: 'china', // 当前地图层级：china, province, city
currentArea: '', // 当前选中的区域
mapData: {}, // 地图数据
loading: true,
error: null,
areaCodes: {}, // 存储地区编码
// 模拟数据
mockData: {
china: {
name: '中国',
children: [
{
name: '北京', value: 800, children: [
{ name: '东城区', value: 300 },
{ name: '西城区', value: 400 },
{ name: '朝阳区', value: 500 }
]
},
{
name: '上海', value: 900, children: [
{ name: '浦东新区', value: 600 },
{ name: '黄浦区', value: 400 },
{ name: '徐汇区', value: 300 }
]
},
{
name: '广东', value: 1000, children: [
{
name: '广州', value: 800, children: [
{ name: '天河区', value: 500 },
{ name: '海珠区', value: 400 }
]
},
{
name: '深圳', value: 900, children: [
{ name: '南山区', value: 600 }
]
}
]
},
{
name: '浙江', value: 950, children: [
{
name: '杭州', value: 850, children: [
{ name: '西湖区', value: 600 },
{ name: '滨江区', value: 500 }
]
},
{
name: '宁波', value: 750, children: [
{ name: '海曙区', value: 400 },
{ name: '江北区', value: 350 }
]
}
]
}
]
}
},
guojiaData: null,
mapCenter: null,
// 历史记录栈
mapHistory: []
}
},
async mounted() {
try {
this.loading = true
this.error = null
// 1. 加载地区编码数据
await this.loadAreaCodes()
// 2. 加载地图数据
await this.loadChinaMap()
// 3. 初始化图表
this.initChart()
// 4. 渲染地图
this.renderMap()
this.loading = false
} catch (error) {
console.error('初始化失败:', error)
this.error = '加载失败，请刷新页面重试'
this.loading = false
}
},
methods: {
async loadAreaCodes() {
try {
const response = await axios.get('https://geo.datav.aliyun.com/areas_v3/bound/all.json')
if (!response.data) {
throw new Error('地区编码数据为空')
}
this.areaCodes = this.processAreaCodes(response.data)
} catch (error) {
console.error('加载地区编码数据失败:', error)
throw error
}
},
processAreaCodes(data) {
const codes = {
provinces: {},
cities: {}
}
data.forEach(province => {
codes.provinces[province.name] = province.adcode
if (province.children) {
codes.cities[province.name] = province.children.map(city => city.name)
}
})
return codes
},
getProvinceCode(provinceName) {
return this.areaCodes.provinces[provinceName]
},
async loadChinaMap() {
try {
const response = await axios.get('https://geo.datav.aliyun.com/areas_v3/bound/100000_full.json')
if (!response.data) {
throw new Error('地图数据为空')
}
this.guojiaData = response
echarts.registerMap('china', response.data)
// 生成完整的中国地图数据
const chinaData = {
name: '中国',
children: response.data.features.map(feature => ({
name: feature.properties.name,
value: Math.floor(Math.random() * 1000)
}))
}
// 设置当前地图数据
this.currentLevel = 'china'
this.currentArea = '中国'
this.mapData = chinaData
// 保存初始状态到历史记录
this.mapHistory.push({
level: 'china',
area: '中国',
data: JSON.parse(JSON.stringify(chinaData))
})
console.log('初始化中国地图数据:', {
level: this.currentLevel,
area: this.currentArea,
mapData: this.mapData
})
} catch (error) {
console.error('加载地图数据失败:', error)
throw error
}
},
async loadProvinceMap(provinceName) {
try {
const response = await axios.get(`https://geo.datav.aliyun.com/areas_v3/bound/${this.getProvinceCode(provinceName)}_full.json`)
if (!response.data) {
throw new Error('省份地图数据为空')
}
echarts.registerMap(provinceName, response.data)
} catch (error) {
console.error('加载省份地图数据失败:', error)
throw error
}
},
async loadCityMap(cityName) {
try {
const response = await axios.get(`https://geo.datav.aliyun.com/areas_v3/bound/${this.getCityCode(cityName)}_full.json`)
if (!response.data) {
throw new Error('城市地图数据为空')
}
echarts.registerMap(cityName, response.data)
} catch (error) {
console.error('加载城市地图数据失败:', error)
throw error
}
},
initChart() {
if (this.chart) {
this.chart.dispose()
}
this.chart = echarts.init(this.$refs.chartContainer)
window.addEventListener('resize', () => {
this.chart && this.chart.resize()
})
// 绑定点击事件
this.chart.on('click', (params) => {
this.handleMapClick(params)
})
},
async loadMapData(area) {
try {
// 根据当前层级获取对应的模拟数据
let data = this.mockData[area]
if (!data) {
// 如果找不到对应数据，生成随机数据
data = {
name: area,
children: Array(5).fill(0).map((_, index) => ({
name: `地区${index + 1}`,
value: Math.floor(Math.random() * 1000)
}))
}
}
this.mapData = data
return data
} catch (error) {
console.error('加载地图数据失败:', error)
throw error
}
},
renderMap() {
if (!this.chart) {
throw new Error('图表未初始化')
}
console.log('渲染地图 - 当前状态:', {
level: this.currentLevel,
area: this.currentArea,
mapData: this.mapData,
chartInstance: this.chart
})
const option = {
title: {
text: this.currentArea ? `${this.currentArea}地图` : '中国地图',
left: 'center'
},
tooltip: {
trigger: 'item',
backgroundColor: 'rgba(136,119,9,0.78)',
borderColor: '#ccc',
borderWidth: 1,
padding: [10, 15],
textStyle: {
color: '#ffffff'
},
formatter: (params) => {
const data = params.data || {}
return `${params.name}<br/>数值：${data.value || 0}`
}
},
visualMap: {
min: 0,
max: 1000,
left: 'left',
top: 'bottom',
text: ['高', '低'],
calculable: true
},
// 创建一个阴影背景层
geo: {
map: 'china',
zoom: this.currentLevel === 'china' ? 1.6 : 1.2,
top: this.currentLevel === 'china' ? '30%' : '8%',
itemStyle: {
areaColor: 'rgba(163, 1, 1, 1)',
shadowColor: 'rgb(163, 1, 1)',
shadowOffsetY: 5
},
select: {
itemStyle: {
areaColor: 'rgba(163, 1, 1, 1)',
shadowColor: 'rgb(163, 1, 1)',
shadowOffsetY: 5
}
},
emphasis: {
itemStyle: {
areaColor: 'rgba(163, 1, 1, 1)',
shadowColor: 'rgb(163, 1, 1)',
shadowOffsetY: 5
}
},
regions: [{
name: '南海诸岛',
silent: true,
itemStyle: {
areaColor: 'rgb(255, 141, 141)',
shadowColor: 'transparent',
shadowOffsetY: 0
},
select: {
itemStyle: {
areaColor: 'rgb(255, 141, 141)',
shadowColor: 'transparent',
shadowOffsetY: 0
}
},
emphasis: {
itemStyle: {
areaColor: 'rgb(255, 141, 141)',
shadowColor: 'transparent',
shadowOffsetY: 0
}
}
}],
z: 1,
show: true
},
series: [{
name: '数据',
type: 'map',
geoIndex: -1,
map: this.currentLevel === 'china' ? 'china' : this.currentArea,
zoom: this.currentLevel === 'china' ? 1.6 : 1.2,
top: this.currentLevel === 'china' ? '30%' : '8%',
z: 2,
label: {
show: true,
color: '#000',
fontSize: 14
},
select: {
itemStyle: {
areaColor: 'transparent',
borderColor: '#ffffff',
borderWidth: 1
},
label: {
show: true,
color: '#000',
fontSize: 14
}
},
emphasis: {
label: {
show: true,
color: '#000',
fontSize: 14
},
itemStyle: {
areaColor: 'transparent',
borderColor: '#ffffff',
borderWidth: 1
}
},
itemStyle: {
areaColor: 'transparent',
borderColor: '#ffffff',
borderWidth: 1
},
data: this.mapData.children,
zlevel: 2
}]
}
console.log('渲染配置:', option)
this.chart.setOption(option, true)
},
async handleMapClick(params) {
const clickedArea = params.name
console.log('点击区域:', clickedArea, this.currentLevel)
// 如果当前已经是区级地图，则不进行任何操作
if (this.currentLevel === 'city') {
console.log('已经是区级地图，不进行切换')
return
}
// 保存当前状态到历史记录
this.mapHistory.push({
level: this.currentLevel,
area: this.currentArea,
data: JSON.parse(JSON.stringify(this.mapData))
})
console.log('保存历史记录:', this.mapHistory)
if (this.currentLevel === 'china') {
try {
this.loading = true
// 获取省份的地图数据
const provinceCode = this.getProvinceCode(clickedArea)
if (!provinceCode) {
throw new Error(`未找到省份 ${clickedArea} 的编码`)
}
const response = await axios.get(`https://geo.datav.aliyun.com/areas_v3/bound/${provinceCode}_full.json`)
if (!response.data) {
throw new Error('省份地图数据为空')
}
// 注册省份地图
echarts.registerMap(clickedArea, response.data)
// 生成省份的模拟数据
const provinceData = {
name: clickedArea,
children: response.data.features.map(feature => ({
name: feature.properties.name,
value: Math.floor(Math.random() * 1000)
}))
}
this.currentLevel = 'province'
this.currentArea = clickedArea
this.mapData = provinceData
// 重新设置地图配置
const option = {
geo: {
map: clickedArea,
zoom: 1.2,
top: '8%',
itemStyle: {
areaColor: 'rgba(163, 1, 1, 1)',
shadowColor: 'rgb(163, 1, 1)',
shadowOffsetY: 5
},
select: {
itemStyle: {
areaColor: 'rgba(163, 1, 1, 1)',
shadowColor: 'rgb(163, 1, 1)',
shadowOffsetY: 5
}
},
emphasis: {
itemStyle: {
areaColor: 'rgba(163, 1, 1, 1)',
shadowColor: 'rgb(163, 1, 1)',
shadowOffsetY: 5
}
},
regions: [{
name: '南海诸岛',
silent: true,
itemStyle: {
areaColor: 'rgb(255, 141, 141)',
shadowColor: 'transparent',
shadowOffsetY: 0
},
select: {
itemStyle: {
areaColor: 'rgb(255, 141, 141)',
shadowColor: 'transparent',
shadowOffsetY: 0
}
},
emphasis: {
itemStyle: {
areaColor: 'rgb(255, 141, 141)',
shadowColor: 'transparent',
shadowOffsetY: 0
}
}
}],
z: 1,
show: true
},
visualMap: {
min: 0,
max: 1000,
left: 'left',
top: 'bottom',
text: ['高', '低'],
calculable: true,
// inRange: {
// color: ['#ffeda0', '#f03b20']
// }
},
series: [{
name: '数据',
type: 'map',
geoIndex: -1,
map: clickedArea,
zoom: 1.2,
top: '8%',
z: 2,
label: {
show: true,
color: '#000',
fontSize: 14
},
select: {
itemStyle: {
areaColor: 'transparent',
borderColor: '#ffffff',
borderWidth: 1
},
label: {
show: true,
color: '#000',
fontSize: 14
}
},
emphasis: {
label: {
show: true,
color: '#000',
fontSize: 14
},
itemStyle: {
areaColor: 'transparent',
borderColor: '#ffffff',
borderWidth: 1
}
},
itemStyle: {
areaColor: 'transparent',
borderColor: '#ffffff',
borderWidth: 1
},
data: this.mapData.children,
zlevel: 2
}]
}
this.chart.setOption(option, true)
} catch (error) {
console.error('加载省份地图失败:', error)
this.error = '加载省份地图失败'
// 发生错误时，移除最后一条历史记录
this.mapHistory.pop()
} finally {
this.loading = false
}
} else if (this.currentLevel === 'province') {
try {
this.loading = true
// 获取城市的地图数据
const cityCode = this.getProvinceCode(clickedArea)
if (!cityCode) {
throw new Error(`未找到城市 ${clickedArea} 的编码`)
}
const response = await axios.get(`https://geo.datav.aliyun.com/areas_v3/bound/${cityCode}_full.json`)
if (!response.data) {
throw new Error('城市地图数据为空')
}
// 注册城市地图
echarts.registerMap(clickedArea, response.data)
// 生成城市的模拟数据
const cityData = {
name: clickedArea,
children: response.data.features.map(feature => ({
name: feature.properties.name,
value: Math.floor(Math.random() * 1000)
}))
}
this.currentLevel = 'city'
this.currentArea = clickedArea
this.mapData = cityData
// 重新设置地图配置
const option = {
geo: {
map: clickedArea,
zoom: 1.2,
top: '8%',
itemStyle: {
areaColor: 'rgba(163, 1, 1, 1)',
shadowColor: 'rgb(163, 1, 1)',
shadowOffsetY: 5
},
select: {
itemStyle: {
areaColor: 'rgba(163, 1, 1, 1)',
shadowColor: 'rgb(163, 1, 1)',
shadowOffsetY: 5
}
},
emphasis: {
itemStyle: {
areaColor: 'rgba(163, 1, 1, 1)',
shadowColor: 'rgb(163, 1, 1)',
shadowOffsetY: 5
}
},
regions: [{
name: '南海诸岛',
silent: true,
itemStyle: {
areaColor: 'rgb(255, 141, 141)',
shadowColor: 'transparent',
shadowOffsetY: 0
},
select: {
itemStyle: {
areaColor: 'rgb(255, 141, 141)',
shadowColor: 'transparent',
shadowOffsetY: 0
}
},
emphasis: {
itemStyle: {
areaColor: 'rgb(255, 141, 141)',
shadowColor: 'transparent',
shadowOffsetY: 0
}
}
}],
z: 1,
show: true
},
visualMap: {
min: 0,
max: 1000,
left: 'left',
top: 'bottom',
text: ['高', '低'],
calculable: true,
// inRange: {
// color: ['#ffeda0', '#f03b20']
// }
},
series: [{
name: '数据',
type: 'map',
geoIndex: -1,
map: clickedArea,
zoom: 1.2,
top: '8%',
z: 2,
label: {
show: true,
color: '#000',
fontSize: 14
},
select: {
itemStyle: {
areaColor: 'transparent',
borderColor: '#ffffff',
borderWidth: 1
},
label: {
show: true,
color: '#000',
fontSize: 14
}
},
emphasis: {
label: {
show: true,
color: '#000',
fontSize: 14
},
itemStyle: {
areaColor: 'transparent',
borderColor: '#ffffff',
borderWidth: 1
}
},
itemStyle: {
areaColor: 'transparent',
borderColor: '#ffffff',
borderWidth: 1
},
data: this.mapData.children,
zlevel: 2
}]
}
this.chart.setOption(option, true)
} catch (error) {
console.error('加载城市地图失败:', error)
this.error = '加载城市地图失败'
// 发生错误时，移除最后一条历史记录
this.mapHistory.pop()
} finally {
this.loading = false
}
}
},
async handleBack() {
try {
this.loading = true
if (this.mapHistory.length === 0) {
throw new Error('没有历史记录')
}
// 从历史记录中获取上一级数据
const previousState = this.mapHistory.pop()
console.log('历史记录状态:', previousState)
// 使用历史记录中的数据
this.currentLevel = previousState.level
this.currentArea = previousState.area
this.mapData = previousState.data
// 如果是返回到中国地图，重新初始化
if (this.currentLevel === 'china') {
try {
console.log('开始加载中国地图数据')
// 1. 添加淡出动画
if (this.chart) {
this.chart.setOption({
animation: true,
animationDuration: 300,
animationEasing: 'cubicOut'
})
// 等待动画完成
await new Promise(resolve => setTimeout(resolve, 300))
}
// 2. 重新加载中国地图数据
const response = await axios.get('https://geo.datav.aliyun.com/areas_v3/bound/100000_full.json')
if (!response.data) {
throw new Error('中国地图数据为空')
}
console.log('中国地图数据加载成功')
// 3. 销毁当前图表实例
if (this.chart) {
this.chart.dispose()
this.chart = null
}
// 4. 保存并注册地图
this.guojiaData = response
echarts.registerMap('china', response.data)
console.log('中国地图注册成功')
// 5. 生成新的地图数据
const chinaData = {
name: '中国',
children: response.data.features.map(feature => ({
name: feature.properties.name,
value: Math.floor(Math.random() * 1000)
}))
}
// 6. 更新状态
this.currentLevel = 'china'
this.currentArea = '中国'
this.mapData = chinaData
console.log('返回中国地图数据:', {
level: this.currentLevel,
area: this.currentArea,
mapData: this.mapData
})
// 7. 重新初始化图表
this.initChart()
// 8. 添加淡入动画并渲染
const option = {
animation: true,
animationDuration: 300,
animationEasing: 'cubicIn',
title: {
text: '中国地图',
left: 'center'
},
tooltip: {
trigger: 'item',
backgroundColor: 'rgba(255, 255, 255, 0.9)',
borderColor: '#ccc',
borderWidth: 1,
padding: [10, 15],
textStyle: {
color: '#333'
},
formatter: (params) => {
const data = params.data || {}
return `${params.name}<br/>数值：${data.value || 0}`
}
},
visualMap: {
min: 0,
max: 1000,
left: 'left',
top: 'bottom',
text: ['高', '低'],
calculable: true
},
// 创建一个阴影背景层
geo: {
map: 'china',
zoom: 1.6,
top: '30%',
itemStyle: {
areaColor: 'rgba(163, 1, 1, 1)',
shadowColor: 'rgb(163, 1, 1)',
shadowOffsetY: 5
},
select: {
itemStyle: {
areaColor: 'rgba(163, 1, 1, 1)',
shadowColor: 'rgb(163, 1, 1)',
shadowOffsetY: 5
}
},
emphasis: {
itemStyle: {
areaColor: 'rgba(163, 1, 1, 1)',
shadowColor: 'rgb(163, 1, 1)',
shadowOffsetY: 5
}
},
regions: [{
name: '南海诸岛',
silent: true,
itemStyle: {
areaColor: 'rgb(255, 141, 141)',
shadowColor: 'transparent',
shadowOffsetY: 0
},
select: {
itemStyle: {
areaColor: 'rgb(255, 141, 141)',
shadowColor: 'transparent',
shadowOffsetY: 0
}
},
emphasis: {
itemStyle: {
areaColor: 'rgb(255, 141, 141)',
shadowColor: 'transparent',
shadowOffsetY: 0
}
}
}],
z: 1,
show: true
},
series: [{
name: '数据',
type: 'map',
geoIndex: -1,
map: 'china',
zoom: 1.6,
top: '30%',
z: 2,
label: {
show: true,
color: '#000',
fontSize: 14
},
select: {
itemStyle: {
areaColor: 'transparent',
borderColor: '#ffffff',
borderWidth: 1
},
label: {
show: true,
color: '#000',
fontSize: 14
}
},
emphasis: {
label: {
show: true,
color: '#000',
fontSize: 14
},
itemStyle: {
areaColor: 'transparent',
borderColor: '#ffffff',
borderWidth: 1
}
},
itemStyle: {
areaColor: 'transparent',
borderColor: '#ffffff',
borderWidth: 1
},
data: this.mapData.children,
zlevel: 2
}]
}
this.chart.setOption(option)
} catch (error) {
console.error('重新加载中国地图数据失败:', error)
throw error
}
} else {
// 如果不是中国地图，直接渲染
const option = {
geo: {
map: this.currentLevel === 'province' ? this.currentArea : 'china',
zoom: 1.2,
top: '8%',
itemStyle: {
areaColor: 'rgba(163, 1, 1, 1)',
shadowColor: 'rgb(163, 1, 1)',
shadowOffsetY: 5
},
select: {
itemStyle: {
areaColor: 'rgba(163, 1, 1, 1)',
shadowColor: 'rgb(163, 1, 1)',
shadowOffsetY: 5
}
},
emphasis: {
itemStyle: {
areaColor: 'rgba(163, 1, 1, 1)',
shadowColor: 'rgb(163, 1, 1)',
shadowOffsetY: 5
}
},
regions: [{
name: '南海诸岛',
silent: true,
itemStyle: {
areaColor: 'rgb(255, 141, 141)',
shadowColor: 'transparent',
shadowOffsetY: 0
},
select: {
itemStyle: {
areaColor: 'rgb(255, 141, 141)',
shadowColor: 'transparent',
shadowOffsetY: 0
}
},
emphasis: {
itemStyle: {
areaColor: 'rgb(255, 141, 141)',
shadowColor: 'transparent',
shadowOffsetY: 0
}
}
}],
z: 1,
show: true
},
visualMap: {
min: 0,
max: 1000,
left: 'left',
top: 'bottom',
text: ['高', '低'],
calculable: true
},
series: [{
name: '数据',
type: 'map',
geoIndex: -1,
map: this.currentLevel === 'province' ? this.currentArea : 'china',
zoom: 1.2,
top: '8%',
z: 2,
label: {
show: true,
color: '#000',
fontSize: 14
},
select: {
itemStyle: {
areaColor: 'transparent',
borderColor: '#ffffff',
borderWidth: 1
},
label: {
show: true,
color: '#000',
fontSize: 14
}
},
emphasis: {
label: {
show: true,
color: '#000',
fontSize: 14
},
itemStyle: {
areaColor: 'transparent',
borderColor: '#ffffff',
borderWidth: 1
}
},
itemStyle: {
areaColor: 'transparent',
borderColor: '#ffffff',
borderWidth: 1
},
data: this.mapData.children,
zlevel: 2
}]
}
this.chart.setOption(option, true)
}
} catch (error) {
console.error('返回上一级失败:', error)
this.error = '返回上一级失败'
} finally {
this.loading = false
}
},
getProvinceByCity(cityName) {
console.log('查找城市所属省份:', cityName)
console.log('当前地区编码数据:', this.areaCodes)
// 从城市名获取所属省份
for (const [provinceName] of Object.entries(this.areaCodes.provinces)) {
const cities = this.areaCodes.cities[provinceName] || []
// console.log(`检查省份 ${provinceName} 的城市列表:`, cities)
if (cities.includes(cityName)) {
console.log(`找到城市 ${cityName} 所属的省份:`, provinceName)
return provinceName
}
}
console.log(`未找到城市 ${cityName} 所属的省份`)
return null
}
},
beforeDestroy() {
if (this.chart) {
this.chart.dispose()
this.chart = null
}
}
}
</script>
<style scoped>
.map-container {
width: 100%;
height: 800px;
position: relative;
display: flex;
justify-content: center;
align-items: center;
}
.map-header {
position: absolute;
top: 10px;
left: 10px;
z-index: 100;
}
.back-button {
padding: 8px 16px;
background-color: #fff;
border: 1px solid #ddd;
border-radius: 4px;
cursor: pointer;
font-size: 14px;
color: #333;
box-shadow: 0 2px 4px rgba(0, 0, 0, 0.1);
transition: all 0.3s ease;
}
.back-button:hover {
background-color: #f5f5f5;
box-shadow: 0 4px 8px rgba(0, 0, 0, 0.1);
}
.loading {
position: absolute;
top: 50%;
left: 50%;
transform: translate(-50%, -50%);
font-size: 16px;
color: #666;
}
.error {
position: absolute;
top: 50%;
left: 50%;
transform: translate(-50%, -50%);
color: red;
font-size: 16px;
}
</style>
扫一扫
2651
被折叠的 条评论
为什么被折叠?
到【灌水乐园】发言
