在常见的显示屏中无论是 ASCII 字符还是 GB2312 的字符，都只能显示字库中设定的字体大小，例如，我们想显示一些像素大小为 48x48 的字符，那我们又得制作相应的字库，非常麻烦。为此在野火的基础上编写了一些函数，简便地实现显示任意大小字符的目的。
显示任意大小字符的功能，其核心是缩放字模，通过 LCD_zoomChar 函数对原始字模数据进行缩放
直接上代码：
使用说明:
1、更改LCD参数宏
2、选择字符取模宏:dDislay_Scheme
3、调用LCD_DisplayString(0, 0, 128, 128, (uint8_t )“4”, 1);函数显示所需字符串，中英文都可以，尺寸最大128128

/**********************************************************************
*file:LCD显示屏缩放显示应用文件
*author:残梦
*versions:V1.0
*date:2023.09.15
*note:使用说明:
	1、更改LCD参数宏
	2、选择字符取模宏:dDislay_Scheme
	3、调用LCD_DisplayString(0, 0, 128, 128, (uint8_t *)"4", 1);函数显示所需字符串，中英文都可以，尺寸最大128*128
**********************************************************************/

#include "stdio.h"
#include "stdint.h"

//LCD参数宏
#define dLCD_Width 240 //显示屏宽度
#define dLCD_Height 240 //显示屏高度

//为了减小内存,数据来源分两种方案：
//A-ASCII码全部都有，不支持汉字，耗用内存较大；
//B-需要使用到的字符,自己取模放置到FontsLibrary16x32数组、FontsList数组、FontsLibrary32x32数组中，消耗内存较小
#define dDislay_Scheme 0 //1--方案A,0--方案B
#if dDislay_Scheme//方案A
const uint8_t ASCII16x32_Table[] = {       //@conslons字体，阴码点阵格式，逐行顺向取摸

0x00,0x00, 0x00,0x00, 0x00,0x00, 0x00,0x00, 0x00,0x00, 0x00,0x00, 0x00,0x00, 0x00,0x00,
0x00,0x00, 0x00,0x00, 0x00,0x00, 0x00,0x00, 0x00,0x00, 0x00,0x00, 0x00,0x00, 0x00,0x00,
0x00,0x00, 0x00,0x00, 0x00,0x00, 0x00,0x00, 0x00,0x00, 0x00,0x00, 0x00,0x00, 0x00,0x00,
0x00,0x00, 0x00,0x00, 0x00,0x00, 0x00,0x00, 0x00,0x00, 0x00,0x00, 0x00,0x00, 0x00,0x00,
0x00,0x00, 0x00,0x00, 0x00,0x00, 0x00,0x00, 0x00,0x00, 0x00,0x00, 0x03,0x80, 0x03,0x80,
0x01,0x80, 0x01,0x80, 0x01,0x80, 0x01,0x80, 0x01,0x80, 0x01,0x80, 0x01,0x80, 0x01,0x80,
0x01,0x80, 0x01,0x80, 0x01,0x80, 0x01,0x80, 0x00,0x00, 0x00,0x00, 0x03,0x80, 0x03,0xc0,
0x03,0x80, 0x00,0x00, 0x00,0x00, 0x00,0x00, 0x00,0x00, 0x00,0x00, 0x00,0x00, 0x00,0x00,
0x00,0x00, 0x00,0x00, 0x00,0x00, 0x00,0x00, 0x00,0x00, 0x00,0x00, 0x0e,0x70, 0x0e,0x70,
0x0e,0x70, 0x0e,0x70, 0x0e,0x70, 0x0c,0x30, 0x0c,0x30, 0x00,0x00, 0x00,0x00, 0x00,0x00,
0x00,0x00, 0x00,0x00, 0x00,0x00, 0x00,0x00, 0x00,0x00, 0x00,0x00, 0x00,0x00, 0x00,0x00,
0x00,0x00, 0x00,0x00, 0x00,0x00, 0x00,0x00, 0x00,0x00, 0x00,0x00, 0x00,0x00, 0x00,0x00,
0x00,0x00, 0x00,0x00, 0x00,0x00, 0x00,0x00, 0x00,0x00, 0x00,0x00, 0x00,0x00, 0x00,0x00,
0x06,0x18, 0x06,0x38, 0x06,0x30, 0x06,0x30, 0x7f,0xfe, 0x7f,0xfe, 0x0c,0x30, 0x0c,0x30,
0x0c,0x30, 0x0c,0x30, 0x7f,0xfe, 0x7f,0xfe, 0x0c,0x60, 0x1c,0x60, 0x18,0x60, 0x18,0x60,
0x18,0x60, 0x00,0x00, 0x00,0x00, 0x00,0x00, 0x00,0x00, 0x00,0x00, 0x00,0x00, 0x00,0x00,
0x00,0x00, 0x00,0x00, 0x00,0x00, 0x00,0x00, 0x00,0x00, 0x00,0xc0, 0x00,0xc0, 0x00,0xc0,
0x07,0xf8, 0x1f,0xf8, 0x38,0xc0, 0x31,0xc0, 0x31,0x80, 0x39,0x80, 0x3d,0x80, 0x1f,0x80,
0x07,0xf0, 0x01,0xf8, 0x03,0xbc, 0x03,0x1c, 0x03,0x0c, 0x03,0x1c, 0x23,0x3c, 0x3f,0xf8,
0x3f,0xe0, 0x07,0x00, 0x06,0x00, 0x06,0x00, 0x00,0x00, 0x00,0x00, 0x00,0x00, 0x00,0x00,
0x00,0x00, 0x00,0x00, 0x00,0x00, 0x00,0x00, 0x00,0x00, 0x00,0x00, 0x1c,0x07, 0x7e,0x06,
0x63,0x0c, 0x63,0x18, 0x63,0x38, 0x63,0x30, 0x7e,0x60, 0x3c,0xe0, 0x00,0xc0, 0x01,0x80,
0x03,0x80, 0x03,0x38, 0x06,0x7e, 0x0c,0xc6, 0x1c,0xc6, 0x18,0xc6, 0x30,0xc6, 0x70,0xee,
0x60,0x7c, 0x00,0x00, 0x00,0x00, 0x00,0x00, 0x00,0x00, 0x00,0x00, 0x00,0x00, 0x00,0x00,
0x00,0x00, 0x00,0x00, 0x00,0x00, 0x00,0x00, 0x00,0x00, 0x00,0x00, 0x00,0x00, 0x0f,0xc0,
0x1f,0xe0, 0x18,0x70, 0x38,0x70, 0x38,0x70, 0x18,0x70, 0x1c,0xe0, 0x0f,0xc0, 0x0f,0x00,
0x3f,0x8c, 0x3b,0x8c, 0x71,0xcc, 0x60,0xec, 0x60,0x7c, 0x70,0x38, 0x70,0x7c, 0x3f,0xfe,
0x1f,0xcf, 0x00,0x00, 0x00,0x00, 0x00,0x00, 0x00,0x00, 0x00,0x00, 0x00,0x00, 0x00,0x00,
0x00,0x00, 0x00,0x00, 0x00,0x00, 0x00,0x00, 0x00,0x00, 0x00,0x00, 0x03,0xc0, 0x03,0xc0,
0x03,0x80, 0x01,0x80, 0x01,0x80, 0x01,0x80, 0x01,0x80, 0x00,0x00, 0x00,0x00, 0x00,0x00,
0x00,0x00, 0x00,0x00, 0x00,0x00, 0x00,0x00, 0x00,0x00, 0x00,0x00, 0x00,0x00, 0x00,0x00,
0x00,0x00, 0x00,0x00, 0x00,0x00, 0x00,0x00, 0x00,0x00, 0x00,0x00, 0x00,0x00, 0x00,0x00,
0x00,0x00, 0x00,0x00, 0x00,0x00, 0x00,0x00, 0x00,0x00, 0x00,0x00, 0x00,0x30, 0x00,0x60,
0x00,0xe0, 0x01,0xc0, 0x03,0x80, 0x03,0x00, 0x07,0x00, 0x07,0x00, 0x06,0x00, 0x0e,0x00,
0x0e,0x00, 0x0e,0x00, 0x0e,0x00, 0x0e,0x00, 0x0e,0x00, 0x06,0x00, 0x07,0x00, 0x07,0x00,
0x03,0x80, 0x03,0x80, 0x01,0xc0, 0x00,0xe0, 0x00,0x70, 0x00,0x30, 0x00,0x00, 0x00,0x00,
0x00,0x00, 0x00,0x00, 0x00,0x00, 0x00,0x00, 0x00,0x00, 0x00,0x00, 0x0c,0x00, 0x0e,0x00,
0x07,0x00, 0x03,0x80, 0x01,0xc0, 0x01,0xc0, 0x00,0xe0, 0x00,0xe0, 0x00,0x60, 0x00,0x70,
0x00,0x70, 0x00,0x70, 0x00,0x70, 0x00,0x70, 0x00,0x60, 0x00,0x60, 0x00,0xe0, 0x00,0xe0,
0x01,0xc0, 0x01,0xc0, 0x03,0x80, 0x07,0x00, 0x0e,0x00, 0x0c,0x00, 0x00,0x00, 0x00,0x00,
0x00,0x00, 0x00,0x00, 0x00,0x00, 0x00,0x00, 0x00,0x00, 0x00,0x00, 0x01,0x80, 0x01,0x80,
0x01,0x88, 0x19,0x98, 0x0f,0xf8, 0x03,0xc0, 0x03,0xc0, 0x1f,0xf8, 0x19,0x98, 0x01,0x80,
0x01,0x80, 0x01,0x80, 0x00,0x00, 0x00,0x00, 0x00,0x00, 0x00,0x00, 0x00,0x00, 0x00,0x00,
0x00,0x00, 0x00,0x00, 0x00,0x00, 0x00,0x00, 0x00,0x00, 0x00,0x00, 0x00,0x00, 0x00,0x00,
0x00,0x00, 0x00,0x00, 0x00,0x00, 0x00,0x00, 0x00,0x00, 0x00,0x00, 0x00,0x00, 0x00,0x00,
0x00,0x00, 0x00,0x00, 0x00,0x00, 0x01,0x80, 0x01,0x80, 0x01,0x80, 0x01,0x80, 0x01,0x80,
0x01,0x80, 0x7f,0xfe, 0x7f,0xfe, 0x01,0x80, 0x01,0x80, 0x01,0x80, 0x01,0x80, 0x01,0x80,
0x00,0x00, 0x00,0x00, 0x00,0x00, 0x00,0x00, 0x00,0x00, 0x00,0x00, 0x00,0x00, 0x00,0x00,
0x00,0x00, 0x00,0x00, 0x00,0x00, 0x00,0x00, 0x00,0x00, 0x00,0x00, 0x00,0x00, 0x00,0x00,
0x00,0x00, 0x00,0x00, 0x00,0x00, 0x00,0x00, 0x00,0x00, 0x00,0x00, 0x00,0x00, 0x00,0x00,
0x00,0x00, 0x00,0x00, 0x00,0x00, 0x00,0x00, 0x00,0x00, 0x03,0x80, 0x03,0xc0, 0x03,0xc0,
0x01,0xc0, 0x01,0xc0, 0x01,0xc0, 0x07,0x80, 0x1f,0x00, 0x10,0x00, 0x00,0x00, 0x00,0x00,
0x00,0x00, 0x00,0x00, 0x00,0x00, 0x00,0x00, 0x00,0x00, 0x00,0x00, 0x00,0x00, 0x00,0x00,
0x00,0x00, 0x00,0x00, 0x00,0x00, 0x00,0x00, 0x00,0x00, 0x00,0x00, 0x00,0x00, 0x00,0x00,
0x00,0x00, 0x0f,0xf0, 0x0f,0xf0, 0x00,0x00, 0x00,0x00, 0x00,0x00, 0x00,0x00, 0x00,0x00,
0x00,0x00, 0x00,0x00, 0x00,0x00, 0x00,0x00, 0x00,0x00, 0x00,0x00, 0x00,0x00, 0x00,0x00,
0x00,0x00, 0x00,0x00, 0x00,0x00, 0x00,0x00, 0x00,0x00, 0x00,0x00, 0x00,0x00, 0x00,0x00,
0x00,0x00, 0x00,0x00, 0x00,0x00, 0x00,0x00, 0x00,0x00, 0x00,0x00, 0x00,0x00, 0x00,0x00,
0x00,0x00, 0x00,0x00, 0x00,0x00, 0x00,0x00, 0x00,0x00, 0x03,0xc0, 0x03,0xc0, 0x03,0xc0,
0x03,0xc0, 0x00,0x00, 0x00,0x00, 0x00,0x00, 0x00,0x00, 0x00,0x00, 0x00,0x00, 0x00,0x00,
0x00,0x00, 0x00,0x00, 0x00,0x00, 0x00,0x00, 0x00,0x00, 0x00,0x00, 0x00,0x1c, 0x00,0x18,
0x00,0x38, 0x00,0x30, 0x00,0x70, 0x00,0x60, 0x00,0x60, 0x00,0xc0, 0x00,0xc0, 0x01,0xc0,
0x01,0x80, 0x03,0x80, 0x03,0x00, 0x07,0x00, 0x06,0x00, 0x0e,0x00, 0x0c,0x00, 0x0c,0x00,
0x18,0x00, 0x18,0x00, 0x38,0x00, 0x30,0x00, 0x00,0x00, 0x00,0x00, 0x00,0x00, 0x00,0x00,
0x00,0x00, 0x00,0x00, 0x00,0x00, 0x00,0x00, 0x00,0x00, 0x00,0x00, 0x00,0x00, 0x00,0x00,
0x07,0xf0, 0x1f,0xf8, 0x18,0x38, 0x38,0x1c, 0x30,0x0c, 0x30,0x3c, 0x70,0x7e, 0x71,0xee,
0x73,0xce, 0x7f,0x0e, 0x7e,0x0e, 0x38,0x0c, 0x30,0x0c, 0x38,0x1c, 0x1c,0x38, 0x1f,0xf0,
0x07,0xe0, 0x00,0x00, 0x00,0x00, 0x00,0x00, 0x00,0x00, 0x00,0x00, 0x00,0x00, 0x00,0x00,
0x00,0x00, 0x00,0x00, 0x00,0x00, 0x00,0x00, 0x00,0x00, 0x00,0x00, 0x00,0x00, 0x00,0x00,
0x03,0xc0, 0x0f,0xc0, 0x3f,0xc0, 0x39,0xc0, 0x01,0xc0, 0x01,0xc0, 0x01,0xc0, 0x01,0xc0,
0x01,0xc0, 0x01,0xc0, 0x01,0xc0, 0x01,0xc0, 0x01,0xc0, 0x01,0xc0, 0x01,0xc0, 0x3f,0xfc,
0x3f,0xfc, 0x00,0x00, 0x00,0x00, 0x00,0x00, 0x00,0x00, 0x00,0x00, 0x00,0x00, 0x00,0x00,
0x00,0x00, 0x00,0x00, 0x00,0x00, 0x00,0x00, 0x00,0x00, 0x00,0x00, 0x00,0x00, 0x00,0x00,
0x0f,0xe0, 0x3f,0xf0, 0x18,0x38, 0x00,0x38, 0x00,0x18, 0x00,0x18, 0x00,0x38, 0x00,0x30,
0x00,0x70, 0x00,0xe0, 0x01,0xc0, 0x03,0x80, 0x07,0x00, 0x0e,0x00, 0x1c,0x00, 0x3f,0xfc,
0x3f,0xfc, 0x00,0x00, 0x00,0x00, 0x00,0x00, 0x00,0x00, 0x00,0x00, 0x00,0x00, 0x00,0x00,
0x00,0x00, 0x00,0x00, 0x00,0x00, 0x00,0x00, 0x00,0x00, 0x00,0x00, 0x00,0x00, 0x00,0x00,
0x1f,0xe0, 0x1f,0xf0, 0x00,0x38, 0x00,0x38, 0x00,0x38, 0x00,0x38, 0x00,0x70, 0x07,0xe0,
0x07,0xf0, 0x00,0x78, 0x00,0x1c, 0x00,0x1c, 0x00,0x1c, 0x00,0x1c, 0x00,0x38, 0x3f,0xf0,
0x3f,0xc0, 0x00,0x00, 0x00,0x00, 0x00,0x00, 0x00,0x00, 0x00,0x00, 0x00,0x00, 0x00,0x00,
0x00,0x00, 0x00,0x00, 0x00,0x00, 0x00,0x00, 0x00,0x00, 0x00,0x00, 0x00,0x00, 0x00,0x00,
0x00,0xf0, 0x01,0xf0, 0x01,0xb0, 0x03,0x30, 0x07,0x30, 0x06,0x30, 0x0c,0x30, 0x1c,0x30,
0x38,0x30, 0x30,0x30, 0x70,0x30, 0x7f,0xfe, 0x7f,0xfe, 0x00,0x30, 0x00,0x30, 0x00,0x30,
0x00,0x30, 0x00,0x00, 0x00,0x00, 0x00,0x00, 0x00,0x00, 0x00,0x00, 0x00,0x00, 0x00,0x00,
0x00,0x00, 0x00,0x00, 0x00,0x00, 0x00,0x00, 0x00,0x00, 0x00,0x00, 0x00,0x00, 0x00,0x00,
0x1f,0xf8, 0x1f,0xf8, 0x18,0x00, 0x18,0x00, 0x18,0x00, 0x18,0x00, 0x18,0x00, 0x1f,0xe0,
0x1f,0xf8, 0x00,0x38, 0x00,0x1c, 0x00,0x1c, 0x00,0x1c, 0x00,0x18, 0x00,0x38, 0x1f,0xf0,
0x1f,0xc0, 0x00,0x00, 0x00,0x00, 0x00,0x00, 0x00,0x00, 0x00,0x00, 0x00,0x00, 0x00,0x00,
0x00,0x00, 0x00,0x00, 0x00,0x00, 0x00,0x00, 0x00,0x00, 0x00,0x00, 0x00,0x00, 0x00,0x00,
0x01,0xf8, 0x07,0xf8, 0x0e,0x00, 0x1c,0x00, 0x18,0x00, 0x38,0x00, 0x31,0xc0, 0x3f,0xf8,
0x3e,0x3c, 0x30,0x1c, 0x30,0x0c, 0x30,0x0c, 0x38,0x0c, 0x38,0x0c, 0x1c,0x1c, 0x1f,0xf8,
0x07,0xe0, 0x00,0x00, 0x00,0x00, 0x00,0x00, 0x00,0x00, 0x00,0x00, 0x00,0x00, 0x00,0x00,
0x00,0x00, 0x00,0x00, 0x00,0x00, 0x00,0x00, 0x00,0x00, 0x00,0x00, 0x00,0x00, 0x00,0x00,
0x3f,0xfc, 0x3f,0xfc, 0x00,0x1c, 0x00,0x18, 0x00,0x38, 0x00,0x30, 0x00,0x70, 0x00,0x60,
0x00,0xe0, 0x00,0xc0, 0x01,0xc0, 0x01,0x80, 0x03,0x80, 0x07,0x00, 0x07,0x00, 0x0e,0x00,
0x0e,0x00, 0x00,0x00, 0x00,0x00, 0x00,0x00, 0x00,0x00, 0x00,0x00, 0x00,0x00, 0x00,0x00,
0x00,0x00, 0x00,0x00, 0x00,0x00, 0x00,0x00, 0x00,0x00, 0x00,0x00, 0x00,0x00, 0x00,0x00,
0x0f,0xf0, 0x1e,0x78, 0x38,0x1c, 0x38,0x1c, 0x38,0x1c, 0x3c,0x18, 0x1e,0x78, 0x0f,0xe0,
0x07,0xe0, 0x1e,0x78, 0x3c,0x3c, 0x38,0x1c, 0x30,0x0c, 0x30,0x0c, 0x38,0x1c, 0x1f,0xf8,
0x0f,0xf0, 0x00,0x00, 0x00,0x00, 0x00,0x00, 0x00,0x00, 0x00,0x00, 0x00,0x00, 0x00,0x00,
0x00,0x00, 0x00,0x00, 0x00,0x00, 0x00,0x00, 0x00,0x00, 0x00,0x00, 0x00,0x00, 0x00,0x00,
0x0f,0xe0, 0x1e,0x78, 0x38,0x38, 0x30,0x1c, 0x70,0x1c, 0x70,0x0c, 0x30,0x0c, 0x38,0x1c,
0x3e,0xfc, 0x0f,0xec, 0x00,0x1c, 0x00,0x1c, 0x00,0x18, 0x00,0x38, 0x00,0xf0, 0x1f,0xe0,
0x1f,0x00, 0x00,0x00, 0x00,0x00, 0x00,0x00, 0x00,0x00, 0x00,0x00, 0x00,0x00, 0x00,0x00,
0x00,0x00, 0x00,0x00, 0x00,0x00, 0x00,0x00, 0x00,0x00, 0x00,0x00, 0x00,0x00, 0x00,0x00,
0x00,0x00, 0x00,0x00, 0x00,0x00, 0x00,0x00, 0x03,0xc0, 0x03,0xc0, 0x03,0xc0, 0x01,0x80,
0x00,0x00, 0x00,0x00, 0x00,0x00, 0x00,0x00, 0x00,0x00, 0x01,0x80, 0x03,0xc0, 0x03,0xc0,
0x03,0xc0, 0x00,0x00, 0x00,0x00, 0x00,0x00, 0x00,0x00, 0x00,0x00, 0x00,0x00, 0x00,0x00,
0x00,0x00, 0x00,0x00, 0x00,0x00, 0x00,0x00, 0x00,0x00, 0x00,0x00, 0x00,0x00, 0x00,0x00,
0x00,0x00, 0x00,0x00, 0x00,0x00, 0x00,0x00, 0x03,0xc0, 0x03,0xc0, 0x03,0xc0, 0x01,0x80,
0x00,0x00, 0x00,0x00, 0x00,0x00, 0x00,0x00, 0x00,0x00, 0x03,0xc0, 0x03,0xc0, 0x03,0xc0,
0x01,0xc0, 0x01,0xc0, 0x01,0xc0, 0x07,0x80, 0x0f,0x00, 0x00,0x00, 0x00,0x00, 0x00,0x00,
0x00,0x00, 0x00,0x00, 0x00,0x00, 0x00,0x00, 0x00,0x00, 0x00,0x00, 0x00,0x00, 0x00,0x00,
0x00,0x00, 0x00,0x00, 0x00,0x10, 0x00,0x38, 0x00,0x70, 0x01,0xe0, 0x03,0xc0, 0x07,0x00,
0x0e,0x00, 0x3c,0x00, 0x1c,0x00, 0x0e,0x00, 0x07,0x80, 0x01,0xc0, 0x00,0xe0, 0x00,0x78,
0x00,0x10, 0x00,0x00, 0x00,0x00, 0x00,0x00, 0x00,0x00, 0x00,0x00, 0x00,0x00, 0x00,0x00,
0x00,0x00, 0x00,0x00, 0x00,0x00, 0x00,0x00, 0x00,0x00, 0x00,0x00, 0x00,0x00, 0x00,0x00,
0x00,0x00, 0x00,0x00, 0x00,0x00, 0x00,0x00, 0x00,0x00, 0x00,0x00, 0x00,0x00, 0x3f,0xfc,
0x00,0x00, 0x00,0x00, 0x00,0x00, 0x3f,0xfc, 0x3f,0xfc, 0x00,0x00, 0x00,0x00, 0x00,0x00,
0x00,0x00, 0x00,0x00, 0x00,0x00, 0x00,0x00, 0x00,0x00, 0x00,0x00, 0x00,0x00, 0x00,0x00,
0x00,0x00, 0x00,0x00, 0x00,0x00, 0x00,0x00, 0x00,0x00, 0x00,0x00, 0x00,0x00, 0x00,0x00,
0x00,0x00, 0x00,0x00, 0x08,0x00, 0x1c,0x00, 0x0e,0x00, 0x07,0x00, 0x03,0xc0, 0x00,0xe0,
0x00,0x70, 0x00,0x3c, 0x00,0x38, 0x00,0x70, 0x01,0xe0, 0x03,0x80, 0x07,0x00, 0x1e,0x00,
0x08,0x00, 0x00,0x00, 0x00,0x00, 0x00,0x00, 0x00,0x00, 0x00,0x00, 0x00,0x00, 0x00,0x00,
0x00,0x00, 0x00,0x00, 0x00,0x00, 0x00,0x00, 0x00,0x00, 0x00,0x00, 0x0e,0x00, 0x0f,0xc0,
0x03,0xe0, 0x00,0x70, 0x00,0x38, 0x00,0x38, 0x00,0x38, 0x00,0x38, 0x00,0x78, 0x03,0xf0,
0x03,0xc0, 0x03,0x00, 0x03,0x00, 0x03,0x00, 0x00,0x00, 0x00,0x00, 0x07,0x00, 0x07,0x80,
0x07,0x00, 0x00,0x00, 0x00,0x00, 0x00,0x00, 0x00,0x00, 0x00,0x00, 0x00,0x00, 0x00,0x00,
0x00,0x00, 0x00,0x00, 0x00,0x00, 0x00,0x00, 0x00,0x00, 0x00,0x00, 0x01,0xe0, 0x07,0xf8,
0x0e,0x1c, 0x1c,0x0e, 0x18,0x06, 0x30,0x06, 0x30,0x03, 0x61,0xf3, 0x63,0xf3, 0x66,0x33,
0xe6,0x73, 0xce,0x63, 0xcc,0x63, 0xcc,0x66, 0xcc,0x66, 0xcc,0xe6, 0xcf,0xfc, 0xc7,0x3c,
0x60,0x00, 0x60,0x00, 0x60,0x00, 0x30,0x00, 0x3c,0x30, 0x1f,0xf0, 0x00,0x00, 0x00,0x00,
0x00,0x00, 0x00,0x00, 0x00,0x00, 0x00,0x00, 0x00,0x00, 0x00,0x00, 0x00,0x00, 0x00,0x00,
0x03,0xc0, 0x03,0xc0, 0x07,0xe0, 0x06,0xe0, 0x06,0x60, 0x0e,0x70, 0x0c,0x70, 0x0c,0x30,
0x1c,0x38, 0x18,0x38, 0x38,0x1c, 0x3f,0xfc, 0x3f,0xfc, 0x70,0x0e, 0x70,0x0e, 0x60,0x06,
0xe0,0x07, 0x00,0x00, 0x00,0x00, 0x00,0x00, 0x00,0x00, 0x00,0x00, 0x00,0x00, 0x00,0x00,
0x00,0x00, 0x00,0x00, 0x00,0x00, 0x00,0x00, 0x00,0x00, 0x00,0x00, 0x00,0x00, 0x00,0x00,
0x3f,0xf0, 0x3f,0xf8, 0x38,0x38, 0x38,0x1c, 0x38,0x1c, 0x38,0x18, 0x38,0x38, 0x3f,0xf0,
0x3f,0xf0, 0x38,0x3c, 0x38,0x1c, 0x38,0x0c, 0x38,0x0c, 0x38,0x1c, 0x38,0x3c, 0x3f,0xf8,
0x3f,0xe0, 0x00,0x00, 0x00,0x00, 0x00,0x00, 0x00,0x00, 0x00,0x00, 0x00,0x00, 0x00,0x00,
0x00,0x00, 0x00,0x00, 0x00,0x00, 0x00,0x00, 0x00,0x00, 0x00,0x00, 0x00,0x00, 0x00,0x00,
0x07,0xfc, 0x0f,0xfc, 0x1e,0x00, 0x38,0x00, 0x38,0x00, 0x30,0x00, 0x70,0x00, 0x70,0x00,
0x70,0x00, 0x70,0x00, 0x70,0x00, 0x30,0x00, 0x38,0x00, 0x3c,0x00, 0x1e,0x04, 0x0f,0xfc,
0x03,0xfc, 0x00,0x00, 0x00,0x00, 0x00,0x00, 0x00,0x00, 0x00,0x00, 0x00,0x00, 0x00,0x00,
0x00,0x00, 0x00,0x00, 0x00,0x00, 0x00,0x00, 0x00,0x00, 0x00,0x00, 0x00,0x00, 0x00,0x00,
0x3f,0xe0, 0x3f,0xf0, 0x30,0x38, 0x30,0x1c, 0x30,0x0c, 0x30,0x0e, 0x30,0x0e, 0x30,0x0e,
0x30,0x0e, 0x30,0x0e, 0x30,0x0e, 0x30,0x0c, 0x30,0x1c, 0x30,0x1c, 0x30,0x78, 0x3f,0xf0,
0x3f,0x80, 0x00,0x00, 0x00,0x00, 0x00,0x00, 0x00,0x00, 0x00,0x00, 0x00,0x00, 0x00,0x00,
0x00,0x00, 0x00,0x00, 0x00,0x00, 0x00,0x00, 0x00,0x00, 0x00,0x00, 0x00,0x00, 0x00,0x00,
0x1f,0xf8, 0x1f,0xf8, 0x18,0x00, 0x18,0x00, 0x18,0x00, 0x18,0x00, 0x18,0x00, 0x1f,0xf8,
0x1f,0xf8, 0x18,0x00, 0x18,0x00, 0x18,0x00, 0x18,0x00, 0x18,0x00, 0x18,0x00, 0x1f,0xf8,
0x1f,0xf8, 0x00,0x00, 0x00,0x00, 0x00,0x00, 0x00,0x00, 0x00,0x00, 0x00,0x00, 0x00,0x00,
0x00,0x00, 0x00,0x00, 0x00,0x00, 0x00,0x00, 0x00,0x00, 0x00,0x00, 0x00,0x00, 0x00,0x00,
0x1f,0xf8, 0x1f,0xf8, 0x18,0x00, 0x18,0x00, 0x18,0x00, 0x18,0x00, 0x18,0x00, 0x1f,0xf8,
0x1f,0xf8, 0x18,0x00, 0x18,0x00, 0x18,0x00, 0x18,0x00, 0x18,0x00, 0x18,0x00, 0x18,0x00,
0x18,0x00, 0x00,0x00, 0x00,0x00, 0x00,0x00, 0x00,0x00, 0x00,0x00, 0x00,0x00, 0x00,0x00,
0x00,0x00, 0x00,0x00, 0x00,0x00, 0x00,0x00, 0x00,0x00, 0x00,0x00, 0x00,0x00, 0x00,0x00,
0x07,0xfc, 0x0f,0xfc, 0x1c,0x00, 0x38,0x00, 0x30,0x00, 0x70,0x00, 0x70,0x00, 0x70,0xfc,
0x70,0xfc, 0x70,0x0c, 0x70,0x0c, 0x70,0x0c, 0x30,0x0c, 0x38,0x0c, 0x1c,0x0c, 0x0f,0xfc,
0x07,0xfc, 0x00,0x00, 0x00,0x00, 0x00,0x00, 0x00,0x00, 0x00,0x00, 0x00,0x00, 0x00,0x00,
0x00,0x00, 0x00,0x00, 0x00,0x00, 0x00,0x00, 0x00,0x00, 0x00,0x00, 0x00,0x00, 0x00,0x00,
0x30,0x0c, 0x30,0x0c, 0x30,0x0c, 0x30,0x0c, 0x30,0x0c, 0x30,0x0c, 0x30,0x0c, 0x3f,0xfc,
0x3f,0xfc, 0x30,0x0c, 0x30,0x0c, 0x30,0x0c, 0x30,0x0c, 0x30,0x0c, 0x30,0x0c, 0x30,0x0c,
0x30,0x0c, 0x00,0x00, 0x00,0x00, 0x00,0x00, 0x00,0x00, 0x00,0x00, 0x00,0x00, 0x00,0x00,
0x00,0x00, 0x00,0x00, 0x00,0x00, 0x00,0x00, 0x00,0x00, 0x00,0x00, 0x00,0x00, 0x00,0x00,
0x3f,0xfc, 0x3f,0xfc, 0x01,0x80, 0x01,0x80, 0x01,0x80, 0x01,0x80, 0x01,0x80, 0x01,0x80,
0x01,0x80, 0x01,0x80, 0x01,0x80, 0x01,0x80, 0x01,0x80, 0x01,0x80, 0x01,0x80, 0x3f,0xfc,
0x3f,0xfc, 0x00,0x00, 0x00,0x00, 0x00,0x00, 0x00,0x00, 0x00,0x00, 0x00,0x00, 0x00,0x00,
0x00,0x00, 0x00,0x00, 0x00,0x00, 0x00,0x00, 0x00,0x00, 0x00,0x00, 0x00,0x00, 0x00,0x00,
0x1f,0xf0, 0x1f,0xf0, 0x00,0x30, 0x00,0x30, 0x00,0x30, 0x00,0x30, 0x00,0x30, 0x00,0x30,
0x00,0x30, 0x00,0x30, 0x00,0x30, 0x00,0x30, 0x00,0x30, 0x00,0x30, 0x10,0x70, 0x1f,0xe0,
0x1f,0xc0, 0x00,0x00, 0x00,0x00, 0x00,0x00, 0x00,0x00, 0x00,0x00, 0x00,0x00, 0x00,0x00,
0x00,0x00, 0x00,0x00, 0x00,0x00, 0x00,0x00, 0x00,0x00, 0x00,0x00, 0x00,0x00, 0x00,0x00,
0x38,0x1c, 0x38,0x38, 0x38,0x70, 0x38,0xe0, 0x38,0xc0, 0x39,0x80, 0x3b,0x00, 0x3f,0x00,
0x3f,0x00, 0x3b,0x00, 0x3b,0x80, 0x39,0xc0, 0x38,0xe0, 0x38,0x70, 0x38,0x38, 0x38,0x3c,
0x38,0x1c, 0x00,0x00, 0x00,0x00, 0x00,0x00, 0x00,0x00, 0x00,0x00, 0x00,0x00, 0x00,0x00,
0x00,0x00, 0x00,0x00, 0x00,0x00, 0x00,0x00, 0x00,0x00, 0x00,0x00, 0x00,0x00, 0x00,0x00,
0x1c,0x00, 0x1c,0x00, 0x1c,0x00, 0x1c,0x00, 0x1c,0x00, 0x1c,0x00, 0x1c,0x00, 0x1c,0x00,
0x1c,0x00, 0x1c,0x00, 0x1c,0x00, 0x1c,0x00, 0x1c,0x00, 0x1c,0x00, 0x1c,0x00, 0x1f,0xfc,
0x1f,0xfc, 0x00,0x00, 0x00,0x00, 0x00,0x00, 0x00,0x00, 0x00,0x00, 0x00,0x00, 0x00,0x00,
0x00,0x00, 0x00,0x00, 0x00,0x00, 0x00,0x00, 0x00,0x00, 0x00,0x00, 0x00,0x00, 0x00,0x00,
0x38,0x1c, 0x38,0x1c, 0x6c,0x3e, 0x6c,0x3e, 0x6c,0x6e, 0x66,0x6e, 0x66,0x6e, 0x67,0xce,
0x63,0xce, 0x63,0x86, 0x61,0x86, 0x60,0x06, 0x60,0x06, 0x60,0x06, 0x60,0x06, 0x60,0x06,
0x60,0x06, 0x00,0x00, 0x00,0x00, 0x00,0x00, 0x00,0x00, 0x00,0x00, 0x00,0x00, 0x00,0x00,
0x00,0x00, 0x00,0x00, 0x00,0x00, 0x00,0x00, 0x00,0x00, 0x00,0x00, 0x00,0x00, 0x00,0x00,
0x38,0x0c, 0x3c,0x0c, 0x3c,0x0c, 0x3e,0x0c, 0x36,0x0c, 0x37,0x0c, 0x33,0x0c, 0x33,0x8c,
0x31,0x8c, 0x31,0xcc, 0x30,0xcc, 0x30,0xec, 0x30,0x6c, 0x30,0x7c, 0x30,0x3c, 0x30,0x3c,
0x30,0x1c, 0x00,0x00, 0x00,0x00, 0x00,0x00, 0x00,0x00, 0x00,0x00, 0x00,0x00, 0x00,0x00,
0x00,0x00, 0x00,0x00, 0x00,0x00, 0x00,0x00, 0x00,0x00, 0x00,0x00, 0x00,0x00, 0x00,0x00,
0x0f,0xf0, 0x1f,0xf8, 0x38,0x1c, 0x38,0x1c, 0x70,0x0e, 0x70,0x0e, 0x70,0x0e, 0x60,0x06,
0x60,0x06, 0x60,0x06, 0x70,0x0e, 0x70,0x0e, 0x70,0x0c, 0x38,0x1c, 0x3c,0x38, 0x1f,0xf8,
0x0f,0xe0, 0x00,0x00, 0x00,0x00, 0x00,0x00, 0x00,0x00, 0x00,0x00, 0x00,0x00, 0x00,0x00,
0x00,0x00, 0x00,0x00, 0x00,0x00, 0x00,0x00, 0x00,0x00, 0x00,0x00, 0x00,0x00, 0x00,0x00,
0x3f,0xe0, 0x3f,0xf8, 0x38,0x3c, 0x38,0x1c, 0x38,0x0c, 0x38,0x0c, 0x38,0x0c, 0x38,0x1c,
0x38,0x78, 0x3f,0xf0, 0x3f,0xc0, 0x38,0x00, 0x38,0x00, 0x38,0x00, 0x38,0x00, 0x38,0x00,
0x38,0x00, 0x00,0x00, 0x00,0x00, 0x00,0x00, 0x00,0x00, 0x00,0x00, 0x00,0x00, 0x00,0x00,
0x00,0x00, 0x00,0x00, 0x00,0x00, 0x00,0x00, 0x00,0x00, 0x00,0x00, 0x00,0x00, 0x00,0x00,
0x0f,0xf0, 0x1f,0xf8, 0x38,0x1c, 0x38,0x1c, 0x70,0x0e, 0x70,0x0e, 0x70,0x0e, 0x60,0x06,
0x60,0x06, 0x60,0x06, 0x70,0x0e, 0x70,0x0e, 0x70,0x0c, 0x38,0x1c, 0x3c,0x38, 0x1f,0xf8,
0x0f,0xe0, 0x01,0x80, 0x01,0x80, 0x01,0xe2, 0x00,0xff, 0x00,0x3c, 0x00,0x00, 0x00,0x00,
0x00,0x00, 0x00,0x00, 0x00,0x00, 0x00,0x00, 0x00,0x00, 0x00,0x00, 0x00,0x00, 0x00,0x00,
0x3f,0xe0, 0x3f,0xf8, 0x38,0x38, 0x38,0x18, 0x38,0x18, 0x38,0x18, 0x38,0x38, 0x3f,0xf0,
0x3f,0xc0, 0x39,0xe0, 0x38,0x60, 0x38,0x70, 0x38,0x38, 0x38,0x38, 0x38,0x1c, 0x38,0x1c,
0x38,0x0e, 0x00,0x00, 0x00,0x00, 0x00,0x00, 0x00,0x00, 0x00,0x00, 0x00,0x00, 0x00,0x00,
0x00,0x00, 0x00,0x00, 0x00,0x00, 0x00,0x00, 0x00,0x00, 0x00,0x00, 0x00,0x00, 0x00,0x00,
0x0f,0xf8, 0x1f,0xf8, 0x38,0x00, 0x38,0x00, 0x30,0x00, 0x38,0x00, 0x1e,0x00, 0x0f,0x80,
0x07,0xf0, 0x00,0xf8, 0x00,0x3c, 0x00,0x1c, 0x00,0x1c, 0x00,0x1c, 0x00,0x3c, 0x3f,0xf8,
0x3f,0xe0, 0x00,0x00, 0x00,0x00, 0x00,0x00, 0x00,0x00, 0x00,0x00, 0x00,0x00, 0x00,0x00,
0x00,0x00, 0x00,0x00, 0x00,0x00, 0x00,0x00, 0x00,0x00, 0x00,0x00, 0x00,0x00, 0x00,0x00,
0x7f,0xfe, 0x7f,0xfe, 0x01,0x80, 0x01,0x80, 0x01,0x80, 0x01,0x80, 0x01,0x80, 0x01,0x80,
0x01,0x80, 0x01,0x80, 0x01,0x80, 0x01,0x80, 0x01,0x80, 0x01,0x80, 0x01,0x80, 0x01,0x80,
0x01,0x80, 0x00,0x00, 0x00,0x00, 0x00,0x00, 0x00,0x00, 0x00,0x00, 0x00,0x00, 0x00,0x00,
0x00,0x00, 0x00,0x00, 0x00,0x00, 0x00,0x00, 0x00,0x00, 0x00,0x00, 0x00,0x00, 0x00,0x00,
0x30,0x0c, 0x30,0x0c, 0x30,0x0c, 0x30,0x0c, 0x30,0x0c, 0x30,0x0c, 0x30,0x0c, 0x30,0x0c,
0x30,0x0c, 0x30,0x0c, 0x30,0x0c, 0x30,0x0c, 0x30,0x0c, 0x30,0x1c, 0x38,0x1c, 0x1f,0xf8,
0x0f,0xe0, 0x00,0x00, 0x00,0x00, 0x00,0x00, 0x00,0x00, 0x00,0x00, 0x00,0x00, 0x00,0x00,
0x00,0x00, 0x00,0x00, 0x00,0x00, 0x00,0x00, 0x00,0x00, 0x00,0x00, 0x00,0x00, 0x00,0x00,
0xe0,0x07, 0x70,0x06, 0x70,0x0e, 0x70,0x0e, 0x38,0x0c, 0x38,0x1c, 0x38,0x18, 0x1c,0x18,
0x1c,0x38, 0x0c,0x30, 0x0e,0x70, 0x0e,0x70, 0x06,0x60, 0x07,0xe0, 0x07,0xe0, 0x03,0xc0,
0x03,0xc0, 0x00,0x00, 0x00,0x00, 0x00,0x00, 0x00,0x00, 0x00,0x00, 0x00,0x00, 0x00,0x00,
0x00,0x00, 0x00,0x00, 0x00,0x00, 0x00,0x00, 0x00,0x00, 0x00,0x00, 0x00,0x00, 0x00,0x00,
0x60,0x06, 0x60,0x06, 0x60,0x06, 0x60,0x06, 0x60,0x06, 0x60,0x06, 0x61,0x86, 0x63,0xc6,
0x73,0xc6, 0x73,0xce, 0x76,0xee, 0x36,0x6c, 0x36,0x6c, 0x3c,0x7c, 0x3c,0x3c, 0x3c,0x3c,
0x38,0x1c, 0x00,0x00, 0x00,0x00, 0x00,0x00, 0x00,0x00, 0x00,0x00, 0x00,0x00, 0x00,0x00,
0x00,0x00, 0x00,0x00, 0x00,0x00, 0x00,0x00, 0x00,0x00, 0x00,0x00, 0x00,0x00, 0x00,0x00,
0x70,0x0e, 0x38,0x1c, 0x1c,0x38, 0x1c,0x38, 0x0e,0x70, 0x06,0xe0, 0x07,0xe0, 0x03,0xc0,
0x03,0xc0, 0x03,0xc0, 0x07,0xe0, 0x0e,0x70, 0x1c,0x30, 0x1c,0x38, 0x38,0x1c, 0x70,0x1e,
0x70,0x0e, 0x00,0x00, 0x00,0x00, 0x00,0x00, 0x00,0x00, 0x00,0x00, 0x00,0x00, 0x00,0x00,
0x00,0x00, 0x00,0x00, 0x00,0x00, 0x00,0x00, 0x00,0x00, 0x00,0x00, 0x00,0x00, 0x00,0x00,
0xe0,0x06, 0x70,0x0e, 0x38,0x0c, 0x38,0x1c, 0x1c,0x38, 0x1c,0x30, 0x0e,0x70, 0x06,0x60,
0x07,0xe0, 0x03,0xc0, 0x01,0x80, 0x01,0x80, 0x01,0x80, 0x01,0x80, 0x01,0x80, 0x01,0x80,
0x01,0x80, 0x00,0x00, 0x00,0x00, 0x00,0x00, 0x00,0x00, 0x00,0x00, 0x00,0x00, 0x00,0x00,
0x00,0x00, 0x00,0x00, 0x00,0x00, 0x00,0x00, 0x00,0x00, 0x00,0x00, 0x00,0x00, 0x00,0x00,
0x3f,0xfc, 0x3f,0xfc, 0x00,0x1c, 0x00,0x38, 0x00,0x70, 0x00,0x60, 0x00,0xe0, 0x01,0xc0,
0x03,0x80, 0x03,0x80, 0x07,0x00, 0x0e,0x00, 0x0c,0x00, 0x1c,0x00, 0x38,0x00, 0x3f,0xfc,
0x3f,0xfc, 0x00,0x00, 0x00,0x00, 0x00,0x00, 0x00,0x00, 0x00,0x00, 0x00,0x00, 0x00,0x00,
0x00,0x00, 0x00,0x00, 0x00,0x00, 0x00,0x00, 0x00,0x00, 0x00,0x00, 0x07,0xf0, 0x07,0xf0,
0x06,0x00, 0x06,0x00, 0x06,0x00, 0x06,0x00, 0x06,0x00, 0x06,0x00, 0x06,0x00, 0x06,0x00,
0x06,0x00, 0x06,0x00, 0x06,0x00, 0x06,0x00, 0x06,0x00, 0x06,0x00, 0x06,0x00, 0x06,0x00,
0x06,0x00, 0x06,0x00, 0x06,0x00, 0x06,0x00, 0x06,0x00, 0x07,0xf0, 0x00,0x00, 0x00,0x00,
0x00,0x00, 0x00,0x00, 0x00,0x00, 0x00,0x00, 0x00,0x00, 0x00,0x00, 0x38,0x00, 0x18,0x00,
0x1c,0x00, 0x0c,0x00, 0x0c,0x00, 0x06,0x00, 0x06,0x00, 0x07,0x00, 0x03,0x00, 0x03,0x80,
0x01,0x80, 0x01,0xc0, 0x00,0xc0, 0x00,0xe0, 0x00,0x60, 0x00,0x60, 0x00,0x30, 0x00,0x30,
0x00,0x38, 0x00,0x18, 0x00,0x1c, 0x00,0x0c, 0x00,0x00, 0x00,0x00, 0x00,0x00, 0x00,0x00,
0x00,0x00, 0x00,0x00, 0x00,0x00, 0x00,0x00, 0x00,0x00, 0x00,0x00, 0x0f,0xe0, 0x0f,0xe0,
0x00,0x60, 0x00,0x60, 0x00,0x60, 0x00,0x60, 0x00,0x60, 0x00,0x60, 0x00,0x60, 0x00,0x60,
0x00,0x60, 0x00,0x60, 0x00,0x60, 0x00,0x60, 0x00,0x60, 0x00,0x60, 0x00,0x60, 0x00,0x60,
0x00,0x60, 0x00,0x60, 0x00,0x60, 0x00,0x60, 0x00,0x60, 0x0f,0xe0, 0x00,0x00, 0x00,0x00,
0x00,0x00, 0x00,0x00, 0x00,0x00, 0x00,0x00, 0x00,0x00, 0x00,0x00, 0x00,0x00, 0x00,0x00,
0x03,0x80, 0x03,0xc0, 0x06,0xe0, 0x06,0x60, 0x0c,0x30, 0x1c,0x38, 0x18,0x18, 0x30,0x1c,
0x00,0x00, 0x00,0x00, 0x00,0x00, 0x00,0x00, 0x00,0x00, 0x00,0x00, 0x00,0x00, 0x00,0x00,
0x00,0x00, 0x00,0x00, 0x00,0x00, 0x00,0x00, 0x00,0x00, 0x00,0x00, 0x00,0x00, 0x00,0x00,
0x00,0x00, 0x00,0x00, 0x00,0x00, 0x00,0x00, 0x00,0x00, 0x00,0x00, 0x00,0x00, 0x00,0x00,
0x00,0x00, 0x00,0x00, 0x00,0x00, 0x00,0x00, 0x00,0x00, 0x00,0x00, 0x00,0x00, 0x00,0x00,
0x00,0x00, 0x00,0x00, 0x00,0x00, 0x00,0x00, 0x00,0x00, 0x00,0x00, 0x00,0x00, 0x00,0x00,
0x00,0x00, 0x00,0x00, 0x00,0x00, 0x00,0x00, 0xff,0xff, 0xff,0xff, 0x00,0x00, 0x00,0x00,
0x00,0x00, 0x00,0x00, 0x00,0x00, 0x00,0x00, 0x00,0x00, 0x00,0x00, 0x1c,0x00, 0x0e,0x00,
0x07,0x00, 0x01,0x80, 0x00,0x00, 0x00,0x00, 0x00,0x00, 0x00,0x00, 0x00,0x00, 0x00,0x00,
0x00,0x00, 0x00,0x00, 0x00,0x00, 0x00,0x00, 0x00,0x00, 0x00,0x00, 0x00,0x00, 0x00,0x00,
0x00,0x00, 0x00,0x00, 0x00,0x00, 0x00,0x00, 0x00,0x00, 0x00,0x00, 0x00,0x00, 0x00,0x00,
0x00,0x00, 0x00,0x00, 0x00,0x00, 0x00,0x00, 0x00,0x00, 0x00,0x00, 0x00,0x00, 0x00,0x00,
0x00,0x00, 0x00,0x00, 0x00,0x00, 0x00,0x00, 0x1f,0xf0, 0x1e,0xf8, 0x00,0x18, 0x00,0x1c,
0x00,0x1c, 0x07,0xfc, 0x1f,0xfc, 0x3c,0x1c, 0x38,0x1c, 0x30,0x1c, 0x38,0x7c, 0x3f,0xfc,
0x1f,0xdc, 0x00,0x00, 0x00,0x00, 0x00,0x00, 0x00,0x00, 0x00,0x00, 0x00,0x00, 0x00,0x00,
0x00,0x00, 0x00,0x00, 0x00,0x00, 0x00,0x00, 0x00,0x00, 0x00,0x00, 0x38,0x00, 0x38,0x00,
0x38,0x00, 0x38,0x00, 0x38,0x00, 0x38,0x00, 0x3b,0xf0, 0x3f,0xf8, 0x3e,0x1c, 0x38,0x0c,
0x38,0x0c, 0x38,0x0c, 0x38,0x0c, 0x38,0x0c, 0x38,0x0c, 0x38,0x1c, 0x38,0x38, 0x3f,0xf0,
0x1f,0xe0, 0x00,0x00, 0x00,0x00, 0x00,0x00, 0x00,0x00, 0x00,0x00, 0x00,0x00, 0x00,0x00,
0x00,0x00, 0x00,0x00, 0x00,0x00, 0x00,0x00, 0x00,0x00, 0x00,0x00, 0x00,0x00, 0x00,0x00,
0x00,0x00, 0x00,0x00, 0x00,0x00, 0x00,0x00, 0x03,0xf8, 0x0f,0xf8, 0x1e,0x00, 0x1c,0x00,
0x38,0x00, 0x38,0x00, 0x38,0x00, 0x38,0x00, 0x38,0x00, 0x1c,0x00, 0x1e,0x00, 0x0f,0xf8,
0x03,0xf8, 0x00,0x00, 0x00,0x00, 0x00,0x00, 0x00,0x00, 0x00,0x00, 0x00,0x00, 0x00,0x00,
0x00,0x00, 0x00,0x00, 0x00,0x00, 0x00,0x00, 0x00,0x00, 0x00,0x00, 0x00,0x1c, 0x00,0x1c,
0x00,0x1c, 0x00,0x1c, 0x00,0x1c, 0x00,0x1c, 0x07,0xfc, 0x1f,0xfc, 0x18,0x1c, 0x38,0x1c,
0x30,0x1c, 0x30,0x1c, 0x30,0x1c, 0x30,0x1c, 0x30,0x1c, 0x38,0x3c, 0x38,0x7c, 0x1f,0xdc,
0x0f,0x9c, 0x00,0x00, 0x00,0x00, 0x00,0x00, 0x00,0x00, 0x00,0x00, 0x00,0x00, 0x00,0x00,
0x00,0x00, 0x00,0x00, 0x00,0x00, 0x00,0x00, 0x00,0x00, 0x00,0x00, 0x00,0x00, 0x00,0x00,
0x00,0x00, 0x00,0x00, 0x00,0x00, 0x00,0x00, 0x07,0xf0, 0x1e,0x78, 0x18,0x1c, 0x38,0x1c,
0x30,0x0c, 0x3f,0xfc, 0x3f,0xfc, 0x30,0x00, 0x30,0x00, 0x38,0x00, 0x1c,0x00, 0x1f,0xfc,
0x07,0xfc, 0x00,0x00, 0x00,0x00, 0x00,0x00, 0x00,0x00, 0x00,0x00, 0x00,0x00, 0x00,0x00,
0x00,0x00, 0x00,0x00, 0x00,0x00, 0x00,0x00, 0x00,0x00, 0x00,0x00, 0x00,0x7e, 0x01,0xfe,
0x03,0xc0, 0x03,0x80, 0x03,0x00, 0x03,0x00, 0x03,0x00, 0x03,0x00, 0x7f,0xfc, 0x7f,0xfc,
0x03,0x00, 0x03,0x00, 0x03,0x00, 0x03,0x00, 0x03,0x00, 0x03,0x00, 0x03,0x00, 0x03,0x00,
0x03,0x00, 0x00,0x00, 0x00,0x00, 0x00,0x00, 0x00,0x00, 0x00,0x00, 0x00,0x00, 0x00,0x00,
0x00,0x00, 0x00,0x00, 0x00,0x00, 0x00,0x00, 0x00,0x00, 0x00,0x00, 0x00,0x00, 0x00,0x00,
0x00,0x00, 0x00,0x00, 0x00,0x00, 0x00,0x00, 0x0f,0xfe, 0x1c,0x7e, 0x18,0x38, 0x38,0x18,
0x38,0x18, 0x38,0x38, 0x1c,0x78, 0x1f,0xf0, 0x3b,0x80, 0x30,0x00, 0x38,0x00, 0x1f,0xf8,
0x1f,0xfc, 0x30,0x0e, 0x70,0x0e, 0x70,0x0c, 0x3c,0x3c, 0x1f,0xf8, 0x01,0x80, 0x00,0x00,
0x00,0x00, 0x00,0x00, 0x00,0x00, 0x00,0x00, 0x00,0x00, 0x00,0x00, 0x38,0x00, 0x38,0x00,
0x38,0x00, 0x38,0x00, 0x38,0x00, 0x38,0x00, 0x3b,0xf0, 0x3f,0xf8, 0x3c,0x18, 0x38,0x1c,
0x38,0x1c, 0x38,0x1c, 0x38,0x1c, 0x38,0x1c, 0x38,0x1c, 0x38,0x1c, 0x38,0x1c, 0x38,0x1c,
0x38,0x1c, 0x00,0x00, 0x00,0x00, 0x00,0x00, 0x00,0x00, 0x00,0x00, 0x00,0x00, 0x00,0x00,
0x00,0x00, 0x00,0x00, 0x00,0x00, 0x00,0x00, 0x00,0x00, 0x00,0x00, 0x01,0x80, 0x03,0xc0,
0x03,0xc0, 0x01,0x80, 0x00,0x00, 0x00,0x00, 0x1f,0xc0, 0x1f,0xc0, 0x01,0xc0, 0x01,0xc0,
0x01,0xc0, 0x01,0xc0, 0x01,0xc0, 0x01,0xc0, 0x01,0xc0, 0x01,0xc0, 0x01,0xc0, 0x3f,0xfc,
0x3f,0xfc, 0x00,0x00, 0x00,0x00, 0x00,0x00, 0x00,0x00, 0x00,0x00, 0x00,0x00, 0x00,0x00,
0x00,0x00, 0x00,0x00, 0x00,0x00, 0x00,0x00, 0x00,0x00, 0x00,0x00, 0x00,0x60, 0x00,0x70,
0x00,0x70, 0x00,0x70, 0x00,0x00, 0x00,0x00, 0x3f,0xf0, 0x3f,0xf0, 0x00,0x70, 0x00,0x70,
0x00,0x70, 0x00,0x70, 0x00,0x70, 0x00,0x70, 0x00,0x70, 0x00,0x70, 0x00,0x70, 0x00,0x70,
0x00,0x70, 0x00,0x70, 0x00,0x70, 0x00,0x60, 0x39,0xe0, 0x3f,0xc0, 0x06,0x00, 0x00,0x00,
0x00,0x00, 0x00,0x00, 0x00,0x00, 0x00,0x00, 0x00,0x00, 0x00,0x00, 0x18,0x00, 0x18,0x00,
0x18,0x00, 0x18,0x00, 0x18,0x00, 0x18,0x00, 0x18,0x1c, 0x18,0x38, 0x18,0x70, 0x19,0xe0,
0x1b,0xc0, 0x1f,0x00, 0x1b,0x80, 0x19,0xc0, 0x19,0xe0, 0x18,0xf0, 0x18,0x78, 0x18,0x3c,
0x18,0x1e, 0x00,0x00, 0x00,0x00, 0x00,0x00, 0x00,0x00, 0x00,0x00, 0x00,0x00, 0x00,0x00,
0x00,0x00, 0x00,0x00, 0x00,0x00, 0x00,0x00, 0x00,0x00, 0x00,0x00, 0x1f,0xc0, 0x1f,0xc0,
0x01,0xc0, 0x01,0xc0, 0x01,0xc0, 0x01,0xc0, 0x01,0xc0, 0x01,0xc0, 0x01,0xc0, 0x01,0xc0,
0x01,0xc0, 0x01,0xc0, 0x01,0xc0, 0x01,0xc0, 0x01,0xc0, 0x01,0xc0, 0x01,0xc0, 0x3f,0xfc,
0x3f,0xfc, 0x00,0x00, 0x00,0x00, 0x00,0x00, 0x00,0x00, 0x00,0x00, 0x00,0x00, 0x00,0x00,
0x00,0x00, 0x00,0x00, 0x00,0x00, 0x00,0x00, 0x00,0x00, 0x00,0x00, 0x00,0x00, 0x00,0x00,
0x00,0x00, 0x00,0x00, 0x00,0x00, 0x00,0x00, 0x6f,0x3c, 0x6f,0xec, 0x79,0xce, 0x71,0xce,
0x71,0x8e, 0x71,0x8e, 0x71,0x8e, 0x71,0x8e, 0x71,0x8e, 0x71,0x8e, 0x71,0x8e, 0x71,0x8e,
0x71,0x8e, 0x00,0x00, 0x00,0x00, 0x00,0x00, 0x00,0x00, 0x00,0x00, 0x00,0x00, 0x00,0x00,
0x00,0x00, 0x00,0x00, 0x00,0x00, 0x00,0x00, 0x00,0x00, 0x00,0x00, 0x00,0x00, 0x00,0x00,
0x00,0x00, 0x00,0x00, 0x00,0x00, 0x00,0x00, 0x33,0xf0, 0x3f,0xf8, 0x3c,0x18, 0x38,0x1c,
0x38,0x1c, 0x38,0x1c, 0x38,0x1c, 0x38,0x1c, 0x38,0x1c, 0x38,0x1c, 0x38,0x1c, 0x38,0x1c,
0x38,0x1c, 0x00,0x00, 0x00,0x00, 0x00,0x00, 0x00,0x00, 0x00,0x00, 0x00,0x00, 0x00,0x00,
0x00,0x00, 0x00,0x00, 0x00,0x00, 0x00,0x00, 0x00,0x00, 0x00,0x00, 0x00,0x00, 0x00,0x00,
0x00,0x00, 0x00,0x00, 0x00,0x00, 0x00,0x00, 0x0f,0xf0, 0x1f,0xf8, 0x38,0x1c, 0x30,0x0c,
0x30,0x0c, 0x70,0x0e, 0x70,0x0e, 0x70,0x0e, 0x30,0x0c, 0x38,0x1c, 0x38,0x38, 0x1f,0xf8,
0x0f,0xe0, 0x00,0x00, 0x00,0x00, 0x00,0x00, 0x00,0x00, 0x00,0x00, 0x00,0x00, 0x00,0x00,
0x00,0x00, 0x00,0x00, 0x00,0x00, 0x00,0x00, 0x00,0x00, 0x00,0x00, 0x00,0x00, 0x00,0x00,
0x00,0x00, 0x00,0x00, 0x00,0x00, 0x00,0x00, 0x3b,0xf0, 0x3f,0xf8, 0x3e,0x1c, 0x38,0x0c,
0x38,0x0c, 0x38,0x0c, 0x38,0x0c, 0x38,0x0c, 0x38,0x0c, 0x38,0x1c, 0x38,0x38, 0x3f,0xf0,
0x3f,0xe0, 0x38,0x00, 0x38,0x00, 0x38,0x00, 0x38,0x00, 0x38,0x00, 0x00,0x00, 0x00,0x00,
0x00,0x00, 0x00,0x00, 0x00,0x00, 0x00,0x00, 0x00,0x00, 0x00,0x00, 0x00,0x00, 0x00,0x00,
0x00,0x00, 0x00,0x00, 0x00,0x00, 0x00,0x00, 0x07,0xfc, 0x1f,0x7c, 0x18,0x1c, 0x38,0x1c,
0x30,0x1c, 0x30,0x1c, 0x30,0x1c, 0x30,0x1c, 0x30,0x1c, 0x38,0x3c, 0x38,0x7c, 0x1f,0xdc,
0x0f,0x9c, 0x00,0x1c, 0x00,0x1c, 0x00,0x1c, 0x00,0x1c, 0x00,0x1c, 0x00,0x00, 0x00,0x00,
0x00,0x00, 0x00,0x00, 0x00,0x00, 0x00,0x00, 0x00,0x00, 0x00,0x00, 0x00,0x00, 0x00,0x00,
0x00,0x00, 0x00,0x00, 0x00,0x00, 0x00,0x00, 0x19,0xf8, 0x1b,0xfc, 0x1e,0x0c, 0x1c,0x0c,
0x18,0x0e, 0x18,0x00, 0x18,0x00, 0x18,0x00, 0x18,0x00, 0x18,0x00, 0x18,0x00, 0x18,0x00,
0x18,0x00, 0x00,0x00, 0x00,0x00, 0x00,0x00, 0x00,0x00, 0x00,0x00, 0x00,0x00, 0x00,0x00,
0x00,0x00, 0x00,0x00, 0x00,0x00, 0x00,0x00, 0x00,0x00, 0x00,0x00, 0x00,0x00, 0x00,0x00,
0x00,0x00, 0x00,0x00, 0x00,0x00, 0x00,0x00, 0x0f,0xf8, 0x1e,0x38, 0x18,0x00, 0x18,0x00,
0x1c,0x00, 0x0f,0x80, 0x07,0xf0, 0x00,0xf8, 0x00,0x38, 0x00,0x1c, 0x00,0x18, 0x1f,0xf8,
0x1f,0xe0, 0x00,0x00, 0x00,0x00, 0x00,0x00, 0x00,0x00, 0x00,0x00, 0x00,0x00, 0x00,0x00,
0x00,0x00, 0x00,0x00, 0x00,0x00, 0x00,0x00, 0x00,0x00, 0x00,0x00, 0x00,0x00, 0x00,0x00,
0x06,0x00, 0x06,0x00, 0x06,0x00, 0x06,0x00, 0x7f,0xfc, 0x7f,0xfc, 0x06,0x00, 0x06,0x00,
0x06,0x00, 0x06,0x00, 0x06,0x00, 0x06,0x00, 0x06,0x00, 0x06,0x00, 0x07,0x00, 0x03,0xfc,
0x01,0xfc, 0x00,0x00, 0x00,0x00, 0x00,0x00, 0x00,0x00, 0x00,0x00, 0x00,0x00, 0x00,0x00,
0x00,0x00, 0x00,0x00, 0x00,0x00, 0x00,0x00, 0x00,0x00, 0x00,0x00, 0x00,0x00, 0x00,0x00,
0x00,0x00, 0x00,0x00, 0x00,0x00, 0x00,0x00, 0x38,0x1c, 0x38,0x1c, 0x38,0x1c, 0x38,0x1c,
0x38,0x1c, 0x38,0x1c, 0x38,0x1c, 0x38,0x1c, 0x38,0x1c, 0x38,0x3c, 0x18,0x7c, 0x1f,0xfc,
0x0f,0x9c, 0x00,0x00, 0x00,0x00, 0x00,0x00, 0x00,0x00, 0x00,0x00, 0x00,0x00, 0x00,0x00,
0x00,0x00, 0x00,0x00, 0x00,0x00, 0x00,0x00, 0x00,0x00, 0x00,0x00, 0x00,0x00, 0x00,0x00,
0x00,0x00, 0x00,0x00, 0x00,0x00, 0x00,0x00, 0x70,0x0e, 0x30,0x0c, 0x38,0x1c, 0x18,0x18,
0x1c,0x38, 0x1c,0x30, 0x0c,0x30, 0x0e,0x70, 0x06,0x60, 0x07,0xe0, 0x07,0xc0, 0x03,0xc0,
0x03,0xc0, 0x00,0x00, 0x00,0x00, 0x00,0x00, 0x00,0x00, 0x00,0x00, 0x00,0x00, 0x00,0x00,
0x00,0x00, 0x00,0x00, 0x00,0x00, 0x00,0x00, 0x00,0x00, 0x00,0x00, 0x00,0x00, 0x00,0x00,
0x00,0x00, 0x00,0x00, 0x00,0x00, 0x00,0x00, 0x60,0x06, 0x60,0x06, 0x60,0x06, 0x61,0x86,
0x71,0x8e, 0x73,0xce, 0x33,0xcc, 0x32,0xec, 0x36,0x6c, 0x36,0x6c, 0x3c,0x7c, 0x3c,0x3c,
0x1c,0x38, 0x00,0x00, 0x00,0x00, 0x00,0x00, 0x00,0x00, 0x00,0x00, 0x00,0x00, 0x00,0x00,
0x00,0x00, 0x00,0x00, 0x00,0x00, 0x00,0x00, 0x00,0x00, 0x00,0x00, 0x00,0x00, 0x00,0x00,
0x00,0x00, 0x00,0x00, 0x00,0x00, 0x00,0x00, 0x38,0x1c, 0x1c,0x18, 0x1c,0x38, 0x0e,0x70,
0x07,0xe0, 0x03,0xc0, 0x03,0xc0, 0x03,0xc0, 0x07,0xe0, 0x0e,0x70, 0x1c,0x38, 0x38,0x1c,
0x78,0x1e, 0x00,0x00, 0x00,0x00, 0x00,0x00, 0x00,0x00, 0x00,0x00, 0x00,0x00, 0x00,0x00,
0x00,0x00, 0x00,0x00, 0x00,0x00, 0x00,0x00, 0x00,0x00, 0x00,0x00, 0x00,0x00, 0x00,0x00,
0x00,0x00, 0x00,0x00, 0x00,0x00, 0x00,0x00, 0x70,0x0e, 0x30,0x0c, 0x38,0x1c, 0x18,0x18,
0x1c,0x38, 0x1c,0x38, 0x0e,0x30, 0x0e,0x70, 0x06,0x60, 0x07,0xe0, 0x03,0xe0, 0x03,0xc0,
0x03,0xc0, 0x03,0x80, 0x03,0x80, 0x07,0x00, 0x7e,0x00, 0x7c,0x00, 0x00,0x00, 0x00,0x00,
0x00,0x00, 0x00,0x00, 0x00,0x00, 0x00,0x00, 0x00,0x00, 0x00,0x00, 0x00,0x00, 0x00,0x00,
0x00,0x00, 0x00,0x00, 0x00,0x00, 0x00,0x00, 0x1f,0xf8, 0x1f,0xf8, 0x00,0x38, 0x00,0x70,
0x00,0xe0, 0x01,0xc0, 0x03,0x80, 0x03,0x00, 0x07,0x00, 0x0e,0x00, 0x1c,0x00, 0x3f,0xfc,
0x3f,0xfc, 0x00,0x00, 0x00,0x00, 0x00,0x00, 0x00,0x00, 0x00,0x00, 0x00,0x00, 0x00,0x00,
0x00,0x00, 0x00,0x00, 0x00,0x00, 0x00,0x00, 0x00,0x00, 0x00,0x00, 0x00,0xf8, 0x01,0xf8,
0x01,0x80, 0x03,0x80, 0x03,0x80, 0x03,0x80, 0x03,0x80, 0x03,0x80, 0x03,0x80, 0x03,0x00,
0x3f,0x00, 0x3c,0x00, 0x0f,0x00, 0x03,0x00, 0x03,0x80, 0x03,0x80, 0x03,0x80, 0x03,0x80,
0x03,0x80, 0x03,0x80, 0x03,0x80, 0x01,0x80, 0x01,0xe0, 0x00,0xf8, 0x00,0x00, 0x00,0x00,
0x00,0x00, 0x00,0x00, 0x00,0x00, 0x01,0x80, 0x01,0x80, 0x01,0x80, 0x01,0x80, 0x01,0x80,
0x01,0x80, 0x01,0x80, 0x01,0x80, 0x01,0x80, 0x01,0x80, 0x01,0x80, 0x01,0x80, 0x01,0x80,
0x01,0x80, 0x01,0x80, 0x01,0x80, 0x01,0x80, 0x01,0x80, 0x01,0x80, 0x01,0x80, 0x01,0x80,
0x01,0x80, 0x01,0x80, 0x01,0x80, 0x01,0x80, 0x01,0x80, 0x01,0x80, 0x00,0x00, 0x00,0x00,
0x00,0x00, 0x00,0x00, 0x00,0x00, 0x00,0x00, 0x00,0x00, 0x00,0x00, 0x1e,0x00, 0x1f,0x80,
0x01,0x80, 0x01,0xc0, 0x01,0xc0, 0x01,0xc0, 0x01,0xc0, 0x01,0xc0, 0x01,0xc0, 0x00,0xc0,
0x00,0xfc, 0x00,0x3c, 0x00,0xe0, 0x00,0xc0, 0x01,0xc0, 0x01,0xc0, 0x01,0xc0, 0x01,0xc0,
0x01,0xc0, 0x01,0xc0, 0x01,0xc0, 0x01,0x80, 0x07,0x80, 0x1f,0x00, 0x00,0x00, 0x00,0x00,
0x00,0x00, 0x00,0x00, 0x00,0x00, 0x00,0x00, 0x00,0x00, 0x00,0x00, 0x00,0x00, 0x00,0x00,
0x00,0x00, 0x00,0x00, 0x00,0x00, 0x00,0x00, 0x00,0x00, 0x00,0x00, 0x00,0x00, 0x1e,0x00,
0x3f,0x06, 0x73,0x86, 0x61,0xfc, 0x60,0xfc, 0x00,0x00, 0x00,0x00, 0x00,0x00, 0x00,0x00,
0x00,0x00, 0x00,0x00, 0x00,0x00, 0x00,0x00, 0x00,0x00, 0x00,0x00, 0x00,0x00, 0x00,0x00,
};

typedef struct _tFont
{
	const uint8_t *table;
	uint16_t Width;
	uint16_t Height;

} sFONT;

sFONT Font16x32 = {
  ASCII16x32_Table,
  16, /* Width */
  32, /* Height */
};
#else//方案B--取模方式:宋体-阴码-逐行式-32*32-顺向(高位在前)
#define dFontsSize32x32 (32*32/8)//格式32*32,字符时宽度/2
//所有取模的字符
uint8_t AsciiLibrary16x32[12][dFontsSize32x32/2 + 1] = {\
	{'0', 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x03, 0xC0, 0x06, 0x20, 0x0C, 0x30, 0x18, 0x18, 0x18, 0x18, 0x18, 0x08, 0x30, 0x0C, 0x30, 0x0C, 0x30, 0x0C, 0x30, 0x0C, \
		0x30, 0x0C, 0x30, 0x0C, 0x30, 0x0C, 0x30, 0x0C, 0x30, 0x0C, 0x30, 0x0C, 0x18, 0x08, 0x18, 0x18, 0x18, 0x18, 0x0C, 0x30, 0x06, 0x20, 0x03, 0xC0, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00 },/*"0",0*/
	{ '1',0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x80,0x01,0x80,0x1F,0x80,0x01,0x80,0x01,0x80,0x01,0x80,0x01,0x80,0x01,0x80,0x01,0x80,0x01,0x80 ,\
		 0x01,0x80,0x01,0x80,0x01,0x80,0x01,0x80,0x01,0x80,0x01,0x80,0x01,0x80,0x01,0x80,0x01,0x80,0x01,0x80,0x03,0xC0,0x1F,0xF8,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00 },/*"1",1*/
	{ '2',0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x07,0xE0,0x08,0x38,0x10,0x18,0x20,0x0C,0x20,0x0C,0x30,0x0C,0x30,0x0C,0x00,0x0C,0x00,0x18,0x00,0x18 ,\
		 0x00,0x30,0x00,0x60,0x00,0xC0,0x01,0x80,0x03,0x00,0x02,0x00,0x04,0x04,0x08,0x04,0x10,0x04,0x20,0x0C,0x3F,0xF8,0x3F,0xF8,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00 },/*"2",2*/
	{ '3',0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x07,0xC0,0x18,0x60,0x30,0x30,0x30,0x18,0x30,0x18,0x30,0x18,0x00,0x18,0x00,0x18,0x00,0x30,0x00,0x60 ,\
		 0x03,0xC0,0x00,0x70,0x00,0x18,0x00,0x08,0x00,0x0C,0x00,0x0C,0x30,0x0C,0x30,0x0C,0x30,0x08,0x30,0x18,0x18,0x30,0x07,0xC0,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00 },/*"3",3*/
	{ '4',0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x60,0x00,0x60,0x00,0xE0,0x00,0xE0,0x01,0x60,0x01,0x60,0x02,0x60,0x04,0x60,0x04,0x60,0x08,0x60 ,\
		 0x08,0x60,0x10,0x60,0x30,0x60,0x20,0x60,0x40,0x60,0x7F,0xFC,0x00,0x60,0x00,0x60,0x00,0x60,0x00,0x60,0x00,0x60,0x03,0xFC,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00 },/*"4",4*/
	{ '5',0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x0F,0xFC,0x0F,0xFC,0x10,0x00,0x10,0x00,0x10,0x00,0x10,0x00,0x10,0x00,0x10,0x00,0x13,0xE0,0x14,0x30 ,\
		 0x18,0x18,0x10,0x08,0x00,0x0C,0x00,0x0C,0x00,0x0C,0x00,0x0C,0x30,0x0C,0x30,0x0C,0x20,0x18,0x20,0x18,0x18,0x30,0x07,0xC0,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00 },/*"5",5*/
	{ '6',0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x01,0xE0,0x06,0x18,0x0C,0x18,0x08,0x18,0x18,0x00,0x10,0x00,0x10,0x00,0x30,0x00,0x33,0xE0,0x36,0x30 ,\
		 0x38,0x18,0x38,0x08,0x30,0x0C,0x30,0x0C,0x30,0x0C,0x30,0x0C,0x30,0x0C,0x18,0x0C,0x18,0x08,0x0C,0x18,0x0E,0x30,0x03,0xE0,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00 },/*"6",6*/
	{ '7',0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x1F,0xFC,0x1F,0xFC,0x10,0x08,0x30,0x10,0x20,0x10,0x20,0x20,0x00,0x20,0x00,0x40,0x00,0x40,0x00,0x40 ,\
		 0x00,0x80,0x00,0x80,0x01,0x00,0x01,0x00,0x01,0x00,0x01,0x00,0x03,0x00,0x03,0x00,0x03,0x00,0x03,0x00,0x03,0x00,0x03,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00 },/*"7",7*/
	{ '8',0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x07,0xE0,0x0C,0x30,0x18,0x18,0x30,0x0C,0x30,0x0C,0x30,0x0C,0x38,0x0C,0x38,0x08,0x1E,0x18,0x0F,0x20 ,\
		 0x07,0xC0,0x18,0xF0,0x30,0x78,0x30,0x38,0x60,0x1C,0x60,0x0C,0x60,0x0C,0x60,0x0C,0x60,0x0C,0x30,0x18,0x18,0x30,0x07,0xC0,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00 },/*"8",8*/
	{ '9',0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x07,0xC0,0x18,0x20,0x30,0x10,0x30,0x18,0x60,0x08,0x60,0x0C,0x60,0x0C,0x60,0x0C,0x60,0x0C,0x60,0x0C ,\
		 0x70,0x1C,0x30,0x2C,0x18,0x6C,0x0F,0x8C,0x00,0x0C,0x00,0x18,0x00,0x18,0x00,0x10,0x30,0x30,0x30,0x60,0x30,0xC0,0x0F,0x80,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00 },/*"9",9*/
	{ '-',0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00 ,\
		 0x7F,0xFE,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00 },/*"-",10*/
	{ '.',0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00 ,\
		 0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x18,0x00,0x3C,0x00,0x3C,0x00,0x18,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00 }/*".",11*/
};

uint8_t FontsList[] = "残梦";//所有取模的汉字
uint8_t FontsLibrary32x32[2][dFontsSize32x32] = {\
	{0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x10,0x00,0x00,0x00,0x1C,0x00,0x00,0x08,0x1B,0x00,0x3F,0xFC,0x18,0xC0,0x03,0x00,0x18,0xE0,0x03,0x00,0x18,0x60,
	 0x02,0x00,0x18,0x40,0x02,0x00,0x18,0x30,0x06,0x00,0x1B,0xF8,0x06,0x0B,0xFC,0x00,0x07,0xFC,0x18,0x00,0x04,0x18,0x18,0x00,0x0C,0x18,0x18,0x18,0x08,0x18,0x19,0xF8,
	 0x0E,0x10,0xFE,0x00,0x13,0x13,0x18,0x20,0x11,0xB0,0x18,0x30,0x21,0x30,0x08,0x60,0x41,0x20,0x0C,0xC0,0x00,0x60,0x0D,0x80,0x00,0x40,0x0F,0x00,0x00,0xC0,0x06,0x00,
	 0x00,0x80,0x0E,0x04,0x01,0x00,0x1B,0x04,0x03,0x00,0x71,0x84,0x06,0x00,0xC0,0xEC,0x08,0x03,0x00,0x7C,0x10,0x1C,0x00,0x3C,0x20,0x00,0x00,0x0C,0x00,0x00,0x00,0x00},/*"残",0*/

	{0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x40,0x08,0x00,0x00,0x70,0x0E,0x00,0x00,0x60,0x0C,0x00,0x00,0x60,0x0C,0x00,0x00,0x64,0x0C,0x30,0x1F,0xFE,0xFF,0xF8,
	 0x00,0x61,0x1E,0x00,0x00,0xF0,0x1E,0x00,0x00,0xEC,0x3D,0x00,0x01,0xEE,0x3C,0x80,0x03,0x66,0x6C,0xE0,0x02,0x60,0xCC,0x70,0x04,0x61,0x0C,0x3C,0x08,0x62,0x0C,0x10,
	 0x30,0x64,0x0C,0x00,0x00,0x4E,0x08,0x00,0x00,0x0C,0x00,0x80,0x00,0x1F,0xFF,0xC0,0x00,0x30,0x01,0xC0,0x00,0x60,0x03,0x80,0x00,0xD0,0x07,0x00,0x01,0x8C,0x0E,0x00,
	 0x02,0x06,0x1C,0x00,0x0C,0x06,0x30,0x00,0x10,0x04,0xE0,0x00,0x00,0x03,0x80,0x00,0x00,0x1E,0x00,0x00,0x00,0xF0,0x00,0x00,0x3F,0x00,0x00,0x00,0x00,0x00,0x00,0x00}/*"梦",1*/
};
#endif

static void LCD_ZoomChar(uint16_t in_width,uint16_t in_heig,uint16_t out_width,uint16_t out_heig,uint8_t *in_ptr,uint8_t *out_ptr,uint8_t en_cn);
static void LCD_DrawChar_Ex(uint16_t usX,uint16_t usY,uint16_t Font_width,uint16_t Font_Height,uint8_t *c,uint16_t DrawModel);
static int LCD_DisplaySchemeB_GetAscii(uint8_t ascii, uint16_t *pos);
static int LCD_DisplaySchemeB_GetFonts(uint16_t fonts, uint16_t *pos);

#define ZOOMMAXBUFF 16384//128*128
uint8_t zoomBuff[ZOOMMAXBUFF] = { 0 };	//用于缩放的缓存，最大支持到128*128
uint8_t zoomTempBuff[1024] = { 0 };
/**
 * @brief  缩放字模，缩放后的字模由1个像素点由8个数据位来表示
										0x01表示笔迹，0x00表示空白区
 * @param  in_width ：原始字符宽度
 * @param  in_heig ：原始字符高度
 * @param  out_width ：缩放后的字符宽度
 * @param  out_heig：缩放后的字符高度
 * @param  in_ptr ：字库输入指针	注意：1pixel 1bit
 * @param  out_ptr ：缩放后的字符输出指针 注意: 1pixel 8bit
 *		out_ptr实际上没有正常输出，改成了直接输出到全局指针zoomBuff中
 * @param  en_cn ：0为英文，1为中文
 * @retval 无
 */
static void LCD_ZoomChar(uint16_t in_width,	//原始字符宽度
	uint16_t in_heig,		//原始字符高度
	uint16_t out_width,	//缩放后的字符宽度
	uint16_t out_heig,	//缩放后的字符高度
	uint8_t *in_ptr,	//字库输入指针	注意：1pixel 1bit
	uint8_t *out_ptr, //缩放后的字符输出指针 注意: 1pixel 8bit
	uint8_t en_cn)		//0为英文，1为中文
{
	uint8_t *pts, *ots;
	//根据源字模及目标字模大小，设定运算比例因子，左移16是为了把浮点运算转成定点运算
	unsigned int xrIntFloat_16 = (in_width << 16) / out_width + 1;
	unsigned int yrIntFloat_16 = (in_heig << 16) / out_heig + 1;

	unsigned int srcy_16 = 0;
	unsigned int y, x;
	uint8_t *pSrcLine;

	uint16_t byteCount, bitCount;

	//检查参数是否合法
	if (in_width > 48) return;												//字库不允许超过48像素
	if (in_width * in_heig == 0) return;
	if (in_width * in_heig > 48 * 48) return; 					//限制输入最大 48*48

	if (out_width * out_heig == 0) return;
	if (out_width * out_heig >= ZOOMMAXBUFF) return; //限制最大缩放 128*128
	pts = (uint8_t*)&zoomTempBuff;

	//为方便运算，字库的数据由1 pixel/1bit 映射到1pixel/8bit
	//0x01表示笔迹，0x00表示空白区
	if (en_cn == 0x00)//英文
	{
		//英文和中文字库上下边界不对，可在此处调整。需要注意tempBuff防止溢出
		for (byteCount = 0; byteCount < in_heig*in_width / 8; byteCount++)
		{
			for (bitCount = 0; bitCount < 8; bitCount++)
			{
				//把源字模数据由位映射到字节
				//in_ptr里bitX为1，则pts里整个字节值为1
				//in_ptr里bitX为0，则pts里整个字节值为0
				*pts++ = (in_ptr[byteCount] & (0x80 >> bitCount)) ? 1 : 0;
			}
		}
	}
	else //中文
	{
		for (byteCount = 0; byteCount < in_heig*in_width / 8; byteCount++)
		{
			for (bitCount = 0; bitCount < 8; bitCount++)
			{
				//把源字模数据由位映射到字节
				//in_ptr里bitX为1，则pts里整个字节值为1
				//in_ptr里bitX为0，则pts里整个字节值为0
				*pts++ = (in_ptr[byteCount] & (0x80 >> bitCount)) ? 1 : 0;
			}
		}
	}

	//zoom过程
	pts = (uint8_t*)&zoomTempBuff;	//映射后的源数据指针
	ots = (uint8_t*)&zoomBuff;	//输出数据的指针
	for (y = 0; y < out_heig; y++)	/*行遍历*/
	{
		unsigned int srcx_16 = 0;
		pSrcLine = pts + in_width * (srcy_16 >> 16);
		for (x = 0; x < out_width; x++) /*行内像素遍历*/
		{
			ots[x] = pSrcLine[srcx_16 >> 16]; //把源字模数据复制到目标指针中
			srcx_16 += xrIntFloat_16;			//按比例偏移源像素点
		}
		srcy_16 += yrIntFloat_16;				  //按比例偏移源像素点
		ots += out_width;
	}
	/*！！！缩放后的字模数据直接存储到全局指针zoomBuff里了*/
	out_ptr = (uint8_t*)&zoomBuff;	//out_ptr没有正确传出，后面调用直接改成了全局变量指针！

	/*实际中如果使用out_ptr不需要下面这一句！！！
		只是因为out_ptr没有使用，会导致warning。强迫症*/
	out_ptr++;
}

/**
 * @brief  利用缩放后的字模显示字符
 * @param  Xpos ：字符显示位置x
 * @param  Ypos ：字符显示位置y
 * @param  Font_width ：字符宽度
 * @param  Font_Heig：字符高度
 * @param  c ：要显示的字模数据
 * @param  DrawModel ：是否反色显示
 * @retval 无
 */
static void LCD_DrawChar_Ex(uint16_t usX, //字符显示位置x
	uint16_t usY, //字符显示位置y
	uint16_t Font_width, //字符宽度
	uint16_t Font_Height,//字符高度
	uint8_t *c,			//字模数据
	uint16_t DrawModel)	//是否反色显示
{
	uint32_t index = 0, counter = 0;
	uint16_t x = 0, y = 0;

	//按字节读取字模数据
	//由于前面直接设置了显示窗口，显示数据会自动换行
	for (index = 0; index < Font_Height; index++)
	{
		y++; x = 0;
		if ((usY + y) >= dLCD_Height)return;
		//一位一位处理要显示的颜色
		for (counter = 0; counter < Font_width; counter++)
		{
			//缩放后的字模数据，以一个字节表示一个像素位
			//整个字节值为1表示该像素为笔迹
			//整个字节值为0表示该像素为背景
			if (*c++ == DrawModel)printf("*");
			//LCD_Fast_DrawPoint(usX + x, usY + y, POINT_COLOR);
			else
				printf(" ");//LCD_Fast_DrawPoint(usX + x, usY + y, BACK_COLOR);
			x++;
			if ((usX + x) >= dLCD_Width)return;
		}
		printf("\n");
	}
}

#if dDislay_Scheme == 0
/****************************************************
@function:在库中查找ascii的位置
@param:ascii--待查找字符
		pos--库中位置
@return:-1--不存在，0--查找成功
@note:
****************************************************/
static int LCD_DisplaySchemeB_GetAscii(uint8_t ascii,uint16_t *pos)
{
	unsigned int FontsLibrarySize = 0, i = 0;
	unsigned char status = 0;

	//判断字符在库中存在不
	FontsLibrarySize = sizeof(AsciiLibrary16x32) / (dFontsSize32x32/2 + 1);
	i = 0;
	status = 0;
	while (i < FontsLibrarySize)
	{
		if (ascii == AsciiLibrary16x32[i][0]) { status = 1; break; }
		i++;
	}
	if (status == 0) return -1; //不存在
	*pos = i;
	return 0;
}

/****************************************************
@function:在库中查找fonts的位置
@param:fonts--待查找字符
		pos--库中位置
@return:-1--不存在，0--查找成功
@note:
****************************************************/
static int LCD_DisplaySchemeB_GetFonts(uint16_t fonts, uint16_t *pos)
{
	unsigned int FontsLibrarySize = 0, i = 0;
	unsigned char status = 0;
	uint16_t usCh = 0;  //中文

	//判断字符在库中存在不
	FontsLibrarySize = (sizeof(FontsList) - 1) / 2;
	i = 0;
	status = 0;
	while (i < FontsLibrarySize)
	{
		usCh = *(uint16_t *)(&FontsList[i*2]);
		usCh = (usCh << 8) + (usCh >> 8);
		if (usCh == fonts) { status = 1; break; }
		i++;
	}
	if (status == 0) return -1; //不存在
	*pos = i;
	return 0;
}
#endif

/****************************************************
@function:显示中英文字符串
@param: x,y--显示位置
		FontsWidth,FontsHeight--字体宽度、高度，最大128*128
		ptr--待显示的字符串
		DrawModel--是否反色显示
@return:-1--不存在，0--查找成功
@note:LCD_DisplayString(0, 0, 64, 64, (uint8_t *)"4梦0", 1);
****************************************************/
void LCD_DisplayZoomString(uint16_t x, uint16_t y, uint16_t FontsWidth, uint16_t FontsHeight, uint8_t *ptr, uint16_t DrawModel)
{
	uint8_t status = 0;

	uint16_t Charwidth = FontsWidth; //默认为Font_width，英文宽度为中文宽度的一半
	uint8_t *psr = NULL;
	uint16_t usCh = 0;  //中文
	uint8_t Ascii = 0;	//英文
	uint8_t *pAddress = NULL;
	uint16_t pos = 0;

	while (*ptr != '\0')
	{
		if (*ptr > 0x80)//如果是中文
		{
			Charwidth = FontsWidth;
			usCh = *(uint16_t *)ptr;
			usCh = (usCh << 8) + (usCh >> 8);
			status = 0;
			#if dDislay_Scheme
			{

			}
			#else
			{
				if (LCD_DisplaySchemeB_GetFonts(usCh, &pos) == 0)//去取模的库中查找
				{
					status = 1;
					pAddress = FontsLibrary32x32[pos];
				}
			}
			#endif

			//显示此中文
			if (status == 1)
			{
				LCD_ZoomChar(32, 32, Charwidth, FontsHeight, pAddress, psr, 0);//使用32*32字体缩放字模数据
				LCD_DrawChar_Ex(x, y, Charwidth, FontsHeight, (uint8_t*)&zoomBuff, DrawModel);//显示单个字符
			}
			x += Charwidth;
			ptr += 2;
		}
		else
		{
			Charwidth = FontsWidth / 2;
			Ascii = *ptr;

			status = 0;
			#if dDislay_Scheme
			{
				pAddress = (uint8_t *)&Font16x32.table[(Ascii - 32) * Font16x32.Height*Font16x32.Width / 8];
				status = 1;
			}
			#else
			{
				if (LCD_DisplaySchemeB_GetAscii(Ascii, &pos) == 0)
				{
					status = 1;
					pAddress = &AsciiLibrary16x32[pos][1];
				}
			}
			#endif

			if (status == 1)
			{
				LCD_ZoomChar(16, 32, Charwidth, FontsHeight, pAddress, psr, 0);//使用16*32字体缩放字模数据
				LCD_DrawChar_Ex(x, y, Charwidth, FontsHeight, (uint8_t*)&zoomBuff, DrawModel);//显示单个字符
			}
			x += Charwidth;
			ptr++;
		}
	}
}

使用示例：


int main()
{
	LCD_DisplayZoomString(0, 0, 64, 64, (uint8_t *)"4梦0123456789-.", 1);
	while (1);
}

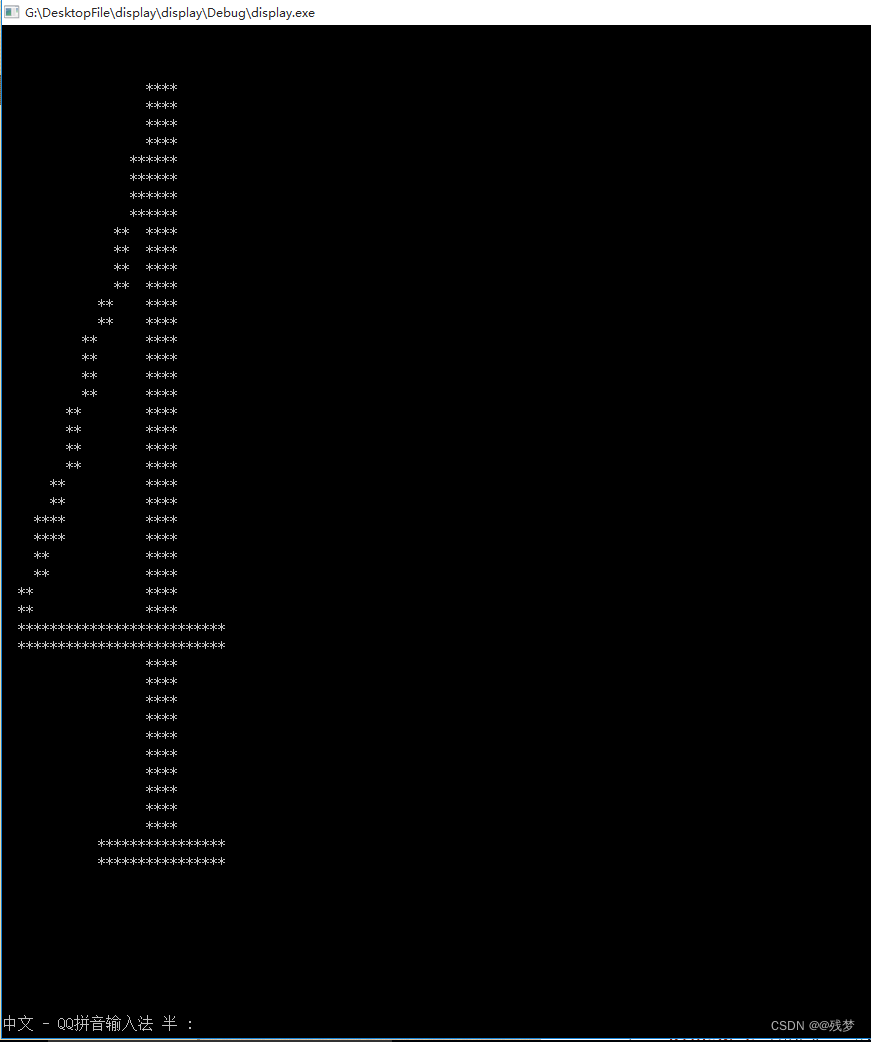

在这里插入图片描述

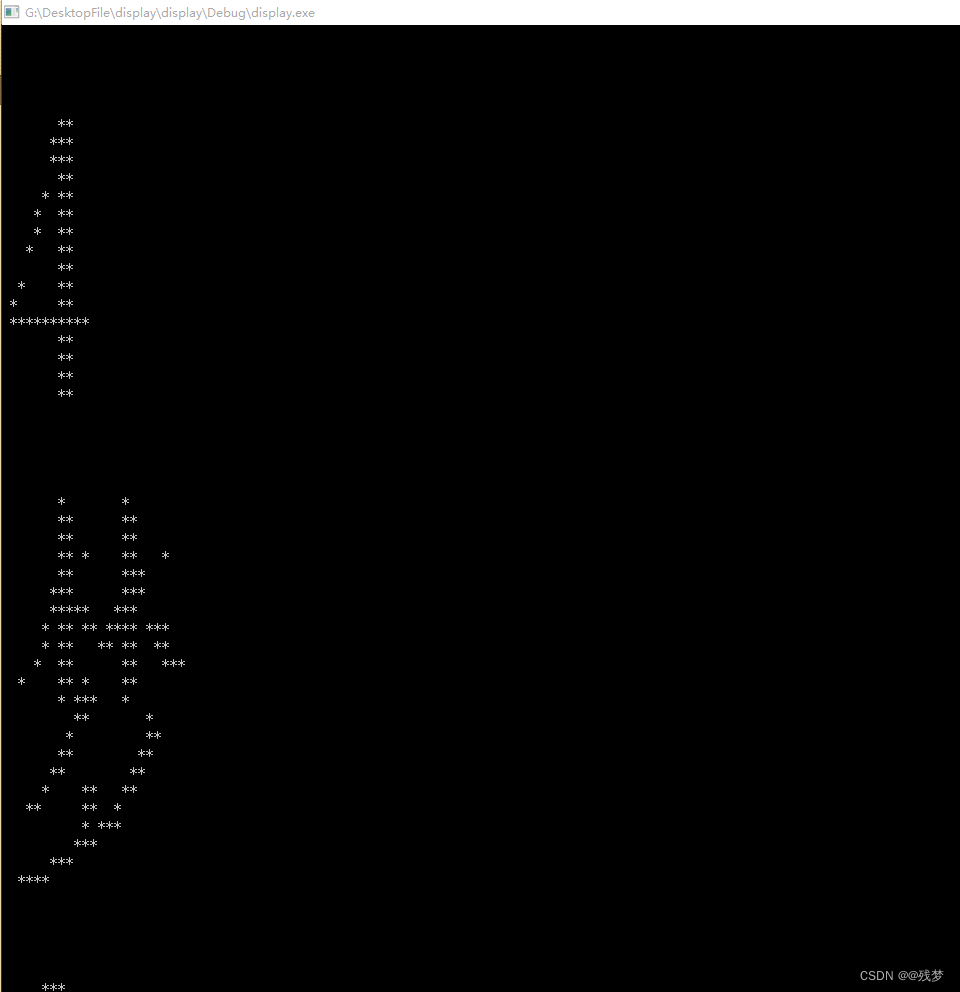

在这里插入图片描述

@残梦
关注
  • 1
    点赞
  • 踩
  • 3
    收藏
    觉得还不错? 一键收藏
  • 0
    评论
专栏目录
OLED取字模软件设置
You are more than what you have become
08-22 908
很久没有用这个软件取字模了，又忘了，故此记录一下
LCD/ OLED开发字符图像取模工具
01-02
亲测相当好用的LCD/ OLED开发字符图像取模工具!!
OLED非等宽字体格式
晨之清风
07-07 1321
OLED非等宽字体格式 陈拓 2021/07/02-2021/07/07 1. 概述 用Arduino IDE进行ESP32和ESP8266开发时可以使用内置字体： 这3种字体都是非等宽的，在OLED这样的小屏幕上非等宽字体可以显示更多的字符，也更美观。 如果我们使用ESP-IRF进行ESP32开发，或者用RTOS SDK进行ESP8266开发时要使用这些字体就需要自己写OLED的显示驱动。因此我们需要了解这些非等宽字体的结构。 在Arduino IDE安装目录下的 Arduino\a
oled使用u8g2取字模
qq_33593411的博客
10-22 1087
#include <U8g2lib.h>//ui库 U8G2_SH1106_128X64_NONAME_F_SW_I2C u8g2(U8G2_R0, /*SCL*/ GPIO_NUM_5, /*SDA*/ GPIO_NUM_18, /*reset*/ U8X8_PIN_NONE);//构造 #define XO 10 //重量信息 12*12 uint8_t weight_str[][32] = { {0x30,0x00,0xF0,0x03,0x1B,0x03,0x8...
STM32_OLED应用
m0_49968063的博客
05-03 407
OLED == Organic Light Emitting Diode == 有机发光二极管；首先它是LED，跟常见的发光二极管一样，都是通电流就发光；这个“有机”指的是有机涂层，这个图层可以很薄，通电就发光；早在20世纪50年代，法国科学家安德烈・贝纳诺斯就开始研究OLED技术，所以称他为“OLED之父”；最早实用性OLED是在1987年，美籍华人邓青云和另一个美国人一起发现的；“有机发光二极管”这个中文名字也是邓青云起的。
msp430单片机oled汉字字模_OLED显示屏
weixin_28752627的博客
12-09 1054
前言目前单片机、机器人或者嵌入式常用的就是LCD或者OLED屏，在前面的一篇文章里已经详细的介绍了LCD1602，在以下内容里我会详细介绍一下。普遍来说，OLED显示屏的使用会比LCD显示屏麻烦一些，所以我在介绍LCD1602的时候使用用51单片机，而在这篇介绍OLED显示屏里会用STM32。一、介绍基本简介OLED(Organic Light-Emitting Diode，又称有机电激...
lcd.zip_lcd显示字符
09-15
lc显示字符，LCD12864带字库，型号：CM12864-12.其相关数据手册可以在百度中搜索“ST7920 系列中文图形液晶模块使用说明书”，里面有详细的介绍。这里就不在多描述。
lcd.rar_LCD 循环显示_字符 闪烁
09-24
超级强大的lcd仿真！...利用lcd显示数字、字母、符号、英文字符串！ 可以随意设定显示的位置，字符串显示起始位置！ 并且包含闪烁显示、循环显示、移动显示、自动换行显示！ 功能超强大！！！！！！！！！！！
用LCD显示字符'A'-综合文档
05-23
用LCD显示字符'A'
LCD显示移动字符代码
08-15
本文介绍的是LCD显示移动字符代码。要求LCD移动显示字符，从右至左移出，然后闪烁四次，不断循环。
VC 图像几何变换、图像平移、垂直水平镜像、图像转置、图像缩放、图像旋转
03-20
实现灰度图像的几何变换、图像平移、垂直水平镜像、图像转置、图像缩放、图像旋转
汉字字模点阵数据批量生成工具_suki_v5.0破解版
01-22
汉字字模点阵数据批量生成工具支持 1024x1024以内的任意点阵汉字支持 所有Windows汉字字体设置支持 汉字大小调整 支持 汉字位置调整 支持 单个汉字字模生成 支持 海量汉字批量字模生成 支持 按汉语拼音排序 支持 横扫纵扫两种扫描方式生成数据 支持 8位一组”Z”扫描方式支持 4-32bit多种数据长度分组选择 支持 字模数据取反 支持 字节按位倒置 支持 汉语拼音自动命名C语言数组格式 支持 汉语拼音自动命名汇编语言标号DB表格式 支持 自动编号数组命名及自动编号汇编DB表命名方式 支持 图片Logo点阵数据生成 支持 二进制数据字库DAT和BIN 文件的生成 支持 二进制字库文件索引(两个字节索引) 支持 GB2312 字符集选择导入及字库生成 支持 GBK字符集选择导入及字库生成(仅供参考) 支持繁简字体自由转换 支持 单字节字符 支持 RS232串口通讯、可把字模数据发送到移动存储设备集成汉字自动识别功能，清除非汉字字符，提取汉字功能 适合用于产生点阵LED大屏幕、LCD液晶汉字字模，可用作开发辅助工具，得到精减汉字库，节约有限的ROM空间资源。也可用作带点阵LCD显示系统的汉化工具或其它需要汉字点阵数据的地方。 绿色破解版
文字大小 文字库设计 文字放大算法 字模 放大
03-17
文字大小 文字库设计 文字放大算法， 能够将文字字模整数倍放大的算法。
点阵纵向取模以及放大算法
君莫笑
09-16 7250
这两天在调d'y
OLED显示字符的大小与PCtoLCD2002生成字模
weixin_46768944的博客
09-02 7903
OLED显示字符的大小与PCtoLCD2002生成字模 首次尝试性写博客，如果错误或不足请大家指正 如有涉及相关版权的问题，联系我删除 前言： 为什么为了一个小小的OLED写这些乱七八糟的东西，还得花时间写，还要花时间看资料，直接调用代码就可以了 示例：OLED_ShowString(8,2,“Hello Word !”,16); //size:16/12 即可显示成功 引用我老师的一句话“学习，不是追求速度的，是追求质量的” 我在学习，不是在工作 OLED显示字符大小 常用的0.96寸OLED显示屏分辨
正点原子STM32驱动LCD屏显示不同大字体 32*32 48*48 64*64，包含少见的32*32的ASICII字符集点阵
最新发布
chungz的博客
10-22 566
近期重新上手学校课设需要驱动32的lcd屏，发现这么简单的东西居然花费了好几天，特此分享出来供大家参考。例程以正点原子官方例程为模板.第一次写博客，如有不便之处还请大家多多包涵，有什么问题的话也欢迎大家评论区讨论。主要效果如下：显示几种字体的 “路由器” （忽略中间那些无伤大雅的东西）
关于图像快速缩放算法，目前看到的最好的最清晰的一篇文章
爱她就要努力
06-20 4024
昨天开始写一个录制屏幕和声音存储为视频文件的程序，差不多完成了。 屏幕录制使用方法：抓屏（方法很多，BitBlt、DirectX、MirrorDriver等），缩放，X264压缩（开源的，自己封装） 声音录制使用方法：声卡采集PCM数据，AAC压缩（开源的，自己封装） 最后 打包复用为MP4文件 ，可以使用ffmpeg或者mp4v2等。 经过断断续续一天的时间，程序基本写好了，效果还
字符字库在oled屏上显示
09-27
在 OLED 屏上显示字符字库时，还可以进行一些其他的操作，如字符的平移、旋转、缩放等。这些操作可以通过程序中的相应函数来实现，以便调整字符在屏幕上的位置和大小。 总结起来，字符字库通过调用程序中的相应函数...

“相关推荐”对你有帮助么？

  • 非常没帮助
  • 没帮助
  • 一般
  • 有帮助
  • 非常有帮助
提交
评论
添加红包

请填写红包祝福语或标题

个

红包个数最小为10个

元

红包金额最低5元

当前余额3.43元 前往充值 >
需支付：10.00元
成就一亿技术人!
领取后你会自动成为博主和红包主的粉丝 规则
hope_wisdom
发出的红包
实付元
使用余额支付
点击重新获取
扫码支付
钱包余额 0

抵扣说明：

1.余额是钱包充值的虚拟货币，按照1:1的比例进行支付金额的抵扣。
2.余额无法直接购买下载，可以购买VIP、付费专栏及课程。

余额充值
